ZX200 SWING DEVICE 9196963 9184510 SWING GEARBOX WITH MOTOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 ZX200 SWING DEVICE
Equipment Apply to HITACHI EXCAVATOR
Part no. 9196963 9184510
Frame holes 20
Sprocket holes 24
Item condition New
Logo LB
Gross weight 460KG
MOQ 1 pc


Product Description
ZX240-3(3)

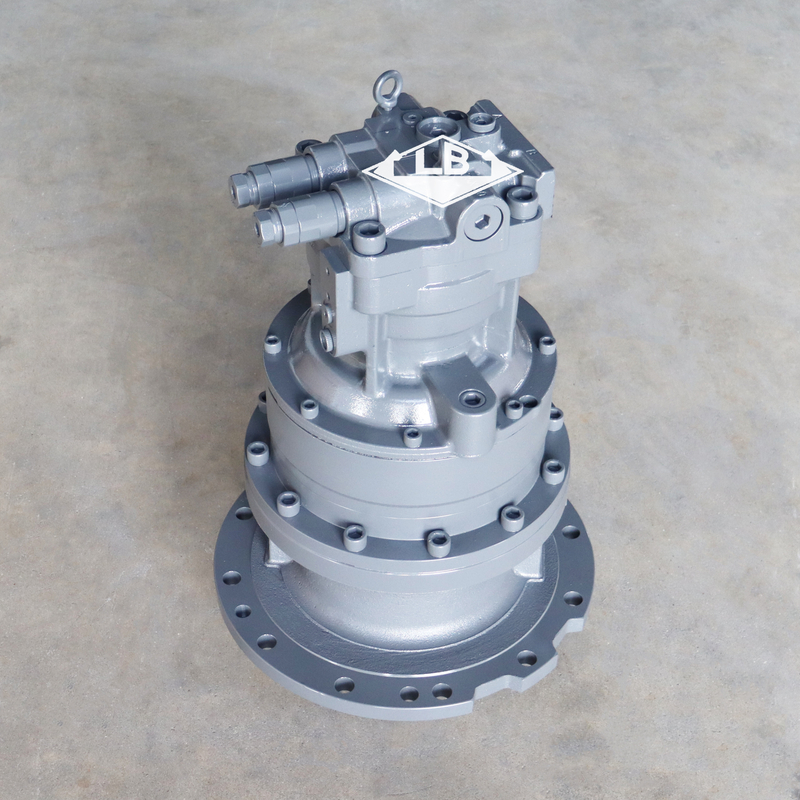

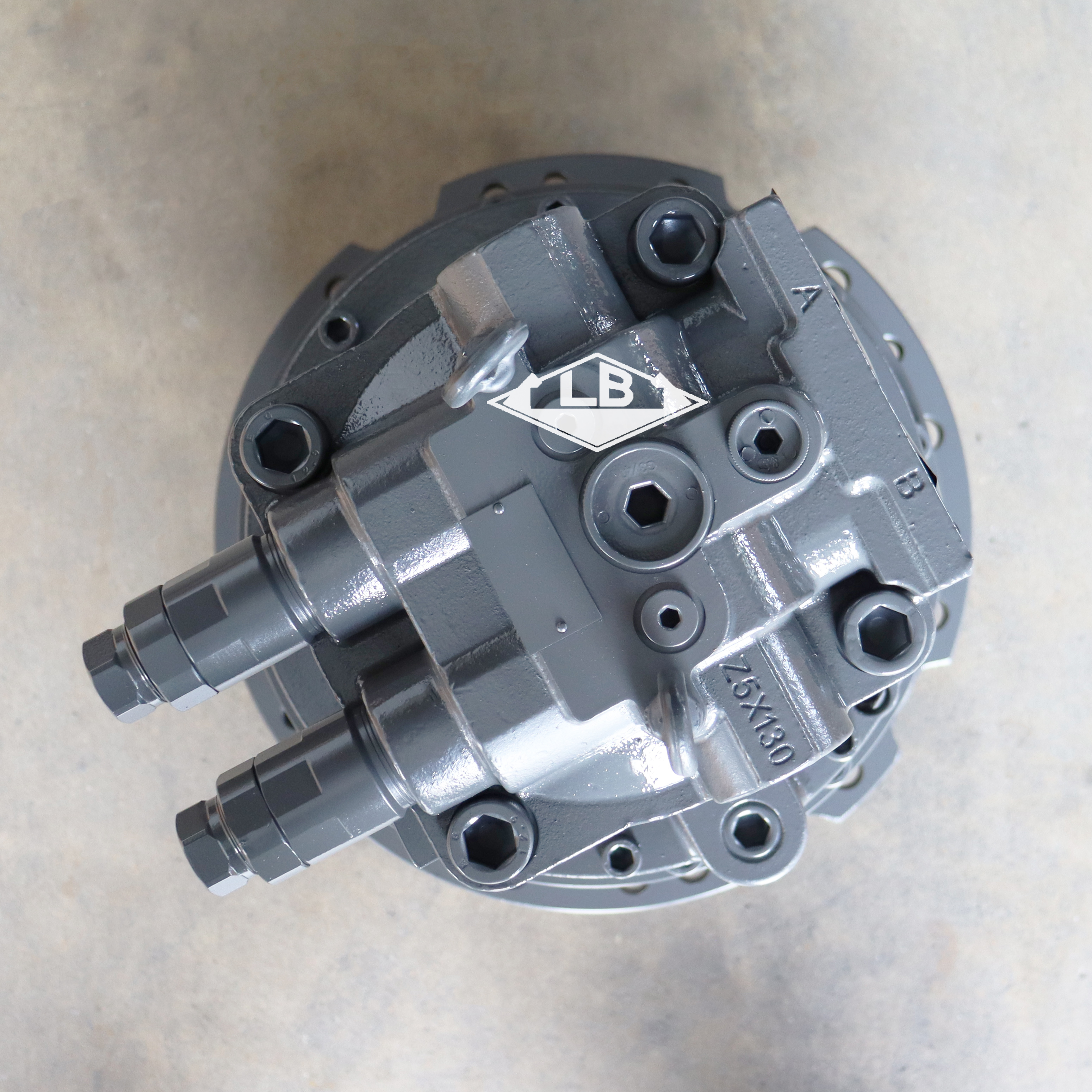

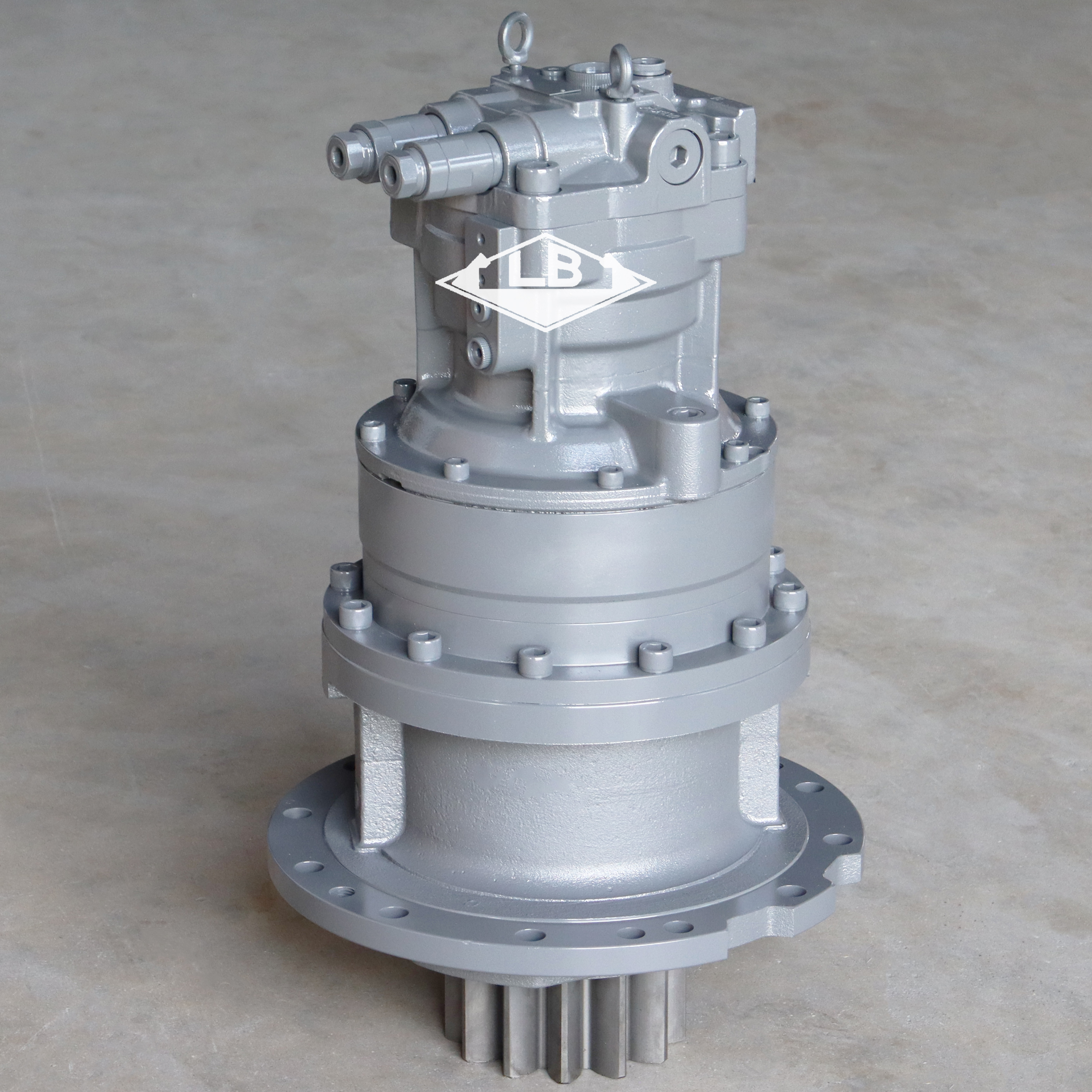

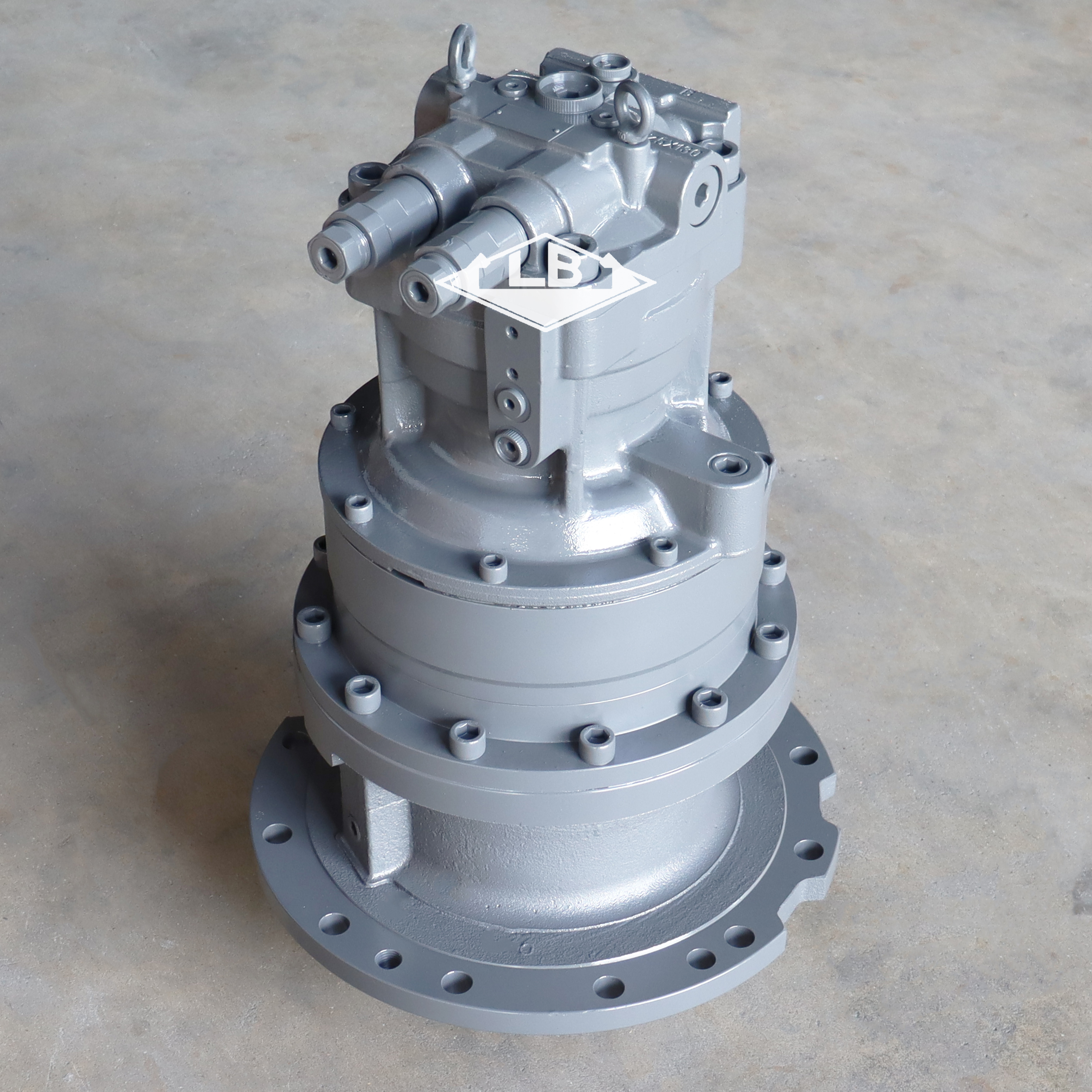

ZX200 回转马达总成(2)ZX200 回转马达总成(6)ZX200 回转马达总成(8)ZX200 回转马达总成(4)ZX200 回转马达总成

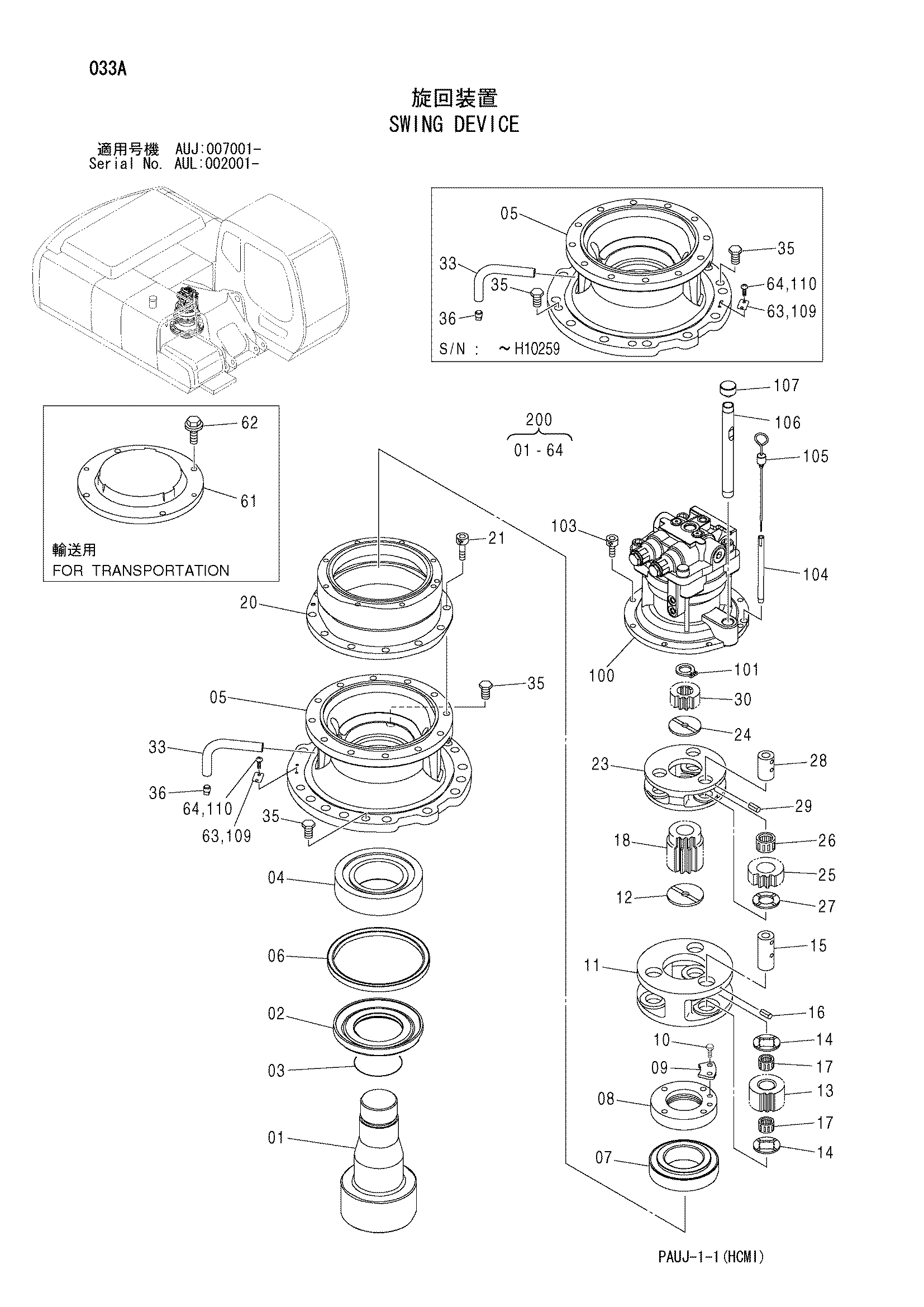

Parts on group SWING DEVICE:

Pos. Part No Qty Parts name Comments
01. 2044634 [1] SHAFT;PROP.
02. 3083742 [1] SLEEVE
03. A811120 [1] O-RING
04. 4402481 [1] BRG.;ROL.
05. 1027617 [1] HOUSING Y 1032876
05. 1032876 [1] HOUSING
06. 4411535 [1] SEAL;OIL
07. 4402637 [1] BRG.;ROL.
08. 3086064 [1] NUT
09. 4411122 [1] PLATE;LOCK
10. J901020 [2] BOLT
11. 1026662 [1] CARRIER
12. 4187590 [1] PLATE;THRUST
13. 3084729 [3] GEAR;PLANETARY
14. 4336929 [6] PLATE;THRUST
15. 4336925 [3] PIN I 4488904
15. 4488904 [3] PIN
16. 4027427 [3] PIN;SPRING
17. 4427630 [6] BRG.;NEEDLE I 4461644
17. 4461644 [6] BRG.;NEEDLE
17. 4631475 [6] BRG.;NEEDLE I 4461644
18. 3080912 [1] GEAR;SUN
20. 1025957 [1] GEAR;RING
21. M341645 [12] BOLT;SOCKET
23. 1025912 [1] CARRIER
24. 4403371 [1] PLATE;THRUST
25. 3082517 [3] GEAR;PLANETARY
26. 4404506 [3] BRG.;NEEDLE
27. 4403082 [3] PLATE;THRUST
28. 4336923 [3] PIN
29. 4051262 [3] PIN;SPRING
30. 3084056 [1] GEAR;SUN
33. 3089362 [1] PIPE
35. 4445352 [2] PLUG
36. 94-2012 [1] PLUG
61. 3090308 [1] COVER (for transportation)
62. J011230 [4] BOLT;SEMS
62. J271230 [4] BOLT;SEMS T J901230




J222012 (for transportation)
63. 3053093 [1] NAME-PLATE (for transportation)
64. M492564 [2] SCREW;DRIVE (for transportation)
100. 4398514 [1] MOTOR;OIL
101. 991342 [1] RING;RETAINING
103. M341228 [8] BOLT;SOCKET I 4614096
103. 4614096 [8] BOLT;SOCKET
104. 4264452 [1] PIPE
105. 3074223 [1] GAUGE;LEVEL
106. 4332658 [1] PIPE
107. 4343365 [1] CAP
109. 3053093 [1] NAME-PLATE
110. M492564 [2] SCREW;DRIVE
200. 9196963 [1] SWING DEVICE (WITHOUT MOTOR)
