| Quantity: | |
|---|---|

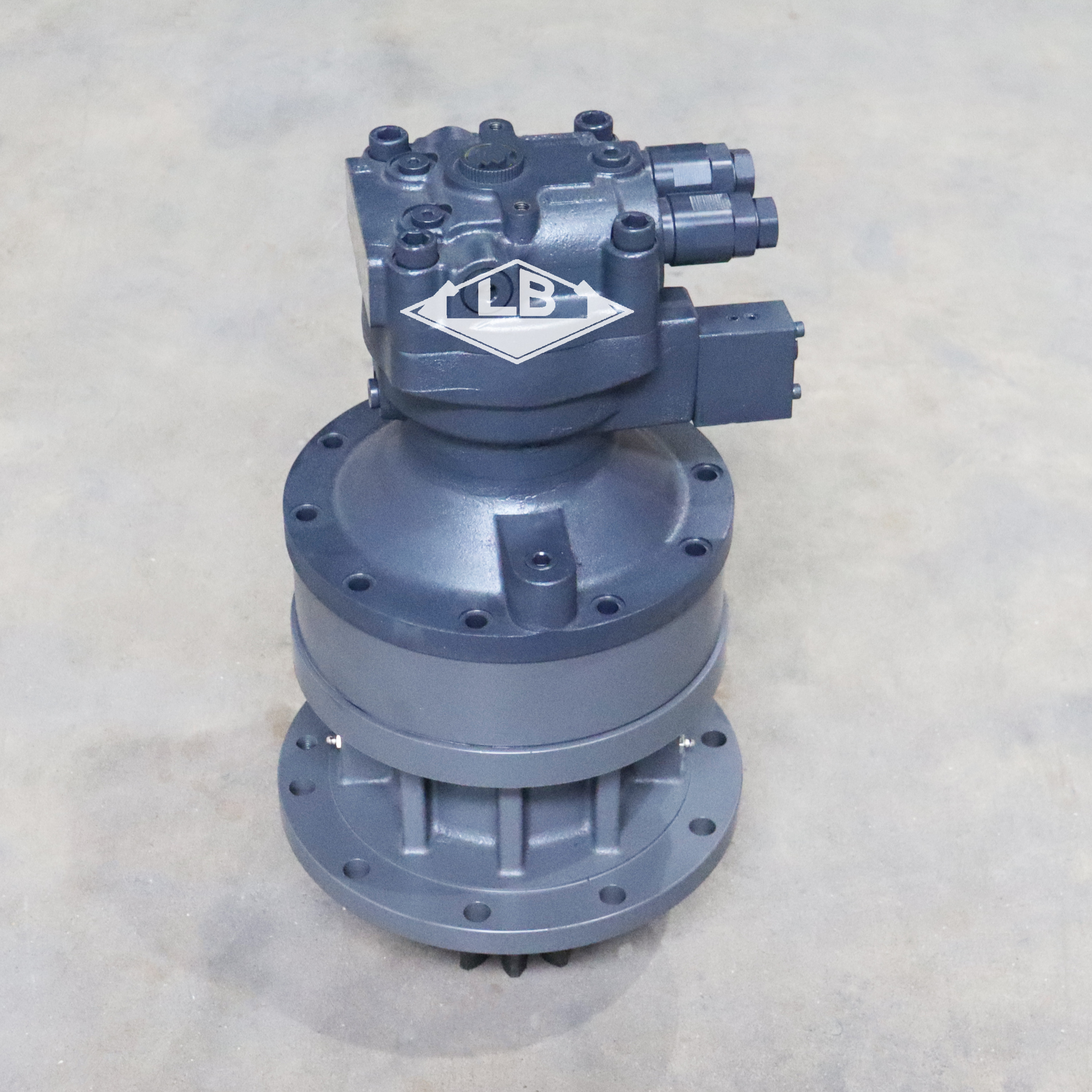

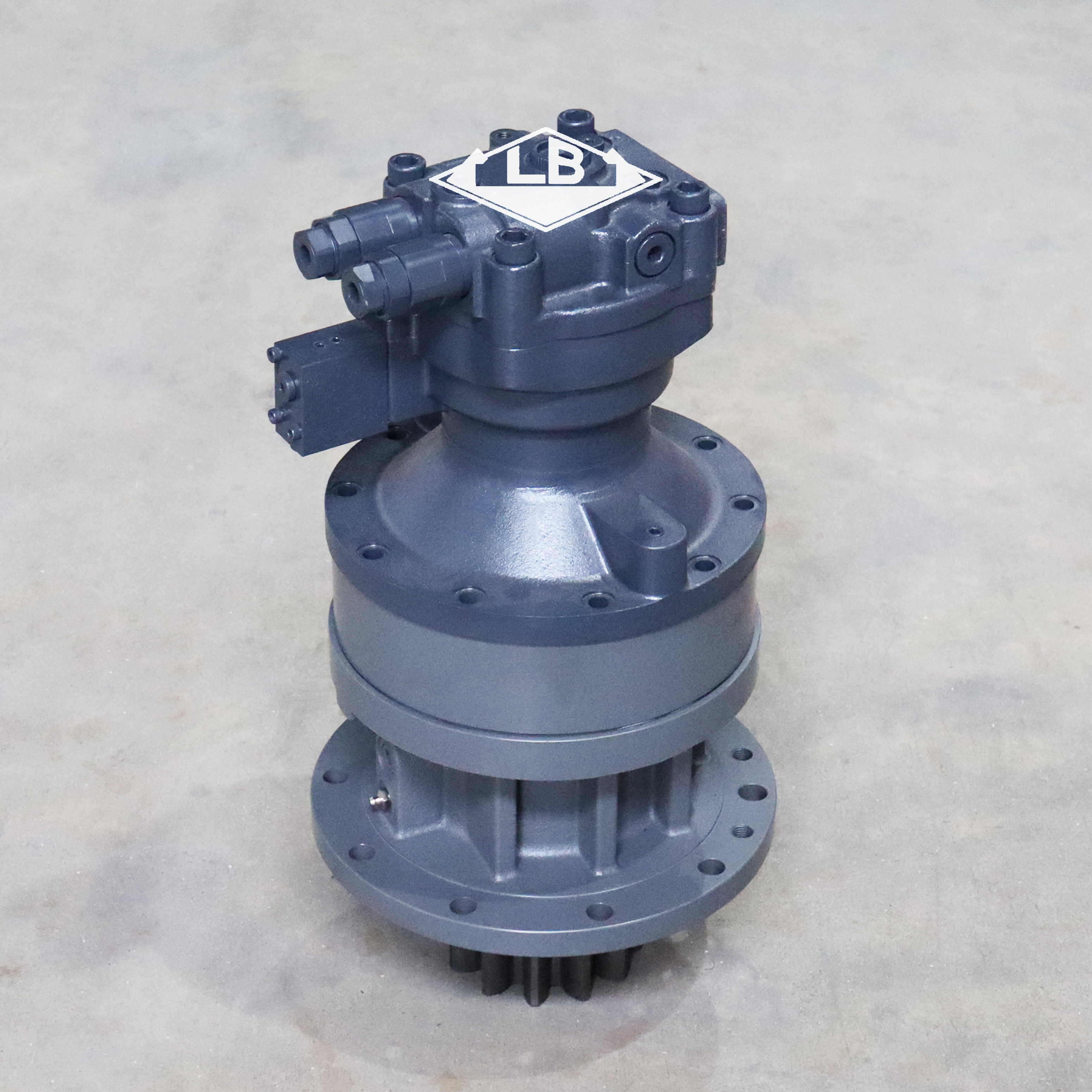

| Part name | EC135 EC140 SWING DRIVE | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14507899 VOE14541065 | |||||
| NO.1 sun gear spline teeth | 13 splines | |||||
| Swing pinion shaft teeth | 12 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 45 KG | |||||
| MOQ | 1 pc | |||||

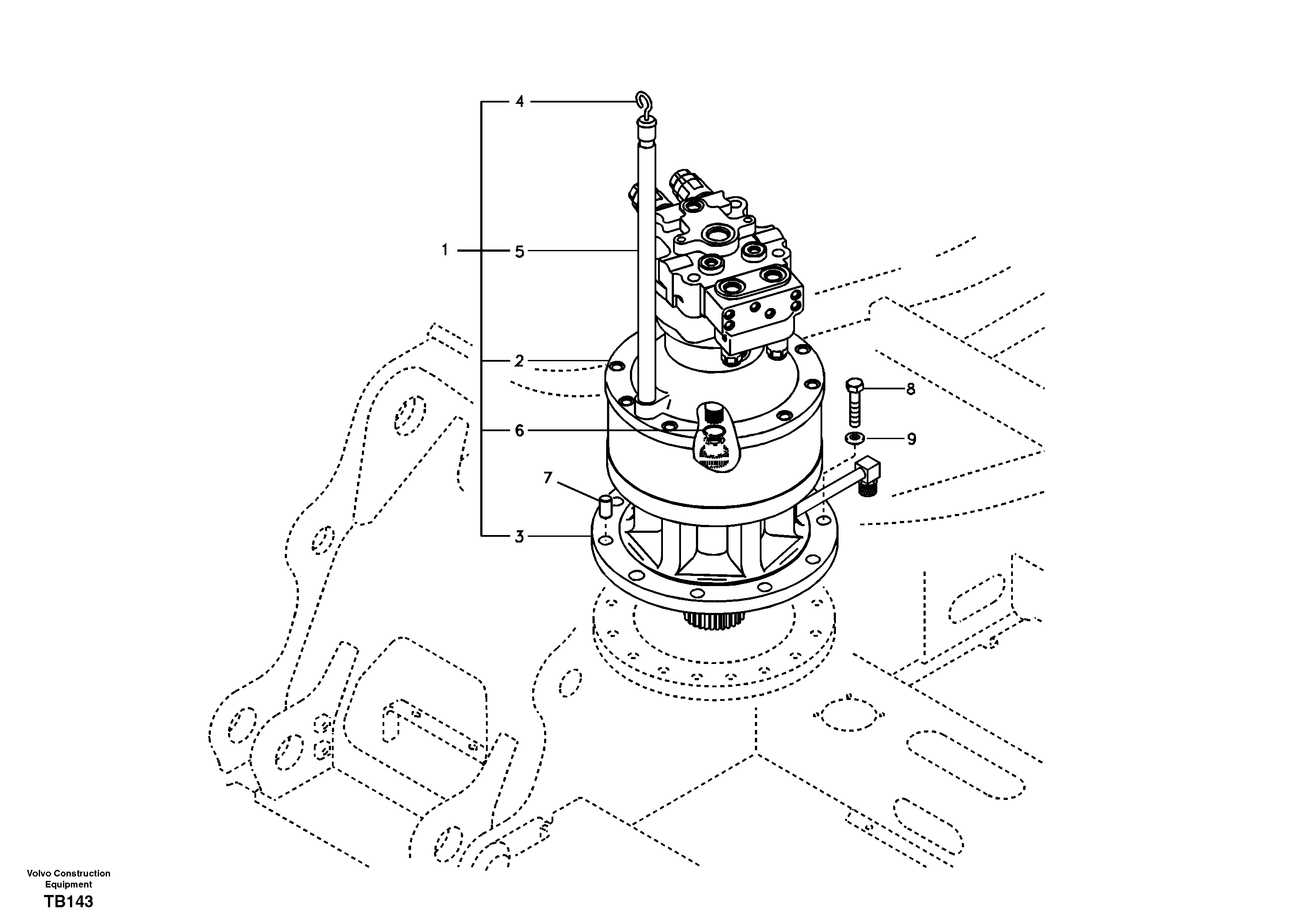

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | VOE14507899 | [1] | Drive unit | S/N 10001-11940 S/N 20001-20374 |
| VOE14541065 | [1] | Drive unit | S/N 11941- S/N 20375- | |
| 2. | VOE14524188 | [1] | Swing motor | |
| 3. | VOE14507900 | [1] | Transmission | S/N 10001-11940 S/N 20001-20374 |
| VOE14541064 | [1] | Swing gearbox | S/N 11941- S/N 20375- | |
| 4. | VOE14512936 | [1] | Gauge | |
| 5. | VOE14512938 | [1] | Pipe | |
| 6. | VOE914462 | [1] | Snap ring | |
| 7. | SA1050-63611 | [1] | Pin | |
| 8. | VOE60110356 | [9] | Hexagon screw | |
| 9. | VOE60110299 | [9] | Washer |
