E318 E319 E320 SWING NO2 CARRIER 148-4637 1484637 SWING GEARBOX SAPRE PARTS FOR CAT EXCAVATOR

PRODUCT PARAMETERS

Product Description

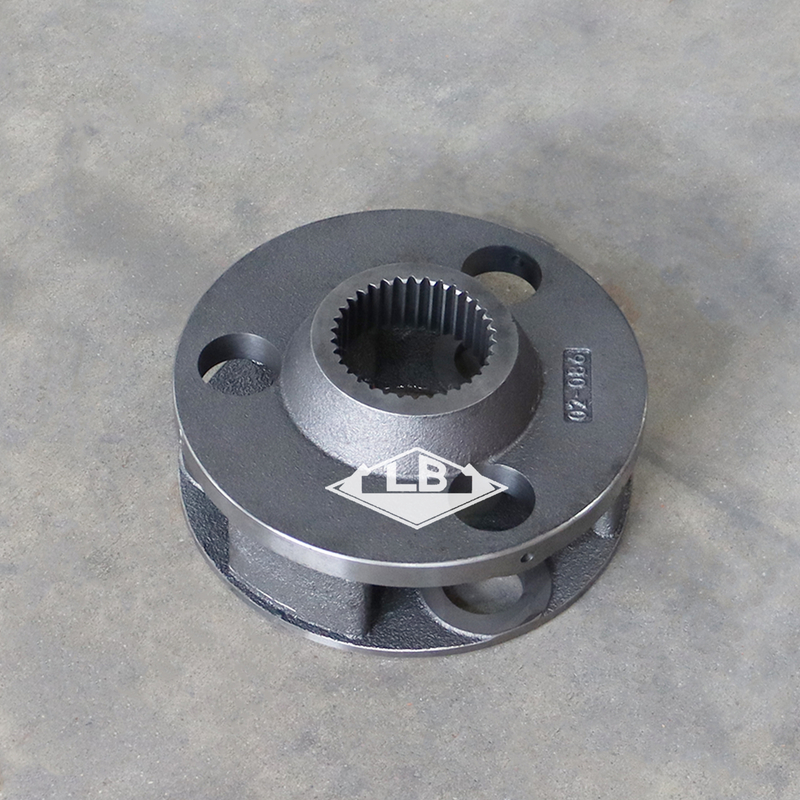

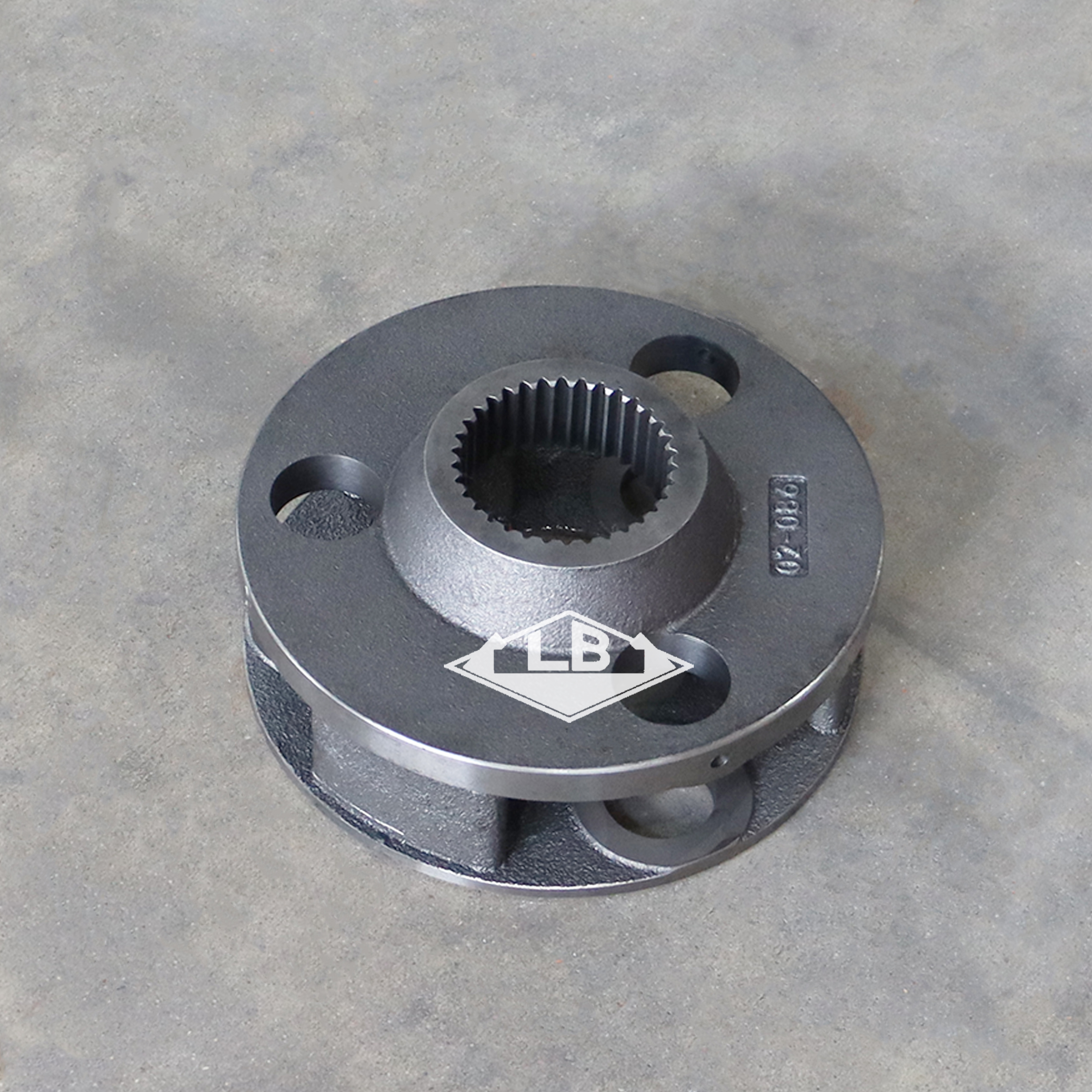

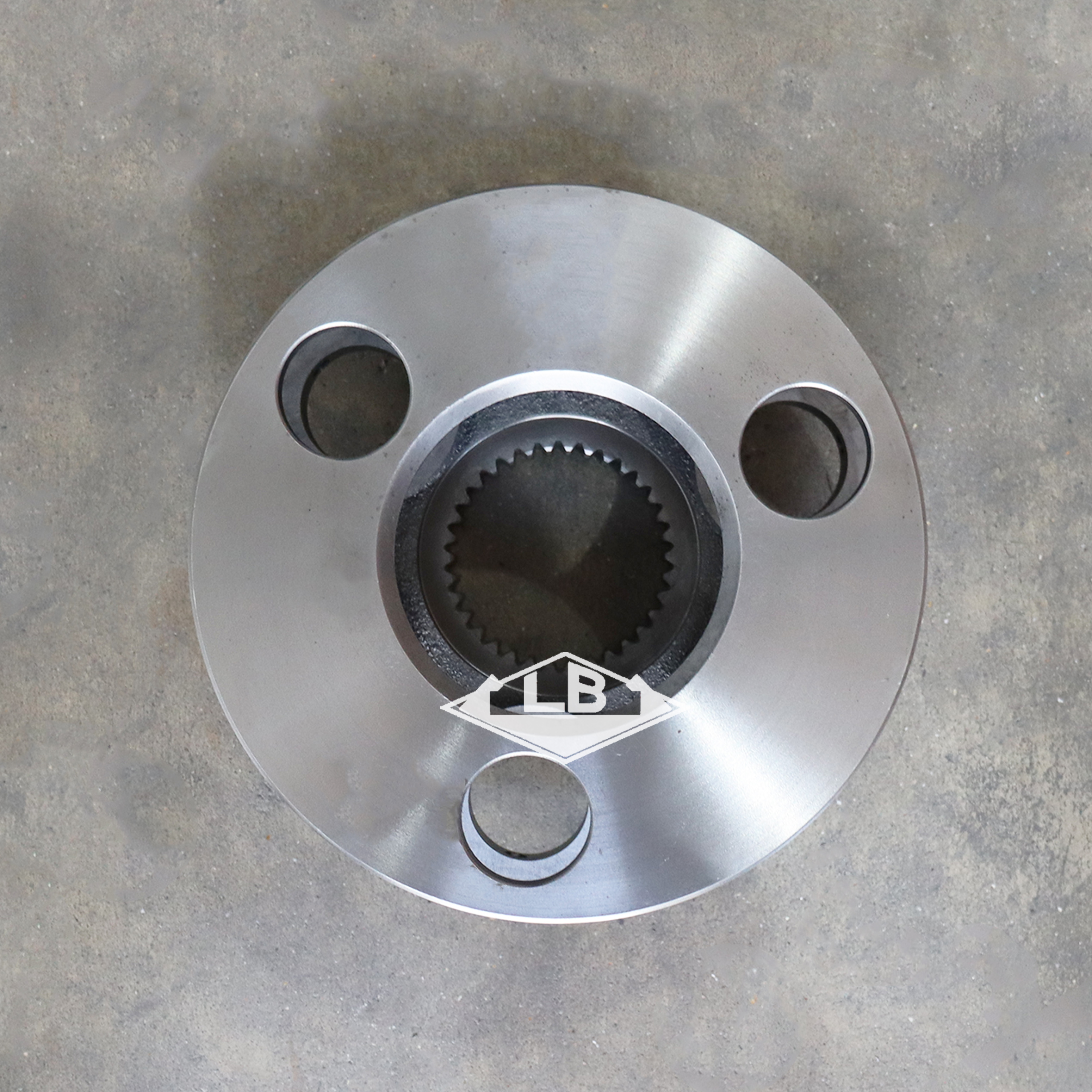

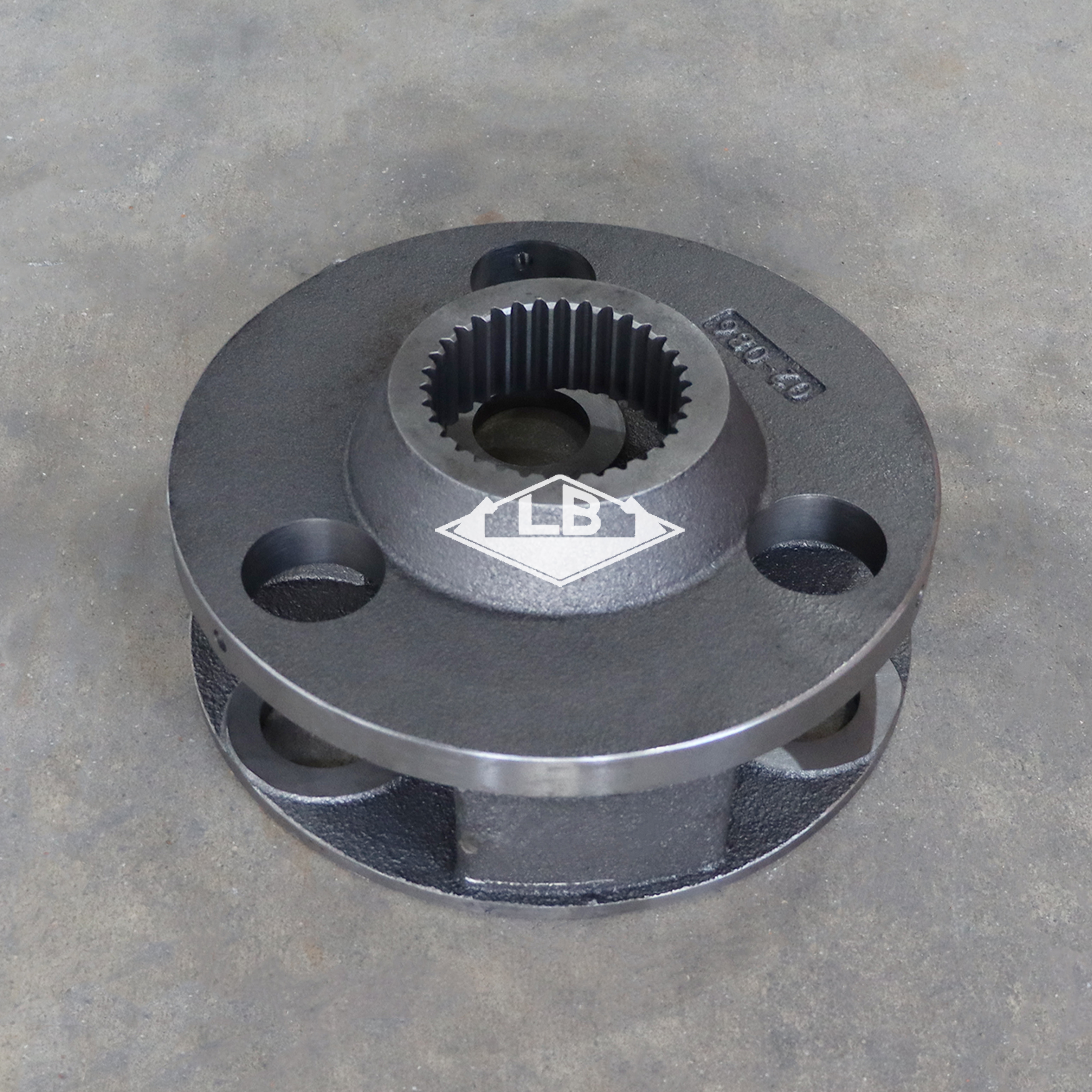

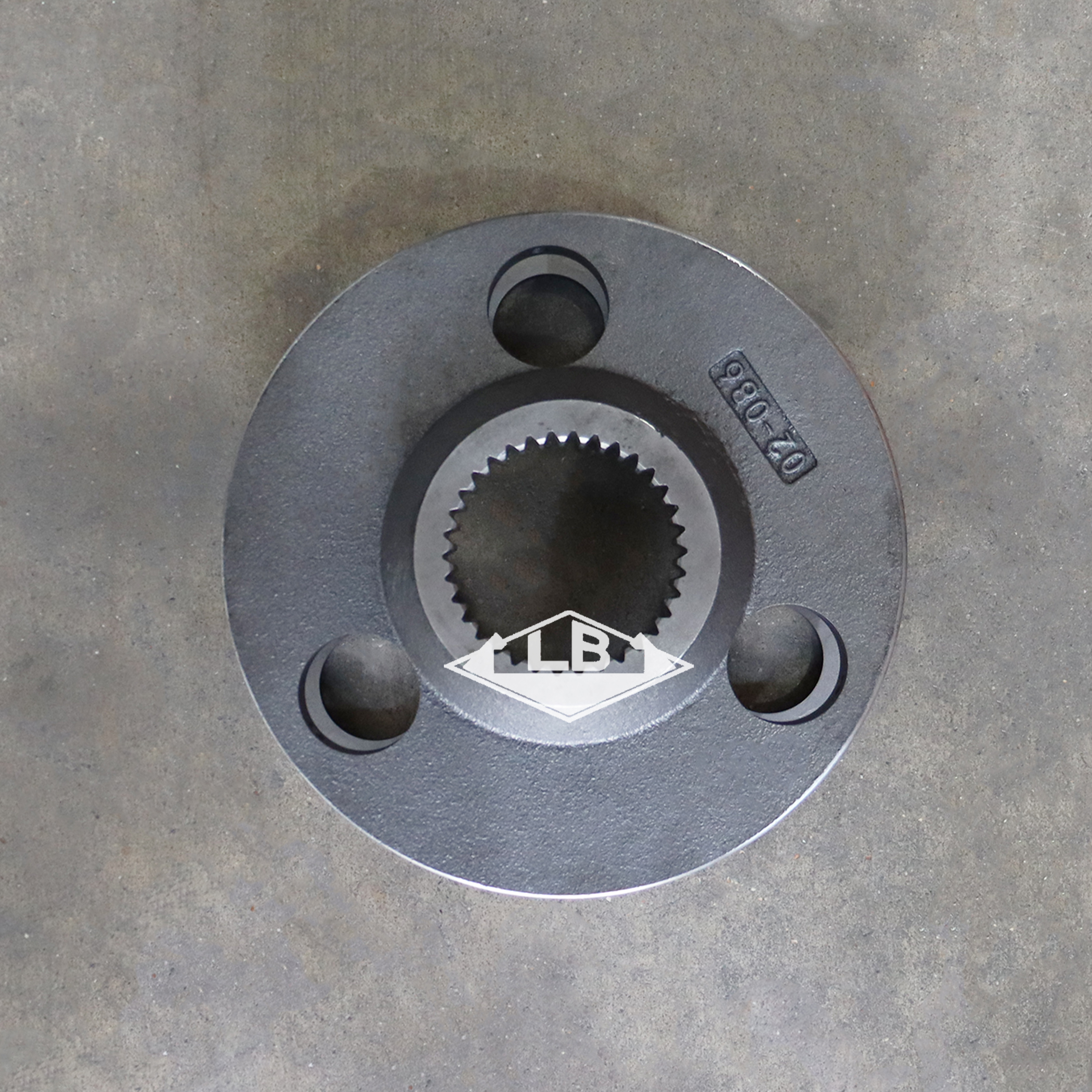

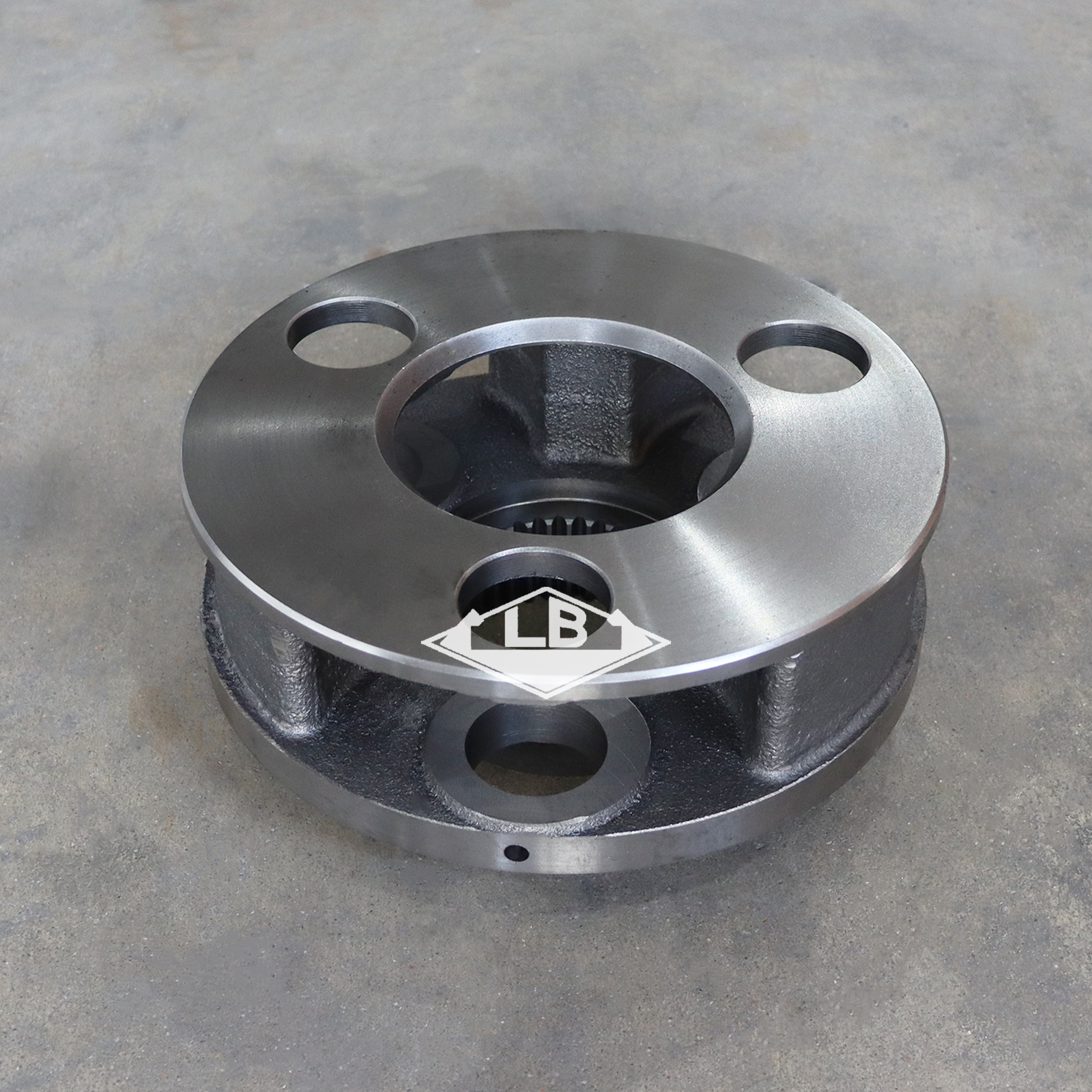

E320C 回转二级架(10) E320C 回转二级架(8) E320C 回转二级架（2） E320C 回转二级架（4） E320C 回转二级架(6)

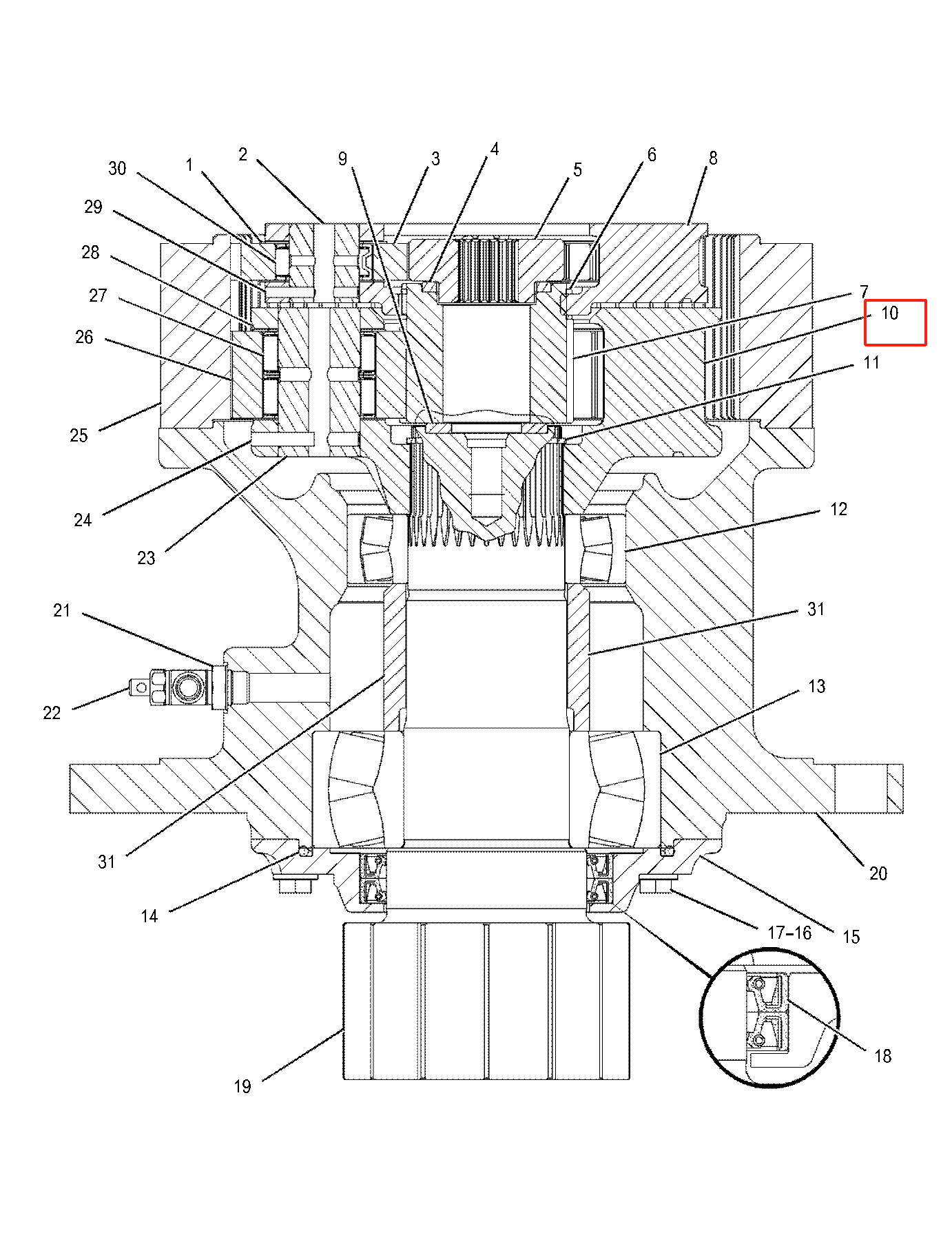

CATERPILLAR SIS

Pos.	Part No	Qty	Parts name
1.	094-0584	[6]	WASHER (40.3X72X1-MM THK)
2.	094-1509	[3]	SHAFT-PLANETARY
3.	148-4733	[3]	GEAR-PLANETARY (26-TEETH)
4.	114-1581	[1]	SPACER (57.5X74X6-MM THK)
5.	148-4732	[1]	GEAR-SUN (20-TEETH)
6.	093-1729	[2]	RING-RETAINING
7.	148-4632	[1]	GEAR-SUN (23-TEETH)
8.	191-2578	[1]	CARRIER-PLANETARY
9.	7Y-1434	[1]	SPACER (40X69.5X6-MM THK)
10.	148-4637	[1]	CARRIER-PLANETARY
11.	148-4640	[1]	RING-RETAINING
12.	148-4643	[1]	BEARING
13.	095-1022	[1]	BEARING-ROLLER
14.	148-4642	[1]	SEAL-O-RING
15.	227-6228	[1]	CAGE
16.	453-3447 M	[6]	BOLT (M12X1.75X40-MM)
17.	451-2182	[6]	WASHER-HARD (13.5X25.5X3-MM THK)
18.	199-4561	[2]	SEAL-LIP TYPE
19.	148-4636	[1]	SHAFT-PINION
20.	148-4638	[1]	HOUSING
21.	3K-0360	[1]	SEAL-O-RING
22.	6V-7238	[1]	VALVE-SHUTOFF (SWING DRIVE)
23.	148-4634	[3]	SHAFT-PLANETARY
24.	095-0891	[3]	PIN-SPRING
25.	148-4635	[1]	GEAR-RING (73-TEETH)
26.	148-4633	[3]	GEAR-PLANETARY (25-TEETH)
27.	7Y-0252	[6]	BEARING AS-ROLLER
28.	094-0611	[6]	WASHER (47.3X76X1-MM THK)
29.	095-0886	[3]	PIN-SPRING
30.	094-1516	[3]	BEARING-ROLLER
31.	171-9383	[1]	SPACER

	1U-8846 BF		SEALANT-GASKET
	B		USE AS REQUIRED
	F		NOT SHOWN
	M		METRIC PART
