| Quantity: | |
|---|---|

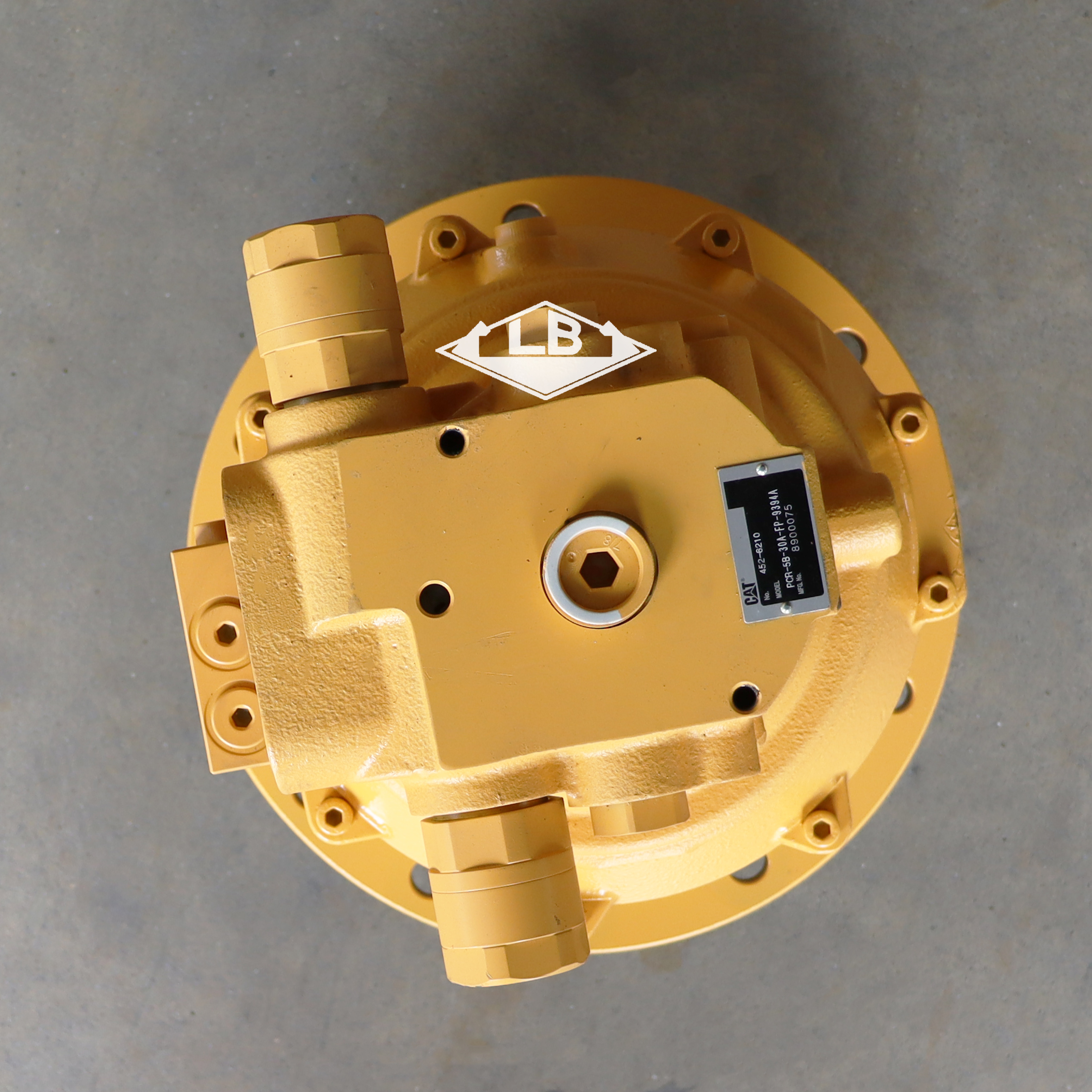

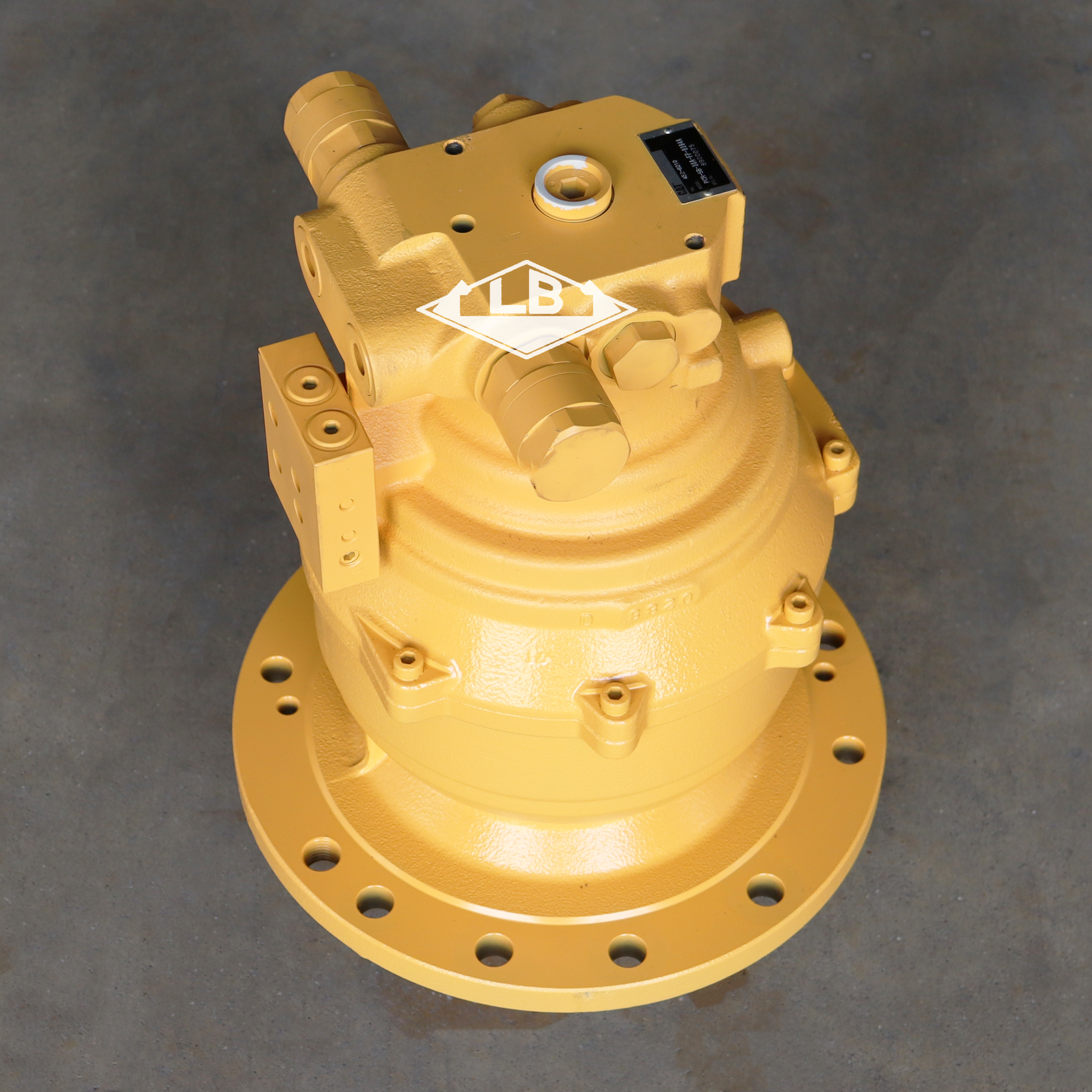

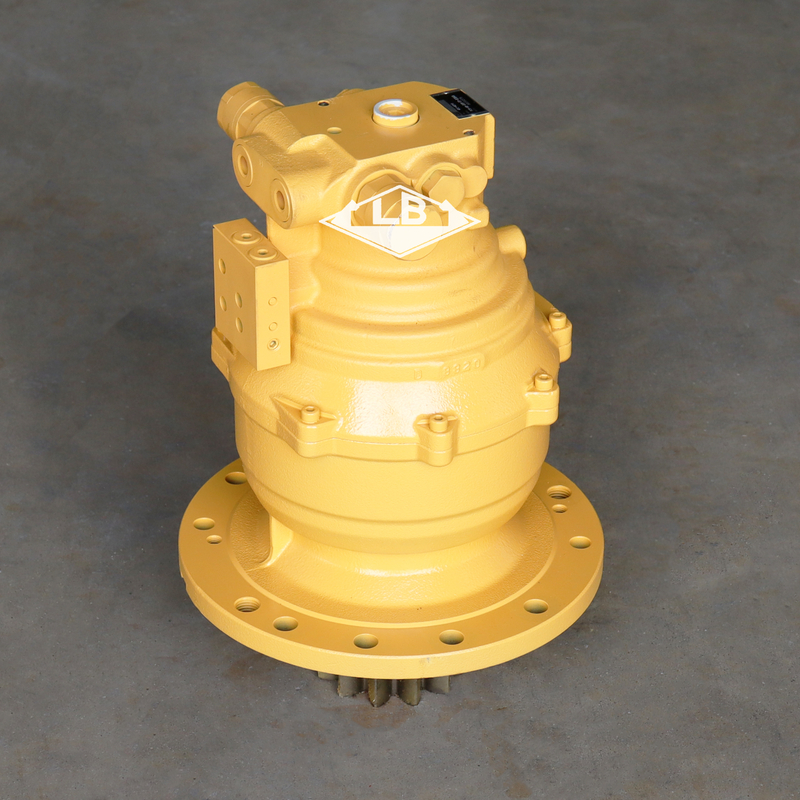

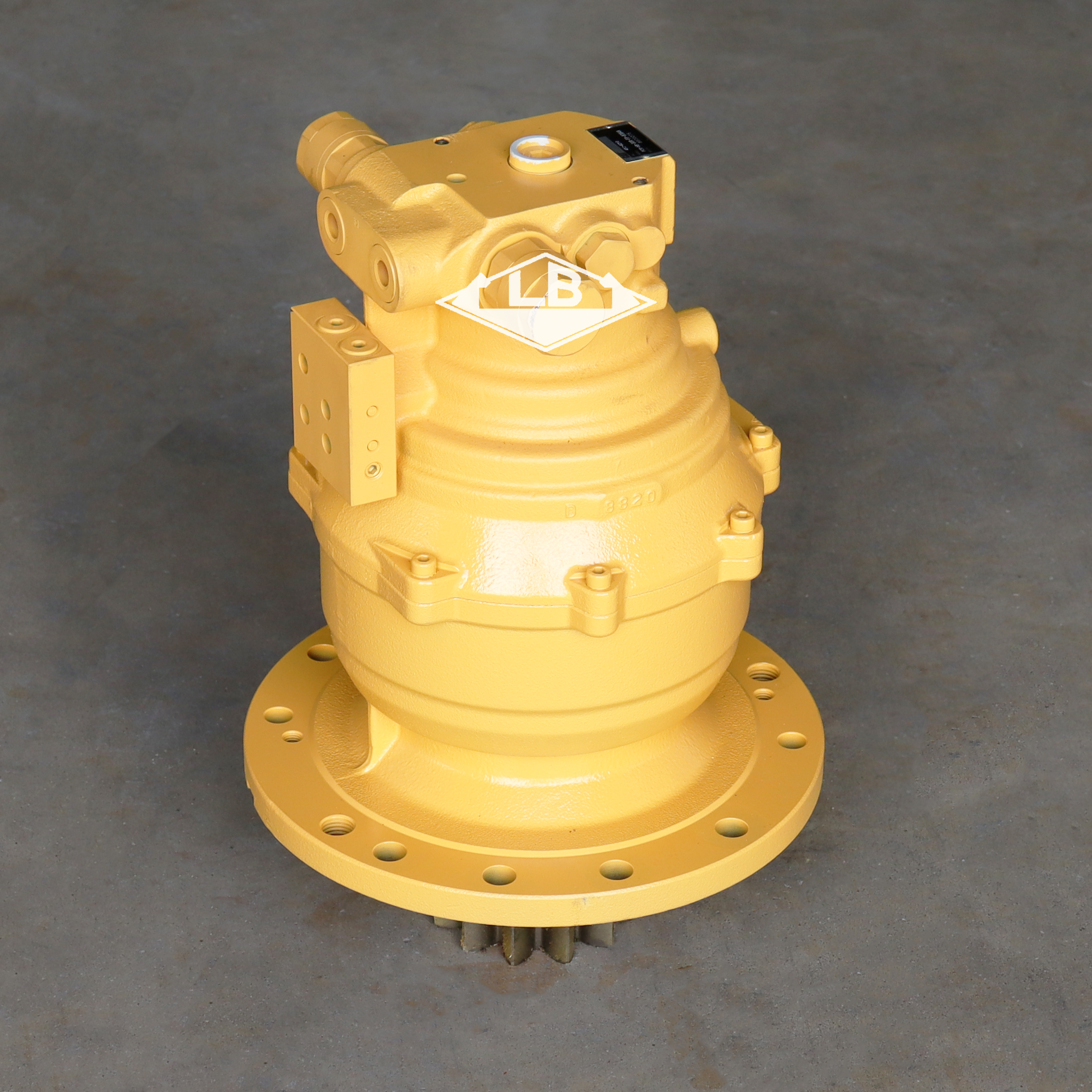

| Part name | 307E2 308E2 SWING GEARBOX WITH MOTOR | |||||
| Equipment | Apply to CAT EXCAVATOR | |||||
| Part no. | 452-6210 467-3079 470-9610 | |||||
| Frame holes | / | |||||
| Sprocket holes | / | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 560 KG | |||||
| MOQ | 1 pc | |||||
Product Description
| 价格和供货情况价格和供货情况 下拉菜单 | 液压信息 Add All RRP 全部 | |||||||
|---|---|---|---|---|---|---|---|---|

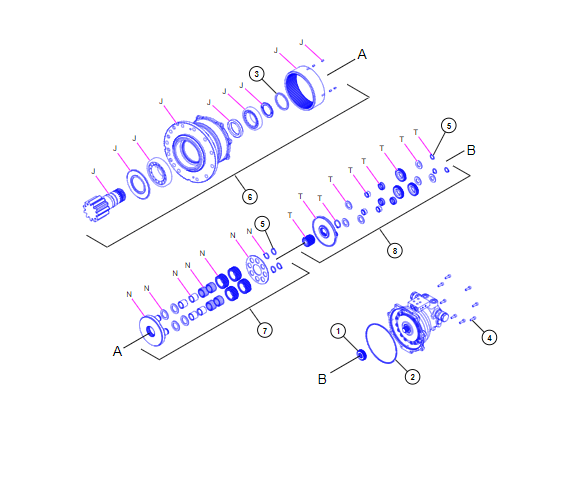

| 零件号 | 零件名称 | 数量 必需 | ||||||
| 1 | 430-4669 | 齿轮(21/13-TEETH) | 1 | 0 | ||||
| 2 | 8F-6230 RRP | O 形密封圈 | 1 | 0 | ||||
| 3 | 430-4671 | 环 | 1 | 0 | ||||
| 4 | 5A-3604 | 内六角头螺栓(M8X1.25X25-MM) M | 8 | 0 | ||||
| 5 | 6V-7644 RRP | 挡圈 | 7 | 0 | ||||
| 6 | 470-9612 | 小齿轮套件 | 1 | 0 | ||||
| (INCLUDES PARTS MARKED 'J'IN THE GRAPHICS) | ||||||||
| 7 | 428-6804 | 托架套件 | 1 | 0 | ||||
| (INCLUDES PARTS MARKED 'N'IN THE GRAPHICS) | ||||||||
| 8 | 428-6805 | 托架套件 | 1 | 0 | ||||
| (INCLUDES PARTS MARKED 'T'IN THE GRAPHICS) | ||||||||
| Part name | 307E2 308E2 SWING GEARBOX WITH MOTOR | |||||
| Equipment | Apply to CAT EXCAVATOR | |||||
| Part no. | 452-6210 467-3079 470-9610 | |||||
| Frame holes | / | |||||
| Sprocket holes | / | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 560 KG | |||||
| MOQ | 1 pc | |||||
Product Description
| 价格和供货情况价格和供货情况 下拉菜单 | 液压信息 Add All RRP 全部 | |||||||
|---|---|---|---|---|---|---|---|---|
| 零件号 | 零件名称 | 数量 必需 | ||||||
| 1 | 430-4669 | 齿轮(21/13-TEETH) | 1 | 0 | ||||
| 2 | 8F-6230 RRP | O 形密封圈 | 1 | 0 | ||||
| 3 | 430-4671 | 环 | 1 | 0 | ||||
| 4 | 5A-3604 | 内六角头螺栓(M8X1.25X25-MM) M | 8 | 0 | ||||
| 5 | 6V-7644 RRP | 挡圈 | 7 | 0 | ||||
| 6 | 470-9612 | 小齿轮套件 | 1 | 0 | ||||
| (INCLUDES PARTS MARKED 'J'IN THE GRAPHICS) | ||||||||
| 7 | 428-6804 | 托架套件 | 1 | 0 | ||||
| (INCLUDES PARTS MARKED 'N'IN THE GRAPHICS) | ||||||||
| 8 | 428-6805 | 托架套件 | 1 | 0 | ||||
| (INCLUDES PARTS MARKED 'T'IN THE GRAPHICS) | ||||||||
