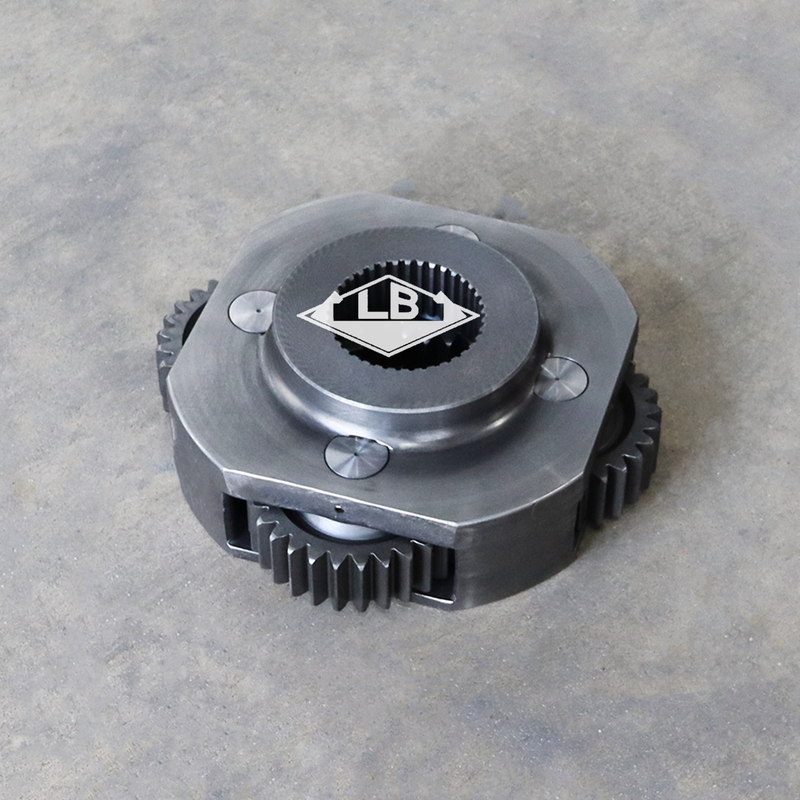

EC240 EC250 SWING NO2 CARRIER ASSY VOE14566210 SWING GEARBOX SPRAE PARTS FOR VOLVO EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name

EC240 EC250 FINAL  DRIVE
Equipment Apply to VOLVO EXCAVATOR
Part no. VOE14566210
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

EC240 回转二级架总成(4)EC240 回转二级架总成(6)EC240 回转二级架总成(2)EC240 回转二级架总成（10）EC240 回转二级架总成（8）EC240 回转二级架总成

Parts on group Swing gearbox:

Pos. Part No Qty Parts name Comments

VOE14566202 [1] Swing gearbox
1. VOE14566206 [1] Case
2. VOE14552874 [1] Ring
3. VOE14566204 [1] Collar
4. VOE14566203 [1] Shaft
5. VOE14566205 [1] Cover
6. VOE14566209 [1] Gear
7. VOE947324 [0016] Hex. socket screw
8. VOE984088 [12] Hex. socket screw
9. VOE14552875 [1] Roller bearing
10. SA9415-43012 [1] Plug
11. VOE914167 [1] Lubricating nipple
12. VOE14566207 [1] Seal
13. VOE14566208 [1] Roller bearing
14. VOE914492 [1] Snap ring
15. SA7118-30380 [1] Thrust ring
16. VOE14566216 [1] Gear
17. VOE14880960 [1] Retaining ring
18. VOE14566222 [1] Gear
19. VOE14547278 [1] Thrust washer
20. VOE14540733 [1] Pipe
21. VOE14566210 [1] Planet carrier
22. VOE14566211 [1] Planet carrier
23. VOE14566215 [4] Pin
24. VOE14566212 [4] Gear
25. VOE14566213 [4] Bushing
26. VOE14556491 [8] Washer
27. SA9325-06012 [4] Spring pin
28. VOE14566217 [1] Planet carrier
29. VOE14566218 [1] Planet carrier
30. VOE14566219 [3] Gear
31. VOE14566220 [3] Bearing
32. VOE14566221 [3] Pin
33. SA9325-06012 [3] Spring pin
34. VOE14556491 [6] Washer
35. VOE950677 [2] Pin
36. VOE949329 [1] Gasket
37. VOE14722461 [1] Draining valve
