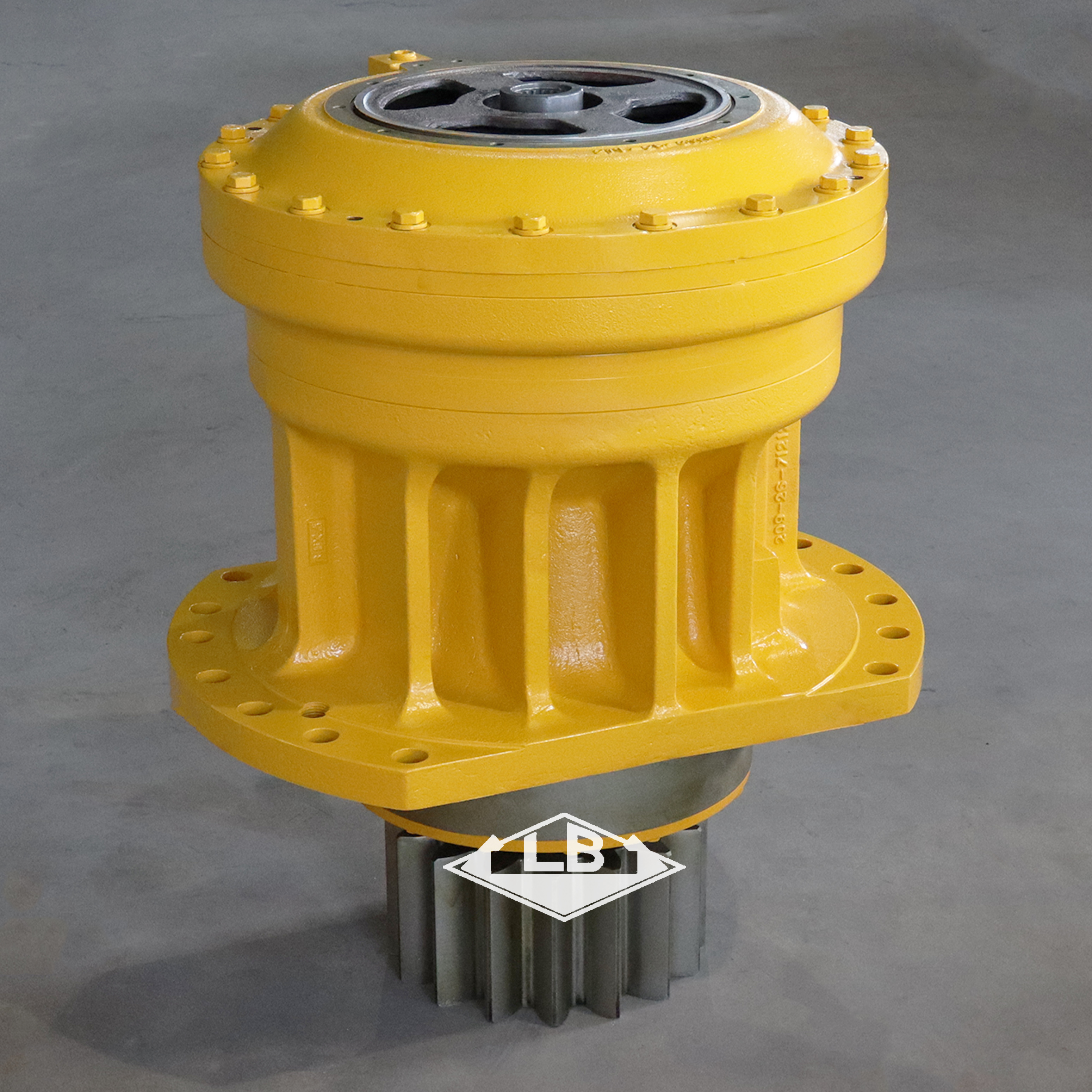

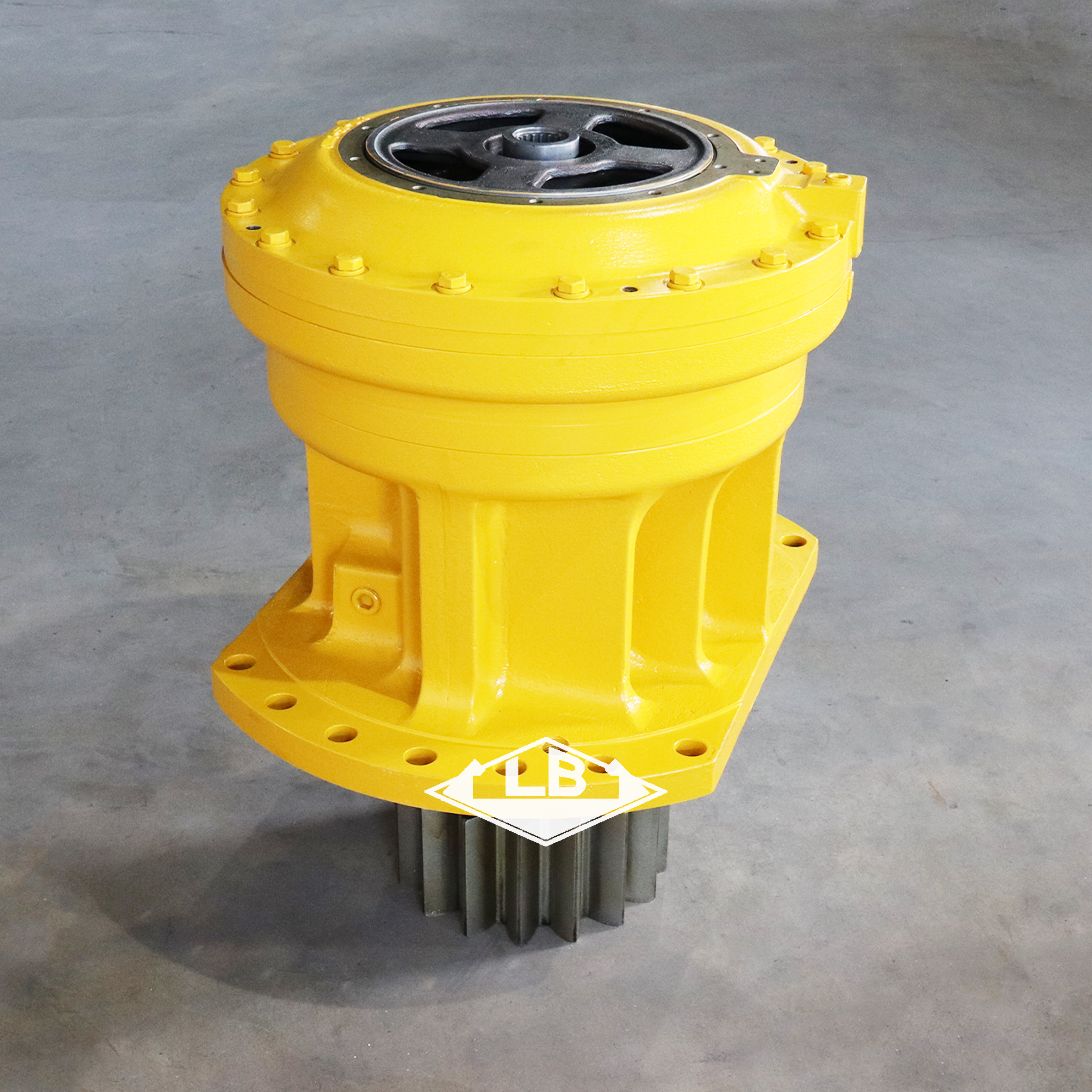

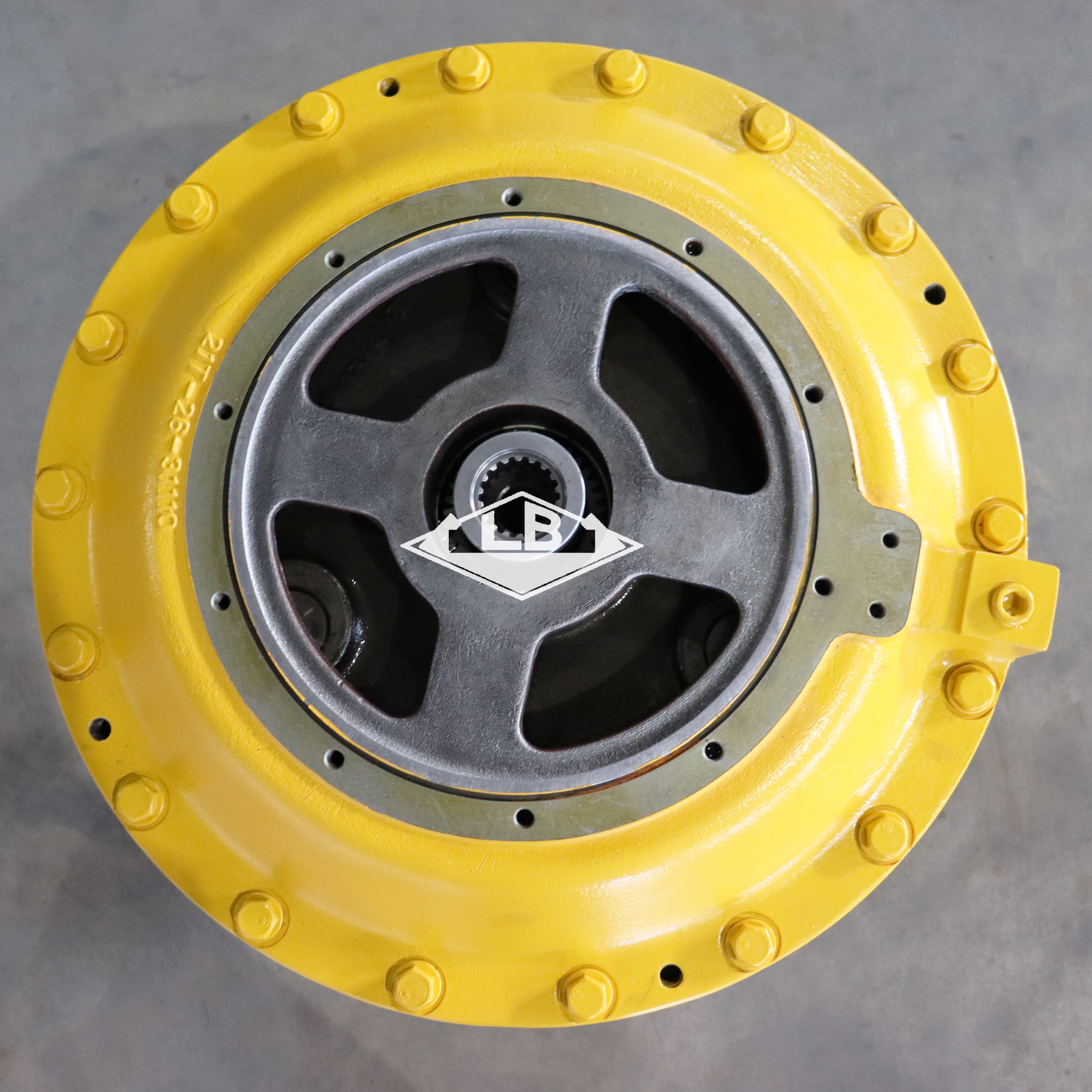

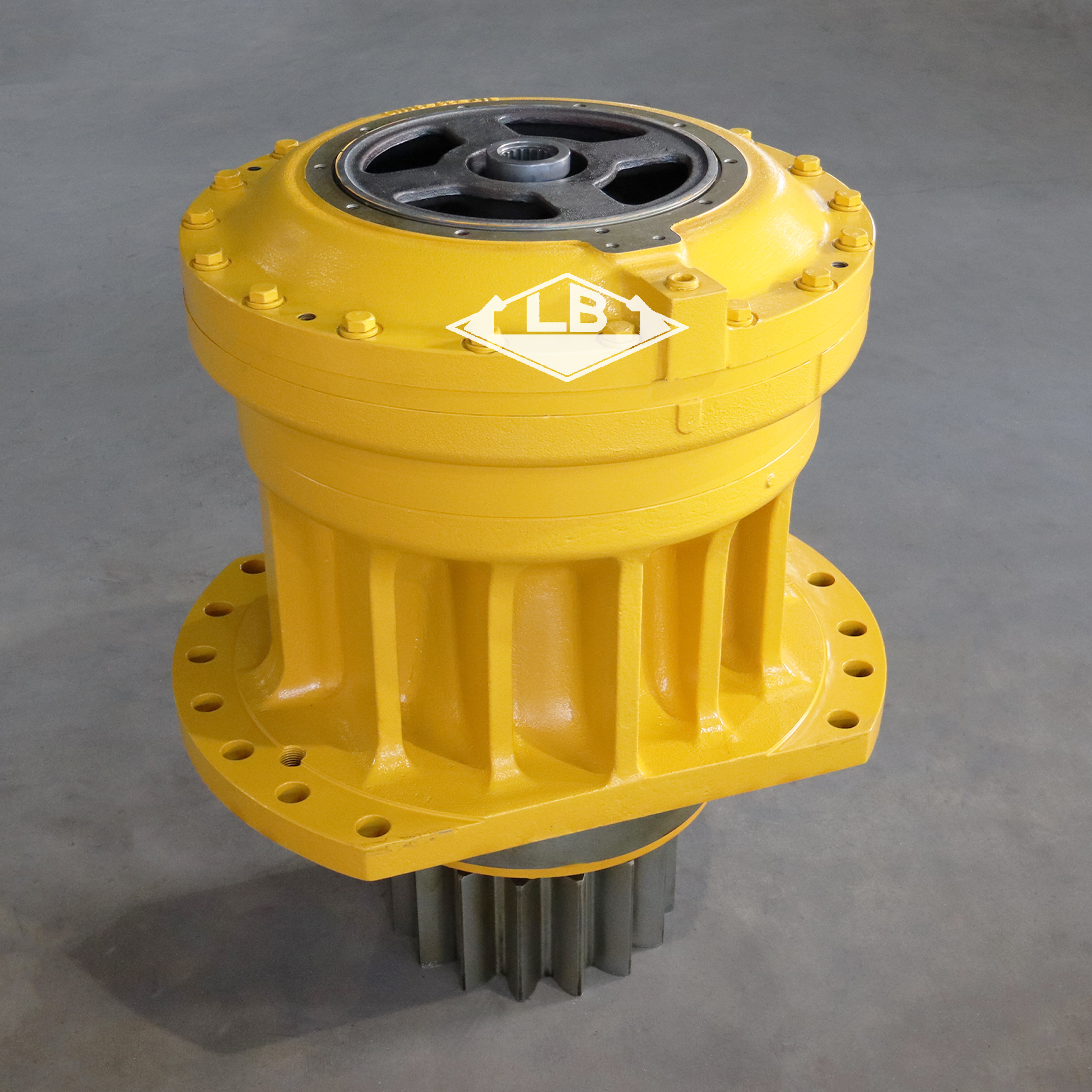

PC2000-8 SWING MACHINERY 21T-26-00300 21T2600300 SWING GEARBOX

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	SWING GEARBOX
Equipment	Apply to KOMATSU EXCAVATOR
Part no.	21T-26-00300 21T2600300
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13T
Item condition	New
Logo	LB
Gross weight	420 KG
MOQ	1 pc

Product Description

PC2000-8 回转牙箱(2) PC2000-8 回转牙箱(6) PC2000-8 回转牙箱(8) PC2000-8 回转牙箱(4) PC2000-8 回转牙箱(1)

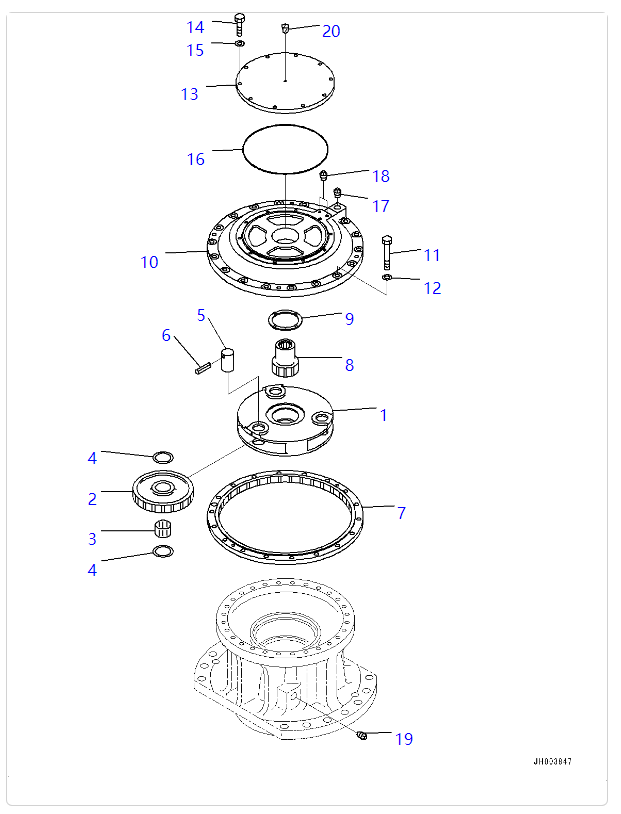

Parts on group :

Pos.	Part No	Qty	Parts name	Comments
	21T-26-00300	[1]	Swing Machinery Assembly Komatsu	1068 kg.
			["SN: 20196-UP"] \|$0.
1.	21T-26-31120	[1]	Carrier Komatsu China
			["SN: 20196-UP"]
2.	21T-26-31140	[3]	Gear Komatsu	7.85 kg.
			["SN: 20196-UP"]
3.	20Y-26-21290	[3]	Bearing Komatsu	0.31 kg.
			["SN: 20196-UP"]
4.	20Y-27-21250	[6]	Washer, Thrust Komatsu China	0.03 kg.
			["SN: 20196-UP"]
5.	20Y-26-21320	[3]	Pin Komatsu China	1.33 kg.
			["SN: 20196-UP"]
6.	20Y-26-21330	[3]	Pin Komatsu China	0.1 kg.
			["SN: 20196-UP"]
7.	209-26-71150	[1]	Gear Komatsu	26.4 kg.
			["SN: 20196-UP"]
8.	21T-26-31130	[1]	Shaft Komatsu China
			["SN: 20196-UP"]
9.	20Y-27-11250	[1]	Spacer Komatsu OEM	0.044 kg.
			["SN: 20196-UP"] analogs:["2052771570"]
10.	21T-26-31110	[1]	Cover Komatsu China
			["SN: 20196-UP"]
11.	01010-61685	[18]	Bolt Komatsu	0.165 kg.
			["SN: 20196-UP"] analogs:["0101051685", "0101031685", "0101081685"]
12.	01643-31645	[18]	Washer Komatsu	0.072 kg.
			["SN: 20196-UP"] analogs:["802170005", "0164301645"]
13.	21T-26-31220	[1]	Cover Komatsu China
			["SN: 20196-UP"]
14.	01010-81240	[10]	Bolt Komatsu	0.052 kg.
			["SN: 20196-UP"] analogs:["801015573", "0101051240"]
15.	01643-31232	[10]	Washer Komatsu	0.027 kg.
			["SN: 20196-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
16.	208-26-71380	[1]	O-ring Komatsu	0.01 kg.
			["SN: 20196-UP"]
17.	07042-30617	[1]	Plug, Taper Komatsu China
			["SN: 20196-UP"]
18.	07042-30108	[1]	Plug Komatsu	0.008 kg.
			["SN: 20196-UP"] analogs:["0704220108"]
19.	07042-31019	[1]	Plug, Taper Komatsu China
			["SN: 20196-UP"] analogs:["0704221019"]
20.	07049-01012	[2]	Plug Komatsu	0.001 kg.
			["SN: 20196-UP"]

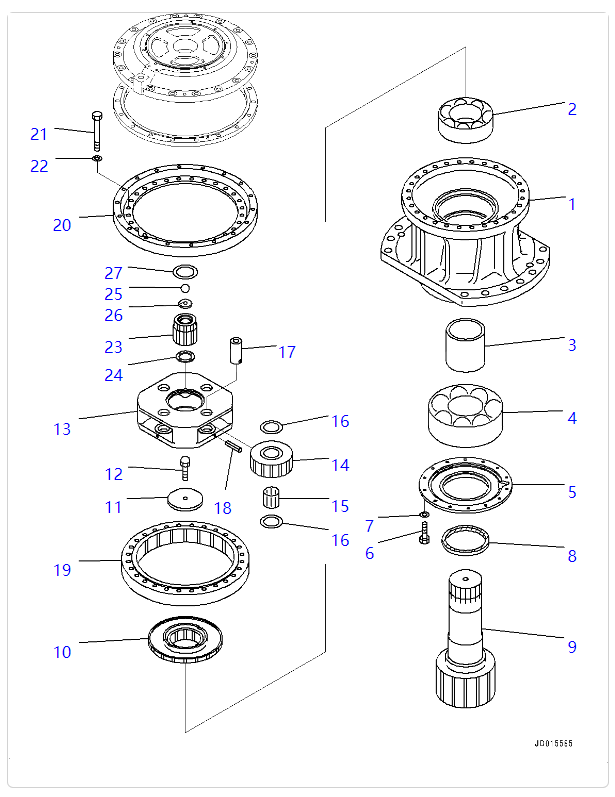

PC2000-8 回转牙箱(2)

Parts on group :

Pos.	Part No	Qty	Parts name	Comments
	21T-26-00300	[1]	Swing Machinery Assembly Komatsu	1068 kg.
			["SN: 20196-UP"] \|$0.
1.	209-26-71212	[1]	Case Komatsu China
			["SN: 20196-UP"]
2.	06300-23130	[1]	Bearing Komatsu	15.952 kg.
			["SN: 20196-UP"]
3.	209-26-71360	[1]	Spacer Komatsu China
			["SN: 20196-UP"]
4.	209-26-71341	[1]	Bearing Komatsu	64.3 kg.
			["SN: 20196-UP"]
5.	209-26-71230	[1]	Cover Komatsu	12.13 kg.
			["SN: 20196-UP"]
6.	01010-81030	[14]	Bolt Komatsu OEM	0.03 kg.
			["SN: 20196-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"]
7.	01643-31032	[14]	Washer Komatsu	0.054 kg.
			["SN: 20196-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
8.	209-26-71332	[1]	Seal, Oil Komatsu	0.5 kg.
			["SN: 20196-UP"] analogs:["2092671331"]
9.	21T-26-67110	[1]	Shaft Komatsu China
			["SN: 20196-UP"]
10.	209-26-71240	[1]	Coupling Komatsu	13.15 kg.
			["SN: 20196-UP"]
11.	209-26-71310	[1]	Plate Komatsu China
			["SN: 20196-UP"]
12.	205-32-51211	[1]	Bolt Komatsu	0.17 kg.
			["SN: 20196-UP"]
13.	208-27-61170	[1]	Carrier Komatsu	46.3 kg.
			["SN: 20196-UP"]
14.	208-27-61140	[4]	Gear Komatsu China	11.25 kg.
			["SN: 20196-UP"]
15.	207-27-61230	[4]	Bearing Komatsu	0.65 kg.
			["SN: 20196-UP"]
16.	20Y-27-21250	[8]	Washer, Thrust Komatsu China	0.03 kg.
			["SN: 20196-UP"]
17.	207-27-61250	[4]	Pin Komatsu China	1.75 kg.
			["SN: 20196-UP"]
18.	20Y-27-21290	[4]	Pin Komatsu OEM	0.03 kg.
			["SN: 20196-UP"]
19.	209-26-71160	[1]	Gear Komatsu	49.8 kg.
			["SN: 20196-UP"]
20.	209-26-71190	[1]	Spacer Komatsu China
			["SN: 20196-UP"]
21.	01011-61820	[28]	Bolt Komatsu	0.286 kg.
			["SN: 20196-UP"]
22.	01643-31845	[28]	Washer Komatsu China	0.02 kg.
			["SN: 20196-UP"] analogs:["0164321845", "R0164331845"]
23.	208-27-61132	[1]	Gear Komatsu	4.4 kg.
			["SN: 20196-UP"]
24.	207-27-52270	[1]	Spacer Komatsu OEM	0.089 kg.
			["SN: 20196-UP"]
25.	04260-01270	[1]	Ball Komatsu OEM	0.009 kg.
			["SN: 20196-UP"]
26.	21T-26-31160	[1]	Plate Komatsu	0.25 kg.
			["SN: 20196-UP"]
27.	209-26-71180	[1]	Spacer Komatsu	0.08 kg.
			["SN: 20196-UP"]
