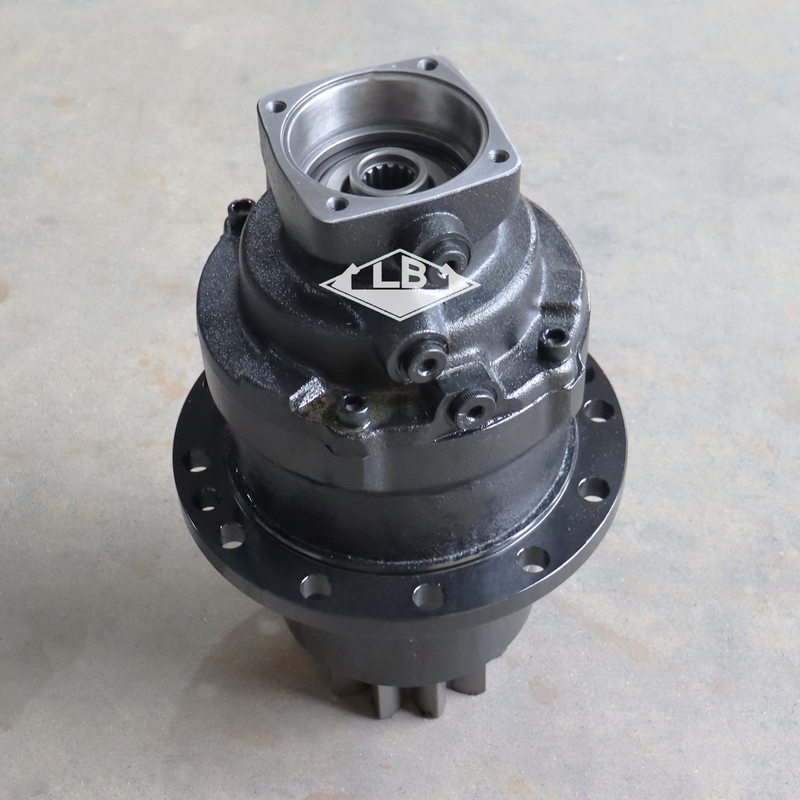

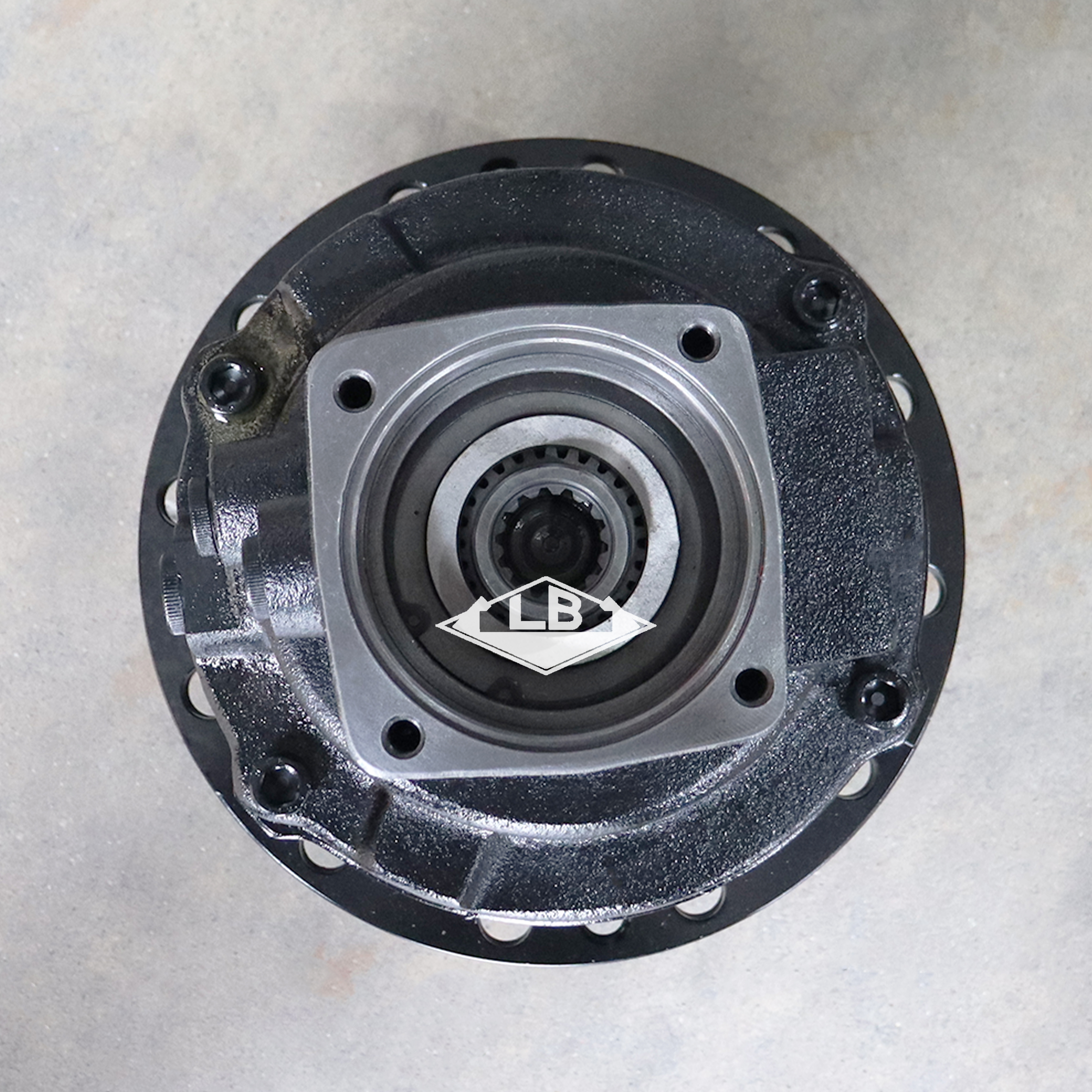

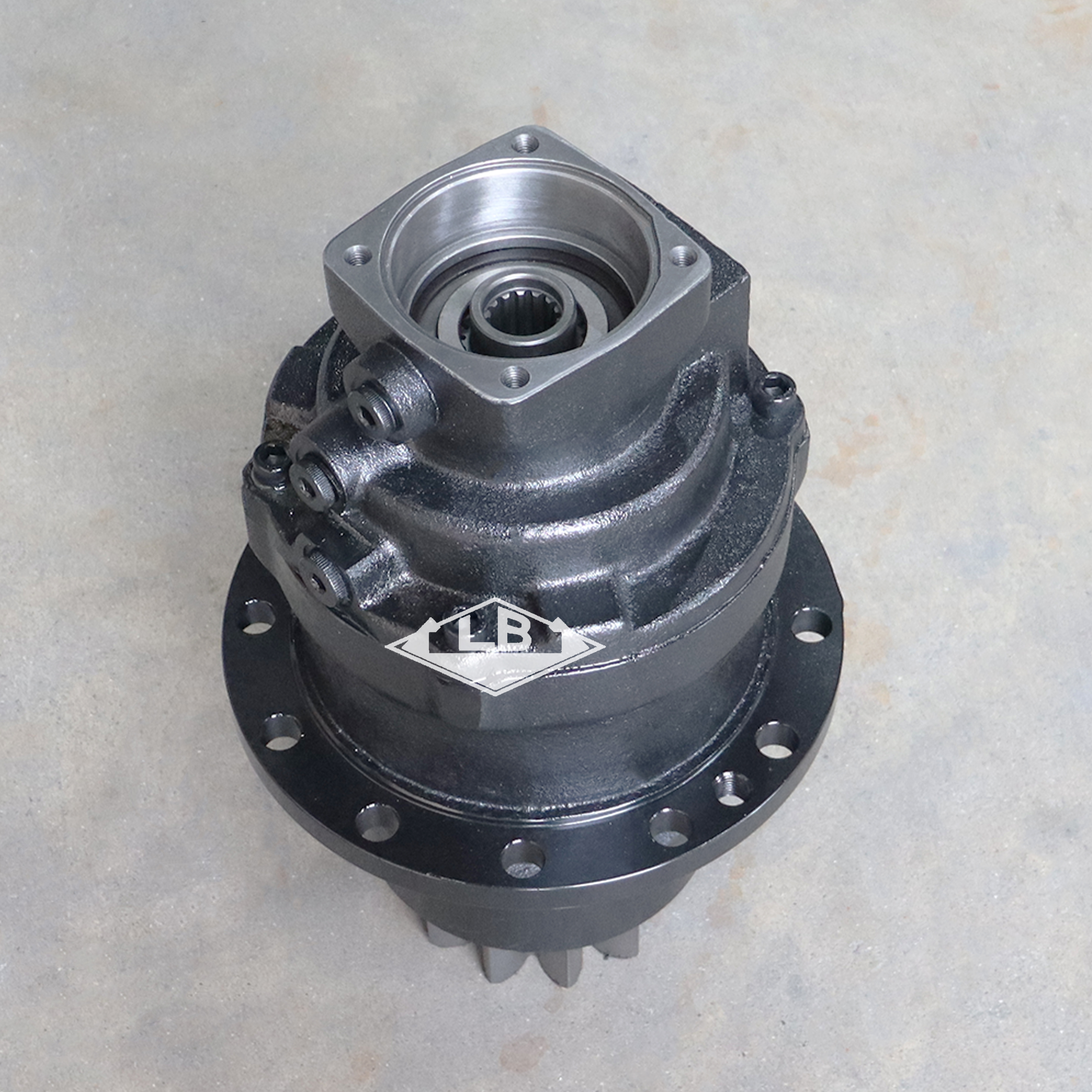

M313 M315 M316 SWING DRIVE 152-7375 1527375 M315 SWING GEARBOX

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name

M313 M315 M316  SWING GEARBOX
Equipment Apply to CAT EXCAVATOR
Part no. 152-7375 1527375
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

M315带连接盖 回转牙箱(4)M315带连接盖 回转牙箱(2)M315带连接盖 回转牙箱(6)M315带连接盖 回转牙箱(8)M315带连接盖 回转牙箱(1)M315带连接盖 回转牙箱(2)

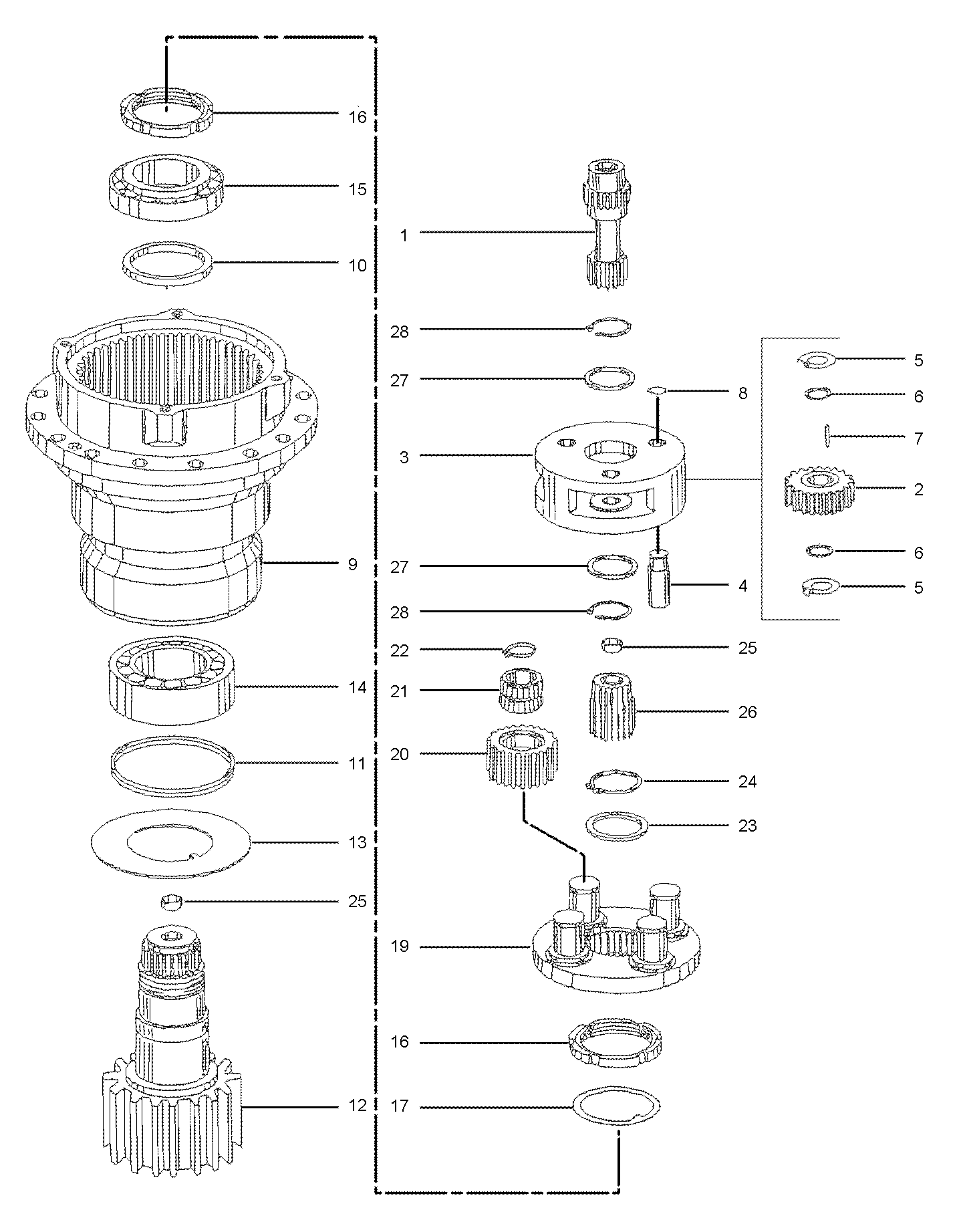

Parts for your M316F WHEELED EXCAVATOR:

Pos. Part No Qty Parts name Comments
1. 155-0821 [1] SHAFT
2. 155-0822 [3] GEAR-PLANETARY
3. 155-0823 [1] CARRIER
4. 155-0824 [3] PIN
5. 082-3084 [6] WASHER
6. 082-3085 [6] WASHER
7. 132-4292 [63] BEARING AS-NEEDLE
8. 095-0919 [3] RING-RETAINING
9. 155-0827 [1] HOUSING AS-SWING
10. 155-0828 [1] SEAL-LIP TYPE
11. 155-0829 [1] SEAL
12. 155-0830 [1] PINION
13. 155-0831 [1] WASHER-SPECIAL
14. 155-0832 [1] BEARING AS-ROLLER
15. 155-0833 [1] BEARING AS-ROLLER
16. 155-0835 [2] NUT-SLOTTED
17. 155-0834 [1] RING
19. 155-0836 [1] CARRIER-PLANETARY
20. 155-0837 [4] GEAR-PLANETARY
21. 155-0838 [4] BEARING AS-ROLLER
22. 1H-8647 [4] RING-SNAP
23. 098-2981 [3] SHIM (2-MM THK)
24. 110-4737 [1] RING-RETAINING
25. 121-8088 [2] BALL BEARING
26. 155-0839 [1] GEAR-SUN
27. 179-3153 [2] SHIM (2.5-MM THK)
28. 6V-5201 [2] RING-RETAINING
29. 155-0848 [1] HOUSING-BRAKE
30. 155-0849 [1] ORIFICE
31. 8T-4139 M [4] BOLT (M12X1.75X30-MM)
32. 201-7396 [1] SEAL-O-RING
33. 155-0850 [1] PISTON
34. 155-0851 [1] SEAL-LIP TYPE
35. 155-0852 [1] SEAL-LIP TYPE
36. 179-3151 [1] SPRING
37. 179-3154 [1] SHIM (3.5-MM THK)
38. 132-4268 [4] DISC-CLUTCH (1.7-MM THK)
39. 132-4262 B [5] DISC-CLUTCH (1.4-MM THK)
40. 132-4263 B [1] DISC-CLUTCH (1.2-MM THK)
41. 132-4265 B [1] DISC-CLUTCH (1.6-MM THK)
42. 132-4266 B [1] DISC-CLUTCH (1.8-MM THK)
43. 9X-6574 [1] RING-RETAINING
44. 155-0855 [1] SLEEVE
45. 8T-0707 [1] RING-RETAINING (INTERNAL)
46. 179-3560 [1] SEAL-O-RING

B
 USE AS REQUIRED

M
 METRIC PART
