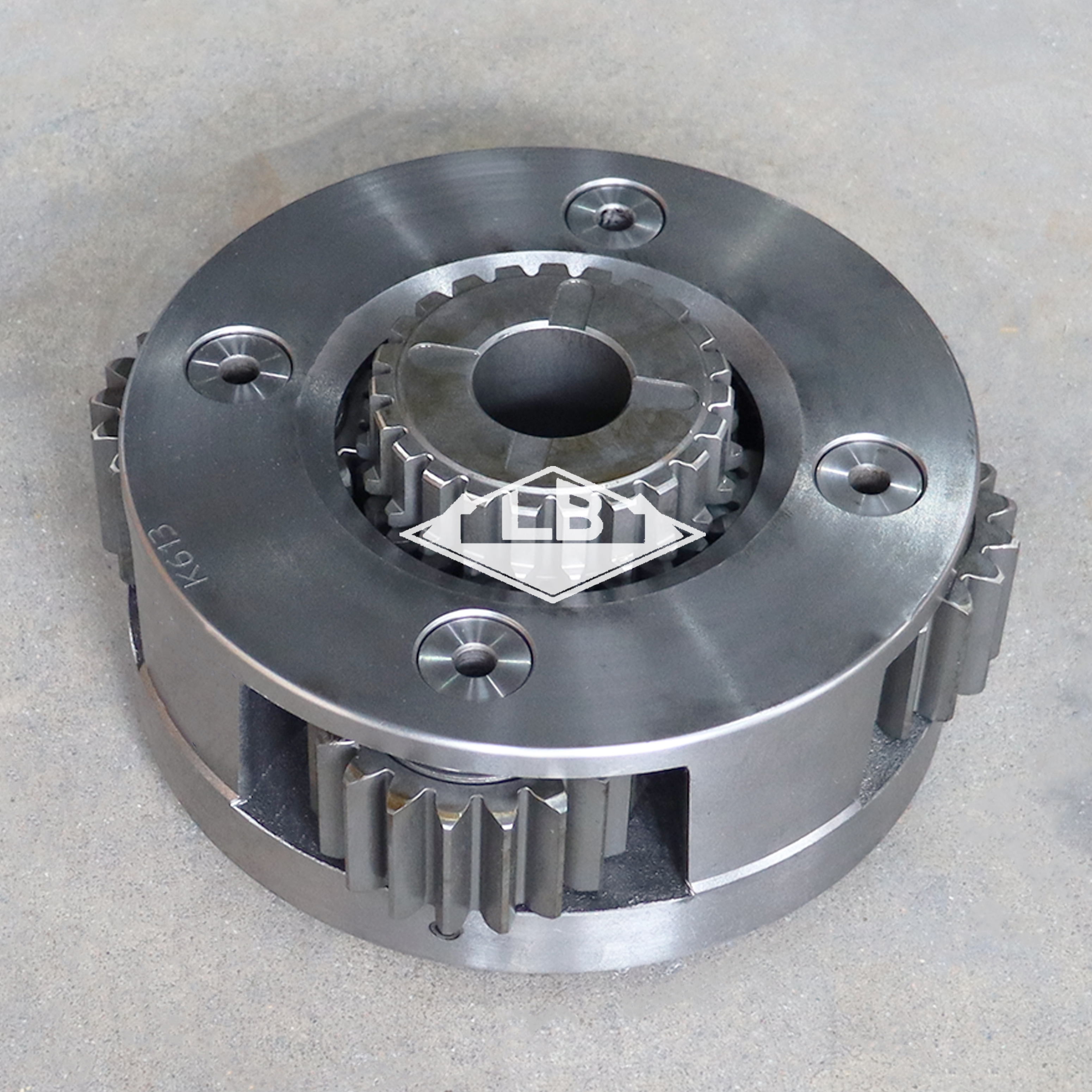

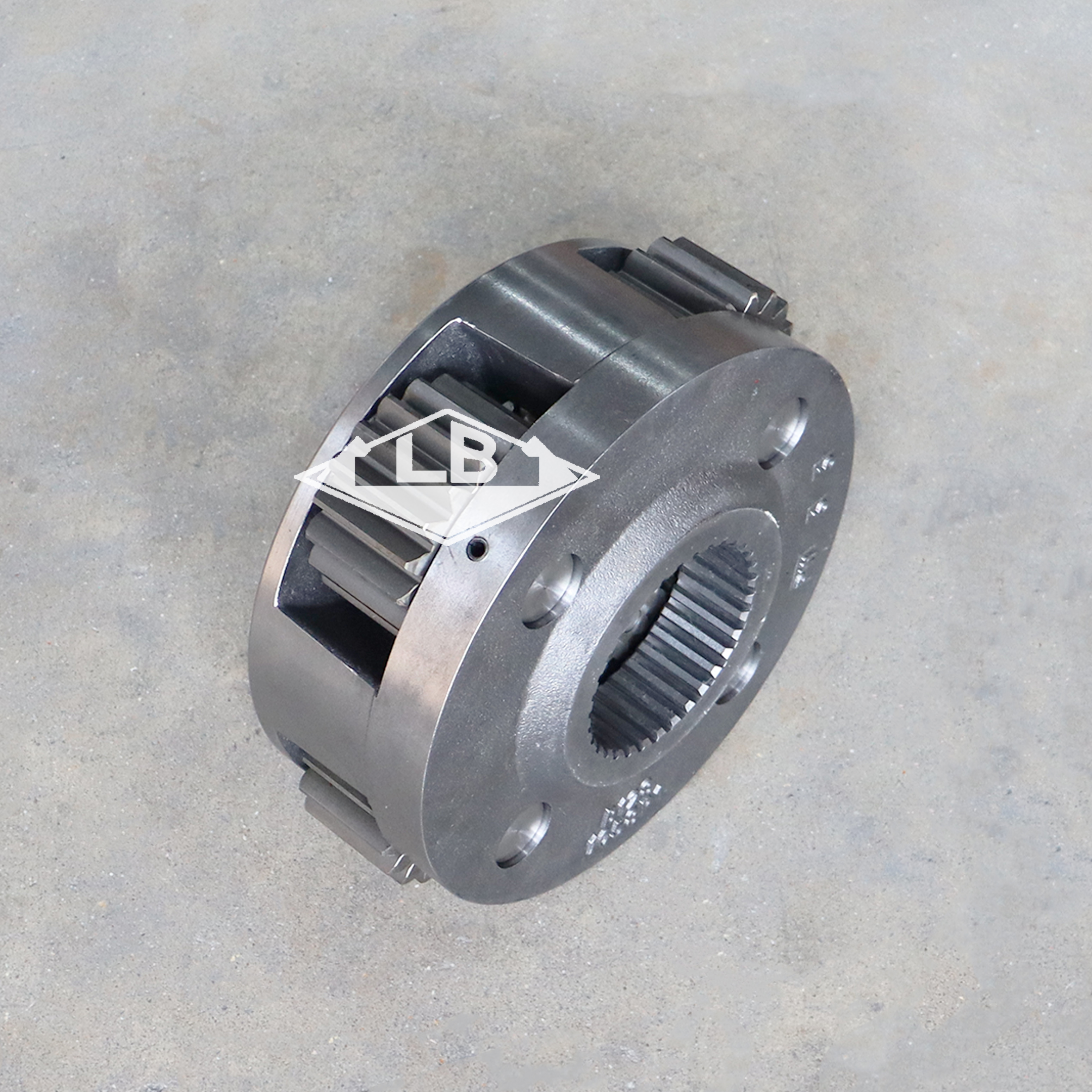

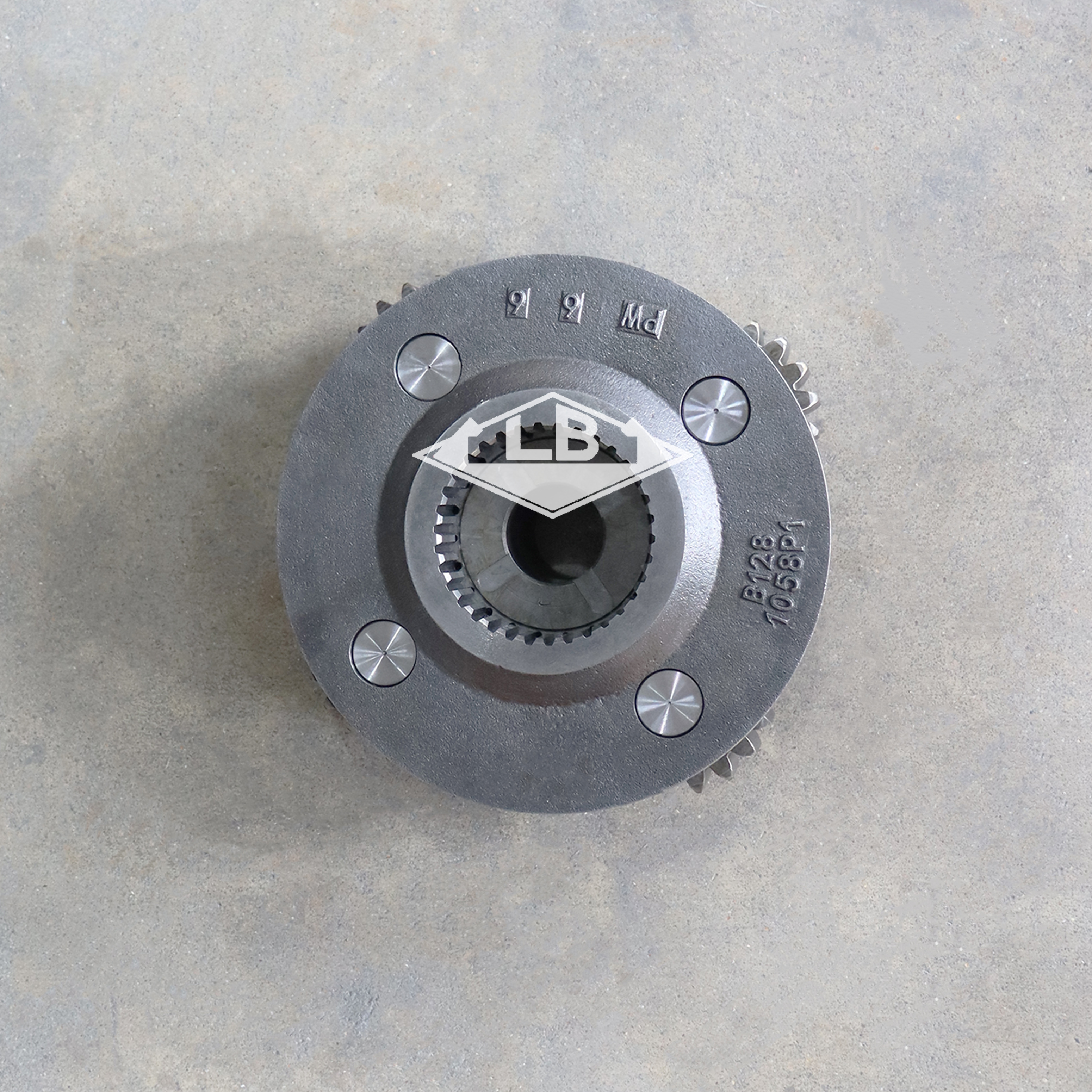

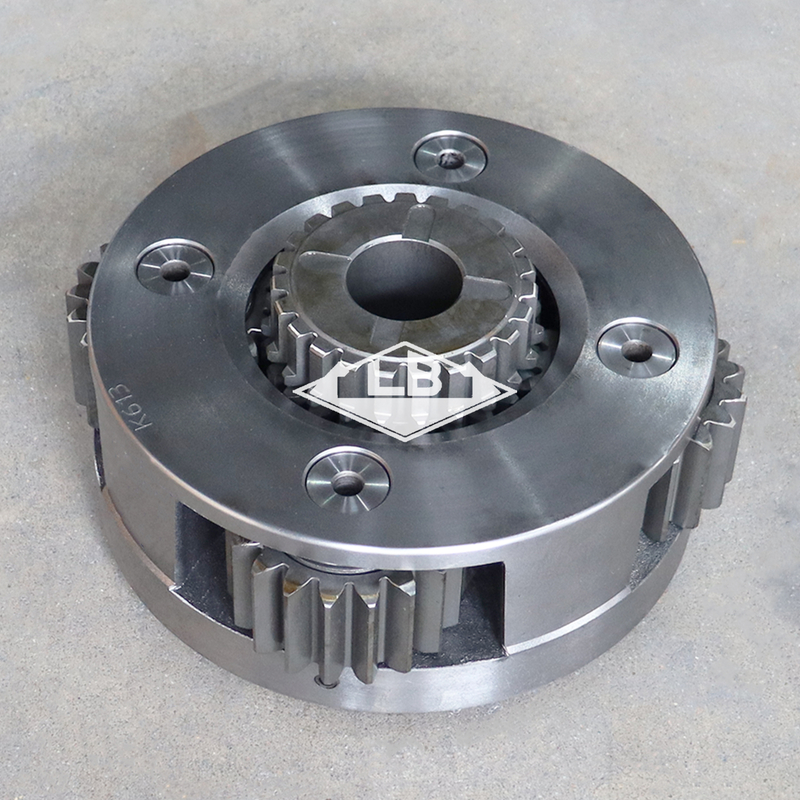

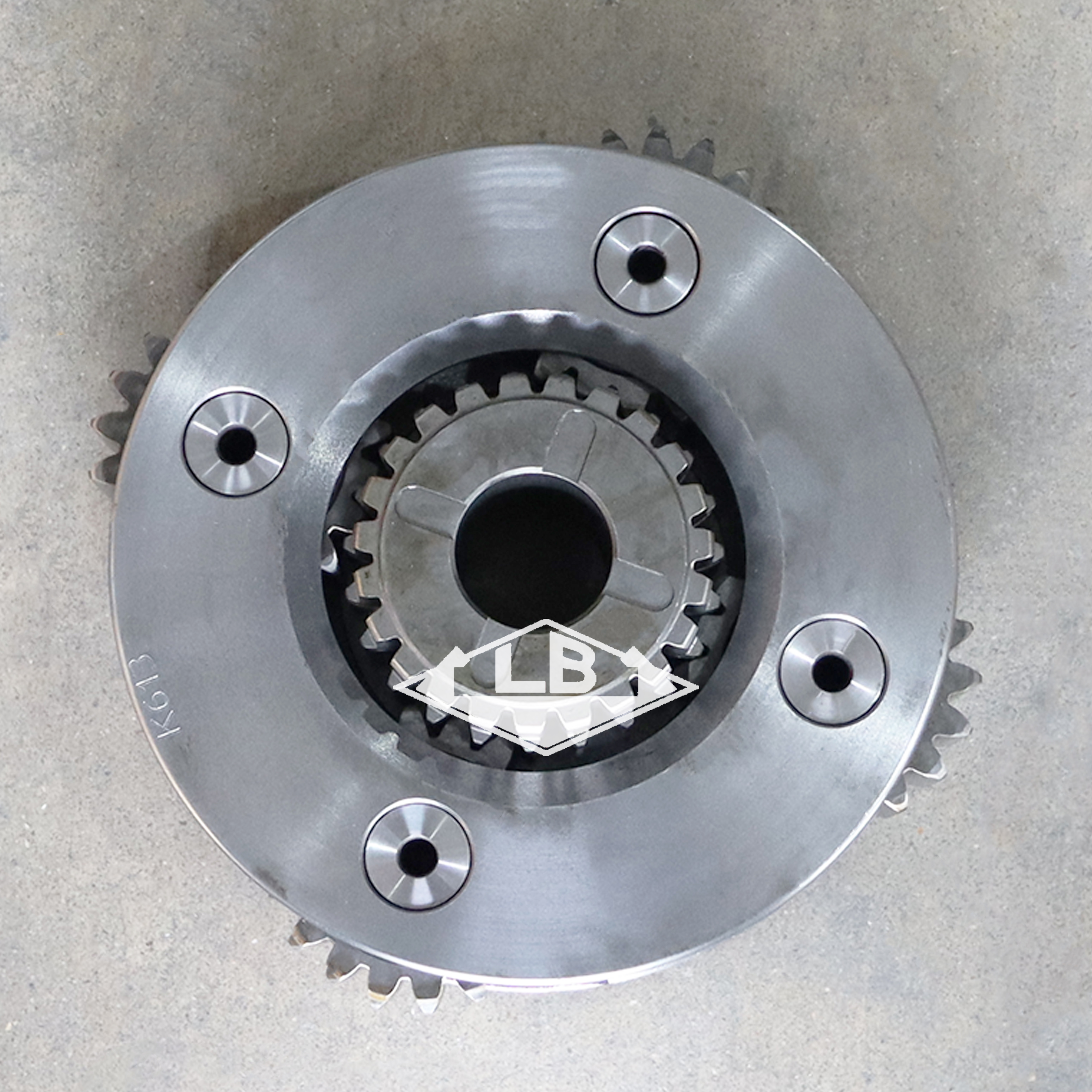

SK200-8 SWING REDUCER PARTS YN32W01058P1 SK200-8 S2 CARRIER ASSY

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 SK200-8  Swing gearbox
Equipment Apply to HYUNDAI EXCAVATOR
Part no. YN32W01058P1
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

SK200-8 回二架总成(2)SK200-8 回二架总成(4)SK200-8 回二架总成(6)SK200-8 回二架总成(8)SK200-8 回二架总成

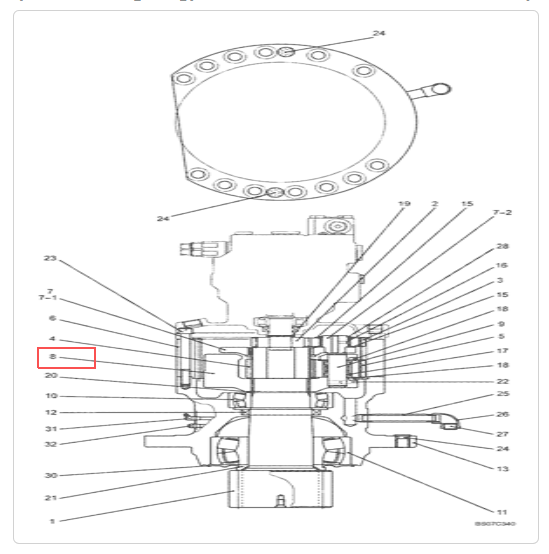

Parts on group (E175B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA17800 (6/13-):

Pos. Part No Qty Parts name Comments
. . YM32W00008F2 [1] MOTOR KOB Includes Ref. 1-32, See Fig. 01-015[00]
1. YM32W01002P1 [1] GEAR SM Shaft
2. YN32W01052P1 [1] GEAR SM
3. YN32W01117P1 [3] GEAR SM
4. YN32W01054P1 [1] GEAR SM
5. YN32W01055P1 [4] GEAR SM
6. YN32W01056P1 [1] RING GEAR SM
7. YN32W01123F1 [1] SPIDER KOB Assy, Incls. Refs. 7-1 & 7-2
7-1. NSS [1] NOT SERVICED SEPARATELY CON Spider
8. YN32W01058P1 [1] CARRIER,Housing, Spider SM
9. YN32W01067P1 [4] SHAFT SM
10. YN32W01030P1 [1] SPHERICAL BEARING KOB Superseded by part number: 25Z804D18
11. YN32W01029P1 [1] SPHERICAL BEARING KOB Superseded by part number: R25P0047D9
12. YN32W01060P1 [1] OIL SEAL SM
13. YN32W01104P1 [1] BOX SM Superseded by part number: YN32W00022F2
14. YN32W01026P1 [3] THRUST WASHER KOB
15. YN32W01028P1 [3] THRUST WASHER KOB
16. YN32W01022P1 [102] ROLLER KOB
17. YN32W01072P1 [4] NEEDLE BEARING SM
18. YN32W01063P1 [8] WASHER SM
19. ZR16X03500 [1] RING KOB Retaining -- ID 32.20 x OD 35 x Th 1.6mm
20. ZR16X09000 [1] RING KOB Retaining -- ID 84.50 x OD 108 x 3.0mm
21. YN32W01082P1 [1] SLEEVE SM
22. ZP26D08025 [4] PIN KOB Roll -- OD 08 x 25mm Long
23. HS23C14135G1 [11] SCREW,M14 x 135mm SM M14x2.0x135mm
24. PV02B01073DB [2] CAP KOB 18.4mm Plastic
25. YN32W01080D1 [1] RIGID TUBE SM 1/2" PT x 112mm Long
26. ZG31U08000 [1] HYD CONNECTOR SM Elbow, 90° -- 1/2" PT
27. ZE82T08000 [1] PLUG KOB 1/2" PT
28. ZR16X04000 [3] RING KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
30. YN32W01081P1 [1] OIL SEAL SM
31. ZG91V02000 [1] LUBE NIPPLE KOB 67° x 1/8" PT
32. 2444Z3305 [1] BREATHER KOB 1/8"PT
