SH240 CX240 SWING REDUCER KBC0127 KBC0133 KBC0157 CX240 SWING GEARBOX FOR CASE EXCAVATOR

SH240 CX240 SWING GEARBOX

PRODUCT PARAMETERS

Part name	SH240 CX2400 Swing gearbox
Equipment	Apply to Sumitomo, Case EXCAVATOR
Part no.	KBC0127 KBC0133 KBC0157
NO.1 sun gear spline teeth	14 splines
Swing pinion shaft teeth	15T
Item condition	New
Logo	LB
Gross weight	300 KG
MOQ	1 pc

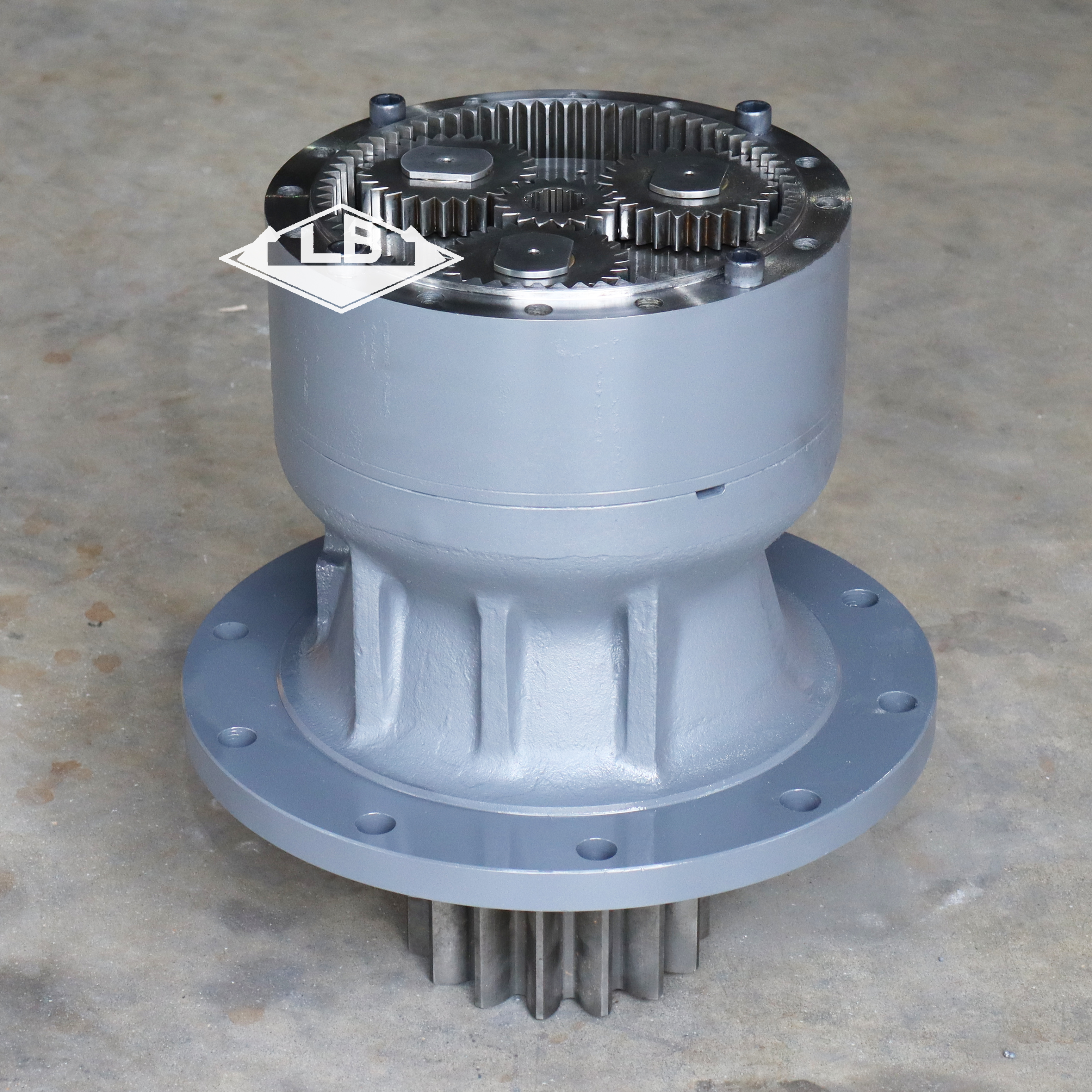

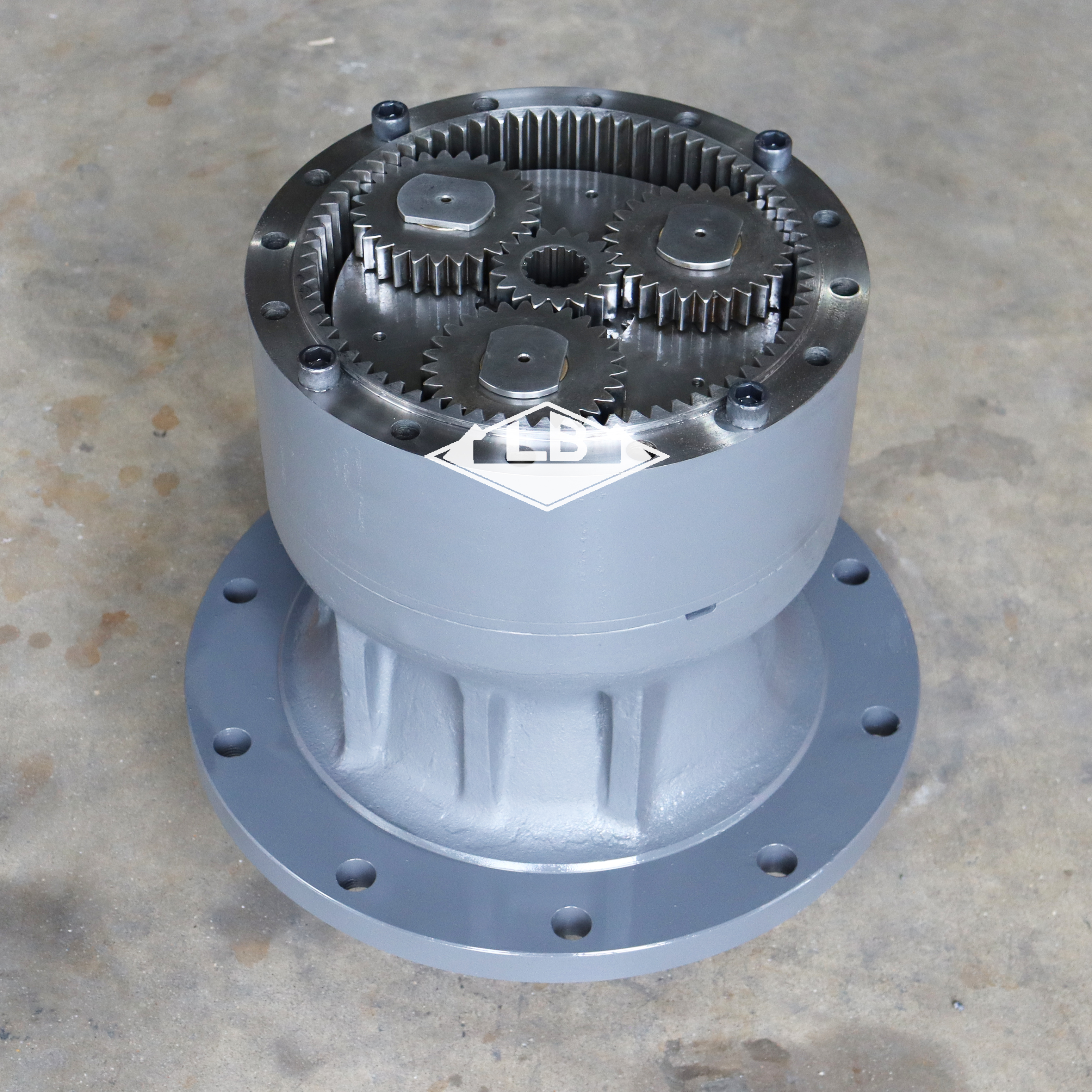

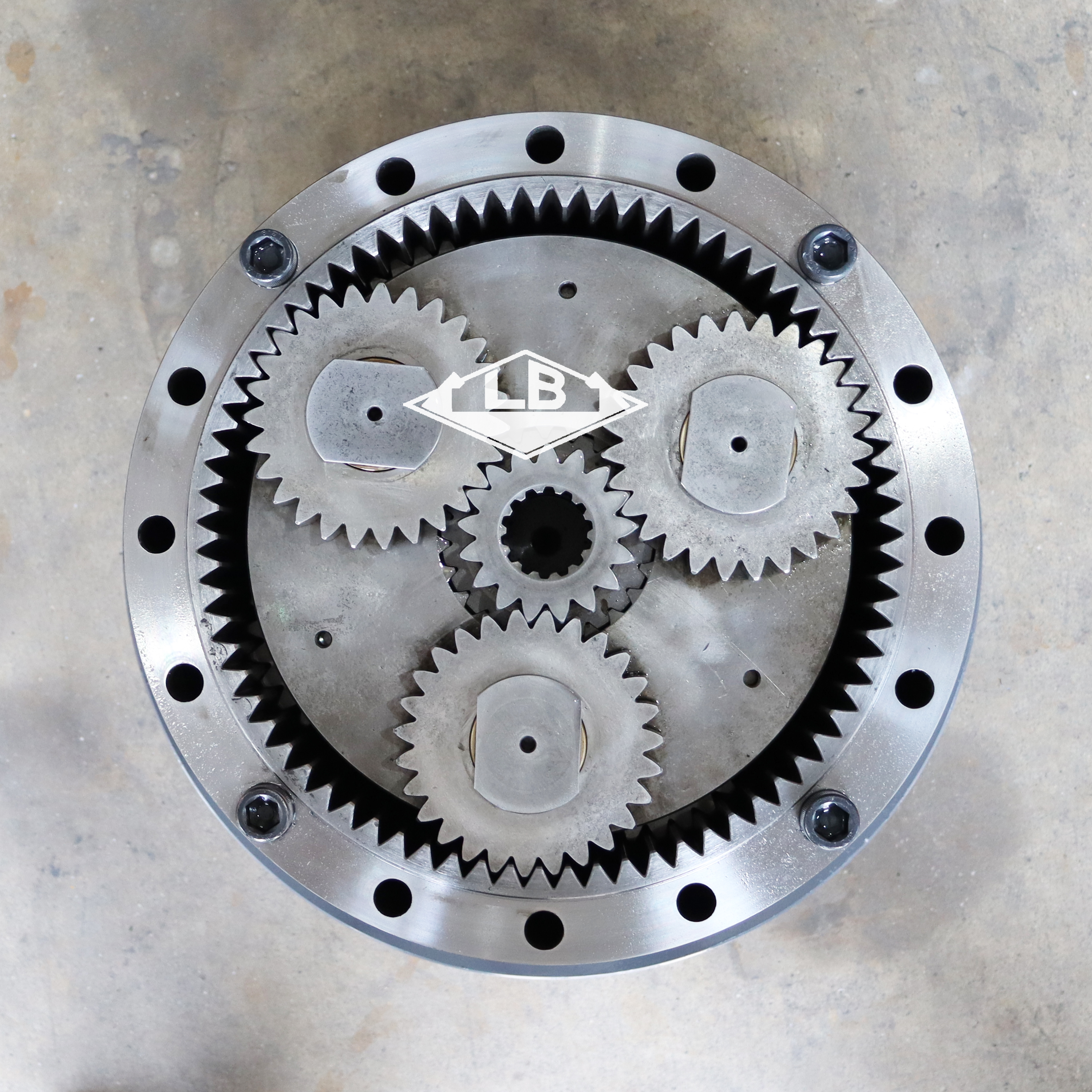

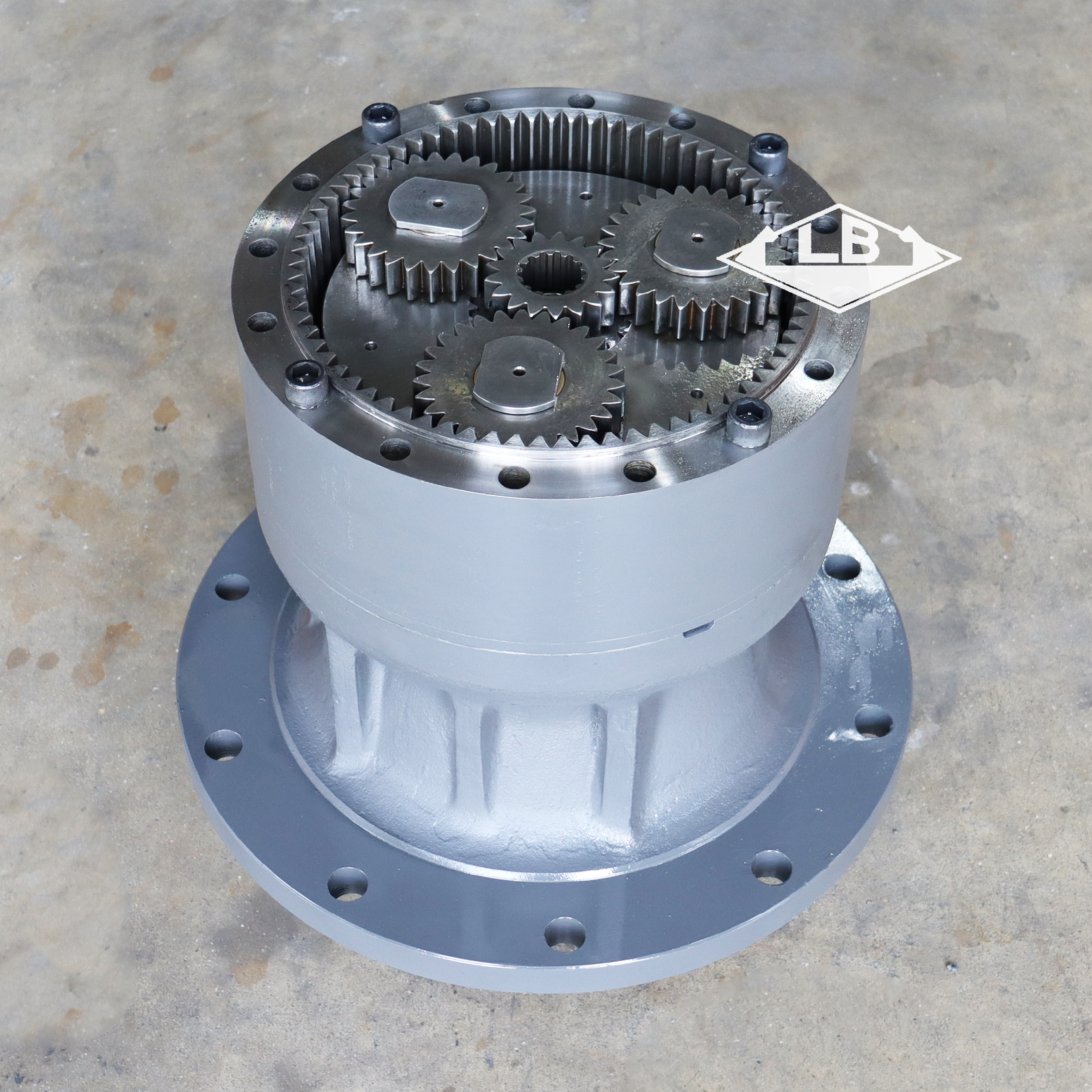

SH240 回转牙箱(2) SH240 回转牙箱(4) SH240

Product Description

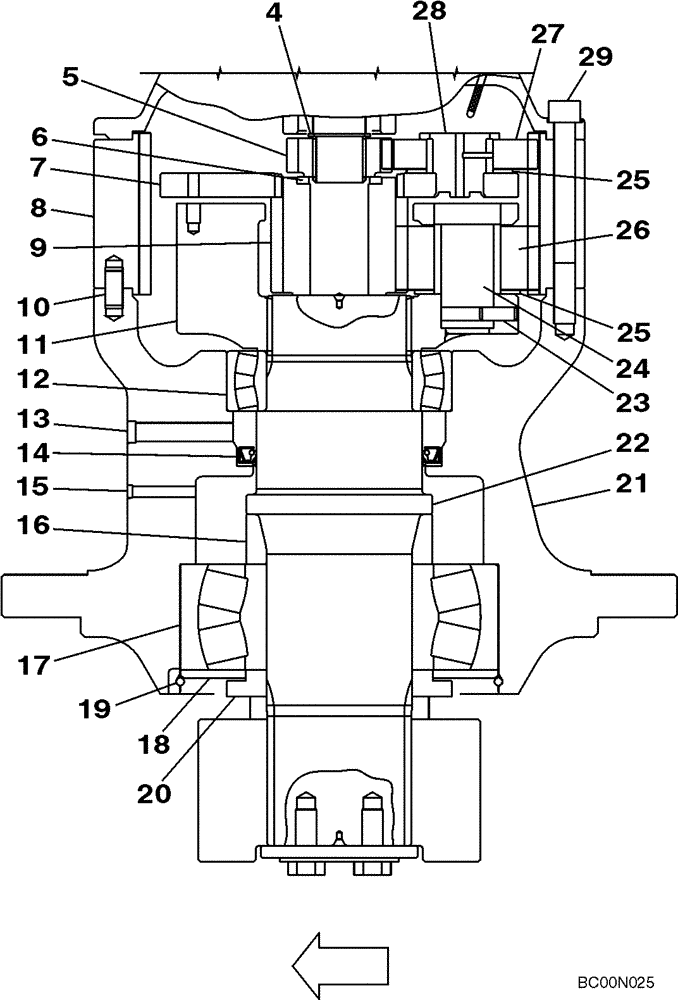

Pos.	Part No	Qty	Parts name	Comments
. .	KBC0127	[1]	REDUCER	SUM Incl. 4 - 29; Replaces KBC0110 Superseded by part number: KBC0157
4.	800-1140	[1]	SNAP RING,M40, Ext	CAS Superseded by part number: 370006
5.	KBC0089	[1]	SUN GEAR	SUM
6.	KRC0154	[1]	PLATE	SUM Thrust
7.	KBC0092	[1]	SUPPORT	SUM
8.	KBC0091	[1]	GEAR, RING	SUM RING, GEAR
9.	KRC0148	[1]	GEAR	SUM Superseded by part number: KRC10440
10.	KRC0155	[4]	PIN	SUM
11.	KBC0096	[1]	SUPPORT	SUM
12.	KBC0100	[1]	BEARING, ROLLER,110mm ID x 170mm OD x 45mm W	SUM
13.	150824A1	[1]	PLUG	SUM
14.	KBC0102	[1]	OIL SEAL	SUM
15.	158352A1	[2]	PLUG	SUM
16.	KBC0104	[1]	SPACER	SUM
17.	KBC0101	[1]	BEARING, ROLLER,110mm ID x 240mm OD x 80mm W	SUM
18.	KBC0103	[1]	BEARING COVER	SUM Bearing
19.	KBC0106	[1]	RETAINING WIRE	SUM
20.	KBC0105	[1]	SPACER	SUM
21.	KBC0098	[1]	HOUSING	SUM Gear
22.	KBC0099	[1]	GEAR SHAFT	SUM
23.	838-51028	[4]	LOCK PIN,M10 x 28, Slotted	CAS Superseded by part number: 14609770
24.	KBC0097	[4]	PIN	SUM
25.	KBC0094	[7]	PLATE	SUM
26.	KBC0095	[4]	GEAR, PLANETARY	SUM GEAR, PLANET
27.	KBC0090	[3]	GEAR, PLANETARY	SUM GEAR, PLANET Superseded by part number: KBC0135
28.	KBC0093	[3]	PIN	SUM
29.	863-16150	[16]	HEX SOC SCREW,M16 x 150mm, Cl 12.9	SUM Superseded by part number: 108R016Y150R
29.	108R016Y150N	[16]	BOLT	SUM Superseded by part number: 108R016Y150R
