Home / Products / Swing Gearbox / SOLAR 280 SOLAR 290 SWING REDUCTION GEAR 2101-1025 SOLAR280 SWING GEARBOX FOR DOOSAN EXCAVATOR

Share to:

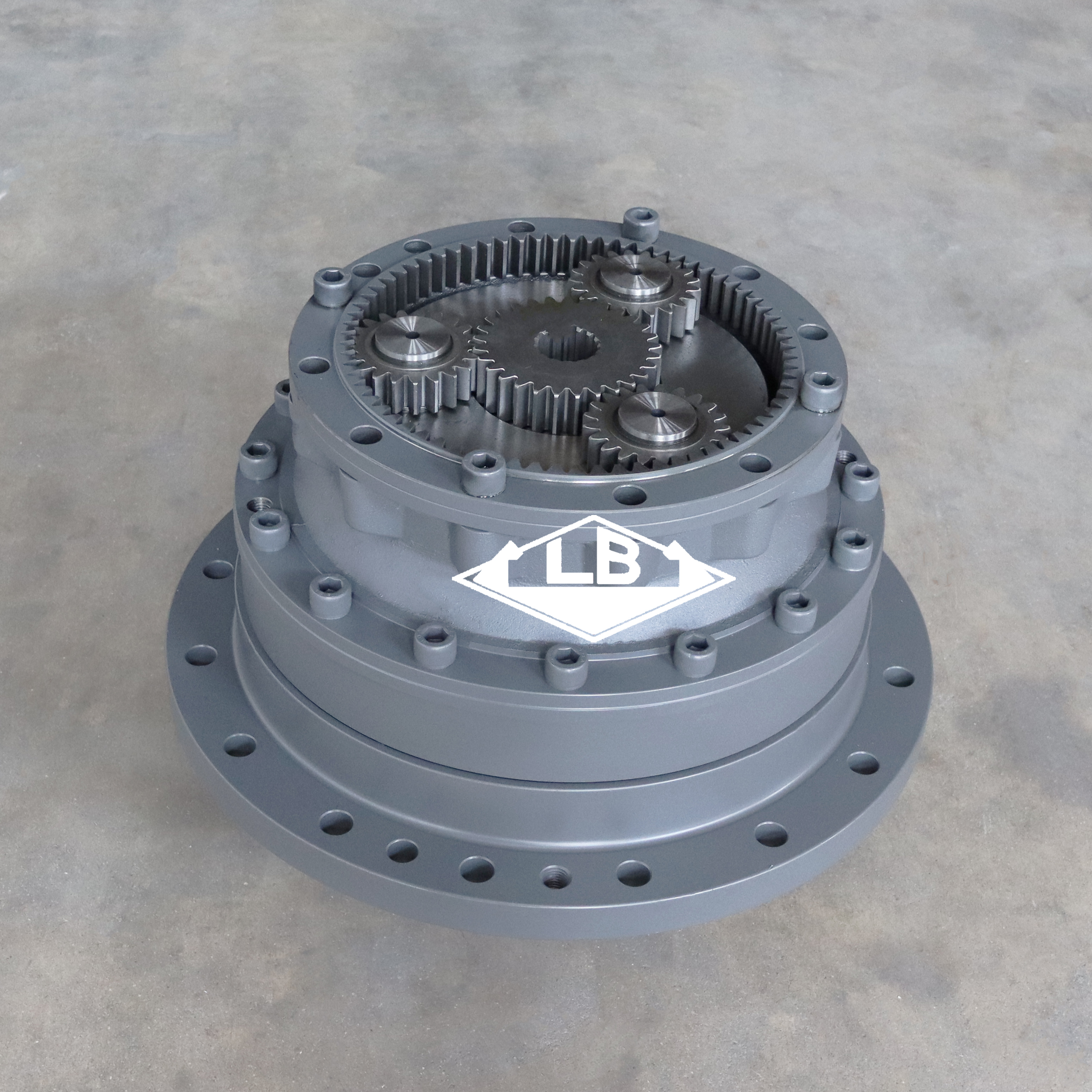

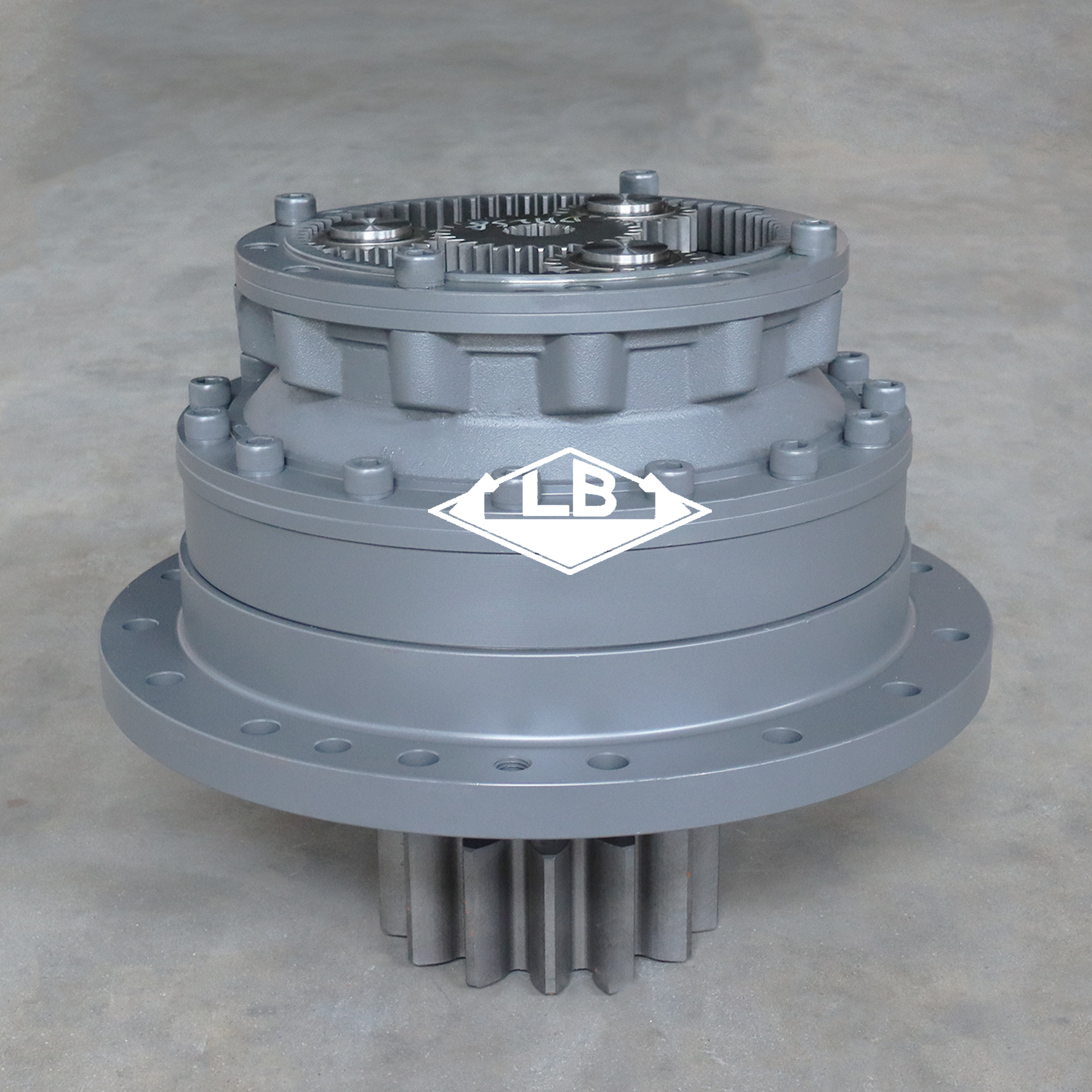

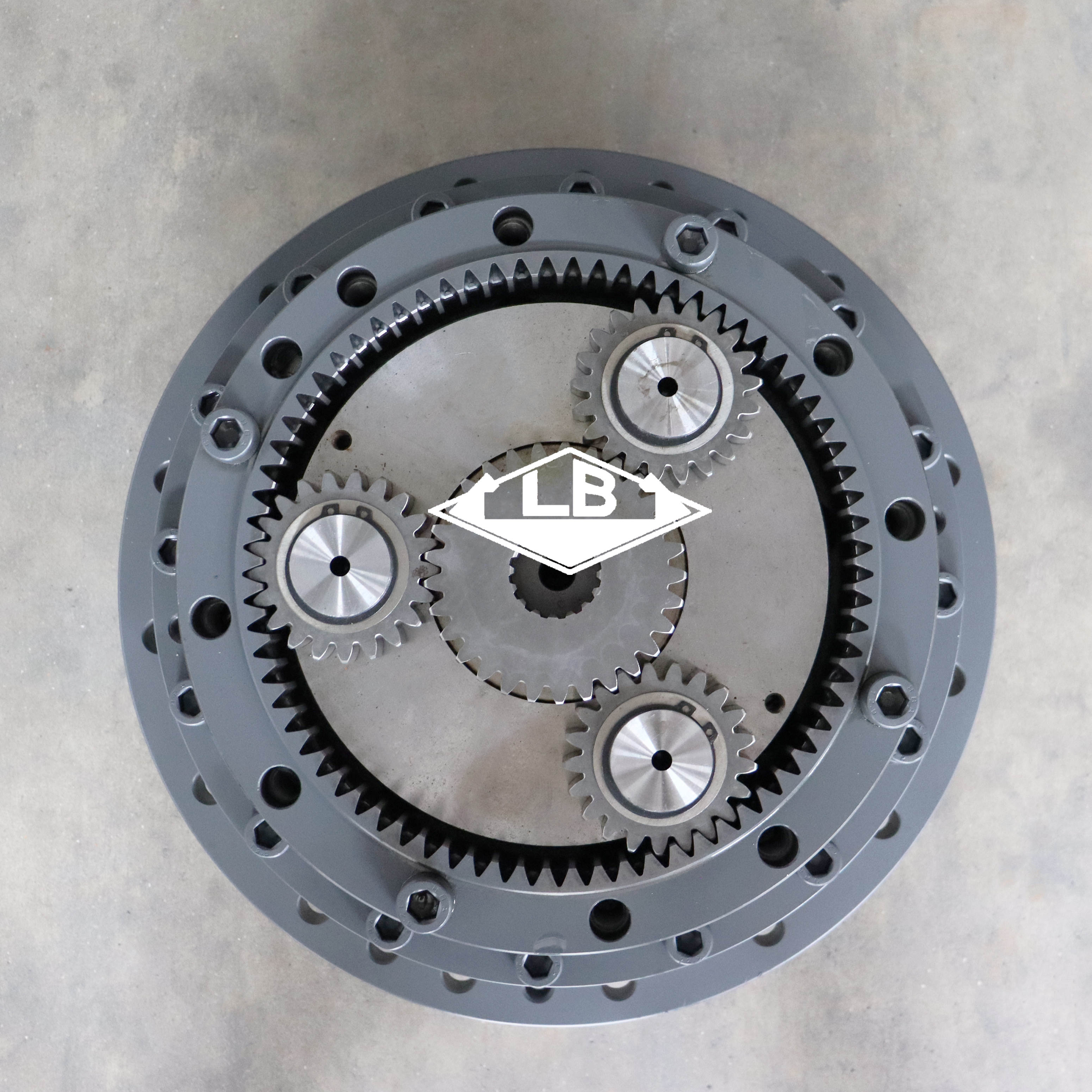

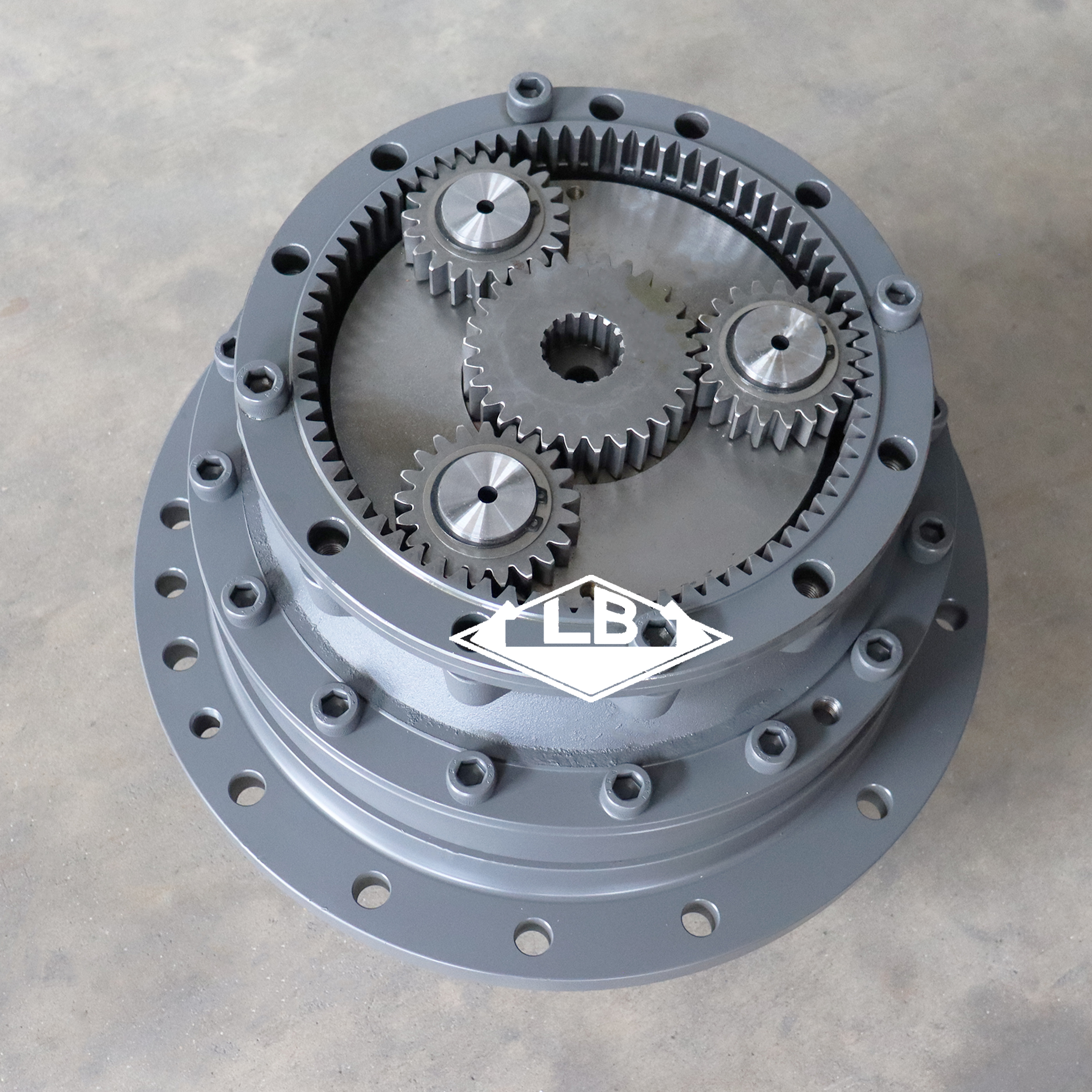

SOLAR 280 SOLAR 290 SWING REDUCTION GEAR 2101-1025 SOLAR280 SWING GEARBOX FOR DOOSAN EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	SOLAR 280 SOLAR 290 SWING GEARBOX
Equipment	Apply to DOOSAN EXCAVATOR
Part no.	2101-1025
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

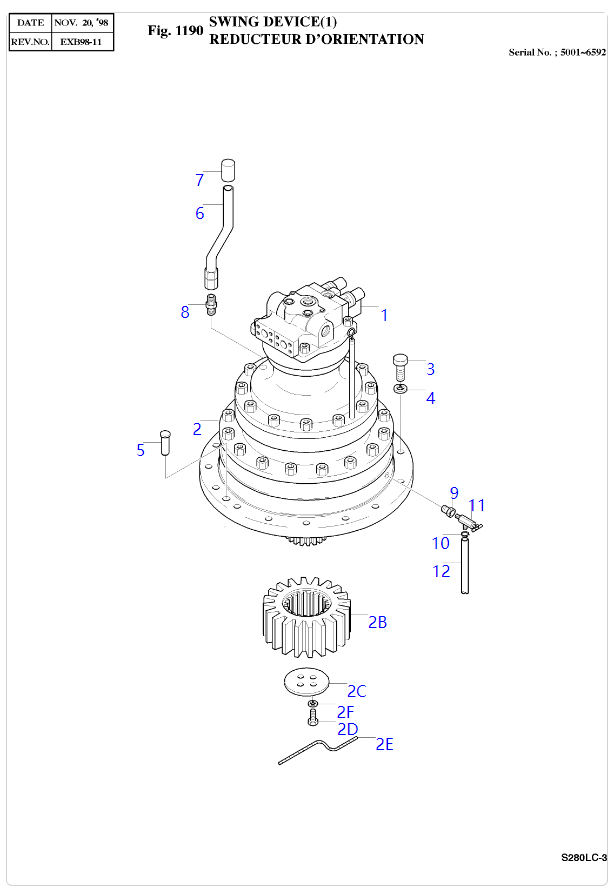

Parts on group :

Pos.	Part No	Qty	Parts name
-.	2401-1166	[-2]	SWING DEVICE Komatsu China
			["SERIAL: 5001-6592", "SERIAL_NO: 5001~6592", "SC: D", "desc: ENSEMBLE D'ORIENTATION"]
1.	2401-9141A	[1]	MOTOR;SWING Komatsu China
			["SERIAL: 5001-5509", "SERIAL_NO: 5001~5509", "ICA: Y", "REP_PNO: 2401-9141B", "REP_QTY: 1", "desc: MOTEUR D'ORIENTATION"]
1.	2401-9141B	[1]	MOTOR;SWING Komatsu China
			["SERIAL: 5510-6449", "SERIAL_NO: 5510~6449", "desc: MOTEUR D'ORIENTATION"]
1.	2401-9141C	[1]	MOTOR;SWING Komatsu China
			["SERIAL: 6450-6592", "SERIAL_NO: 6450~6592", "desc: MOTEUR D'ORIENTATION"]
2.	2302-9003B	[1]	REDUCTION GEAR BOX ASS'Y Komatsu China
			["SERIAL: 5001-5423", "SERIAL_NO: 5001~5423", "ICA: P", "REP_PNO: 2101-1025", "REP_QTY: 1", "desc: BOITE REDUCTEUR 2404-1040"]
2.	2101-1025	[1]	REDUCTION GEAR BOX ASS'Y Komatsu China
			["SERIAL: 5424-5555", "SERIAL_NO: 5424~5555", "desc: BOITE REDUCTEUR"]
2.	2101-1025A	[1]	REDUCTION GEAR BOX ASS'Y Komatsu China
			["SERIAL: 5556-5799", "SERIAL_NO: 5556~5799", "ICA: Y", "REP_PNO: 2101-1025B", "REP_QTY: 1", "desc: BOITE REDUCTEUR"]
2.	2101-1025B	[1]	REDUCTION GEAR BOX ASS'Y Komatsu China
			["SERIAL: 5800-6029", "SERIAL_NO: 5800~6029", "ICA: Y", "REP_PNO: 2402-1034K", "REP_QTY: 1", "desc: BOITE REDUCTEUR"]
2.	2402-1034K	[1]	REDUCTION GEAR BOX ASS'Y Komatsu China
			["SERIAL: 6030-6059", "SERIAL_NO: 6030~6059", "desc: BOITE REDUCTEUR"]
2.	2101-1025C	[1]	REDUCTION GEAR BOX ASS'Y Komatsu China
			["SERIAL: 6060-6504", "SERIAL_NO: 6060~6504", "desc: BOITE REDUCTEUR"]
2.	2101-1025D	[1]	REDUCTION GEAR BOX ASS'Y Komatsu China
			["SERIAL: 6505-6592", "SERIAL_NO: 6505~6592", "desc: BOITE REDUCTEUR"]
2B.	2404-1031	[1]	. GEAR;PINION Komatsu China
			["SERIAL: 5001-5423", "SERIAL_NO: 5001~5423", "desc: . FUSIBLE"]
2B.	2404-1031A	[1]	. GEAR;PINION Komatsu China
			["SERIAL: 5424-5555", "SERIAL_NO: 5424~5555", "desc: . FUSIBLE"]
2B.	2404-1031B	[1]	. GEAR;PINION Komatsu China
			["SERIAL: 5556-6059", "SERIAL_NO: 5556~6059", "desc: . FUSIBLE"]
2B.	2404-1031C	[1]	. GEAR;PINION Komatsu China
			["SERIAL: 6060-6504", "SERIAL_NO: 6060~6504", "desc: . FUSIBLE"]
2B.	2404-1031E	[1]	. GEAR;PINION Komatsu China
			["SERIAL: 6505", "SERIAL_NO: 6505~", "desc: . FUSIBLE"]
2C.	2403-1039A	[1]	. COVER;LOCK Komatsu China
			["desc: . COUVERCLE"]
2D.	2120-1340A	[4]	. BOLT Komatsu China
			["SERIAL: 5001-5423", "SERIAL_NO: 5001~5423", "desc: . BOULON A 6 PANS"]
2D.	2120-1363	[4]	. BOLT M16X2.0X40 Komatsu China
			["SERIAL: 5424", "SERIAL_NO: 5424~", "desc: . BOULON A 6 PANS"]
2E.	2126-9008	[2]	. WIRE Komatsu China
			["SERIAL: 5001-5423", "SERIAL_NO: 5001~5423", "desc: . CABLE"]
2E.	2126-9001	[2]	. WIRE Komatsu China
			["SERIAL: 5424", "SERIAL_NO: 5424~", "desc: . CABLE"]
2F.	S5102901	[4]	. WASHER;SPRING M16 Komatsu China
			["SERIAL: 5424", "SERIAL_NO: 5424~", "desc: . RONDELLE ELASTIQUE M16"]
3.	S0770261	[14]	BOLT M20X1.5X70 Komatsu China
			["desc: BOULON A 6 PANS"]
3.	S0570461	[14]	BOLT M20X2.5X80 Komatsu China
			["desc: BOULON A 6 PANS"]
4.	S5103101	[14]	WASHER;SPRING M20 Komatsu China
			["desc: RONDELLE ELASTIQUE M20"]
5.	2123-1458	[2]	PIN;KNOCK Komatsu China
			["desc: GOUJON"]
6.	2182-1380A	[1]	PIPE Komatsu China
			["SERIAL: 5001-6674", "SERIAL_NO: 5001~6674", "ICA: Y", "REP_PNO: 2182-1380B", "REP_QTY: 1", "desc: CONDUITE"]
7.	2160-1003	[1]	CAP Komatsu China
			["desc: BOUCHON"]
8.	2181-1110D4	[1]	ADAPTER PF.PT3/4 Komatsu China
			["SERIAL: 5001-5094", "SERIAL_NO: 5001~5094", "ICA: P", "REP_PNO: 2181-1110D37", "REP_QTY: 1", "desc: RACCORD ADAPTATEUR"]
8.	2181-1110D37	[1]	ADAPTER PT3/4XPF3/4 Komatsu China
			["SERIAL: 5095", "SERIAL_NO: 5095~", "desc: RACCORD ADAPTATEUR"]
9.	2181-1113D16	[1]	REDUCER PT1/2-PT3/8 Komatsu China
			["SERIAL: 5355-6572", "SERIAL_NO: 5355~6572", "desc: REDUCTEUR"]
10.	S8450006	[1]	CLAMP Komatsu China
			["SERIAL: 5355", "SERIAL_NO: 5355~", "desc: COLLIER"]
11.	2186-9001	[1]	COCK Komatsu China
			["SERIAL: 5355-6572", "SERIAL_NO: 5355~6572", "desc: COCK"]
12.	2184-1053	[1]	HOSE;VINYL 900L Komatsu China
			["SERIAL: 5355-5439", "SERIAL_NO: 5355~5439", "desc: TUYAU FLEXIBLE"]
12.	2184-9086	[1]	HOSE;VINYL Komatsu China
			["SERIAL: 5440-6684", "SERIAL_NO: 5440~6684", "desc: TUYAU FLEXIBLE"]
