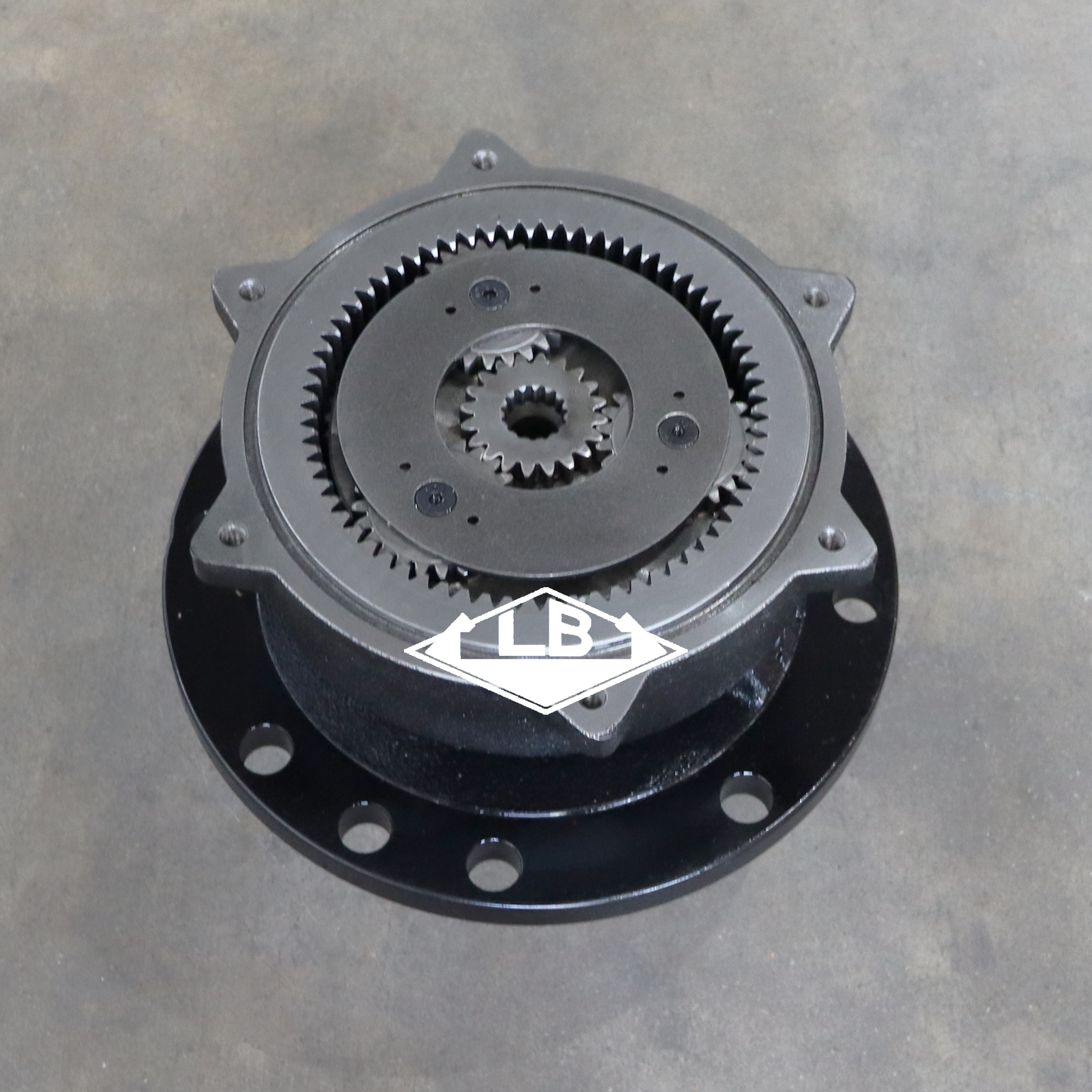

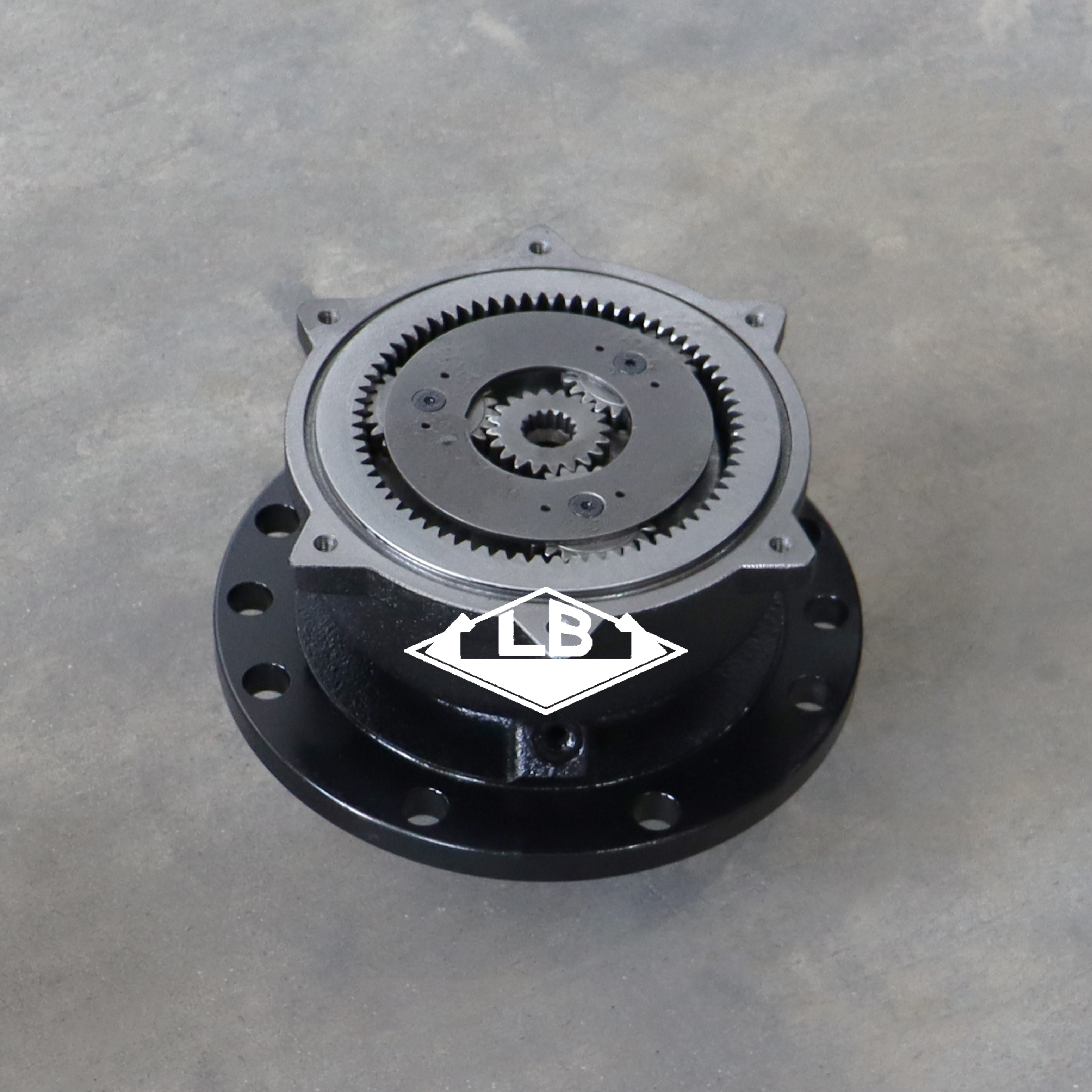

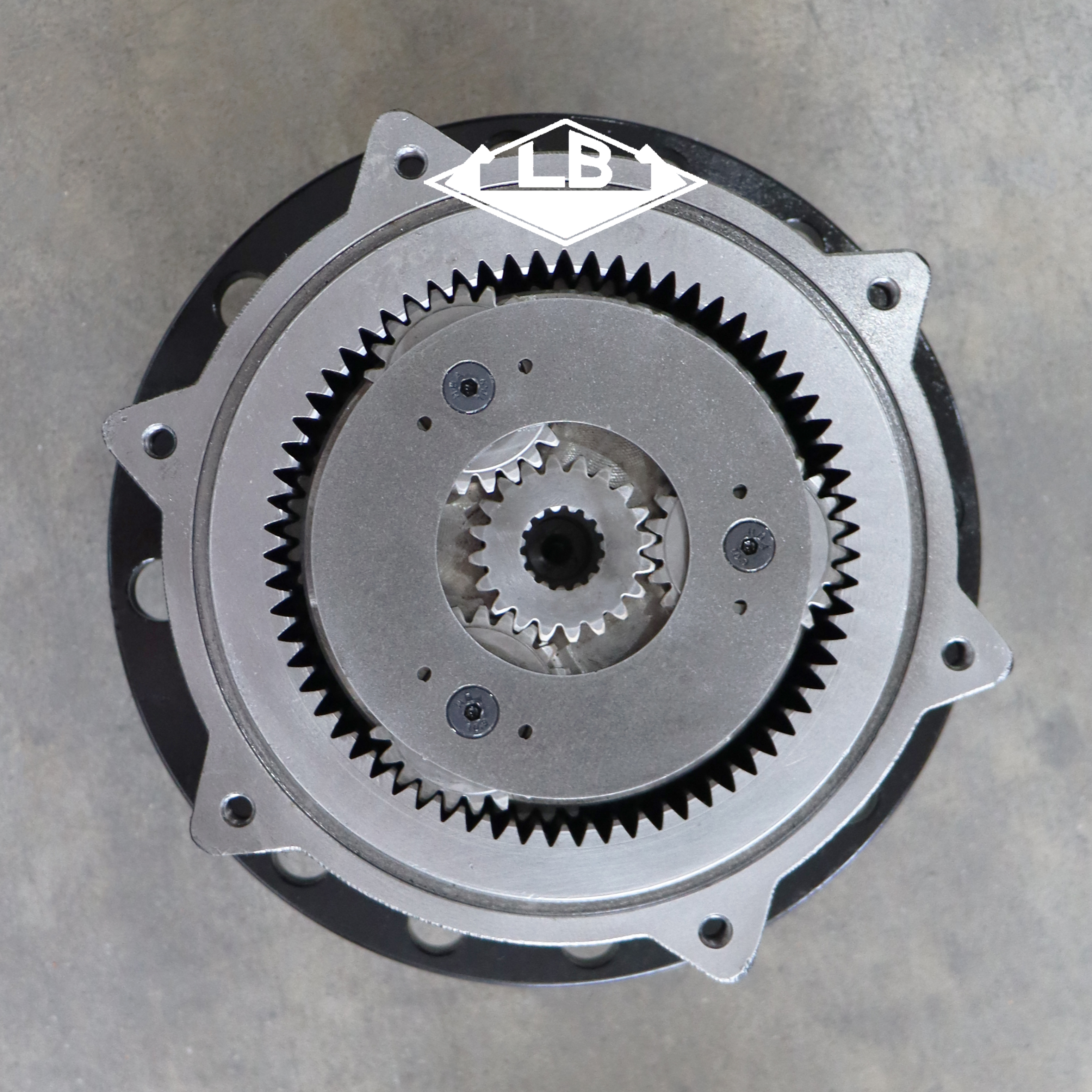

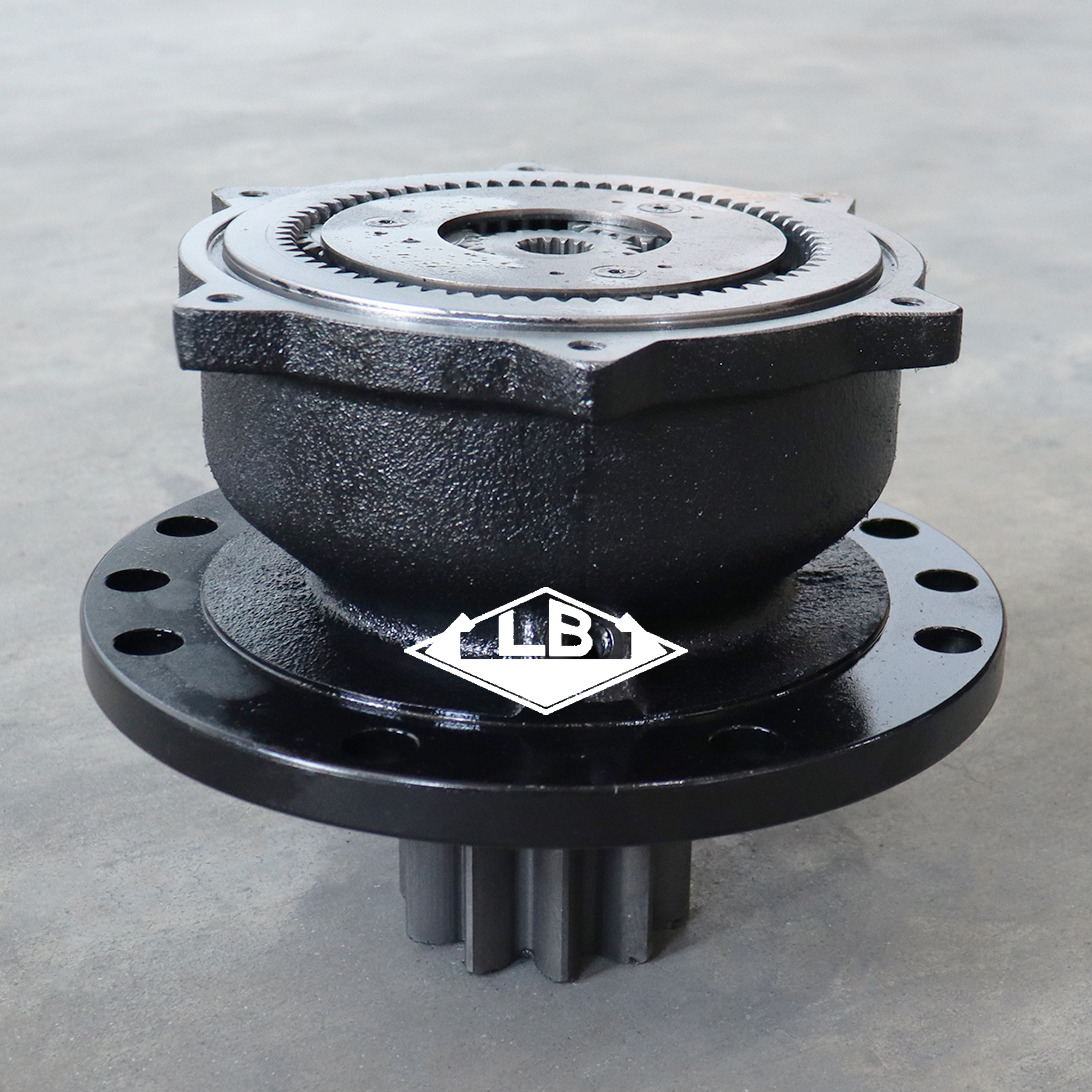

SK60-8 SWING REDUCER PY15V00014F1 SK60-8 SWING GEARBOX FOR KOBELCO EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	SK60-8 Swing gearbox
Equipment	Apply to HYUNDAI EXCAVATOR
Part no.	PY15V00014F1
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

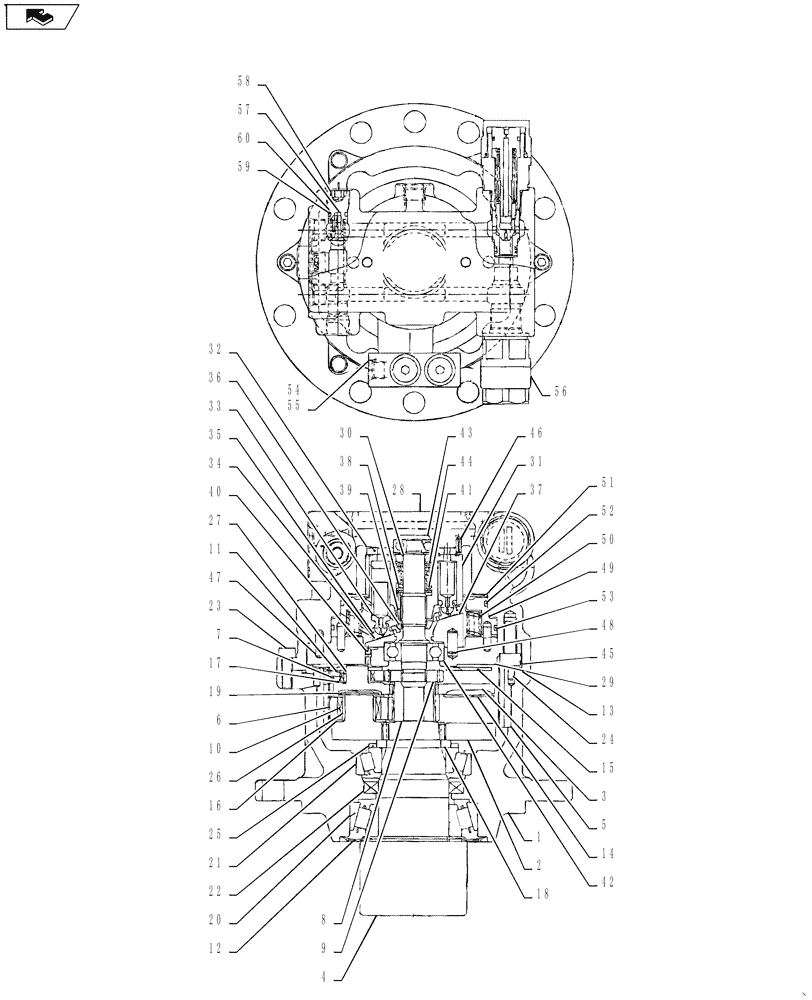

Parts on group (SK55SRX) - CRAWLER EXCAVATOR, ASN PS02-00101 - (NA) (10/11-12/13):

Pos.	Part No	Qty	Parts name	Comments
..	PY15V00014F1	[1]	HYDRAULIC MOTOR	KOB Assembly, Incl 1 - 60
1.	NSS	[1]	NOT SOLD SEPARAT	CON Body
2.	NSS	[1]	NOT SOLD SEPARAT	CON Carrier
3.	NSS	[1]	NOT SOLD SEPARAT	CON Carrier
4.	NSS	[1]	NOT SOLD SEPARAT	CON Shaft
5.	NSS	[1]	NOT SOLD SEPARAT	CON Gear
6.	NSS	[4]	NOT SOLD SEPARAT	CON Gear
7.	NSS	[3]	NOT SOLD SEPARAT	CON Gear
8.	PY15V00014S108	[1]	GEAR	KOB
9.	PY15V00014S109	[1]	GEAR	KOB
10.	NSS	[92]	NOT SOLD SEPARAT	CON Needle
11.	NSS	[72]	NOT SOLD SEPARAT	CON Needle
12.	NSS	[1]	NOT SOLD SEPARAT	CON Ring
13.	PY15V00014S114	[1]	O-RING	KOB
14.	NSS	[1]	NOT SOLD SEPARAT	CON Plate
15.	NSS	[1]	NOT SOLD SEPARAT	CON Plate
16.	NSS	[4]	NOT SOLD SEPARAT	CON Washer, Thrust
17.	NSS	[3]	NOT SOLD SEPARAT	CON Washer, Thrust
18.	NSS	[2]	NOT SOLD SEPARAT	CON Collar
19.	PY15V00014S120	[4]	RING	KOB
20.	NSS	[1]	NOT SOLD SEPARAT	CON Bearing
21.	NSS	[1]	NOT SOLD SEPARAT	CON Bearing
22.	NSS	[1]	NOT SOLD SEPARAT	CON Oil Seal
23.	ZS23C08025	[6]	SCREW,Hex Socket Head, M8 x 25mm	KOB Cap
24.	NSS	[4]	NOT SOLD SEPARAT	CON Pin
25.	PY15V00012S136	[1]	RING	KOB
26.	NSS	[4]	NOT SOLD SEPARAT	CON Ring
27.	NSS	[3]	NOT SOLD SEPARAT	CON Ring
28.	NSS	[1]	NOT SOLD SEPARAT	CON Body
29.	NSS	[1]	NOT SOLD SEPARAT	CON Plate
30.	NSS	[1]	NOT SOLD SEPARAT	CON Shaft
31.	NSS	[1]	NOT SOLD SEPARAT	CON Block, Cylinder
32.	NSS	[1]	NOT SOLD SEPARAT	CON Plate, Valve
33.	NSS	[9]	NOT SOLD SEPARAT	CON Piston
34.	NSS	[9]	NOT SOLD SEPARAT	CON Shoe
35.	NSS	[1]	NOT SOLD SEPARAT	CON Retainer, Shoe
36.	NSS	[1]	NOT SOLD SEPARAT	CON Holder
37.	NSS	[1]	NOT SOLD SEPARAT	CON Plate, Shoe
38.	NSS	[2]	NOT SOLD SEPARAT	CON Retainer
39.	NSS	[3]	NOT SOLD SEPARAT	CON Pin
40.	PM15V00008S014	[1]	FILTER	KOB
41.	NSS	[1]	NOT SOLD SEPARAT	CON Spring
42.	PY15V00012S216	[1]	BALL BEARING	KOB
43.	PR15V00004S074	[1]	BEARING	KOB Ball
44.	ZR26X02800	[1]	RING	KOB Snap
45.	ZS23C12035	[8]	SCREW,Hex Socket Head, M12 x 35mm	KOB Cap
46.	ZP26D05012	[1]	PIN	KOB Spring
47.	PA15V01002S321	[3]	PIN	KOB
48.	NSS	[1]	NOT SOLD SEPARAT	CON Pin
49.	NSS	[1]	NOT SOLD SEPARAT	CON Piston, Brake
50.	NSS	[1]	NOT SOLD SEPARAT	CON Spring
51.	NSS	[1]	NOT SOLD SEPARAT	CON Plate
52.	ZD12G11000	[1]	O-RING,109.40mm ID x 115.60mm OD x 3.10mm	KOB
53.	ZD12G12500	[1]	O-RING,124.40mm ID x 130.60mm OD x 3.10mm	KOB
54.	PY64H00003F1	[1]	HYDRAULIC VALVE	KOB Assy.
55.	ZS23C06015	[4]	SCREW,Hex Socket Head, M6 x 15mm	KOB Cap
56.	PY22V00016F1	[2]	VALVE PRESSURE RELIE	KOB Relief
57.	NSS	[2]	NOT SOLD SEPARAT	CON Check, Valve
58.	NSS	[2]	NOT SOLD SEPARAT	CON Plug
59.	ZD12P01100	[2]	O-RING	KOB
60.	NSS	[2]	NOT SOLD SEPARAT	CON O-ring
. .	PY15V00014R600	[1]	REPAIR KIT	KOB Consists Of Item: 1(1), 4(1), 5(1), 12(1), 20(1), 21(1), 22(1), 18(2)
. .	PY15V00014R610	[1]	REPAIR KIT	KOB Consists Of Item: 2(1), 14(1), 6(4), 16(4), 19(4), 26(4), 10(92)
. .	PY15V00014R620	[1]	REPAIR KIT	KOB Consists Of Item: 3(1), 15(1), 7(3), 17(3), 27(3), 11(72)
. .	PY15V00014R630	[1]	REPAIR KIT	KOB Consists Of Item: 28(1), 43(1), 46(1), 57(2), 58(2), 59(2), 60(2)
. .	PY15V00014R640	[1]	REPAIR KIT	KOB Consists Of Item: 31(1), 32(1), 35(1), 36(1), 41(1), 44(1), 38(2), 39(3), 33(9), 34(9)
. .	PY15V00014R650	[1]	REPAIR KIT	KOB Consists Of Item: 37(1), 48(1)
. .	PY15V00014R660	[1]	REPAIR KIT	KOB Consists Of Item: 52(1), 53(1), 60(2)
