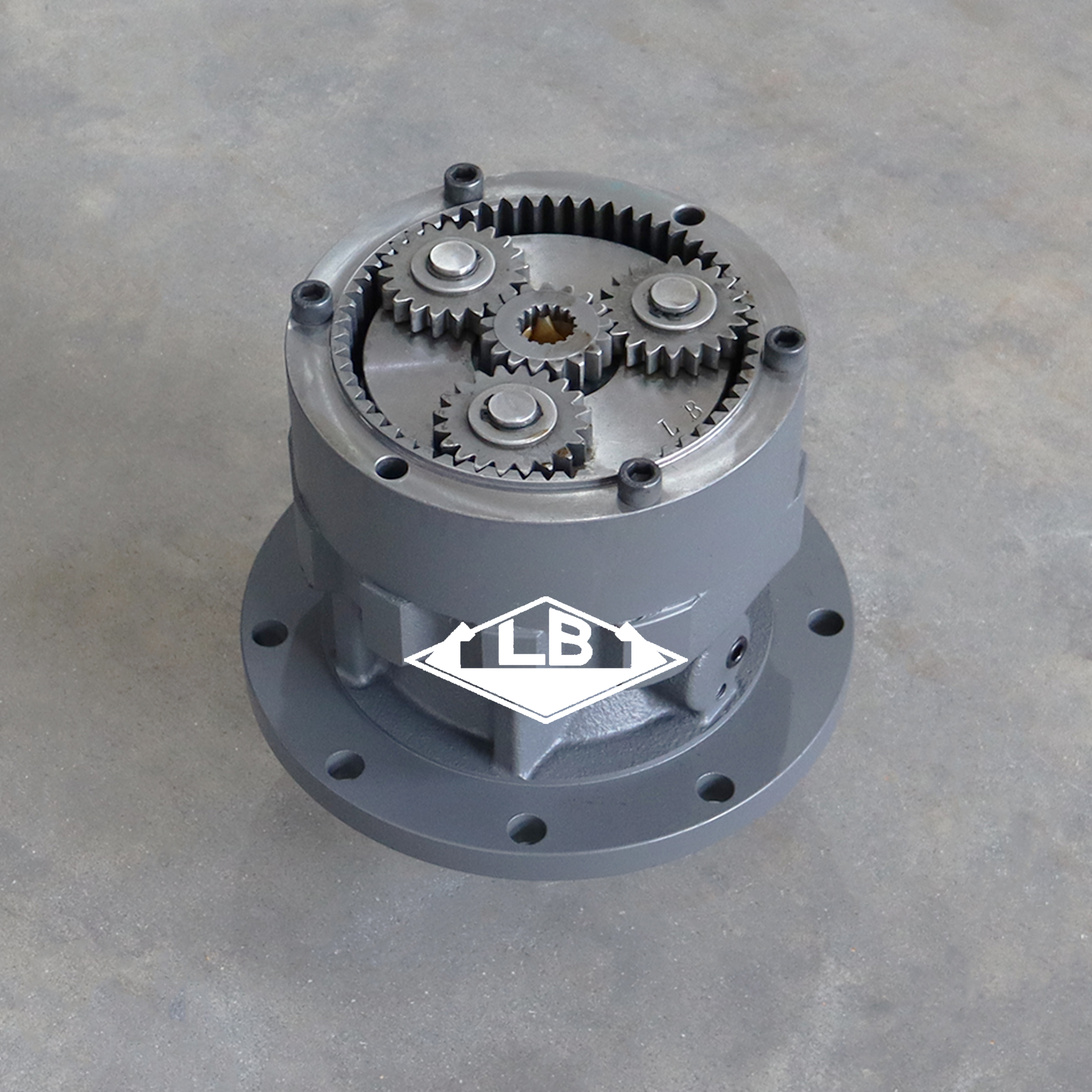

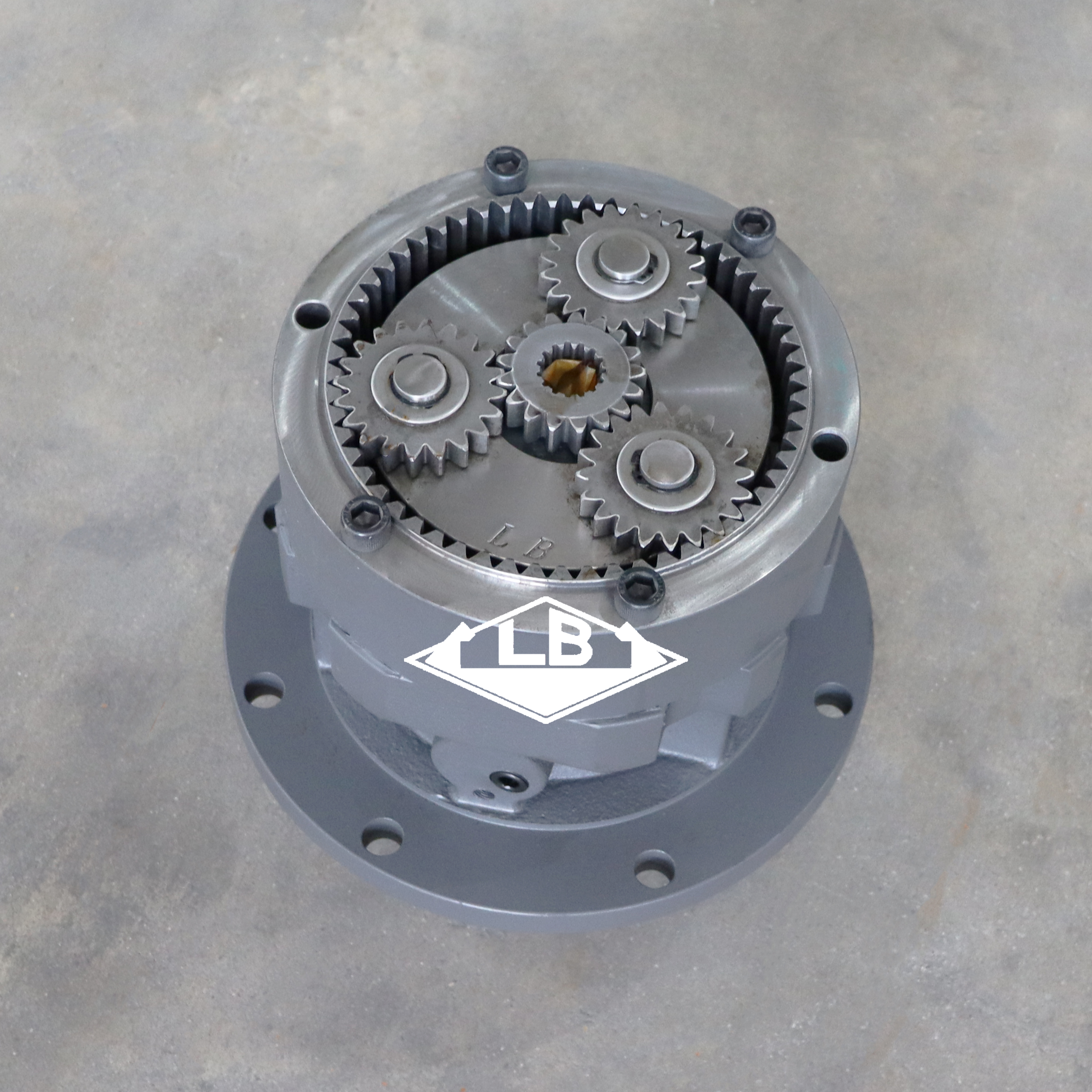

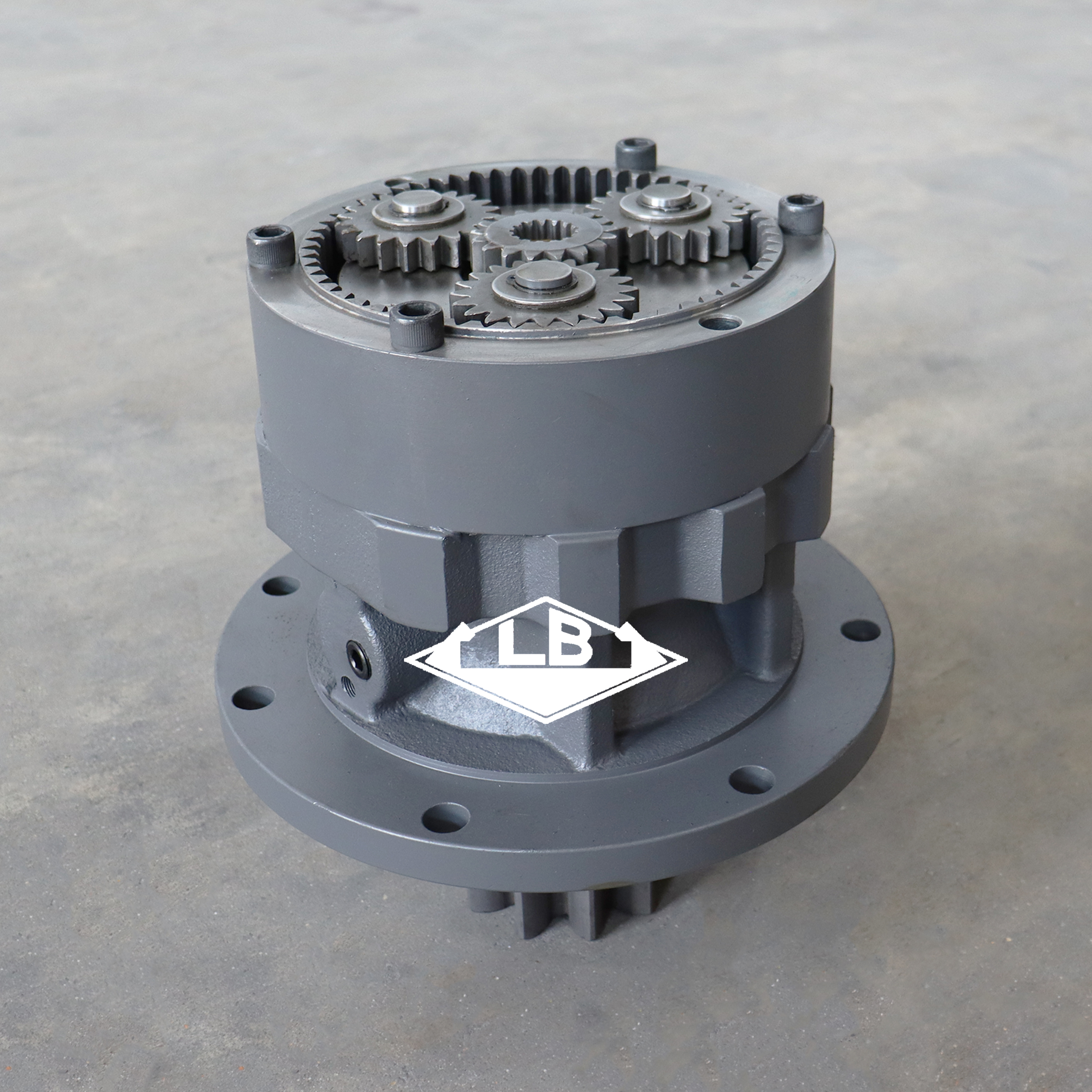

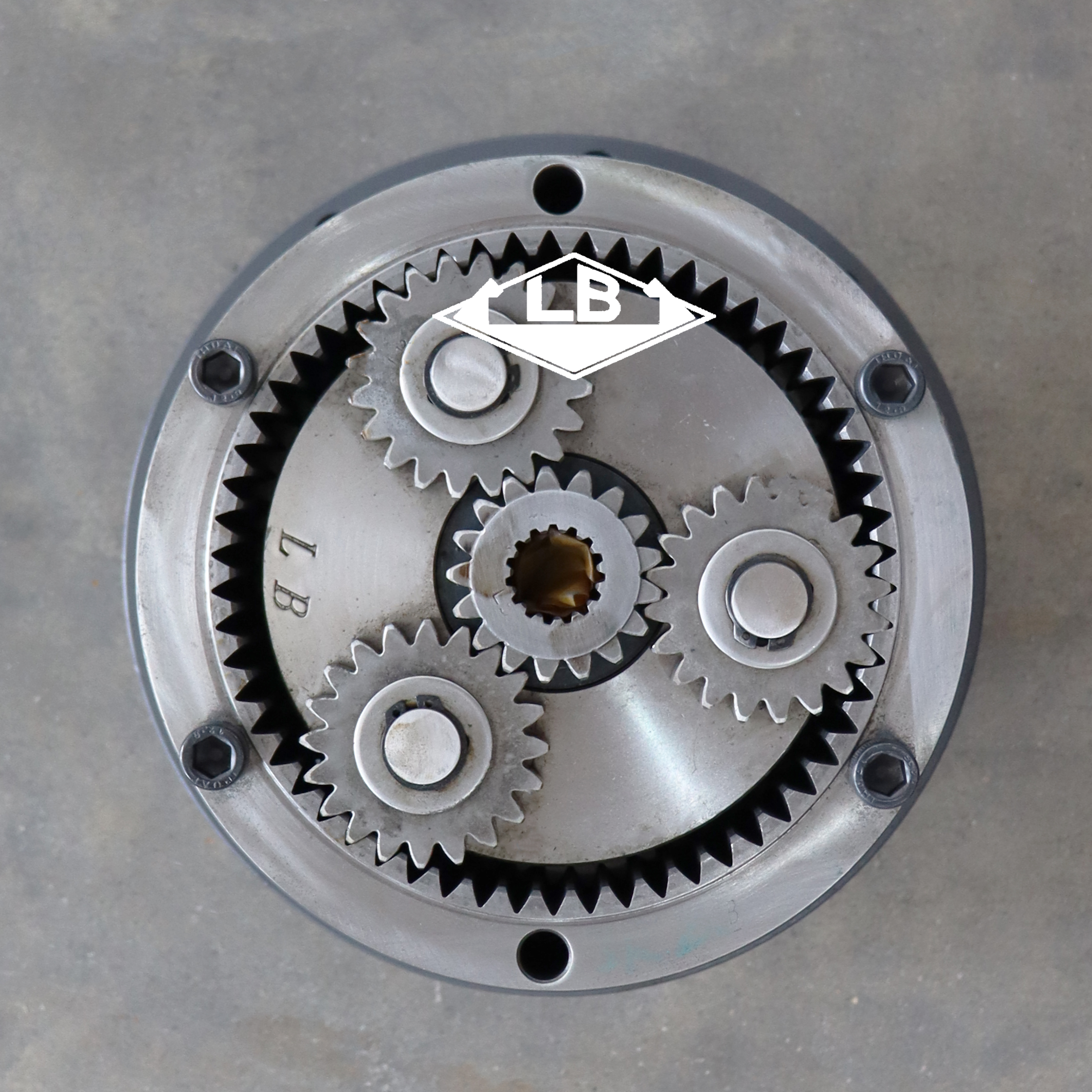

SK60-5 SWING REDUCTION GEAR YR32W00002F1 SK60-5 SWING GEARBOX FOR KOBLECO EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 SK60-5  Swing gearbox
Equipment Apply to HYUNDAI EXCAVATOR
Part no. YR32W00002F1
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

SK60-5 回转牙箱(2)SK60-5 回转牙箱(6)SK60-5 回转牙箱(8)SK60-5 回转牙箱(4)SK60-5 回转牙箱

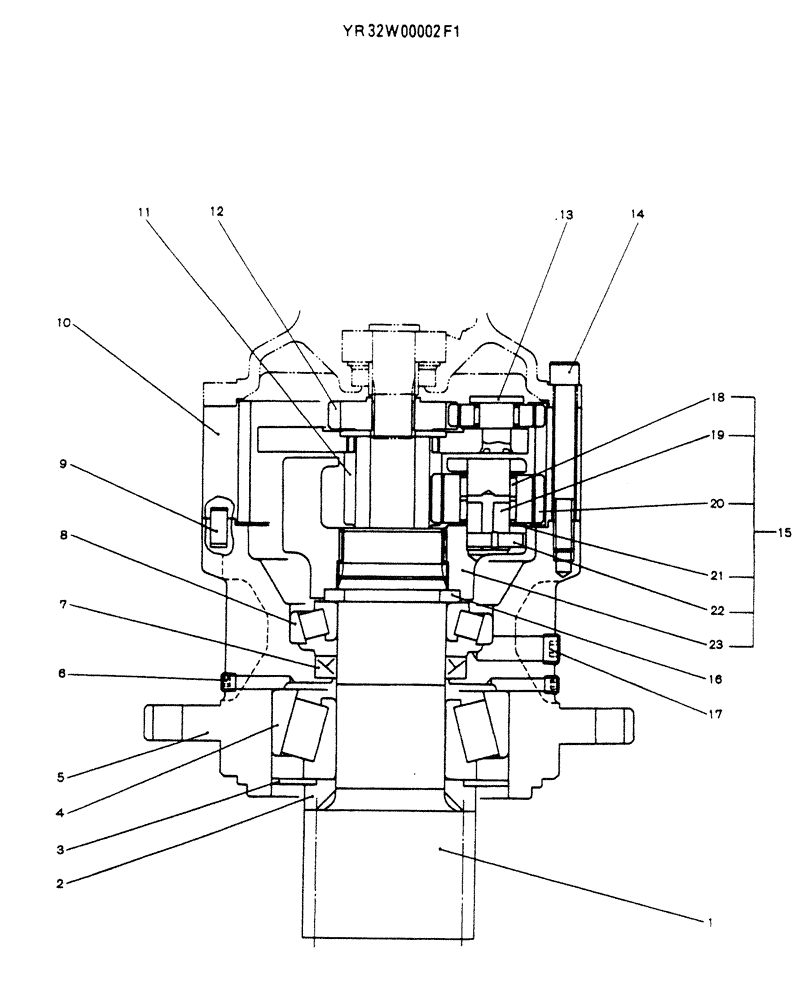

Parts on group (SK60) - MARK V EXCAVATOR BTW LE17701 - LE19738 (12/95-12/03):

Pos. Part No Qty Parts name Comments
. . YR32W00002F1 [1] GEAR REDUCTION UNIT HIT ASSY (SWING)
1. YR32W00002S001 [1] SHAFT KOB PINION
2. YR32W00002S002 [1] COLLAR KOB
3. YR32W00002S003 [1] PLATE KOB
4. YR32W00002S004 [1] BEARING KOB ROLLER
5. YR32W00002S005 [1] GEAR KOB CASE
6. YR32W00002S006 [2] PLUG
7. YR32W00002S007 [1] SEAL KOB OIL
8. YR32W00002S008 [1] BEARING KOB ROLLER
9. PY32W00001S019 [2] PIN KOB
10. YR32W00002S010 [1] GEAR KOB RING
11. YR32W00002S011 [1] GEAR KOB
12. YR32W00002S012 [1] GEAR KOB
13. YR32W00002S013 [1] HOLDER KOB ASSY
14. YR32W00002S014 [6] CAPSCREW KOB SCREW CAPSCREW
15. YR32W00002S015 [1] REPAIR KIT KOB HOLDER ASSY Superseded by part number: YT32W00002R100
16. YR32W00002S016 [2] COLLAR KOB
17. 2436R354S18 [1] PLUG
18. NSS [6] NOT SOLD SEPARAT CON BEARING, NEEDLE
19. NSS [3] NOT SOLD SEPARAT CON SHAFT
20. NSS [3] NOT SOLD SEPARAT CON GEAR
21. NSS [6] NOT SOLD SEPARAT CON PLATE,THRUST
22. NSS [3] NOT SOLD SEPARAT CON PIN. SPRING
23. NSS [1] NOT SOLD SEPARAT CON HOLDER
