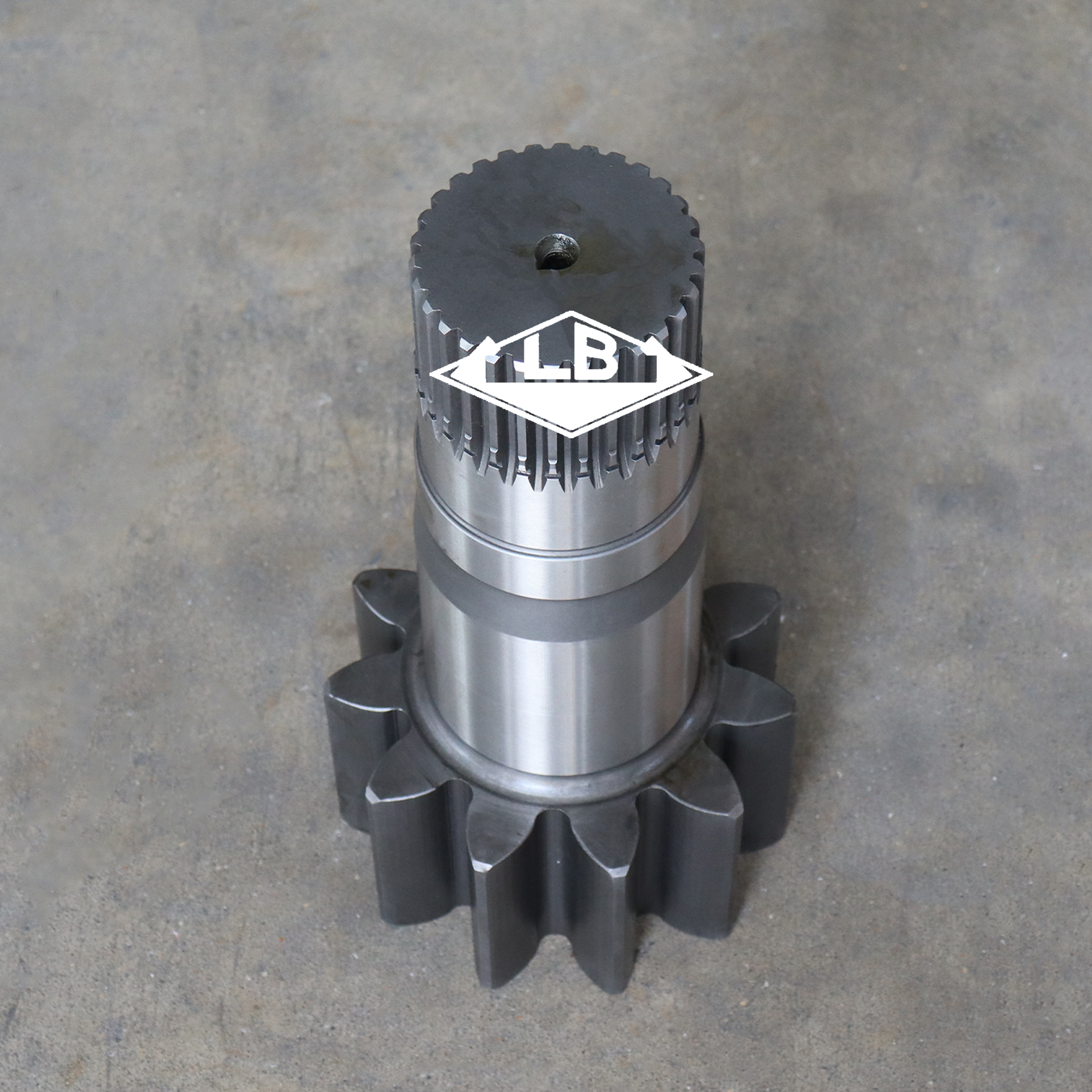

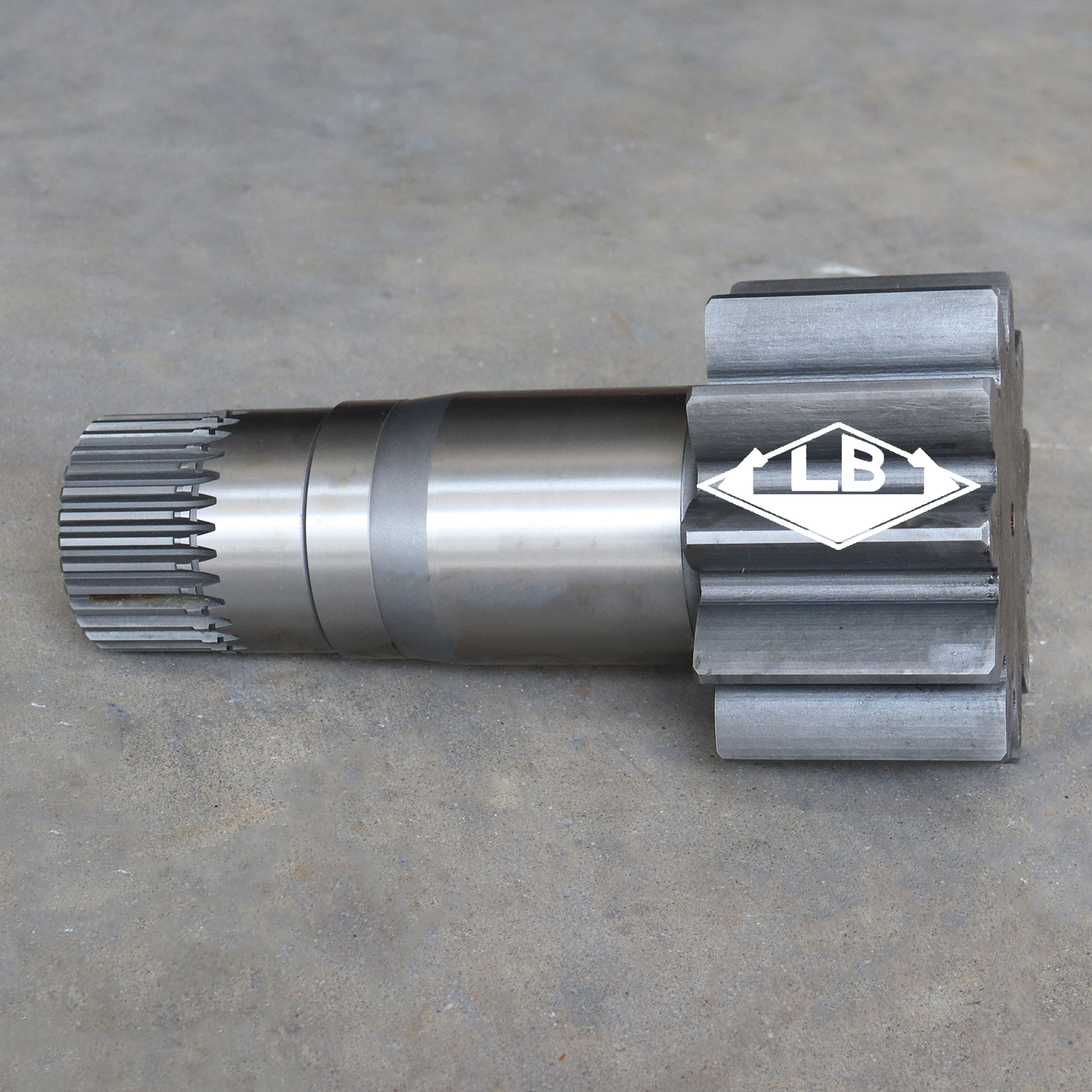

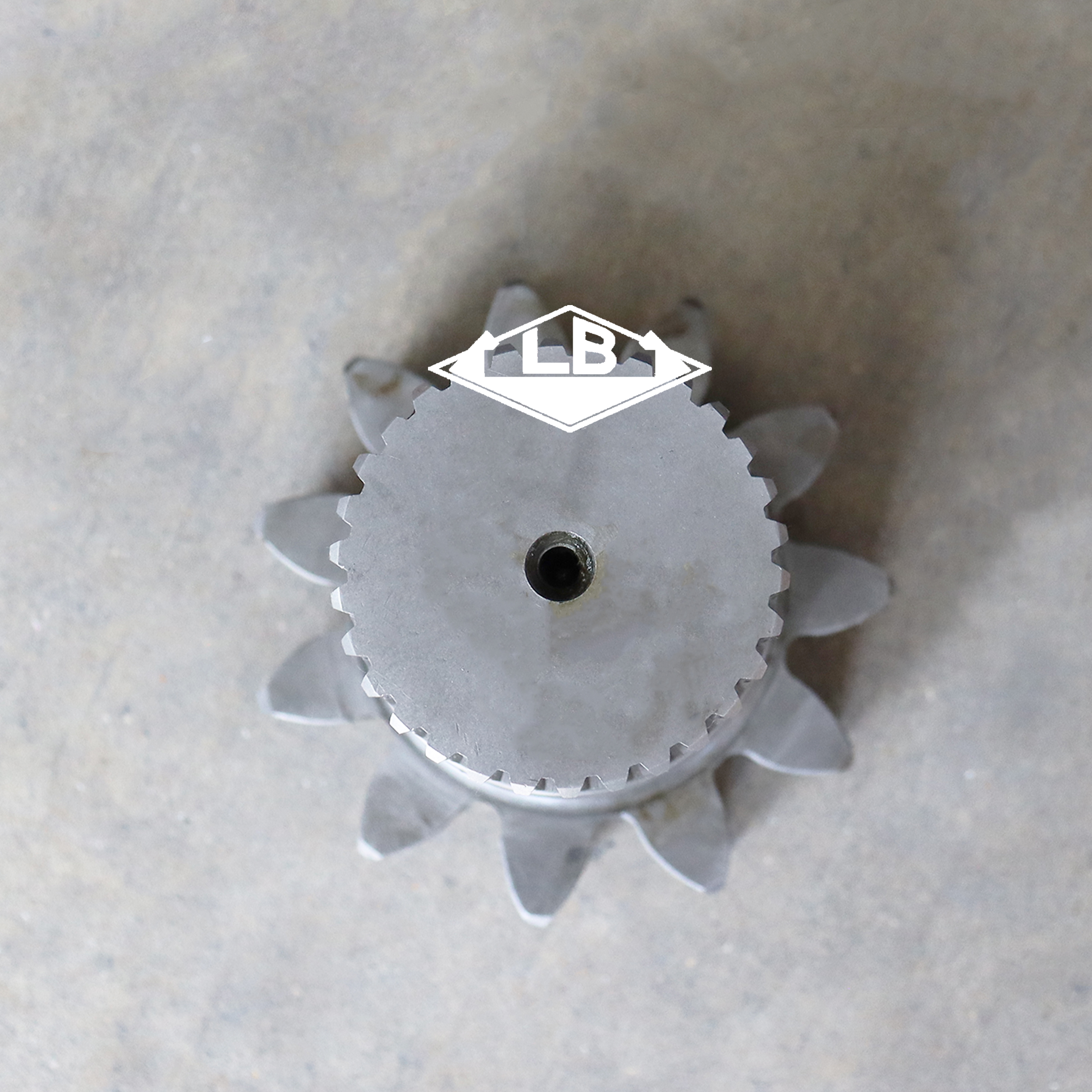

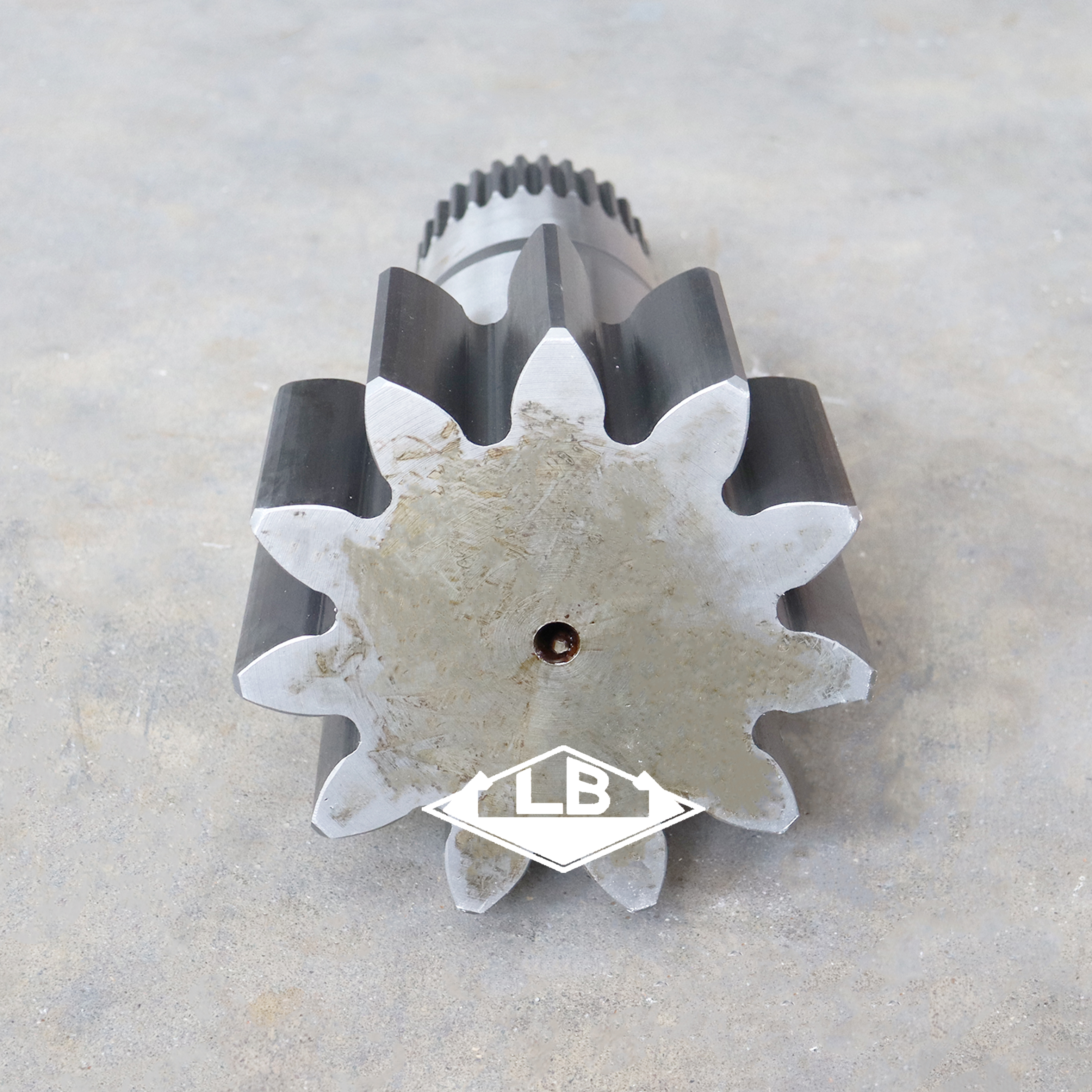

SK250-8 SK230-6 SK485-8 SWING SHAFT LQ32W01038P1 SWING PINION SHAFT KOBELCO EXCAVATOR SPARES PARTS

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 SK250-8 SK230-6 SK485-8 Swing gearbox
Equipment Apply to KOBELCO EXCAVATOR
Part no. LQ32W01038P1
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

SK250-8 回转大轴(2)SK250-8 回转大轴(6)SK250-8 回转大轴(8)SK250-8 回转大轴(4)SK250-8回转大轴

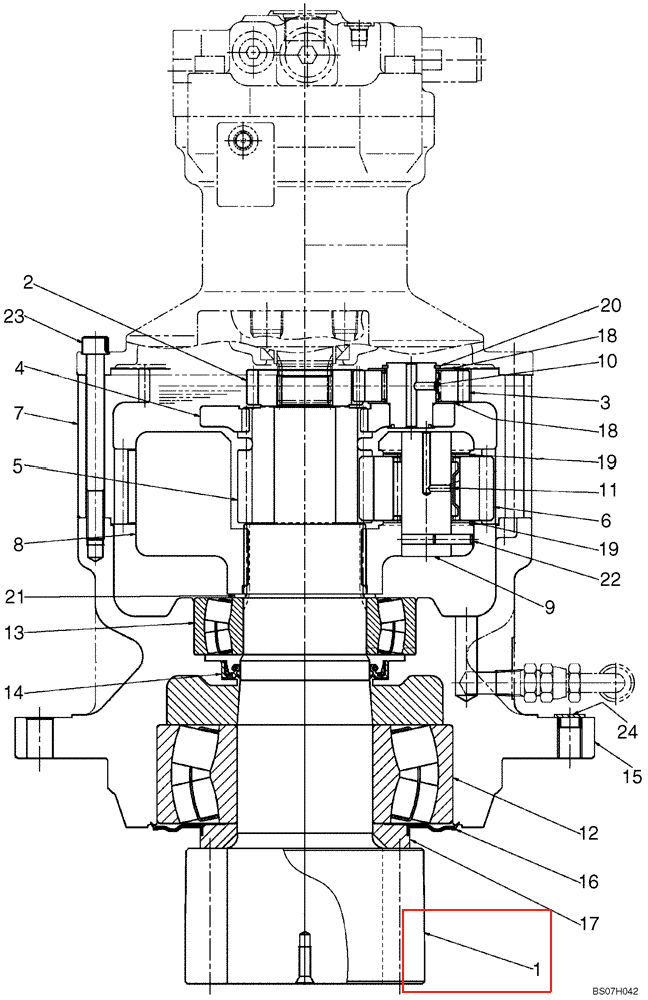

Parts on group (SK485-8) - ACERA MARK 8 EXCAVATOR - TIER 3 (NA) YS07U0701 - (8/07-12/12):

Pos. Part No Qty Parts name Comments
. . LS32W00012F1 [1] HYDRAULIC EQUIPMENT KOB Swing Reduction Assembly
1. LQ32W01038P1 [1] FINGER ASSY. KOB
2. LQ32W01027P1 [1] SHAFT, PLANETARY CAR KOB
3. LQ32W01011P1 [4] DRIVEN SPROCKET KOB
4. LQ32W01031F1 [1] SPIDER KOB
5. LQ32W01010P1 [1] GEAR KOB
6. LQ32W01009P1 [4] DRIVEN SPROCKET KOB
7. LQ32W01005P1 [1] RING GEAR KOB
8. 2413J376 [1] DIFF. SPIDER KOB
9. 2410T352 [4] ROLLER SHAFT KOB
10. 2425Z540 [4] NEEDLE BEARING,40mm ID x 48mm OD x 25mm W KOB
11. 2425Z541 [4] NEEDLE BEARING,40mm ID x 54mm OD x 50mm W KOB
12. LQ32W01016P1 [1] SPHERICAL BEARING KOB
13. LQ32W01015P1 [1] SPHERICAL BEARING KOB
14. LQ32W01035P1 [1] OIL SEAL KOB
15. NA [1] NOT SERVICED FOR Housing
16. LC32W01033P1 [1] OIL SEAL KOB
17. LQ32W01036P1 [1] SLEEVE KOB
18. LQ32W01037P1 [8] WASHER KOB
19. LQ32W01018P1 [8] WASHER KOB Thrust
20. ZR16X04000 [4] RING KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
21. ZR16X10000 [1] RING KOB Retaining -- ID 94.50 x OD 119 x Th 3.0mm
22. ZP26D08032 [4] PIN KOB Roll -- OD 08 x 32mm Long
23. ZS23C14150 [16] SCREW,Hex Socket Head, M14 x 150mm KOB M14x2.0x150mm
24. PV02B01073DB [2] CAP KOB 18.4mm Plastic
