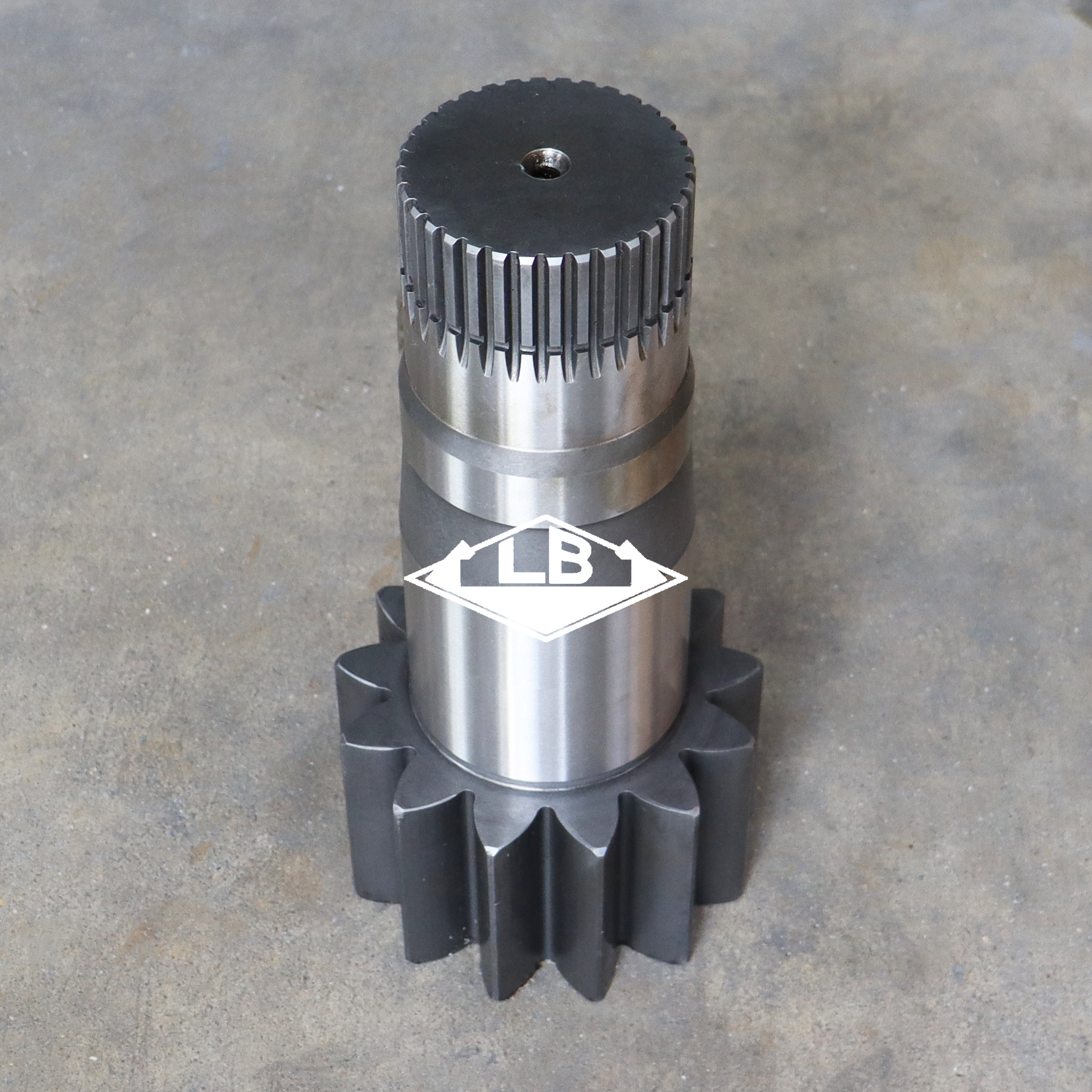

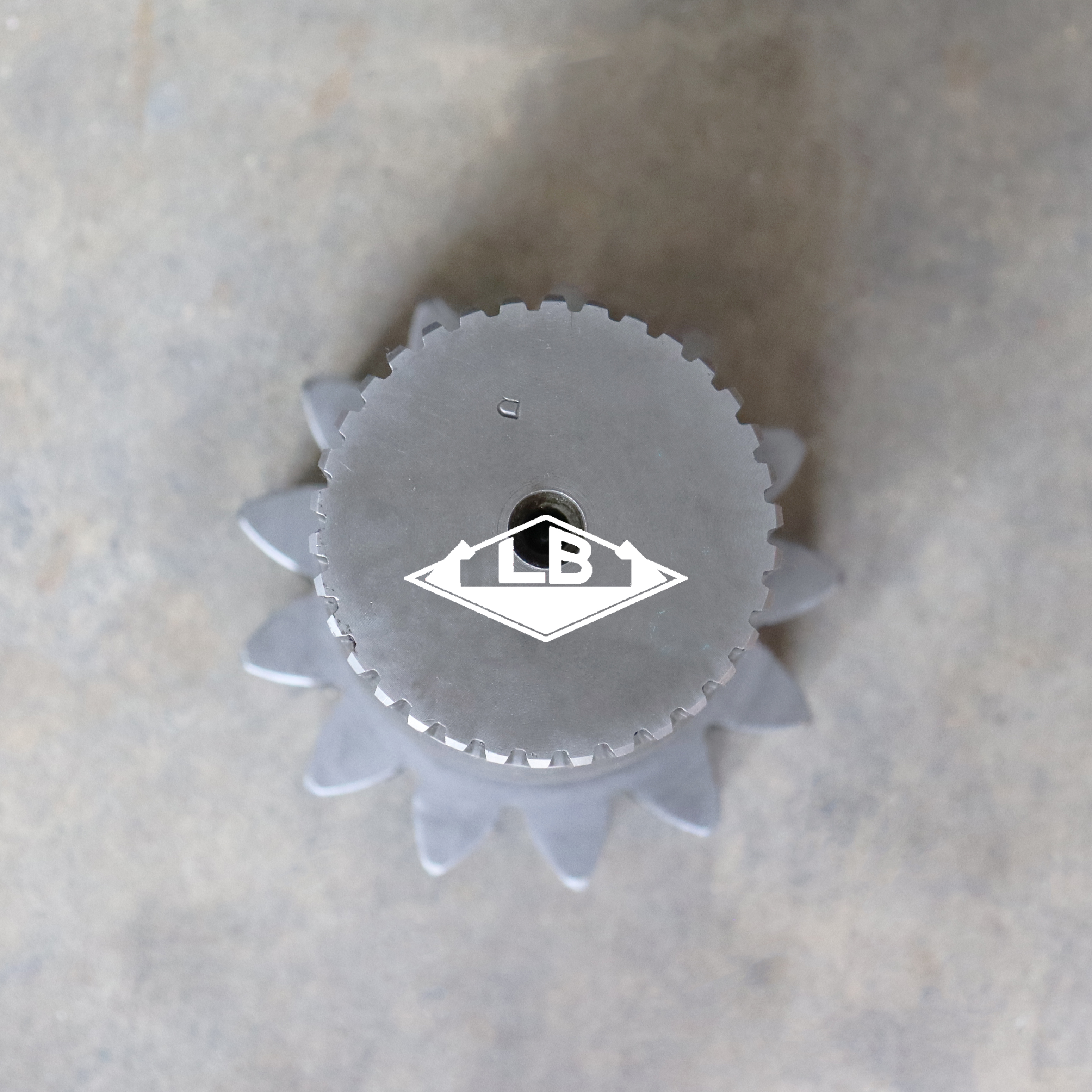

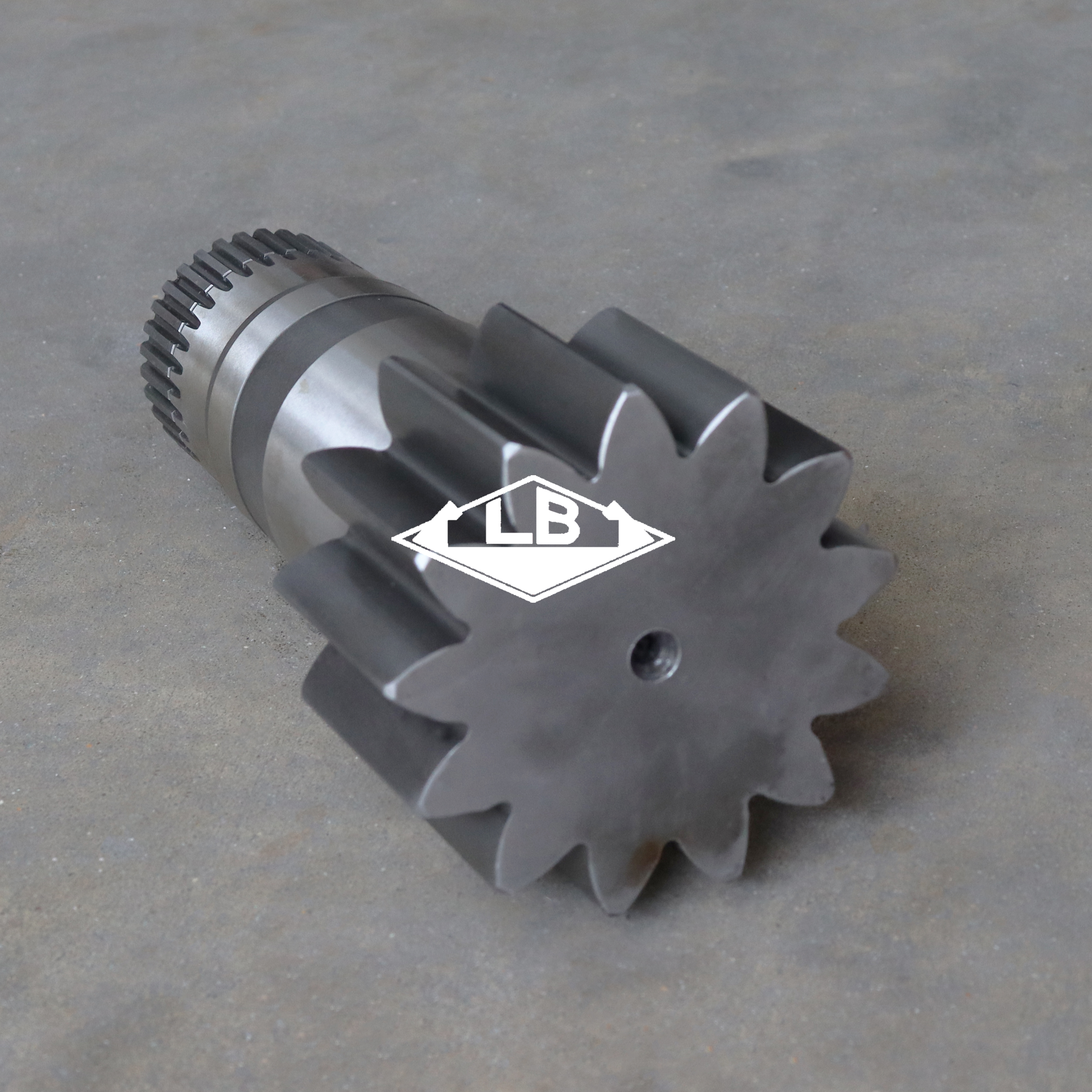

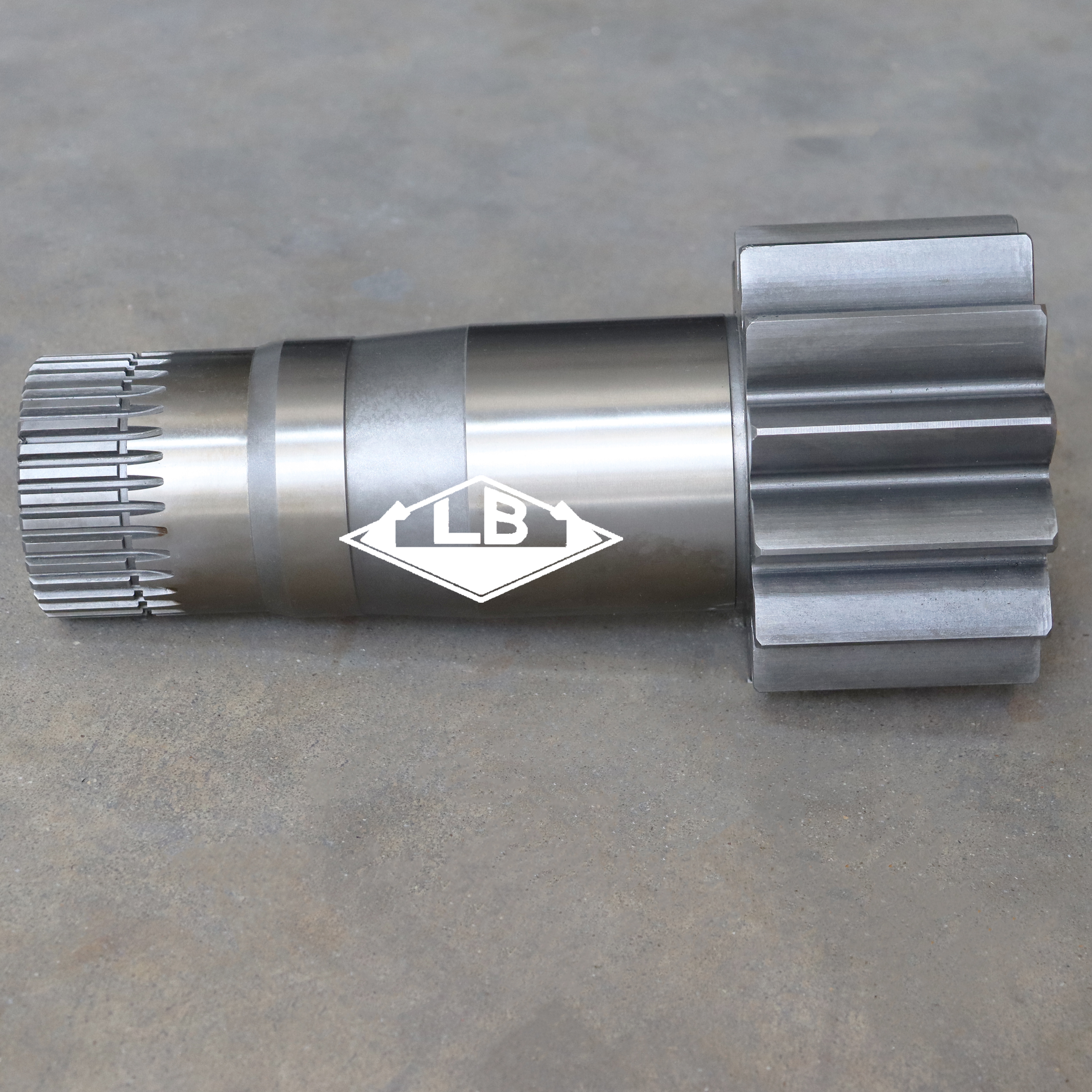

SK210-9 SK210HD-8 SWING PINION SHAFT YN32W01125P1 SWING SHAFT GEAR FOR KOBELCO EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	SK210-9 SK210HD-8 Swing gearbox
Equipment	Apply to KOBELCO EXCAVATOR
Part no.	YN32W01125P1
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

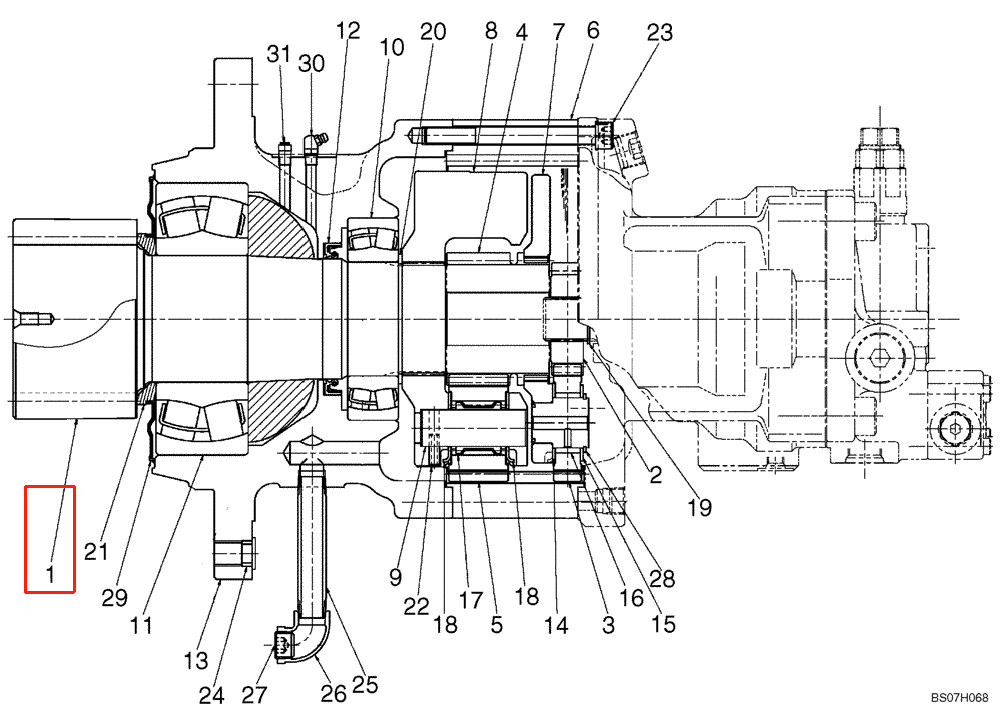

Parts on group (SK210-9) - ACERA MARK 9 EXCAVATOR - TIER 4, ASN YQ13U5200 - (10/2012 -) (1/03-12/13):

Pos.	Part No	Qty	Parts name	Comments
1.	YN32W01125P1	[1]	GEAR	SM Shaft
2.	YN32W01136P1	[1]	GEAR	SM
3.	YN32W01135P1	[3]	GEAR	SM Pinion
4.	YN32W01126P1	[1]	GEAR	SM
5.	YN32W01143P1	[4]	GEAR	SM
6.	YN32W01127P1	[1]	GEAR	SM Ring
7.	YN32W01123F1	[1]	SPIDER	KOB Gear, Incl 7-1 - 7-2
7-1.	NSS	[1]	NOT SOLD SEPARAT	CON Spider, Incl in 7
7-2.	NSS	[3]	NOT SOLD SEPARAT	CON Shaft, Incl in 7
8.	YN32W01130P1	[1]	PLANET CARRIER	SM
9.	YN32W01131P1	[4]	SHAFT	SM
10.	YN32W01030P1	[1]	SPHERICAL BEARING	KOB Superseded by part number: 25Z804D18
11.	YN32W01029P1	[1]	SPHERICAL BEARING	KOB Superseded by part number: R25P0047D9
12.	YN32W01060P1	[1]	OIL SEAL	SM
13.	YN32W01132P1	[1]	BOX	SM
14.	YN32W01026P1	[3]	THRUST WASHER	KOB
15.	YN32W01028P1	[3]	THRUST WASHER	KOB
16.	YN32W01022P1	[102]	ROLLER	KOB
17.	YN32W01072P1	[4]	NEEDLE BEARING	SM
18.	YN32W01063P1	[8]	WASHER	SM
19.	11068370	[1]	SNAP RING	MKT Retaining, ID 32.20 x OD 35 x Th 1.6mm Superseded by part number: 11068375
20.	ZR16X09000	[1]	RING	KOB Retaining, ID 84.50 x OD 108 x 3.0mm
21.	YN32W01133P1	[1]	SLEEVE	SM
22.	72210023	[4]	PIN	SM Roll Superseded by part number: ZP26D08025
23.	72210021	[11]	SCREW,Hex Socket Head, M14 x 130mm	SM Screw M14x2.0x135mm, (ZS23C14130) Superseded by part number: ZS23C14130
24.	PV02B01073DB	[2]	CAP	KOB 18.4mm Plastic
25.	YN32W01080D5	[1]	RIGID TUBE	SM 1/2" PT x 112mm Long
26.	ZG31U08000	[1]	HYD CONNECTOR	SM Elbow, 90° -- 1/2" PT
27.	72210000	[1]	PLUG	SM 1/2" PT, (ZE82T08000) Superseded by part number: ZE82T08000
28.	72211282	[3]	SNAP RING	SM Retaining, ID 37 x OD 40 x Th 1.8mm, (ZR16X04000) Superseded by part number: ZR16X04000
29.	YN32W01081P1	[1]	OIL SEAL	SM
30.	72283072	[1]	LUBE NIPPLE,67 Degree x 1/8" PT	IMO 67° x 1/8" PT, (ZG91V02000) Superseded by part number: ZG91V02000
31.	72210250	[1]	PLUG	IMO 1/8"PT, (ZE82T02000) Superseded by part number: ZE82T02000
