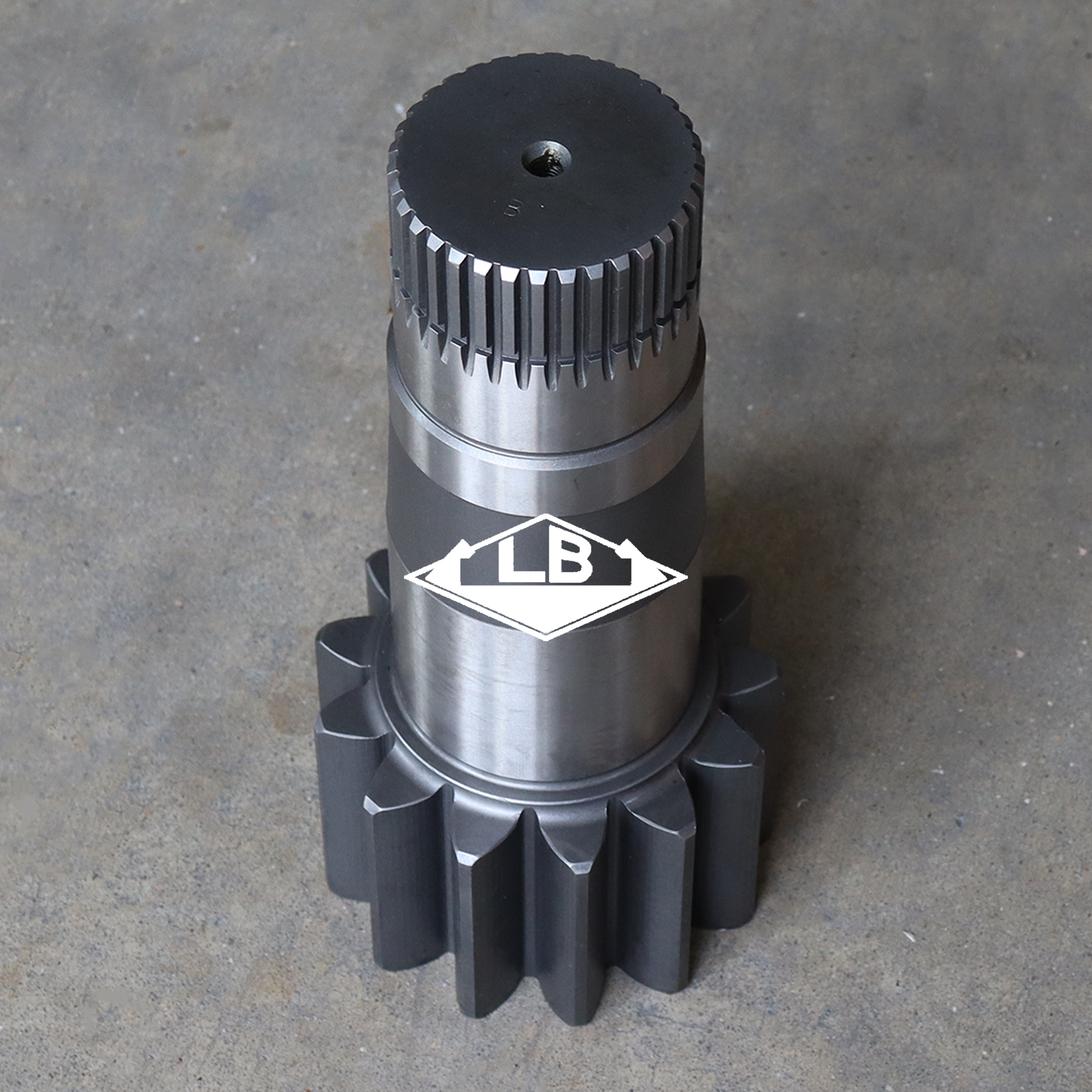

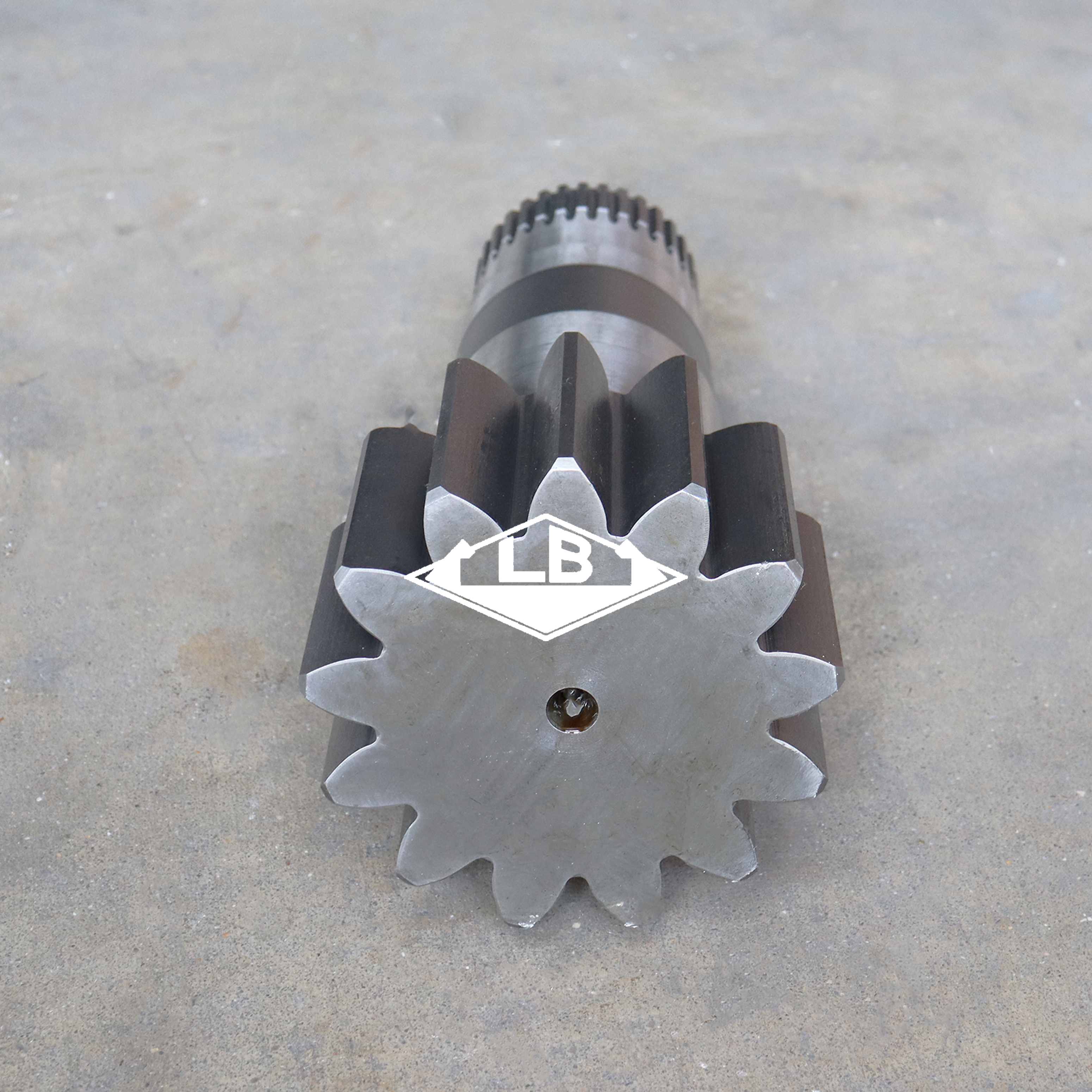

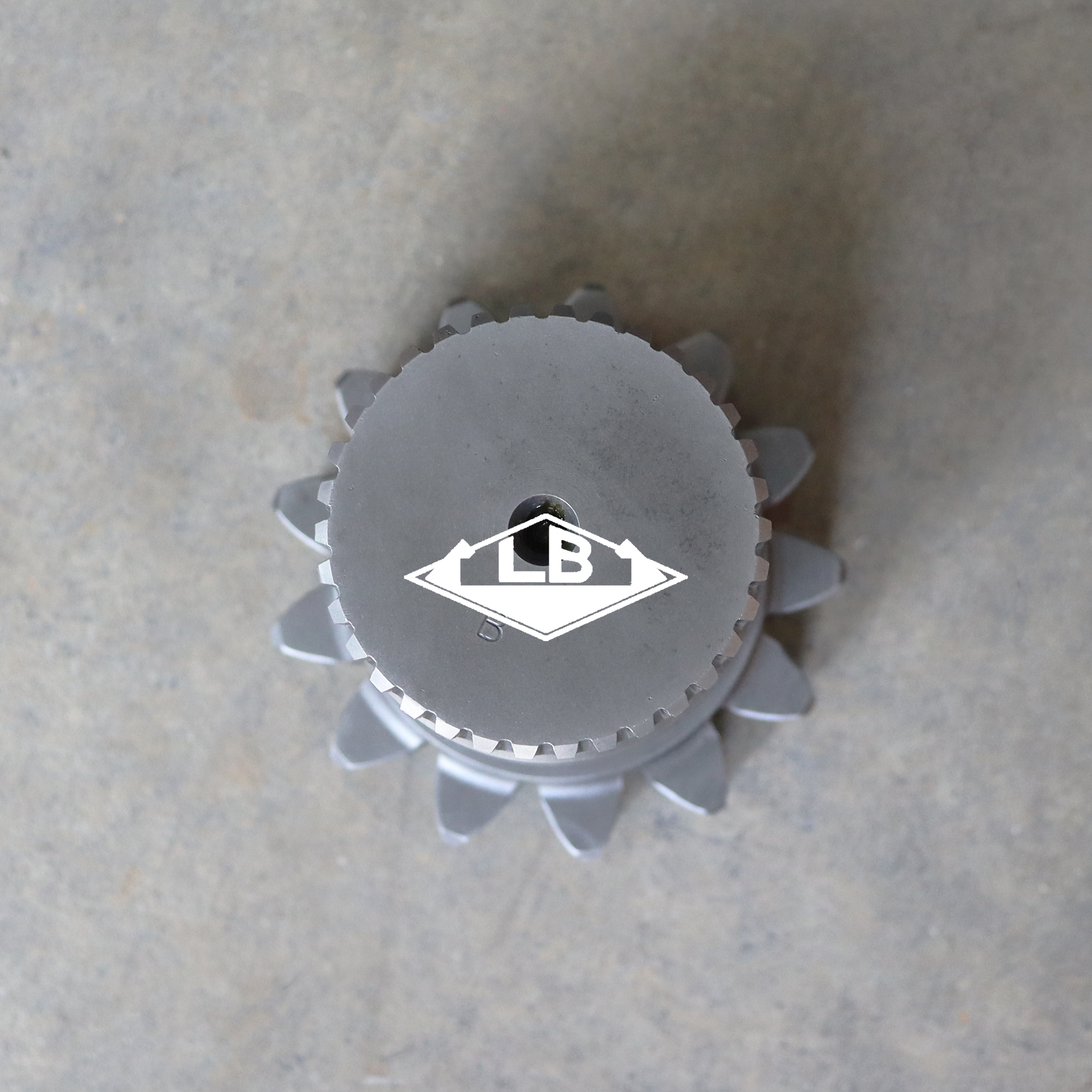

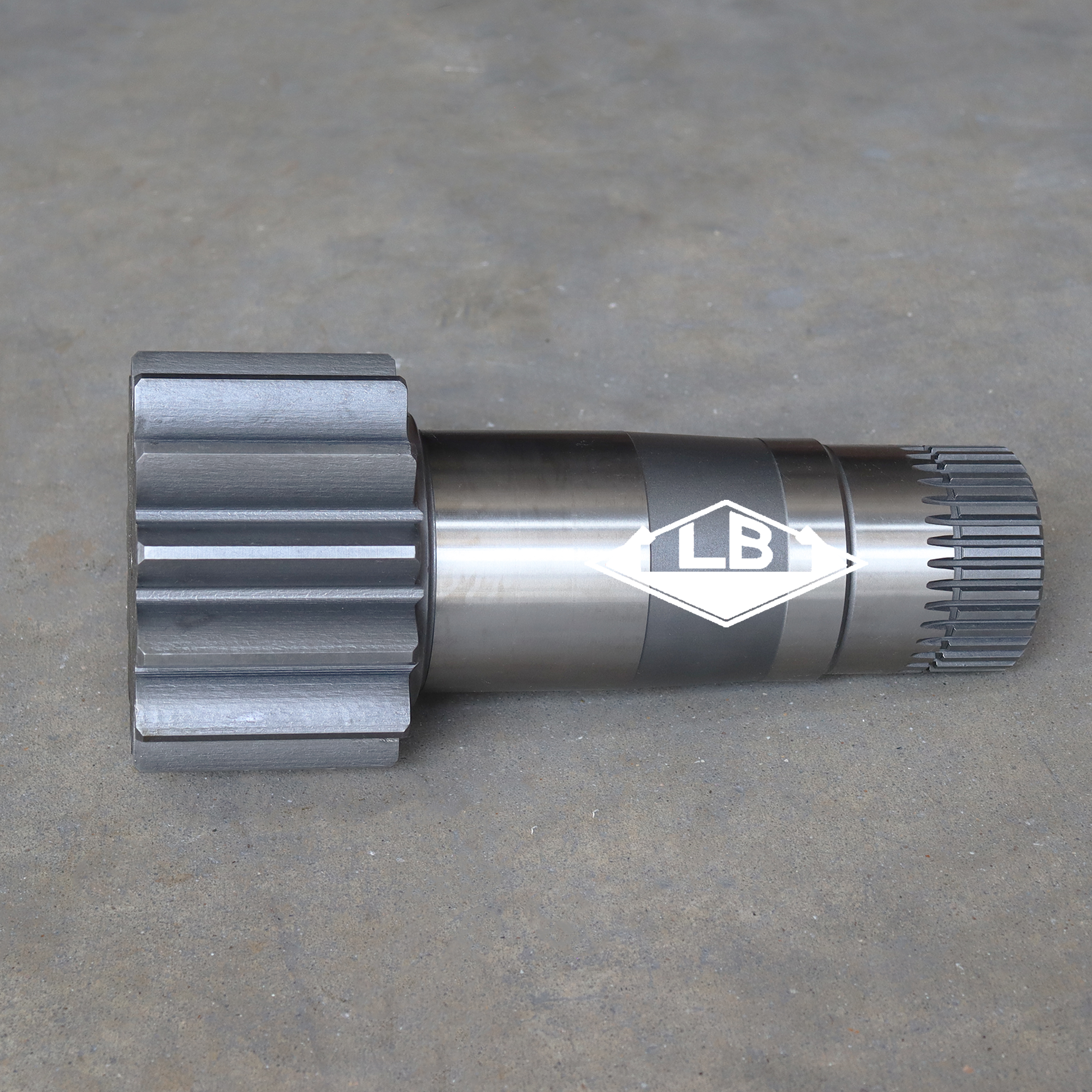

SK200-8 SK210-8 E215B SWING SAHFT YN32W01051P1 SWING REDUCER SAPRE PARTS FOR KOBELCO NEW HOLLAND EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	SK200-8 SK210-8 E215B Swing gearbox
Equipment	Apply to HYUNDAI EXCAVATOR
Part no.	YN32W01051P1
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

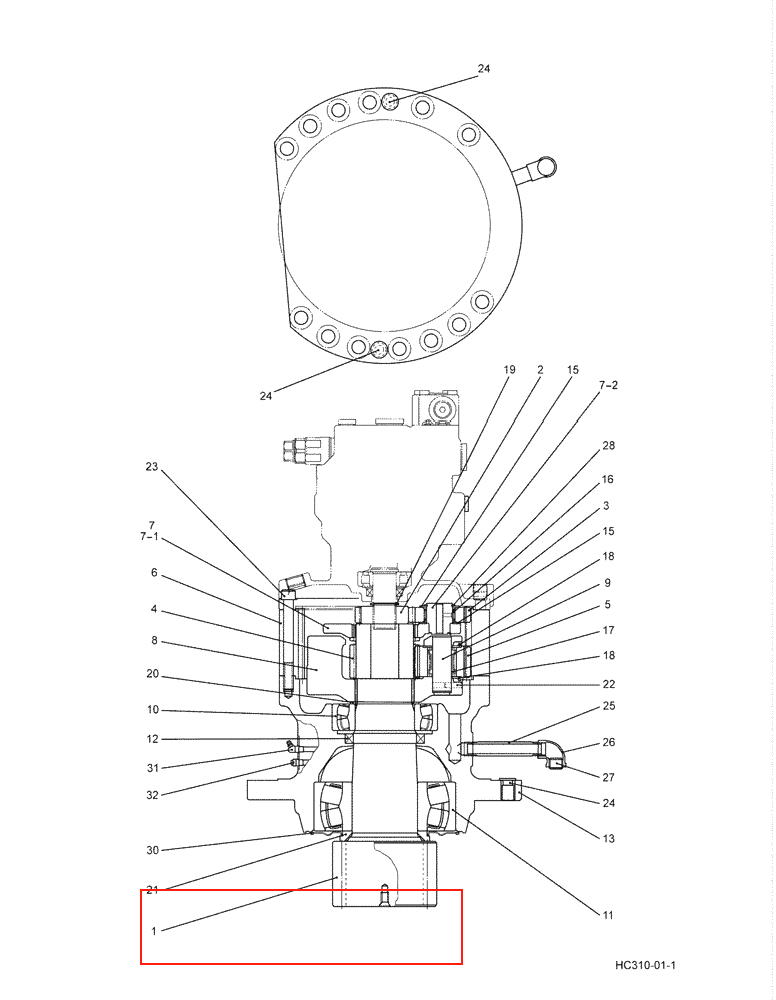

Parts on group (E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-):

Pos.	Part No	Qty	Parts name	Comments
. .	YN32W00019F1	[1]	GEAR REDUCTION UNIT	SM Assembly, Swing Superseded by part number: YN32W00022F2
1.	YN32W01051P1	[1]	SHAFT	SM
2.	YN32W01052P1	[1]	GEAR	SM Sun
3.	YN32W01053P1	[3]	GEAR	SM Pinion
4.	YN32W01054P1	[1]	GEAR	SM Sun
5.	YN32W01055P1	[4]	GEAR	SM Pinion
6.	YN32W01056P1	[1]	RING GEAR	SM
7.	YN32W01057F1	[1]	CARRIER	SM Spider Assembly
7-1.	YN32W01009P1	[1]	Spider
7-2.	YN32W01066P1	[3]	SHAFT	KOB
8.	YN32W01058P1	[1]	CARRIER,Housing, Spider	SM Spider
9.	YN32W01067P1	[4]	SHAFT	SM
10.	YN32W01030P1	[1]	SPHERICAL BEARING	KOB Superseded by part number: 25Z804D18
11.	YN32W01029P1	[1]	SPHERICAL BEARING	KOB Superseded by part number: R25P0047D9
12.	YN32W01060P1	[1]	OIL SEAL	SM Oil Seal
13.	YN32W01104P1	[1]	BOX	SM Housing Superseded by part number: YN32W00022F2
15.	YN32W01071P1	[6]	WASHER	SM Washer,Thrust
16.	YN32W01073P1	[3]	NEEDLE BEARING	SM Needle Superseded by part number: YN32W00022F3
17.	YN32W01072P1	[4]	NEEDLE BEARING	SM Needle
18.	YN32W01063P1	[8]	WASHER	SM Washer,Thrust
19.	ZR16X03500	[1]	RING	KOB Reatining -- ID 32.20 x OD 35 x Th 1.6mm
20.	ZR16X09000	[1]	RING	KOB Retaining -- ID 84.50 x OD 108 x Th 3.0mm
21.	YN32W01082P1	[1]	SLEEVE	SM
22.	ZP26D08025	[4]	PIN	KOB Roll -- OD 08 x 25mm Long
23.	HS23C14135G1	[11]	SCREW,M14 x 135mm	SM M14x2.0x135mm
24.	PV02B01073DB	[2]	CAP	KOB 18.4mm Plastic
25.	YN32W01080D1	[1]	RIGID TUBE	SM 1/2" PT x 112mm Long
26.	ZG31U08000	[1]	HYD CONNECTOR	SM 1/2" PT
27.	ZE82T08000	[1]	PLUG	KOB 1/2" PT
28.	ZR16X04000	[3]	RING	KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
30.	YN32W01081P1	[1]	OIL SEAL	SM Oil Seal
31.	ZG91V02000	[1]	LUBE NIPPLE	KOB 67°x1/8" PT
32.	2444Z3305	[1]	BREATHER	KOB
