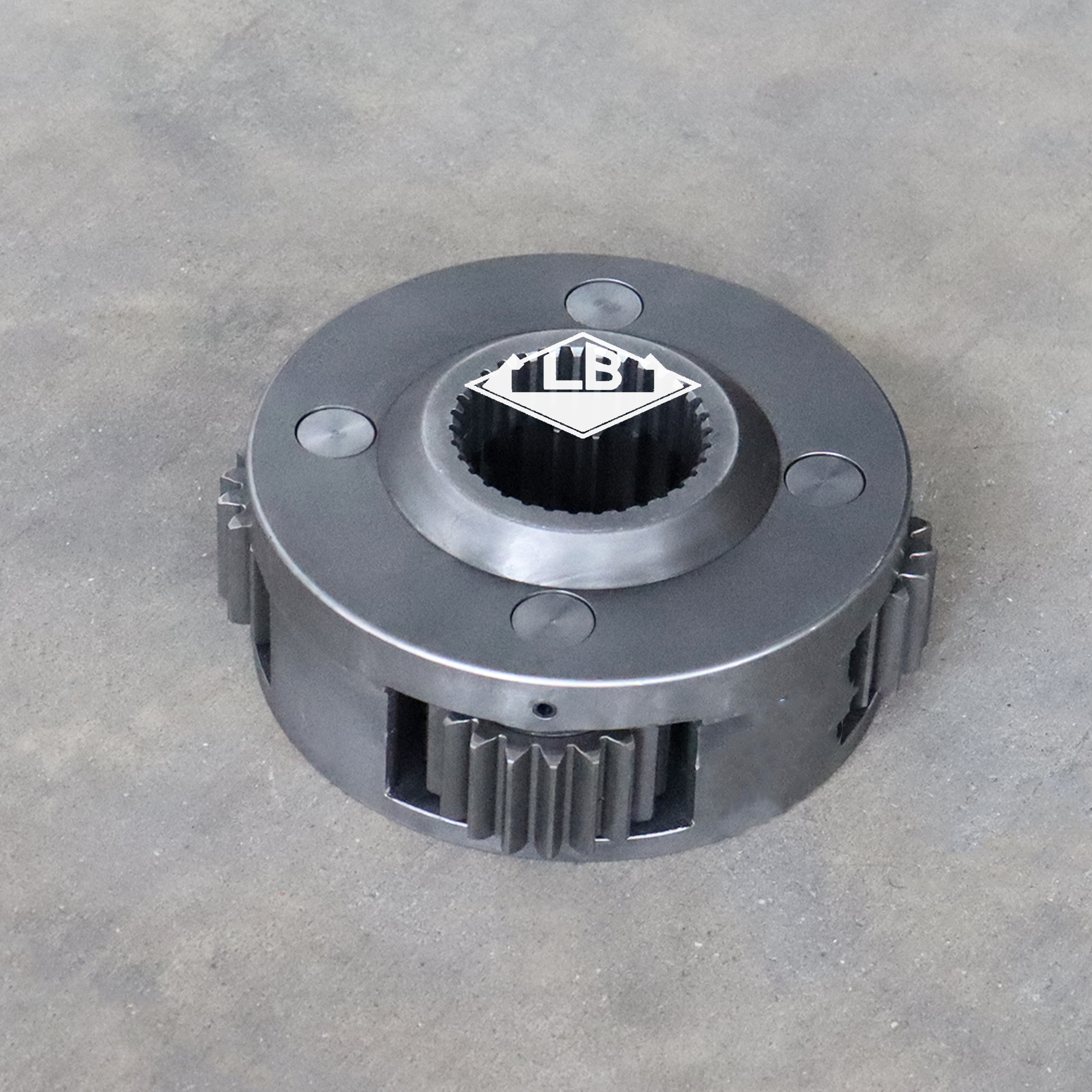

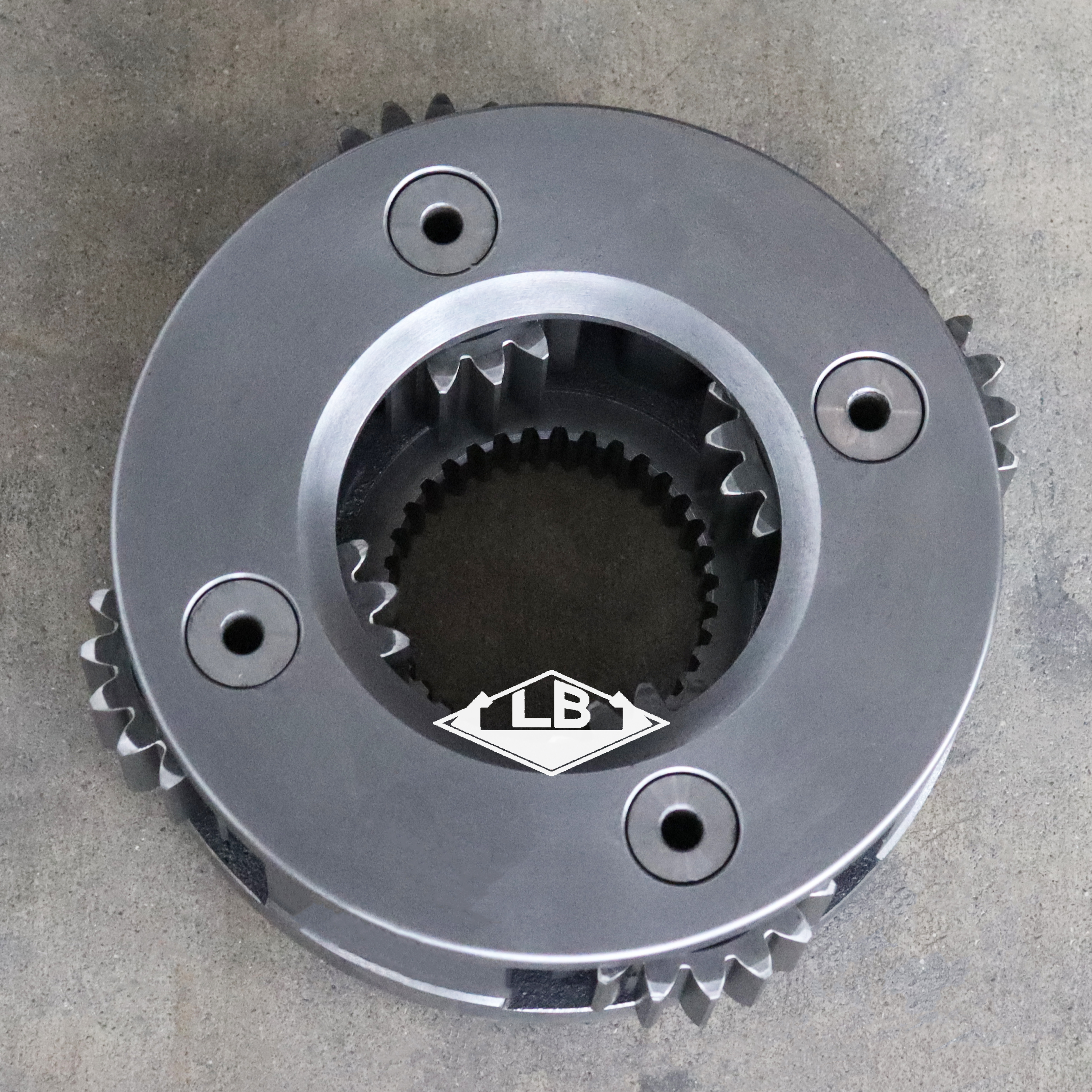

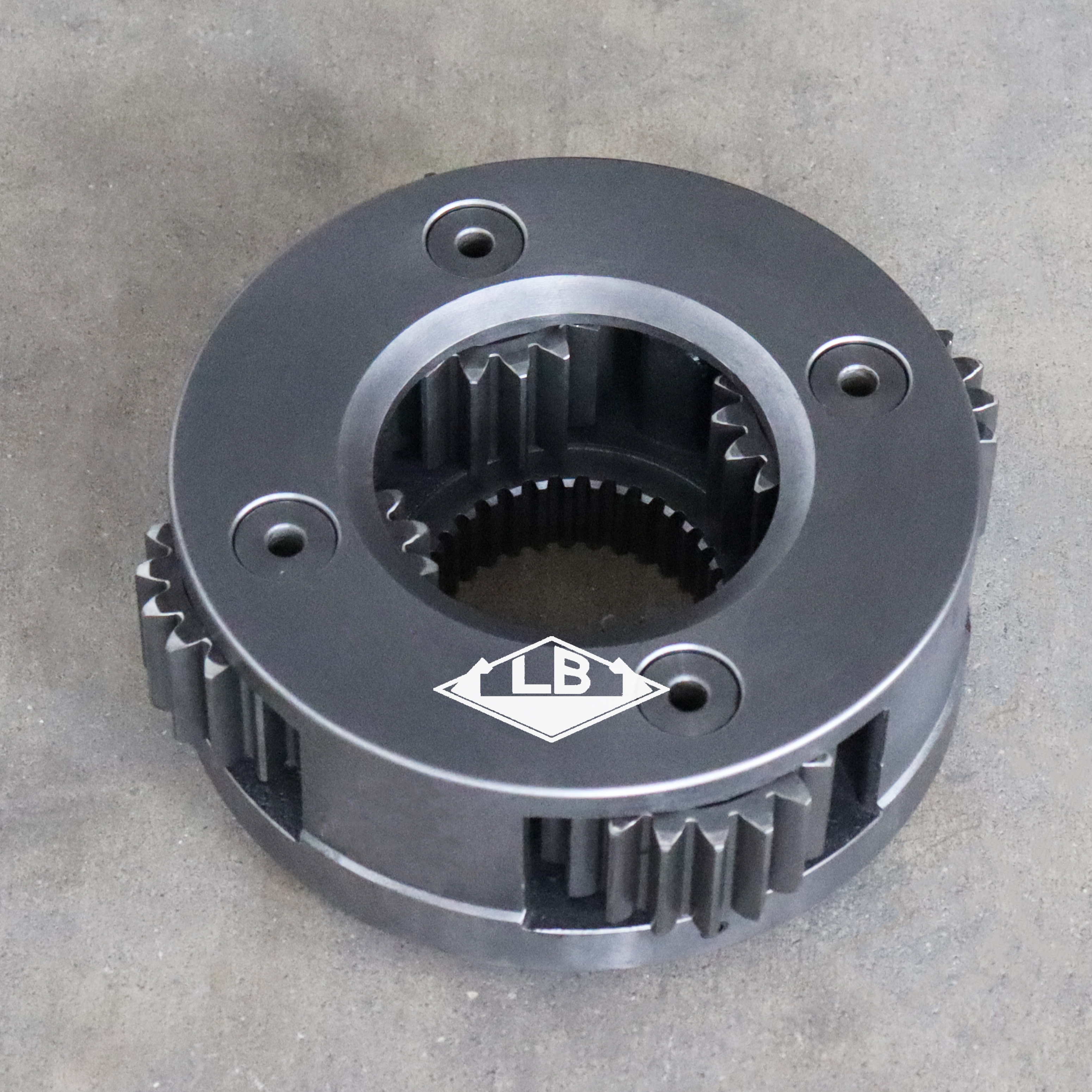

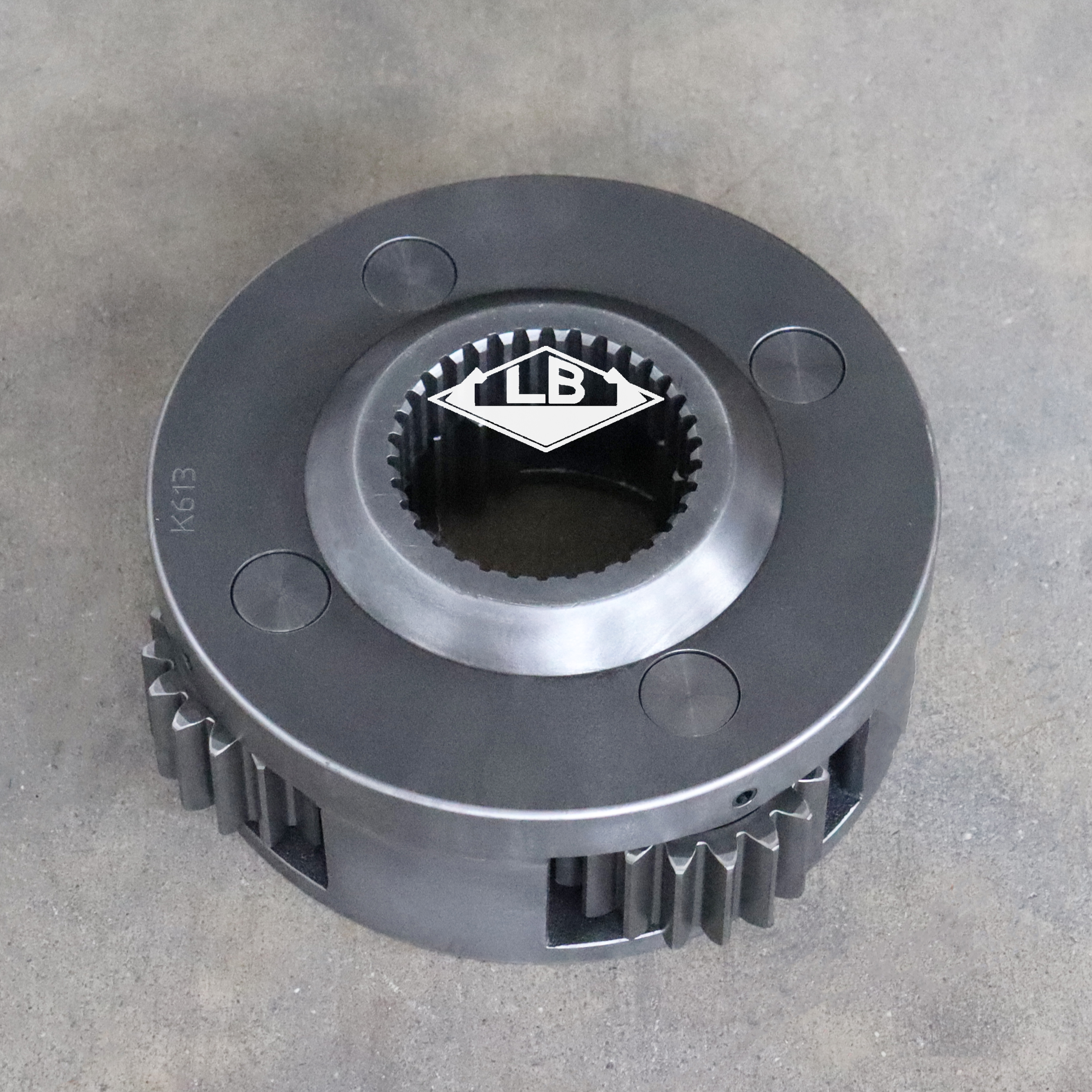

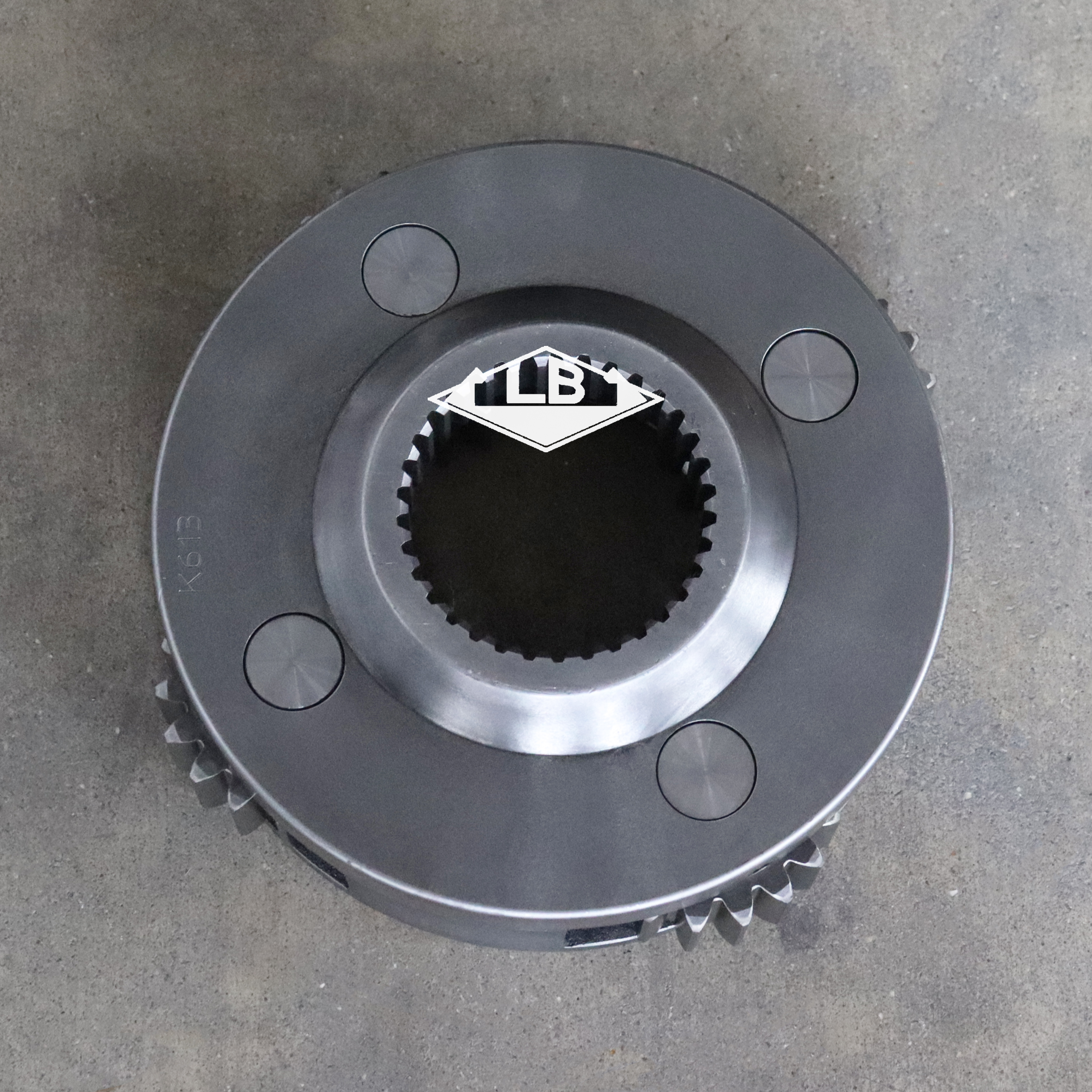

SK200-8 No2 SWING CARRIER ASSY YN32W01058P1 SWING GEARBOX PARTS FOR KOBELCO EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 SK200-8 Swing gearbox
Equipment Apply to KOBELCO EXCAVATOR
Part no. YN32W01058P1
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

SK200-8(5)SK200-8(3)SK200-8(6)SK200-8(2)SK200-8(4)SK200-8

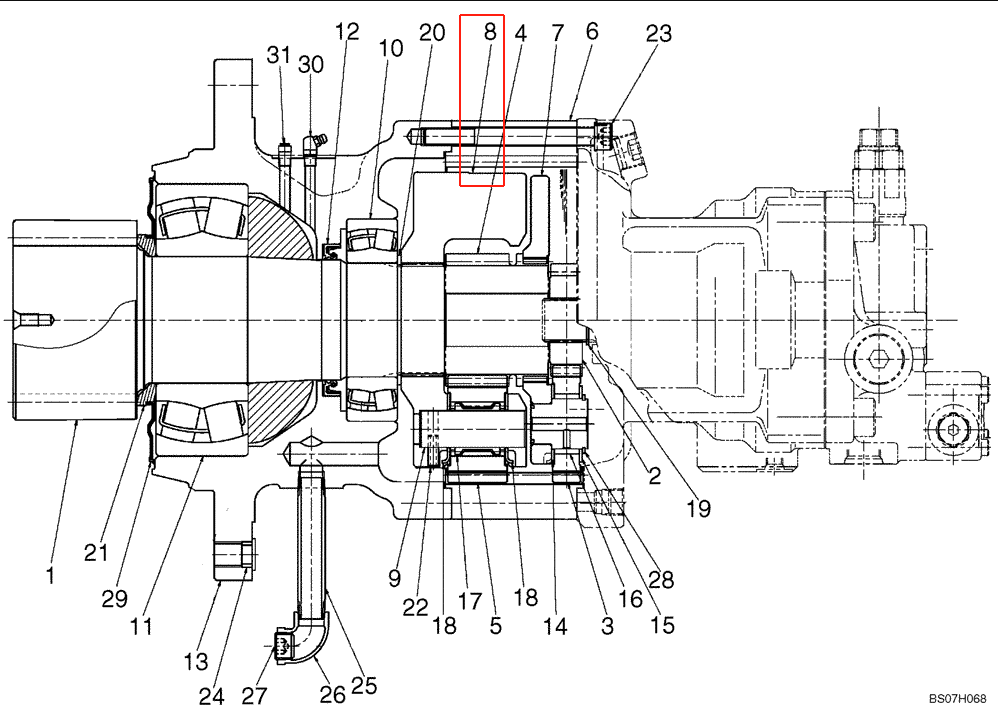

Parts on group (SK210-8) - HYDRAULIC EXCAVATOR - TIER 3 ROPS (NA) ASN YQ12U4800 (7/06-12/06):

Pos. Part No Qty Parts name Comments
1. YN32W01051P1 [1] SHAFT SM
2. YN32W01052P1 [1] GEAR SM
3. YN32W01117P1 [3] GEAR SM Pinton
4. YN32W01054P1 [1] GEAR SM
5. YN32W01055P1 [4] GEAR SM
6. YN32W01056P1 [1] RING GEAR SM
7. YN32W01123F1 [1] SPIDER KOB Spider, Inludes, Refs. 7-1 & 7-2
7-1. NSS [1] NOT SOLD SEPARAT CON Spider
7-2. NSS [3] NOT SOLD SEPARAT CON Shaft
8. YN32W01058P1 [1] CARRIER,Housing, Spider SM
9. YN32W01067P1 [4] SHAFT SM
10. YN32W01030P1 [1] SPHERICAL BEARING KOB Superseded by part number: 25Z804D18
11. YN32W01029P1 [1] SPHERICAL BEARING KOB Superseded by part number: R25P0047D9
12. YN32W01060P1 [1] OIL SEAL SM
13. YN32W01104P1 [1] BOX SM Superseded by part number: YN32W00022F2
14. YN32W01026P1 [3] THRUST WASHER KOB
15. YN32W01028P1 [3] THRUST WASHER KOB
16. YN32W01022P1 [102] ROLLER KOB
17. YN32W01072P1 [4] NEEDLE BEARING SM
18. YN32W01063P1 [8] WASHER SM
19. ZR16X03500 [1] RING KOB Retaining -- ID 32.20 x OD 35 x Th 1.6mm
20. ZR16X09000 [1] RING KOB Retaining -- ID 84.50 x OD 108 x 3.0mm
21. YN32W01082P1 [1] SLEEVE SM
22. ZP26D08025 [4] PIN KOB Roll -- OD 08 x 25mm Long
23. HS23C14135G1 [11] SCREW,M14 x 135mm SM M14x2.0x135mm
24. PV02B01073DB [2] CAP KOB 18.4mm Plastic
25. YN32W01080D1 [1] RIGID TUBE SM 1/2" PT x 112mm Long
26. ZG31U08000 [1] HYD CONNECTOR SM Elbow, 90° -- 1/2" PT
27. ZE82T08000 [1] PLUG KOB 1/2" PT
28. ZR16X04000 [3] RING KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
29. YN32W01081P1 [1] OIL SEAL SM
30. ZG91V02000 [1] LUBE NIPPLE,67 Degree x 1/8" PT KOB 67° x 1/8" PT Superseded by part number: 72283072
31. 2444Z3305 [1] BREATHER KOB 1/8"PT
