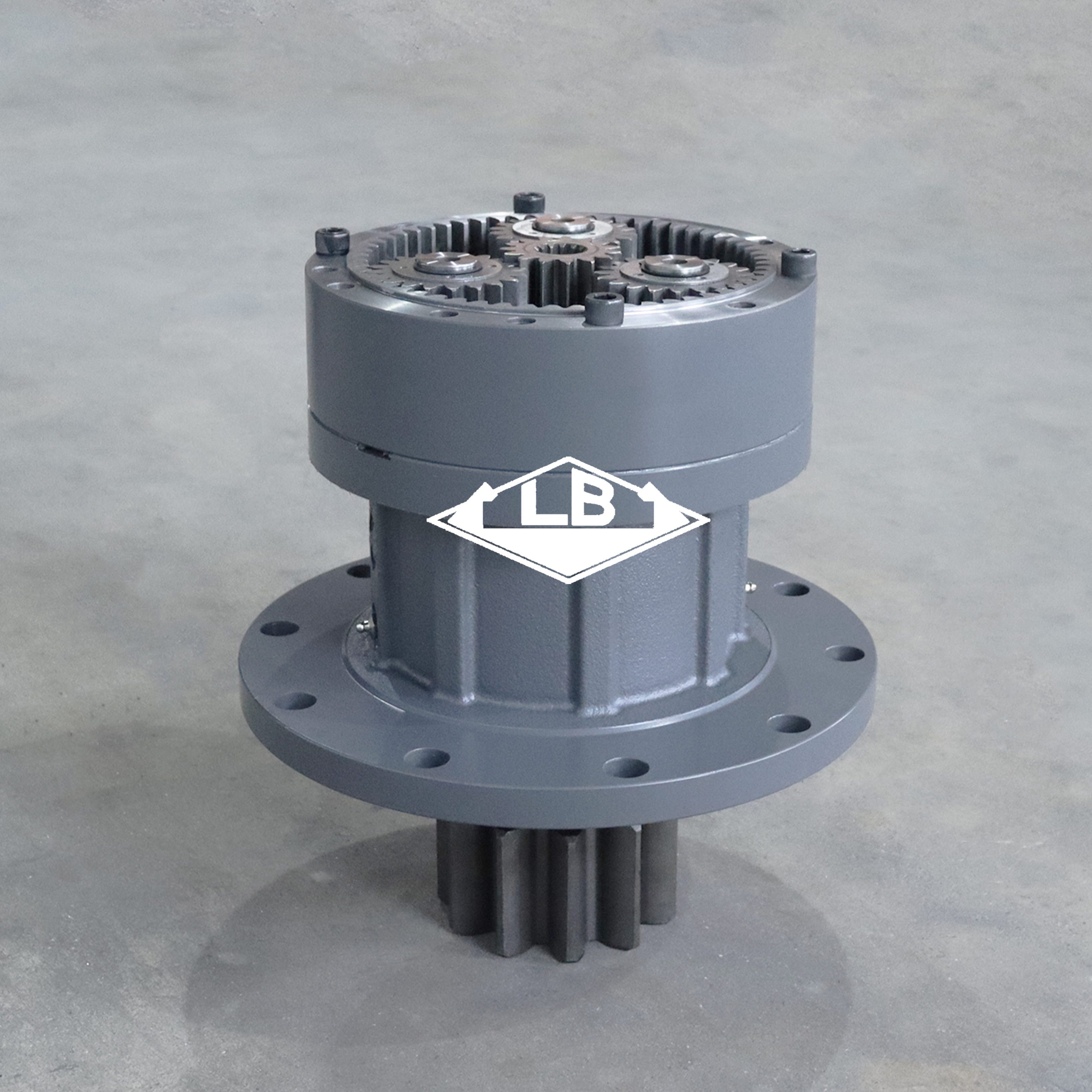

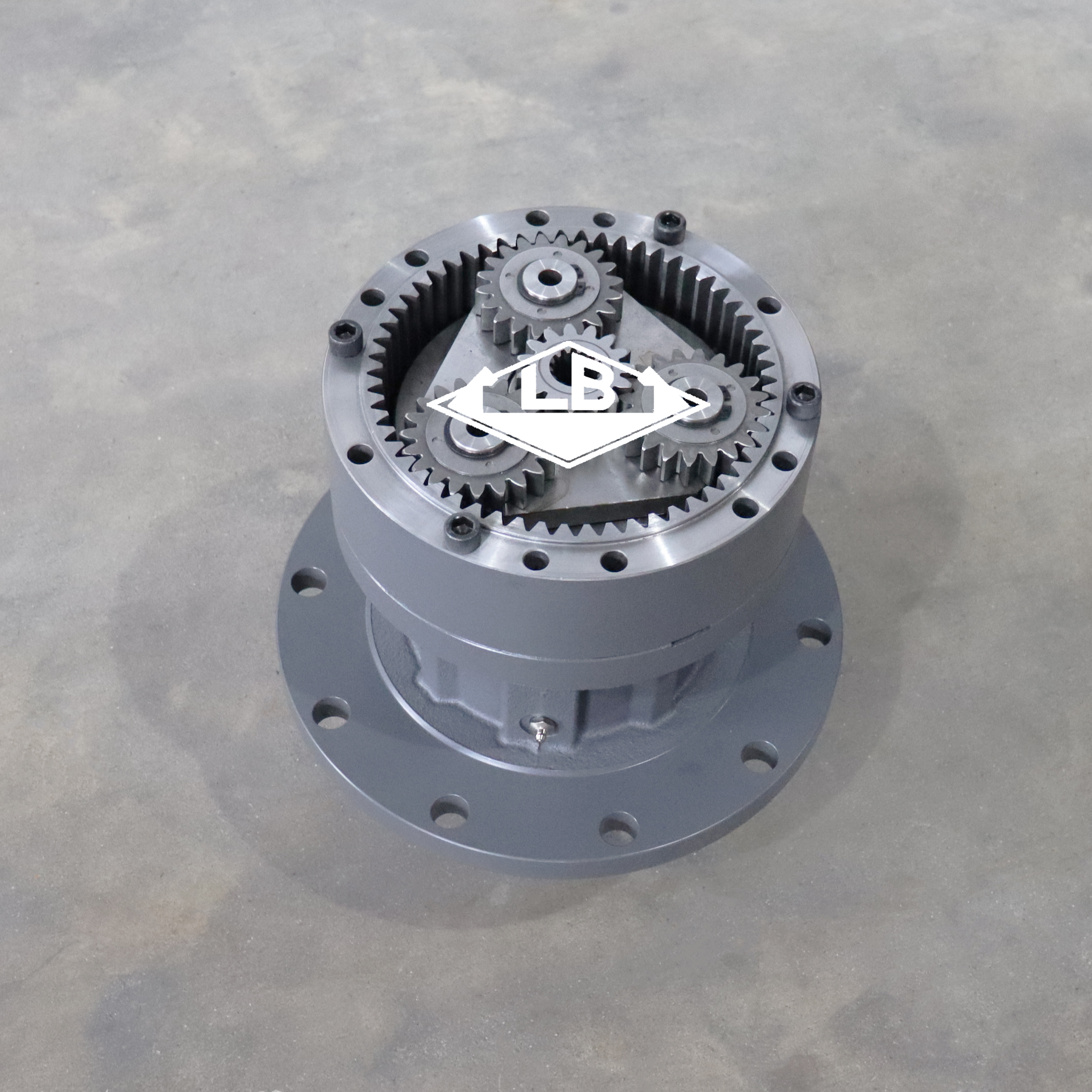

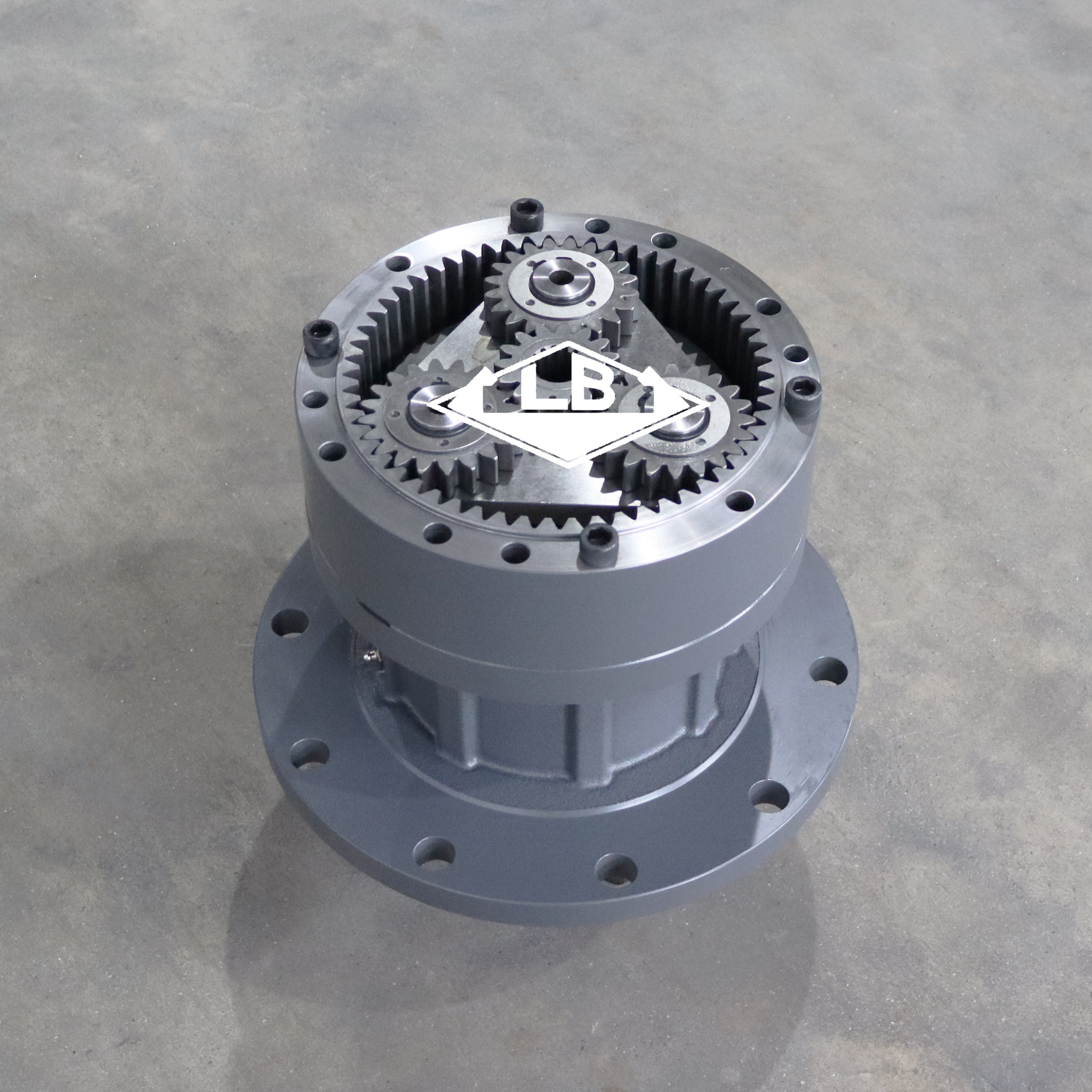

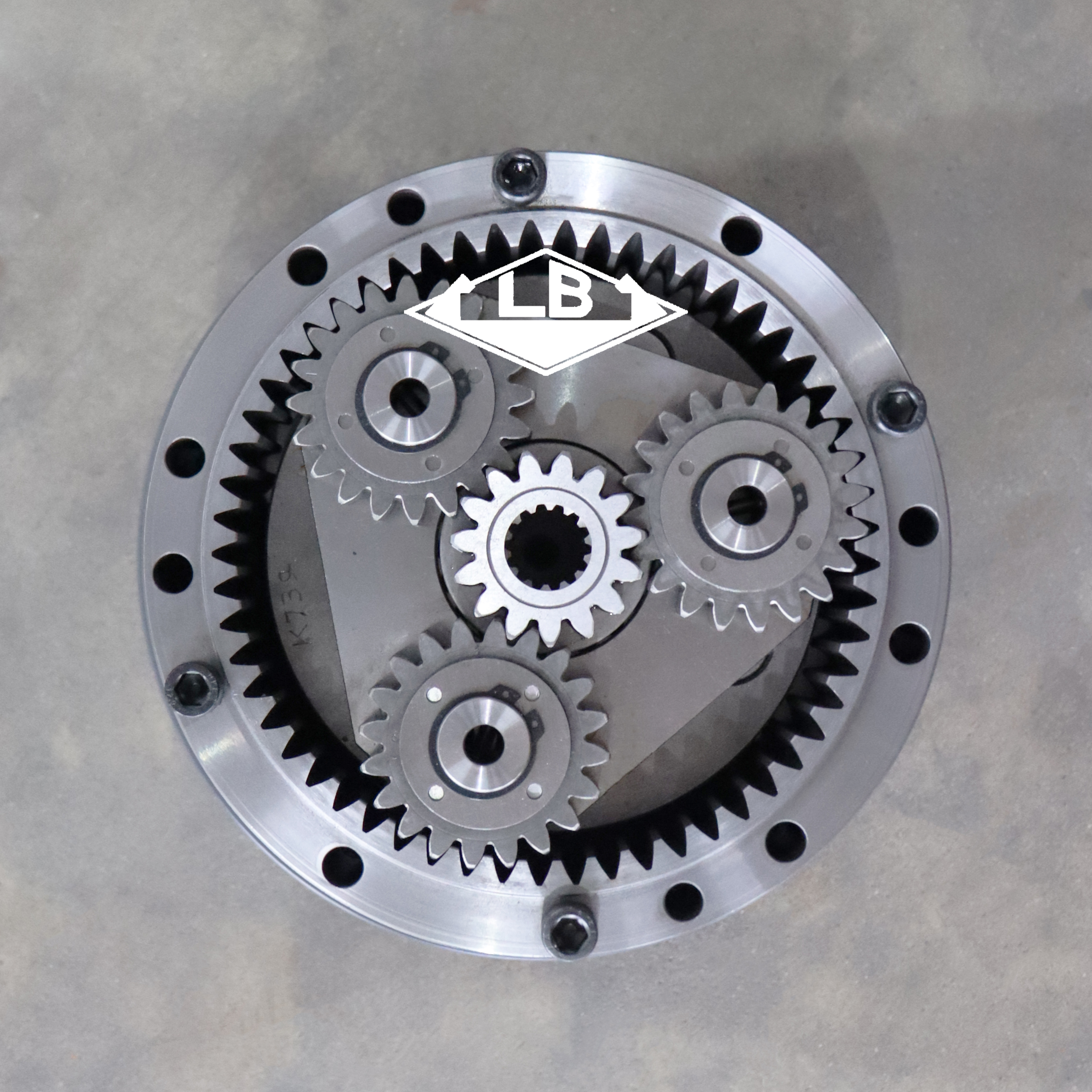

SK135 SWING GEARBOX YX32W00002F1 YX32W00002F2 SWING REDUCTION GEAR FOR KOBELCO EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 SK135 Swing gearbox
Equipment Apply to HYUNDAI EXCAVATOR
Part no. YX32W00002F1 YX32W00002F2
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

SK135 回转牙箱（4）SK135 回转牙箱（2）SK135 回转牙箱（8）SK135 回转牙箱（6）SK135 回转牙箱

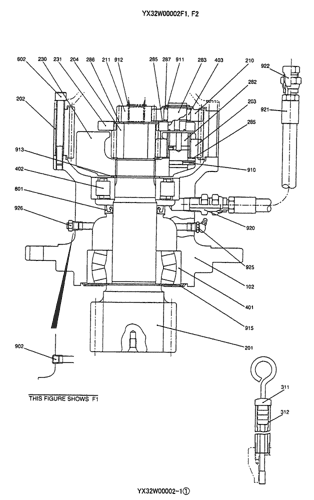

Parts on group (SK135SR) - SHORT RADIUS EXCAVATOR ASN YY02-03001 (1/02-12/03):

Pos. Part No Qty Parts name Comments
. . YX32W00002F1 [1] MOTO-REDUCTION GEAR KOB Superseded by part number: YX32W00002F2
. . YX32W00002F2 [1] MOTO-REDUCTION GEAR KOB
102. YX32W00002S102 [1] CASE KOB
201. YX32W00002S201 [1] SHAFT KOB
202. YX32W00002S202 [1] GEAR KOB
203. YX32W00002S203 [1] GEAR KOB
204. YX32W00002S204 [4] GEAR KOB
210. YX32W00002S210 [1] GEAR KOB
211. YX32W00002S211 [3] GEAR KOB
230. YX32W00002S230 [1] CARRIER KOB
231. NSS [1] NOT SOLD SEPARAT CON CARRIER
282. YX32W00002S282 [1] PIN KOB
283. NSS [4] NOT SOLD SEPARAT CON PIN
285. YX32W00002S285 [3] PLATE KOB
286. YX32W00002S286 [7] WASHER KOB
287. YX32W00002S287 [1] PLATE KOB
311. YX32W00002S311 [3] DIPSTICK KOB BAR, LEVEL
312. YX32W00002S312 [1] PIPE KOB
401. YX32W00002S401 [1] ROLLER BEARING KOB
402. YX32W00002S402 [1] ROLLER BEARING KOB
403. YX32W00002S403 [1] NEEDLE BEARING KOB
602. ZS23C12100 [3] CAPSCREW,Hex Socket Head, M12 x 100mm KOB SCREW M12x1.75x100mm
801. YX32W00002S801 [10] OIL SEAL KOB
902. 2453U439S905 [1] PLUG KOB (FOR F1 ONLY)
910. 2453U276S287 [2] PIN KOB SPRING
911. 2441U398S820 [4] RING KOB SNAP Superseded by part number: ZR16X03000
912. ZR16X02500 [3] RING KOB Retaining -- ID 23.2 x OD 25 x Th 1.2mm
913. 2441U333S825 [1] SNAP RING KOB Superseded by part number: ZR16X06500
915. YX32W00002S915 [1] SEAL KOB Superseded by part number: EW32W00003S915
920. YX32W00002S920 [1] ADAPTER KOB
921. YX32W00002S921 [1] HOSE KOB
922. YX32W00002S922 [1] PLUG KOB
925. YX32W00002S925 [1] BREATHER KOB NIPPLE, GREASE,(FOR F2 ONLY
926. YX32W00002S926 [1] LUBE NIPPLE KOB (FOR F2 ONLY
. . YX32W00002R100 [1] REPAIR KIT KOB CONSISTS OF REF 231X1, 283X3
