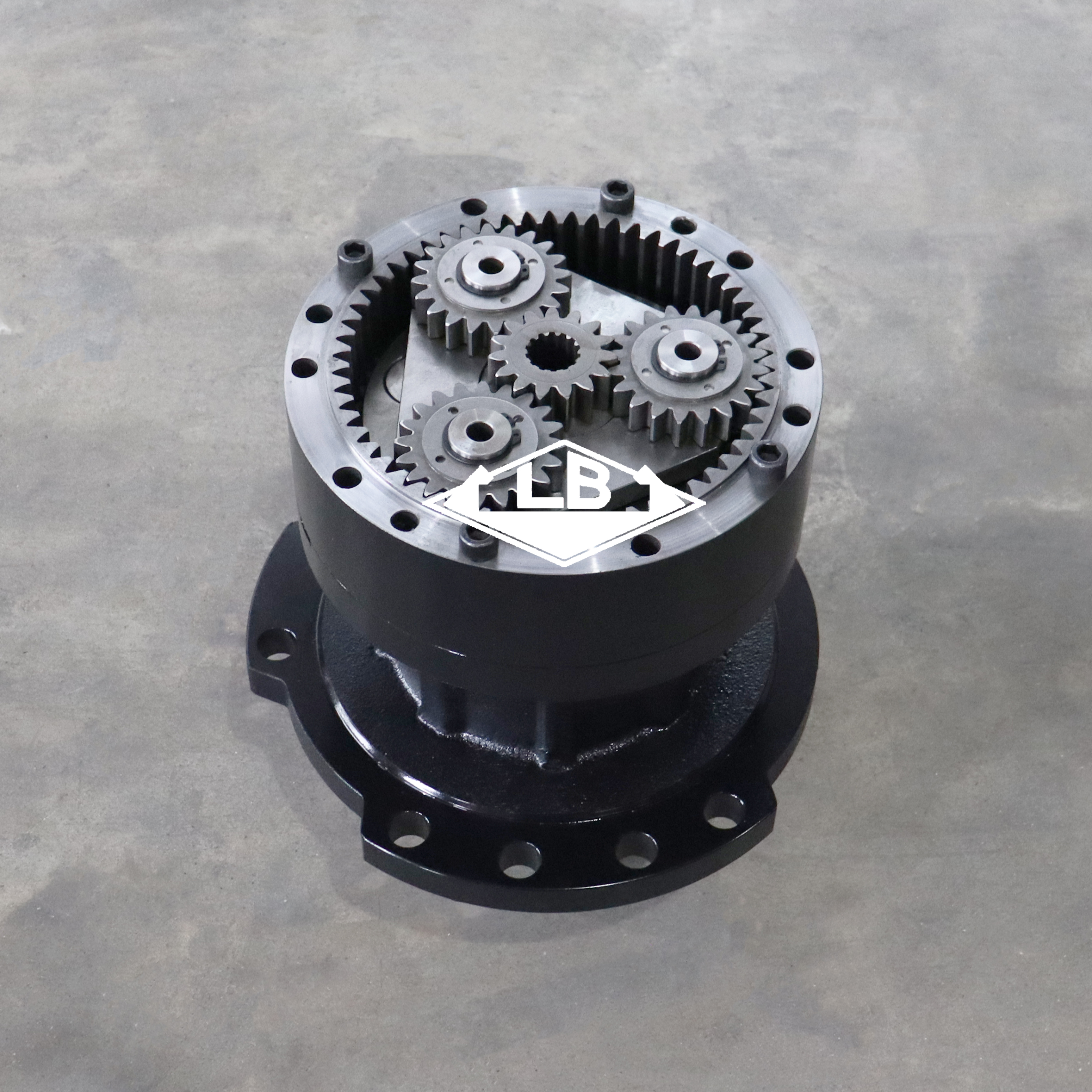

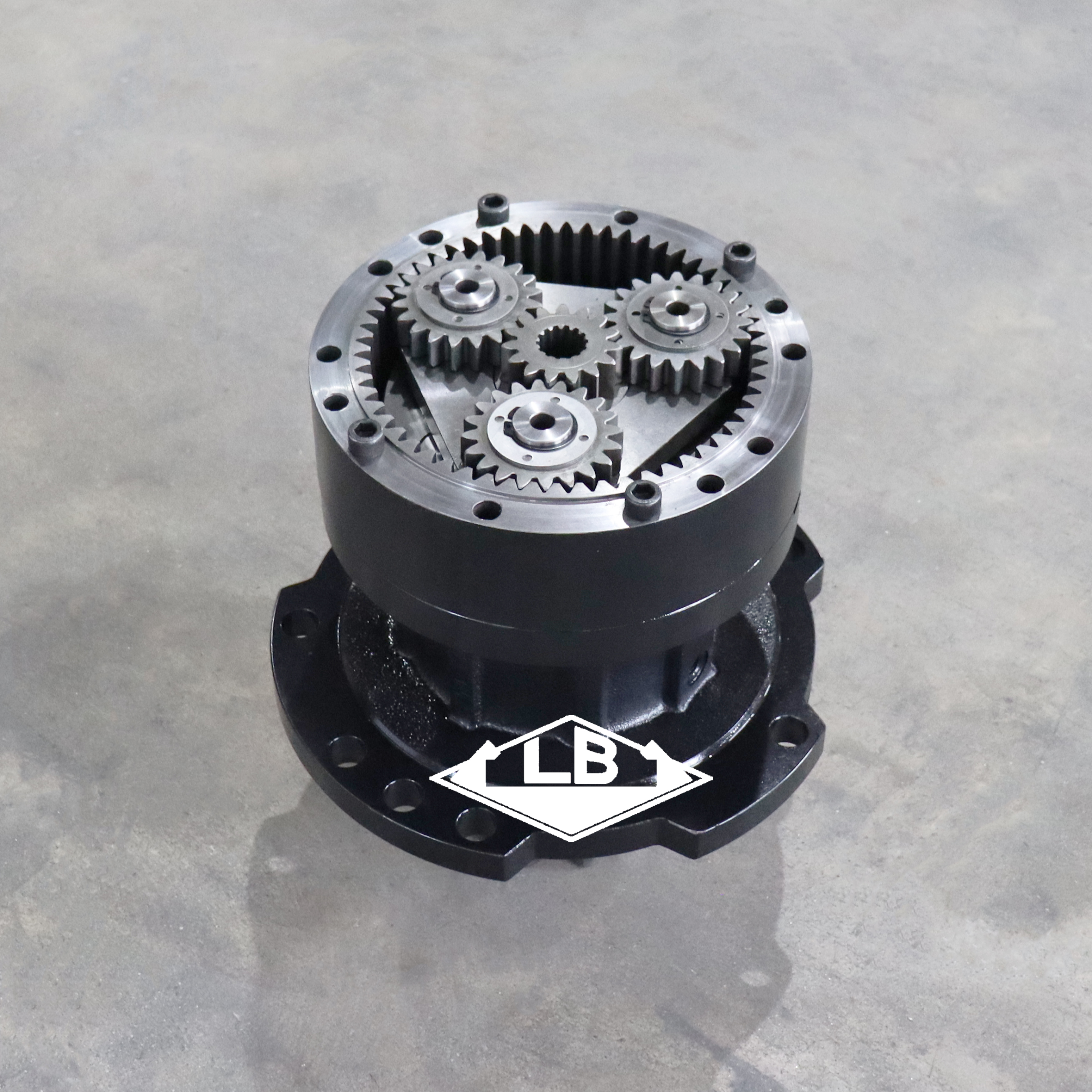

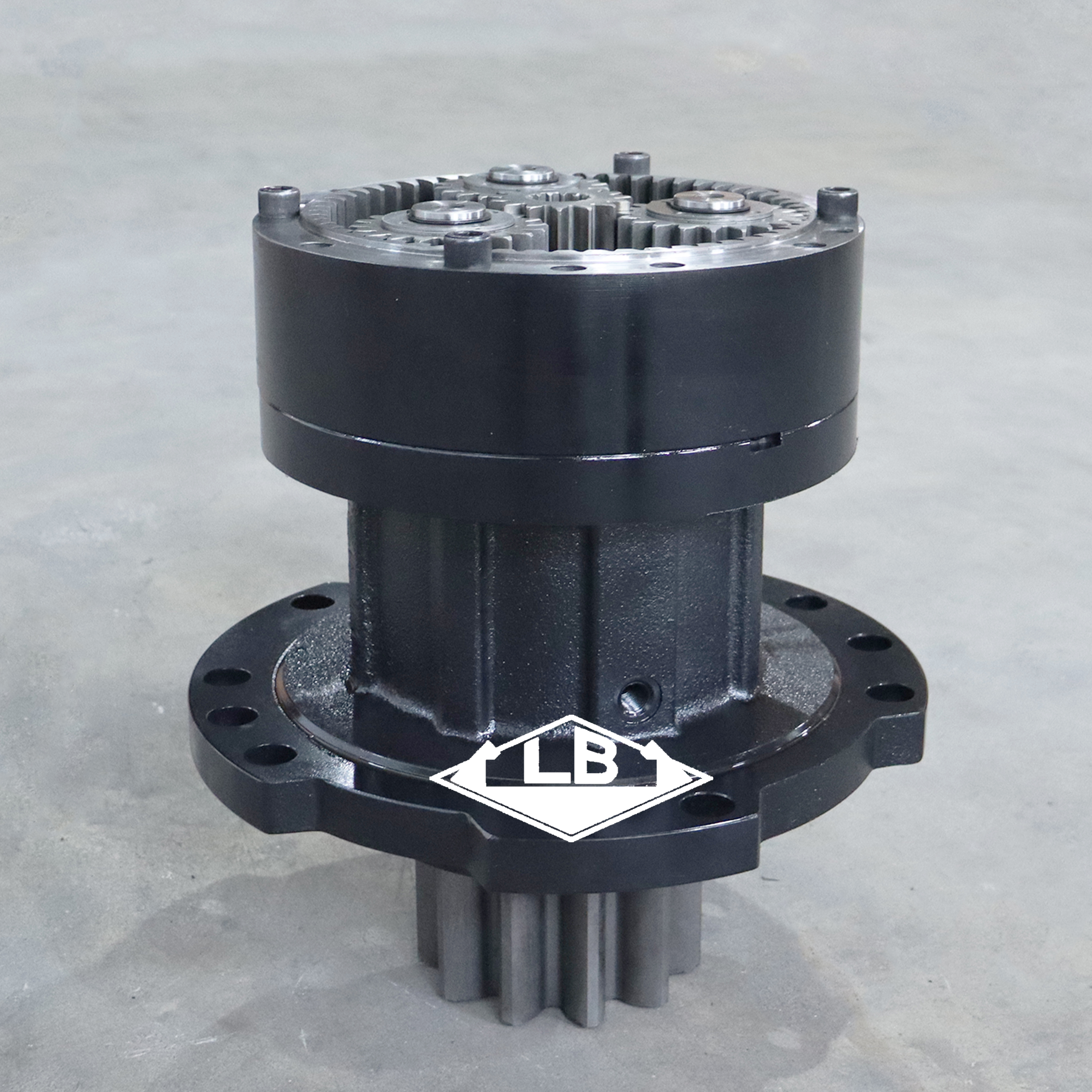

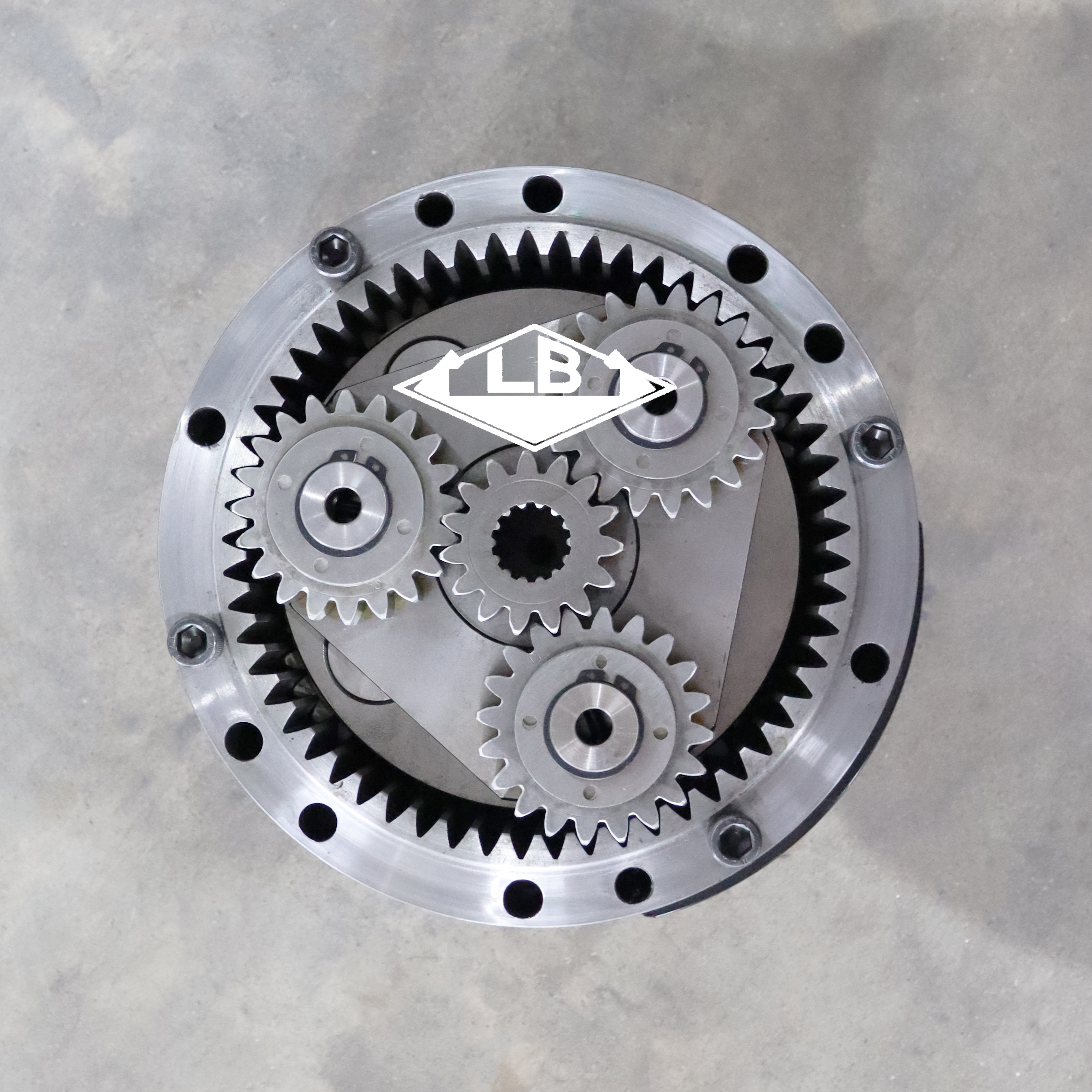

SK130-8 SK140 YY32W00004F1 SWING REDUCTION ASSEMBLY SK140 SWING GEARBOX FOR KOBELCO EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 SK130-8  SK140 Swing gearbox
Equipment Apply to HYUNDAI EXCAVATOR
Part no. YY32W00004F1
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

SK130-8 回转牙箱(4)SK130-8 回转牙箱(2)SK130-8 回转牙箱(6)SK130-8 回转牙箱(8)SK130-8 回转牙箱

Parts on group (140SR) - ACERA CRAWLER EXCAVATOR - TIER 3 - ASN YH05-07001- (1/08-12/12):

Pos. Part No Qty Parts name Comments
. . YY32W00004F1 [1] HYDRAULIC MOTOR KOB Reduction Assembly (Swing)
102. NA [1] NOT SERVICED FOR Housing
201. NA [1] NOT SERVICED FOR Shaft
202. YX32W00002S202 [1] GEAR KOB
203. YX32W00002S203 [4] GEAR KOB
204. YX32W00002S204 [1] GEAR KOB
210. YX32W00002S210 [3] GEAR KOB
211. YX32W00002S211 [1] GEAR KOB
230. YX32W00002S230 [1] CARRIER KOB
231. NA [1] NOT SERVICED FOR Carrier
282. YX32W00002S282 [4] PIN KOB
283. NA [3] NOT SERVICED FOR Pin
285. YX32W00002S285 [7] PLATE KOB
286. YX32W00002S286 [1] WASHER KOB
287. YX32W00002S287 [3] PLATE KOB
390. NA [1] NOT SERVICED FOR Name Plate
401. YX32W00002S401 [1] ROLLER BEARING KOB
402. YX32W00002S402 [1] ROLLER BEARING KOB
403. YX32W00002S403 [3] NEEDLE BEARING KOB
602. ZS23C12100 [8] CAPSCREW,Hex Socket Head, M12 x 100mm KOB SCREW M12x1.75x100mm
603. 2436U1457S171 [2] SCREW KOB
801. YX32W00002S801 [1] OIL SEAL KOB
910. 2453U276S287 [4] PIN KOB Spring
911. 2441U398S820 [3] RING KOB Snap Superseded by part number: ZR16X03000
912. ZR16X02500 [1] RING KOB Retaining -- ID 23.2 x OD 25 x Th 1.2mm
913. ZR16X06500 [1] SNAP RING KOB Retaining -- ID 65 x OD 81 x Th 2.5mm
915. YX32W00002S915 [1] SEAL KOB Superseded by part number: EW32W00003S915
920. YX32W00002S920 [1] ADAPTER KOB
921. YY32W00004S921 [1] HOSE KOB
922. YX32W00002S922 [1] PLUG KOB
925. YX32W00002S925 [1] BREATHER KOB
926. YX32W00002S926 [1] LUBE NIPPLE KOB
K. YX32W00002R100 [1] REPAIR KIT KOB Contains Items 231x1 & 283x3
