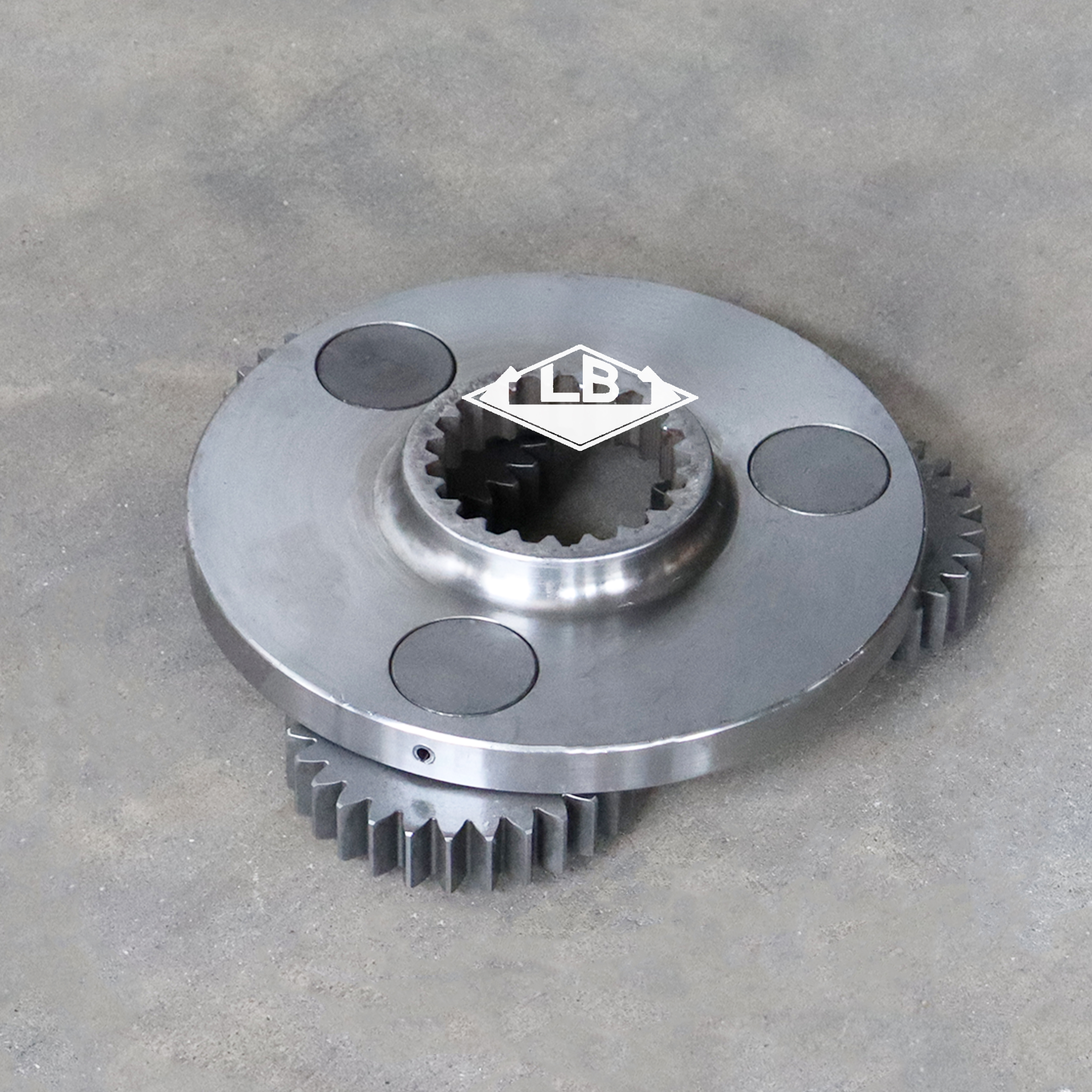

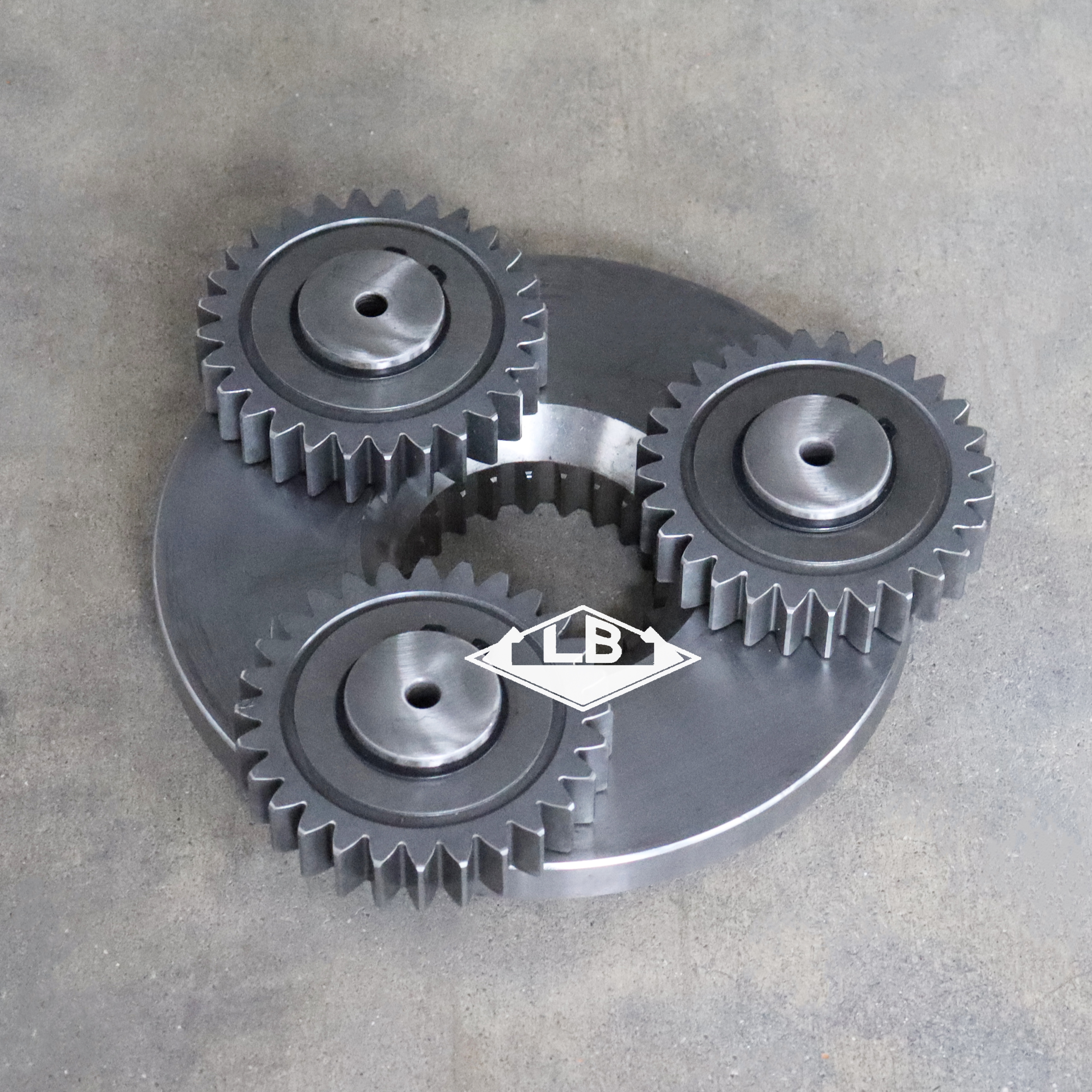

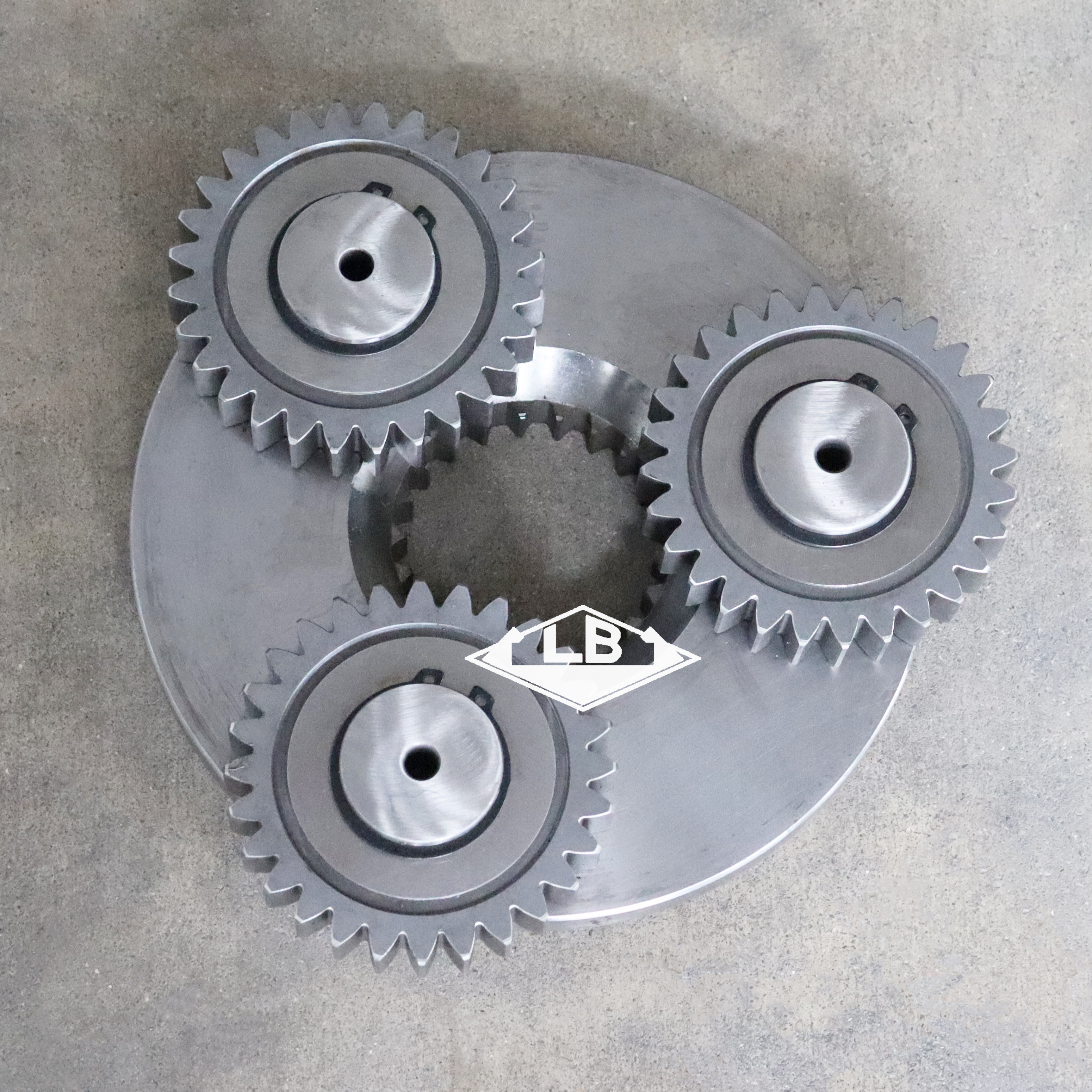

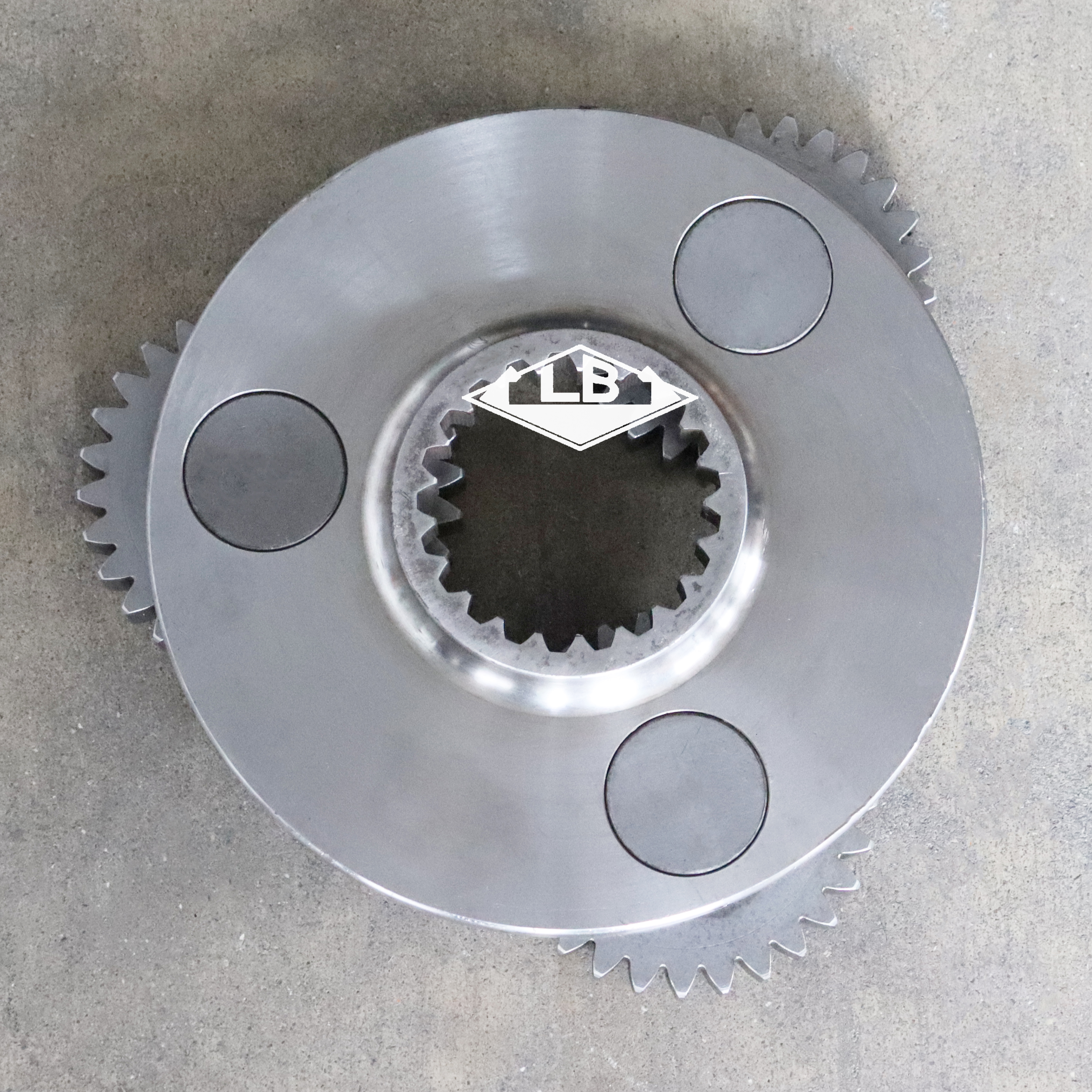

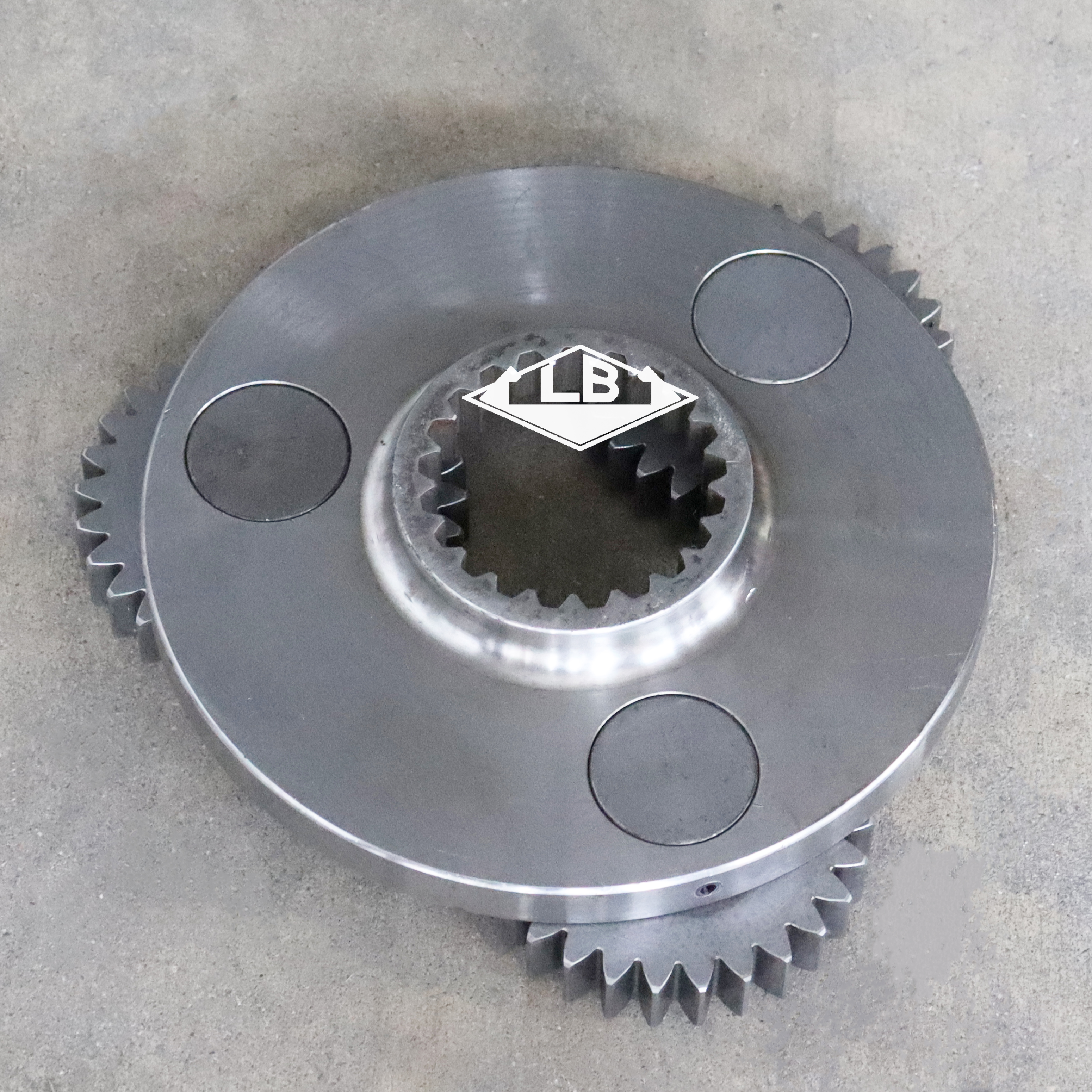

R300-9 R305-9 R330-9 1ST CARRIER ASSY XKAQ-00473 R330-9 SWING CARRIER ASSY FOR HYUNDAI EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 R300-9 R305-9 R330-9 Swing gearbox
Equipment Apply to HYUNDAI EXCAVATOR
Part no. XKAQ-00473
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

R305-9(4)R305-9(6)R305-9(8)R305-9(10)R305-9(2)R305-9

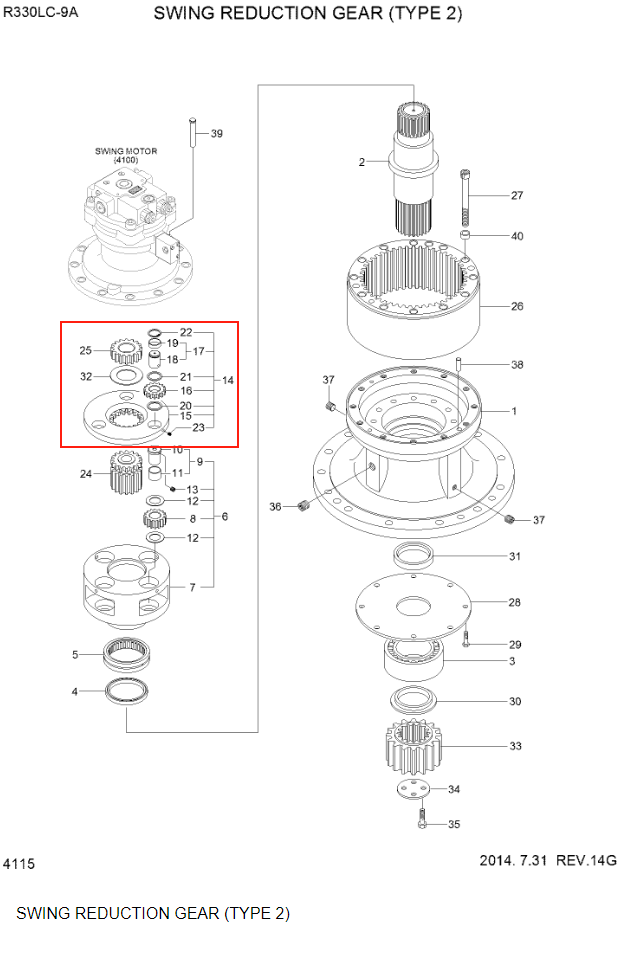

Parts on group SWING REDUCTION GEAR (TYPE 2):

Pos. Part No Qty Parts name Comments
*. @ [1] SWING MOTOR ASSY   SEE 4105
*-2. 31Q9-19140 [1] SWING REDUCTION GEAR
*-2. 31Q9-19140AR [1] SWING REDUCTION GEAR
1. XKAQ-00451 [1] CASING
2. XKAQ-00760 [1] SHAFT-DRIVE
3. XKAQ-00146 [1] BEARING-ROLLER
4. XKAQ-00149 [1] SEAL-OIL
5. XKAQ-00027 [1] BEARING-ROLLER
6. XKAQ-00467 [1] CARRIER ASSY 2
7. XKAQ-00468 [1] CARRIER 2
8. XKAQ-00469 [4] GEAR-PLANET 2
9. XKAQ-00470 [4] PIN ASSY 2
N10. XKAQ-00471 [1] PIN 2
N11. XKAQ-00472 [1] BUSHING 2
12. XKAQ-00435 [8] WASHER-THRUST
13. XKAQ-00050 [4] PIN-SPRING
14. XKAQ-00473 [1] CARRIER ASSY 1
15. XKAQ-00453 [1] CARRIER 1
16. XKAQ-00454 [3] GEAR-PLANET 1
17. XKAQ-00440 [3] PIN ASSY 1
N18. XKAQ-00441 [3] PIN 1
N19. XKAQ-00079 [3] BUSHING 1
20. XKAQ-00417 [3] PLATE 1-SIDE
21. XKAQ-00416 [3] PLATE 2-SIDE
22. XKAQ-00041 [3] RING-STOP
23. XKAQ-00048 [3] PIN-SPRING
24. XKAQ-00455 [1] GEAR 2-SUN
25. XKAQ-00456 [1] GEAR 1-SUN
26. XKAQ-00457 [1] RING-GEAR
27. XKAQ-00466 [12] BOLT-SOCKET
28. XKAQ-00626 [1] COVER PLATE
29. XKAQ-00064 [8] BOLT-HEX
30. XKAQ-00627 [1] SPACER
31. XKAQ-00628 [1] RING-SPACER
32. XKAQ-00447 [1] PLATE 3-THRUST
33. XKAQ-00629 [1] GEAR-PINION
34. XKAQ-00761 [1] PLATE-LOCK
35. XKAQ-00756 [4] BOLT-HEX
36. XKAQ-00049 [1] PLUG
37. XKAQ-00066 [2] PLUG
38. XKAQ-00072 [2] PIN-KNOCK
N39. XKAQ-00631 [4] BUSHING 2
40. XKAQ-00800 [1] AIR BREATHER ASSY
N. @ [AR] NOT SUPPLIED PARTS
