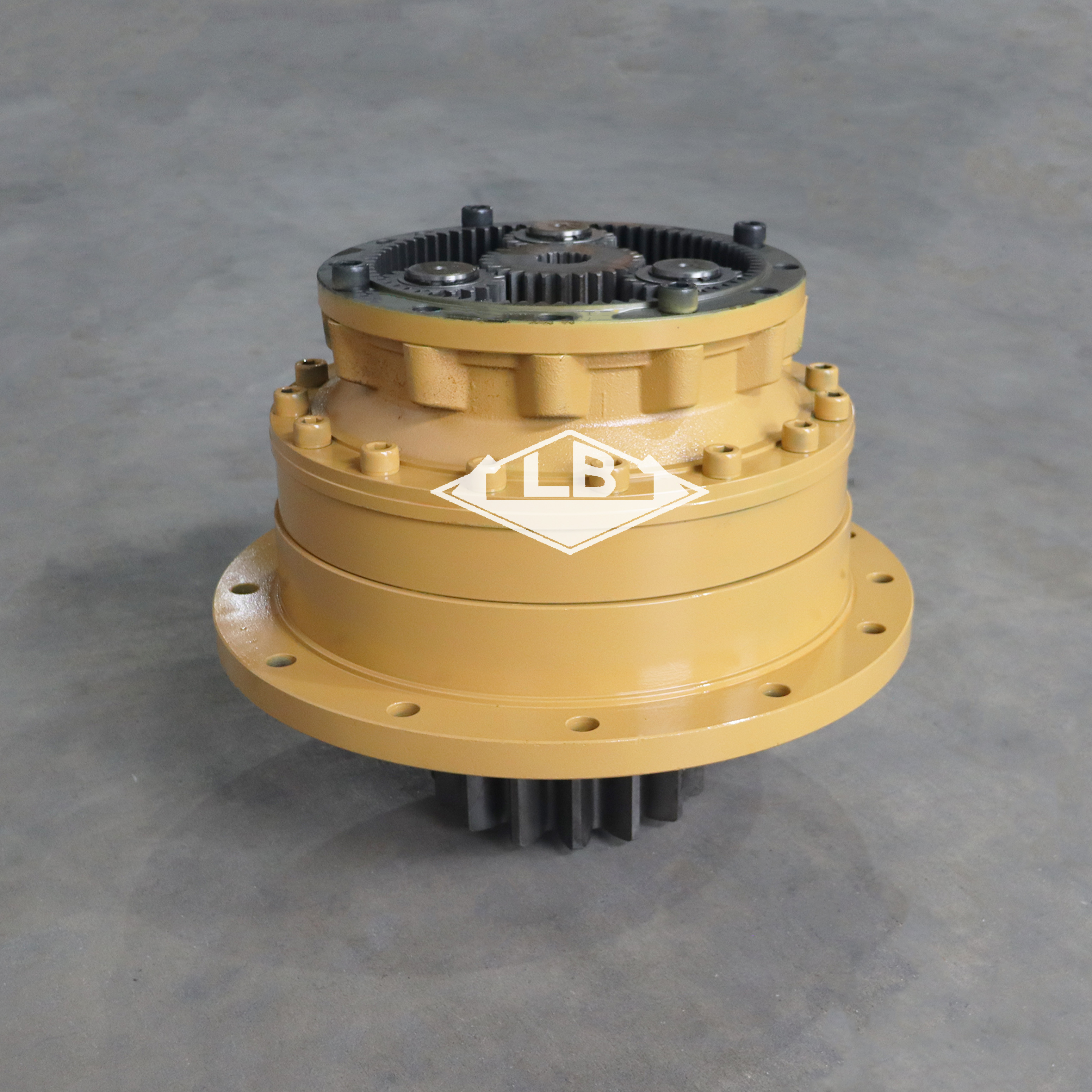

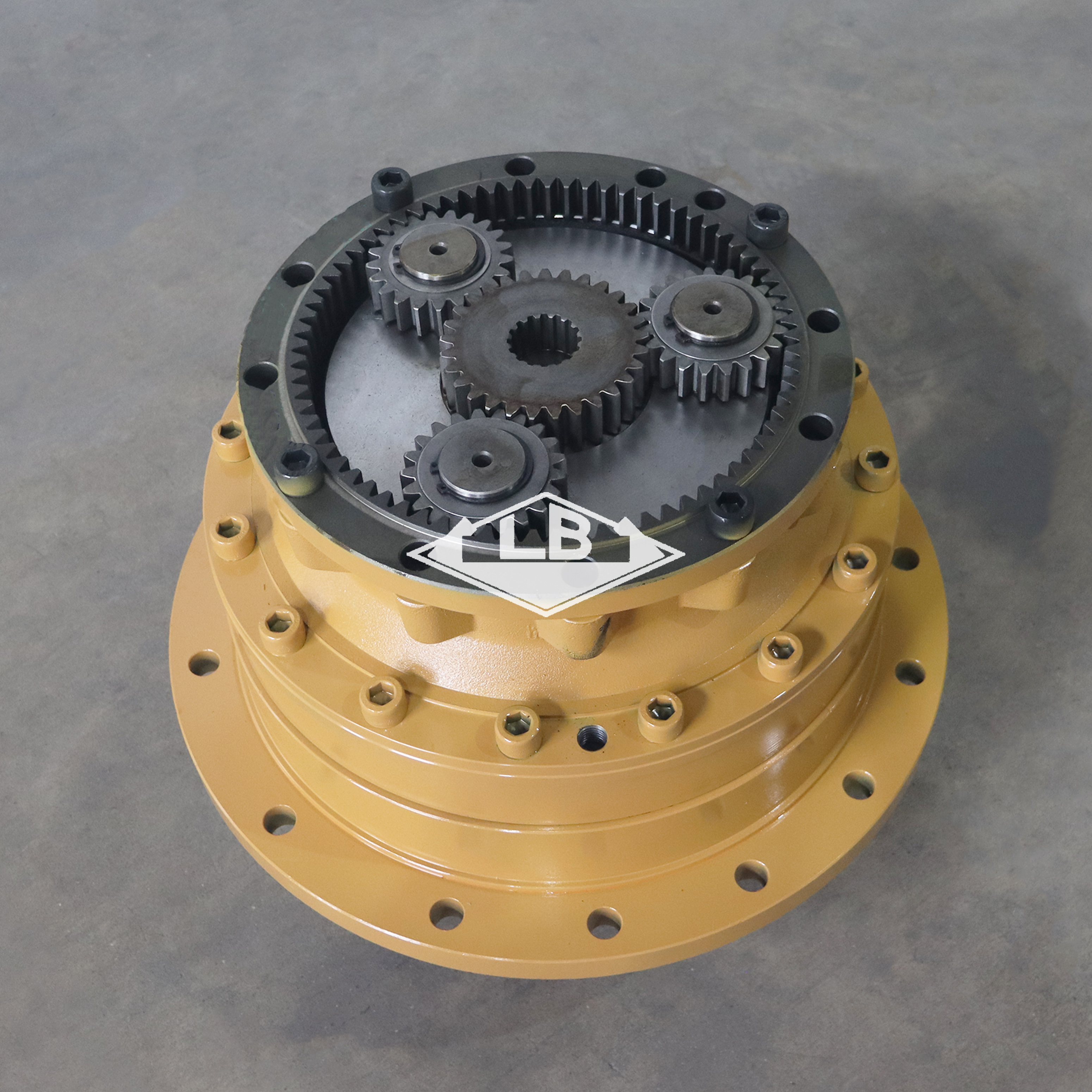

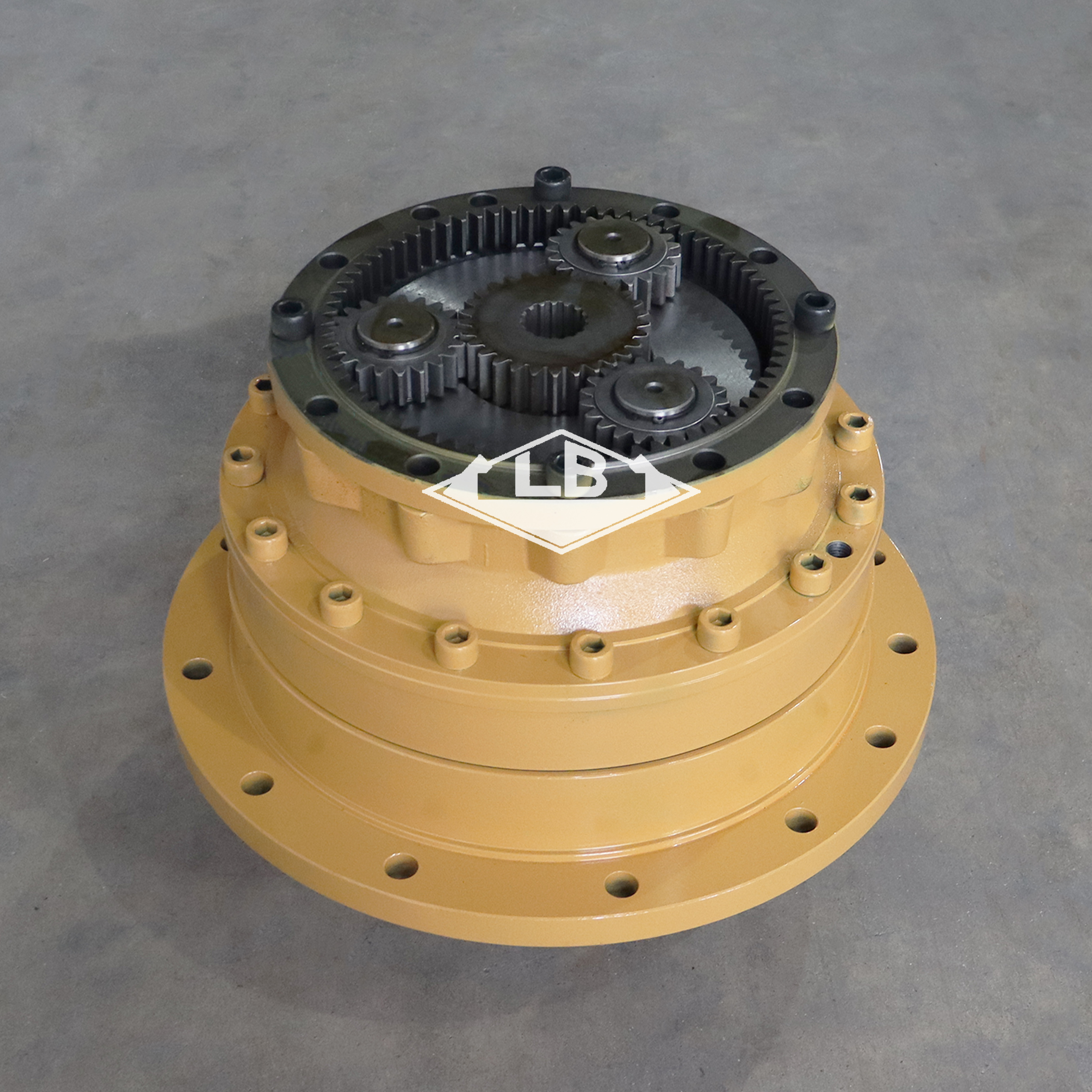

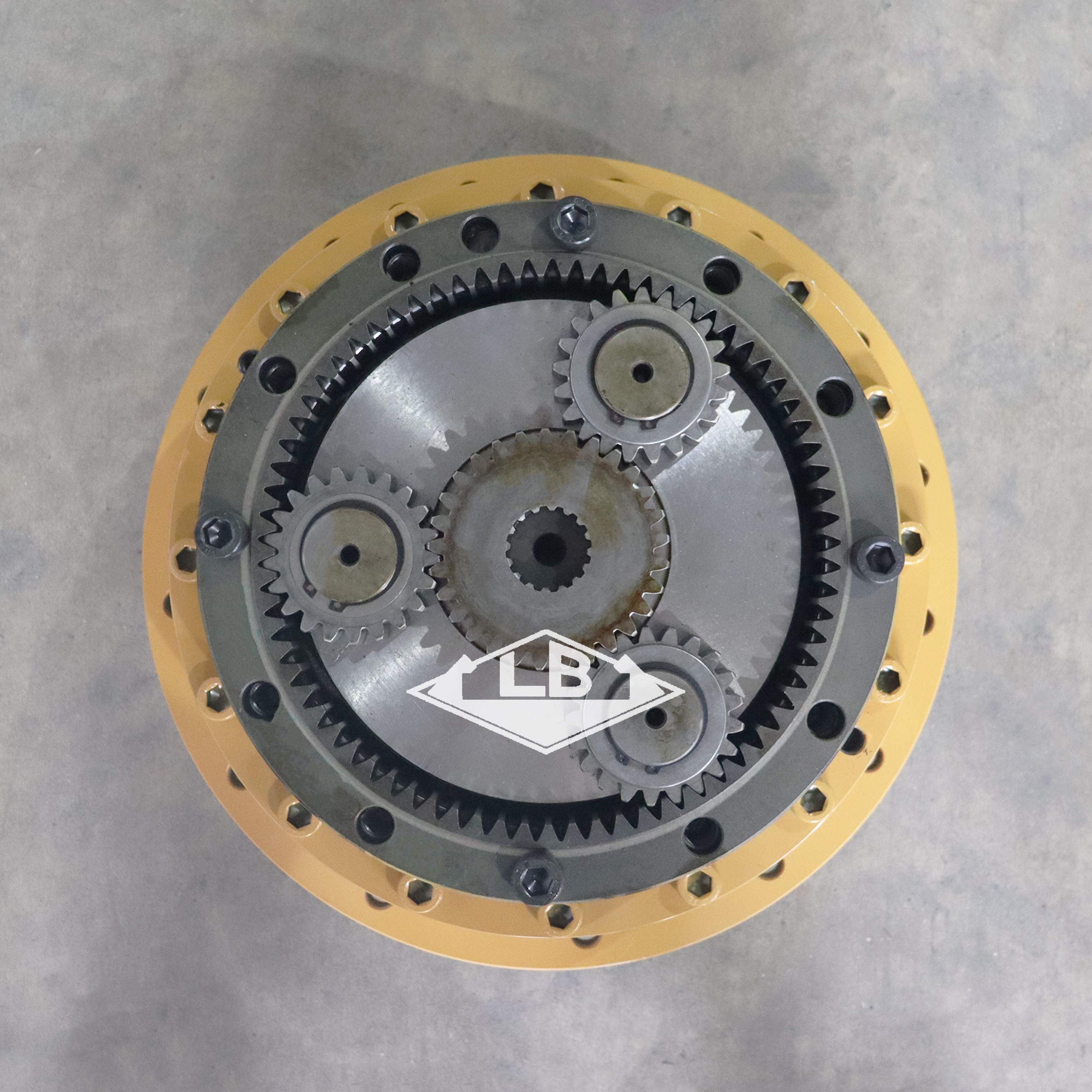

Home / Products / Swing Gearbox / R290-7 R300-7 R305-7 SWING REDUCTION GEAR 31E9-01052 R290-7 SWING GEARBOX APPLY FOR HYUNDAI EXCAVATOR

Share to:

R290-7 R300-7 R305-7 SWING REDUCTION GEAR 31E9-01052 R290-7 SWING GEARBOX APPLY FOR HYUNDAI EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	R290-7 R300-7 R305-7 TRAVEL GEARBOX
Equipment	Apply to HYUNDAI EXCAVATOR
Part no.	31E9-01052
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

R290 回转牙箱（2） R290 回转牙箱(6) R290 回转牙箱(4) R290 回转牙箱(8)

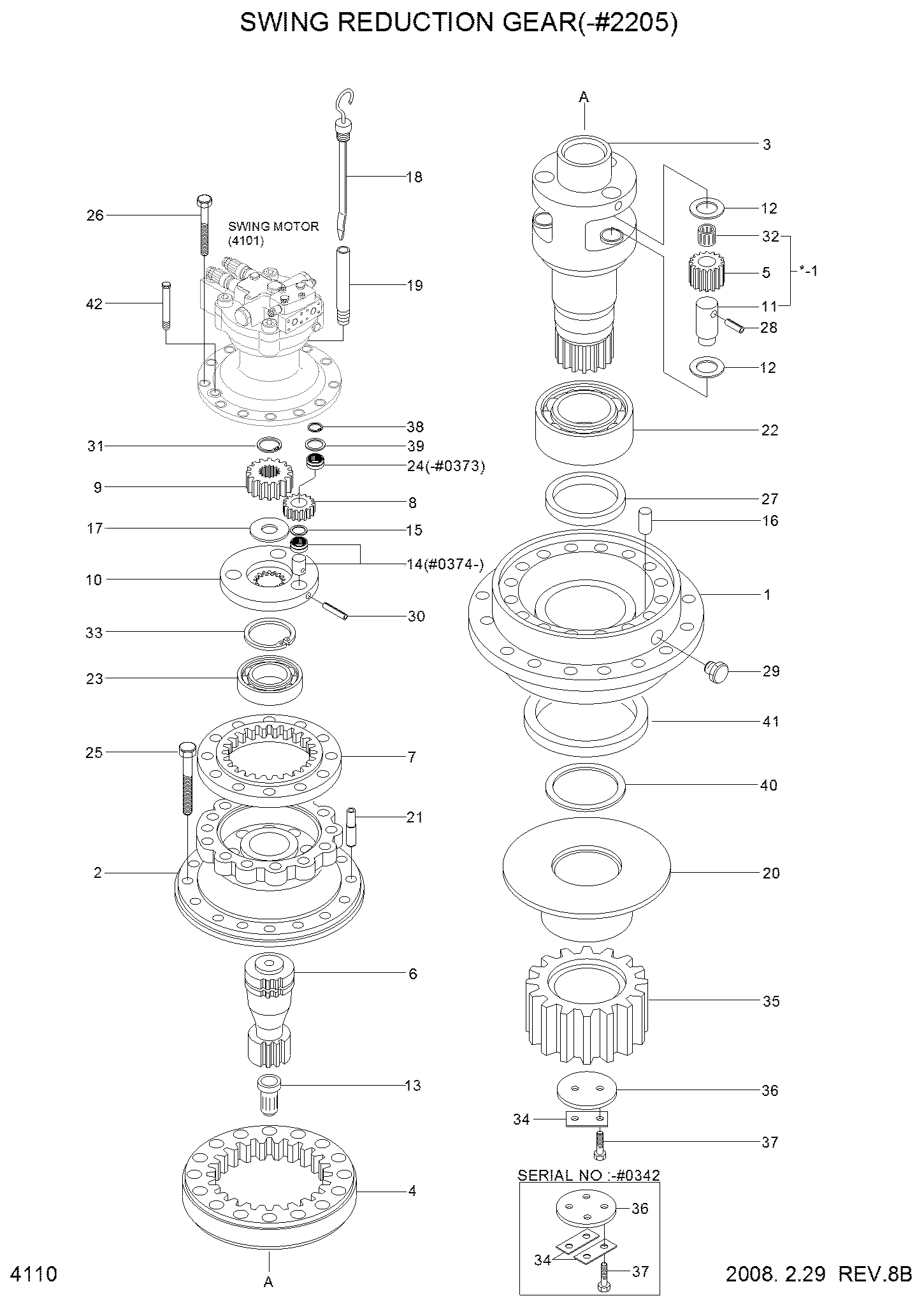

Parts on group SWING REDUCTION GEAR(-#2205):

Pos.	Part No	Qty	Parts name	Comments
*.	@	[1]	SWING MOTOR ASSY	SEE 4100
N*-2.	31E9-01050	[1]	SWING REDUCTION GEAR	SB-I-2008-008.PDF
N*-2.	31E9-01051	[1]	SWING REDUCTION GEAR	SB-I-2008-008.PDF
N*-2.	31E9-01052	[1]	SWING REDUCTION GEAR	SB-I-2008-008.PDF
N1.	XKAQ-00063	[1]	CASING-FRONT
1.	XKAQ-00112	[1]	CASING-FRONT
1.	XKAQ-00141	[1]	CASING-FRONT
1.	XKAQ-00279	[1]	CASING-FRONT
1.	XKAQ-00329	[1]	CASING-FRONT
2.	XKAQ-00003	[1]	CASING-MIDDLE
3.	XKAQ-00004	[1]	SHAFT-DRIVE
3.	XKAQ-00328	[1]	SHAFT-DRIVE
4.	XKAQ-00006	[1]	GEAR-RING 2
5.	XKAQ-00022	[3]	GEAR-PLANET 2
6.	XKAQ-00062	[1]	GEAR-2 SUN
6.	XKAQ-00012	[1]	GEAR-2 SUN
7.	XKAQ-00008	[1]	GEAR-RING 1
8.	XKAQ-00024	[3]	GEAR-PLANET 1
8.	XKAQ-00137	[3]	GEAR-PLANET 1
9.	XKAQ-00009	[1]	GEAR-1 SUN
9.	XKAQ-00061	[1]	GEAR-1 SUN
10.	XKAQ-00016	[1]	CARRIER
*-1.	XKAQ-00021	[3]	PIN ASSY NO.2
N11.	XKAQ-00060	[3]	PIN ASSY-2
N32.	XKAQ-00046	[3]	BUSHING 2
12.	XKAQ-00059	[6]	WASHER-THRUST
13.	XKAQ-00058	[1]	BUTTON-THRUST
14.	XKAQ-00019	[3]	PIN 1
14.	XKAQ-00136	[3]	PIN ASSY 1	INC NEEDLE CAGE
15.	XKAQ-00057	[3]	PLATE-SIDE 1
16.	XKAQ-00056	[4]	MAGNET
17.	XKAQ-00055	[1]	PLATE-SIDE 3
18.	XKAQ-00054	[1]	BAR-GAUGE
18.	XKAQ-00034	[1]	BAR-GAUGE
19.	XKAQ-00035	[1]	PIPE-GAUGE
20.	XKAQ-00017	[1]	RING-SPACER
20.	XKAQ-00111	[1]	RING-SPACER
21.	XKAQ-00053	[4]	PIN-KNOCK
21.	XKAQ-00053	[2]	PIN-KNOCK
22.	XKAQ-00028	[1]	BEARING-ROLLER
23.	XKAQ-00027	[1]	BEARING-ROLLER
24.	XKAQ-00030	[3]	CAGE-NEEDLE
25.	XKAQ-00052	[16]	BOLT-SOCKET
26.	XKAQ-00051	[12]	BOLT-SOCKET
27.	XKAQ-00033	[1]	SEAL-OIL
27.	XKAQ-00138	[1]	SEAL-OIL
27.	XKAQ-00280	[1]	SEAL-OIL
27.	XKAQ-00330	[1]	SEAL-OIL
28.	XKAQ-00050	[3]	PIN-SPRING
29.	XKAQ-00049	[1]	PLUG
30.	XKAQ-00048	[3]	PIN-SPRING
31.	XKAQ-00047	[1]	RING-STOP
33.	XKAQ-00045	[1]	RING-STOP
34.	XKAQ-00044	[2]	WASHER-LOCK
34.	XKAQ-00292	[1]	WASHER-LOCK
35.	XKAQ-00013	[1]	GEAR-PINION
36.	XKAQ-00043	[1]	PLATE-LOCK
36.	XKAQ-00296	[1]	PLATE-LOCK
37.	XKAQ-00042	[4]	BOLT-HEX
37.	XKAQ-00042	[2]	BOLT-HEX
38.	XKAQ-00041	[3]	RING-STOP
39.	XKAQ-00040	[3]	PLATE-SIDE 2
40.	XKAQ-00109	[1]	CIRCLIP
41.	XKAQ-00110	[1]	V-SEAL
42.	XKAQ-00143	[1]	POST-AIR BREATHER
N.	@	[1]	NOT SUPPLIED PARTS
