R250-9 R260-9 HX260 SWING REDUCTION GEAR 39Q7-12101 39Q7-12100 R260 SWING GEARBOX APPLY FOR HYUNDAI EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name

R250-9 R260-9 HX260 Swing gearbox
Equipment Apply to HYUNDAI EXCAVATOR
Part no. 39Q7-12101 39Q7-12100
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

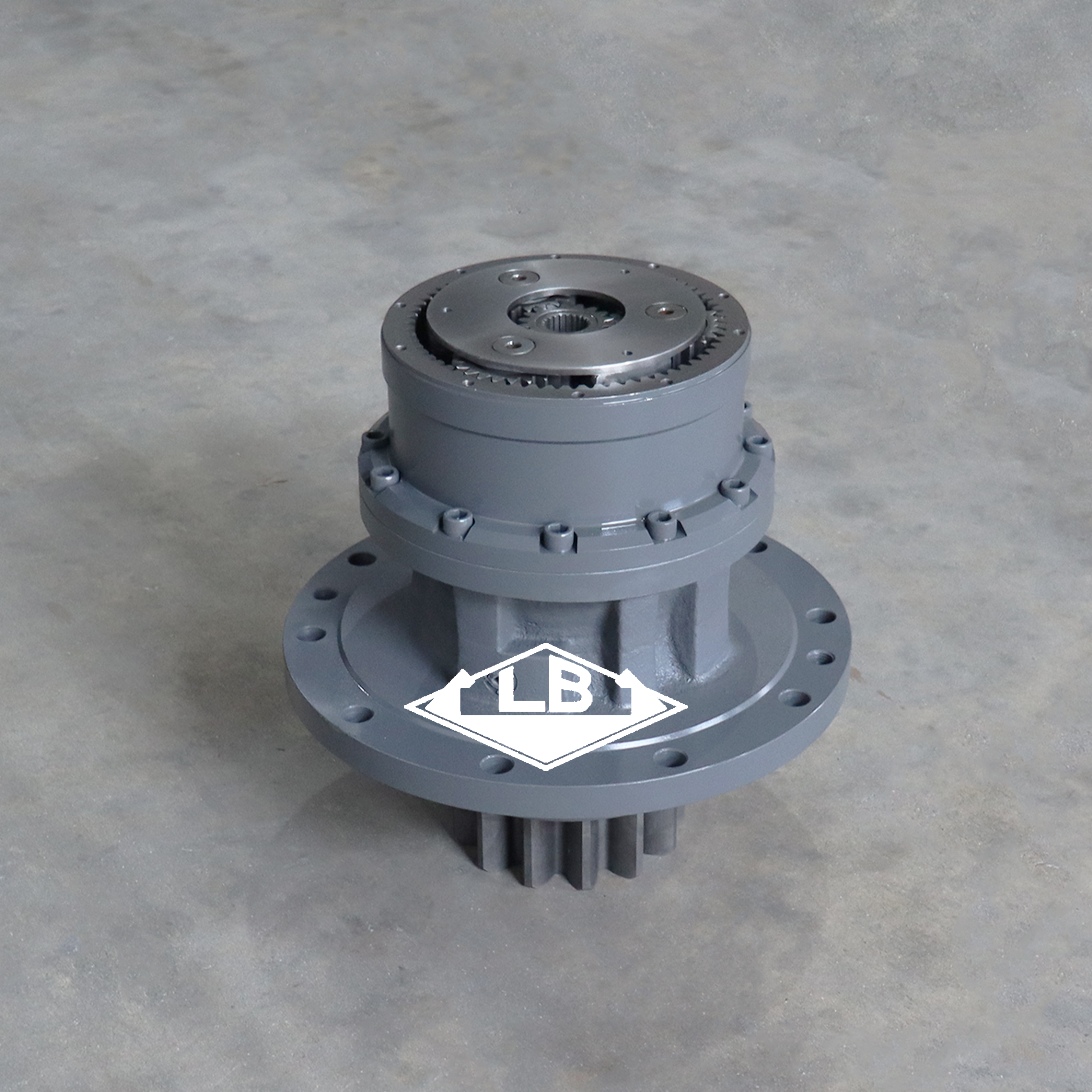

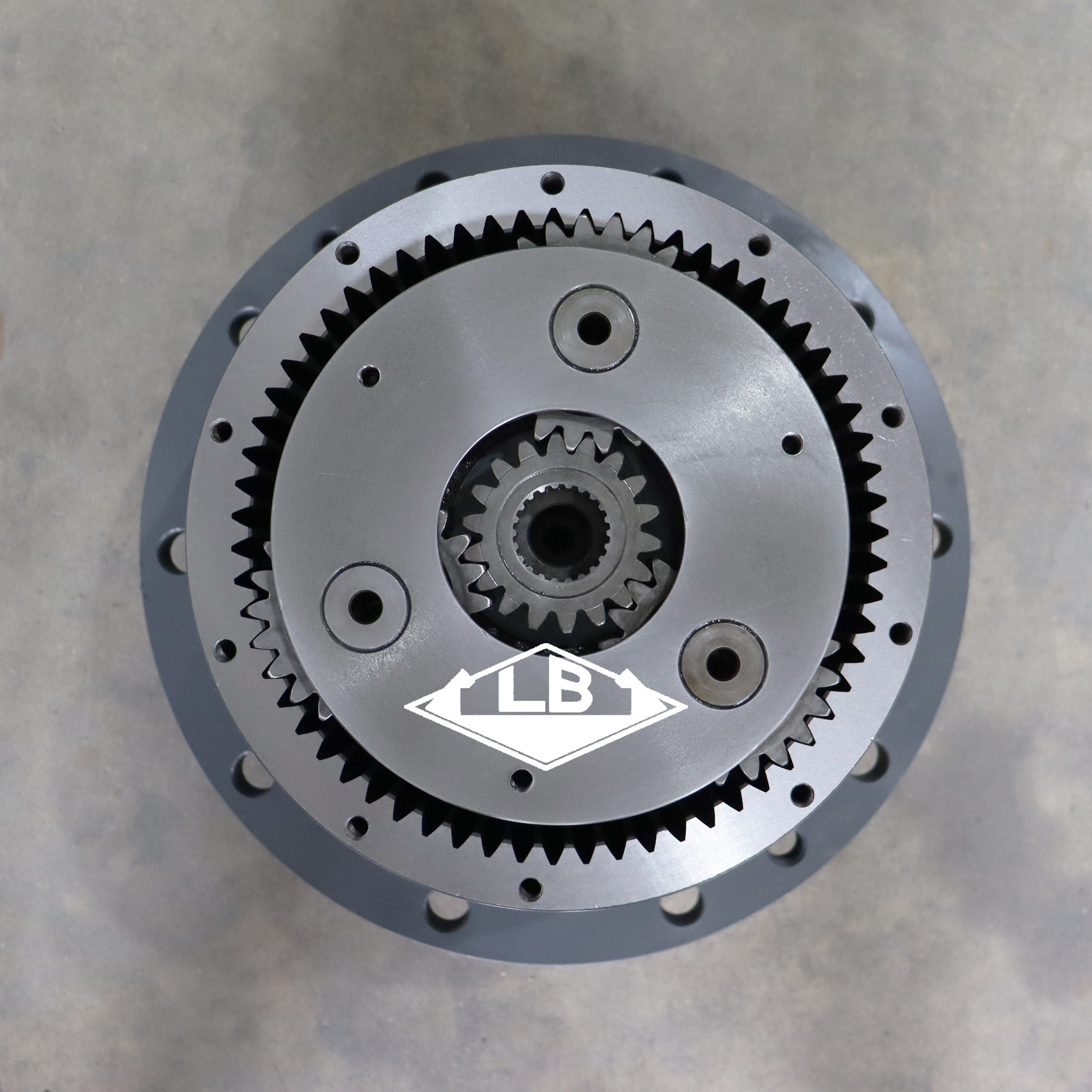

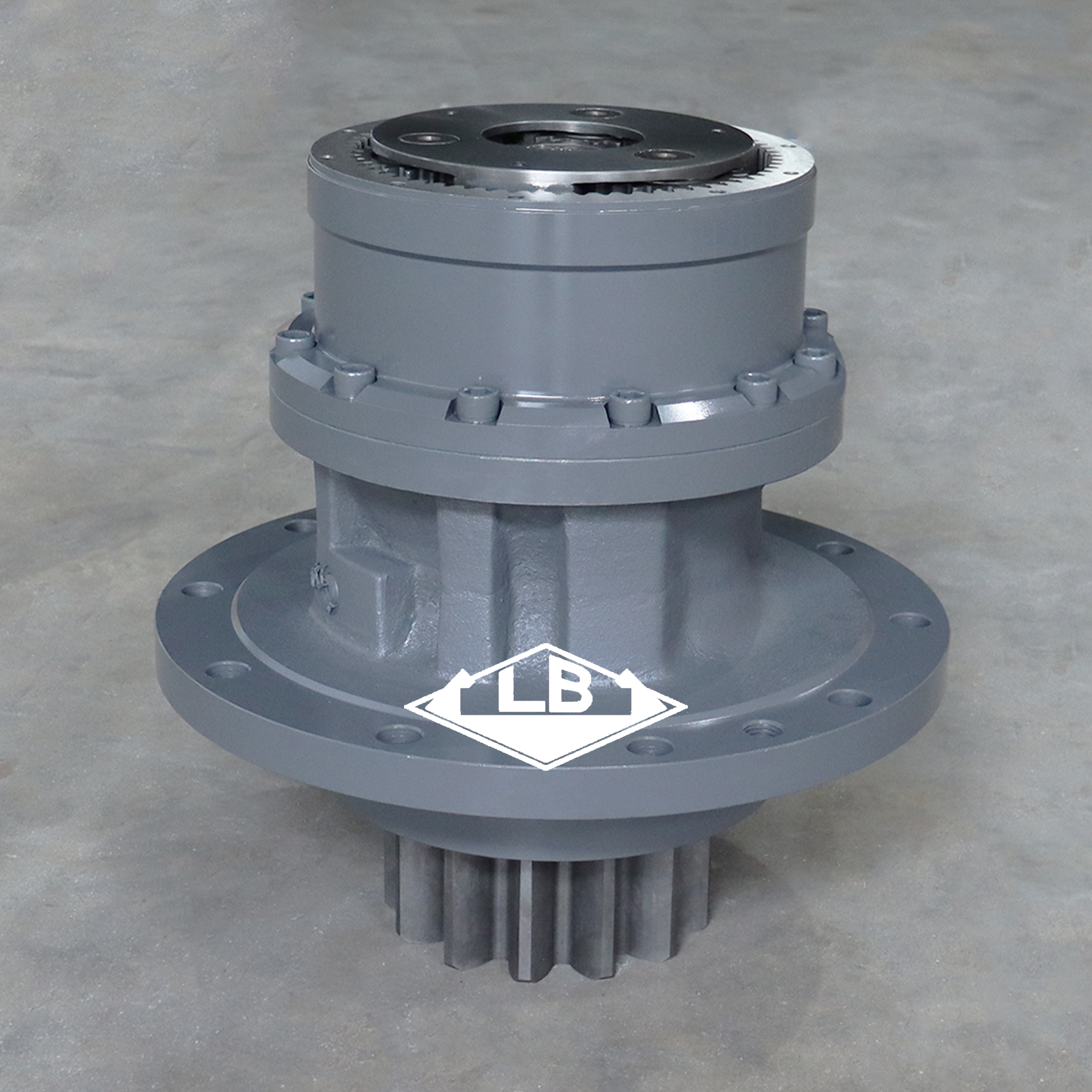

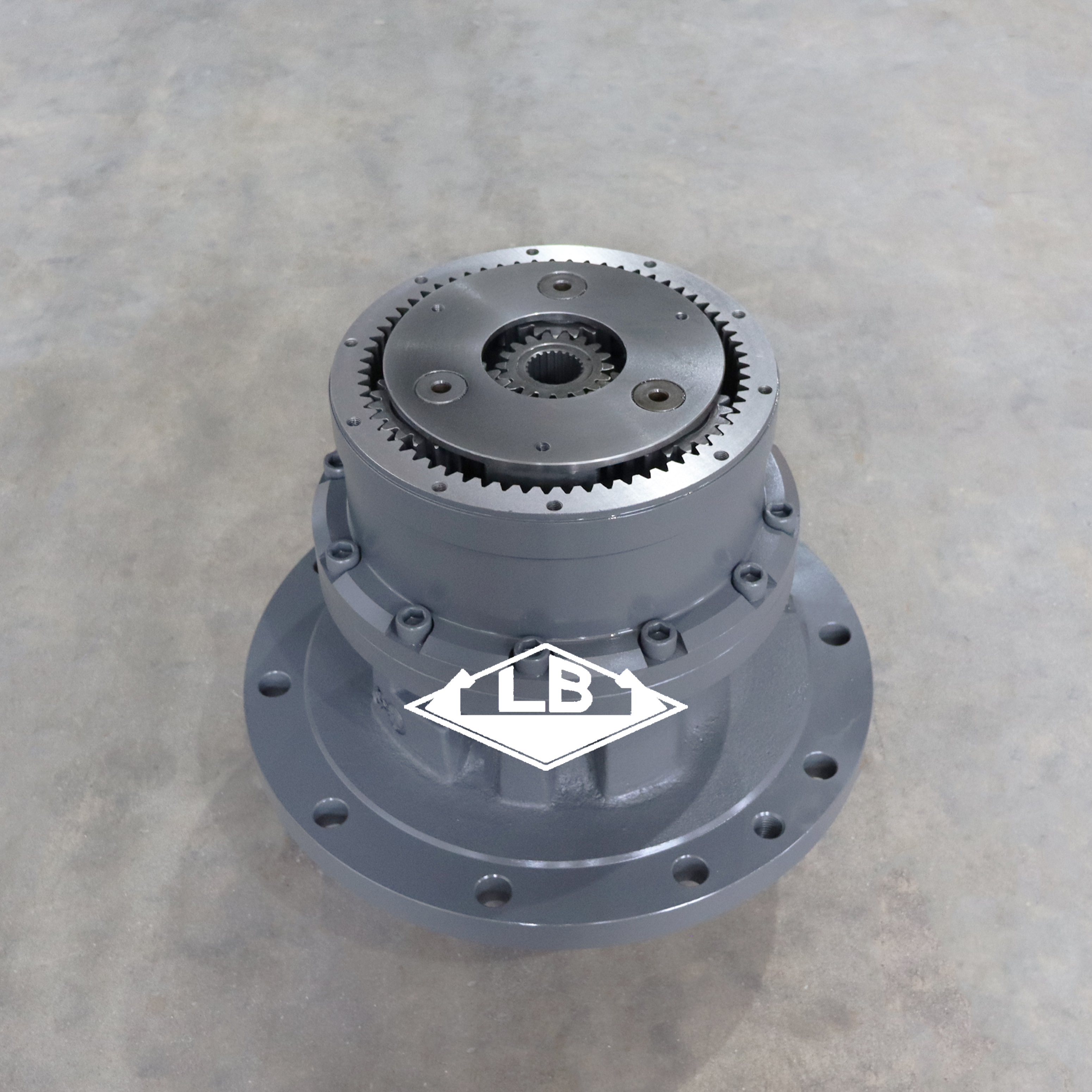

R245VS 回转牙箱（6）R245VS 回转牙箱（8）R245VS 回转牙箱（4）R245VS 回转牙箱（2）R245VS 回转牙箱

Parts on group SWING REDUCTION GEAR (TYPE 3):

Pos. Part No Qty Parts name Comments
*. @ [1] SWING MOTOR ASSY   SEE 4107
*-2. 39Q7-12100 [1] SWING REDUCTION GEAR
1. 39Q7-12110 [1] GEAR-RING
2. 39Q7-12120 [1] SHAFT-DRIVE
3. 39Q7-12130 [1] BEARING-ROLLER(MAIN)
4. 39Q7-12140 [1] BEARING-ROLLER(SUB)
5. 39Q7-12150 [1] PLATE-THRUST
6. S751-095004 [1] RING-RETAINING
7. 39Q7-12160 [1] CASING
8. S109-100306 [10] BOLT-SOCKET
9. 39Q7-12180 [1] CARRIER 2
K10. 39QB-12200 [4] GEAR-PLANETARY 2
K11. 39Q8-42290 [8] BEARING-NEEDLE 1
K12. 39QB-12220 [8] WASHER-THRUST 2
K13. 39QB-12230 [4] PIN-CARRIER 2
K14. S472-800364 [4] PIN-SPRING
K15. 39Q7-12190 [1] GEAR-SUN 2
K16. 39QB-12330 [2] THRUST PLATE
K17. 39Q7-12210 [1] CARRIER 1
K18. 39Q7-12220 [3] GEAR-PLANETARY 1
K19. 39Q6-12280 [3] BEARING-NEEDLE 1
K20. 39Q7-12230 [6] WASHER-THRUST 1
K21. 39Q7-12240 [3] PIN-CARRIER 1
K22. S472-600364 [3] PIN-SPRING
K23. 39Q7-12250 [1] GEAR-SUN 1
24. 39Q7-12260 [1] SLEEVE
25. S632-120001 [1] O-RING
26. 39Q6-12350 [1] SEAL-OIL
27. 39Q6-41450 [2] PIN-PARALLEL
28. S109-16045D [12] BOLT-SOCKET
29. 39Q7-12270 [1] NAME PLATE
29. 39Q7-12271 [1] NAME PLATE
30. 39Q6-41800 [2] RIVET
31. P220-430204 [1] PLUG-HEX
K. 39Q7-12170 [1] CARRIER ASSY 2   SEE ILLUST
K. 39Q7-12200 [1] CARRIER ASSY 1   SEE ILLUST
