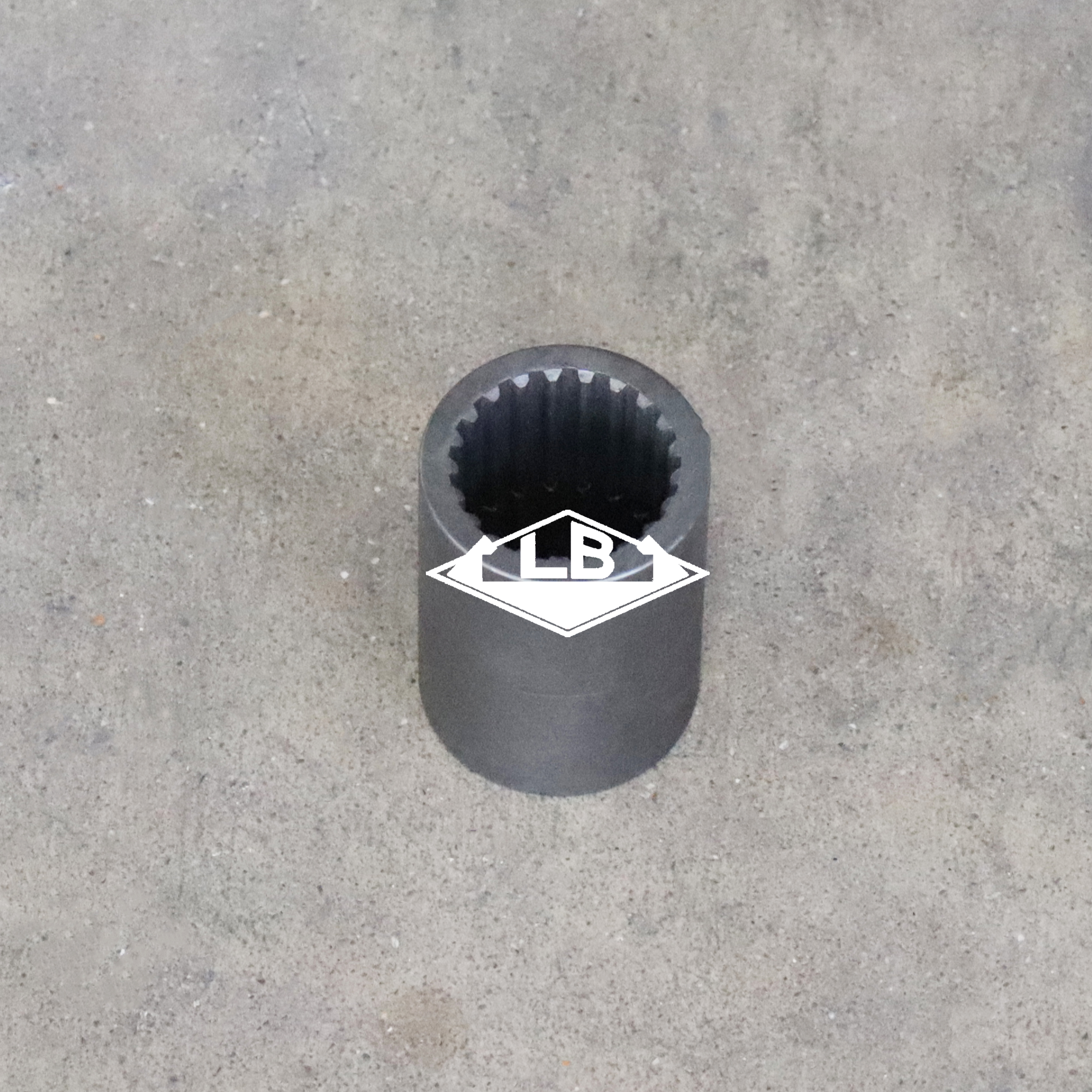

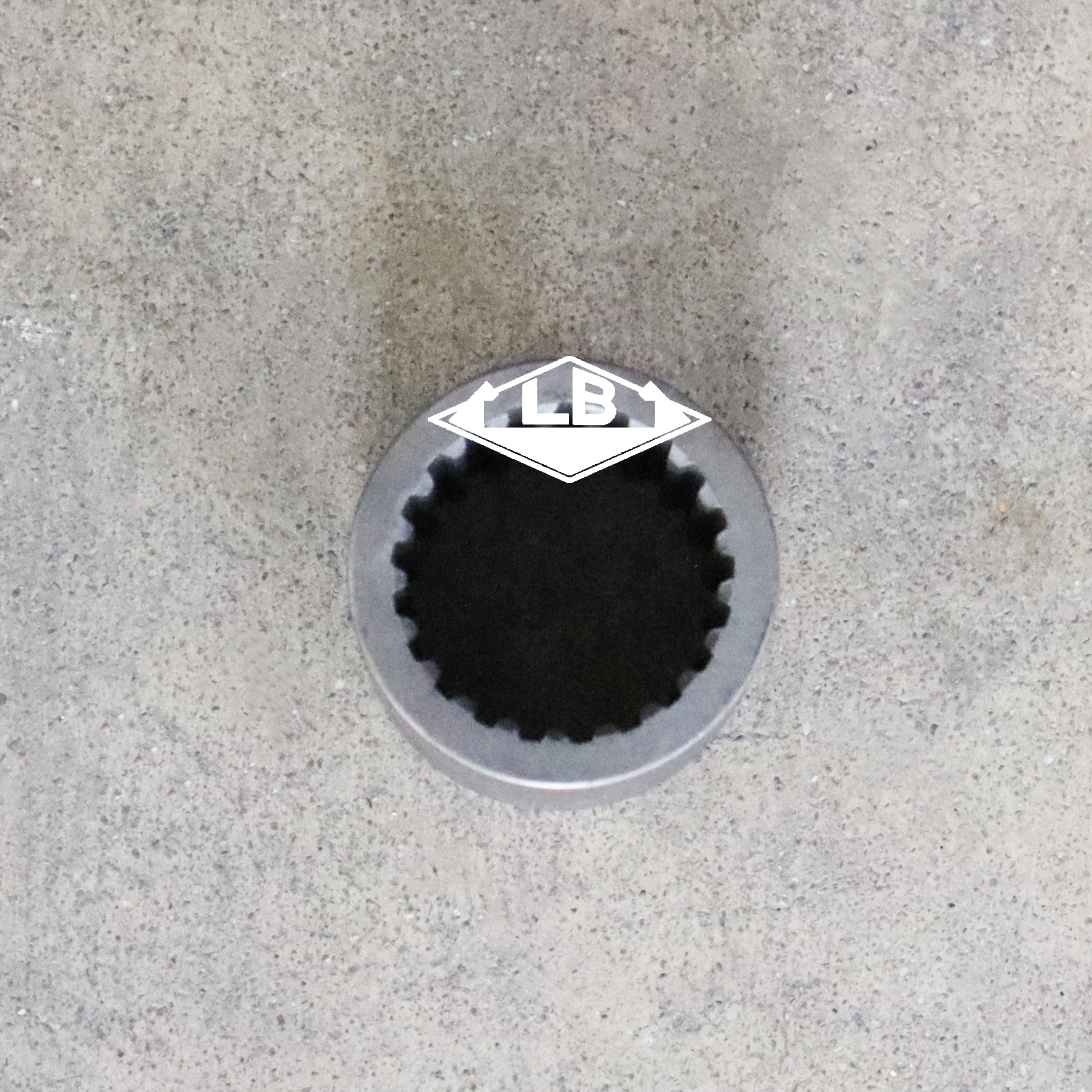

R220-9 39Q6-42170 XKAQ-00226 COUPLING HYUNDAI EXCAVATOR SPARE PARTS

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	R220-9 Swing gearbox
Equipment	Apply to HYUNDAI EXCAVATOR
Part no.	XKAQ-00226
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

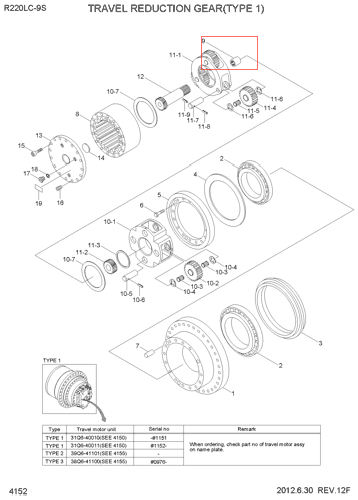

Parts on group TRAVEL REDUCTION GEAR (TYPE 1):

Pos.	Part No	Qty	Parts name	Comments
*.	@	[1]	TRAVEL MOTOR ASSY	SEE 4150
*.	@	[1]	TRAVEL MOTOR ASSY	SEE 4150
*-2.	31Q6-40020	[1]	TRAVEL REDUCTION GEAR
*-2.	31Q6-40021	[1]	TRAVEL REDUCTION GEAR
*-2.	31Q6-40022	[1]	T/REDUCTION GEAR
*-2.	31Q6-40022	[1]	T/REDUCTION GEAR
*-2.	31Q6-40021	[1]	TRAVEL REDUCTION GEAR	AMPHIBIOUS
*-2.	31Q6-40022	[1]	T/REDUCTION GEAR	AMPHIBIOUS
N1.	XKAQ-00217	[1]	HOUSING
2.	XKAQ-00218	[2]	BEARING-MAIN
2.	XKAQ-00986	[2]	BEARING-MAIN
2.	XKAQ-00986	[2]	BEARING-MAIN
2.	XKAQ-00218	[2]	BEARING-MAIN	AMPHIBIOUS
2.	XKAQ-00986	[2]	BEARING-MAIN	AMPHIBIOUS
3.	XKAQ-00219	[1]	SEAL-FLOATING
4.	XKAQ-00220	[1]	SHIM
5.	XKAQ-00221	[1]	RETAINER
6.	XKAQ-00222	[12]	BOLT-HEX
7.	XKAQ-00223	[2]	PIN-PARALLEL
8.	XKAQ-00224	[1]	GEAR-RING
9.	XKAQ-00225	[1]	COUPLING
9.	39Q6-42170	[1]	COUPLING
10.	XKAQ-00226	[1]	CARRIER 2 ASSY
10-1.	XKAQ-00227	[1]	CARRIER 2
10-2.	XKAQ-00228	[4]	GEAR-PLANET 2
10-3.	XKAQ-00229	[8]	BEARING-NEEDLE 2
10-4.	XKAQ-00230	[8]	WASHER-THRUST
10-5.	XKAQ-00231	[4]	PIN 2
10-6.	XKAQ-00232	[4]	PIN-SPRING
10-7.	XKAQ-00208	[2]	RING-THRUST
11.	XKAQ-00653	[1]	CARRIER ASSY 1
11-1.	XKAQ-00234	[1]	CARRIER 1
11-2.	XKAQ-00235	[1]	GEAR-SUN 2
11-3.	XKAQ-00236	[1]	RING-RETAINING
11-4.	XKAQ-00237	[3]	GEAR-PLANET 1
11-5.	XKAQ-00238	[3]	BEARNG-NEEDLE 1
11-6.	XKAQ-00657	[6]	WASHER-THRUST
11-7.	XKAQ-00240	[3]	PIN 1
11-8.	XKAQ-00241	[3]	PIN-SPRING
11-9.	XKAQ-00655	[1]	PIN-SPRING
12.	XKAQ-00402	[1]	GEAR-SUN 1
12.	XKAQ-00795	[1]	GEAR-SUN 1
13.	XKAQ-00243	[1]	COVER
14.	XKAQ-00214	[1]	PAD
15.	XKAQ-00244	[20]	BOLT-SOCKET
16.	XKAQ-00245	[2]	SCREW-HEX SOCKET
17.	XKAQ-00246	[3]	PLUG-HYDRAULIC
18.	XKAQ-00247	[3]	O-RING
19.	XKAQ-00248	[1]	NAME PLATE
19.	XKAQ-00990	[1]	NAME PLATE
N.	@	[AR]	NOT SUPPLIED PARTS
