| Quantity: | |
|---|---|
| Part name | R210-7 Swing gearbox | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | XKAQ-00075 | |||||
| NO.1 sun gear spline teeth | 18 splines | |||||
| Swing pinion shaft teeth | 13 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||

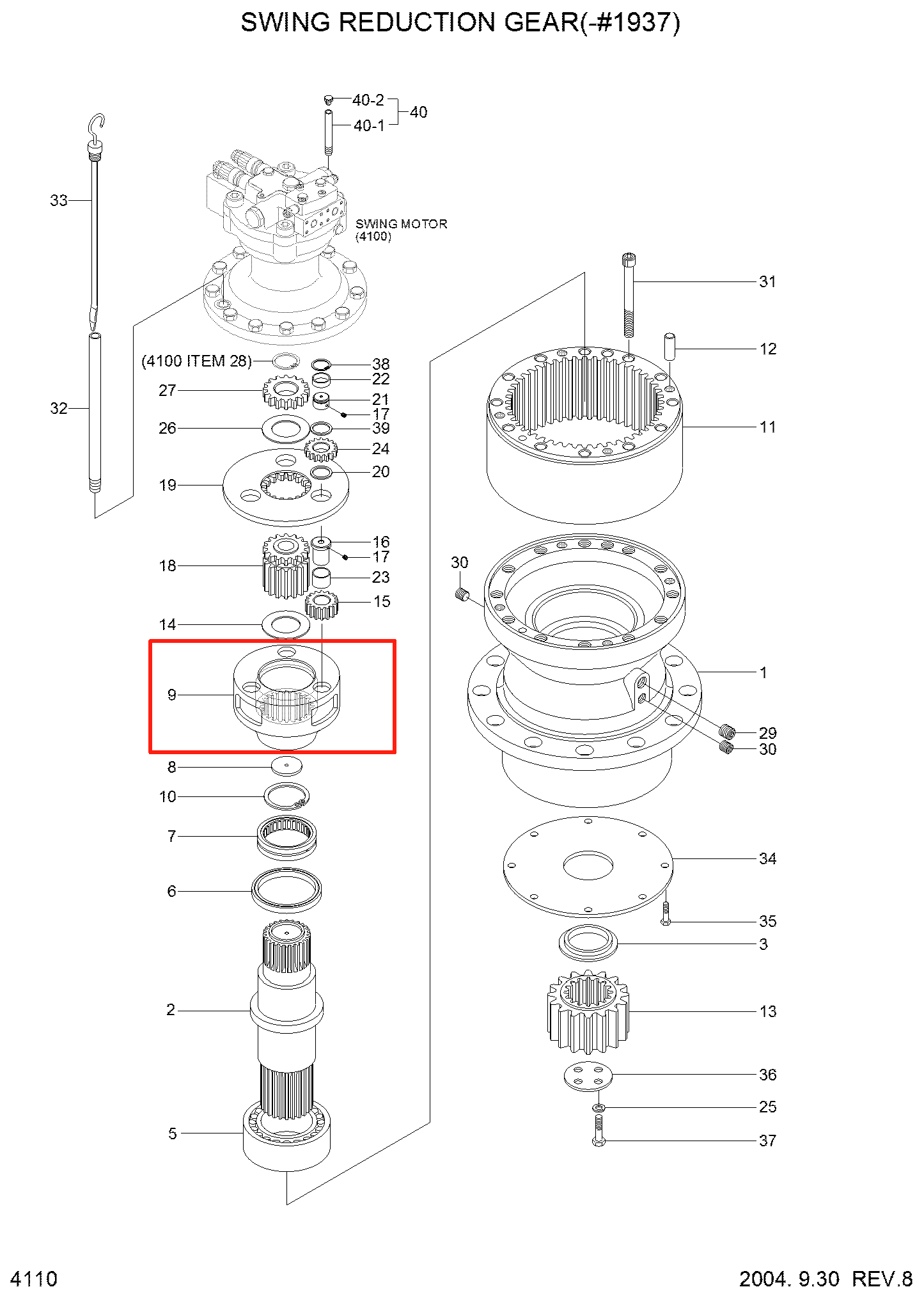

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | @ | [1] | SWING MOTOR ASSY | |
| *-2. | 31N6-10150 | [1] | REDUCTION GEAR | ILL.CHANGE |
| 1. | XKAQ-00002 | [1] | CASING ASSY | |
| 2. | XKAQ-00005 | [1] | SHAFT-DRIVE | |
| 3. | XKAQ-00018 | [1] | SPACER | |
| 5. | XKAQ-00026 | [1] | BEARING-ROLLER | |
| 6. | XKAQ-00032 | [1] | SEAL-OIL | |
| 7. | XKAQ-00029 | [1] | BEARING-ROLLER | |
| 8. | XKAQ-00076 | [1] | PLATE-THRUST | |

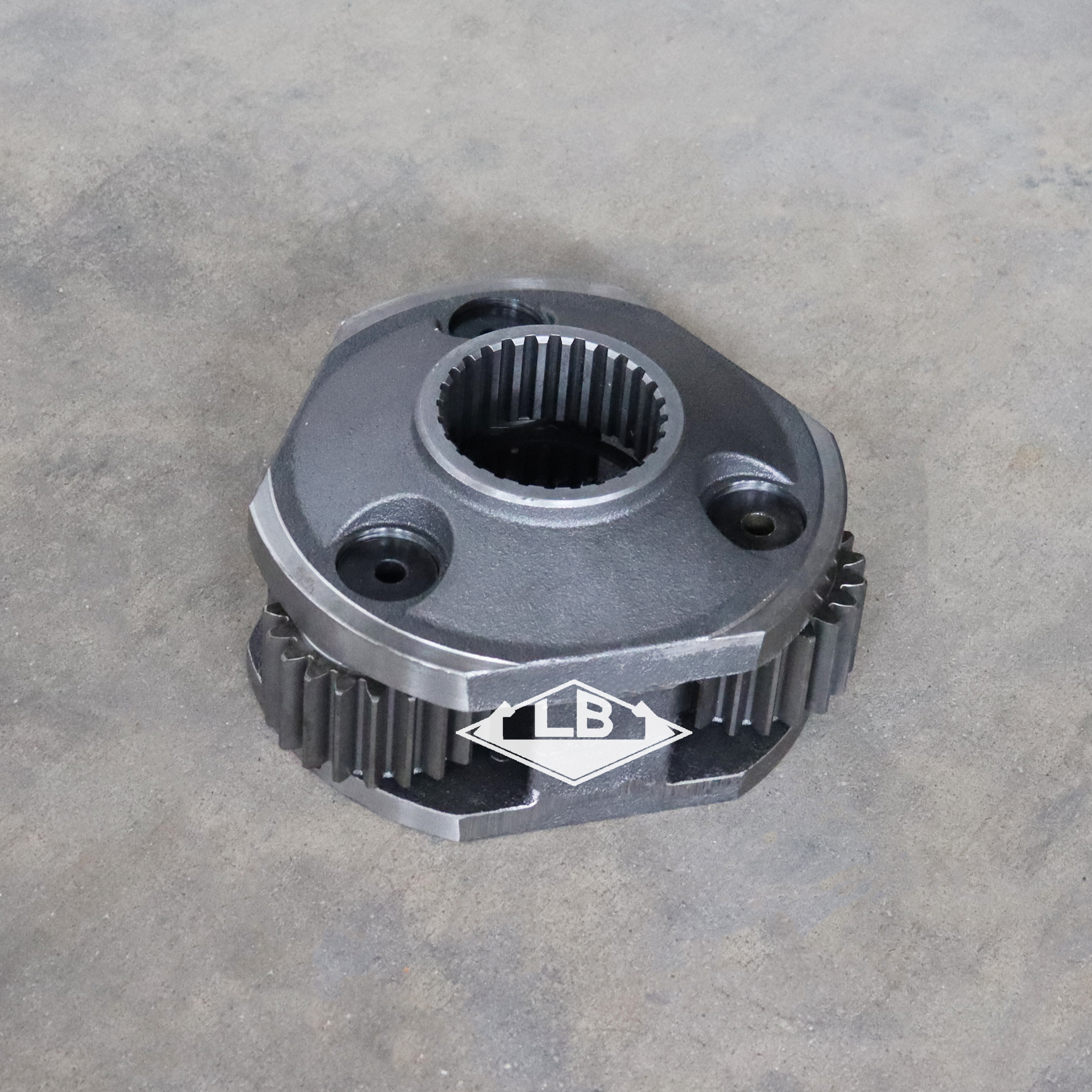

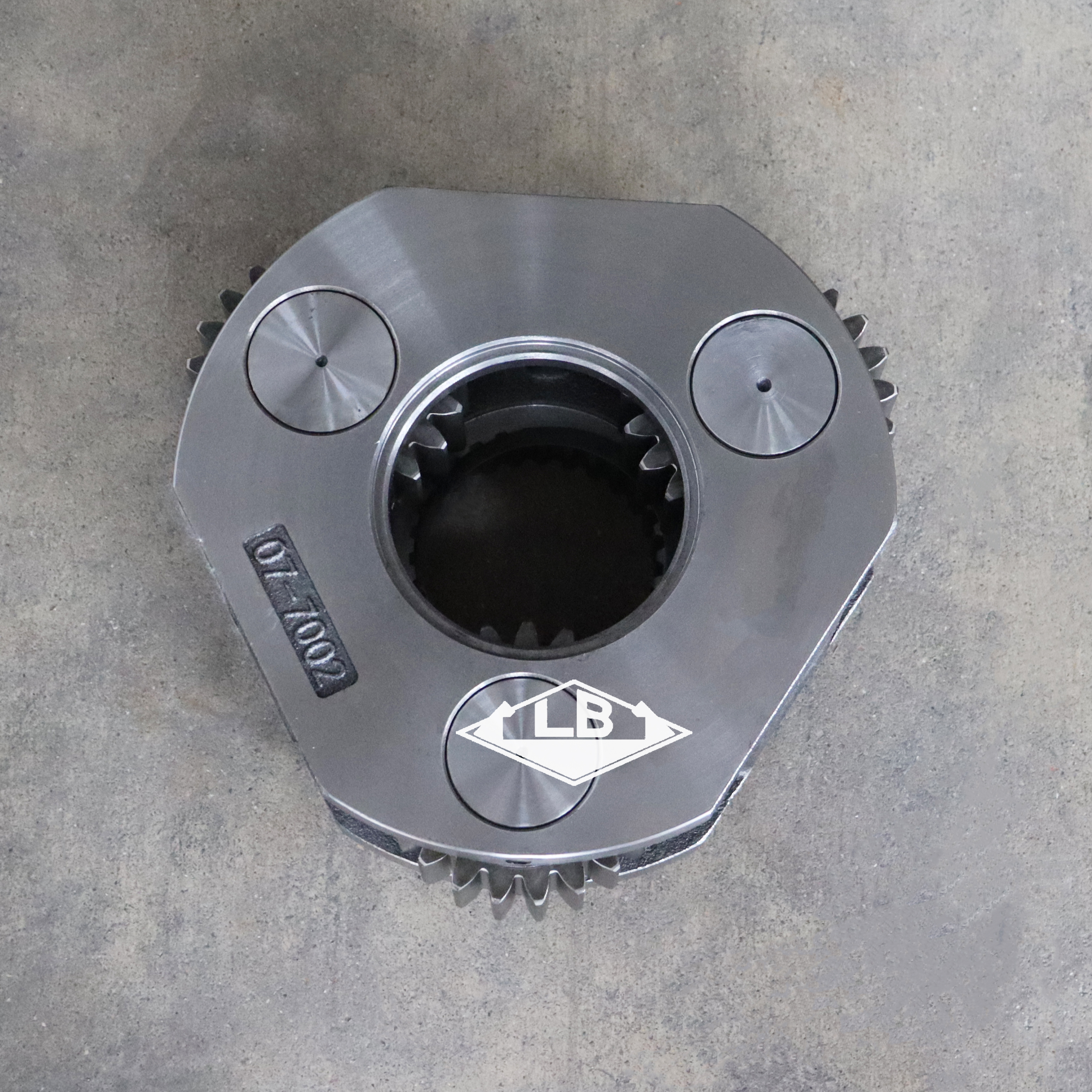

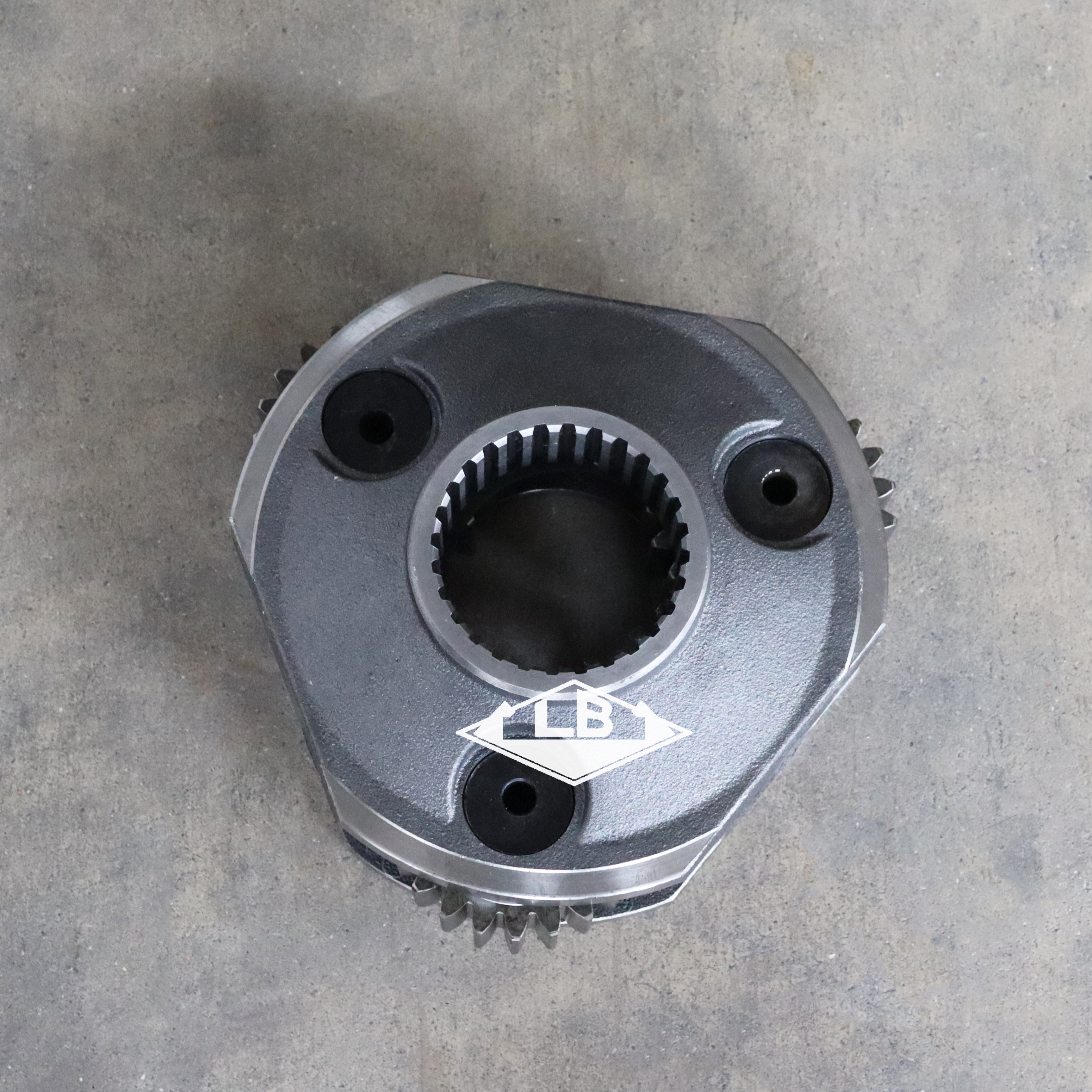

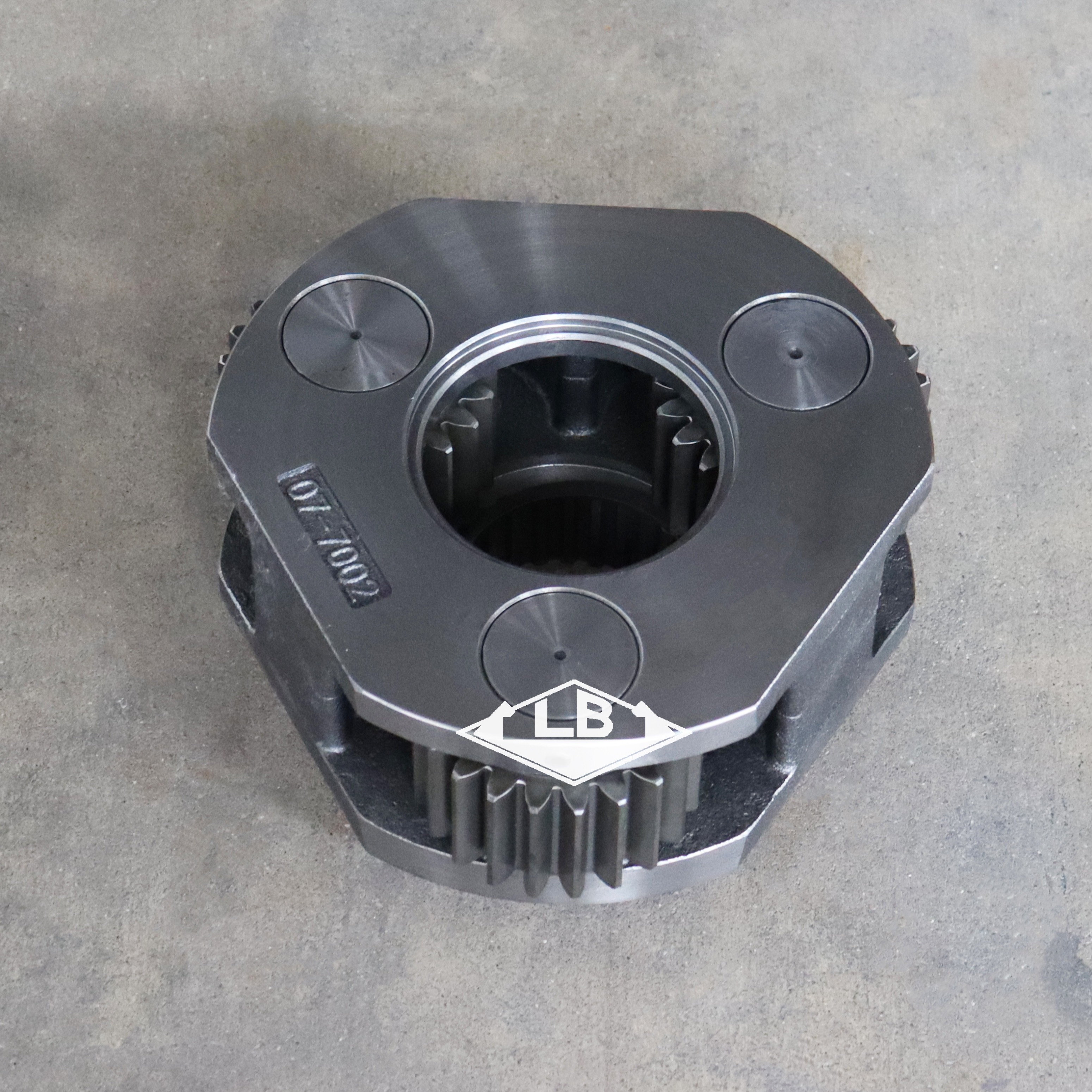

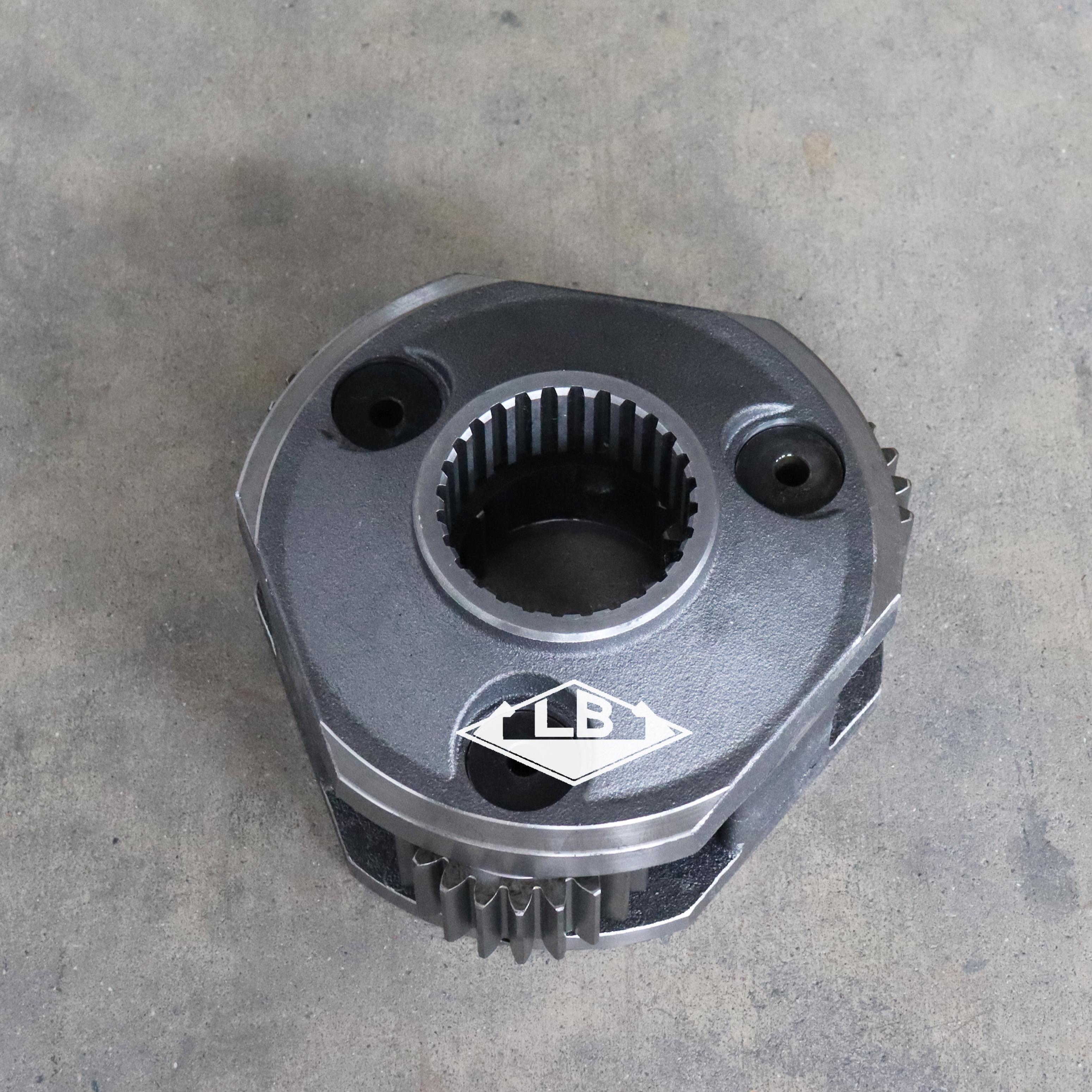

| 9. | XKAQ-00075 | [1] | CARRIER 2 | |
| 10. | XKAQ-00074 | [1] | RING-STOP | |
| 11. | XKAQ-00073 | [1] | GEAR-RING | |
| 12. | XKAQ-00072 | [4] | PIN-KNOCK | |
| 13. | XKAQ-00014 | [1] | GEAR-PINION | |
| 14. | XKAQ-00071 | [6] | WASHER-THRUST | |
| 15. | XKAQ-00023 | [3] | GEAR-PLANET 2 | |
| 16. | XKAQ-00070 | [3] | PIN 2 | INCL 23 |
| 17. | XKAQ-00048 | [6] | PIN-SPRING | |
| 18. | XKAQ-00011 | [1] | GEAR-SUN 2 | |
| 19. | XKAQ-00015 | [1] | CARRIER 1 | |
| 20. | XKAQ-00057 | [3] | PLATE-SIDE 1 | |
| 21. | XKAQ-00019 | [3] | PIN 1 | |
| 22. | XKAQ-00030 | [3] | CAGE-NEEDLE | |
| N23. | @ | [3] | BUSHING 2 | |
| 24. | XKAQ-00025 | [3] | GEAR-PLANET 1 | |
| 25. | XKAQ-00044 | [2] | WASHER-LOCK | |
| 26. | XKAQ-00068 | [1] | PLATE-SIDE 3 | |
| 27. | XKAQ-00067 | [1] | GEAR-SUN 1 | |
| 29. | XKAQ-00049 | [1] | PLUG | |
| 30. | XKAQ-00066 | [2] | PLUG | |
| 31. | XKAQ-00065 | [2] | BOLT-SOCKET | |
| 32. | XKAQ-00035 | [1] | PIPE-GAUGE | |
| 33. | XKAQ-00034 | [1] | BAR-GAUGE | |
| 34. | XKAQ-00031 | [1] | PLATE-COVER | |
| 35. | XKAQ-00064 | [8] | BOLT-HEX | |
| 36. | XKAQ-00043 | [1] | PLATE-LOCK | |
| 37. | XKAQ-00042 | [4] | BOLT-HEX | |
| 38. | XKAQ-00041 | [3] | RING-STOP | |
| 39. | XKAQ-00040 | [3] | PLATE-SIDE 2 | |
| 40. | XKAQ-00143 | [1] | POST-AIR BREATHER | |
| 40-1. | @ | [1] | POST | |
| 40-2. | HHI22-WP41 | [1] | CAP-BREATHER | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4100 |
