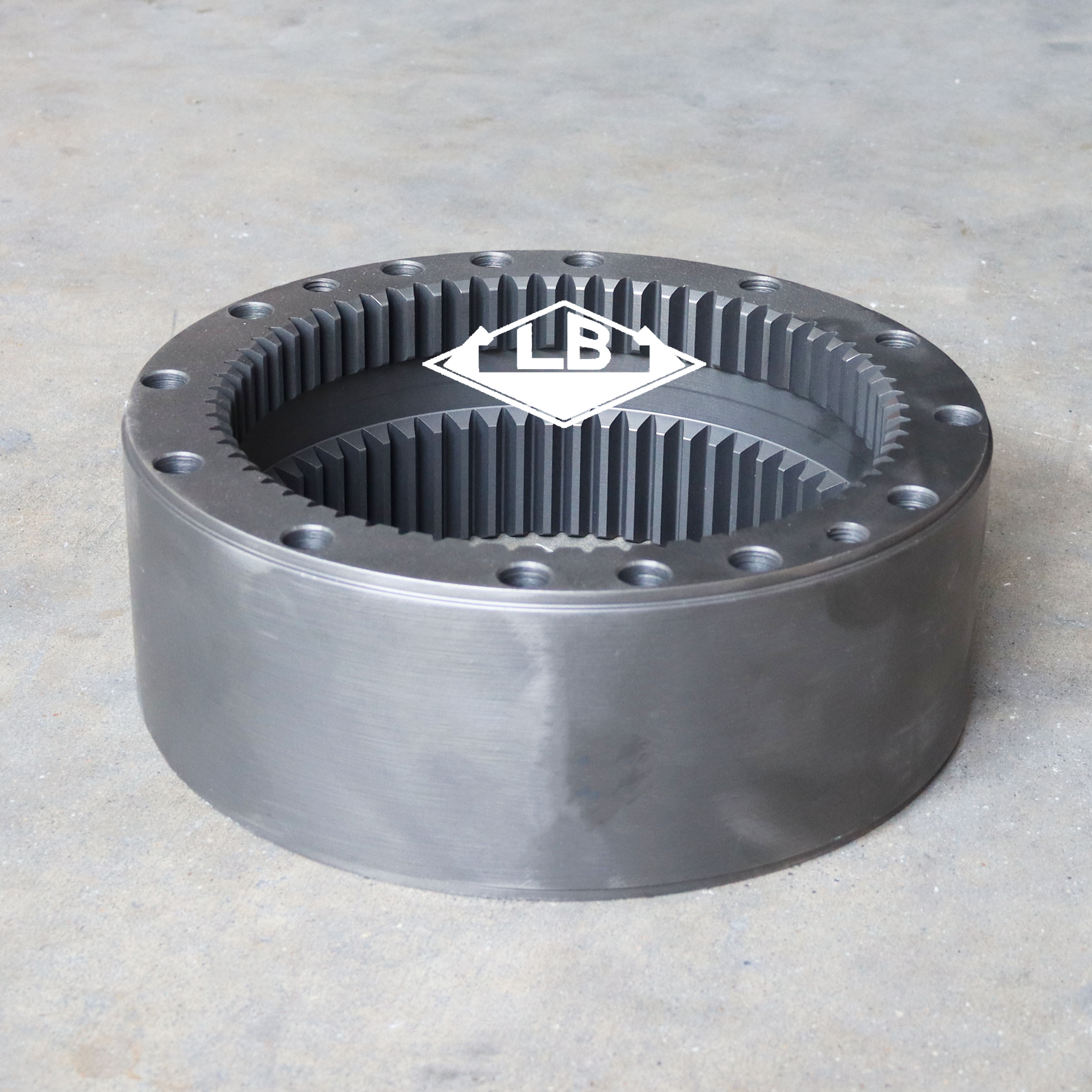

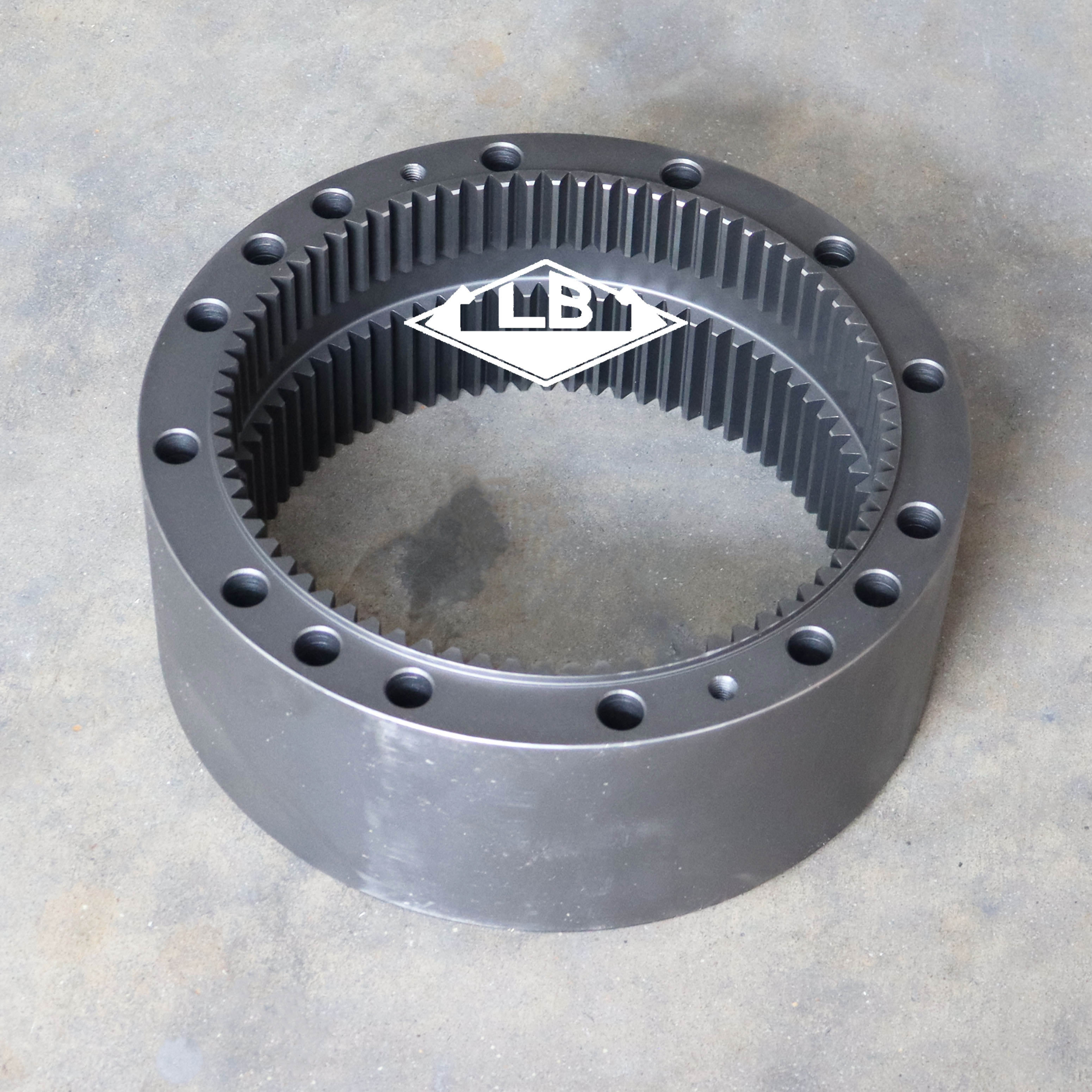

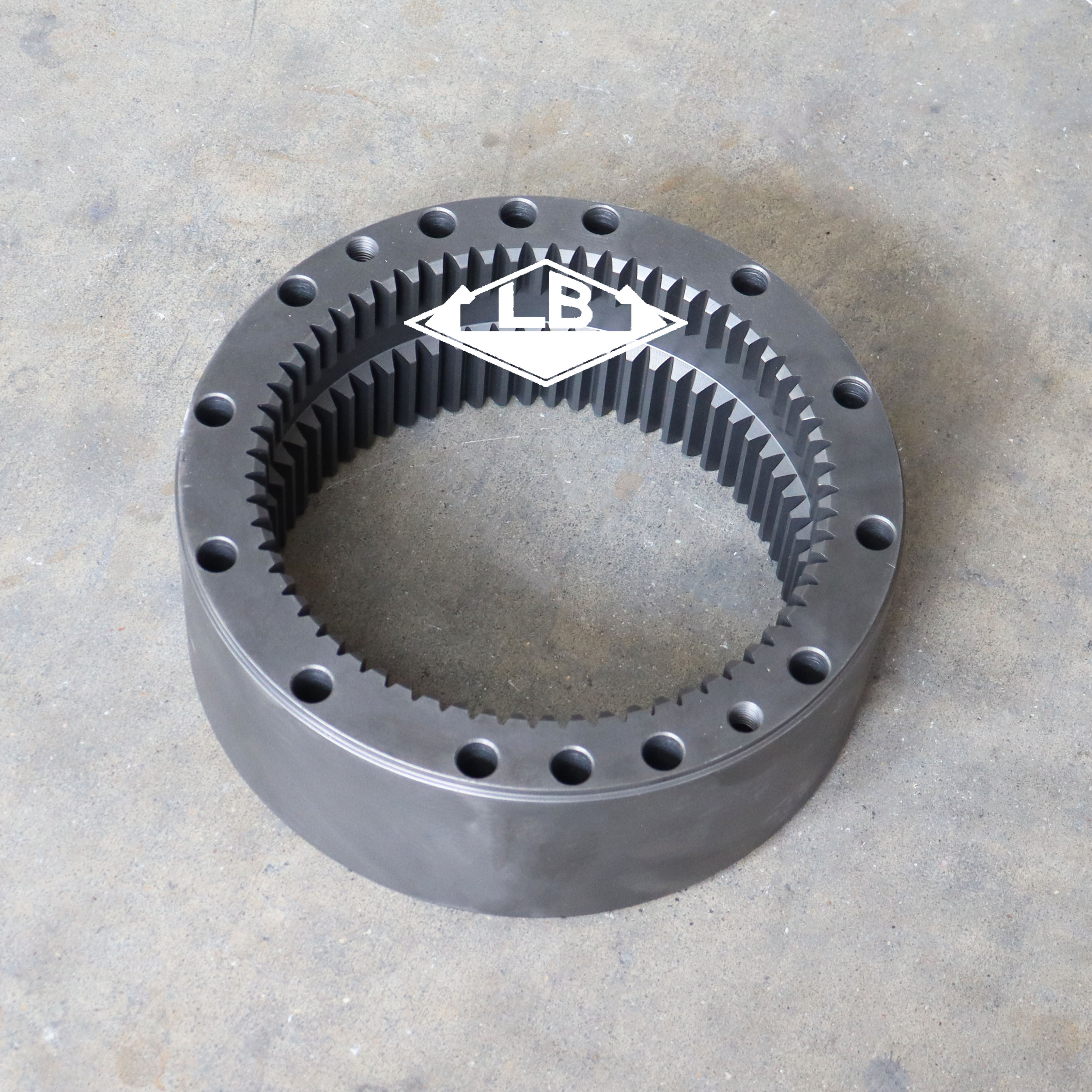

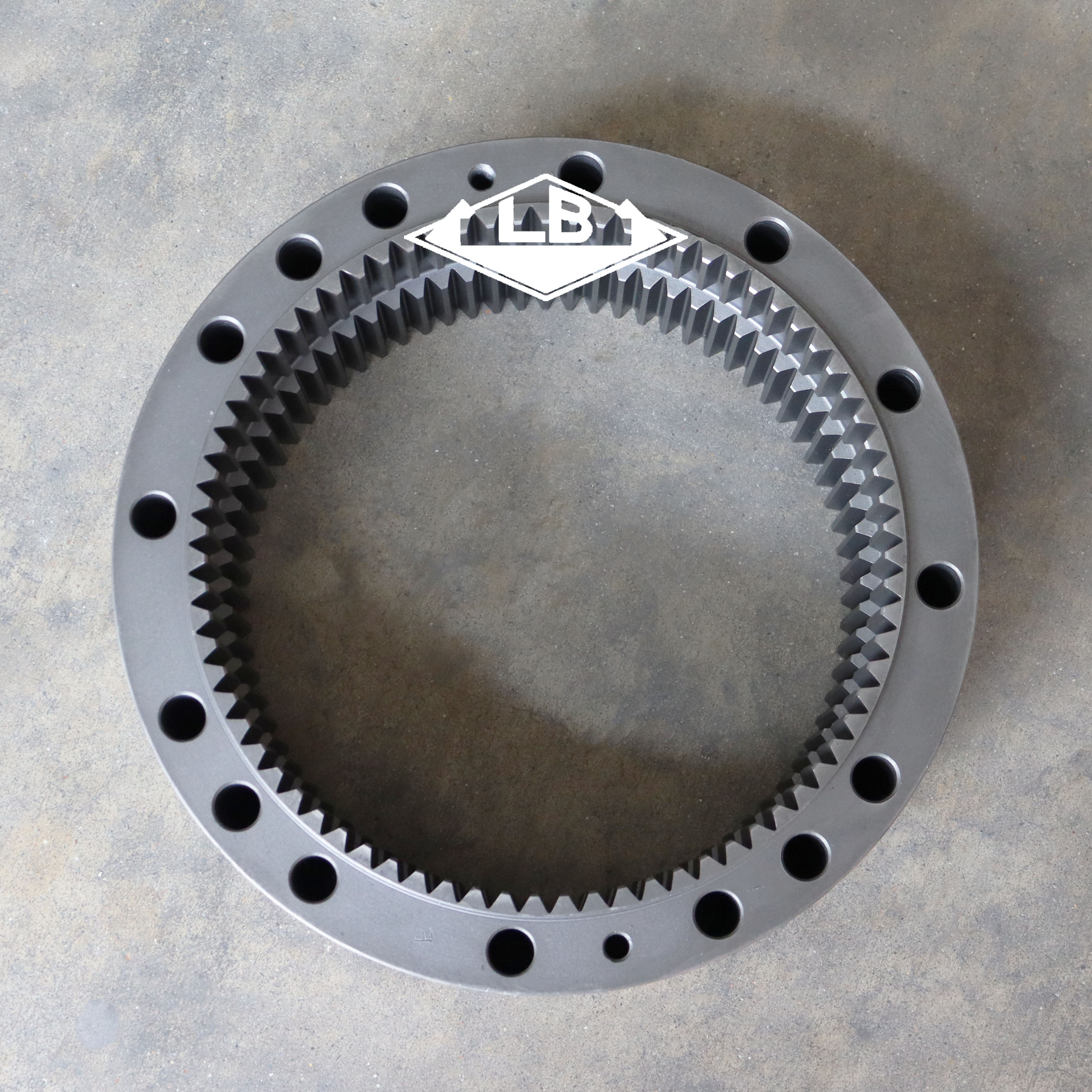

R200 R210-7 SWING RING GEAR XKAQ-00779 XKAQ-00073 SWING GEARBOX SAPRE PARTS FOR HYUNDAI EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 R200 R210-7 Swing gearbox
Equipment Apply to HYUNDAI EXCAVATOR
Part no. XKAQ-00779 XKAQ-00073
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

R210 回转齿圈(2)R210 回转齿圈(8)R210 回转齿圈(4)R210 回转齿圈(6)R210 回转齿圈

Parts on group SWING REDUCTION GEAR(#1938-):

Pos. Part No Qty Parts name Comments
*. @ [1] SWING MOTOR ASSY
*-2. 31N6-10180 [1] SWING REDUCTION GEAR
*-2. 31N6-10181 [1] SWING REDUCTION GEAR
1. XKAQ-00771 [1] CASING
1. XKAQ-00962 [1] CASING
2. XKAQ-00331 [1] SHAFT-DRIVE
2. XKAQ-00780 [1] SHAFT-DRIVE
3. XKAQ-00018 [1] SPACER
5. XKAQ-00026 [1] BEARING-ROLLER
6. XKAQ-00032 [1] SEAL-OIL
7. XKAQ-00029 [1] BEARING-ROLLER
7. XKAQ-00647 [1] BEARING-ROLLER
7. XKAQ-00961 [1] BEARING-ROLLER
8. XKAQ-00076 [1] PLATE-THRUST
9. XKAQ-00075 [1] CARRIER 2
10. XKAQ-00074 [1] RING-STOP
11. XKAQ-00284 [1] GEAR-RING
11. XKAQ-00779 [1] GEAR-RING
12. XKAQ-00072 [4] PIN-KNOCK
13. XKAQ-00976 [1] GEAR-PINION
14. XKAQ-00071 [6] WASHER-THRUST
15. XKAQ-00023 [3] GEAR-PLANET 2
16. XKAQ-00070 [3] PIN   INCL 23
17. XKAQ-00048 [6] PIN-SPRING
18. XKAQ-00011 [1] GEAR-SUN 2
19. XKAQ-00015 [1] CARRIER 1
20. XKAQ-00057 [3] PLATE-SIDE 1
21. XKAQ-00019 [3] PIN 1
22. XKAQ-00030 [3] CAGE-NEEDLE
N23. @ [3] BUSHING 2
24. XKAQ-00025 [3] GEAR-PLANET 1
25. XKAQ-00292 [1] WASHER-LOCK
26. XKAQ-00068 [1] PLATE-SIDE 3
27. XKAQ-00010 [1] GEAR-SUN 1
29. XKAQ-00049 [1] PLUG
30. XKAQ-00066 [2] PLUG
31. XKAQ-00065 [12] BOLT-SOCKET
34. XKAQ-00031 [1] PLATE-COVER
35. XKAQ-00064 [8] BOLT-HEX
36. XKAQ-00043 [1] PLATE-LOCK
37. XKAQ-00042 [2] BOLT-HEX
38. XKAQ-00041 [3] RING-STOP
39. XKAQ-00040 [3] PLATE-SIDE 2
*-1. @ [1] SWING MOTOR UNIT   SEE 4101
