Home / Products / Swing Gearbox / PC220-7 PC240-8 PC220-8 PC270-8 PC290-10 SPACER 206-26-73140 PC220-7 SWING GEARBOX PARTS FOR KOMATSU EXCAVATOR

Share to:

PC220-7 PC240-8 PC220-8 PC270-8 PC290-10 SPACER 206-26-73140 PC220-7 SWING GEARBOX PARTS FOR KOMATSU EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	PC220-7 PC240-8 PC220-8 PC270-8 PC290-10 TRAVEL GAREBOX
Equipment	Apply to KOMATSU EXCAVATOR
Part no.	206-26-73140
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

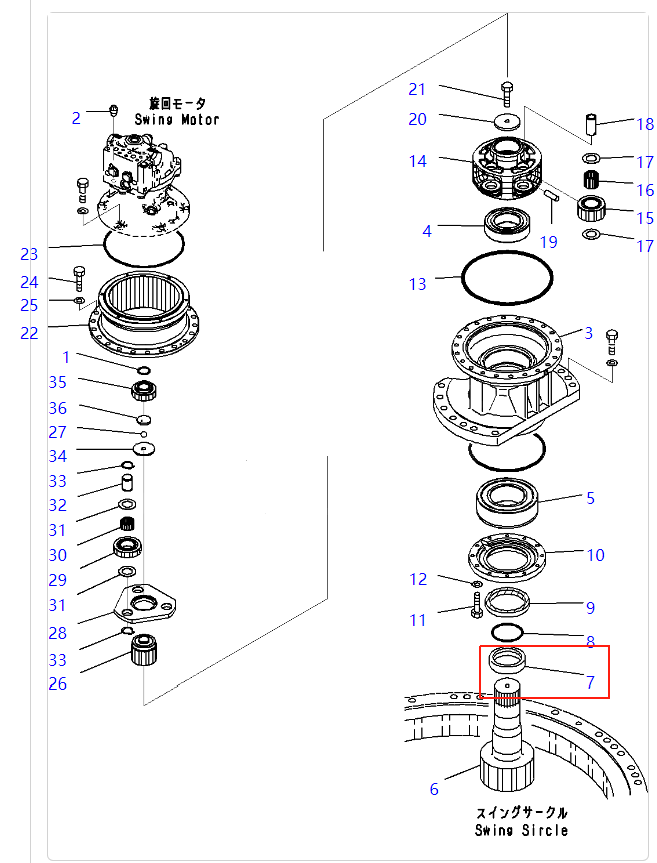

PC220-7 回转油封盘(4) PC220-7 回转油封盘(2)

Parts on group :

Pos.	Part No	Qty	Parts name	Comments
1.	22U-26-21280	[1]	Ring Komatsu	0.001 kg.
			["SN: 70001-UP"] analogs:["20Y2622270"]
2.	07042-00312	[1]	Plug, Taper Komatsu	0.031 kg.
			["SN: 70001-UP"] analogs:["0704210312"]
3.	206-26-73310	[1]	Case Komatsu	92 kg.
			["SN: 70001-UP"]
4.	206-26-73150	[1]	Bearing Komatsu	4.64 kg.
			["SN: 70001-UP"]
5.	206-26-73160	[1]	Bearing Komatsu China	12.5 kg.
			["SN: 70001-UP"]
6.	206-26-73130	[1]	Shaft Komatsu	30.42 kg.
			["SN: 70001-UP"]
7.	206-26-73140	[1]	Spacer Komatsu	0.86 kg.
			["SN: 70001-UP"]
8.	07000-15100	[1]	O-ring Komatsu China	0.01 kg.
			["SN: 70001-UP"] analogs:["YM24311001000", "0700005100"]
9.	20Y-26-22420	[1]	Seal Komatsu China	0.3 kg.
			["SN: 70001-UP"]
10.	206-26-73120	[1]	Cover Komatsu China	4.4 kg.
			["SN: 70001-UP"]
11.	01010-81040	[12]	Bolt Komatsu	0.288 kg.
			["SN: 70001-UP"] analogs:["0101051040", "R0101081040"]
12.	01643-31032	[12]	Washer Komatsu	0.054 kg.
			["SN: 70001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
13.	07000-15310	[1]	O-ring Komatsu China	0.035 kg.
			["SN: 70001-UP"] analogs:["0700005310"]
14.	206-26-71480	[1]	Carrier Komatsu	10.88 kg.
			["SN: 70001-UP"]
15.	206-26-71440	[4]	Gear Komatsu	1.91 kg.
			["SN: 70001-UP"]
16.	22U-26-21320	[8]	Bearing Komatsu	1.1 kg.
			["SN: 70001-UP"]
17.	206-26-71520	[8]	Washer, Thrust Komatsu	0.1 kg.
			["SN: 70001-UP"]
18.	206-26-71510	[4]	Pin Komatsu	0.97 kg.
			["SN: 70001-UP"]
19.	20Y-26-21330	[4]	Pin Komatsu China	0.1 kg.
			["SN: 70001-UP"]
20.	20Y-26-21240	[1]	Plate Komatsu	5.1 kg.
			["SN: 70001-UP"]
21.	112-32-11211	[1]	Bolt Komatsu	0.09 kg.
			["SN: 70001-UP"]
22.	206-26-71452	[1]	Gear Komatsu	28.79 kg.
			["SN: 70001-UP"]
23.	20K-22-11190	[1]	O-ring Komatsu	0.02 kg.
			["SN: 70001-UP"] analogs:["20G2211190"]
24.	01010-81440	[22]	Bolt Komatsu	0.073 kg.
			["SN: 70001-UP"] analogs:["0101061440", "0101031440", "0101051440", "0104031440"]
25.	01643-31445	[22]	Washer Komatsu	0.019 kg.
			["SN: 70001-UP"] analogs:["0164301432"]
26.	206-26-71430	[1]	Gear Komatsu	2.33 kg.
			["SN: 70001-UP"]
27.	04260-01270	[1]	Ball, Steel Komatsu OEM	0.009 kg.
			["SN: 70001-UP"]
28.	206-26-71471	[1]	Carrier Komatsu	3.9 kg.
			["SN: 70001-UP"] analogs:["2062671470"]
29.	206-26-71420	[3]	Gear Komatsu	0.83 kg.
			["SN: 70001-UP"]
30.	20Y-27-22210	[3]	Bearing Komatsu China	0.12 kg.
			["SN: 70001-UP"] analogs:["20Y2721260"]
31.	22U-26-21230	[6]	Washer, Thrust Komatsu	1 kg.
			["SN: 70001-UP"]
32.	206-26-71210	[3]	Pin Komatsu	0.42 kg.
			["SN: 70001-UP"]
33.	04064-03515	[6]	Ring, Snap, for Shaft Side Komatsu	0.005 kg.
			["SN: 70001-UP"]
34.	206-26-71350	[1]	Holder Komatsu	0.21 kg.
			["SN: 70001-UP"]
35.	206-26-71410	[1]	Gear Komatsu	0.83 kg.
			["SN: 70001-UP"]
36.	206-26-71341	[1]	Plate Komatsu China
			["SN: 70001-UP"]
