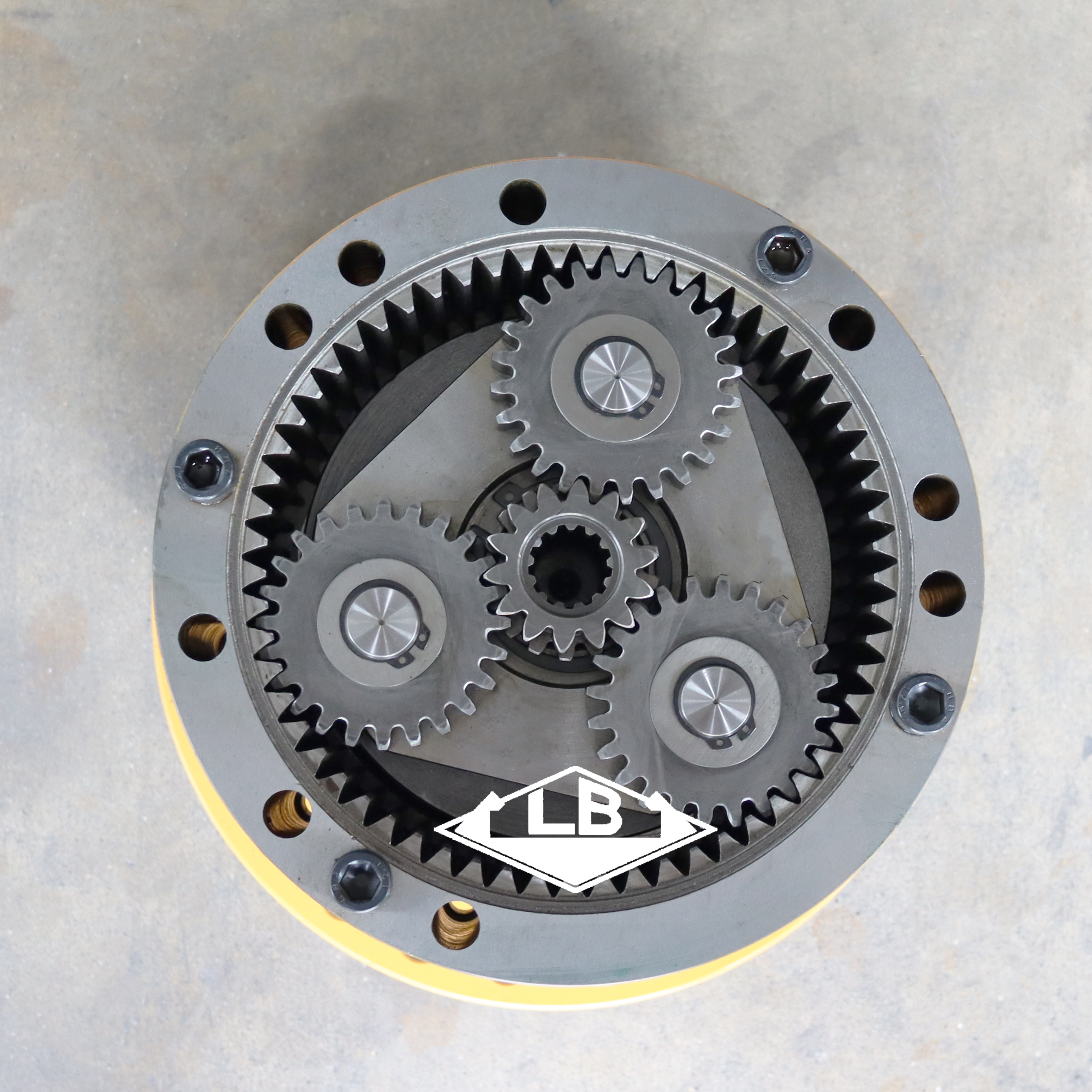

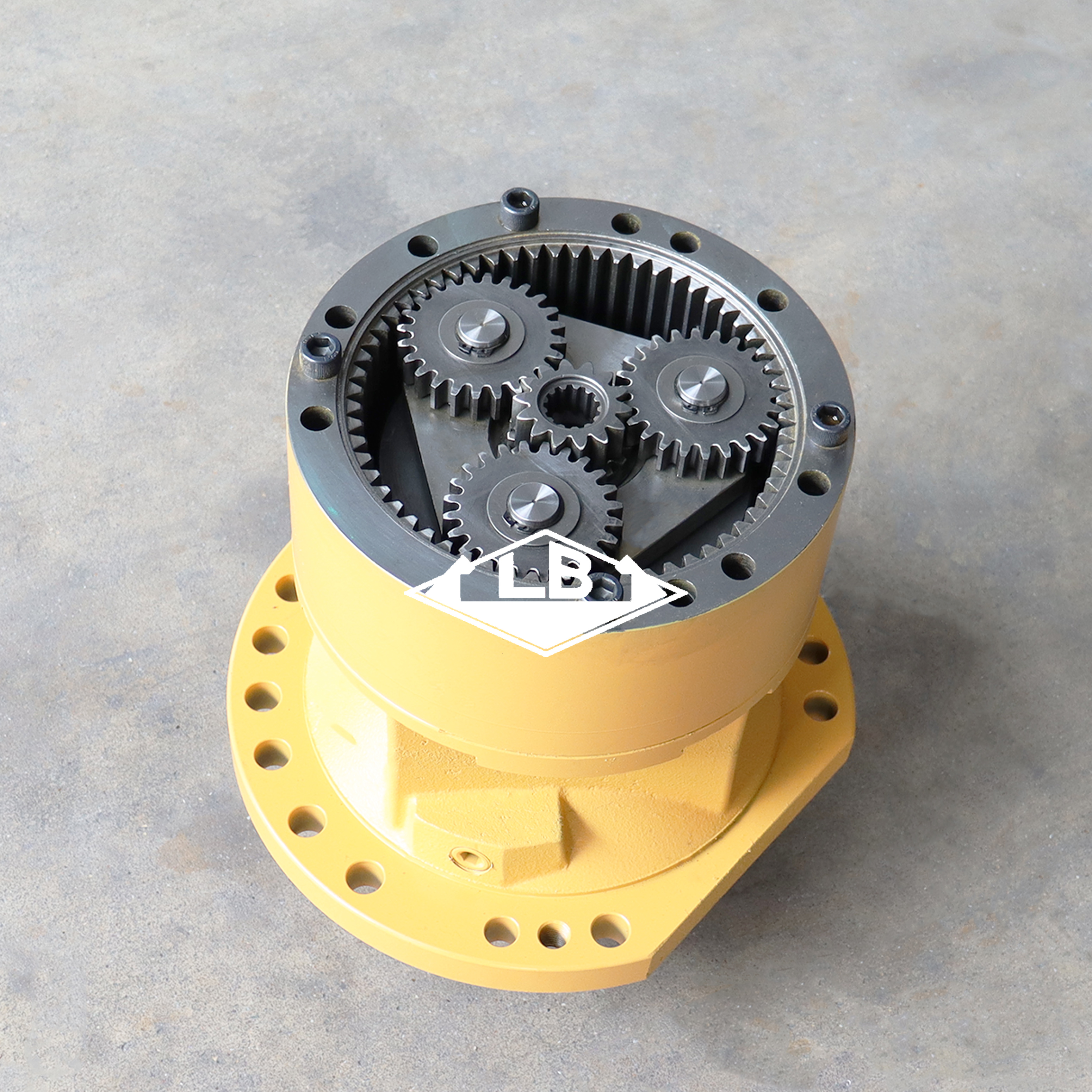

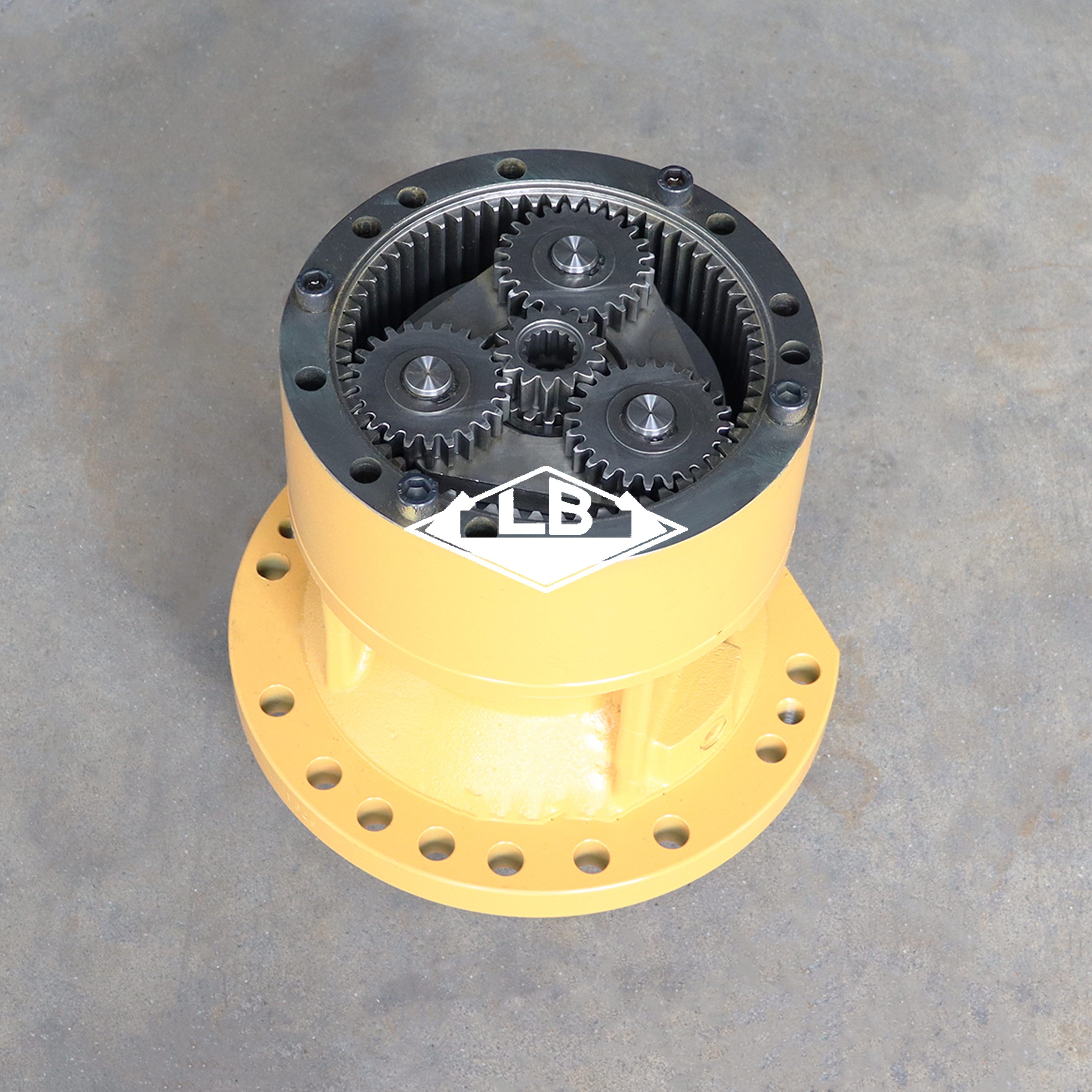

PC160-8 SWING MACHINERY ASSEMBLY 203-26-85000 PC160-8 SWING GEARBOX FOR KOMATSU EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	PC160-8 SWING GAREBOX
Equipment	Apply to KOMATSU EXCAVATOR
Part no.	203-26-85000
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

PC130-8 回转牙箱(6) PC130-8 回转牙箱（4） PC130-8 回转牙箱（2） PC130-8 回转牙箱(8)

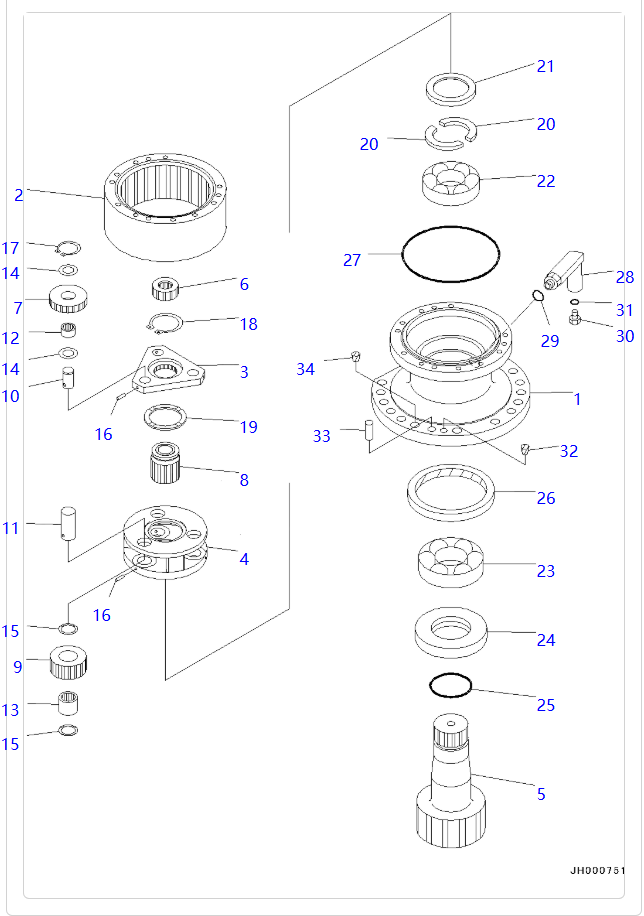

Parts on group :

Pos.	Part No	Qty	Parts name	Comments
	203-26-85000	[1]	Swing Machinery Assembly Komatsu China
			["SN: C30001-UP"] \|$0.
1.	203-26-81111	[1]	Case Komatsu China
			["SN: C30001-UP"]
2.	22B-26-21130	[1]	Gear, Ring Komatsu China
			["SN: C30001-UP"]
3.	203-26-61120	[1]	Carrier Komatsu	1.1 kg.
			["SN: C30001-UP"]
4.	203-26-61130	[1]	Carrier Komatsu	4.1 kg.
			["SN: C30001-UP"]
5.	203-26-61220	[1]	Shaft Komatsu	12.81 kg.
			["SN: C30001-UP"]
6.	203-26-61150	[1]	Gear Komatsu	0.2 kg.
			["SN: C30001-UP"]
7.	203-26-61160	[3]	Gear Komatsu	0.4 kg.
			["SN: C30001-UP"]
8.	203-26-61170	[1]	Gear Komatsu	0.9 kg.
			["SN: C30001-UP"]
9.	203-26-61180	[3]	Gear Komatsu	0.6 kg.
			["SN: C30001-UP"]
10.	201-26-62240	[3]	Shaft Komatsu China
			["SN: C30001-UP"]
11.	203-26-61250	[3]	Shaft Komatsu China
			["SN: C30001-UP"]
12.	201-26-62270	[3]	Bearing Komatsu	0.044 kg.
			["SN: C30001-UP"]
13.	203-26-61270	[3]	Bearing Komatsu China
			["SN: C30001-UP"]
14.	20S-26-71160	[6]	Washer Komatsu	0.01 kg.
			["SN: C30001-UP"]
15.	09233-12920	[6]	Washer, Thrust Komatsu China	0.02 kg.
			["SN: C30001-UP"]
16.	20S-26-71250	[6]	Pin Komatsu China
			["SN: C30001-UP"] analogs:["890001458"]
17.	20S-26-71190	[3]	Ring, Snap Komatsu	0.01 kg.
			["SN: C30001-UP"]
18.	04064-05520	[1]	Ring, Snap, for Shaft Side Komatsu	0.01 kg.
			["SN: C30001-UP"]
19.	203-26-61280	[1]	Spacer Komatsu China
			["SN: C30001-UP"]
20.	203-26-61391	[2]	Spacer Komatsu China
			["SN: C30001-UP"]
21.	203-26-61310	[1]	Collar Komatsu	0.25 kg.
			["SN: C30001-UP"]
22.	201-26-62330	[1]	Bearing Komatsu	1.71 kg.
			["SN: C30001-UP"]
23.	203-26-61320	[1]	Bearing Komatsu	2.19 kg.
			["SN: C30001-UP"]
24.	203-26-61340	[1]	Collar Komatsu	2.2 kg.
			["SN: C30001-UP"]
25.	07000-12080	[1]	O-ring Komatsu OEM	0.003 kg.
			["SN: C30001-UP"] analogs:["0700002080"]
26.	07012-00145	[1]	Seal, Oil Komatsu China	0.16 kg.
			["SN: C30001-UP"]
27.	203-26-61360	[2]	O-ring Komatsu China
			["SN: C30001-UP"]
28.	203-26-13111	[1]	Elbow Komatsu China
			["SN: C30001-UP"]
29.	07002-12434	[1]	O-ring Komatsu China	0.01 kg.
			["SN: C30001-UP"] analogs:["0700202434", "0700213434"]
30.	07040-11612	[1]	Plug Komatsu	0.05 kg.
			["SN: C30001-UP"]
31.	07002-11623	[1]	O-ring Komatsu China	0.001 kg.
			["SN: C30001-UP"] analogs:["0700201623"]
32.	07049-01620	[2]	Plug, Cork Komatsu	0.002 kg.
			["SN: C30001-UP"]
33.	04020-01638	[2]	Pin, Dowel Komatsu	0.064 kg.
			["SN: C30001-UP"]
34.	07049-02025	[1]	Plug, Cork Komatsu	0.002 kg.
			["SN: C30001-UP"]
