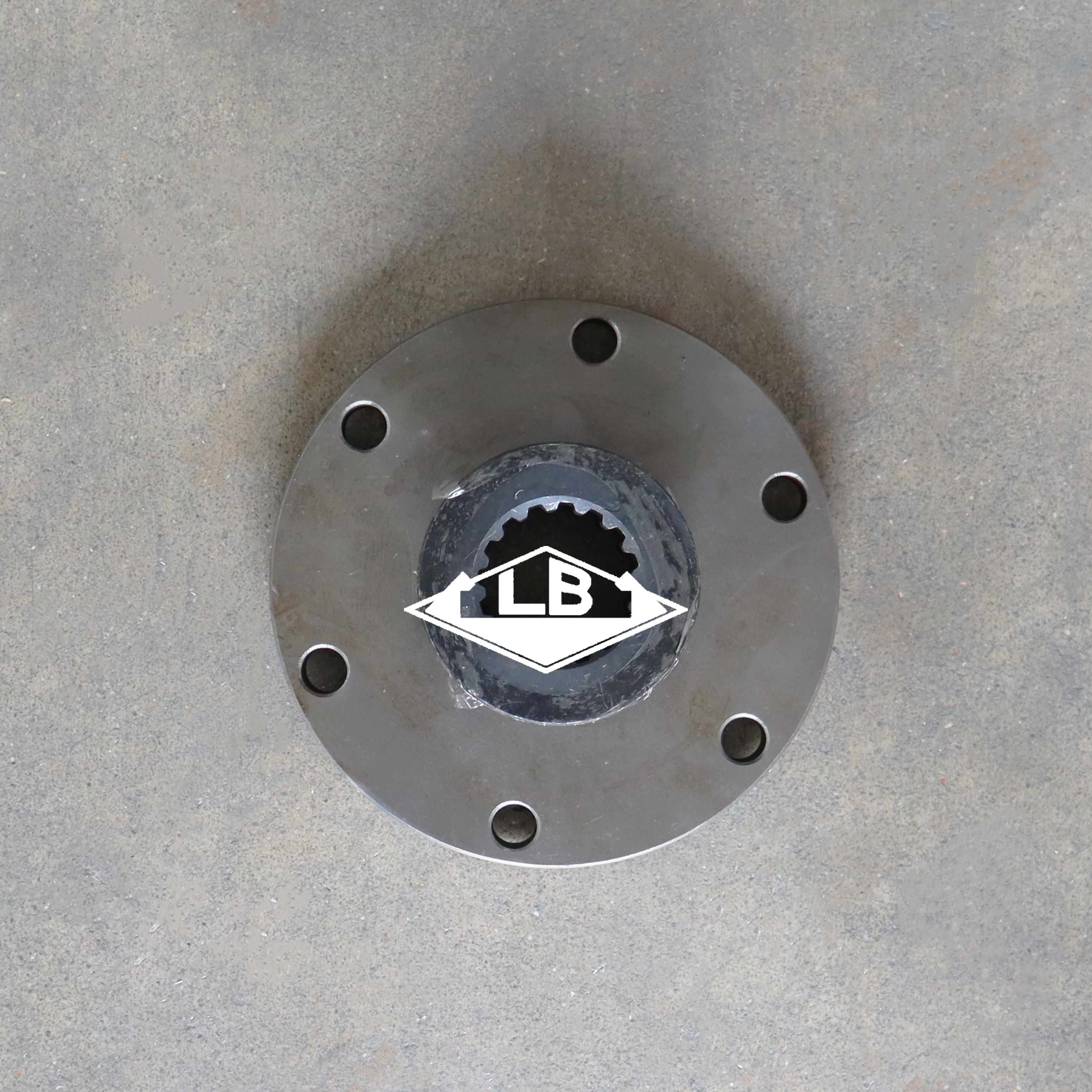

PC100-6 PC120-6 COUPLING AND SHAFT 203-01-61180 203-01-61190 APPLY FOR KOMATSU EXCAVATOR

PRODUCT PARAMETERS

Product Description

PC100-6 联轴器总成(2) PC100-6 联轴器总成(4) PC100-6 联轴器总成(1)

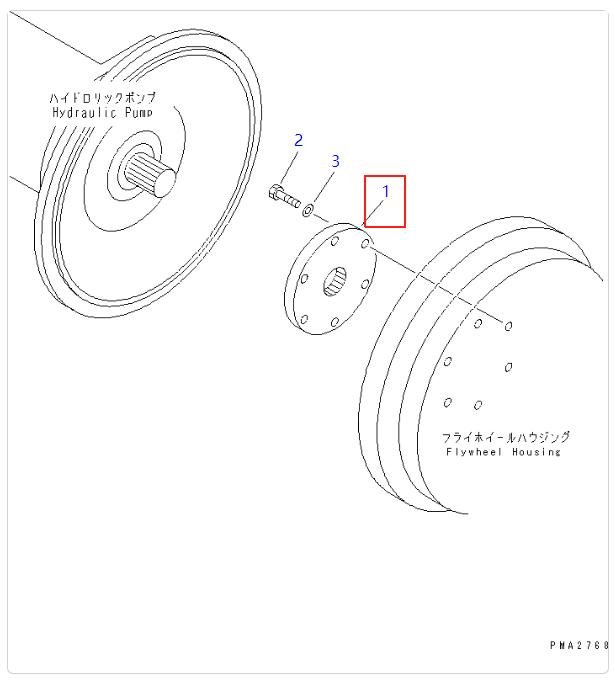

Pos.	Part No	Qty	Parts name	Comments

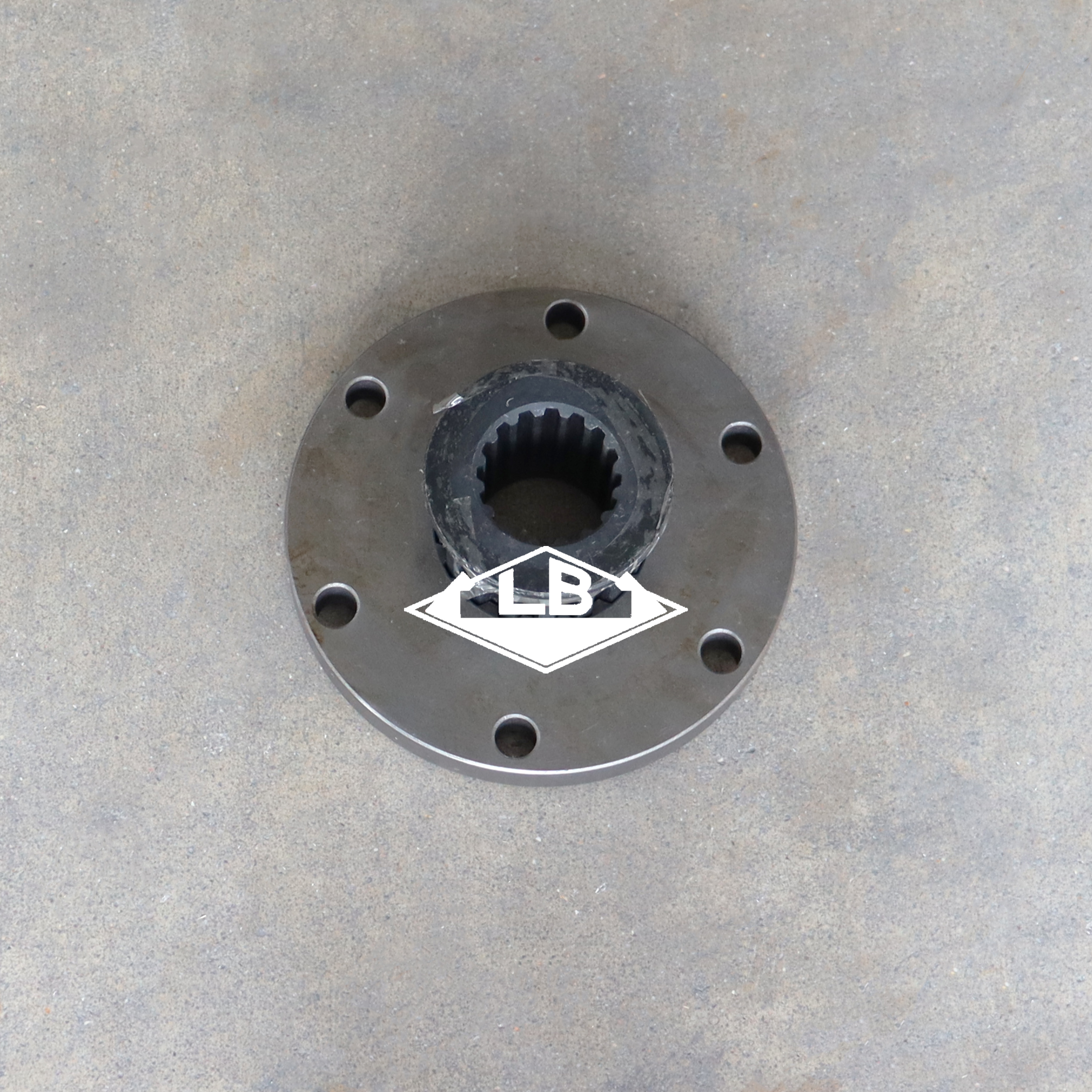

1.	203-01-61180	[1]	COUPLING Komatsu	2.9 kg.
			["SN: 40001-@"]
2.	01010-51240	[6]	BOLT Komatsu	0.052 kg.
			["SN: 40001-@"] analogs:["0101081240", "801015573"]
3.	01643-31232	[6]	WASHER Komatsu	0.027 kg.
			["SN: 40001-@"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]

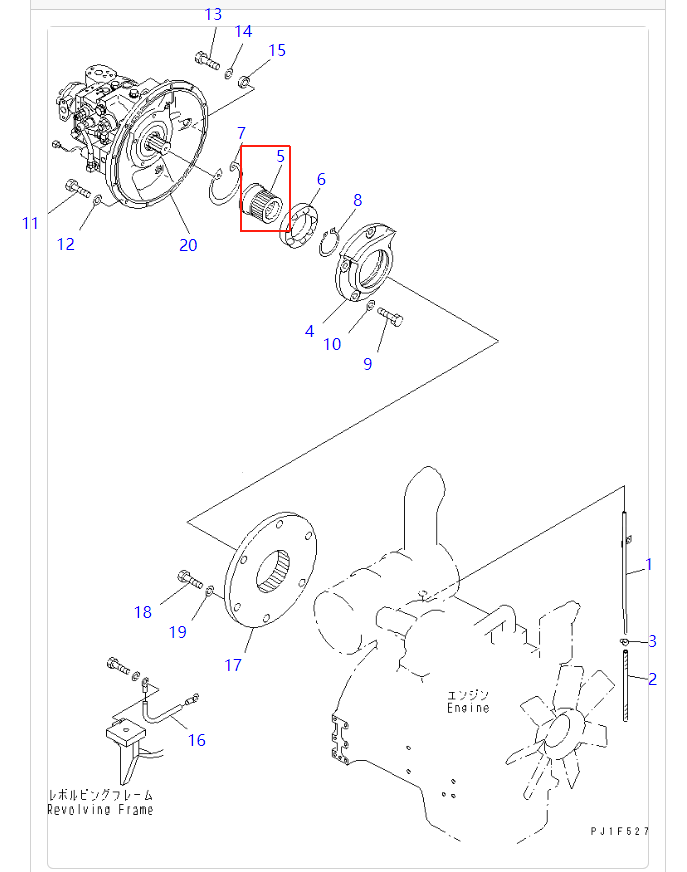

PC100-6 联轴器总成(2)

Pos.	Part No	Qty	Parts name	Comments
1.	6732-11-5680	[1]	TUBE Komatsu China
			["SN: 42157-UP"]
2.	07260-20928	[1]	HOSE,SEMS Komatsu	0.084 kg.
			["SN: 42157-UP"]
3.	07285-00150	[1]	CLIP Komatsu	3.7 kg.
			["SN: 42157-UP"]
4.	203-01-61170	[1]	CAGE Komatsu	2.7 kg.
			["SN: 42157-UP"]
5.	203-01-61190	[1]	SHAFT Komatsu China	1.2 kg.
			["SN: 42157-UP"]
6.	06045-06014	[1]	BEARING Komatsu	0.64 kg.
			["SN: 42157-UP"]
7.	04065-01104	[1]	RING Komatsu	0.073 kg.
			["SN: 42157-UP"] analogs:["0406501140", "R0406501104"]
8.	04064-07025	[1]	RING,SEMS Komatsu	0.023 kg.
			["SN: 42157-UP"]
9.	01010-81235	[4]	BOLT Komatsu	0.048 kg.
			["SN: 45000-UP"] analogs:["0101051235", "01010E1235", "801015136"]
10.	01643-31232	[4]	WASHER Komatsu	0.027 kg.
			["SN: 42157-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
11.	01010-81040	[11]	BOLT,SEMS Komatsu	0.288 kg.
			["SN: 46861-UP"] analogs:["0101051040", "R0101081040"]
12.	01643-31032	[11]	WASHER Komatsu	0.054 kg.
			["SN: 46861-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
13.	01010-81050	[1]	BOLT Komatsu	0.038 kg.
			["SN: 45000-UP"] analogs:["801015559", "0101051050"]
15.	205-917-1610	[1]	COLLAR Komatsu China
			["SN: 42157-UP"]
16.	08028-48025	[1]	CABLE Komatsu China
			["SN: 42157-UP"]
17.	203-01-67160	[1]	COUPLING Komatsu	5.53 kg.
			["SN: 42157-UP"]
20.	708-1L-00413	[1]	PUMP ASS'Y Komatsu	100.01 kg.
			["SN: 46046-UP"] analogs:["7081L00411", "7081L00412"]
