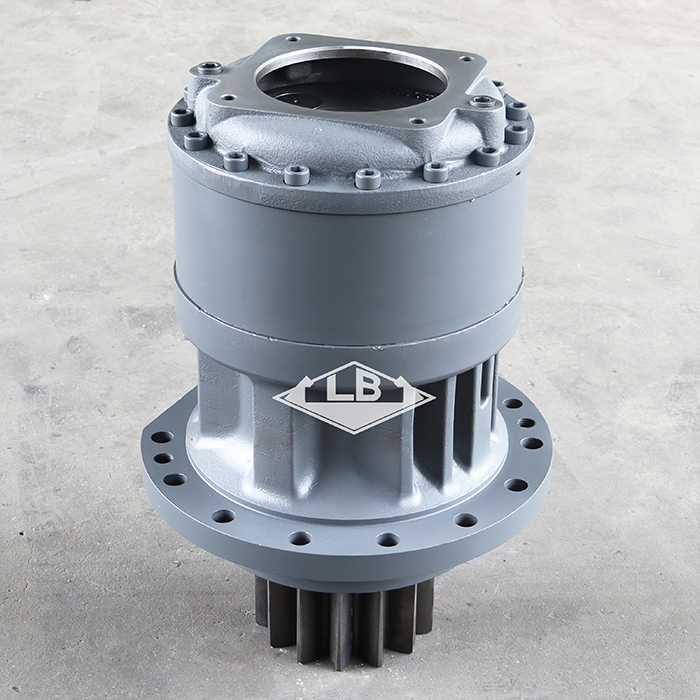

NEW VOLVO EC950E VOE14712083 EC950 SWING GEARBOX

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 EC950 swing gearbox
Equipment Apply to VOLVO  EXCAVATOR
Part no. VOE14712083
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 14 T
Item condition New
Logo LB
Gross weight 372 KG
MOQ 1 pc


Product Descriptio

EC950EC950(5)EC950(3)EC950

Parts on group Swing gearbox:

Pos. Part No Qty Parts name Comments
1.   VOE14679603   [1]   Shaft
2.   VOE14637256   [1]   Collar
3.   VOE14637258   [1]   Ring
4.   VOE14622894   [1]   Roller bearing
5.   VOE14596611   [1]   Seal
6.   VOE14637257   [1]   Cover
7.   VOE984088   [12]   Hex. socket screw
8.   VOE14637261   [1]   Roller bearing
9.   VOE14883598   [1]   Retaining ring
10.   SA9324-21317   [4]   Pin
11.   VOE14622914   [1]   Gear
12.   SA7118-30380   [1]   Thrust ring
13.   VOE14676744   [1]   Planet carrier
14.   VOE14596618   [4]   Washer
15.   VOE952004   [4]   Spring pin
16.   VOE14637262   [1]   Gear
17.   VOE14596621   [1]   Thrust washer
18.   VOE14647338   [1]   Planet carrier
19.   SA9325-06012   [3]   Spring pin
20.   VOE14647497   [1]   Gear
21.   VOE14633289   [1]   Cover
22.   VOE995261   [16]   Hex. socket screw
23.   SA9415-43052   [2]   Plug
24.   SA9415-43012   [1]   Plug
25.   VOE914167   [1]   Lubricating nipple
26.   SA9415-43032   [1]   Plug
