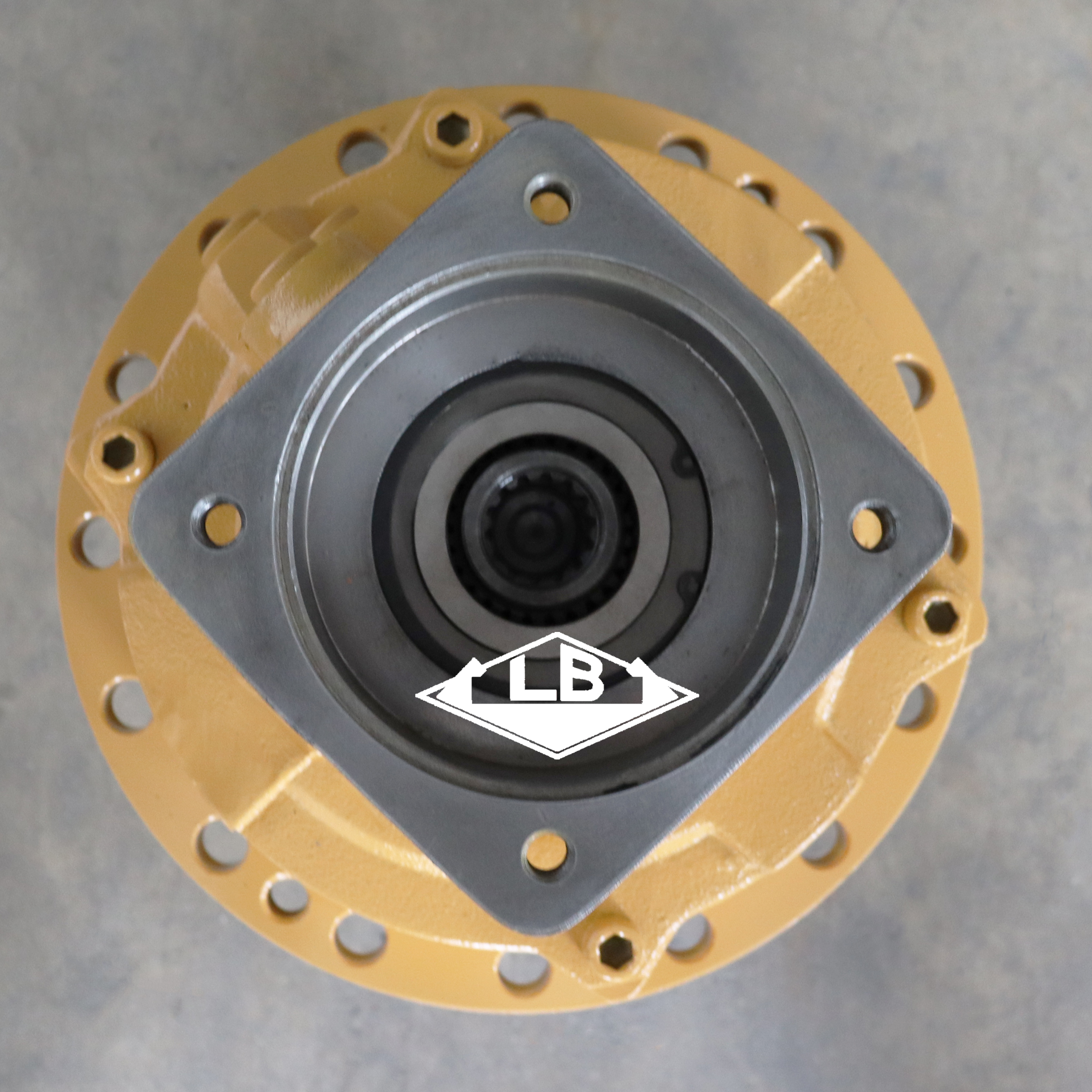

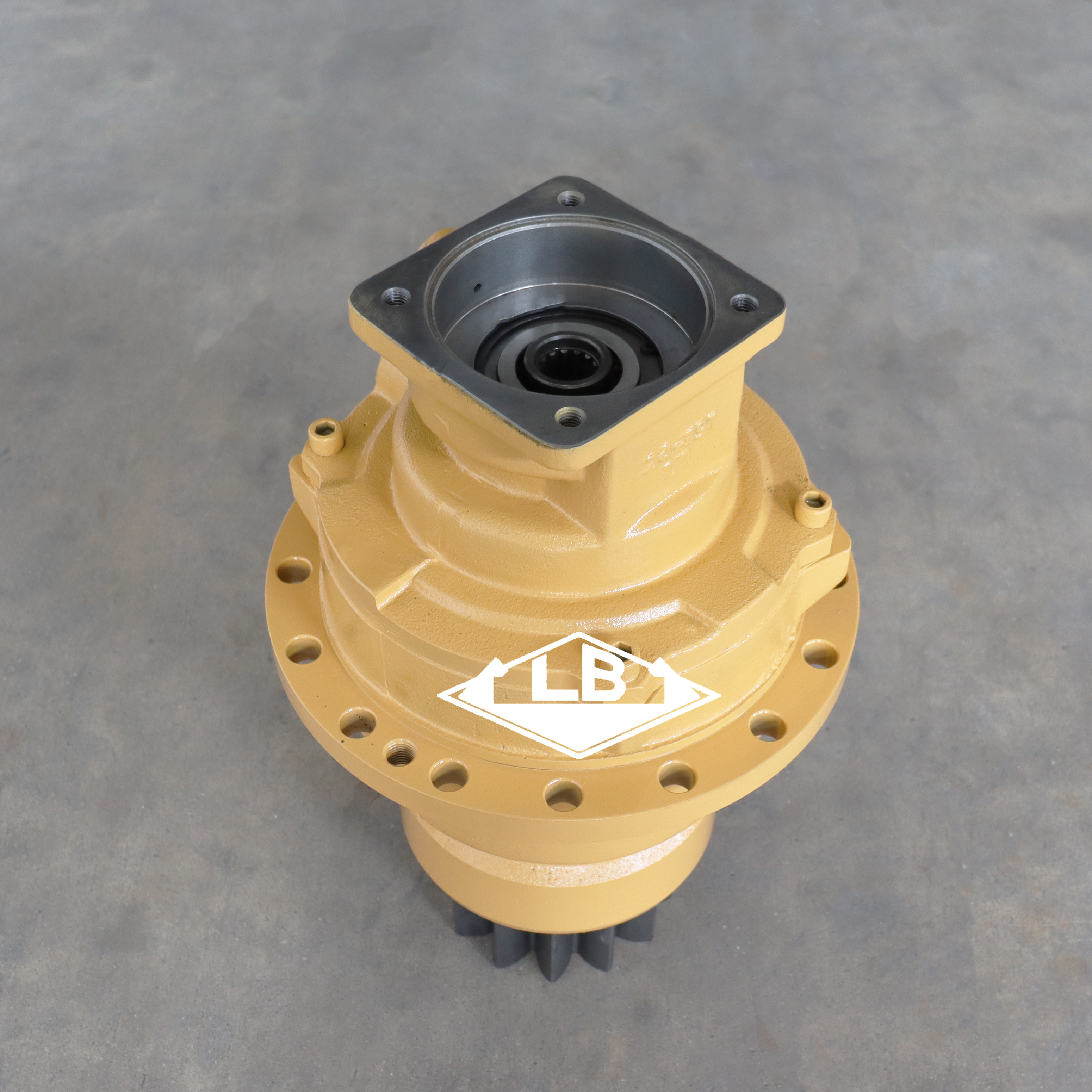

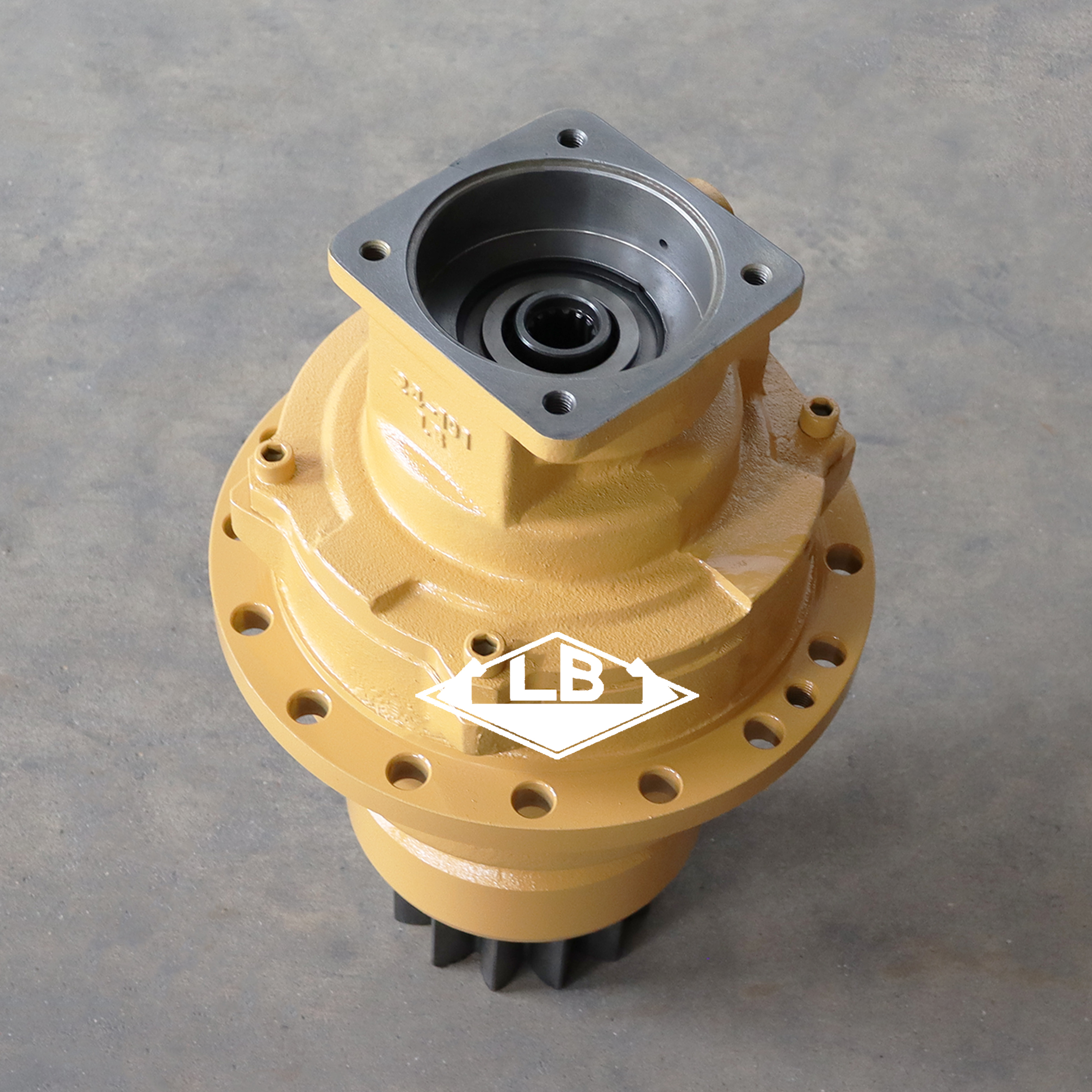

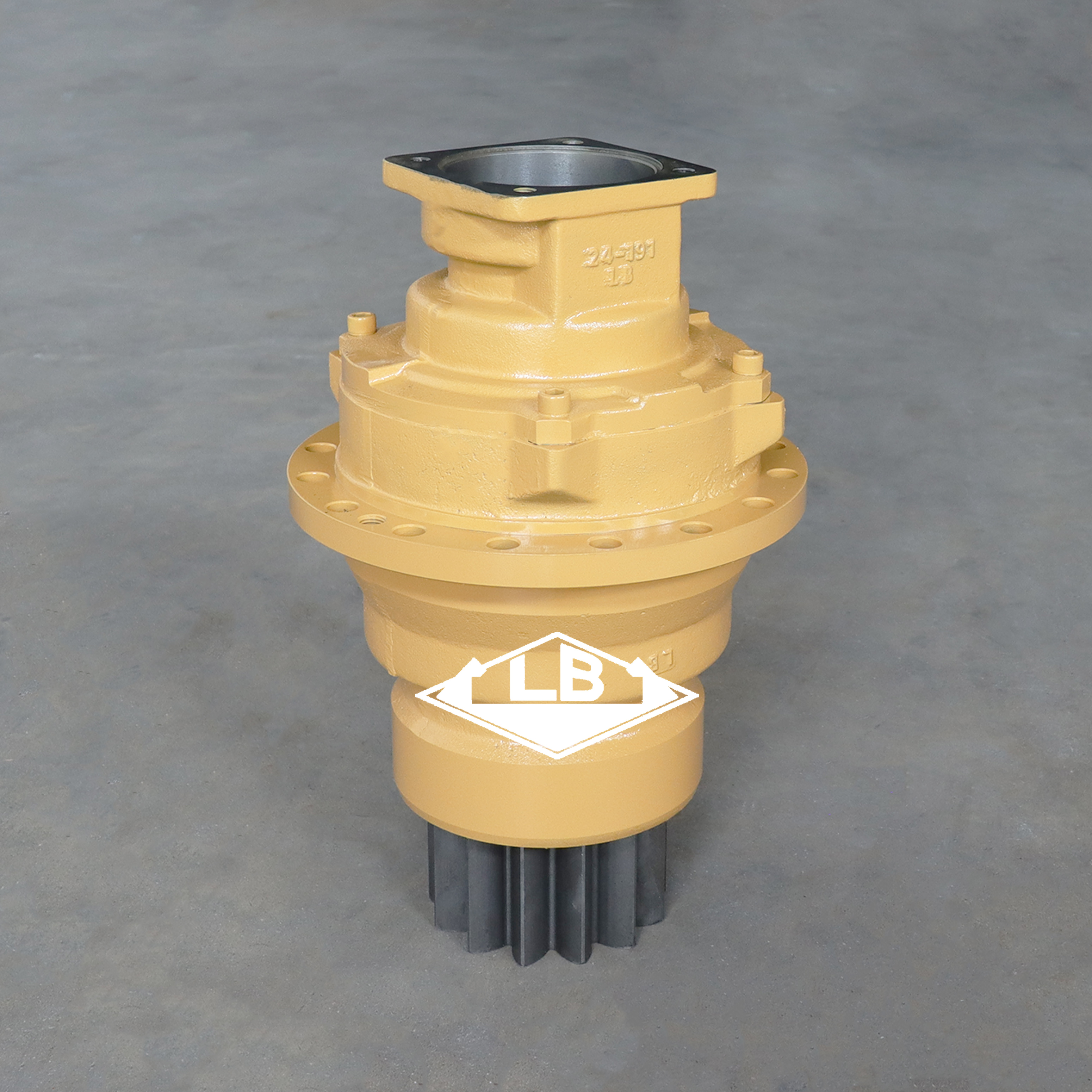

M322 M318 SWING REDUCER 152-7372 M322 SWING GEARBOX FOR CAT EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name

M322 M318  SWING GEARBOX
Equipment Apply to CAT EXCAVATOR
Part no. 152-7372
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

M322 回转牙箱(6)M322 回转牙箱(4)M322 回转牙箱(2)M322 回转牙箱(8)M322 回转牙箱(1)M322 回转牙箱(2)

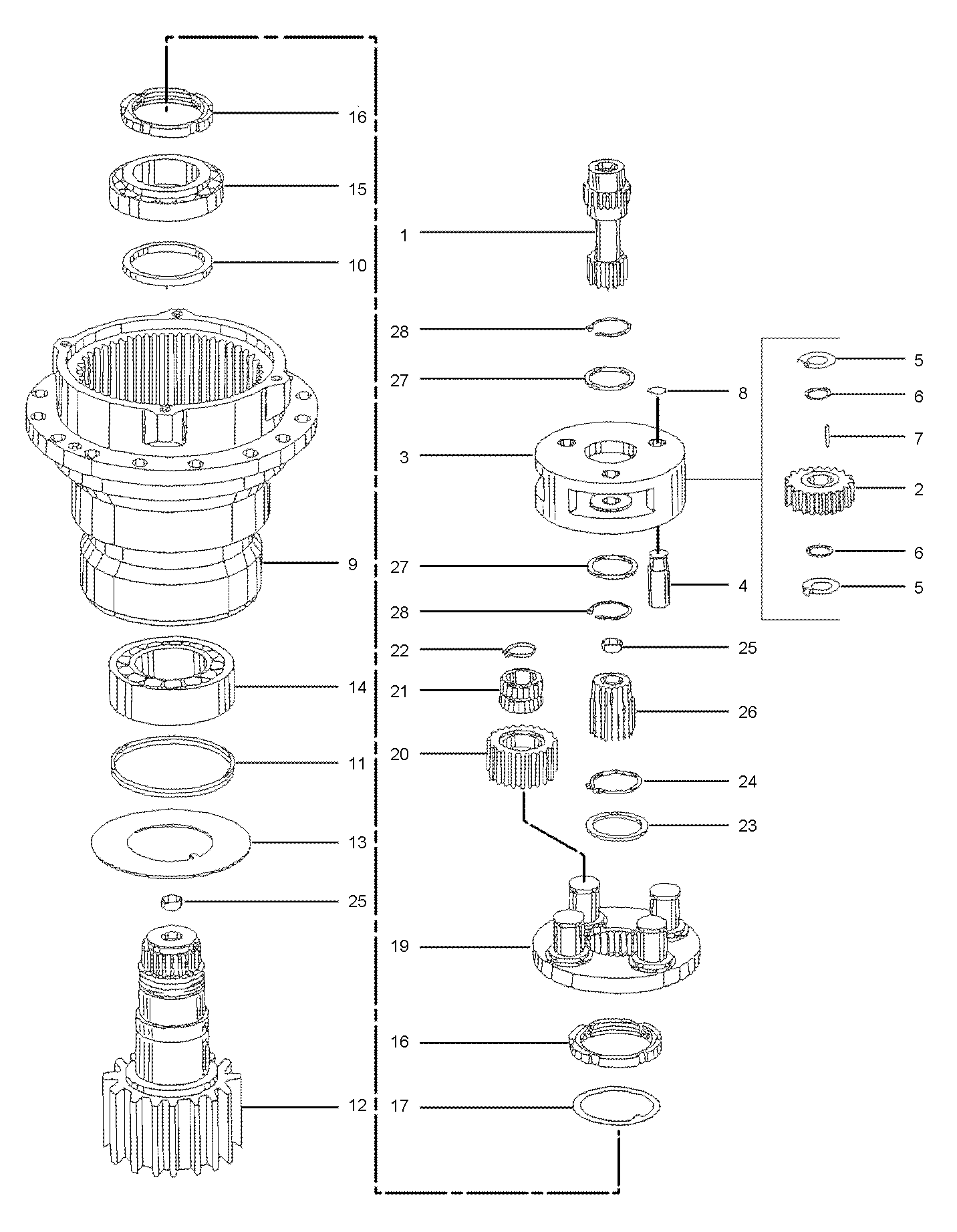

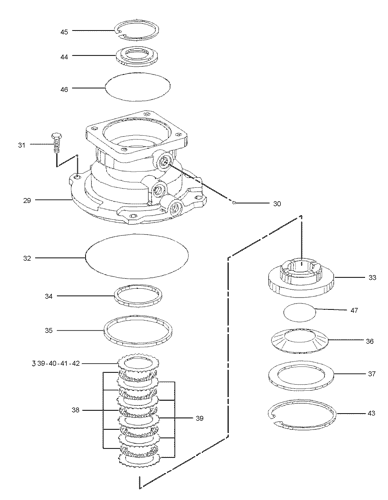

Parts for your M322C WHEELED EXCAVATOR:

CATERPILLAR SIS

Pos. Part No Qty Parts name Comments
1. 155-0856 [1] SHAFT
2. 155-0857 [3] GEAR-PLANETARY (33-TEETH)
3. 155-0858 [1] CARRIER
4. 155-0824 [3] PIN
5. 082-3084 [6] WASHER
6. 082-3085 [6] WASHER
7. 132-4292 [63] BEARING AS-NEEDLE
8. 095-0919 [3] RING-RETAINING
9. 155-0864 [1] HOUSING AS-SWING
10. 155-0865 [1] SEAL-LIP TYPE
11. 155-0866 [1] SEAL
12. 155-0867 [1] PINION
13. 155-0868 [1] WASHER (100X169X2-MM THK)
14. 155-0869 [1] BEARING AS-ROLLER
15. 155-0870 [1] BEARING AS-ROLLER
16. 179-3152 [2] NUT-SLOTTED
17. 155-0872 [1] RING
19. 155-0874 [1] CARRIER-PLANETARY
20. 155-0875 [4] GEAR-PLANETARY (32-TEETH)
21. 155-0876 [4] BEARING AS-ROLLER
22. 9X-0656 [4] RING
23. 8U-5005 [3] SHIM (1-MM THK)
24. 095-0928 [1] RING-RETAINING
25. 121-8088 [2] BALL BEARING
26. 155-0877 [1] GEAR-SUN (19-TEETH)
27. 098-2982 B [4] SHIM (1.5-MM THK)
28. 110-4737 [2] RING-RETAINING
29. 155-0878 [1] HOUSING-BRAKE
30. 155-0849 [1] ORIFICE
31. 8T-4139 M [4] BOLT (M12X1.75X30-MM)
32. 222-5793 [1] SEAL-O-RING
33. 155-0850 [1] PISTON
34. 155-0851 [1] SEAL-LIP TYPE
35. 155-0852 [1] SEAL-LIP TYPE
36. 179-3151 [1] SPRING
37. 179-3154 [1] SHIM (3.5-MM THK)
38. 132-4268 B [5] DISC-CLUTCH (1.7-MM THK)
39. 132-4262 B [6] DISC-CLUTCH (1.4-MM THK)
40. 132-4263 B [1] DISC-CLUTCH (1.2-MM THK)
41. 132-4265 B [1] DISC-CLUTCH (1.6-MM THK)
42. 132-4266 B [1] DISC-CLUTCH (1.8-MM THK)
43. 9X-6574 [1] RING-RETAINING
44. 155-0855 [1] SLEEVE
45. 8T-0707 [1] RING-RETAINING (INTERNAL)
46. 222-5792 [1] SEAL-O-RING
47. 197-6054 [1] WASHER (63.6X70X0.5-MM THK)

B
 USE AS REQUIRED

M
 METRIC PART
