EX200-5 Swing Drive 9148922 Ex200-5 Swing Gearbox For Hitachi Excavator

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 EX200-5 swing gearbox
Equipment Apply to HITACHI  EXCAVATOR
Part no. 9148922
NO.1 sun gear spline teeth 14 splines
Swing pinion shaft teeth 13T
Item condition New
Logo LB
Gross weight 185 KG
MOQ 1 pc


Product Descriptio

EX200-5(3)EX200-5EX200-5回

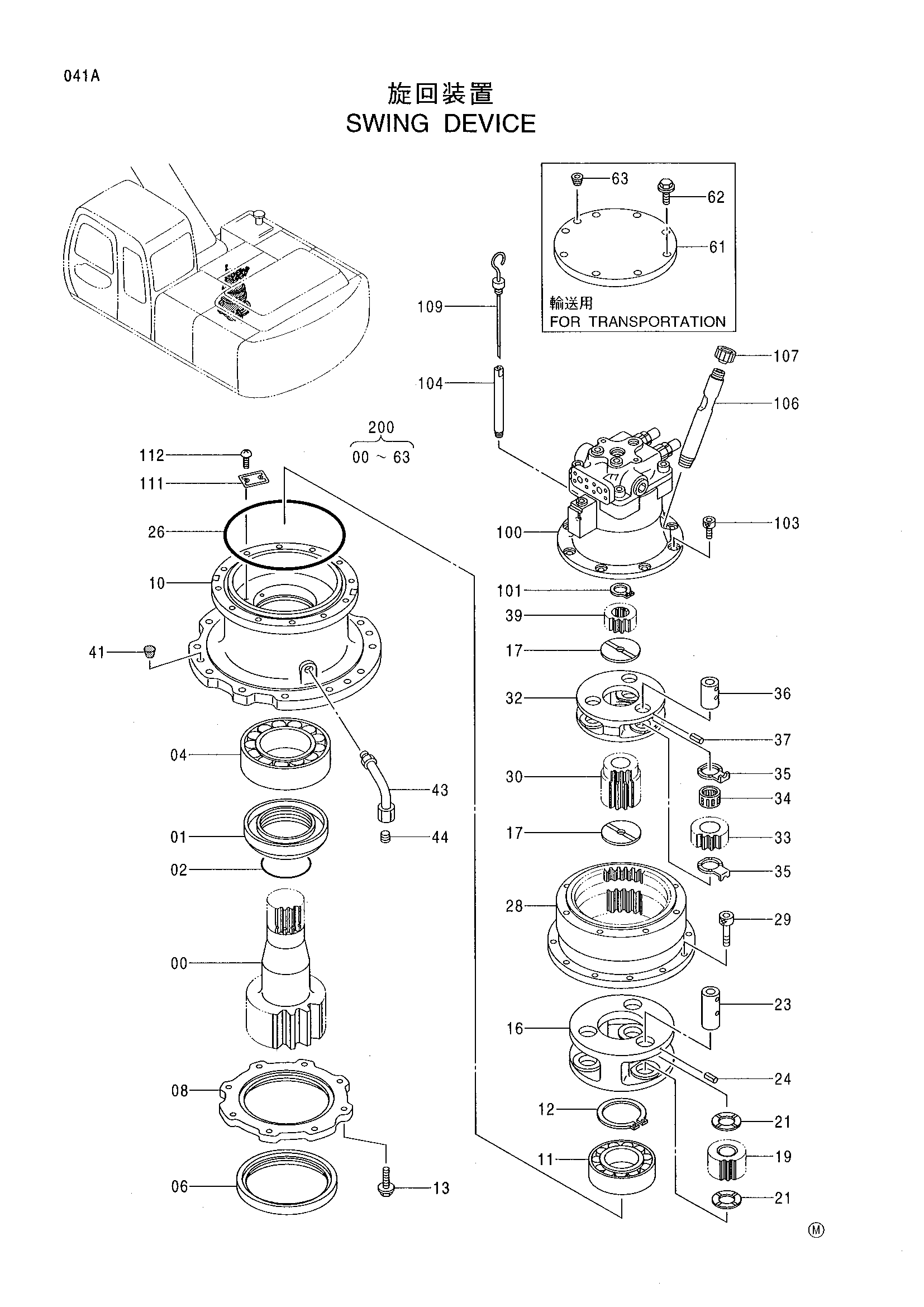

Parts on group SWING DEVICE:

Pos. Part No Qty Parts name Comments
00. 2036775 [1]   SHAFT;PROP.
01. 3045362 [1]   SLEEVE
02. A811120 [1]   O-RING
04. 4281798 [1]   BRG.;SPH.ROL.
06. 4246275 [1]   SEAL;OIL
08. 3060672 [1]   COVER
10. 1020333 [1]   HOUSING
11. 4364756 [1]   BRG.;ROL.
12. 991352 [1]   RING;RETAINING
13. J011240 [8]   BOLT;SEMS
16. 1020329 [1]   CARRIER
17. 4176073 [2]   PLATE;THRUST
19. 9742777 [3]   GEAR;PLANETARY
21. 4266933 [6]   PLATE;THRUST
23. 4336925 [3]   PIN
24. 4027427 [3]   PIN;SPRING
26. 4337206 [1]   O-RING
28. 1019790 [1]   GEAR;RING
29. M341645 [12]   BOLT;SOCKET
30. 3069514 [1]   GEAR;SUN
32. 1020328 [1]   CARRIER
33. 3069510 [3]   GEAR;PLANETARY
34. 4336945 [3]   BRG.;NEEDLE
35. 4336926 [6]   PLATE;THRUST
36. 4336923 [3]   PIN
37. 4051262 [3]   PIN;SPRING
39. 3069512 [1]   GEAR;SUN
41. 425176 [2]   CORK
43. 8060496 [1]   PIPE
44. 94-2013 [1]   PLUG
61. 8053414 [1]   COVER (for transportation)
62. J011250 [8]   BOLT;SEMS (for transportation)
63. 94-2011 [1]   PLUG (for transportation)
100. 4330222 [1]   MOTOR;OIL
101. 962002 [1]   RING;RETAINING
103. M341228 [8]   BOLT;SOCKET
104. 4264452 [1]   PIPE
106. 4332658 [1]   PIPE
107. 4343365 [1]   CAP
109. 3074223 [1]   GAUGE;LEVEL
111. 3053093 [1]   NAME-PLATE
112. M492564 [2]   SCREW;DRIVE
200. 9148922 [1]   SWING DEVICE (WITHOUT MOTOR)
