EX1200-6 Swing reduction assy 9263507 9301481 YB60001906 EX1200-6 SWING GEARBOX FOR EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 EX1200-6 swing gearbox
Equipment Apply to HITACHI EXCAVATOR
Part no. 9263507 9301481 YB60001906
NO.1 sun gear spline teeth
Swing pinion shaft teeth
Item condition New
Logo LB
Gross weight 290KG
MOQ 1 pc

Product Descriptio

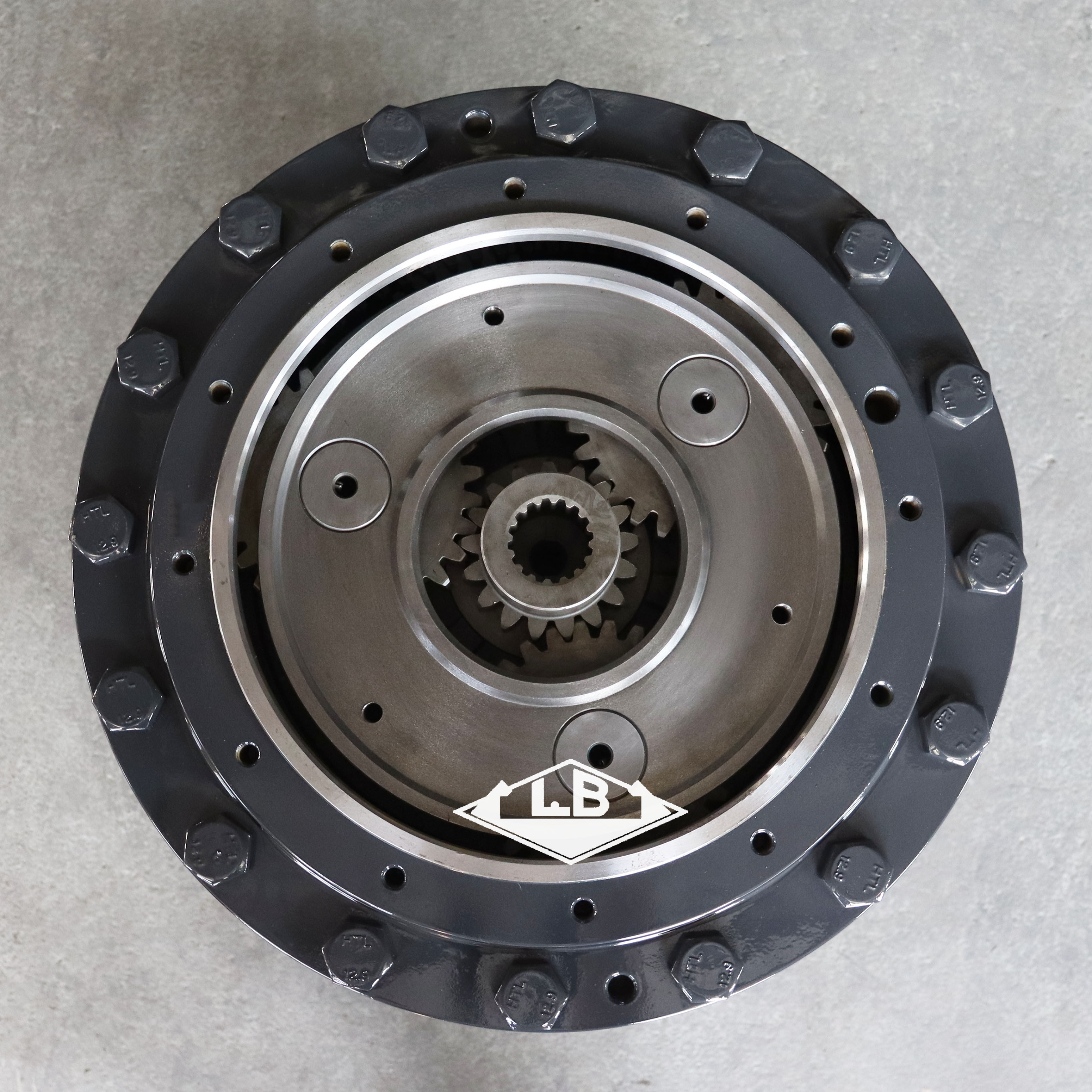

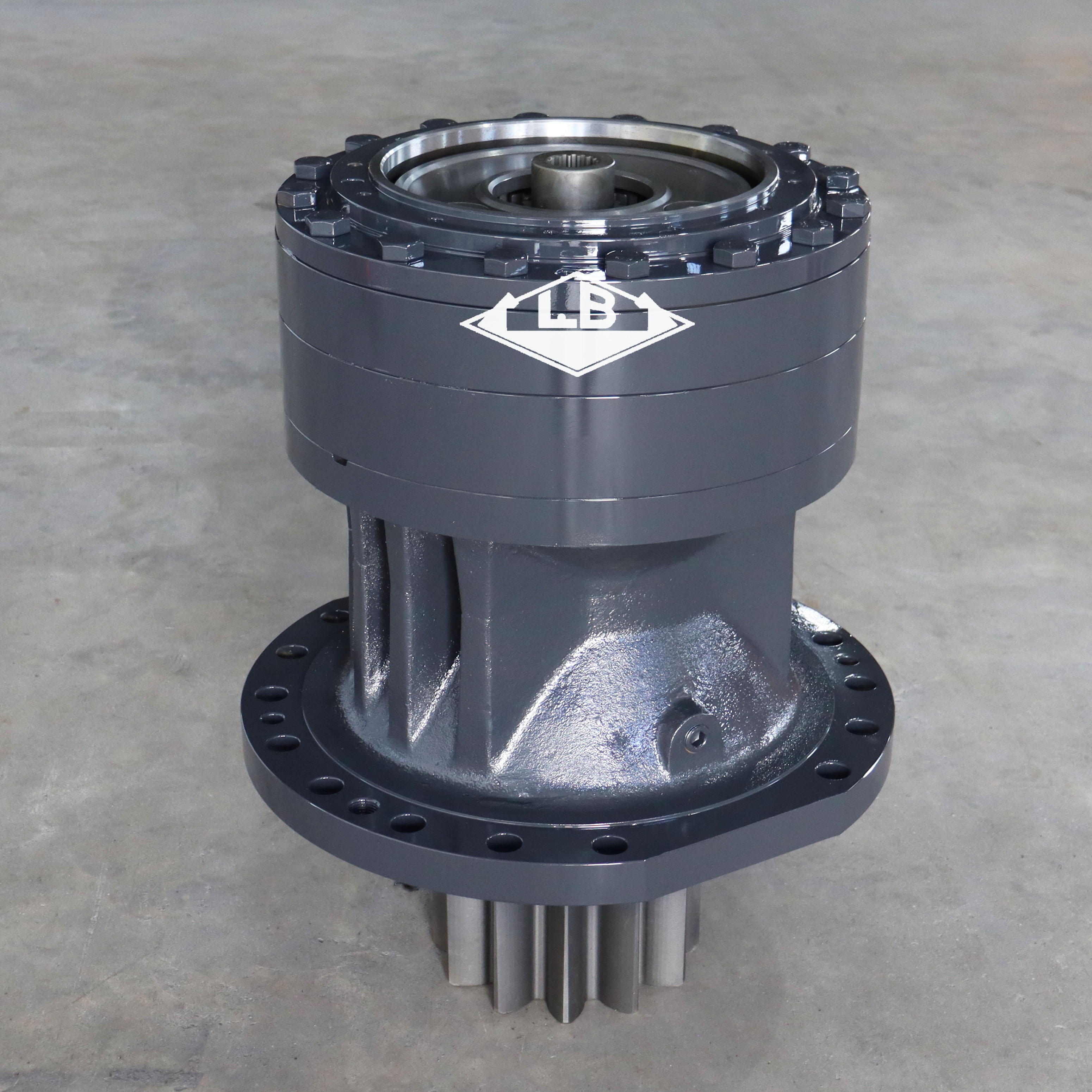

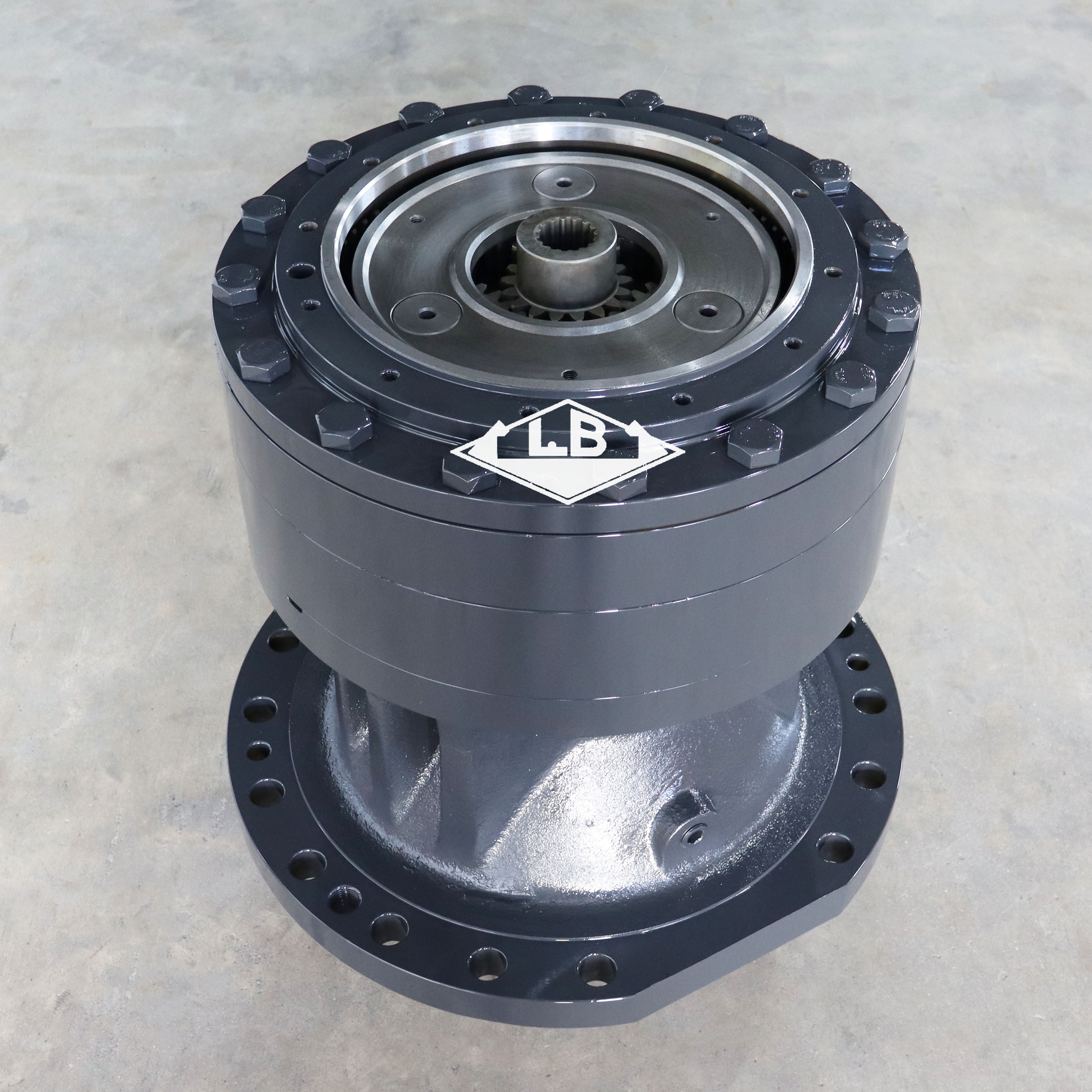

EX1200-6回转牙箱(8)EX1200-6回转牙箱(6)EX1200-6回转牙箱(4)EX1200-6回转牙箱(2)EX1200-6

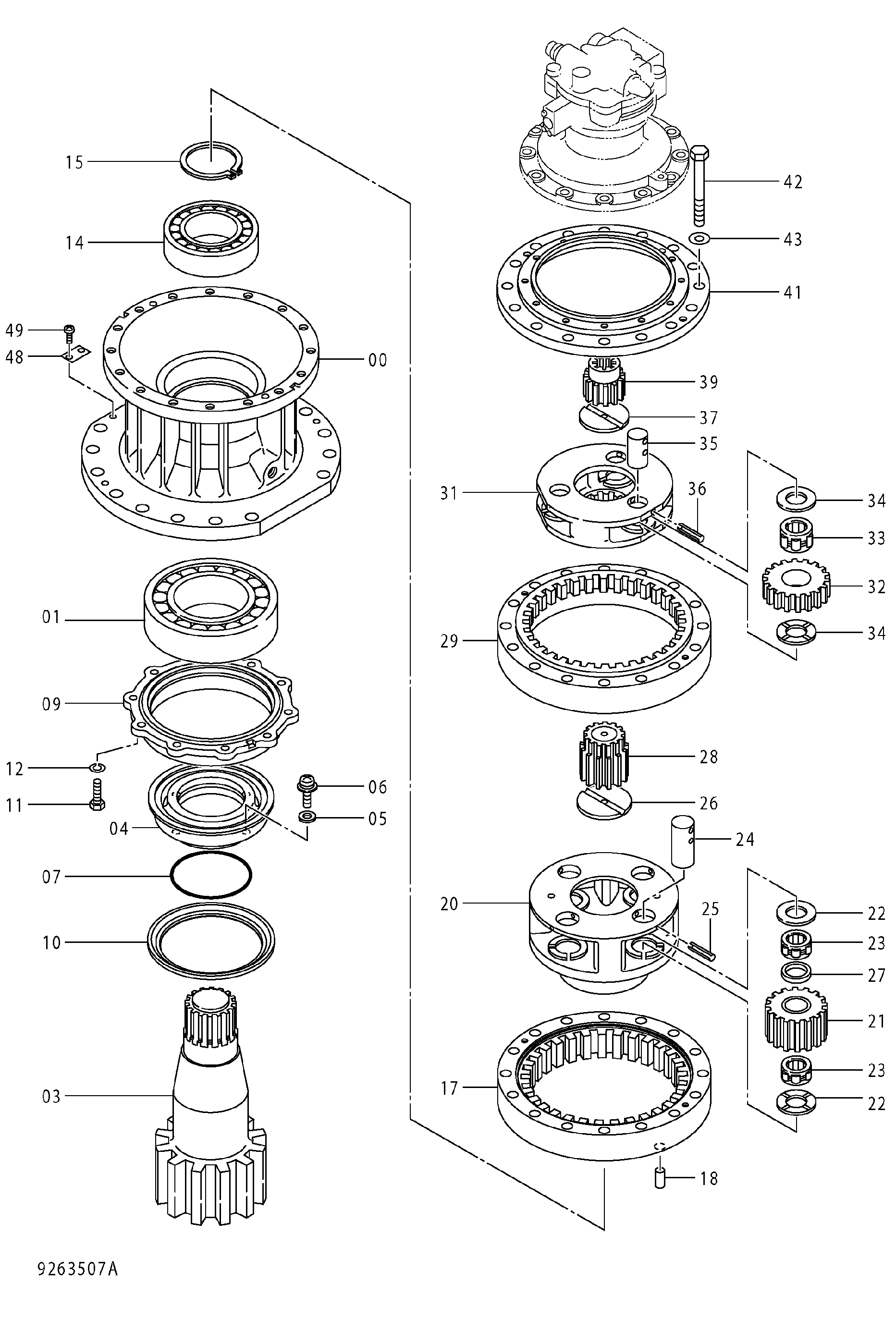

Parts on group T.MISSION (SWING):

Pos. Part No Qty Parts name Comments

9263507 [1] T.MISSION (SWING) I 9301481 <for assembly of machine>

(9301481) [1] T.MISSION (SWING) <for transportation>
00. 1033704 [1] HOUSING
01. 4239711 [1] BRG.;SPH.ROL.
03. 2053668 [1] SHAFT;PROP.
04. 3107013 [1] SLEEVE
05. 4204644 [4] MAGNET
06. J460514 [4] SCREW;SEMS
07. A810180 [1] O-RING
09. 2053666 [1] COVER
10. 4430715 [1] SEAL;OIL
11. J901650 [10] BOLT
12. A590916 [10] WASHER;SPRING
14. 4363408 [1] BRG.;SPH.ROL.
15. 4511549 [1] RING;RETAINING
17. 2053807 [1] GEAR;INTERNAL
18. J401640 [2] PIN;KNOCK
20. 2053665 [1] CARRIER
21. 3108347 [4] GEAR;PLANETARY
22. 4657123 [8] PLATE;THRUST
23. 4452484 [8] BRG.;NEEDLE
24. 4657106 [4] PIN
25. 4197125 [4] PIN;SPRING
26. 4239866 [1] PLATE;THRUST
27. 4660601 [4] SPACER
28. 3108345 [1] GEAR;SUN
29. 2053667 [1] GEAR;INTERNAL
31. 2053664 [1] CARRIER
32. 3108346 [3] GEAR;PLANETARY
33. 4452483 [3] BRG.;NEEDLE
34. 4644567 [6] PLATE;THRUST
35. 4657105 [3] PIN
36. 4404947 [3] PIN;SPRING
37. 4194454 [1] PLATE;THRUST
39. 3108344 [1] GEAR;SUN
41. 2027642 [1] COVER
42. J932218 [16] BOLT
43. 4089822 [16] WASHER
48. +++++++ [1] NAME-PLATE
49. M492564 [2] SCREW;DRIVE
