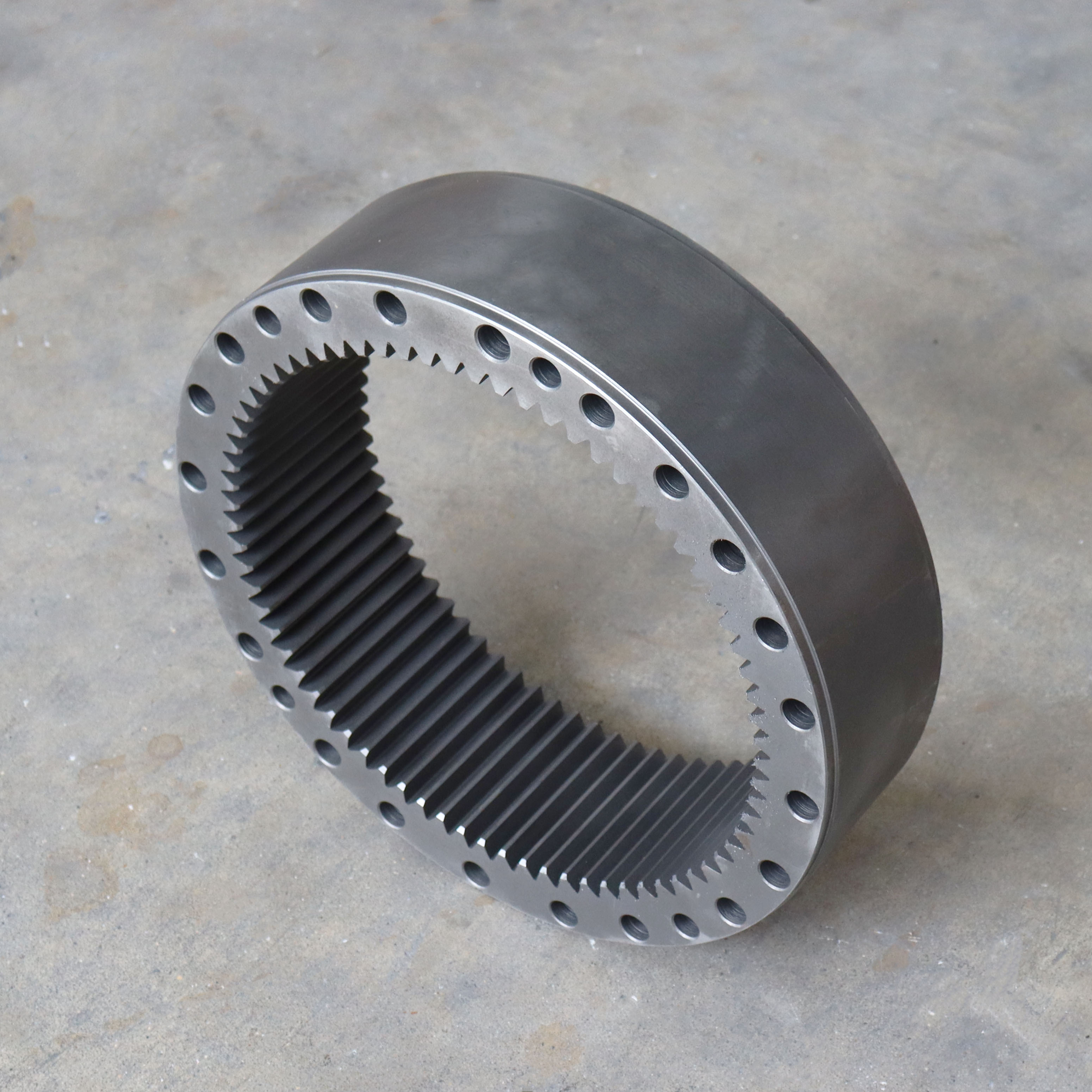

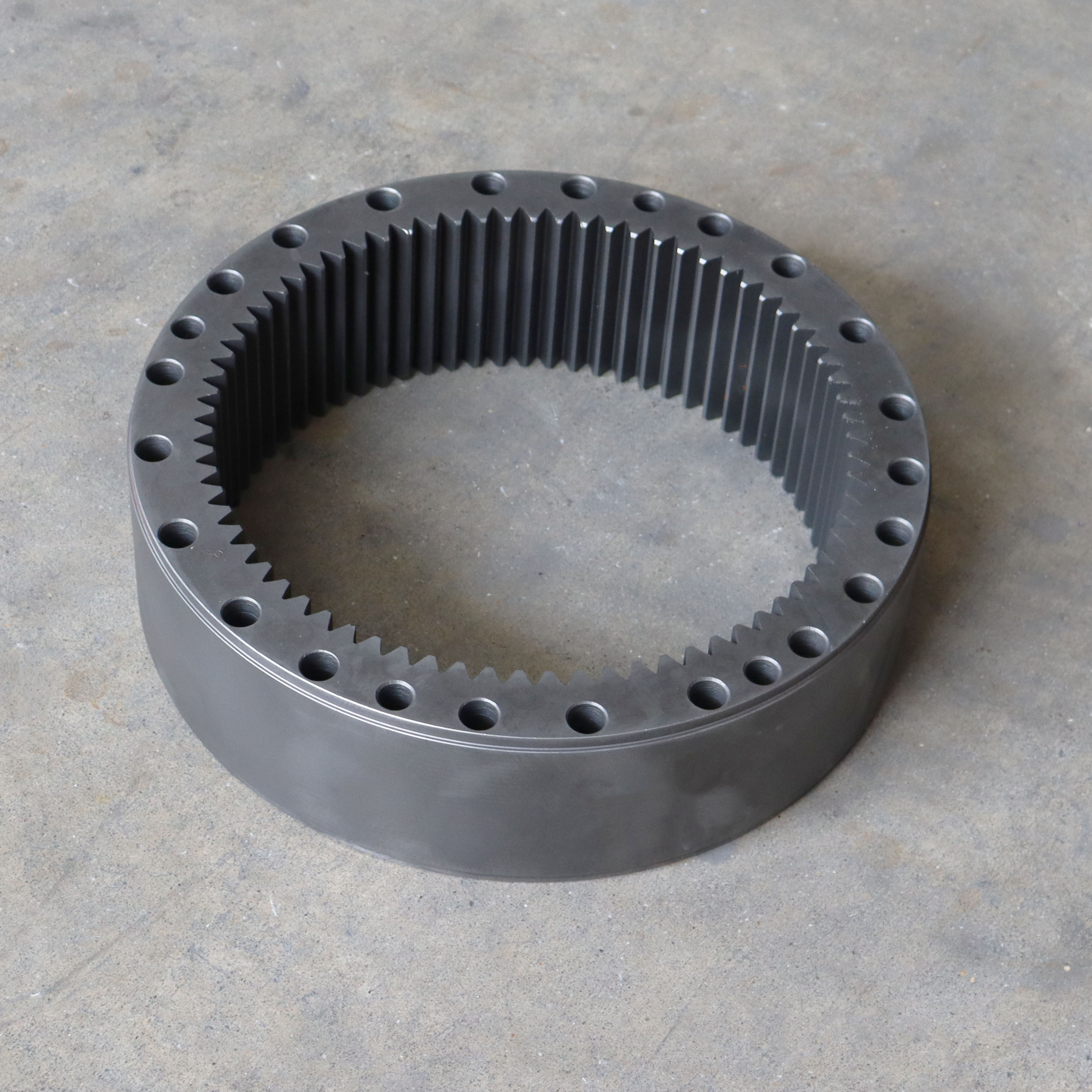

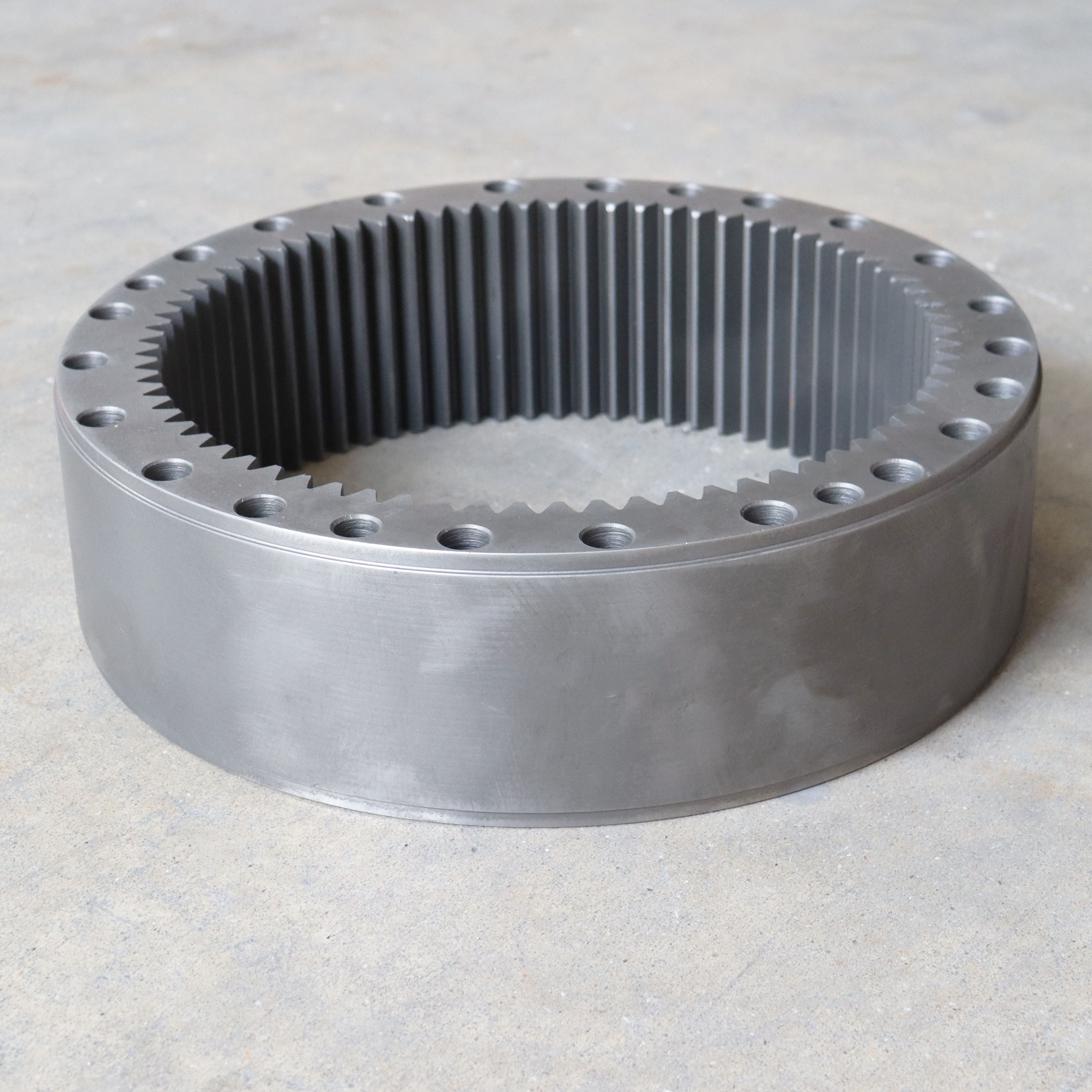

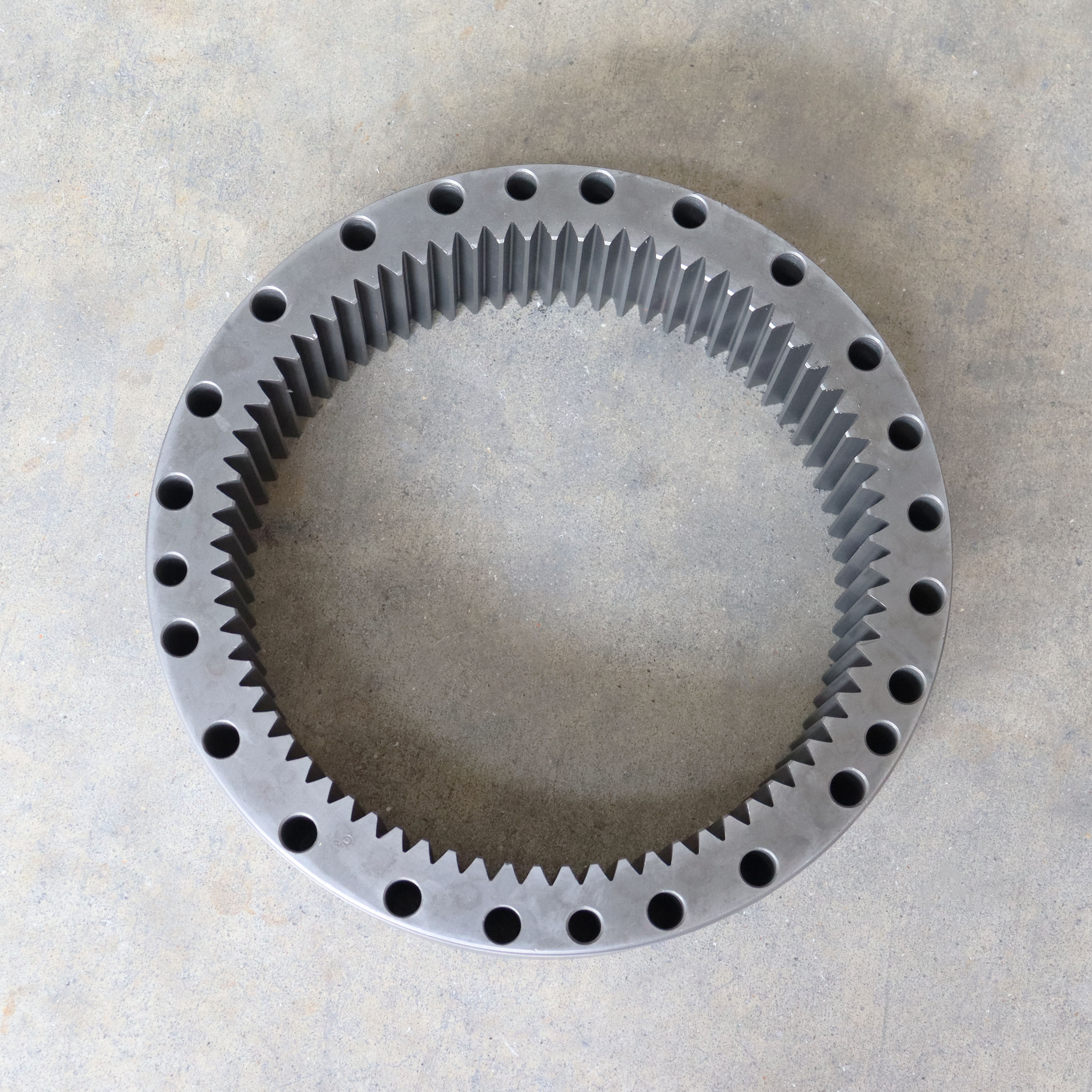

EC290 EC300 EC350D SWING RING GEAR VOE14547266 SWING GEARBOX PARTS APPLY FOR VOLVO EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name

EC290 EC300 EC350D Swing gearbox
Equipment Apply to VOLVO EXCAVATOR
Part no. VOE14547266
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

EC290 回转齿圈（1）EC290 回转齿圈(7)EC290 回转齿圈(5)EC290 回转齿圈（3）EC290回转齿圈

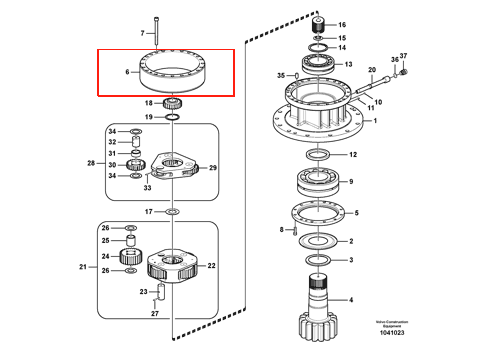

Parts on group Swing gearbox:

Pos. Part No Qty Parts name Comments

VOE14569767 [1] Swing gearbox
1. VOE14547262 [1] Case
2. VOE14547260 [1] Ring
3. VOE14547259 [1] Collar
4. VOE14547258 [1] Shaft
5. VOE14547263 [1] Cover
6. VOE14547266 [1] Gear
7. VOE984363 [0020] Hex. socket screw
8. VOE13944938 [12] Screw
9. VOE14547261 [1] Bearing
10. SA9415-43012 [1] Plug
11. VOE914167 [1] Lubricating nipple
12. VOE14566830 [1] Seal
13. VOE14547265 [1] Bearing
14. SA9541-01110 [1] Retaining ring
15. SA7118-30380 [1] Thrust ring
16. VOE14547272 [1] Gear
17. VOE14880960 [1] Retaining ring
18. VOE14547279 [1] Gear
19. VOE14547278 [1] Thrust washer
20. VOE14547281 [1] Pipe
21. VOE14547280 [1] Planet carrier
22. VOE14547267 [1] Planet carrier
23. VOE14547271 [4] Pin
24. VOE14547268 [4] Gear
25. VOE14547269 [4] Bushing
26. VOE14556491 [8] Washer
27. SA9325-06012 [4] Spring pin
28. VOE14547273 [1] Planet carrier
29. VOE14547274 [1] Planet carrier
30. VOE14547275 [3] Gear
31. SA7117-30230 [3] Needle bearing
32. VOE14547277 [3] Pin
33. SA9325-06012 [3] Spring pin
34. VOE14547276 [6] Washer
35. VOE950677 [4] Pin
36. VOE949329 [1] Gasket
37. VOE14722461 [1] Draining valve
