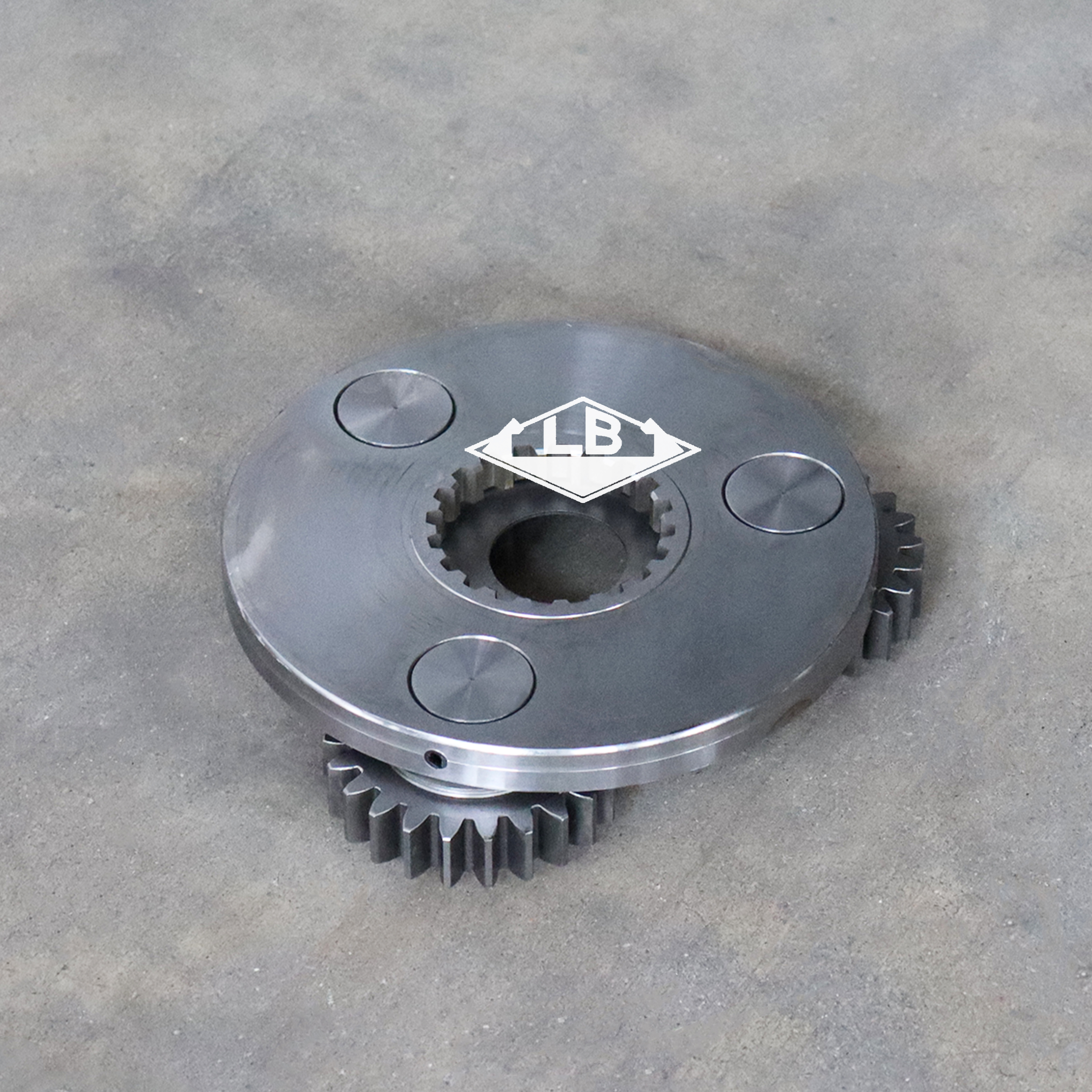

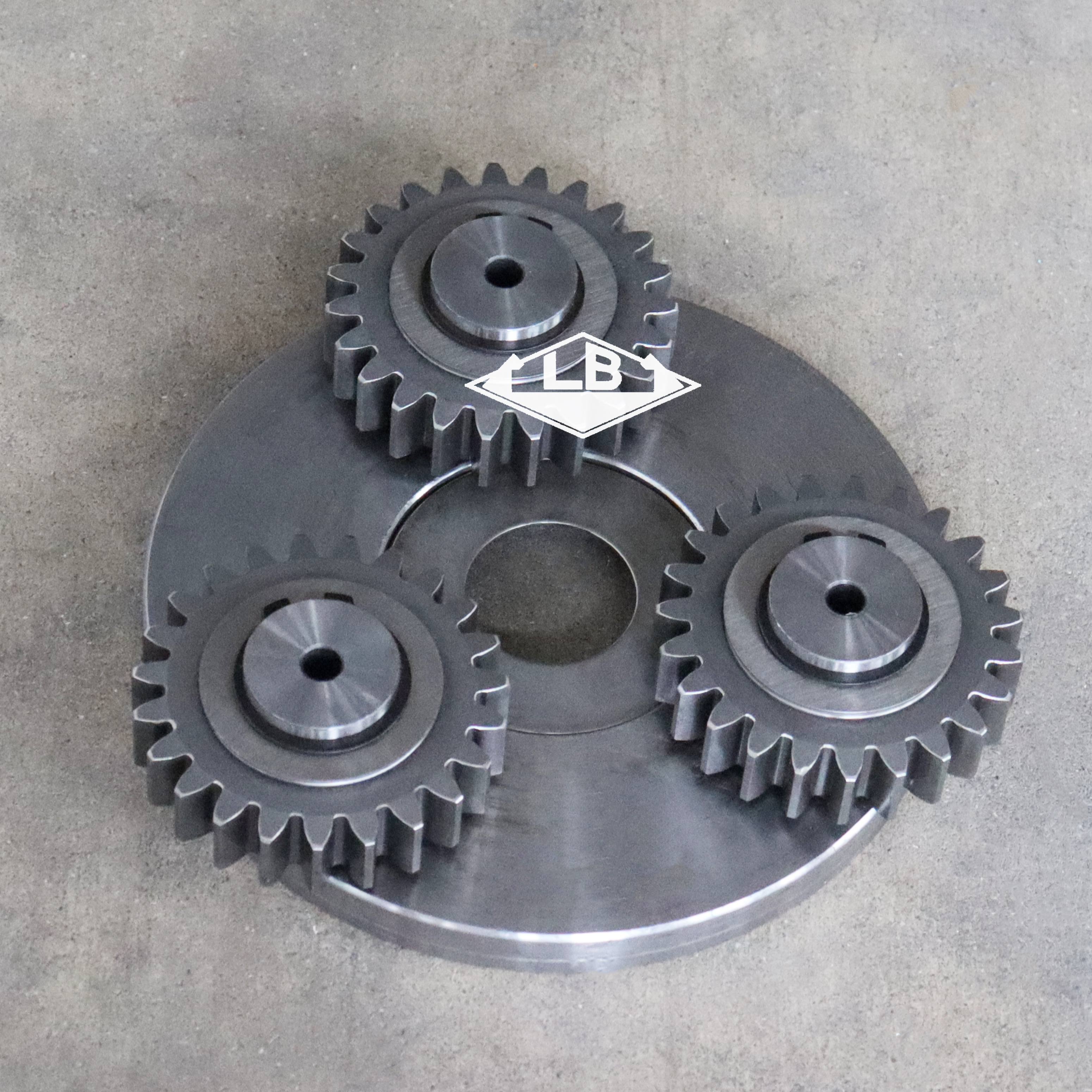

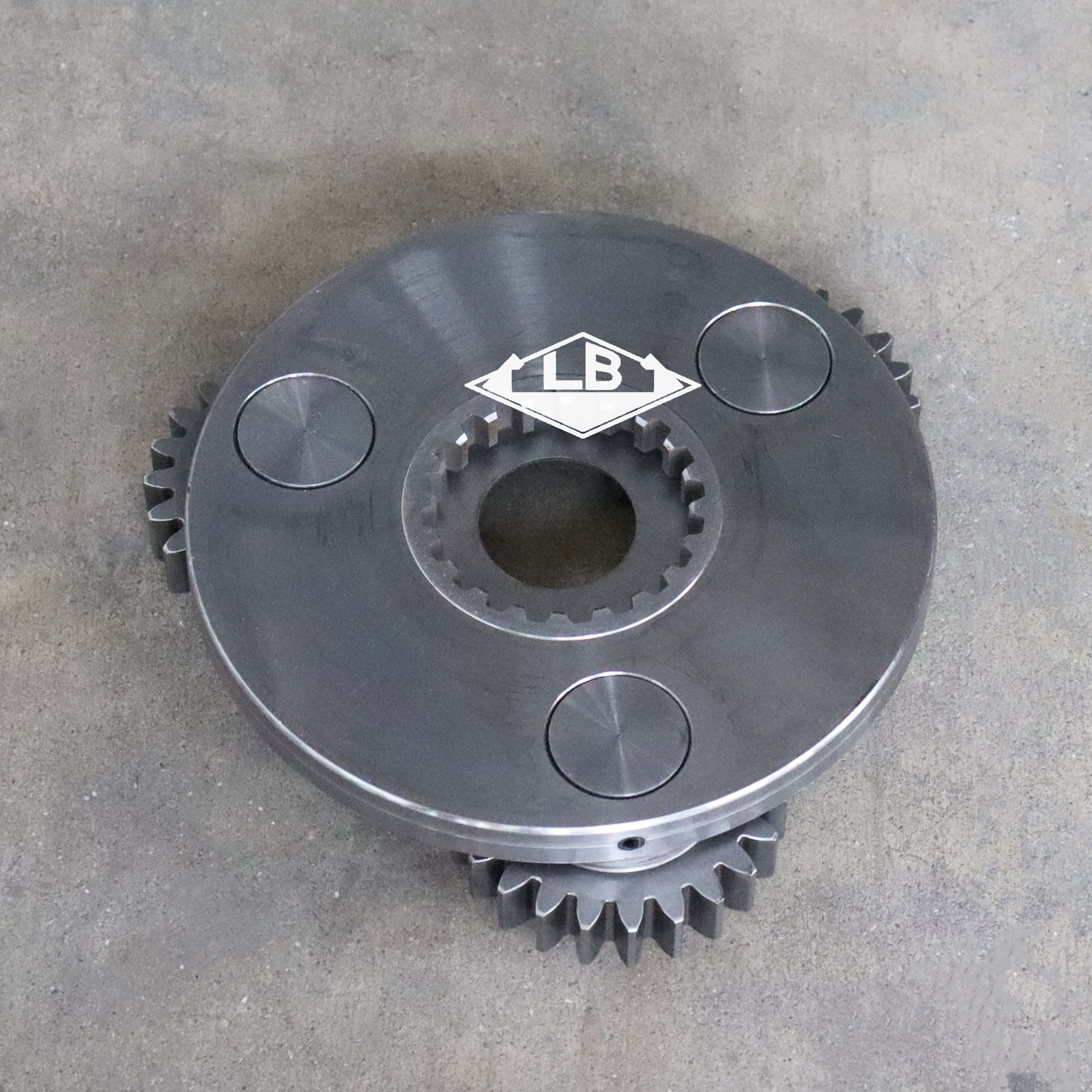

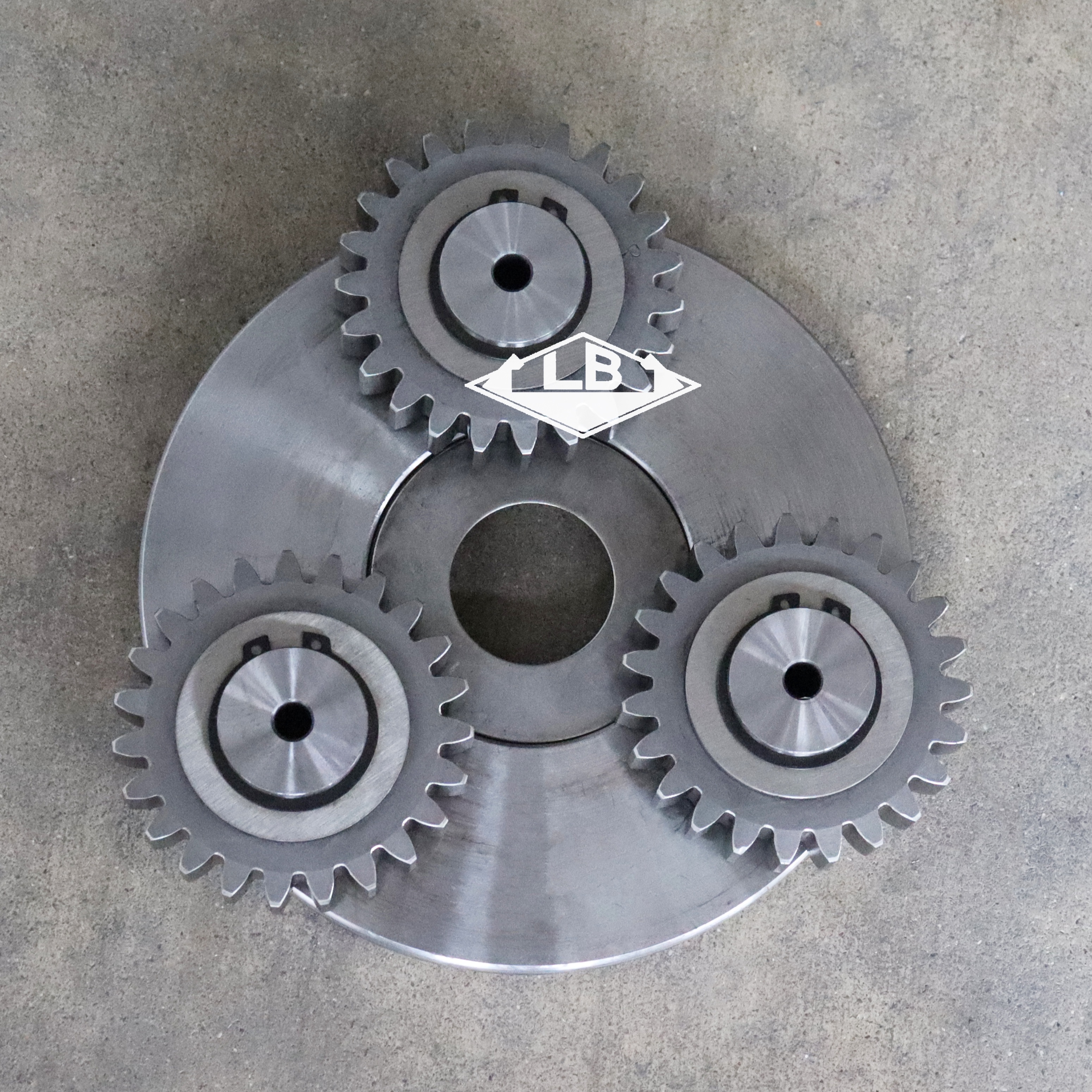

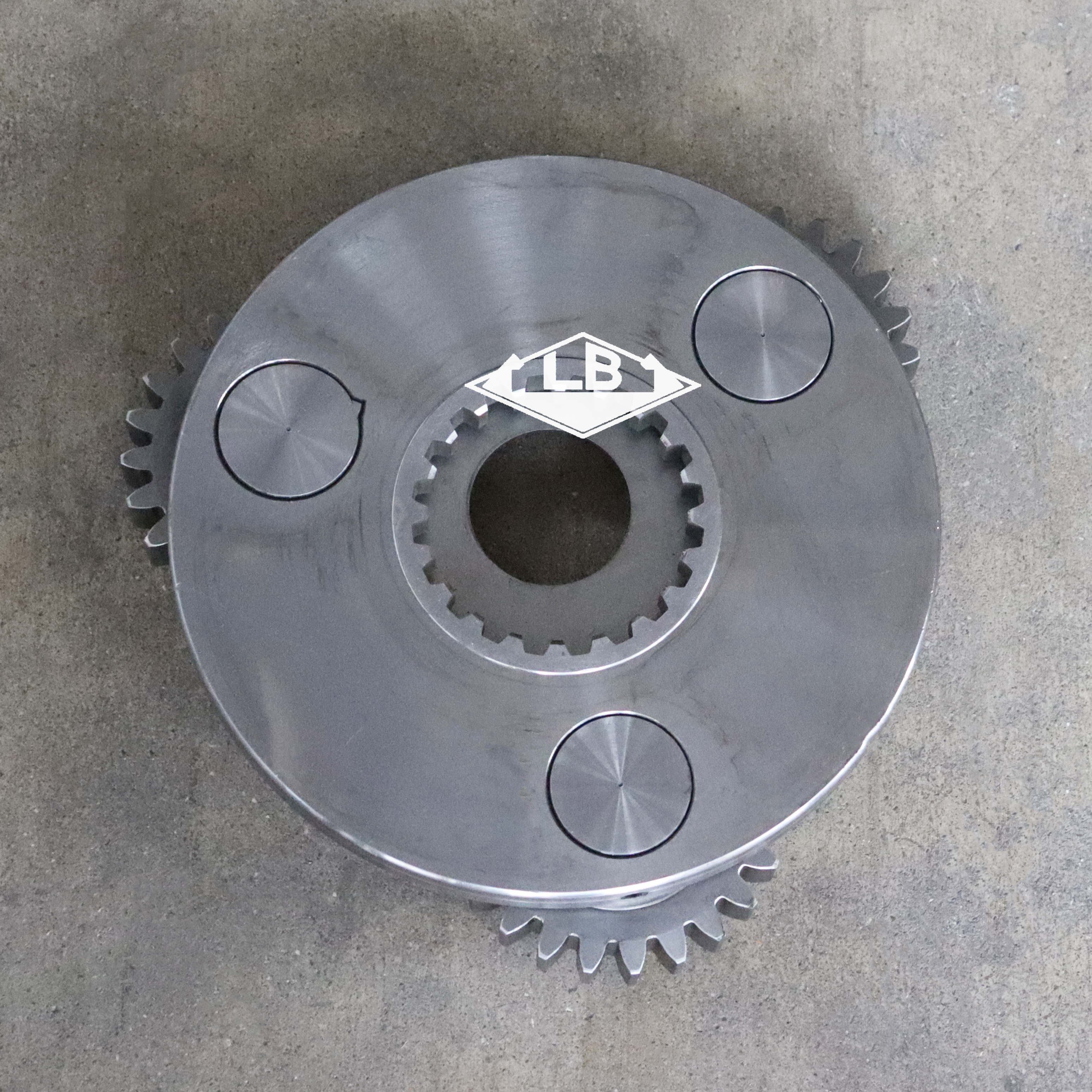

EC210 1st SWING CARRIER ASSY VOE14528725 SWING REDUCTION GEAR PARTS FOR VOLVO EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 EC210 Swing gearbox
Equipment Apply to VOLVO EXCAVATOR
Part no. VOE14528725
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

VOL210(4)VOL210(6)VOL210(8)VOL210(2)VOL210(10)EC210

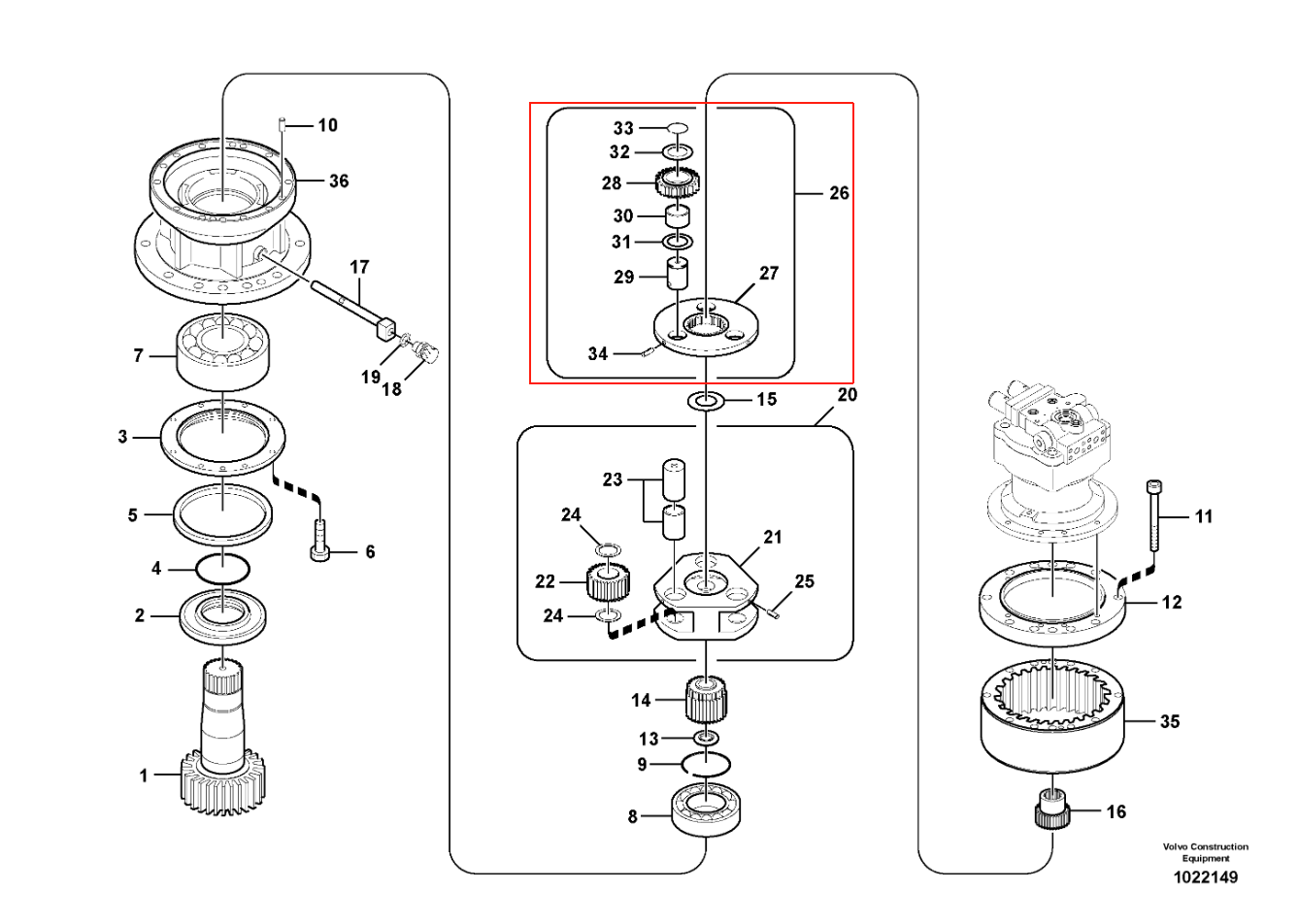

Parts on group Swing gearbox:

Pos. Part No Qty Parts name Comments

VOE14541069 [1] Swing gearbox
1. VOE14528929 [1] Shaft
2. VOE14540405 [1] Collar
3. VOE14509281 [1] Cover
4. VOE990596 [1] O-ring
5. VOE14508911 [1] Seal
6. VOE993025 [10] Hexagon screw
7. VOE14640027 [1] Roller bearing
8. VOE14558674 [1] Roller bearing
9. SA9541-01090 [1] Retaining ring
10. VOE950677 [4] Pin
11. VOE984363 [12] Hex. socket screw
12. SA7118-30370 [1] Plate
13. SA7118-30380 [1] Thrust ring
14. SA7118-30390 [1] Gear
15. SA7118-30480 [1] Washer
16. SA7118-30490 [1] Sun gear
17. VOE14540733 [1] Pipe
18. VOE14722461 [1] Draining valve
19. VOE949329 [1] Gasket
20. SA7118-30200 [1] Planet carrier No.2
21. SA7118-30210 [1] Planet carrier
22. SA7118-30220 [3] Planetary gear
23. SA7118-30230 [3] Pin
24. SA7118-30260 [6] Washer
25. SA9325-08010 [3] Spring pin
26. VOE14528725 [1] Planet carrier No.1
27. SA7118-30410 [1] Planet carrier
28. SA7118-30420 [3] Planetary gear
29. VOE14528726 [3] Pin
30. VOE14550879 [3] Needle bearing
31. SA7118-30450 [3] Washer
32. SA7118-30460 [3] Washer
33. SA9541-01042 [3] Retaining ring
34. SA9325-08010 [3] Spring pin
35. SA7118-30350 [1] Ring gear
36. SA7118-30340 [1] Case
100. VOE14526214 [1] Overhaul kit
