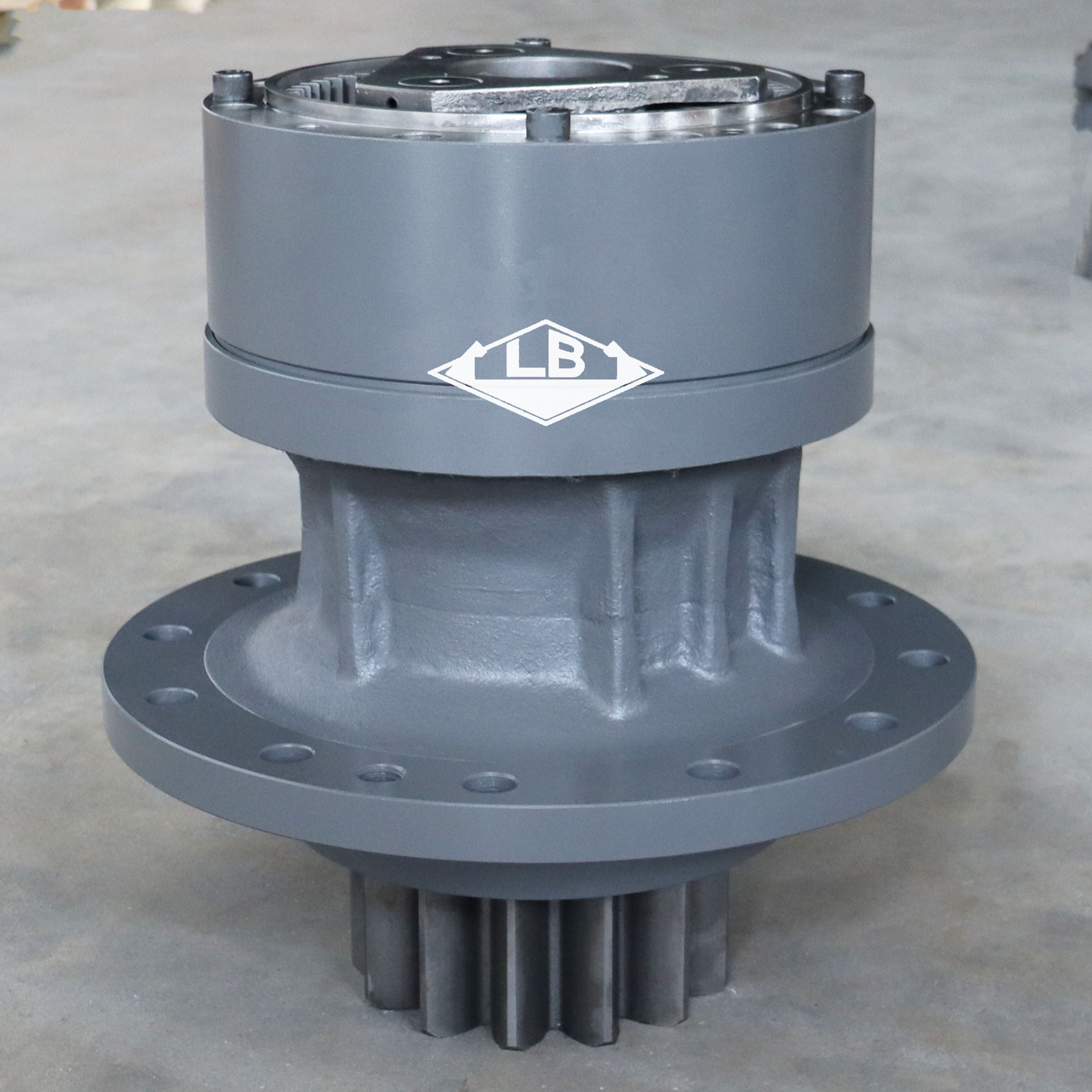

EC200D SWING REDUCER ASSY VOE14712521 EC200D SWING GEABROX FOR VOLVO EXCAVATOR

PRODUCT PARAMETERS

Product Descriptio

EC200D回转牙箱(2) EC200D回转牙箱(8) EC200D回转牙箱(4) EC200D回转牙箱(6) EC200D

Pos.	Part No	Qty	Parts name	Comments
	VOE14712521	[1]	Swing gearbox
1.	VOE14712522	[1]	Shaft
2.	VOE14712523	[1]	Collar
3.	VOE990600	[1]	O-ring
4.	VOE14712524	[1]	Bearing
5.	VOE14737753	[1]	Case
6.	VOE14712525	[1]	Bearing
7.	VOE14712544	[2]	Collar	THICK = 9,8 mm
7.	VOE14712545	[2]	Collar	THICK = 9,9 mm
7.	VOE14712546	[2]	Collar	THICK = 10,0 mm
7.	VOE14712547	[2]	Collar	THICK = 10,1 mm
7.	VOE14712548	[2]	Collar	THICK = 10,2 mm
7.	VOE14712549	[2]	Collar	THICK = 10,3 mm
7.	VOE14712550	[2]	Collar
8.	VOE14508911	[1]	Seal
9.	VOE14883953	[2]	Pin
10.	VOE14737754	[1]	Gear
	VOE14712528	[1]	Planet carrier
11.	VOE14712529	[1]	Planet carrier
12.	VOE14712530	[3]	Gear
13.	VOE14712532	[3]	Bushing
14.	VOE14712533	[6]	Thrust washer
15.	VOE14712531	[3]	Pin
16.	SA9325-06012	[3]	Spring pin
17.	VOE14712534	[1]	Gear
18.	SA7118-30380	[1]	Thrust ring
19.	VOE14883955	[1]	Retaining ring
	VOE14712536	[1]	Planet carrier
20.	VOE14712537	[1]	Planet carrier
21.	SA1036-00120	[1]	Thrust washer
22.	VOE14712538	[3]	Gear
23.	VOE14712540	[3]	Needle roller bearing
24.	VOE14712533	[6]	Thrust washer
25.	VOE14712539	[3]	Pin
26.	SA9325-06012	[3]	Spring pin
27.	VOE14712541	[1]	Gear
28.	VOE997885	[8]	Hex. socket screw
29.	VOE14712542	[1]	Outlet pipe
30.	VOE14883863	[1]	Plug
