| Quantity: | |
|---|---|

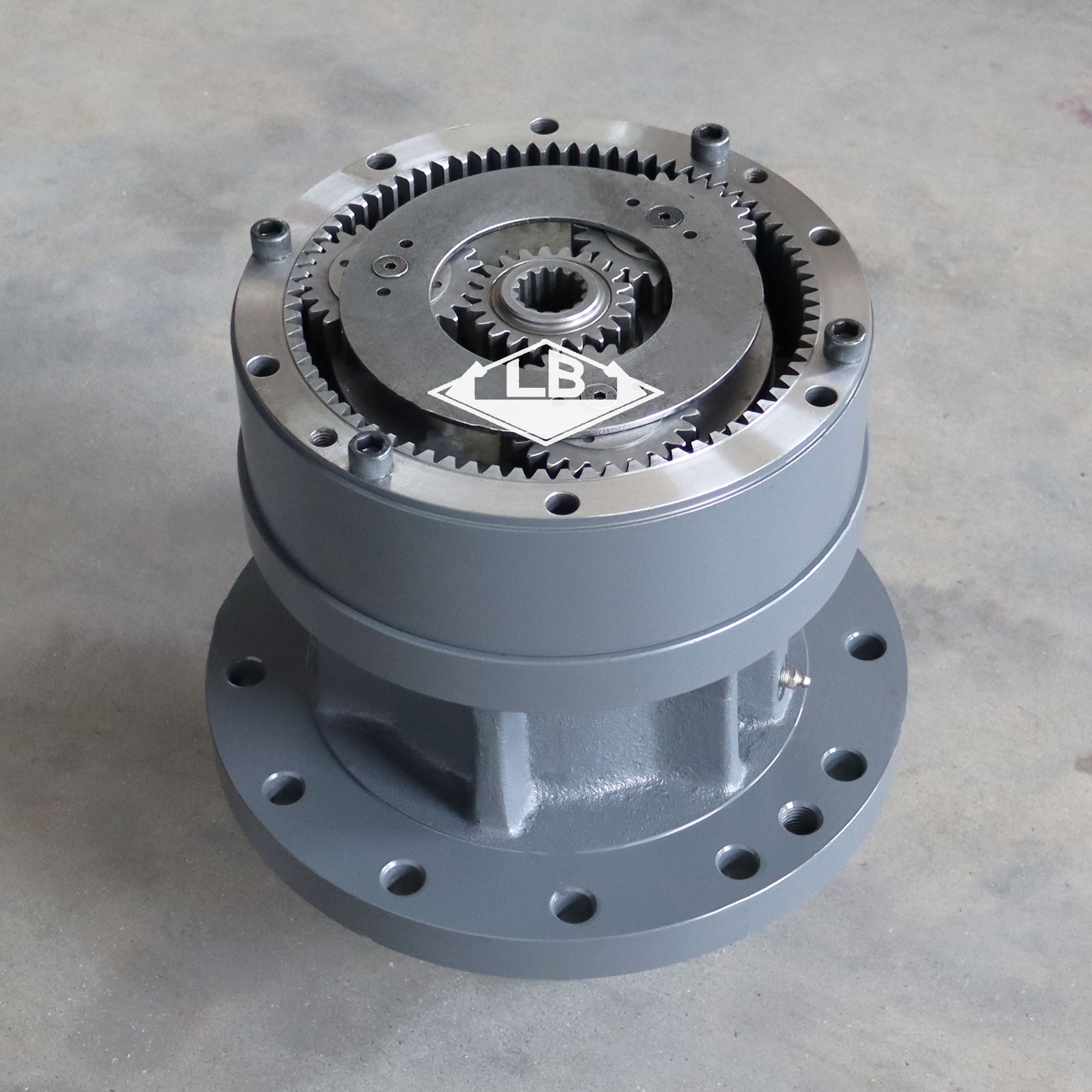

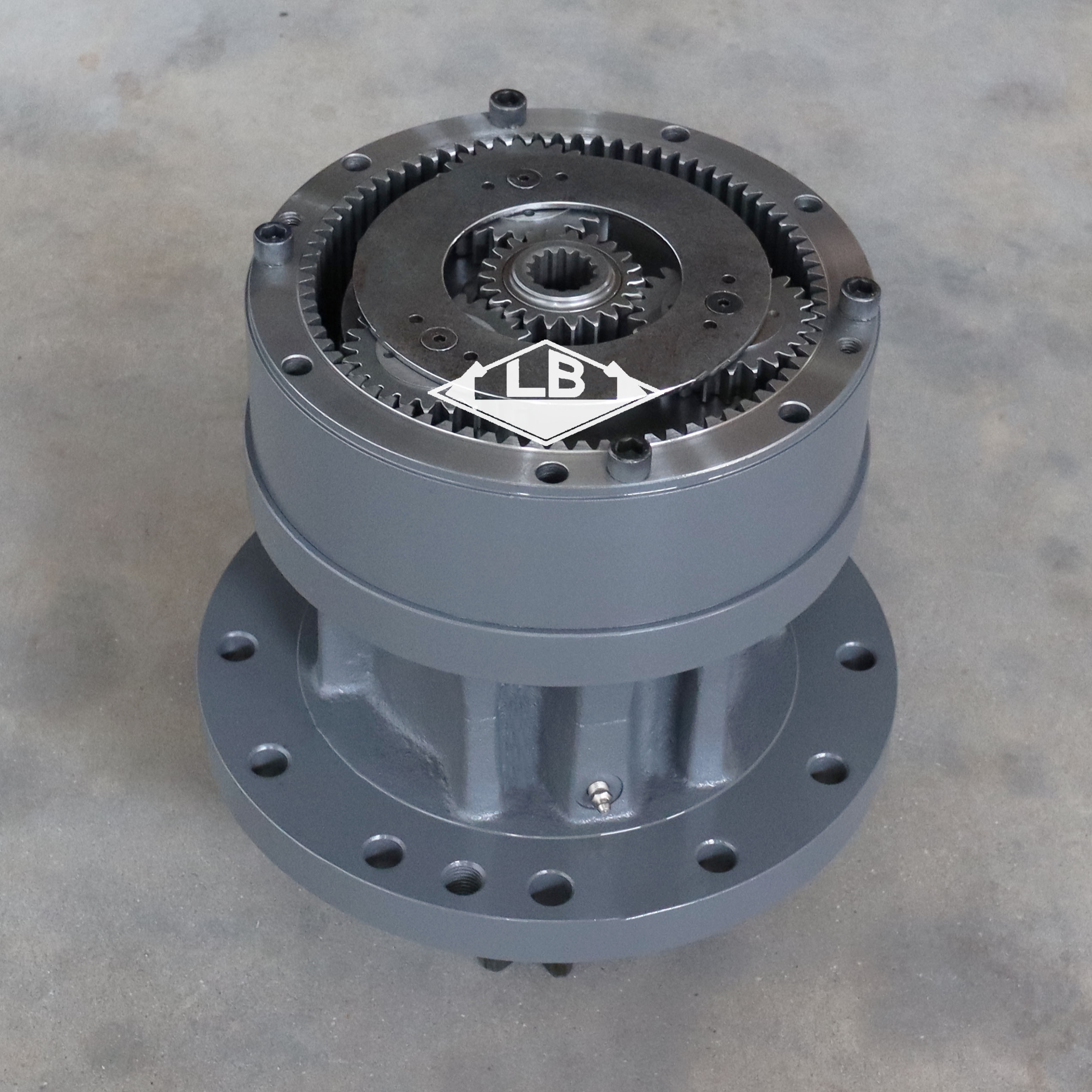

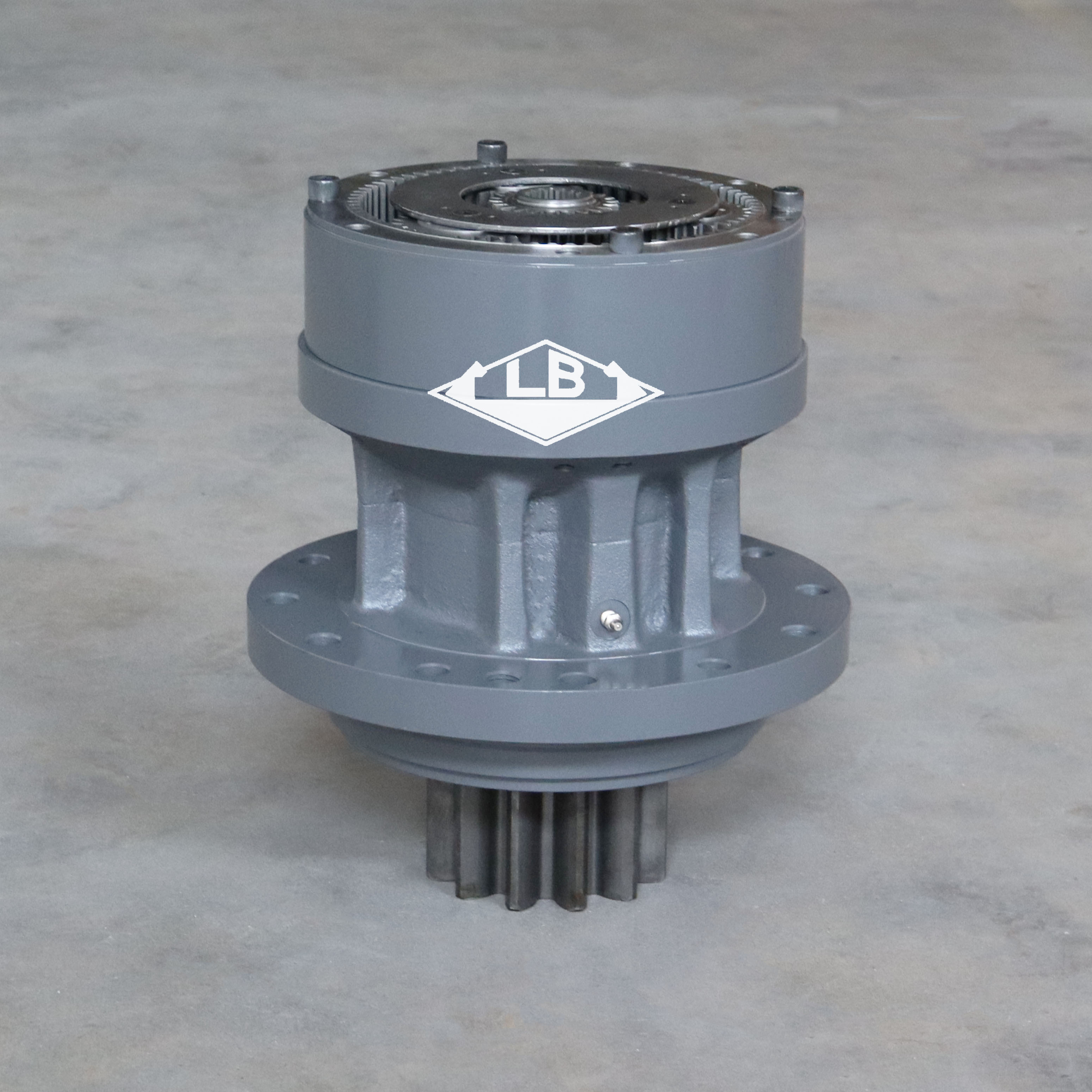

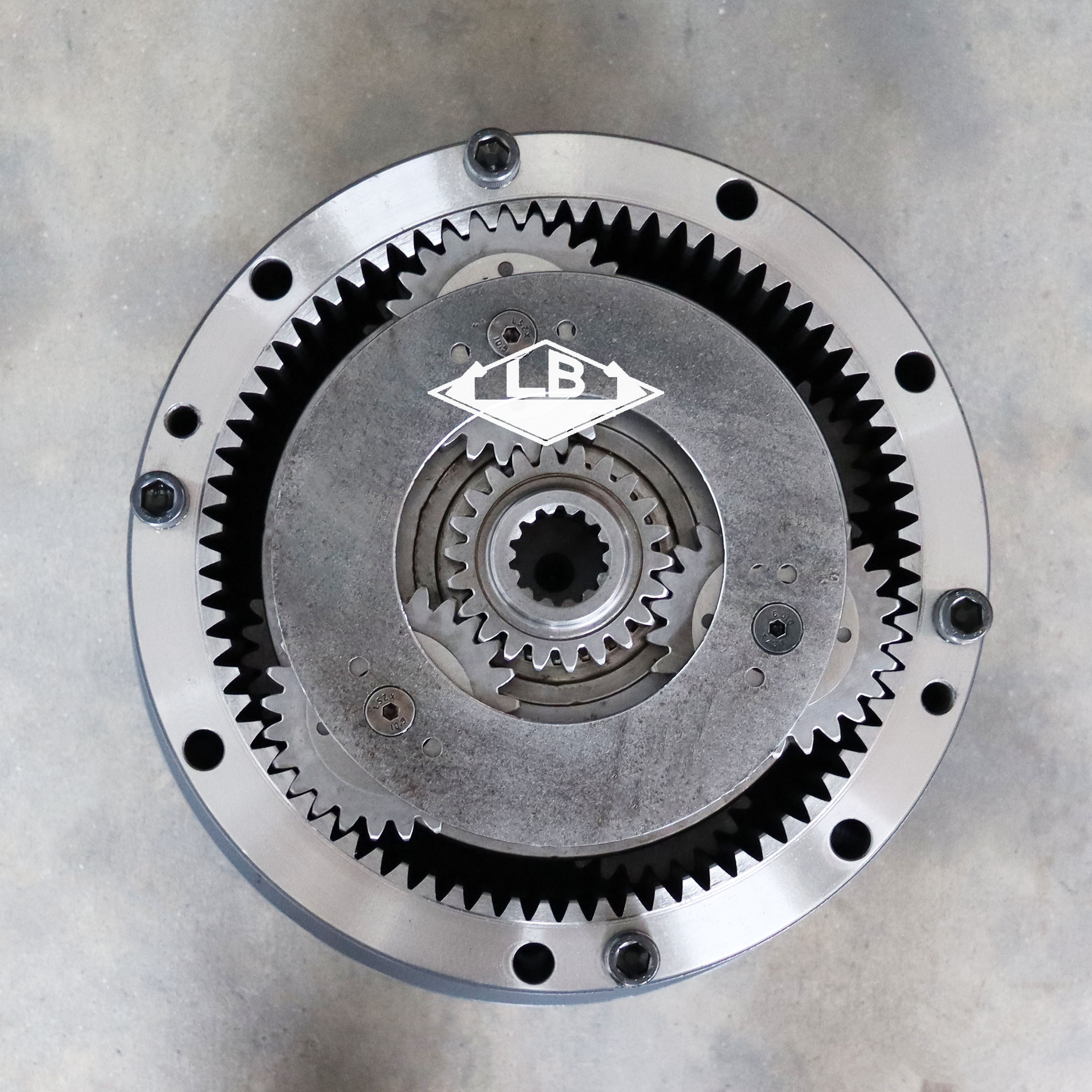

| Part name | EC160 EC180 swing gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | VOE14540719 VOE14541067 | |||||
| NO.1 sun gear spline teeth | ||||||
| Swing pinion shaft teeth | ||||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 290KG | |||||
| MOQ | 1 pc | |||||

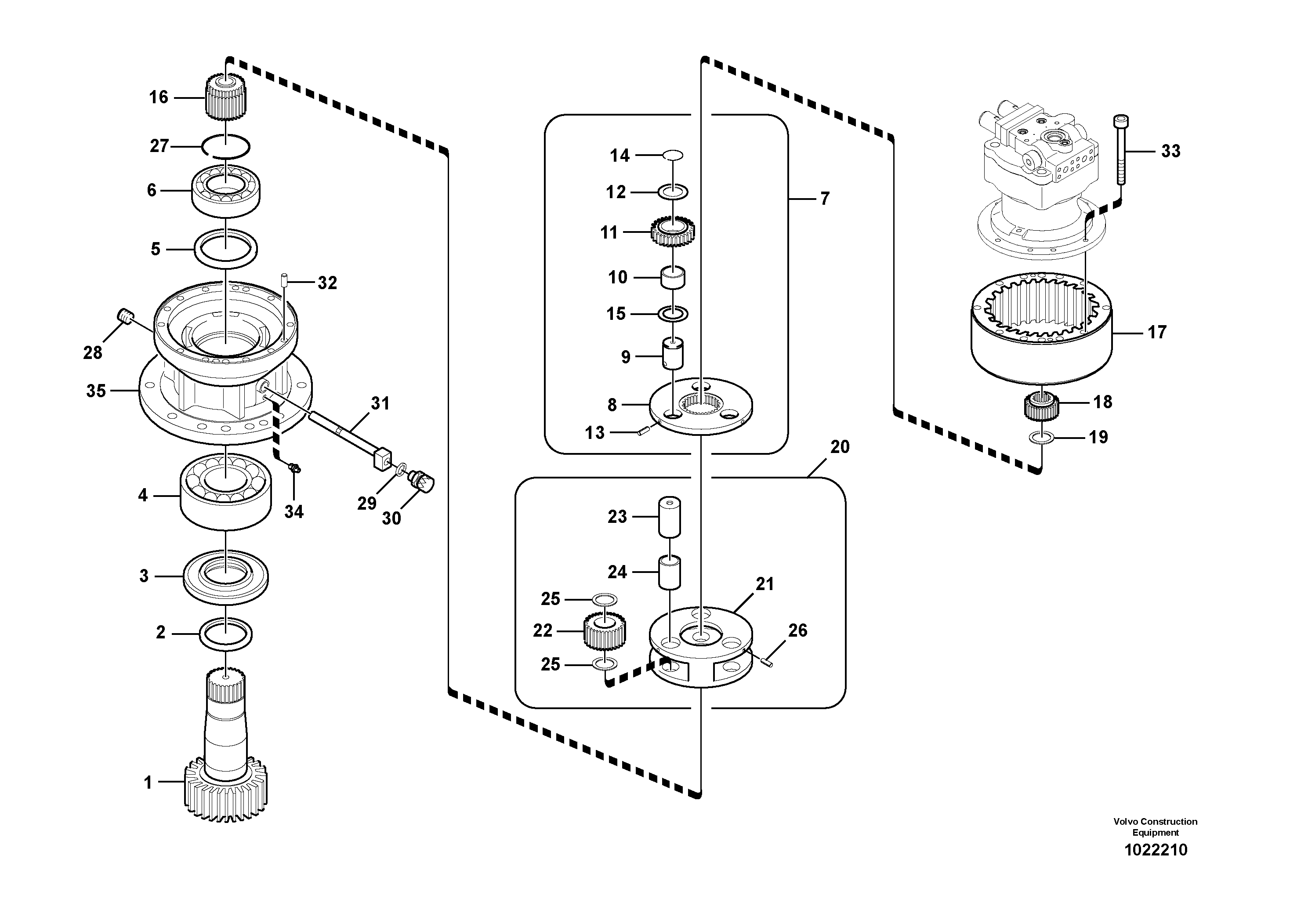

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14540719 | [1] | Swing gearbox | ||
| 1. | VOE14515058 | [1] | Shaft | |
| 2. | VOE14515059 | [1] | Collar | |
| 3. | VOE14515060 | [1] | Ring | |
| 4. | VOE14515061 | [1] | Bearing | |
| 5. | VOE14515063 | [1] | Seal | |
| 6. | VOE14516440 | [1] | Bearing | |
| 7. | VOE14515067 | [1] | Planet carrier | No.1 |
| 8. | VOE14515068 | [1] | Carrier | |
| 9. | VOE14515069 | [3] | Bearing spindle | |
| 10. | VOE14515071 | [3] | Bearing | |
| 11. | VOE14515072 | [3] | Gear | |
| 12. | SA7114-32620 | [3] | Thrust washer | |
| 13. | SA9325-06012 | [3] | Spring pin | |
| 14. | SA9541-01032 | [3] | Retaining ring | |
| 15. | VOE14515070 | [3] | Washer | |
| 16. | VOE14515066 | [1] | Gear | |
| 17. | VOE14588467 | [1] | Gear | |
| 18. | SA7118-27310 | [1] | Gear | |
| 19. | SA1036-00120 | [1] | Thrust washer | |
| 20. | VOE14515064 | [1] | Planet carrier | No.2 |
| 21. | SA7118-27241 | [1] | Planet carrier | |
| 22. | VOE14515065 | [4] | Gear | |
| 23. | SA7118-23240 | [4] | Pin | |
| 24. | SA7118-23250 | [4] | Bushing | |
| 25. | SA7147-00150 | [8] | Thrust washer | |
| 26. | SA9325-06012 | [4] | Spring pin | |
| 27. | SA9541-01085 | [1] | Retaining ring | |
| 28. | SA9415-43012 | [1] | Plug | |
| 29. | VOE949329 | [1] | Gasket | |
| 30. | VOE14722461 | [1] | Draining valve | |
| 31. | VOE14540597 | [1] | Pipe | |
| 32. | SA9324-21212 | [2] | Pin | |
| 33. | VOE984358 | [10] | Hex. socket screw | |
| 34. | VOE914167 | [1] | Lubricating nipple | |
| 35. | VOE14549714 | [1] | Case |
