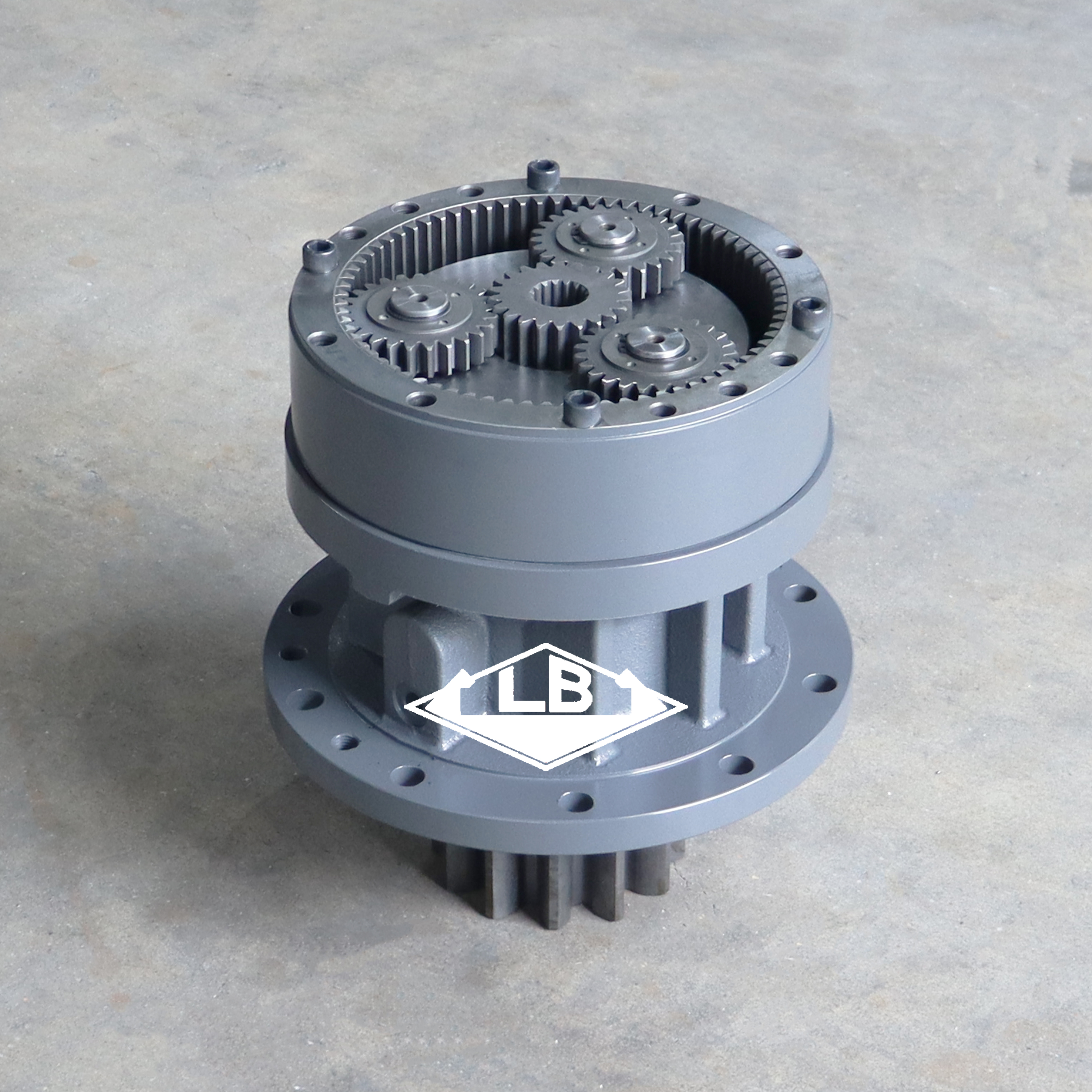

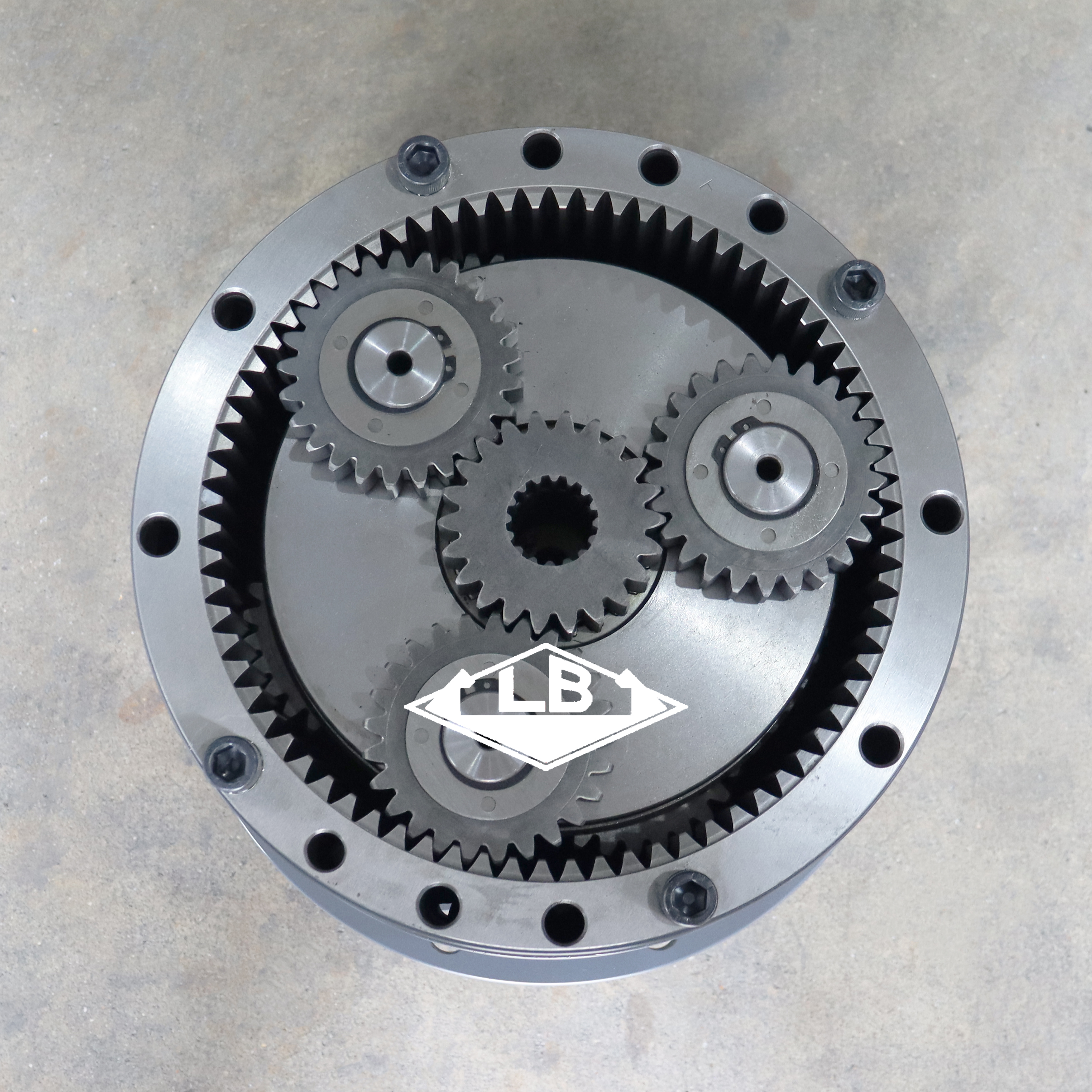

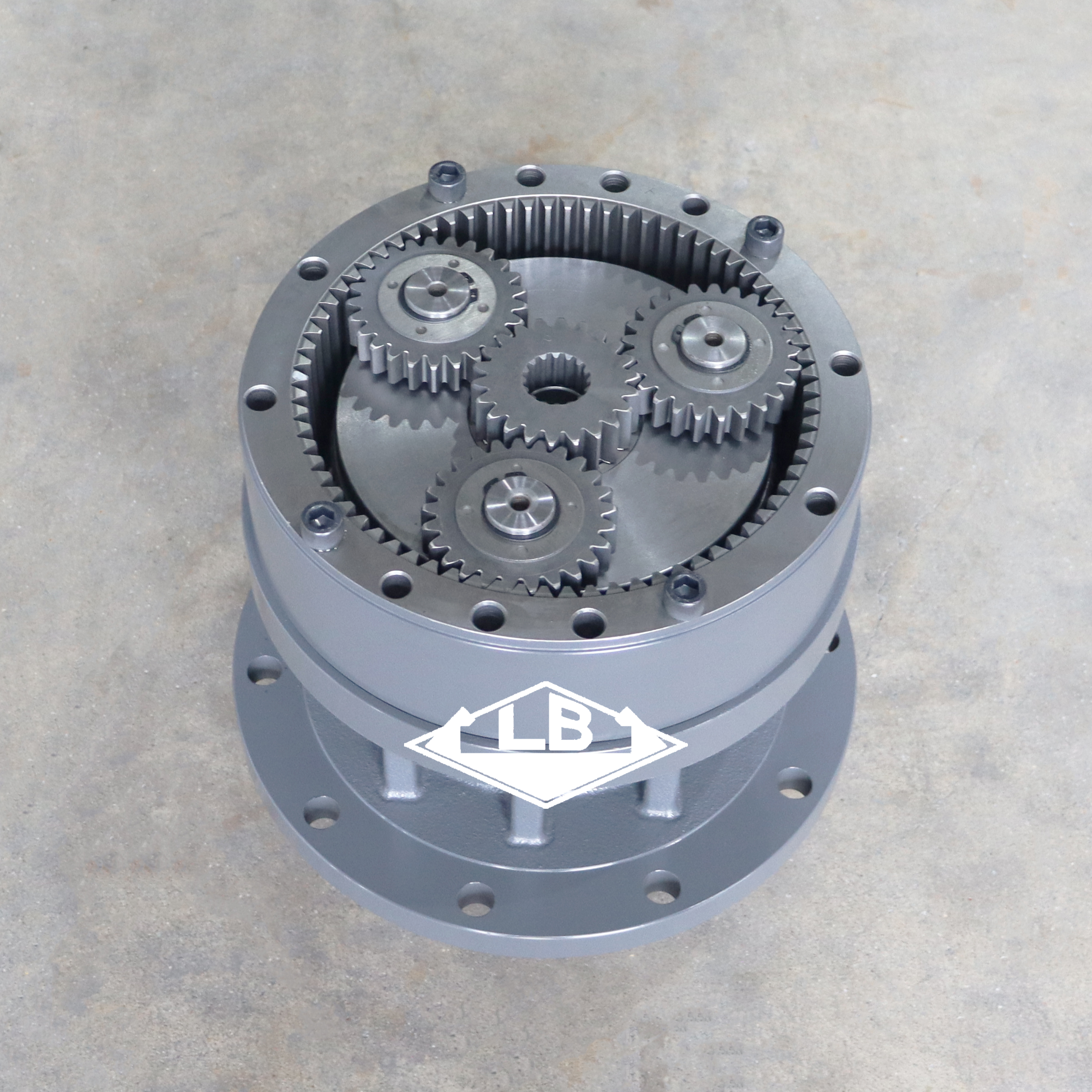

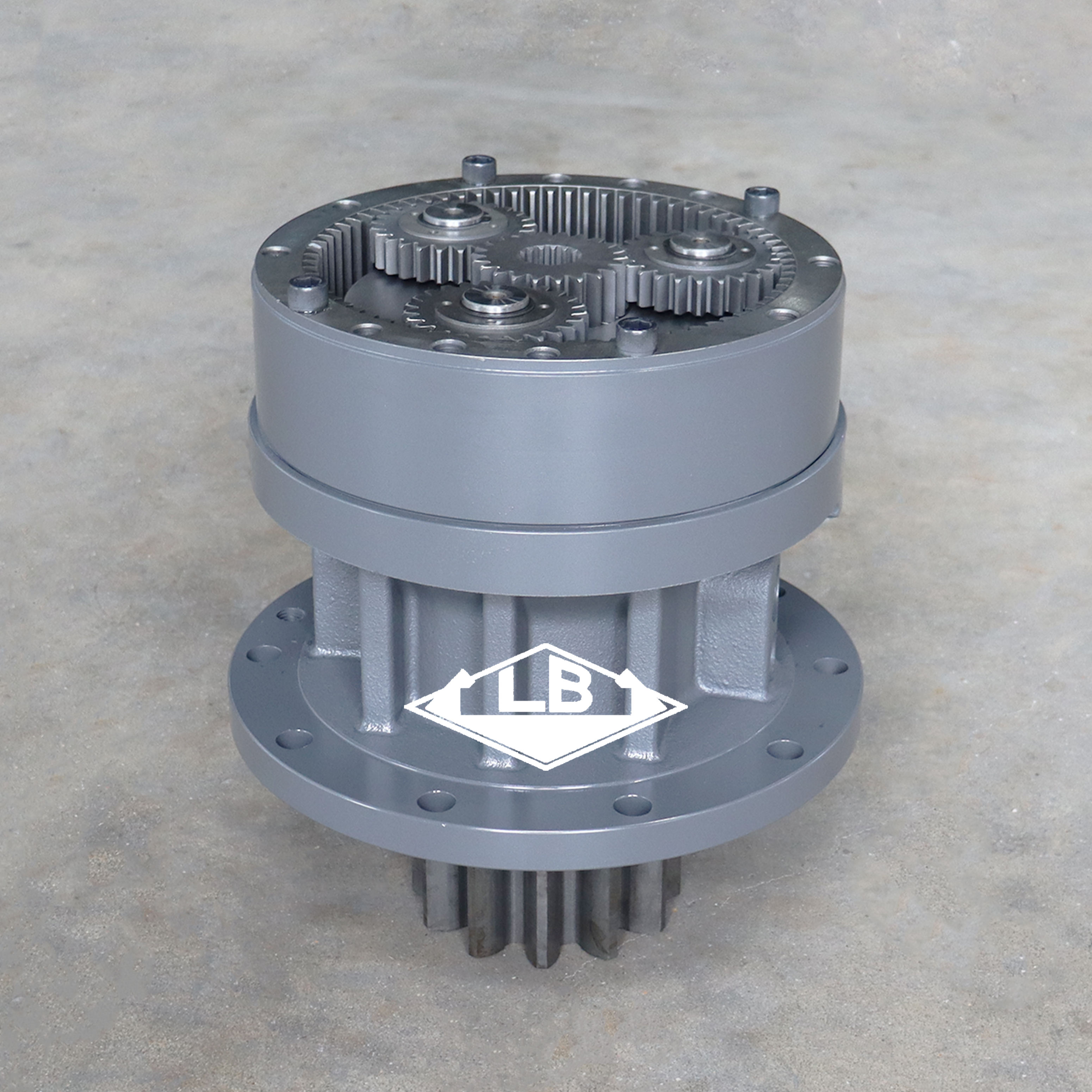

EC140C EC140D SWING REDUCER VOE14540907 SWING GEARBOX FOR VOLVO EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name

EC140C EC140D Swing gearbox
Equipment Apply to VOLVO EXCAVATOR
Part no. VOE14540907
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

EC140 回转牙箱(2)EC140 回转牙箱(6)EC140 回转牙箱(8)EC140 回转牙箱（4）EC140 回转牙箱

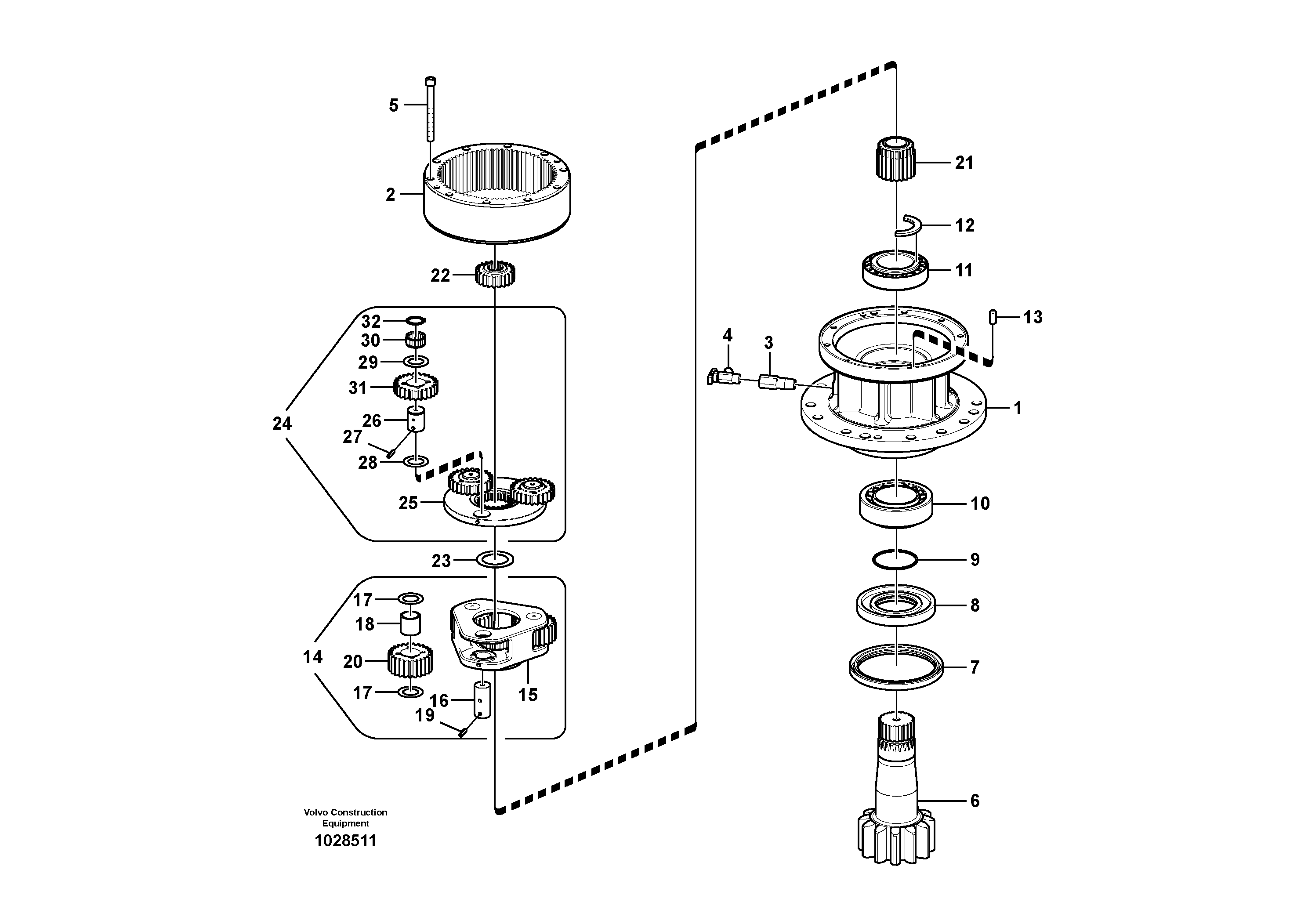

Parts on group Swing gearbox:

Pos. Part No Qty Parts name Comments

VOE14540907 [1] Swing gearbox
1. VOE14566995 [1] Case
2. VOE14588466 [1] Gear
3. SA7118-34510 [1] Adapter
4. VOE14529015 [1] Valve
5. VOE984358 [10] Hex. socket screw
6. VOE14528928 [1] Shaft
7. SA7118-23330 [1] Seal
8. SA7118-23310 [1] Collar
9. VOE990592 [1] O-ring
10. SA7118-23270 [1] Roller bearing
11. SA7118-23280 [1] Roller bearing
12. SA7118-23520 [2] Collar
13. SA9324-21212 [2] Pin
14. SA7118-23200 [1] Planet carrier
15. SA7118-23210 [1] Planet carrier
16. SA7118-23240 [3] Pin
17. SA7147-00150 [6] Thrust washer
18. SA7118-23250 [3] Bushing
19. SA9325-06012 [3] Spring pin
20. SA7118-23220 [3] Planetary gear
21. SA7118-23390 [1] Sun gear
22. SA7118-23490 [1] Gear
23. SA1036-00120 [1] Thrust washer
24. SA7118-23400 [1] Planet carrier
25. SA7118-23410 [1] Planet carrier
26. SA7118-23430 [1] Pin
27. SA9325-06012 [3] Spring pin
28. SA7147-00150 [3] Thrust washer
29. SA7118-23460 [3] Washer
30. SA7118-23440 [3] Needle bearing
31. SA7118-23420 [3] Planetary gear
32. VOE914462 [3] Snap ring
