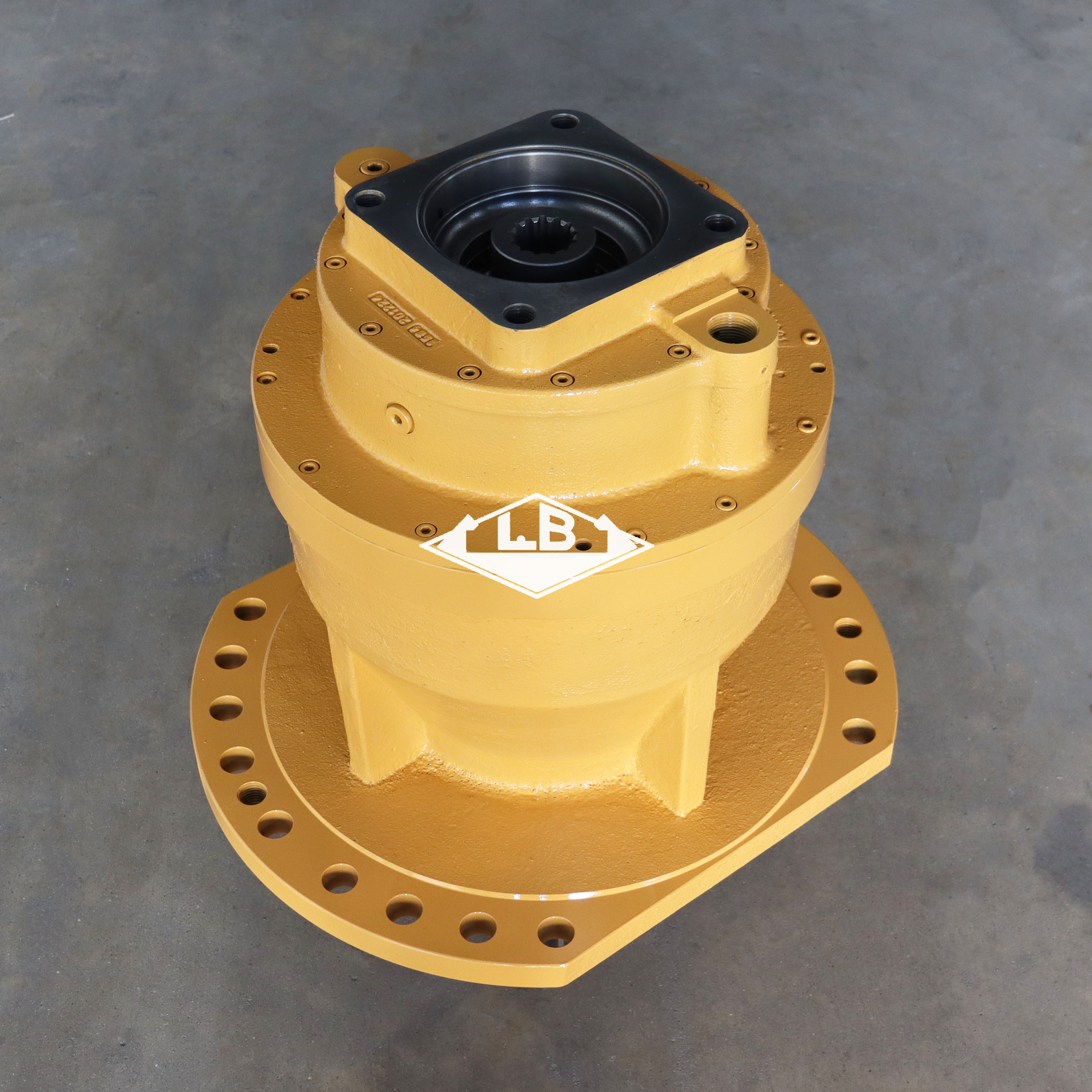

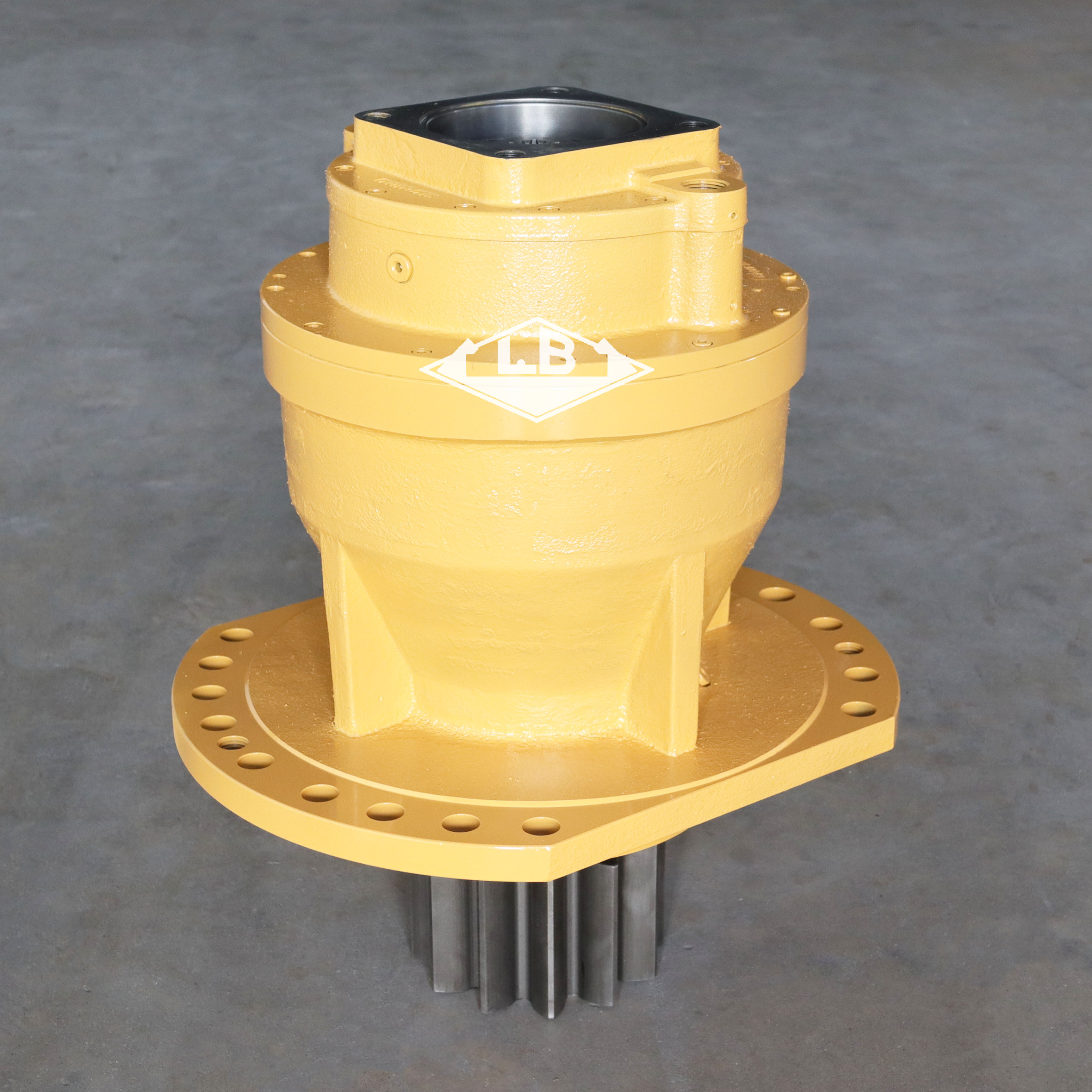

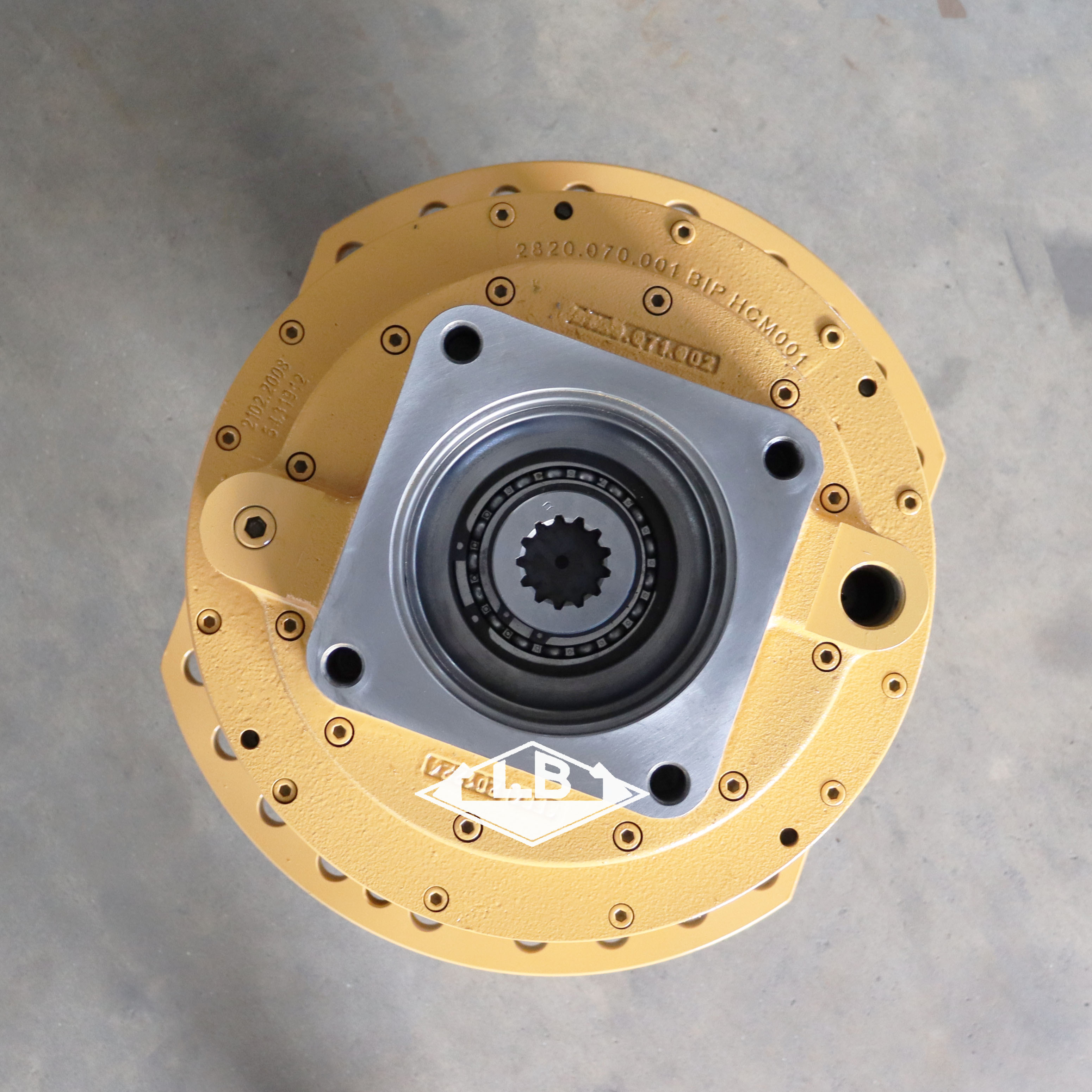

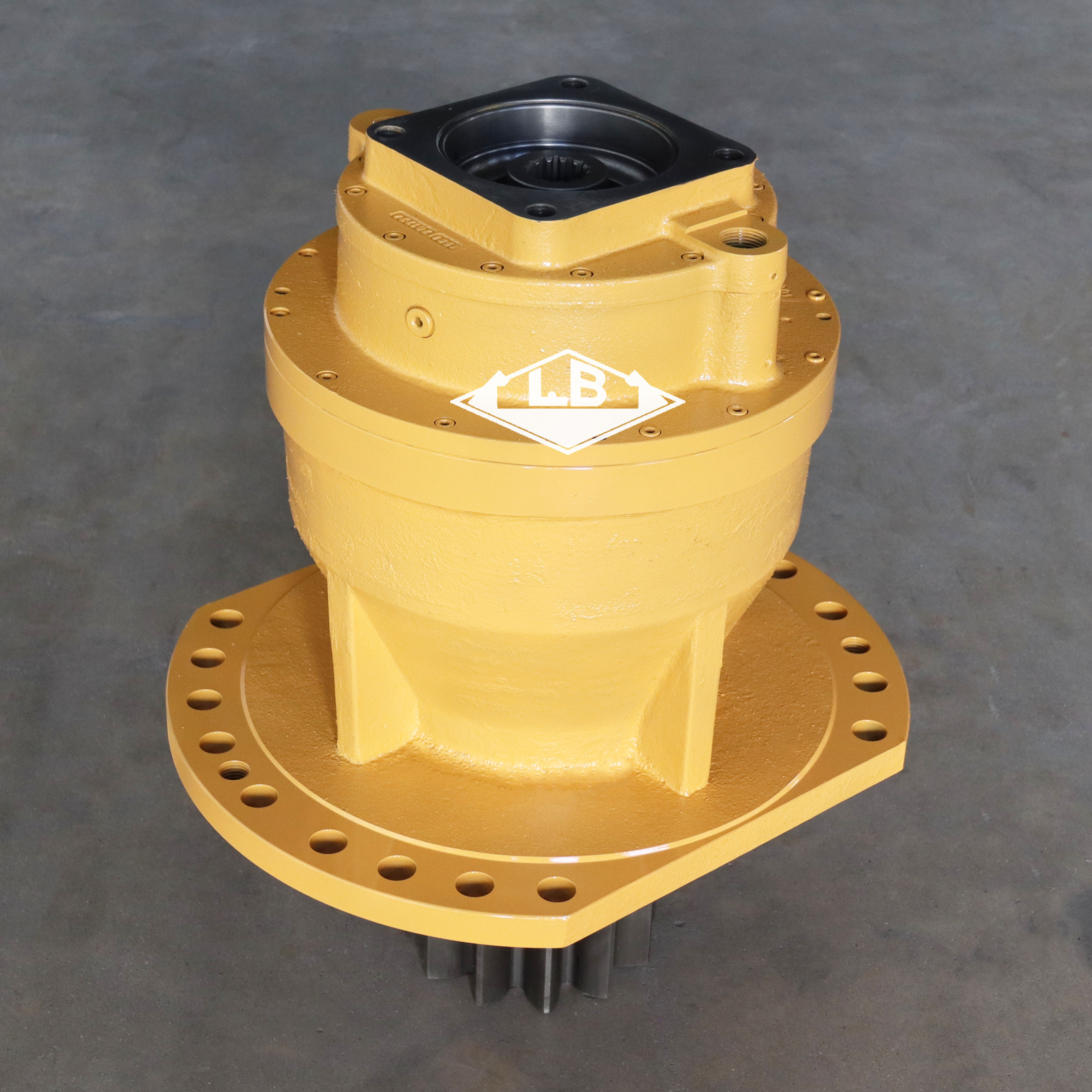

E374GC swing gearbox for excavator 582-8287 600-9606 582-8286 584-2690 Swing Gearbox Reduction Assy

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 E374GC swing gearbox
Equipment Apply to CAT EXCAVATOR
Part no.  582-8287 600-9606 582-8286 584-2690
NO.1 sun gear spline teeth
Swing pinion shaft teeth
Item condition New
Logo LB
Gross weight 290KG
MOQ 1 pc

Product Descriptio

E374GC回转牙箱(8)E374GC回转牙箱(2)E374GC回转牙箱(6)E374GC回转牙箱(4)E374GC

582-8287 DRIVE GP-SWING -LH




S/N XDZ1-UP




PART OF 653-1401 DRIVE GP-SWING




FIELD REPLACEMENT ORDER 600-9606

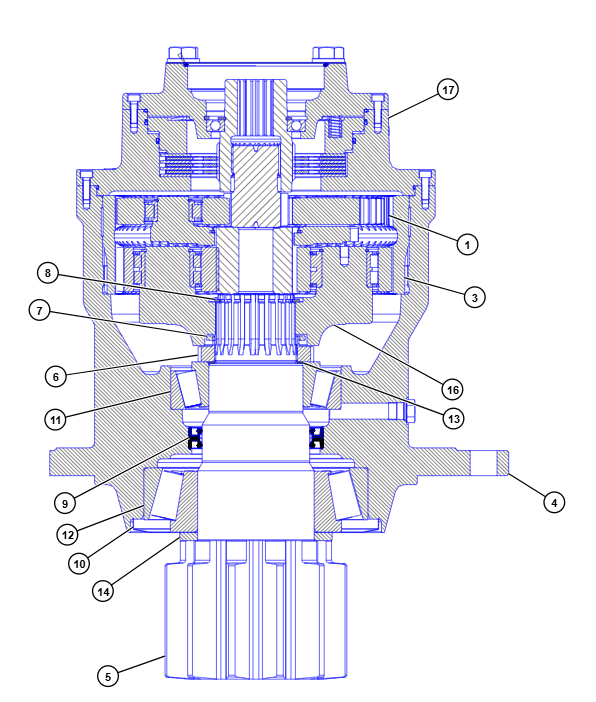

Item Part Number Part Name Quantity CCR Alternate
1 572-0333 Planetary AS
 1


624-2301 Gear-Sun
(16-TEETH)		 1


624-2303 Planetary AS
 1

2 311-0501 Bolt
(M8X1.25X25-MM)		 12

3 567-7126 Gear-Ring
(77-TEETH)		 1

4 595-6580 Housing-Output
 1

5 595-6583 Shaft-Pinion
 1

6 567-7149 Nut-Ring
(M92X2-THD)		 1

7 567-7150 Spacer
(87.99X110X5-MM Thk)		 1

8 567-7151 Ring-Retaining
 1

9 595-6578 Seal
 2

10 595-6585 Ring
 1

11 570-5840 Bearing
 1

12 595-6586 Bearing
 1

13 567-7157 Shim Pack
(Includes 4-SHIMS)		 1

14 595-6587 Ring
 1

15 136-8074 Plug
 2

16 567-7135 Planetary AS
 1

17 612-4577 Brake GP-Swing
 1
