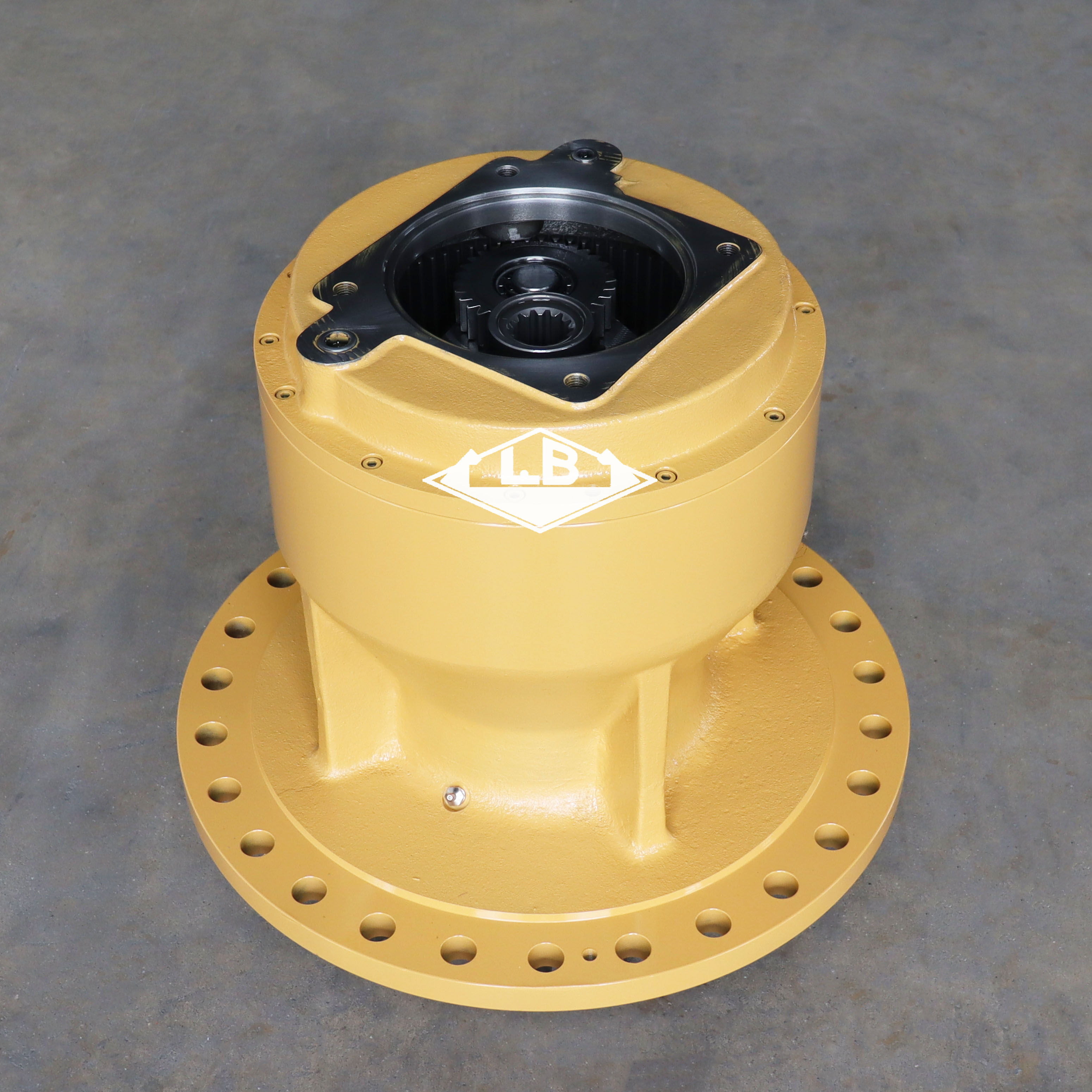

E345GC SWING GEARBOX 584-2681 5842681 536-7294 5367294 For 345GC Excavator parts

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 E345GC swing gearbox
Equipment Apply to CAT EXCAVATOR
Part no. 584-2681 5842681 536-7294 5367294
NO.1 sun gear spline teeth
Swing pinion shaft teeth
Item condition New
Logo LB
Gross weight 290KG
MOQ 1 pc

Product Descriptio

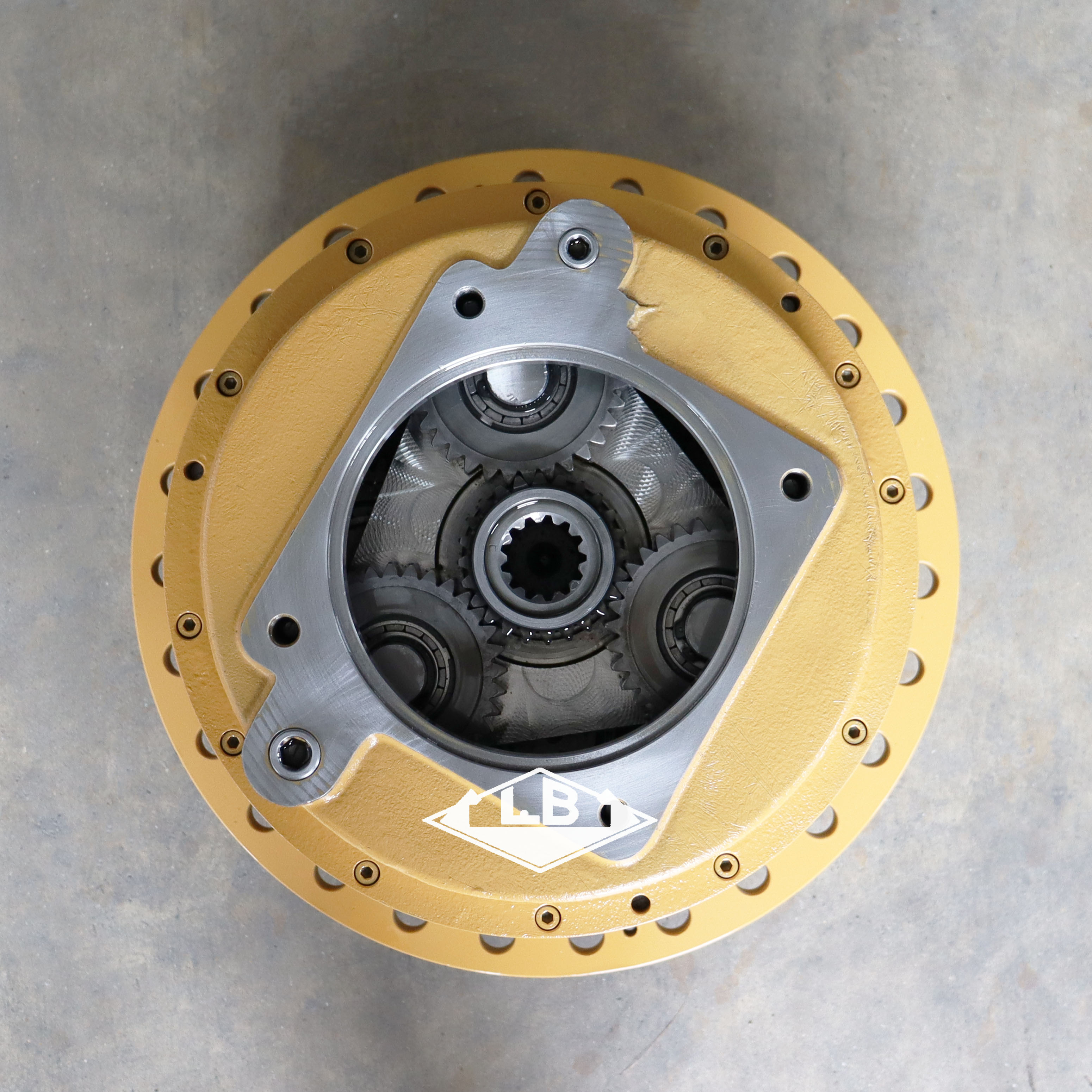

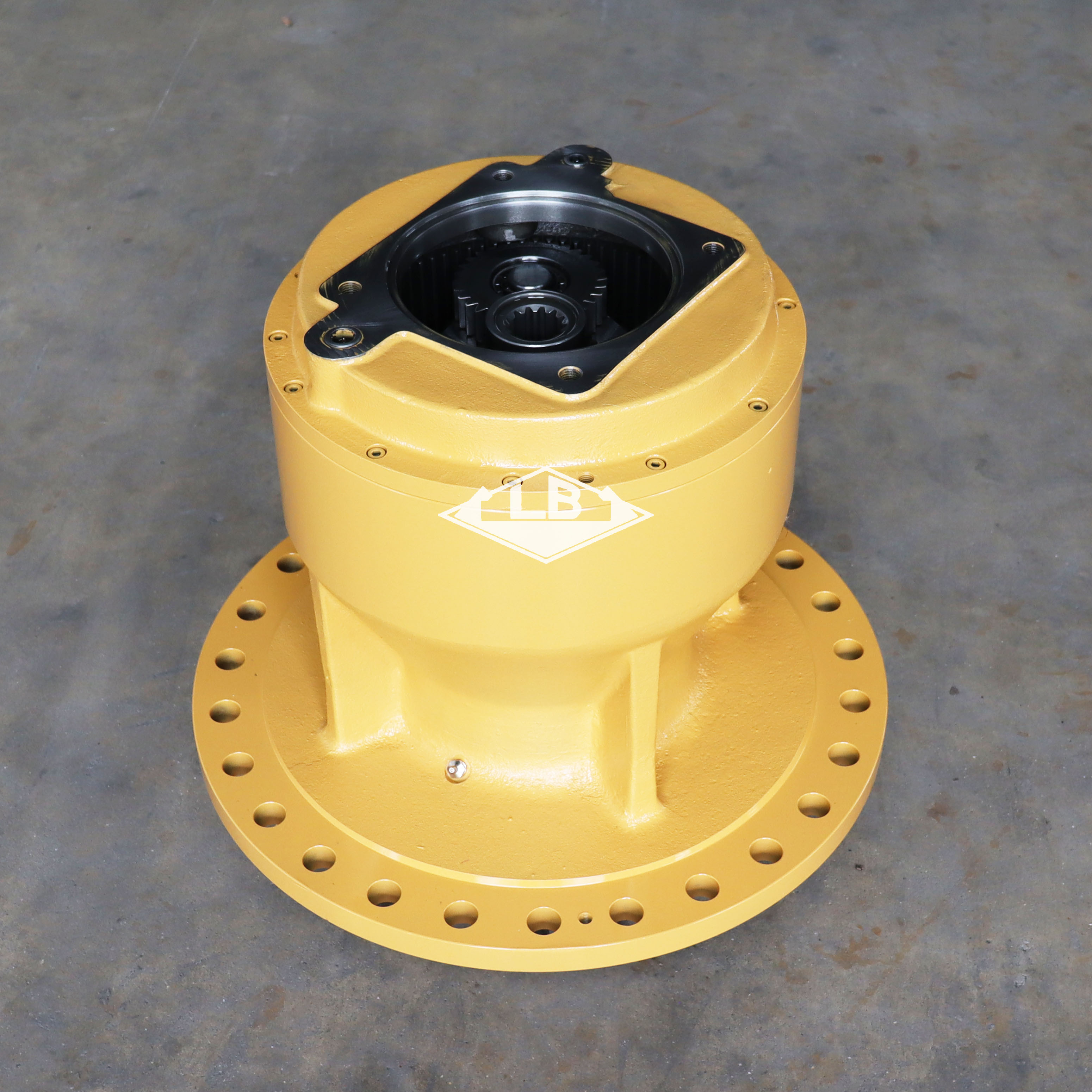

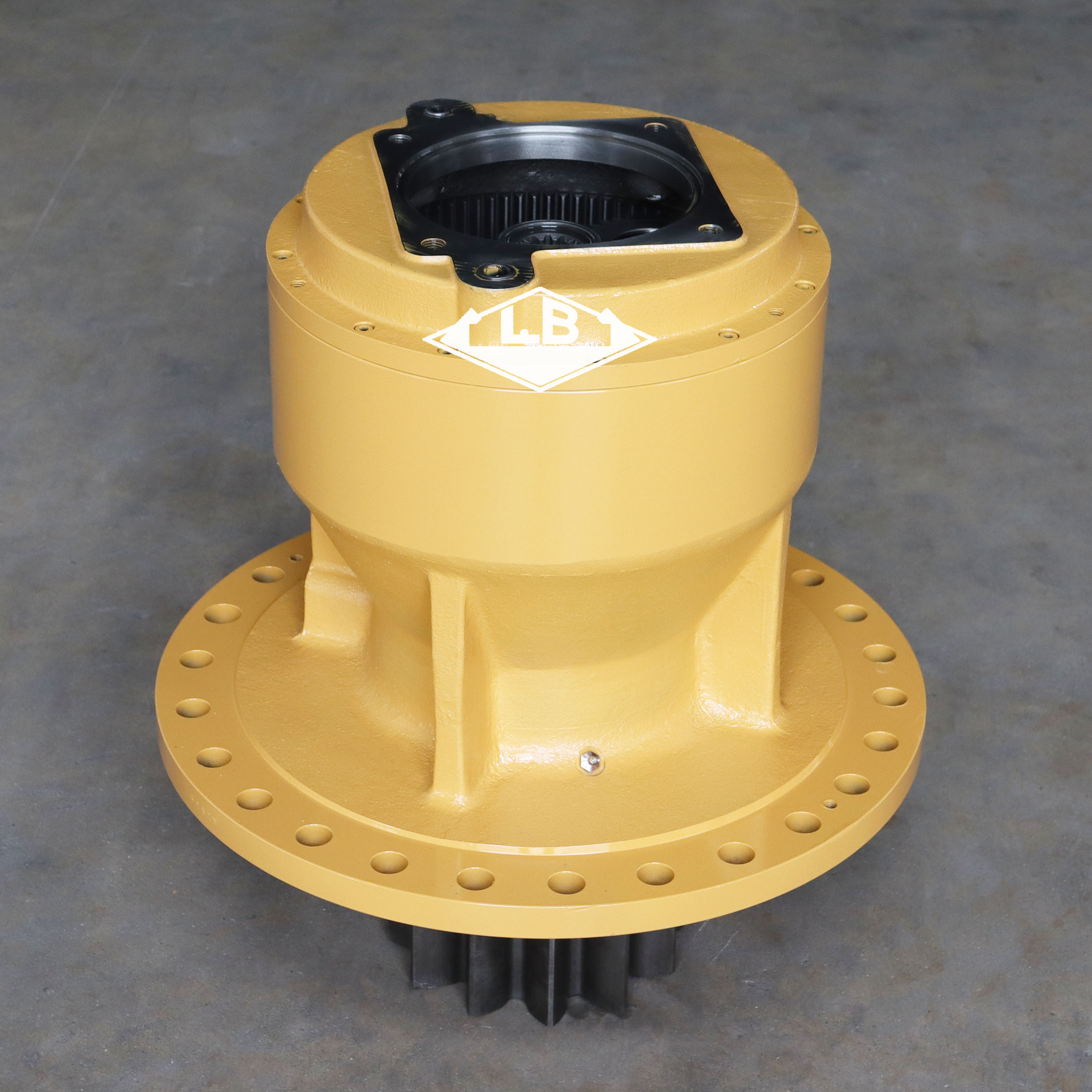

E345GC 回转牙箱(6)E345GC 回转牙箱(8)E345GC 回转牙箱(2)E345GC 回转牙箱(4)E345GC

536-7294 DRIVE GP-SWING




S/N LZX1-UP




PART OF 557-5907 DRIVE GP-SWING




FIELD REPLACEMENT ORDER 584-2681




AN ATTACHMENT

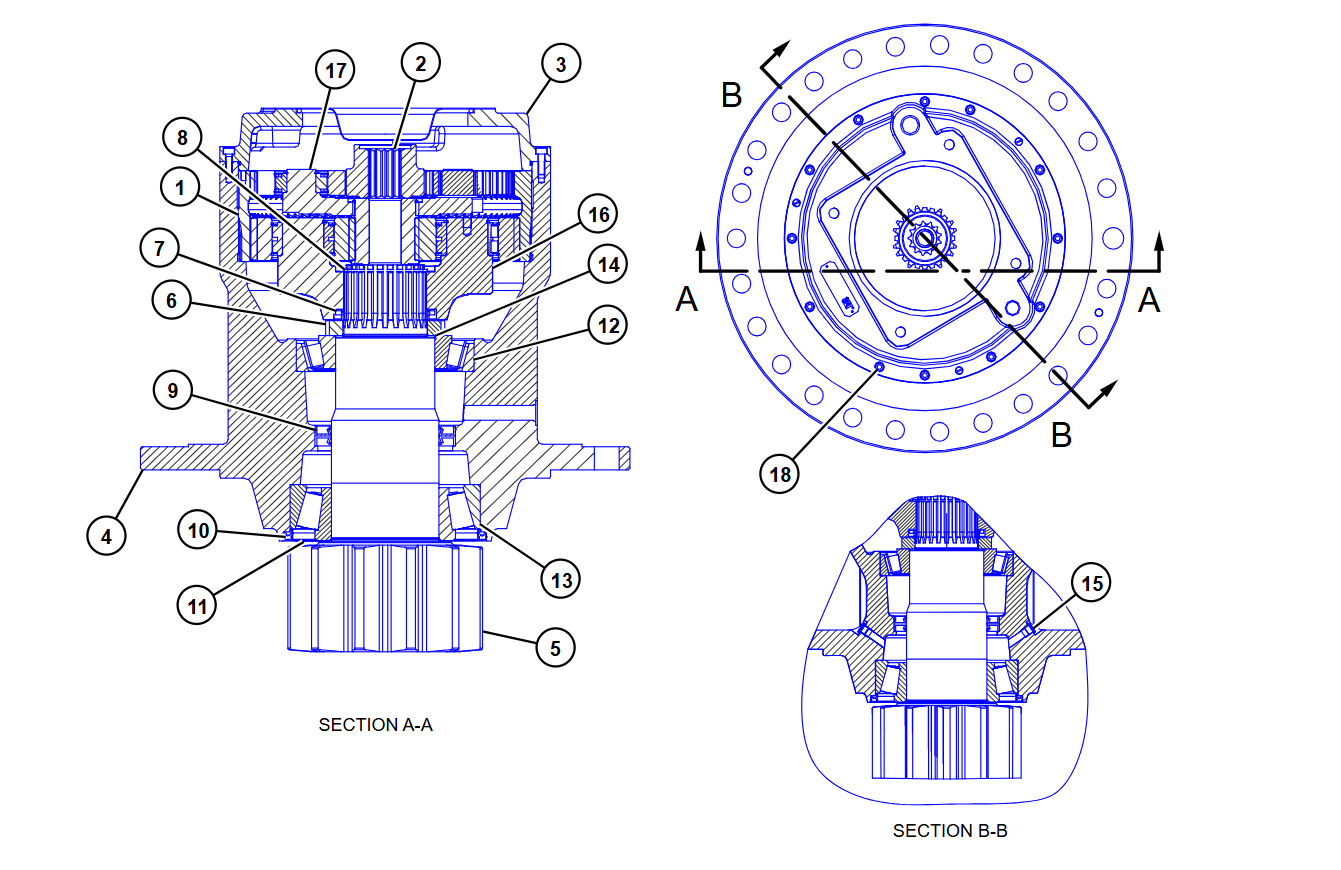

Item Part Number Part Name Quantity CCR Alternate
1 569-4288 Gear-Ring
(90-TEETH)		 1

2 570-5850 Gear-Sun
(24-TEETH)		 1

3 570-5866 Housing AS-Drive
 1


4D-6695 Seal-O-Ring
 1

4 570-5867 Housing-Output
 1

5 570-5868 Shaft-Pinion
 1

6 570-5854 Nut-Ring
(M102X2-THD)		 1

7 570-5855 Spacer
 1

8 570-5856 Ring-Retaining
 1

9 595-6572 Seal
 2

10 570-5858 Seal
 1

11 570-5860 Seal-Ring
 1

12 570-5861 Bearing
 1

13 570-5862 Bearing
 1

14 570-5863 Shim-Pack
(Includes 4-SHIMS)		 1

15 136-8074 Plug
 2

16 570-5864 Planetary AS
 1

17 570-5865 Planetary AS
 1

18 311-0501 Bolt
(M8X1.25X25-MM)		 12
