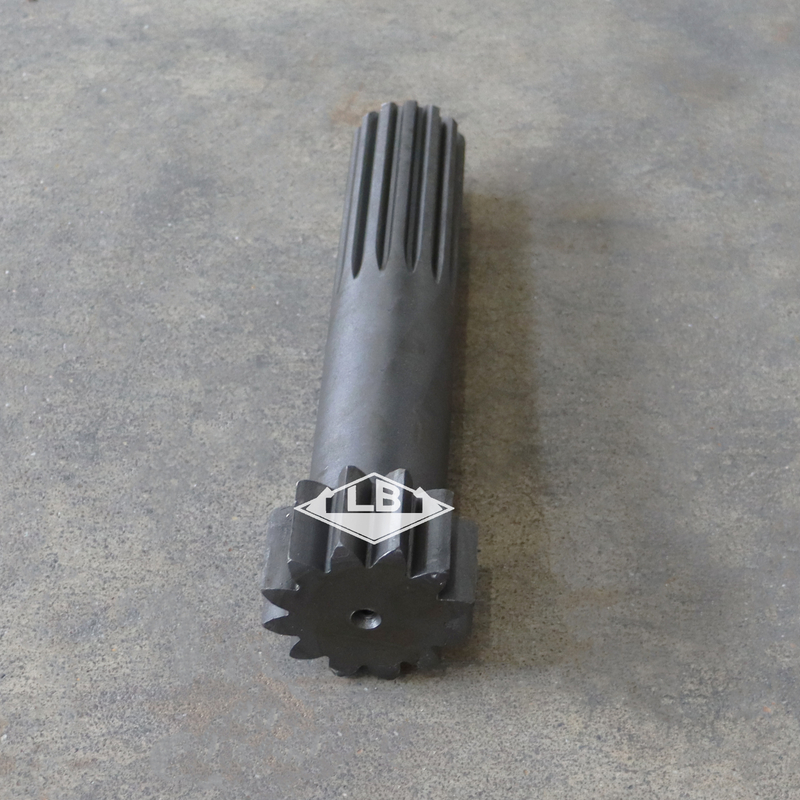

E320D2 E323 SUN GEAR 333-2989 GEARBOX PARTS SUN SHAFT FOR CAT EXCAVATOR

PRODUCT PARAMETERS

Product Description

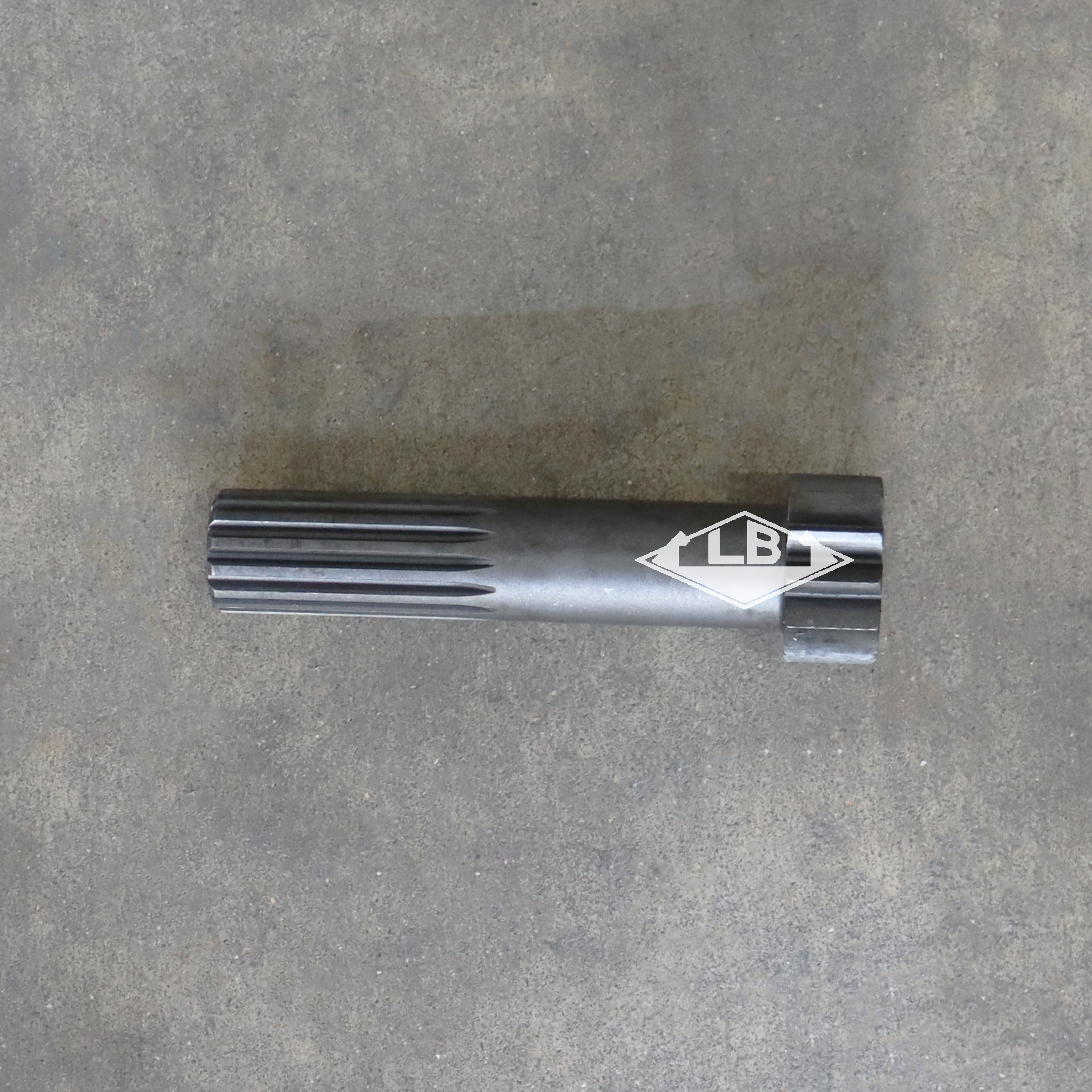

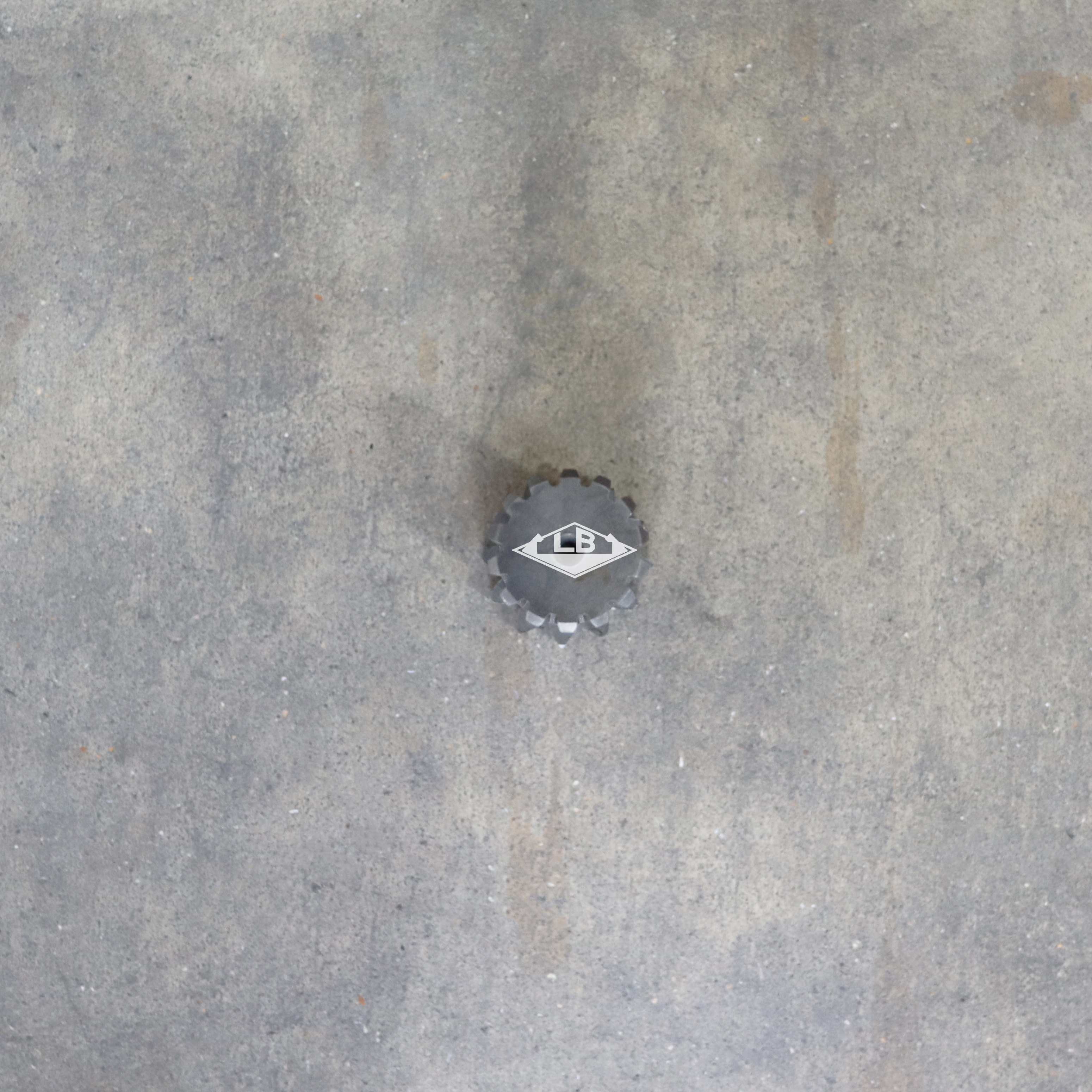

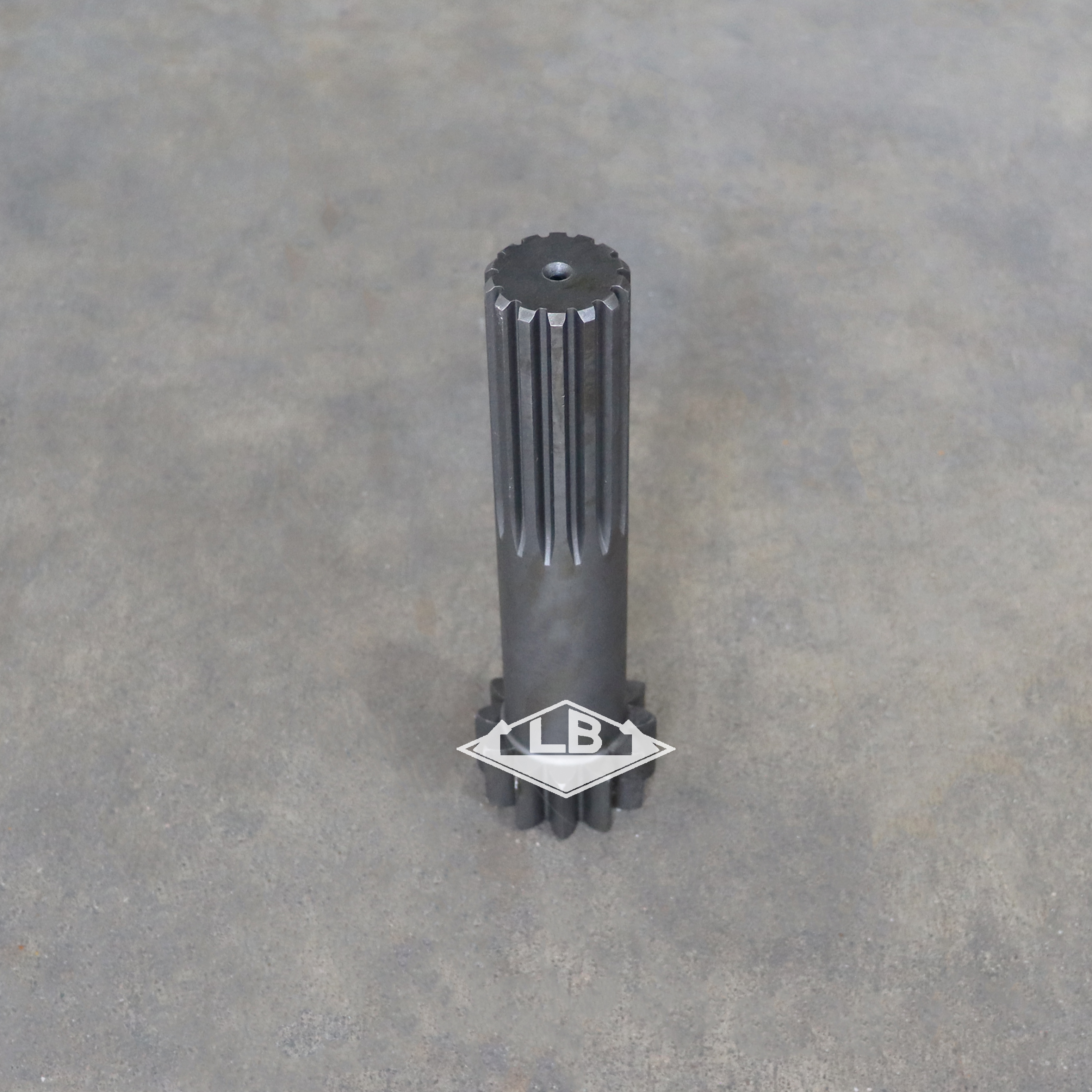

E320C 行走一级中轴(6) E320C 行走一级中轴(4) E320C 行走一级中轴(2) E320C 行走一级中轴(8)

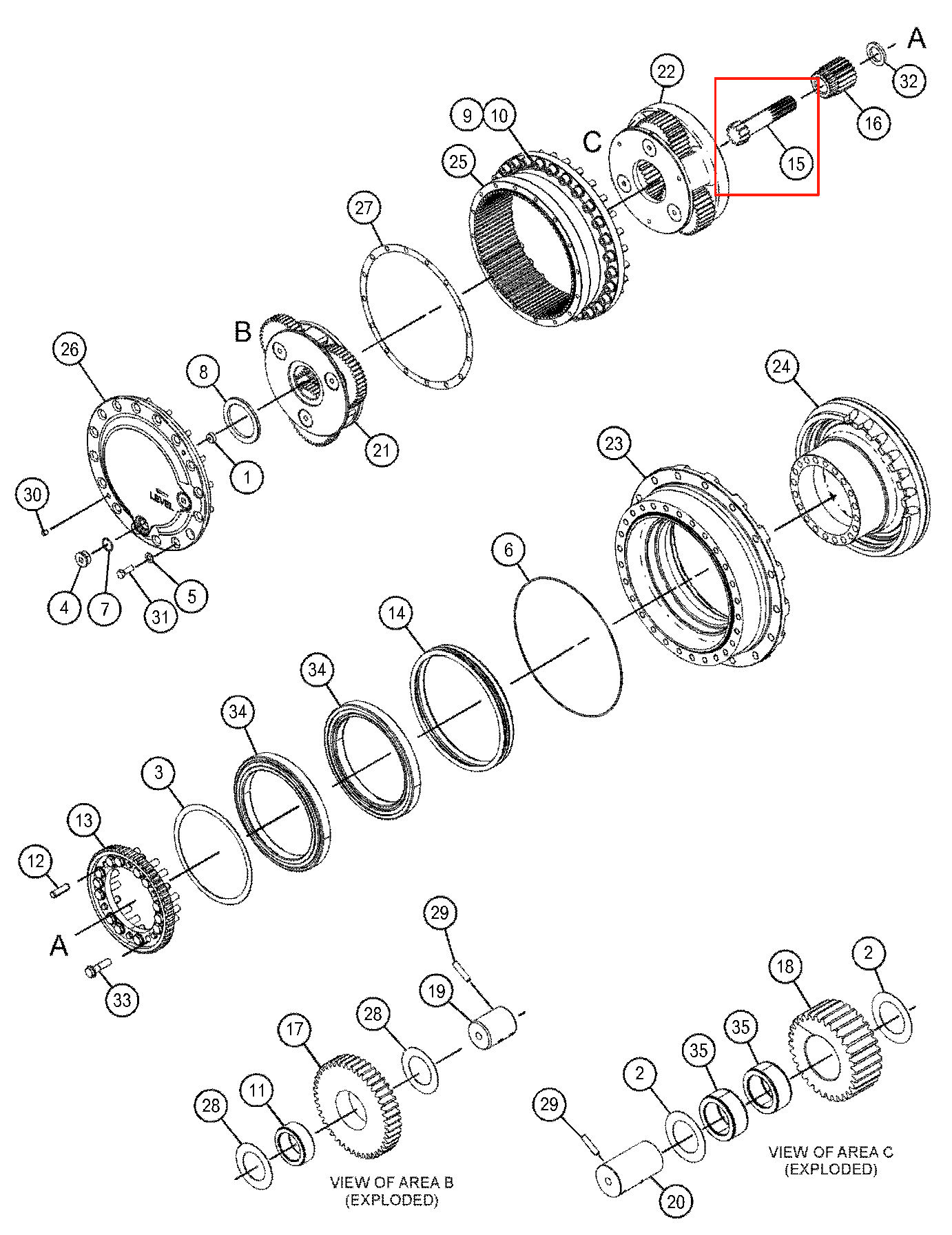

CATERPILLAR SIS

Pos.	Part No	Qty	Parts name
1.	094-0580	[1]	PLATE (10-MM THK)
2.	094-0611	[6]	WASHER (47.3X76X1-MM THK)
3.	096-1773 B	[1]	SHIM (0.15-MM THK)
	096-1774 B	[1]	SHIM (0.3-MM THK)
	096-1775 B	[1]	SHIM (0.4-MM THK)
	096-1776 B	[1]	SHIM (0.5-MM THK)
	096-1777 B	[1]	SHIM (0.6-MM THK)
	096-1778 B	[1]	SHIM (0.7-MM THK)
	096-1779 B	[1]	SHIM (0.8-MM THK)
	096-1780 B	[1]	SHIM (1-MM THK)
	096-1781 B	[1]	SHIM (1.6-MM THK)
4.	3E-2338	[2]	PLUG-PIPE
5.	5P-8245	[16]	WASHER-HARD (13.5X25.5X3-MM THK)
6.	6D-0692	[1]	SEAL-O-RING
7.	7M-8485	[2]	SEAL-O-RING
8.	7Y-1558	[1]	SPACER (90X119.6X7.5-MM THK)
9.	8T-0348 M	[28]	BOLT-SOCKET HEAD (M16X2X50-MM)
10.	9X-8268	[28]	WASHER (17.5X30X3.5-MM THK)
11.	346-5215	[3]	BEARING AS
12.	114-1539	[6]	PIN-DOWEL
13.	148-4715	[1]	GEAR-COUPLING (55-TEETH)
14.	174-4874	[1]	SEAL GP-DUO-CONE
15.	333-2989	[1]	GEAR-SUN (12-TEETH)
16.	333-2990	[1]	GEAR-SUN (18-TEETH)
17.	333-2991	[3]	GEAR-PLANETARY (38-TEETH)
18.	333-2992	[3]	GEAR-PLANETARY (35-TEETH)
19.	333-2993	[3]	SHAFT
20.	333-2994	[3]	SHAFT
21.	333-2995	[1]	CARRIER-PLANETARY
22.	333-2996	[1]	CARRIER-PLANETARY
23.	333-2998	[1]	HOUSING
24.	455-4087	[1]	HOUSING-MOTOR (LH)
25.	457-7977	[1]	GEAR-RING (90-TEETH)
26.	480-6771	[1]	COVER
27.	498-9005	[1]	GASKET
28.	094-0584	[6]	WASHER (40.3X72X1-MM THK)
29.	095-0891	[6]	PIN-SPRING
30.	096-3216 M	[2]	SETSCREW-SOCKET (M12X1.75X12-MM)
31.	143-0811 M	[16]	BOLT (12X1.75X35-MM)
32.	165-5785	[1]	SPACER (40X60.9X1-MM THK)
33.	227-6034 M	[14]	BOLT-FLANGE HEAD (M16X2X60-MM)
34.	296-6220	[2]	BALL BEARING
35.	296-6268	[6]	BEARING AS-ROLLER
	B		USE AS REQUIRED
	M		METRIC PART
