E320C E320D E323 E320D2 CAGE 227-6228 2276228 SWING GEABROX SAPRE PARTS APPLY FOR CAT EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name

E320C E320D E323 E320D2   SWING  GEARBOX
Equipment Apply to CAT EXCAVATOR
Part no. 227-6228 2276228
motor shaft teeth
Item condition New
Logo LB
Gross weight --
MOQ 1 pc


Product Description

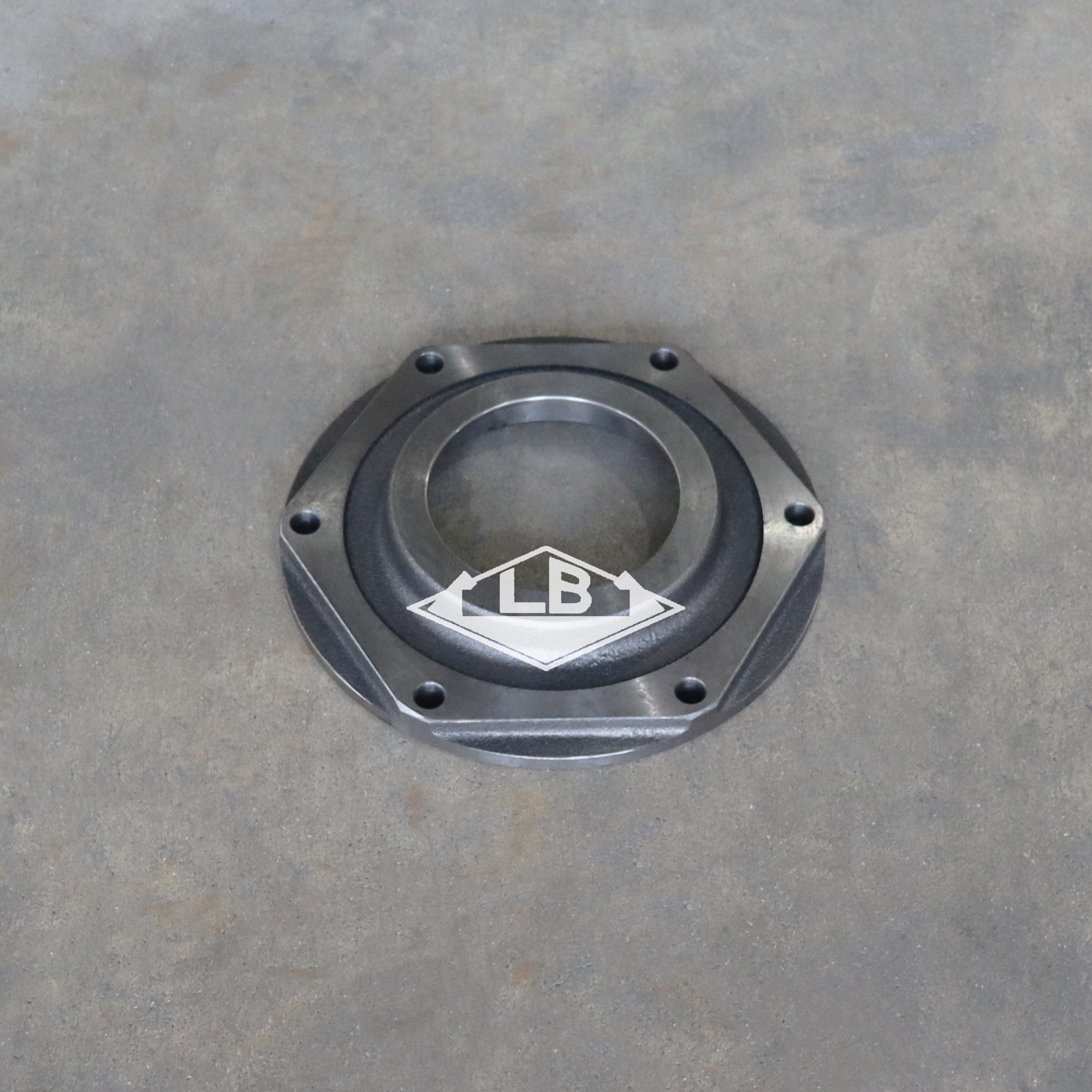

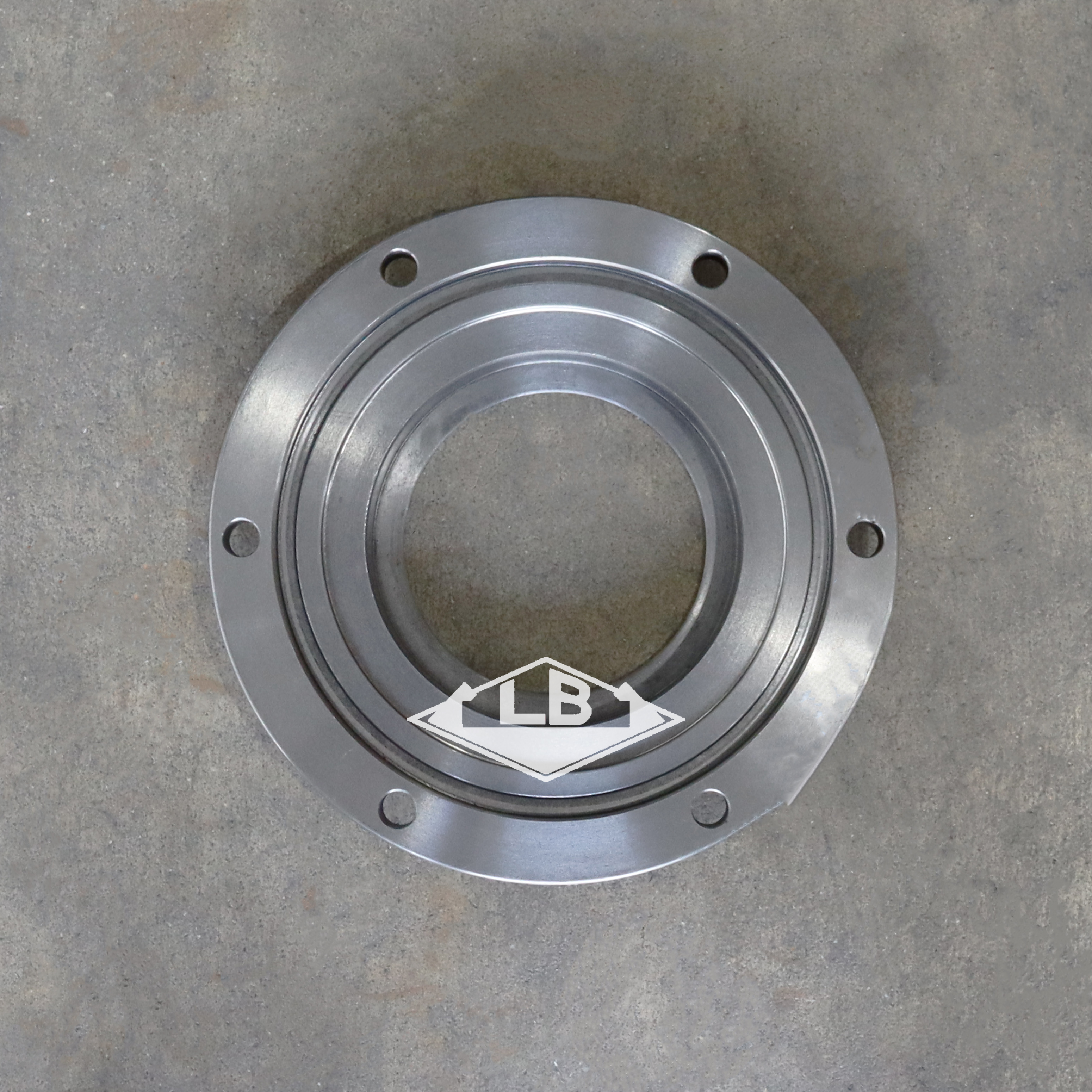

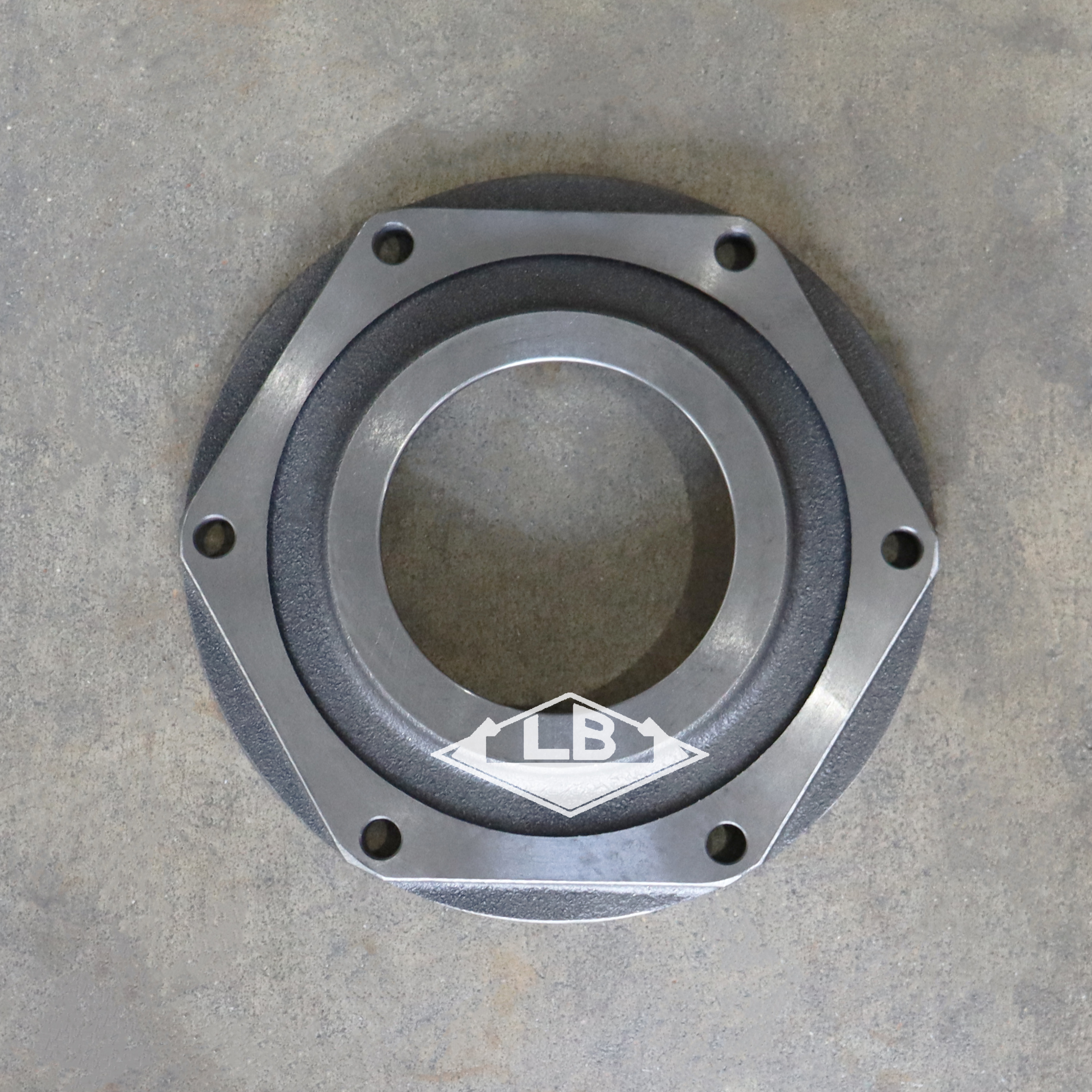

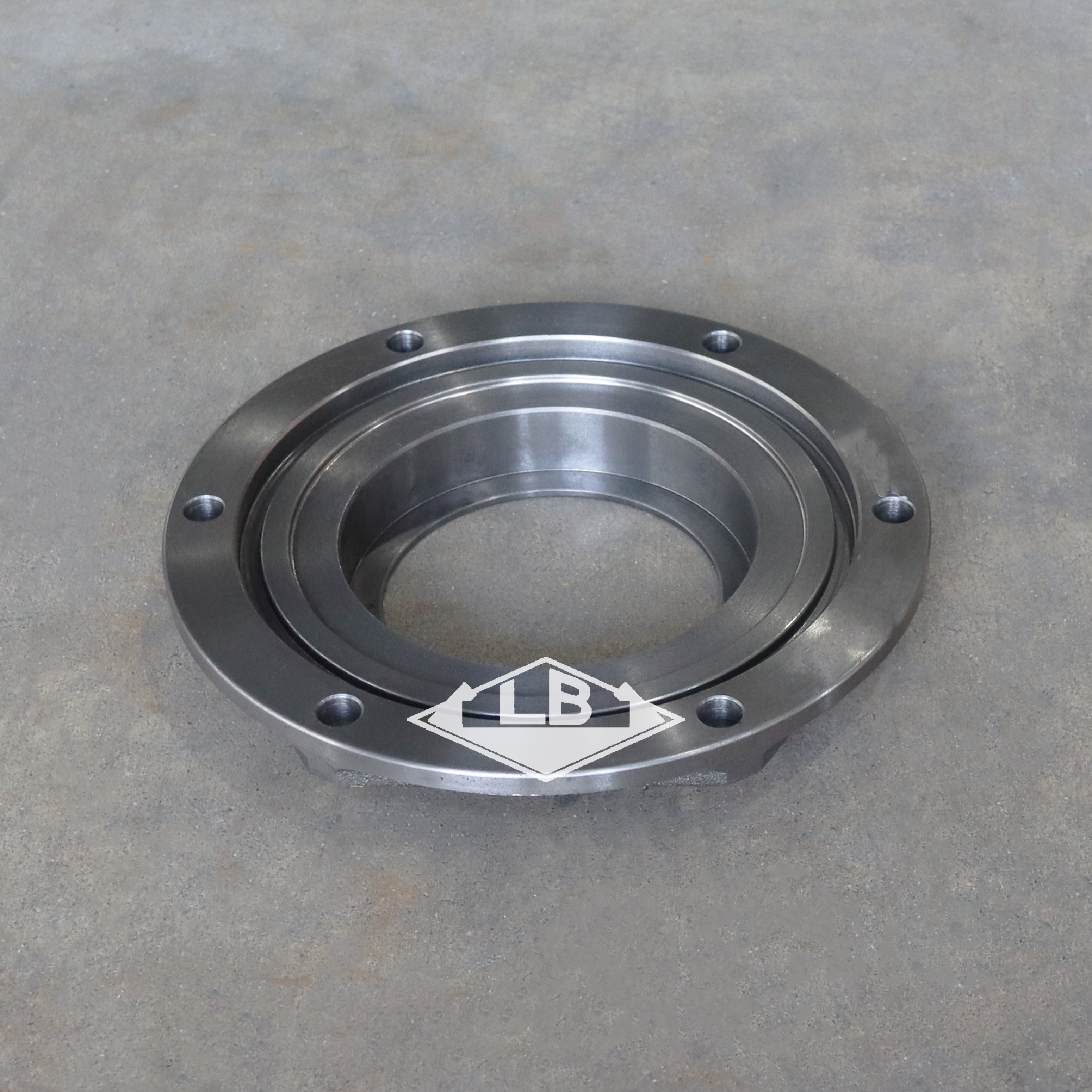

E320C 回转油封盖(8)E320C 回转油封盖(2)E320C 回转油封盖(6)E320C 回转油封盖(4)E320C 回转油封盖

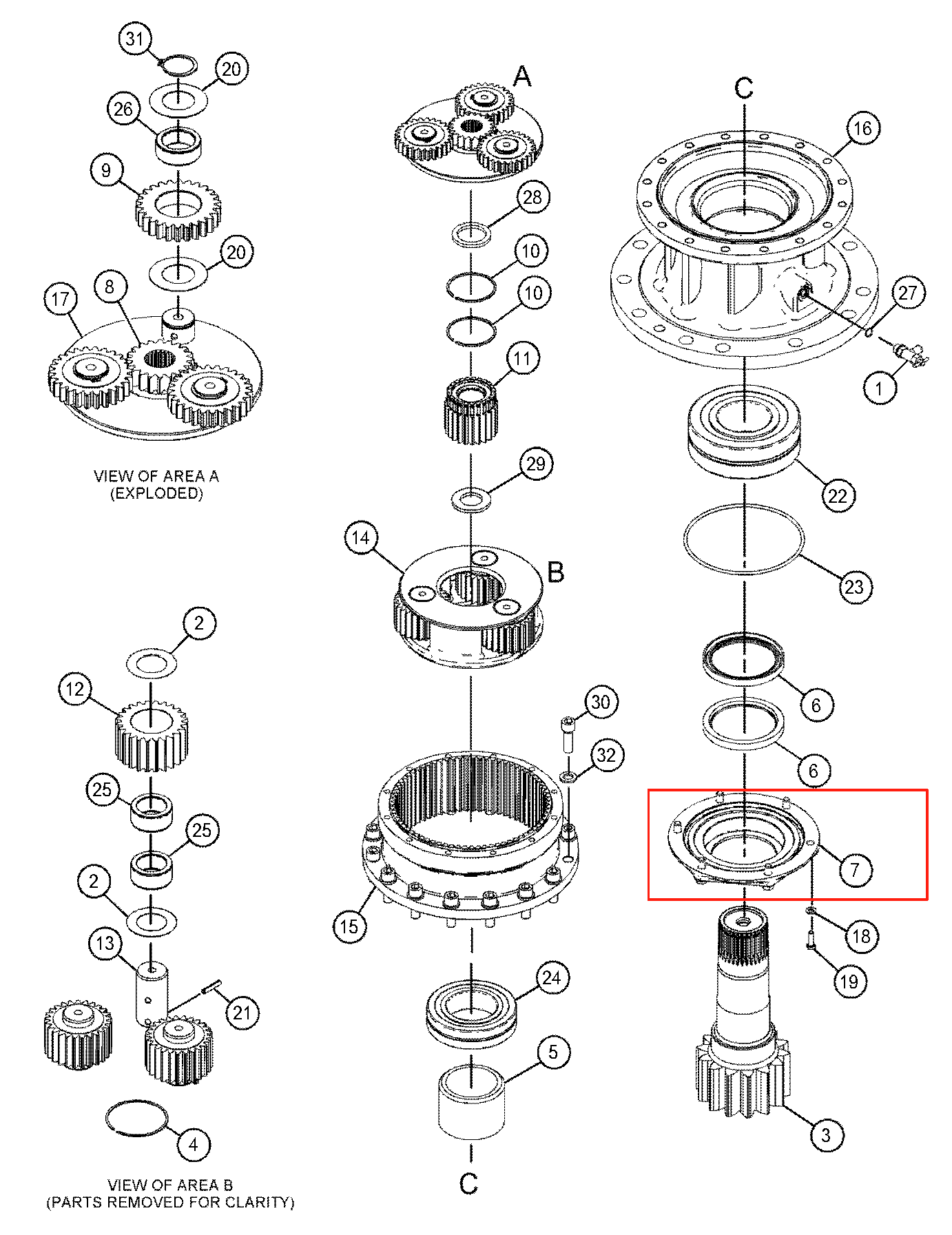

Parts for your 323 EXCAVATOR:

CATERPILLAR SIS

Pos. Part No Qty Parts name Comments
1. 6V-7238 [1] VALVE-SHUTOFF
2. 094-0611 [6] WASHER (47.3X76X1-MM THK)
3. 148-4636 [1] SHAFT-PINION
4. 148-4640 [1] RING-RETAINING
5. 171-9383 [1] SPACER
6. 199-4561 [2] SEAL-LIP TYPE
7. 227-6228 [1] CAGE
8. 367-8364 [1] GEAR-SUN (20-TEETH)
9. 367-8365 [3] GEAR-PLANETARY (26-TEETH)
10. 367-8367 [2] RING-RETAINING
11. 367-8368 [1] GEAR-SUN (23-TEETH)
12. 367-8369 [3] GEAR-PLANETARY (25-TEETH)
13. 378-9513 [3] SHAFT
14. 378-9514 [1] CARRIER-PLANETARY
15. 378-9515 [1] GEAR-RING (73-TEETH)
16. 378-9516 [1] HOUSING
17. 378-9609 [1] CARRIER AS
18. 451-2182 [6] WASHER-HARD (13.5X25.5X3-MM THK)
19. 453-3447 M [6] BOLT (M12X1.75X40-MM)
20. 094-0584 [6] WASHER (40.3X72X1-MM THK)
21. 509-6676 [3] PIN-SPRING
22. 095-1022 [1] BEARING-ROLLER
23. 148-4642 [1] SEAL-O-RING
24. 148-4643 [1] BEARING
25. 296-6268 [6] BEARING AS-ROLLER
26. 346-5215 [3] BEARING AS
27. 3K-0360 [1] SEAL-O-RING
28. 7I-7623 [1] SPACER (52X69.5X6-MM THK)
29. 7Y-1434 [1] SPACER (40X69.5X6-MM THK)
30. 8T-0348 M [16] BOLT-SOCKET HEAD (M16X2X50-MM)
31. 8T-4240 [3] RING-RETAINING
32. 9X-8268 [16] WASHER (17.5X30X3.5-MM THK)





1U-8846 BF
SEALANT-GASKET

B
 USE AS REQUIRED

F
 NOT SHOWN

M
 METRIC PART
