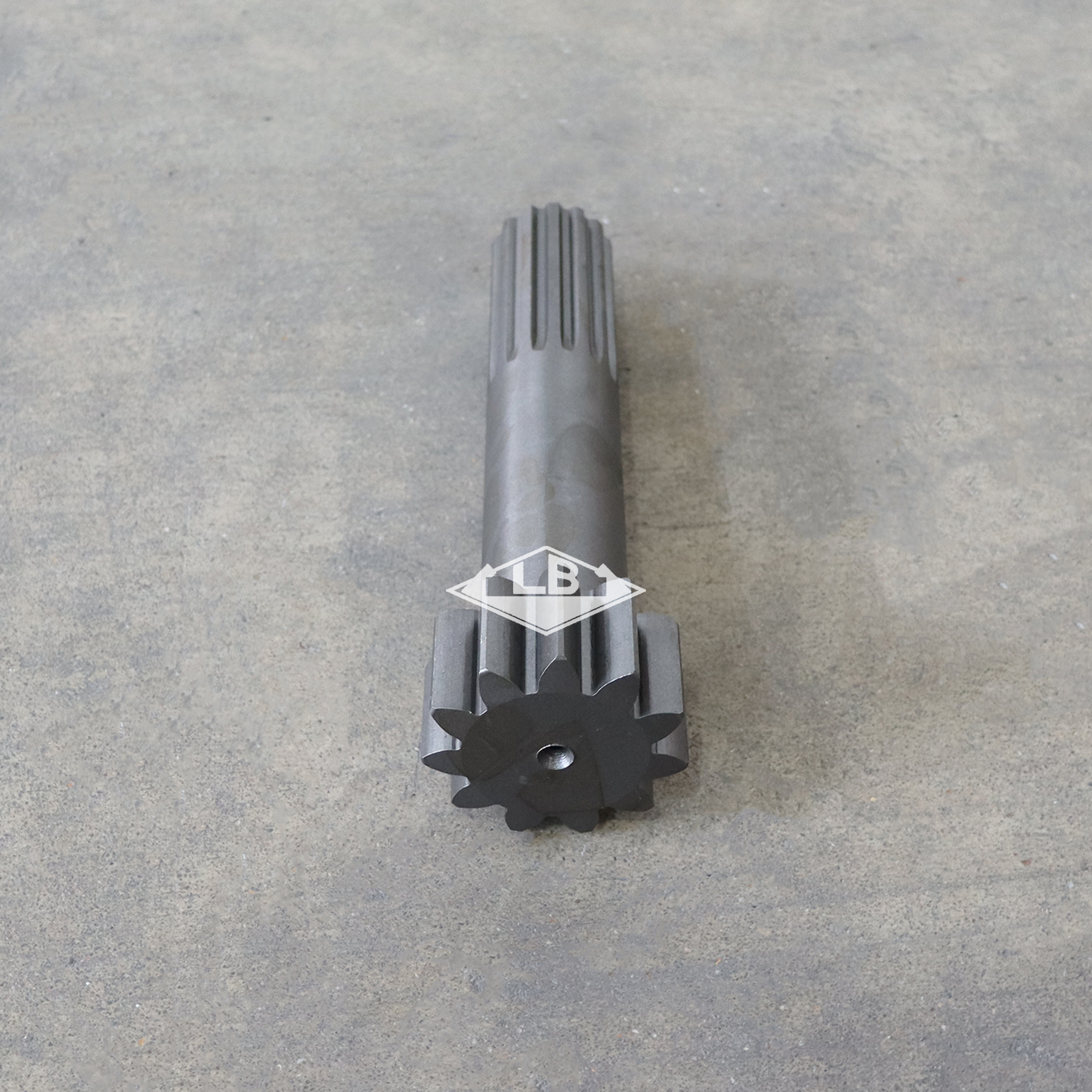

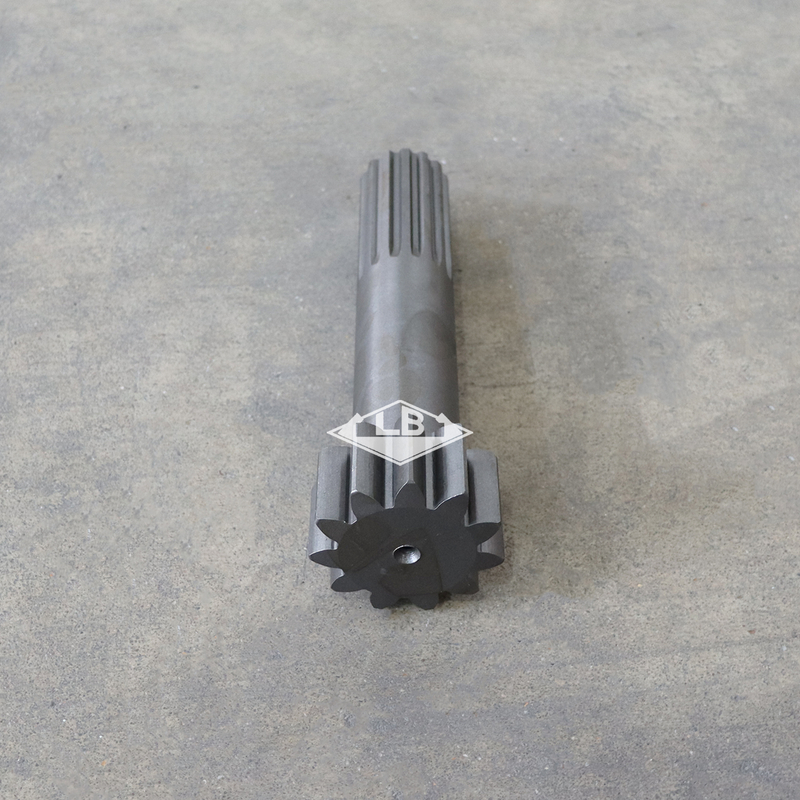

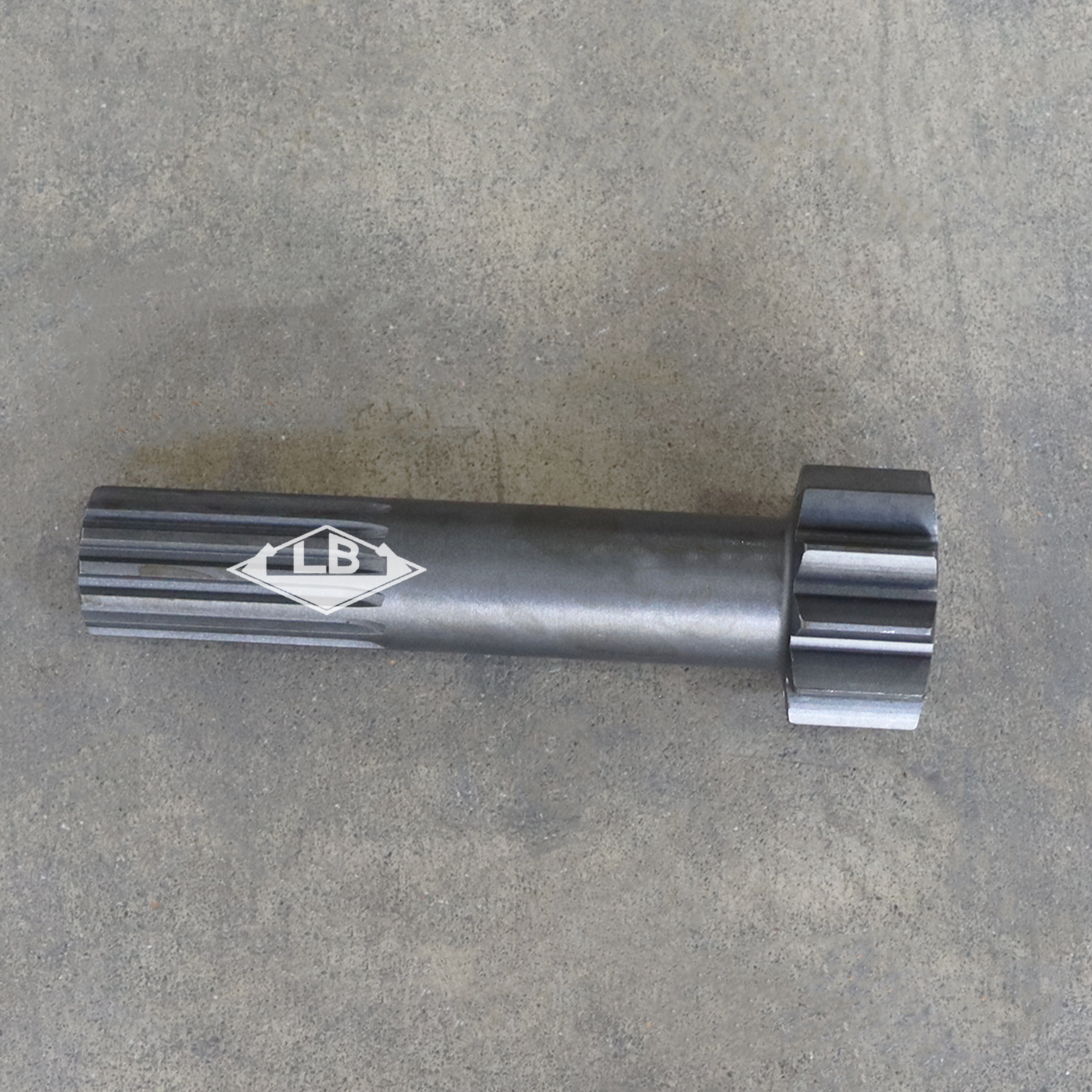

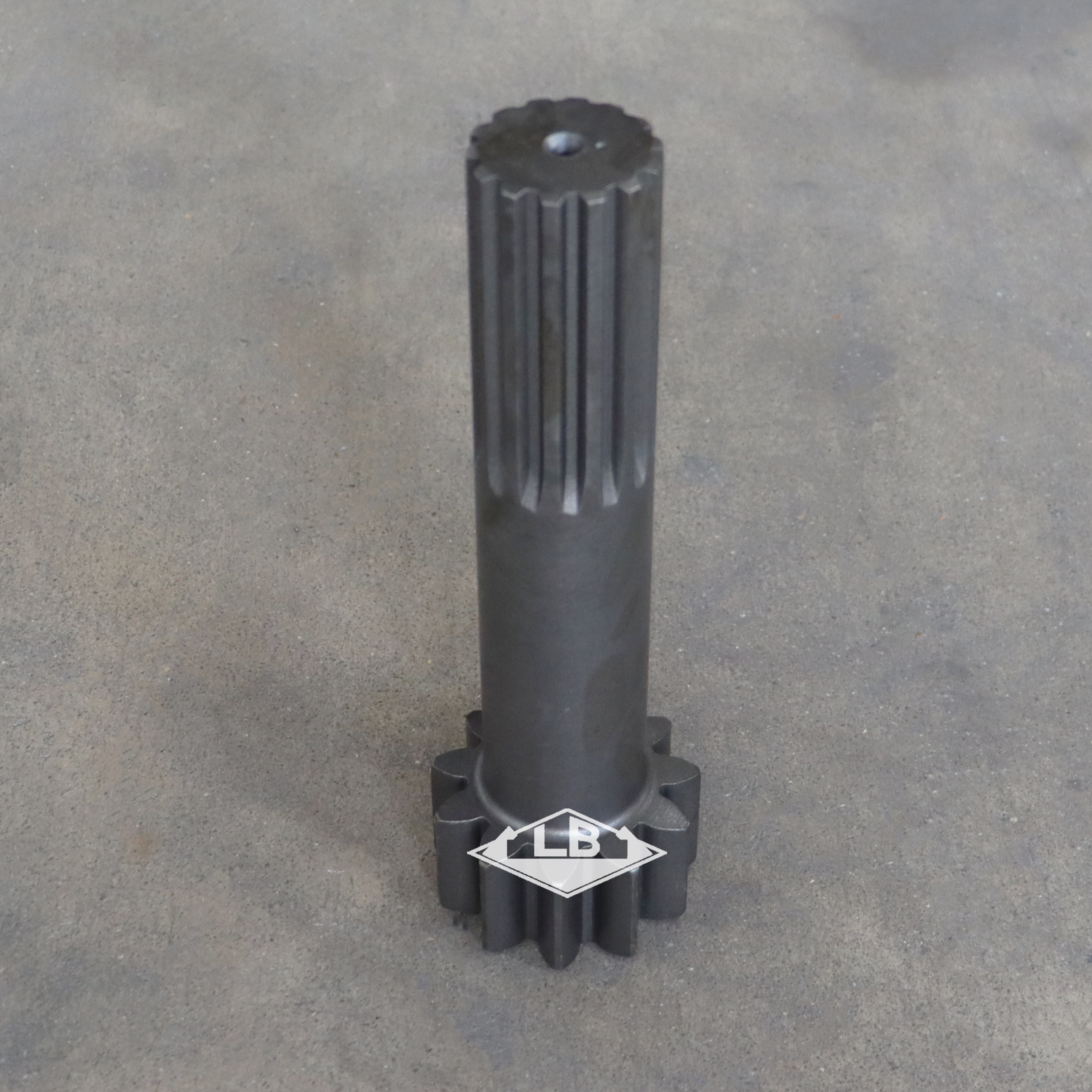

E318B E320D SUN GEAR 7Y-1427 7Y1427 GEARBOX PARTS SUN SHAFT FOR CAT EXCAVATOR

PRODUCT PARAMETERS

Product Description

E323 行走中心轴(2) E323 行走中心轴(6) E323 行走中心轴(4)

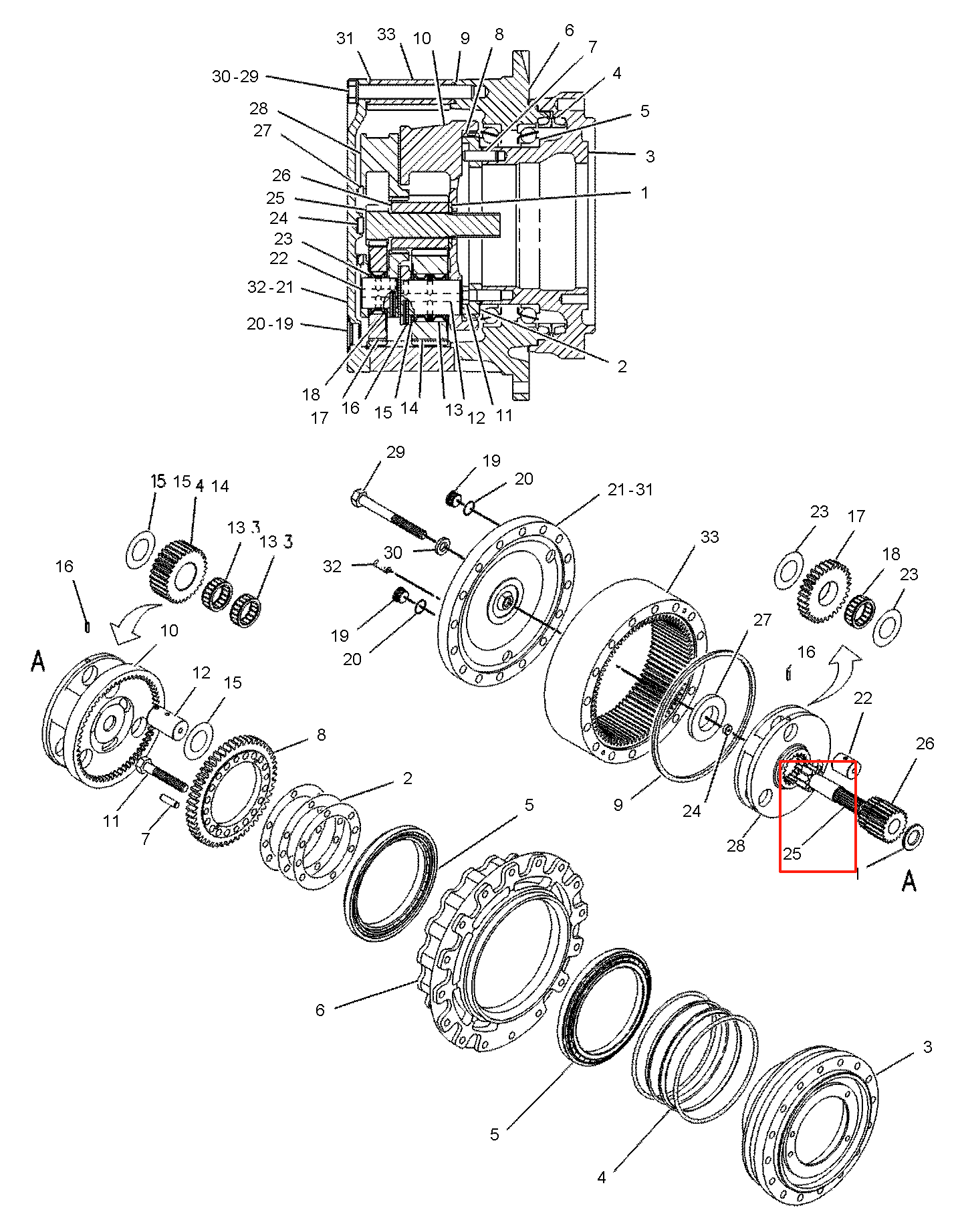

CATERPILLAR SIS

Pos.	Part No	Qty	Parts name
1.	7Y-1434	[1]	SPACER (40X69.5X6-MM THK)
2.	096-1773 B	[1]	SHIM (0.15-MM THK)
	096-1774 B	[1]	SHIM (0.3-MM THK)
	096-1775 B	[1]	SHIM (0.4-MM THK)
	096-1776 B	[1]	SHIM (0.5-MM THK)
	096-1777 B	[1]	SHIM (0.6-MM THK)
	096-1778 B	[1]	SHIM (0.7-MM THK)
	096-1779 B	[1]	SHIM (0.8-MM THK)
	096-1780 B	[1]	SHIM (1-MM THK)
	096-1781 B	[1]	SHIM (1.6-MM THK)
3.	148-4716	[1]	HOUSING-MOTOR
4.	114-1497	[1]	SEAL GP-DUO-CONE
5.	168-8451	[2]	BALL BEARING
6.	114-1486	[1]	HOUSING
7.	114-1539	[6]	PIN-DOWEL
8.	148-4715	[1]	GEAR-COUPLING (55-TEETH)
9.	6D-0692	[1]	SEAL-O-RING
10.	7Y-1433	[1]	CARRIER
11.	6V-3303 M	[14]	BOLT (M16X2X60-MM)
12.	7Y-0223	[3]	SHAFT-PLANETARY
13.	094-1542	[6]	BEARING-ROLLER
14.	7Y-1431	[3]	GEAR-PLANETARY (30-TEETH)
15.	094-1528 M	[6]	WASHER (53X84X1-MM THK)
16.	095-0891	[6]	PIN-SPRING
17.	7Y-1428	[3]	GEAR-PLANETARY (32-TEETH)(32 TEETH)
18.	094-0616	[3]	BEARING AS-ROLLER
19.	3E-2338	[2]	PLUG-PIPE
20.	7M-8485	[2]	SEAL-O-RING
21.	7Y-1426	[1]	COVER
22.	7Y-0225	[3]	SHAFT-PLANETARY
23.	094-0611	[6]	WASHER (47.3X76X1-MM THK)
24.	094-0580	[1]	PLATE (10-MM THK)
25.	7Y-1427	[1]	GEAR-SUN (14-TEETH)(11 TEETH)
26.	7Y-1430	[1]	GEAR-SUN (17-TEETH)
27.	7Y-1558	[1]	SPACER (90X119.6X7.5-MM THK)
28.	7Y-1432	[1]	CARRIER
29.	7X-2568 M	[16]	BOLT (M20X2.5X180-MM)
30.	8T-4123	[16]	WASHER (3.62X5.75X0.375-MM THK)
31.	1U-8846 B		SEALANT-GASKET
32.	095-1270 M	[2]	SETSCREW-SOCKET (M12X1.75X30-MM)(M12X1.75 THD)
33.	7Y-1631	[1]	GEAR-RING
	B		USE AS REQUIRED
	M		METRIC PART
