| Quantity: | |
|---|---|

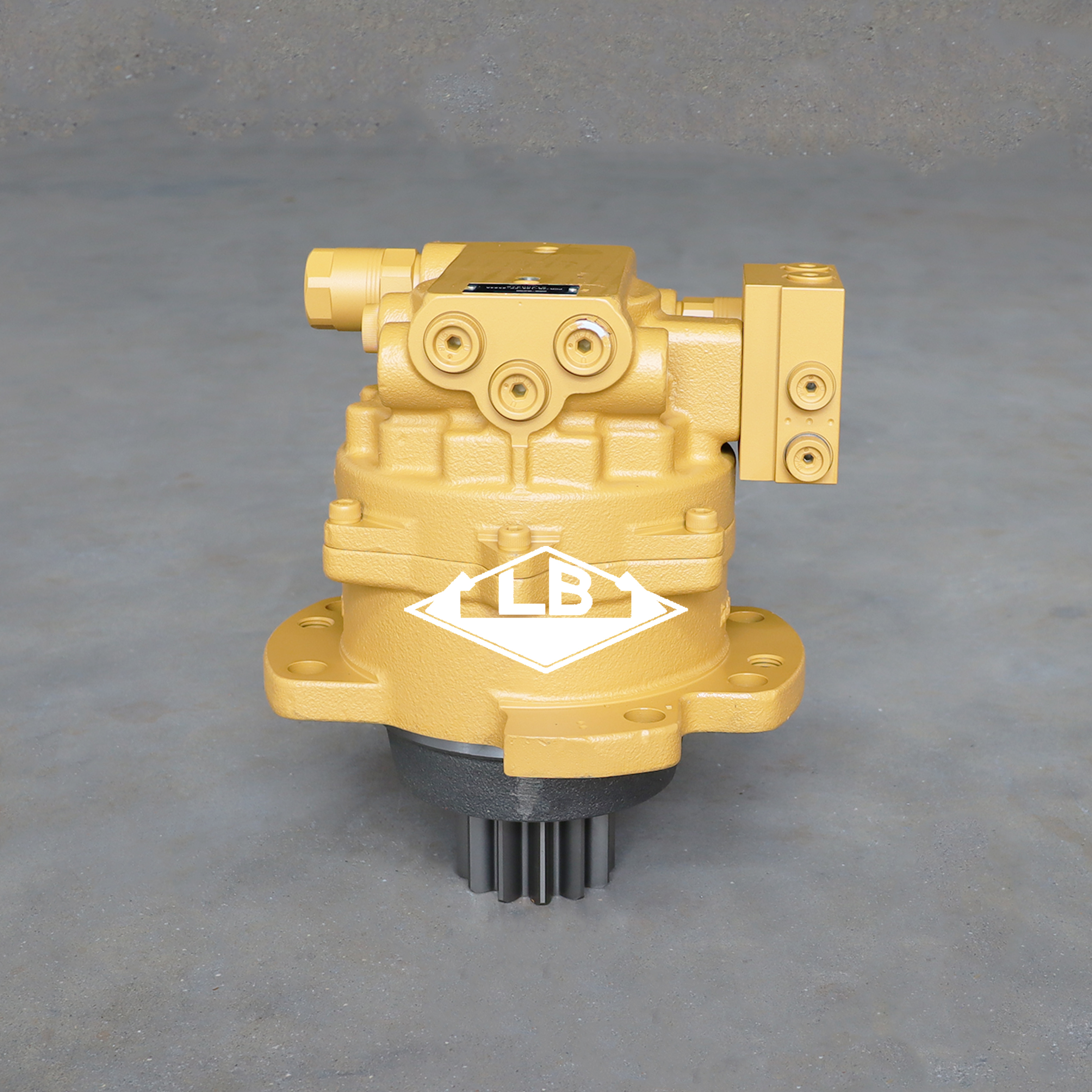

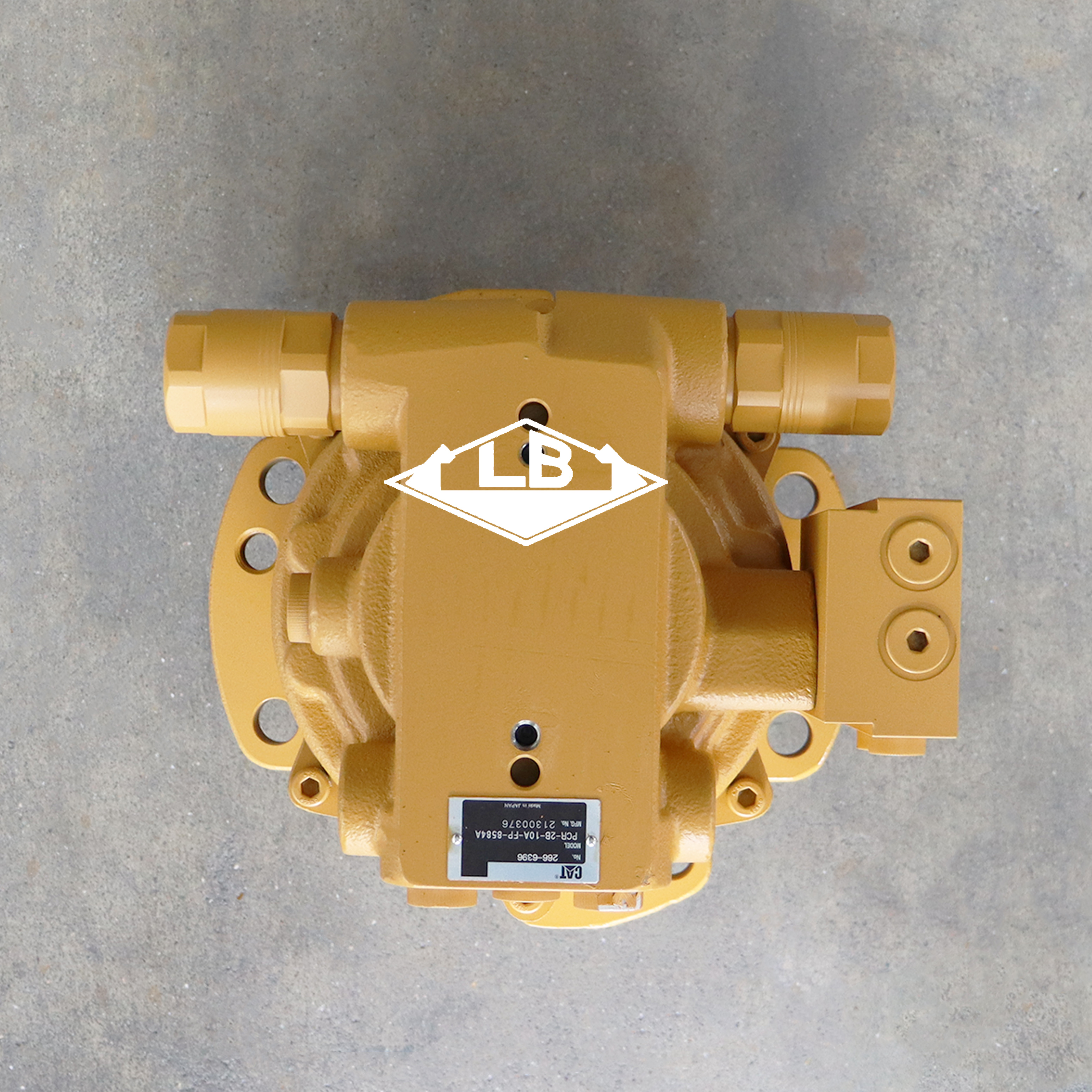

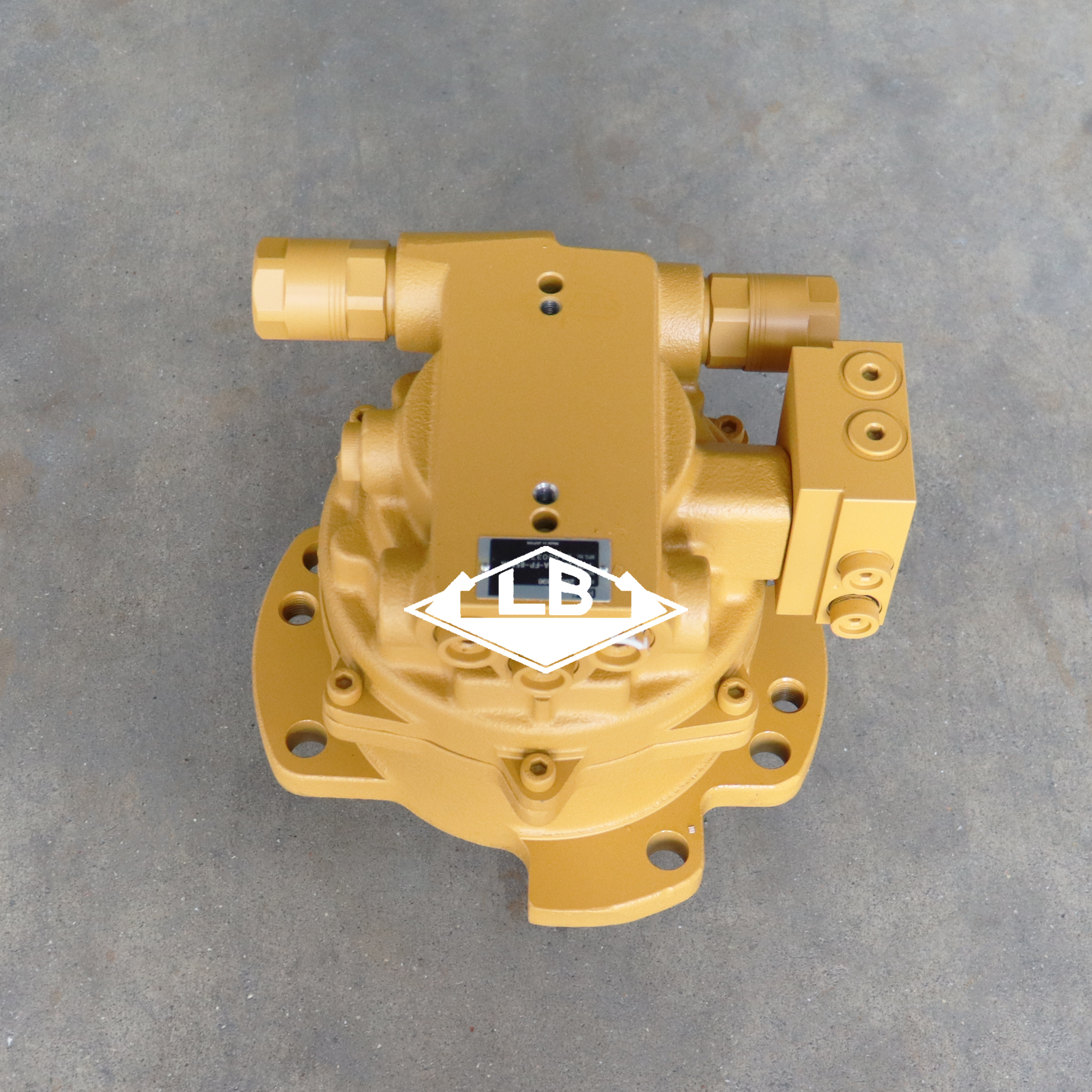

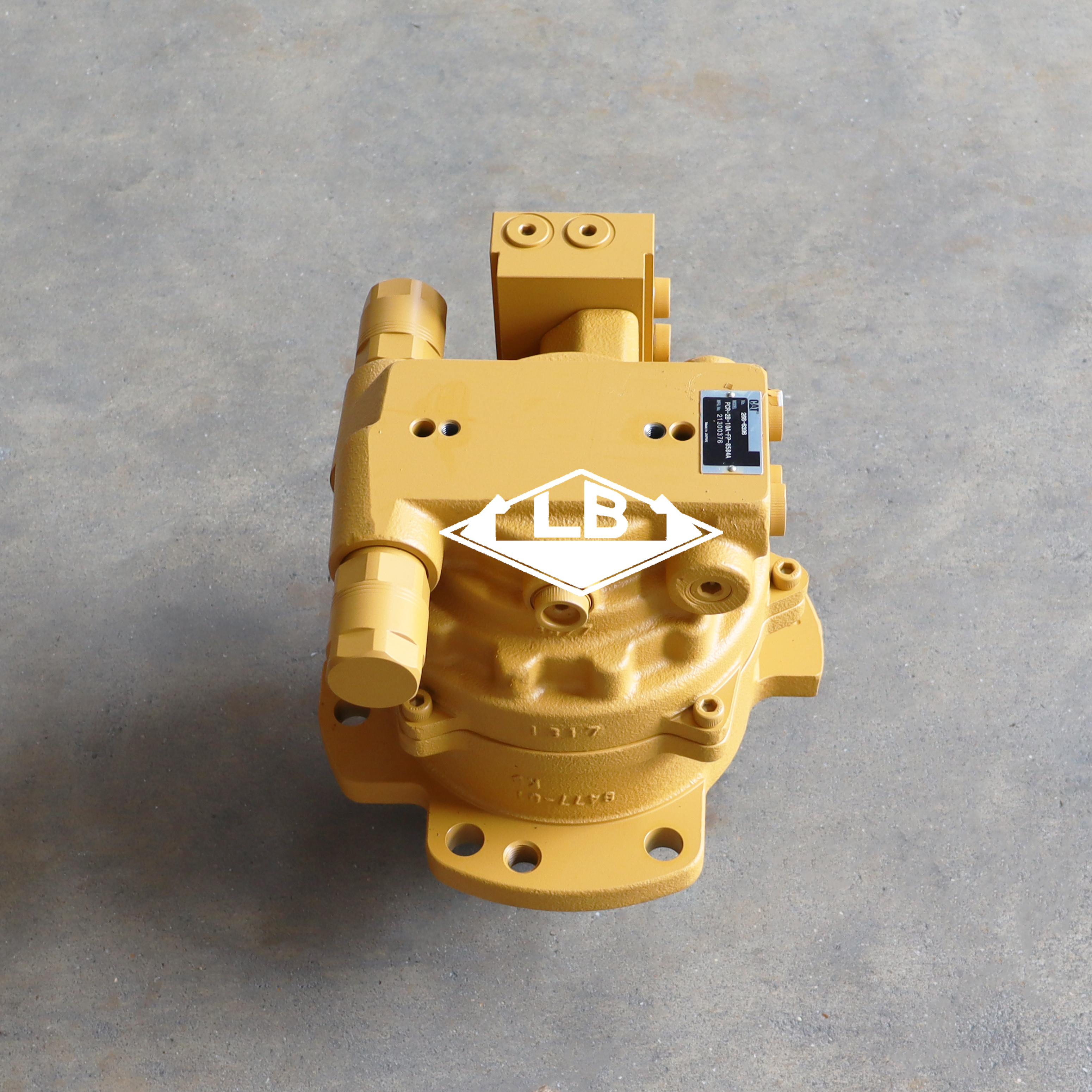

| Part name | E305.5E E304D E304.5E SWING GEARBOX | |||||
| Equipment | Apply to CAT EXCAVATOR | |||||
| Part no. | 280-2355 281-3052 266-6396 | |||||
| motor shaft teeth | ||||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||

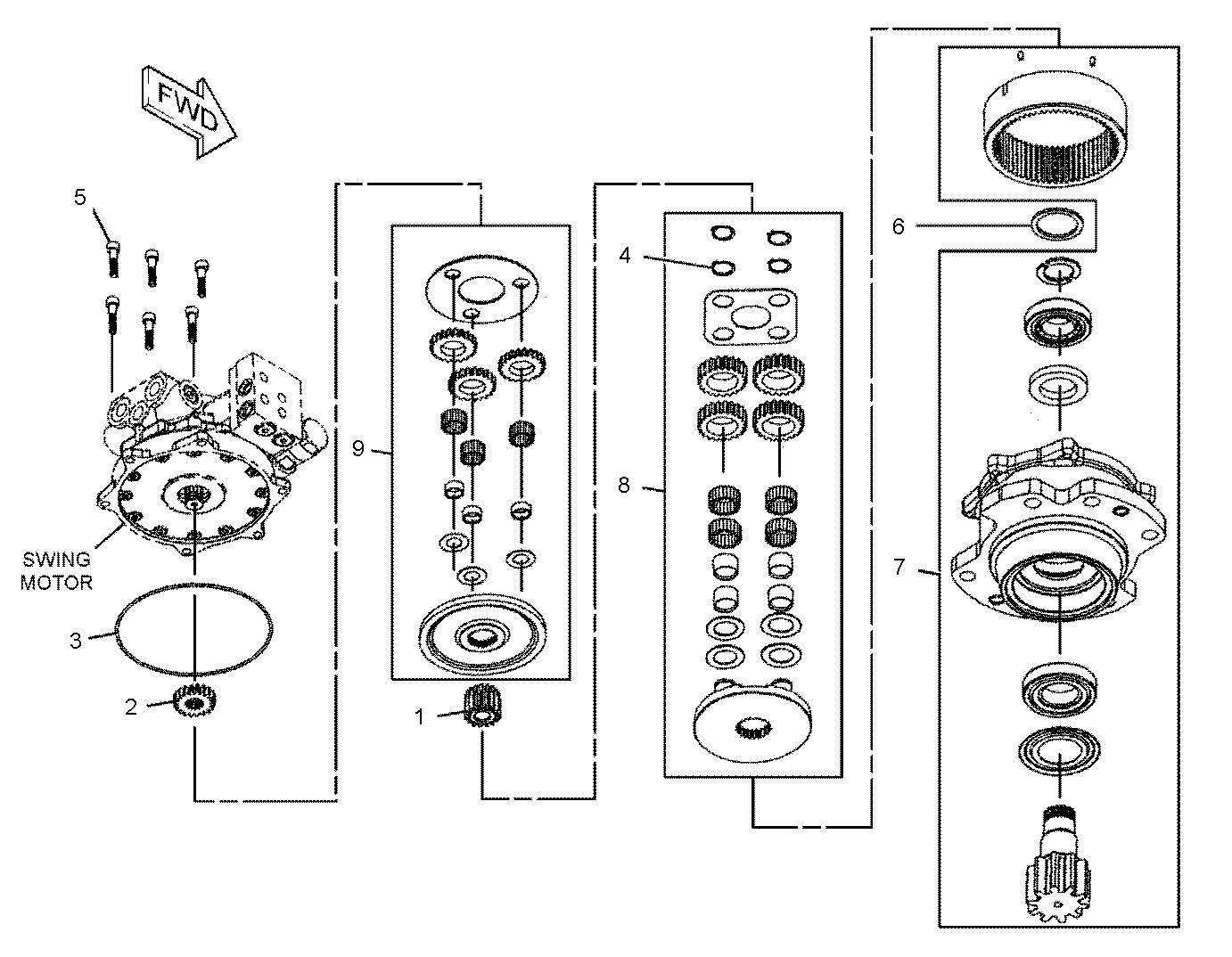

CATERPILLAR SIS
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 280-2357 | [1] | GEAR | |
| 2. | 280-2358 | [1] | GEAR | |
| 3. | 280-2359 | [1] | SEAL | |
| 4. | 6V-5587 J | [4] | RING-RETAINING | |
| 5. | 5A-3604 M | [6] | BOLT-SOCKET HEAD (M8X1.25X25-MM) | |
| 6. | 280-2360 | [1] | RING | |
| 7. | 280-2361 | [1] | KIT-PINION | |
| (INCLUDES PINION SHAFT, RING SEAL, BEARINGS, BODY, SEAL, COLLARS, GEAR & PINS) | ||||
| 8. | 280-2362 J | [1] | KIT-CARRIER | |
| (ALSO INCLUDES CARRIER, THRUST WASHERS, RINGS, NEEDLES, GEARS & THRUST PLATE) | ||||
| 9. | 280-2363 | [1] | KIT-CARRIER | |
| (ALSO INCLUDES CARRIER, THRUST WASHERS, RINGS, NEEDLES, GEARS & THRUST PLATE) | ||||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART | |||
| Part name | E305.5E E304D E304.5E SWING GEARBOX | |||||
| Equipment | Apply to CAT EXCAVATOR | |||||
| Part no. | 280-2355 281-3052 266-6396 | |||||
| motor shaft teeth | ||||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
CATERPILLAR SIS
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 280-2357 | [1] | GEAR | |
| 2. | 280-2358 | [1] | GEAR | |
| 3. | 280-2359 | [1] | SEAL | |
| 4. | 6V-5587 J | [4] | RING-RETAINING | |
| 5. | 5A-3604 M | [6] | BOLT-SOCKET HEAD (M8X1.25X25-MM) | |
| 6. | 280-2360 | [1] | RING | |
| 7. | 280-2361 | [1] | KIT-PINION | |
| (INCLUDES PINION SHAFT, RING SEAL, BEARINGS, BODY, SEAL, COLLARS, GEAR & PINS) | ||||
| 8. | 280-2362 J | [1] | KIT-CARRIER | |
| (ALSO INCLUDES CARRIER, THRUST WASHERS, RINGS, NEEDLES, GEARS & THRUST PLATE) | ||||
| 9. | 280-2363 | [1] | KIT-CARRIER | |
| (ALSO INCLUDES CARRIER, THRUST WASHERS, RINGS, NEEDLES, GEARS & THRUST PLATE) | ||||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART | |||
