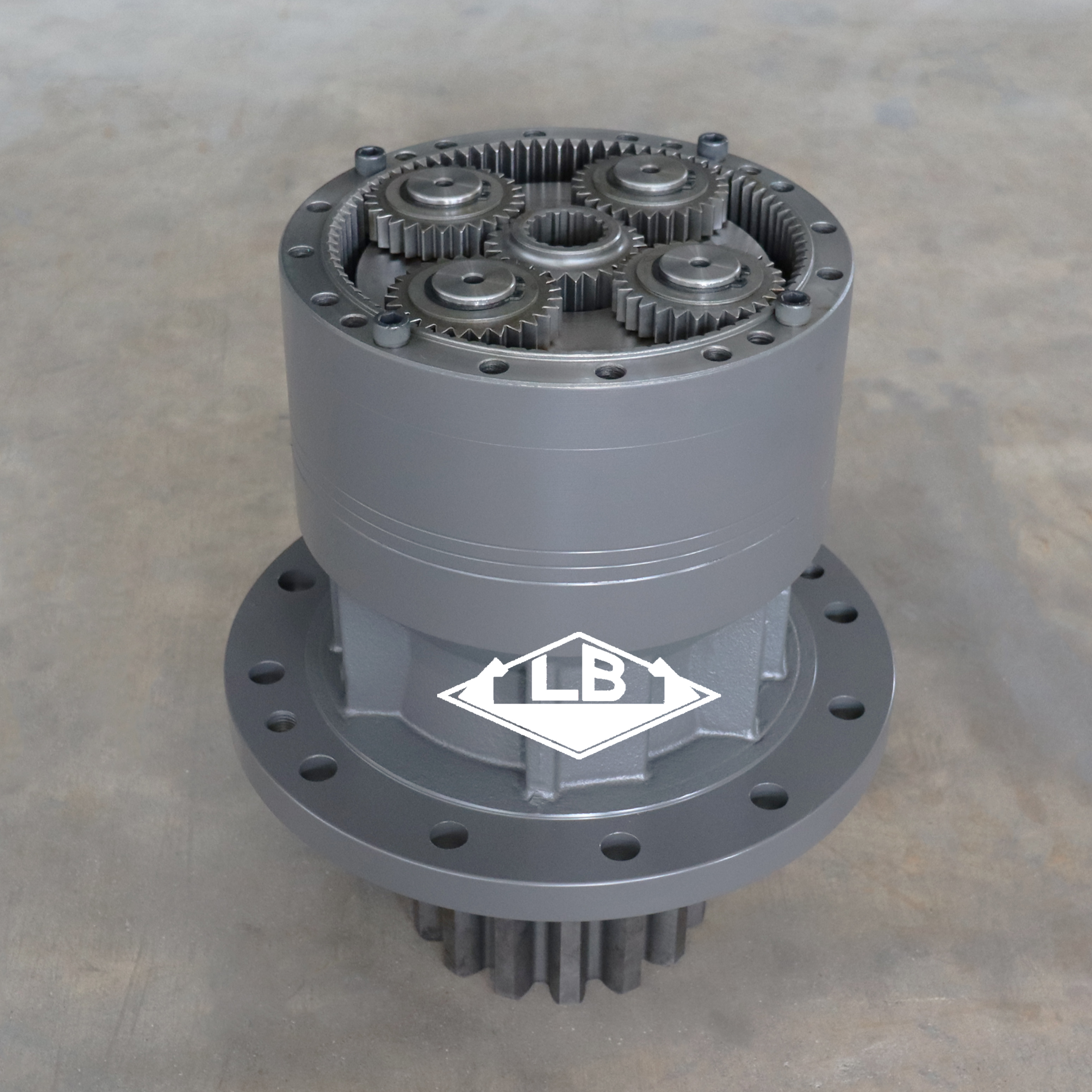

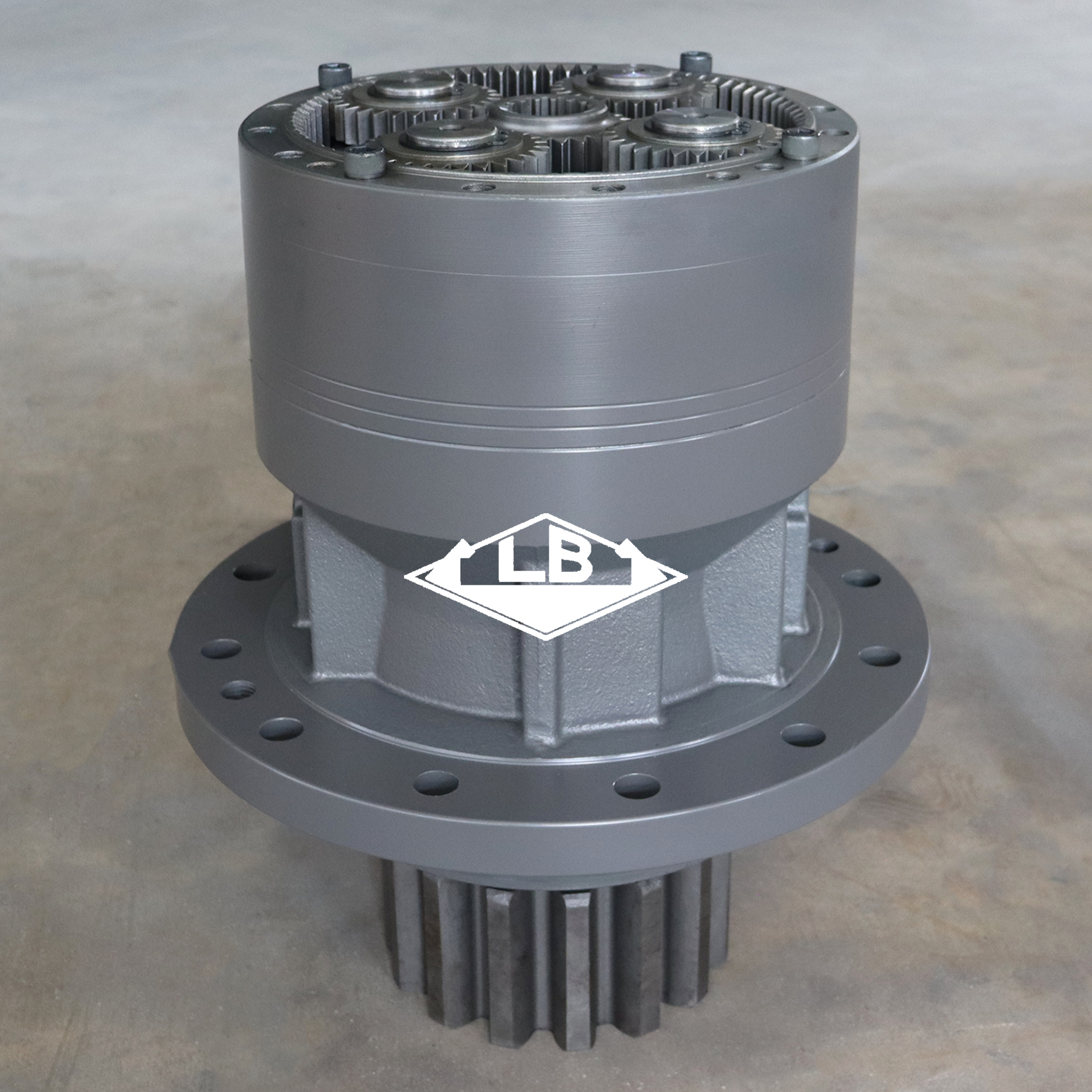

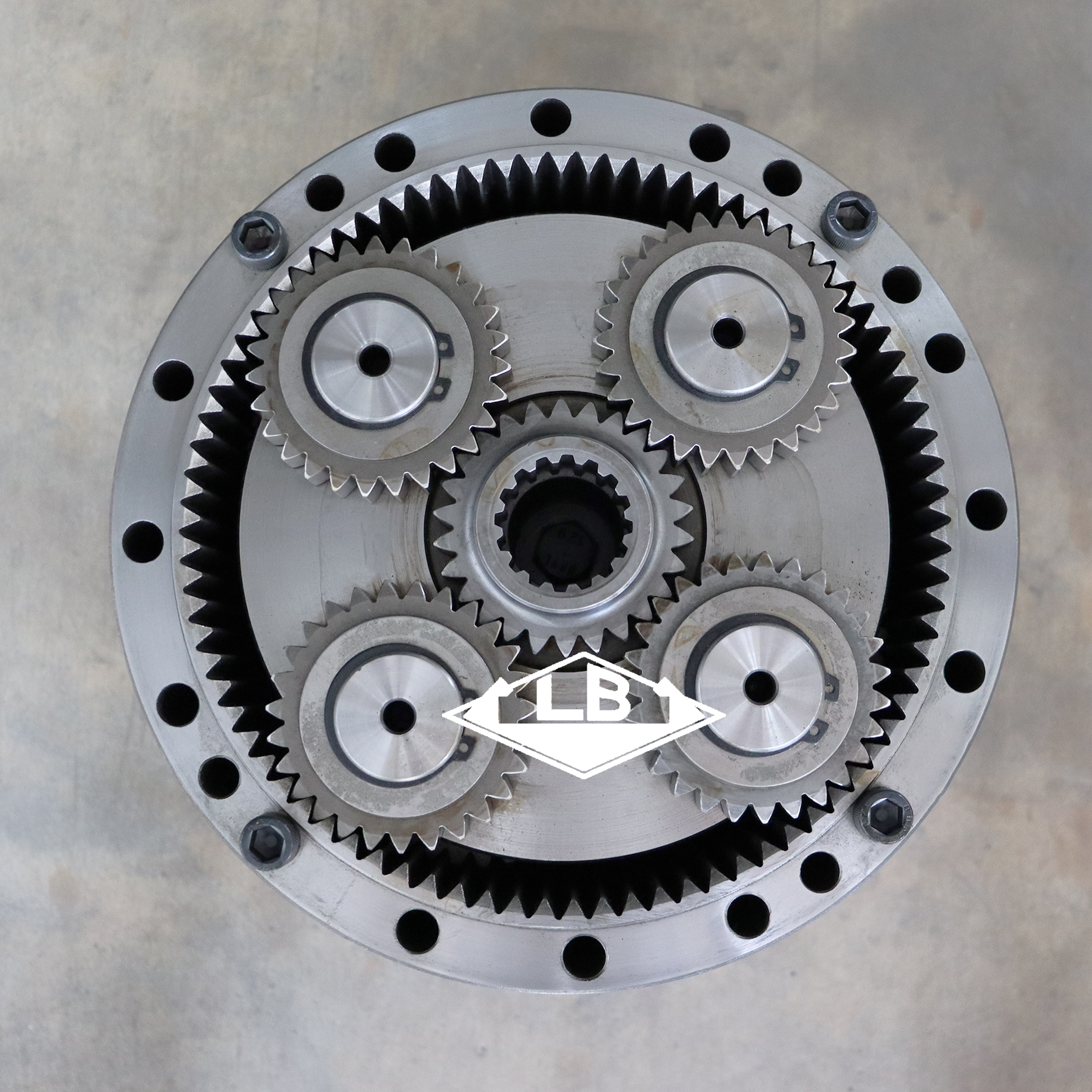

DX500 DX520 SOLAR500 SWING REDUCTION GEAR K1000350 K1033589 DX500 SWING GEARBOX

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	DX500 DX520 SOLAR500 SWING GEARBOX
Equipment	Apply to DOOSAN EXCAVATOR
Part no.	K1000350 K1033589
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

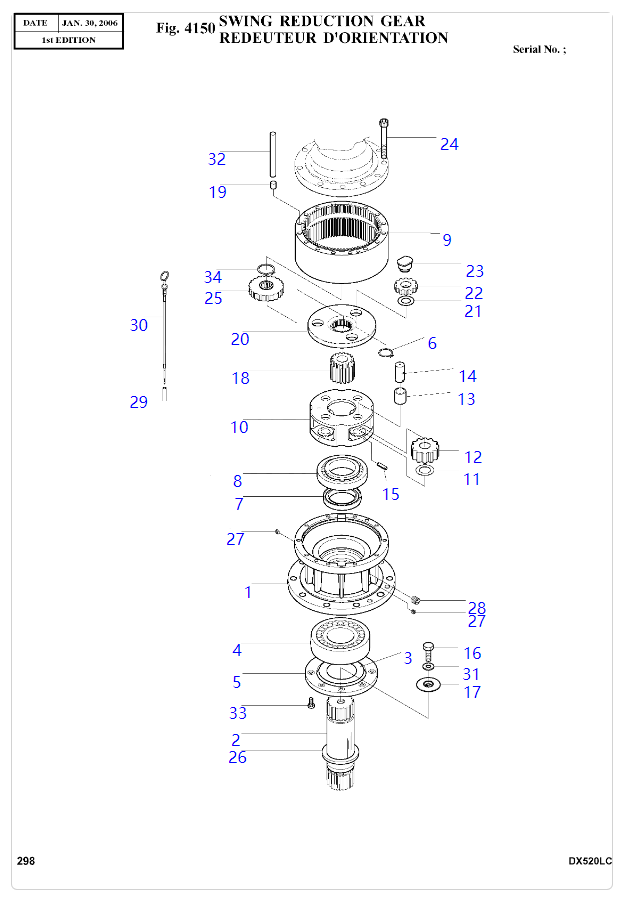

Parts on group :

Pos.	Part No	Qty	Parts name
-.	K1000350	[2]	REDUCTION GEAR;SWING Komatsu China
			["desc: REDEUTEUR D'ORIENTATION"]
1.	2402-6003C	[1]	CASING Komatsu China
			["desc: BOITIER"]
2.	2405-1018C	[1]	SHAFT;DRIVE Komatsu China
			["desc: ARBRE MOTEUR"]
3.	2412-1040	[1]	PLATE Komatsu China
			["desc: RONDELLE \"NILOS#6304"]
4.	2109-9033	[1]	BEARING;ROLLER Komatsu China
			["desc: ROULEMENT A BILLES"]
5.	2891-1421B	[1]	PLATE;COVER Komatsu China
			["desc: PLAQUE"]
6.	S6500380	[3]	RING;SNAP Komatsu China
			["desc: BAGUE ELASTIQUE"]
7.	2180-1254	[1]	SEAL;OIL Komatsu China
			["desc: JOINT D'HUILE"]
8.	2109-1050	[1]	BEARING;ROLLER Komatsu China
			["desc: ROULEMENT A BILLES"]
9.	104-00051A	[1]	GEAR;RING Komatsu China
			["desc: COURONNE DENTEE"]
10.	230-00061	[1]	CARRIER NO.2 Komatsu China
			["desc: PORTE-SATELLITES N2"]
11.	2114-1901A	[4]	WASHER;THRUST NO.2 Komatsu China
			["desc: RONDELLE"]
12.	104-00050	[4]	GEAR;PLANET NO.2 Komatsu China
			["desc: PIGNON PLANETAIRE"]
13.	110-00219	[4]	BUSH NO.2 Komatsu China
			["desc: DOUILLE"]
14.	123-00437A	[4]	PIN NO.2 Komatsu China
			["desc: GOUPILLE"]
15.	S5741341	[4]	PIN;SPRING Komatsu China
			["desc: GOUPILLE FENDUE"]
16.	S0121061	[1]	BOLT;HEX.HD Komatsu China
			["desc: BOULONE A 6 PANS"]
17.	114-00548	[1]	WASHER;THRUST NO.3 Komatsu China
			["desc: RONDELLE"]
18.	104-00048	[1]	GEAR;SUN NO.2 Komatsu China
			["desc: PIGNON PRINCIPAL"]
19.	2705-1030	[4]	PIN;KNOCK Komatsu China
			["desc: BROCHE DE BLOCAGE"]
20.	230-00060A	[1]	CARRIER NO.1 Komatsu China
			["desc: PORTE-SATELLITES N1"]
21.	114-00527	[3]	WASHER;THRUST NO.1 Komatsu China
			["desc: RONDELLE"]
22.	104-00049A	[3]	GEAR;PLANET NO.1 Komatsu China
			["desc: PIGNON PLANETAIRE"]
23.	123-00435A	[3]	PIN ASS'Y NO.1 Komatsu China
			["desc: GOUJON"]
24.	S2217471	[16]	BOLT;SOCKET Komatsu China
			["desc: BOULON A 6 PANS CREUX"]
25.	104-00047A	[1]	GEAR;SUN NO.1 Komatsu China
			["desc: PIGNON PRINCIPAL"]
26.	2114-1914A	[1]	SPACER Komatsu China
			["desc: DOUILLE D'ECARTEMENT"]
27.	2181-1116D2	[2]	PLUG Komatsu China
			["desc: BOUCHON"]
28.	2181-1116D4	[1]	PLUG Komatsu China
			["desc: BOUCHON"]
29.	2140-1406	[1]	PIPE;LEVEL GAUGE Komatsu China
			["desc: TUYAU"]
30.	2119-1065	[1]	GAUGE;LEVEL Komatsu China
			["desc: JAUGE DE NIVEAU"]
31.	S5231090	[1]	WASHER;DOUBLE TAP Komatsu China
			["desc: RONDELLE"]
32.	140-01374A	[4]	PIPE Komatsu China
			["desc: CONDUITE"]
33.	120-00144	[8]	BOLT;HEX.HD Komatsu China
			["desc: BOULONE A 6 PANS"]
34.	S6500450	[1]	RING;SNAP Komatsu China
			["desc: BAGUE D'ARRET"]
