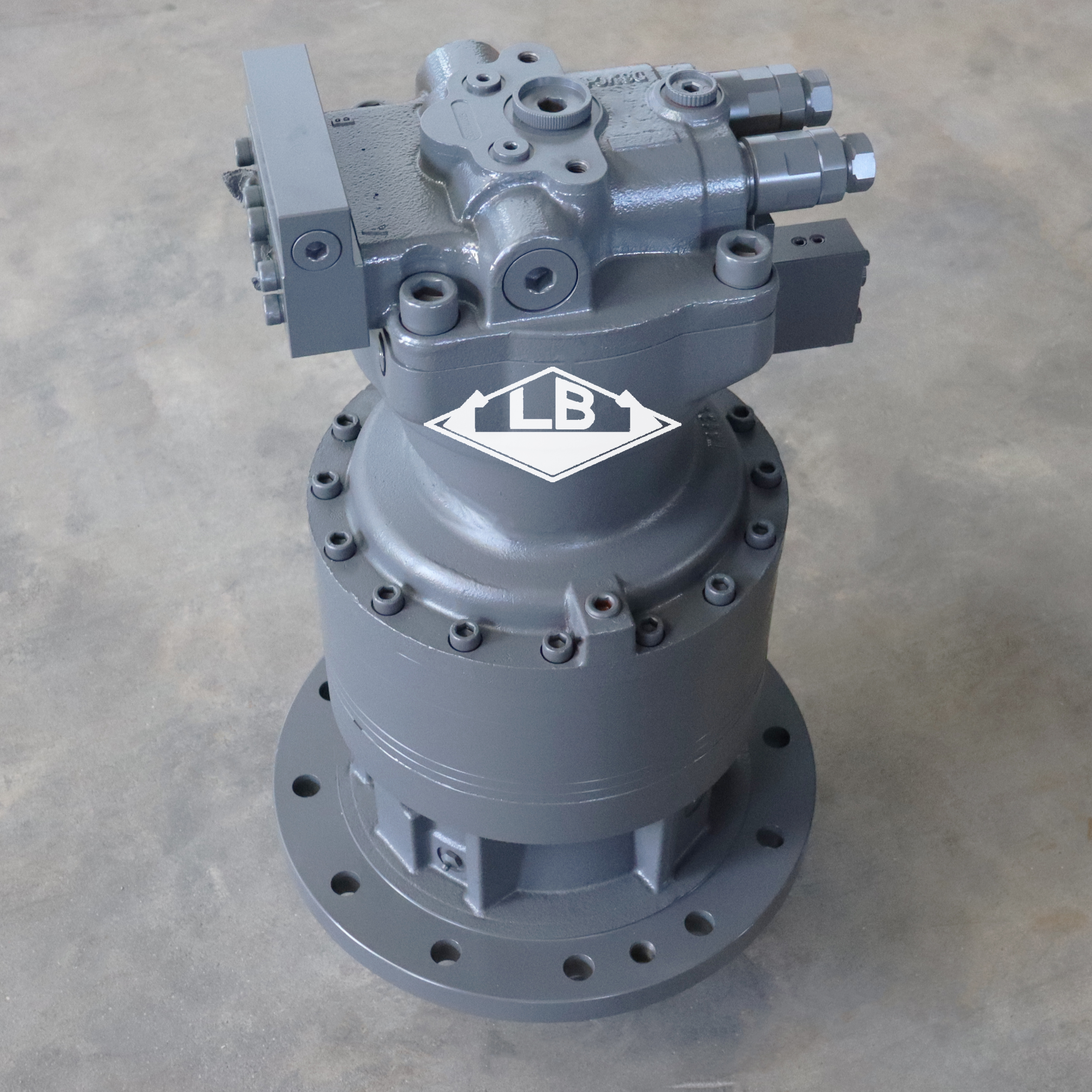

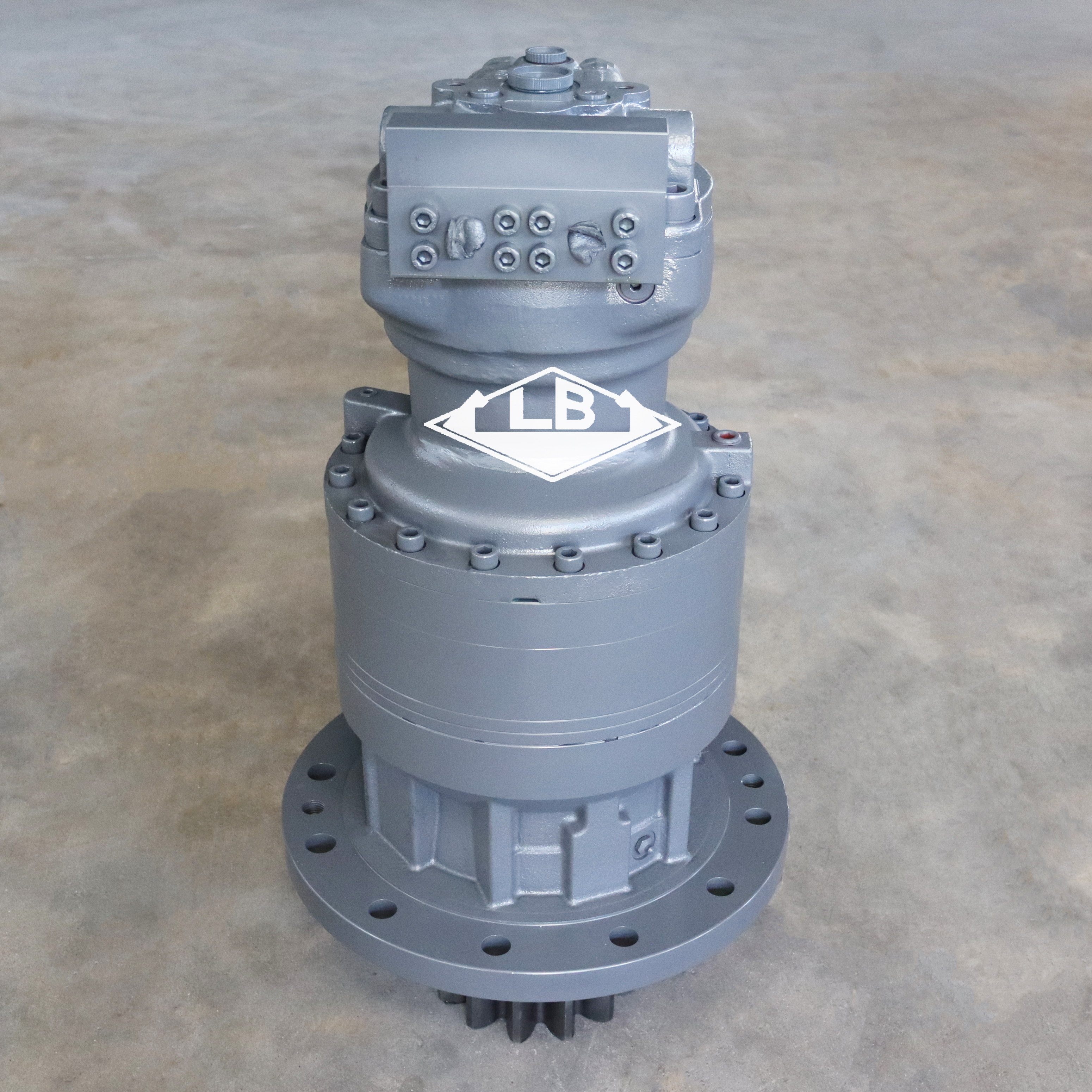

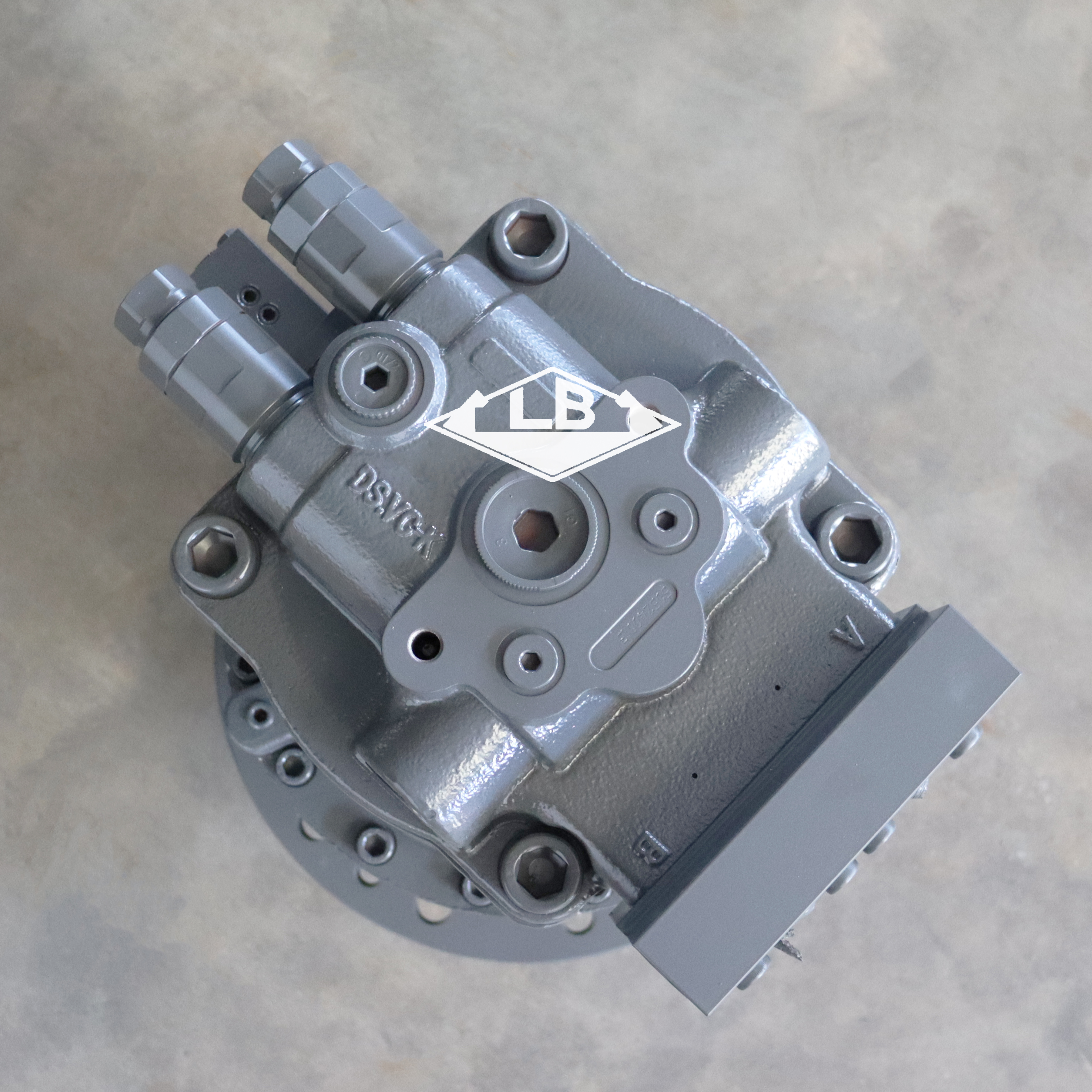

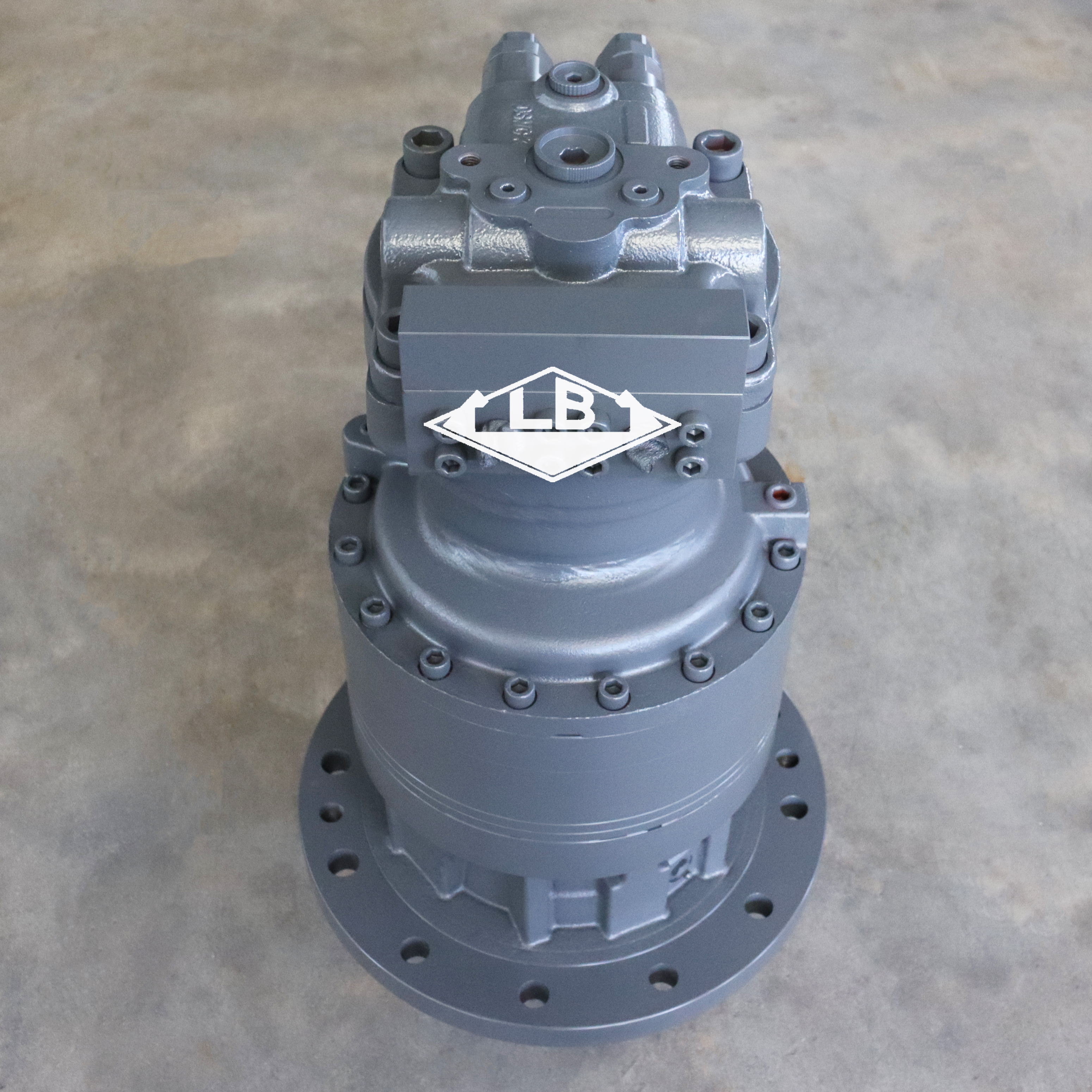

DX225 DH225 SWING DRIVE 170301-00010 401-00289 K1015489 K1015490 K1039373 DX225 SWING REDUCER FOR DOOSAN EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name

DX225 DH225 Swing gearbox
Equipment Apply to DOOSAN EXCAVATOR
Part no. 170301-00010 401-00289 K1015489 K1015490 K1039373
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

DH225-7回转总成（8）DH225-7回转总成（2）DH225-7回转总成（6）DH225-7回转总成（4）DH225-7回转总成

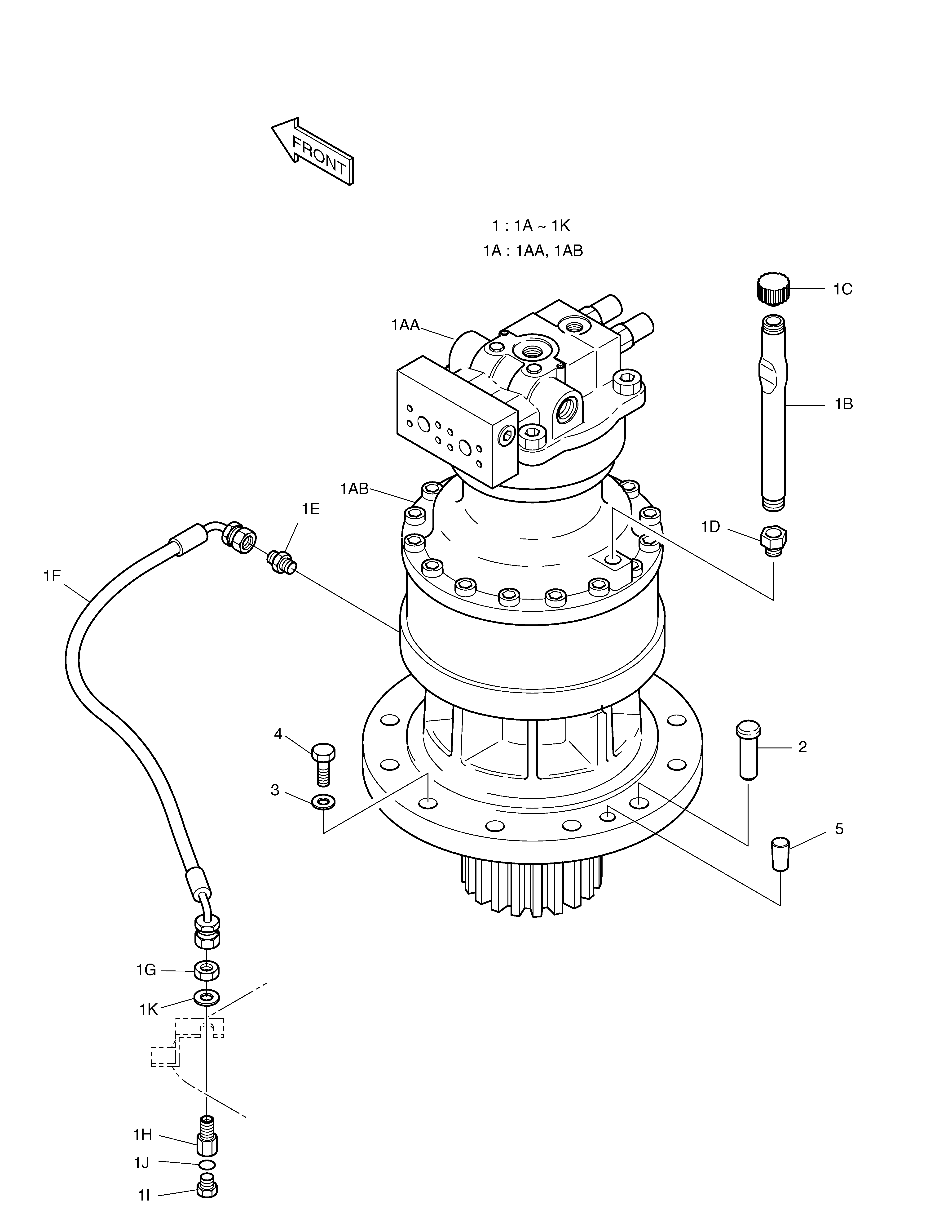

Parts on group SOLAR 225LC-7A:

Pos. Part No Qty Parts name Comments
-. 170301-00010 [-]

-. 401-00289C [-] SWING DEVICE ASS'Y
1. 170301-00011 [1]

1. 401-00325G [1] SWING DEVICE SUB ASS'Y 170301-00011
1A. 401-00290C [1] SWING DEVICE SUB ASS'Y
1AA. 401-00391A [1] MOTOR;SWING
1AB. K1004160A [1] GEAR;REDUCTION 130426-00004
1AB. 130426-00004 [1] GEAR ASSY,REDUCTION
1B. 2182-1662 [1] PIPE
1C. 2119-1063A [1] CAP
1D. 2181-1913D24 [1] REDUCER
1E. 2181-1110D3 [1] . ADAPTER
1F. DS2059420 [1] HOSE
1G. 121-00010D3 [1] . NUT
1H. 181-00698 [1] REDUCER
1I. 2181-1950D3 [1] PLUG
1J. S8000181 [1] O-RING
1K. S5011113 [1] . WASHER
2. 2123-4030 [1] PIN;LOCK
3. 2114-9012A [11] WASHER
4. S0570166 [11] BOLT M20X2.5X65
5. 160-00027 [2] CAP
