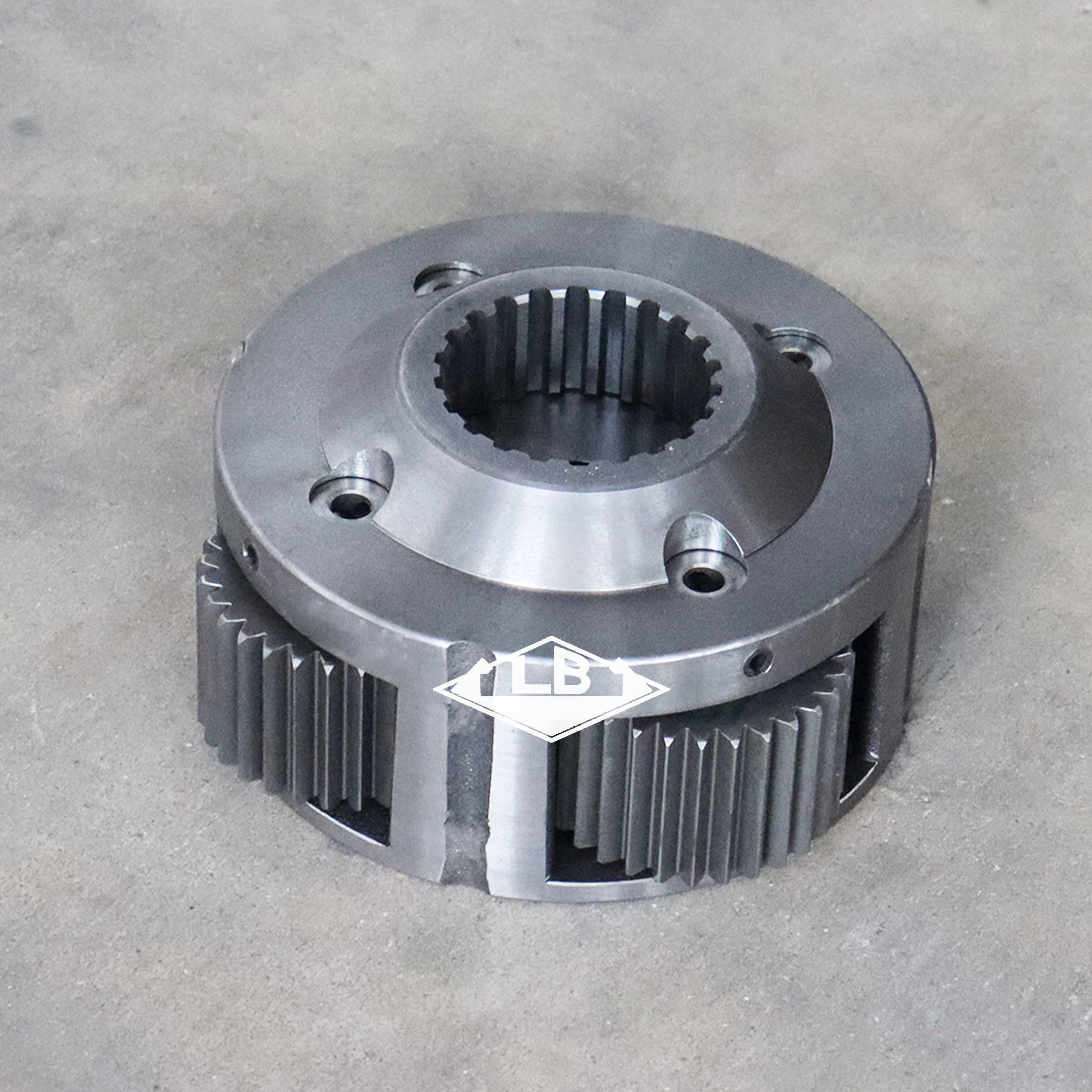

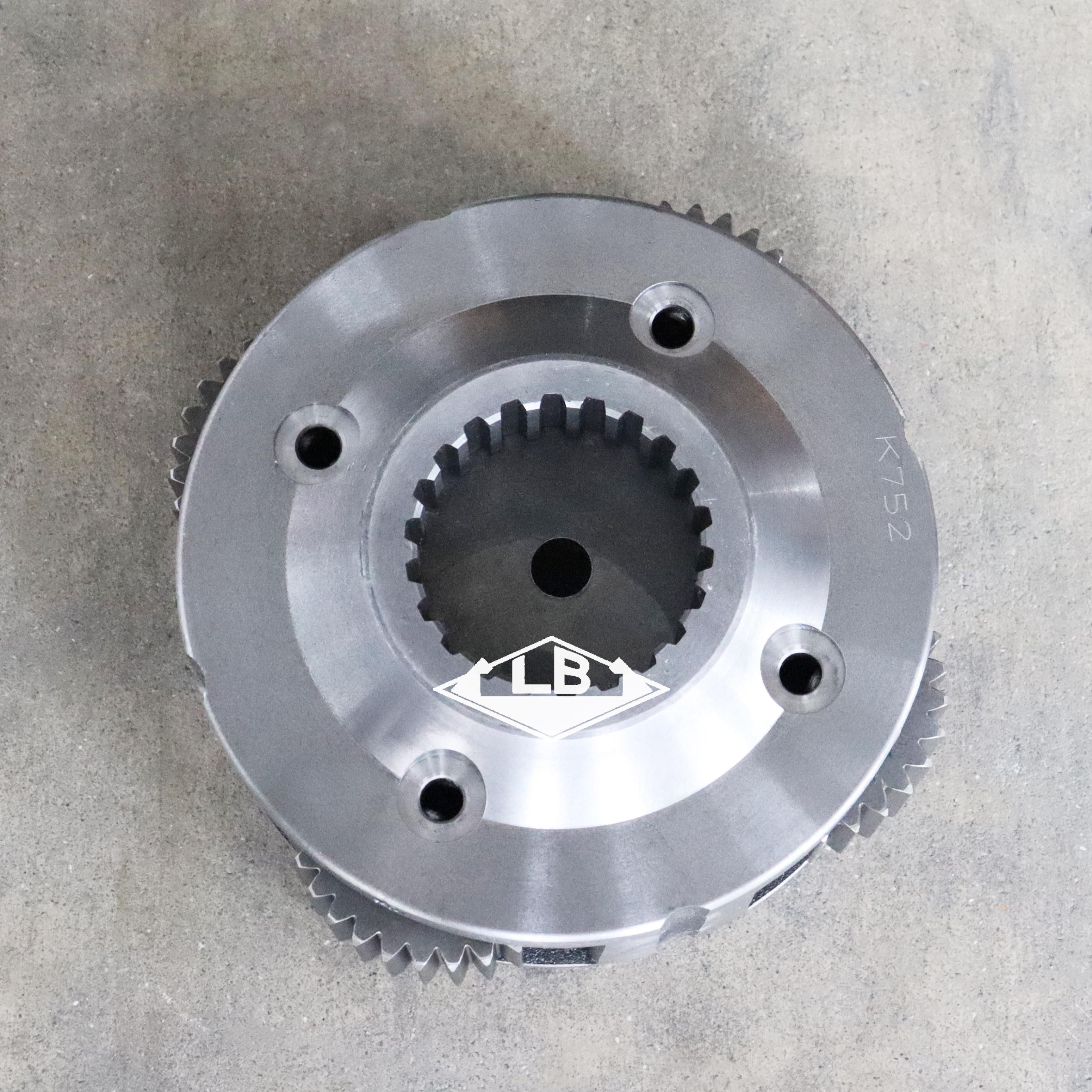

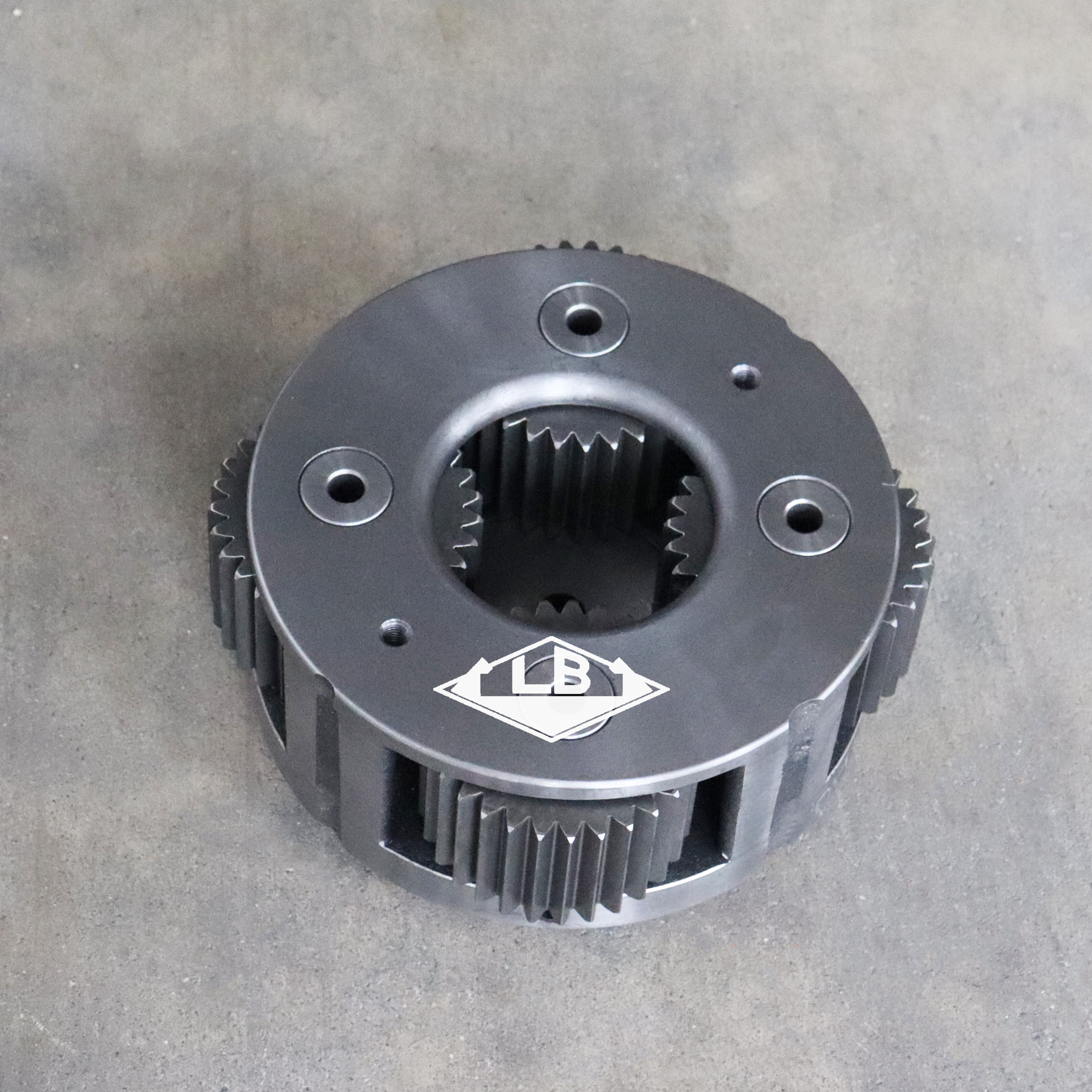

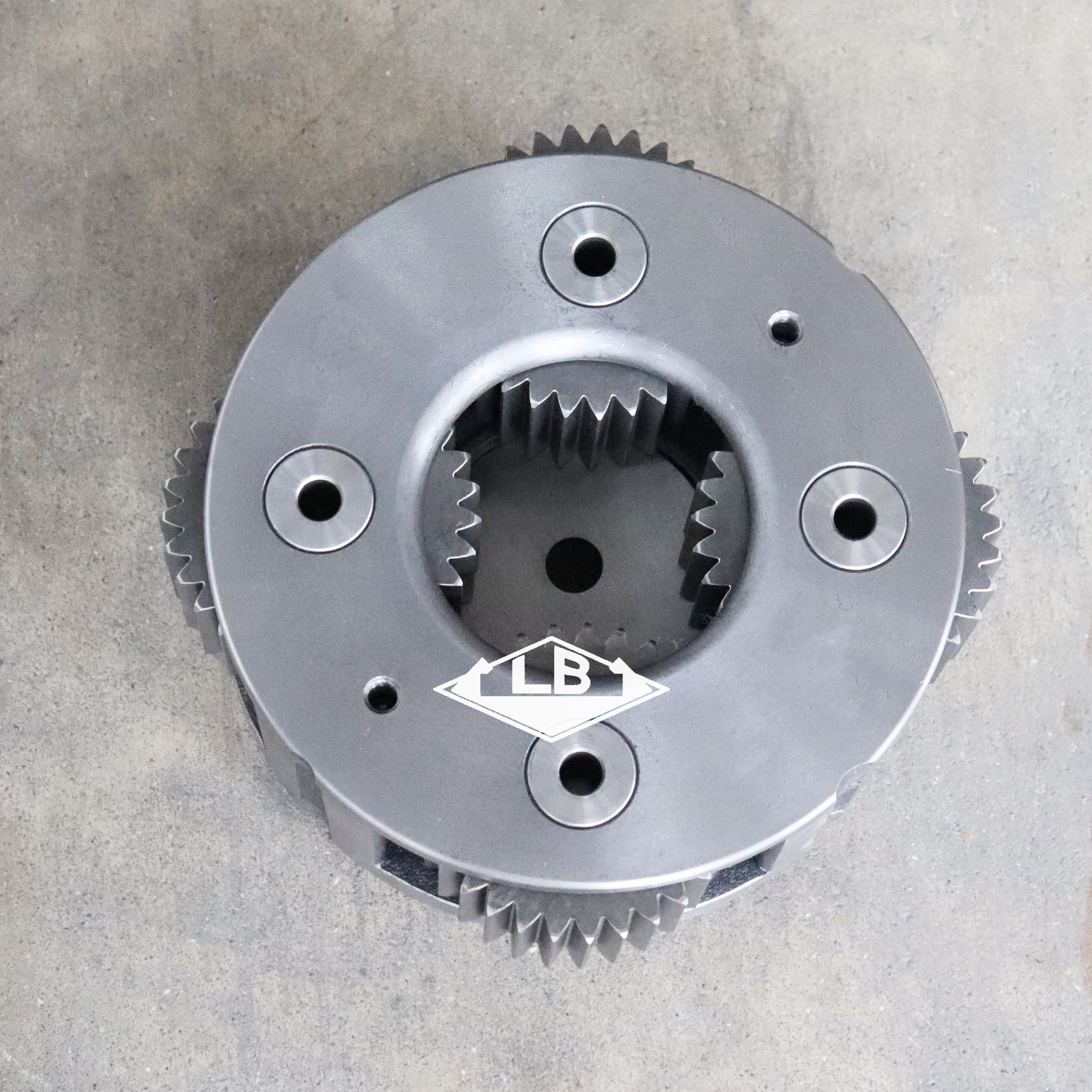

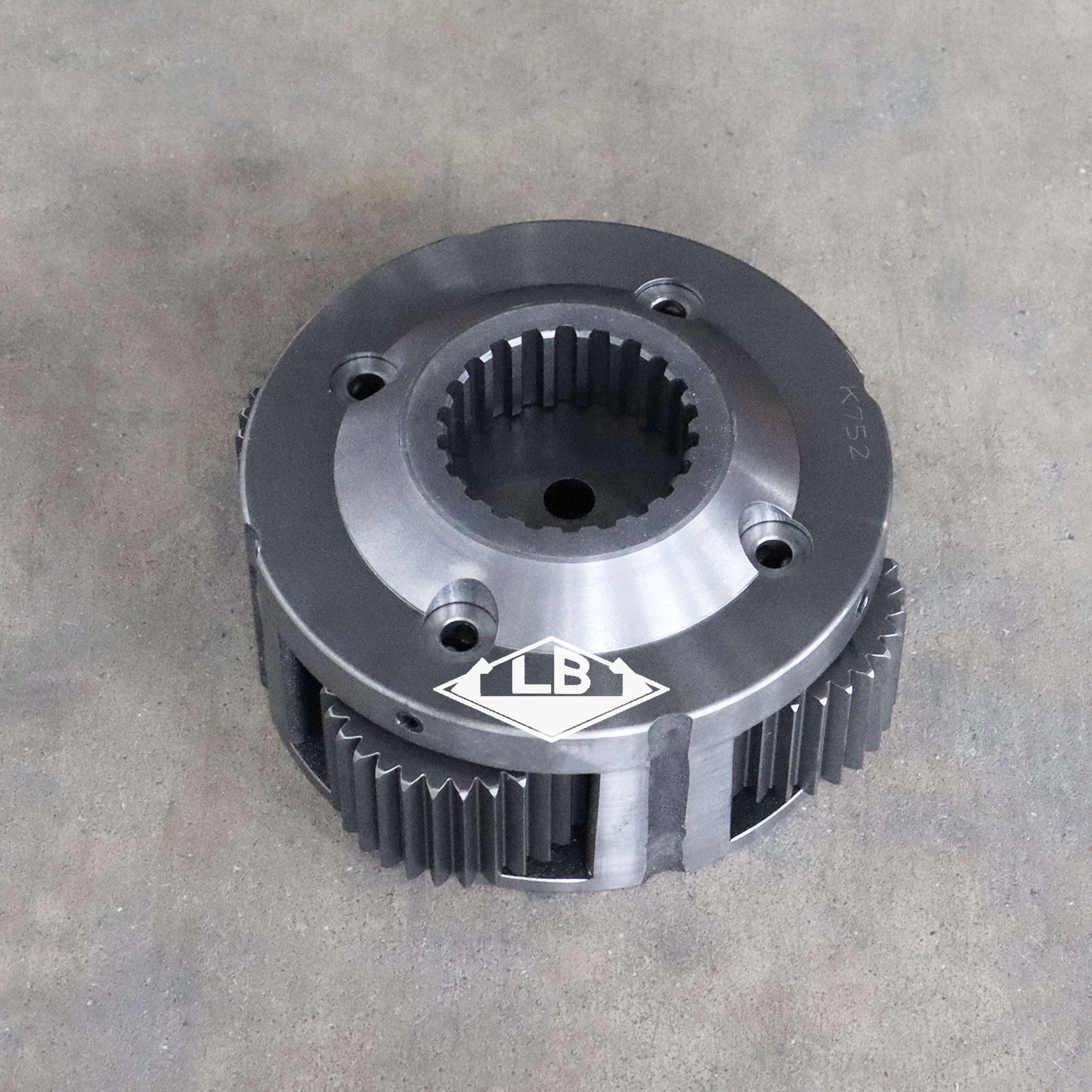

DX220 DX225 SWING REDUCTION GEAR K9008338 CARRIER NO2 ASSY APPLY FOR DOOSAN EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 DX220 DX225 Swing gearbox
Equipment Apply to DOOSAN EXCAVATOR
Part no. K9008338
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

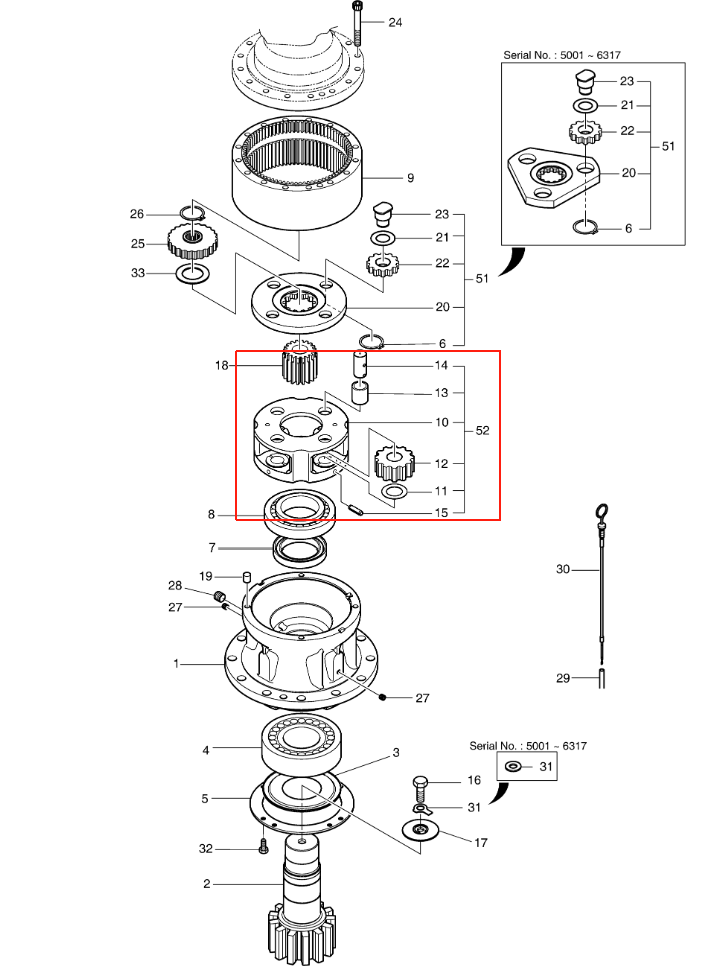

DX225-7(10)DX225-7(6)DX225-7(2)DX225-7(8)DX225-7(4)DX225-7

Parts on group DX220A / DX225LCA:

Pos. Part No Qty Parts name Comments
-. 130426-00010 [1]
130426-00010A
-. 130426-00010A [1]

-. K1038203 [1] SWING REDUCTION GEAR ASS'Y 130426-00010
1. K1038206 [1] CASING
10. K1038205 [1] CARRIER NO.2
11. 2114-1901A [4] WASHER;THRUST NO.2
12. 104-00050 [4] GEAR;PLANET NO.2
13. 110-00219 [4] BUSH NO.2
14. K1038208 [4] PIN NO.2
15. S5741200 [4] PIN;SPRING
16. S0121061 [1] BOLT
17. 114-00548 [1] WASHER;THRUST NO.3
18. 104-00048 [1] GEAR;SUN NO.2
19. 2705-1030 [4] PIN;KNOCK
2. K1038207 [1] SHAFT;DRIVE
20. 100502-00001 [1]

20. K1038204 [1] CARRIER NO.1
21. 114-00527 [4] WASHER;THRUST NO.1
21. 114-00527 [3] WASHER;THRUST NO.1
22. 130424-00001 [4]

22. 104-00049A [3] GEAR;PLANET NO.1
23. 120501-00009 [4]

23. 123-00435A [3] PIN ASS'Y NO.1
24. 120107-00002 [16]

24. S2217471 [16] BOLT;SOCKET
25. 130425-00001 [1]

25. 104-00047A [1] GEAR;SUN NO.1 130425-00001
26. S6500450 [1] RING;SNAP
27. 2181-1116D2 [2] PLUG
28. 2181-1116D4 [1] PLUG
29. 2140-1406 [1] PIPE;LEVEL GAUGE
3. 2412-1040 [1] PLATE
30. 2119-1065 [1] GAUGE;LEVEL
31. 120811-00001 [1]

31. S5231090 [1] WASHER;DOUBLE TAP
32. 120-00144 [8] BOLT
33. 120816-00001 [1]

4. 2109-9033 [1] BEARING;ROLLER
5. K1038685 [1] PLATE;COVER
51. K9008337 [1] CARRIER NO1 ASS'Y
51. 100502-00022 [1]

52. K9008338 [1] CARRIER NO2 ASS'Y
6. S6500380 [3] RING;SNAP
6. S6500380 [4] RING;SNAP
7. 2180-1254 [1] SEAL;OIL
8. 109-00174 [1] BEARING;ROLLER 140107-00715
8. 140107-00715 [1]

9. K1038210 [1] GEAR;RING
9. 130422-00001A [1]
