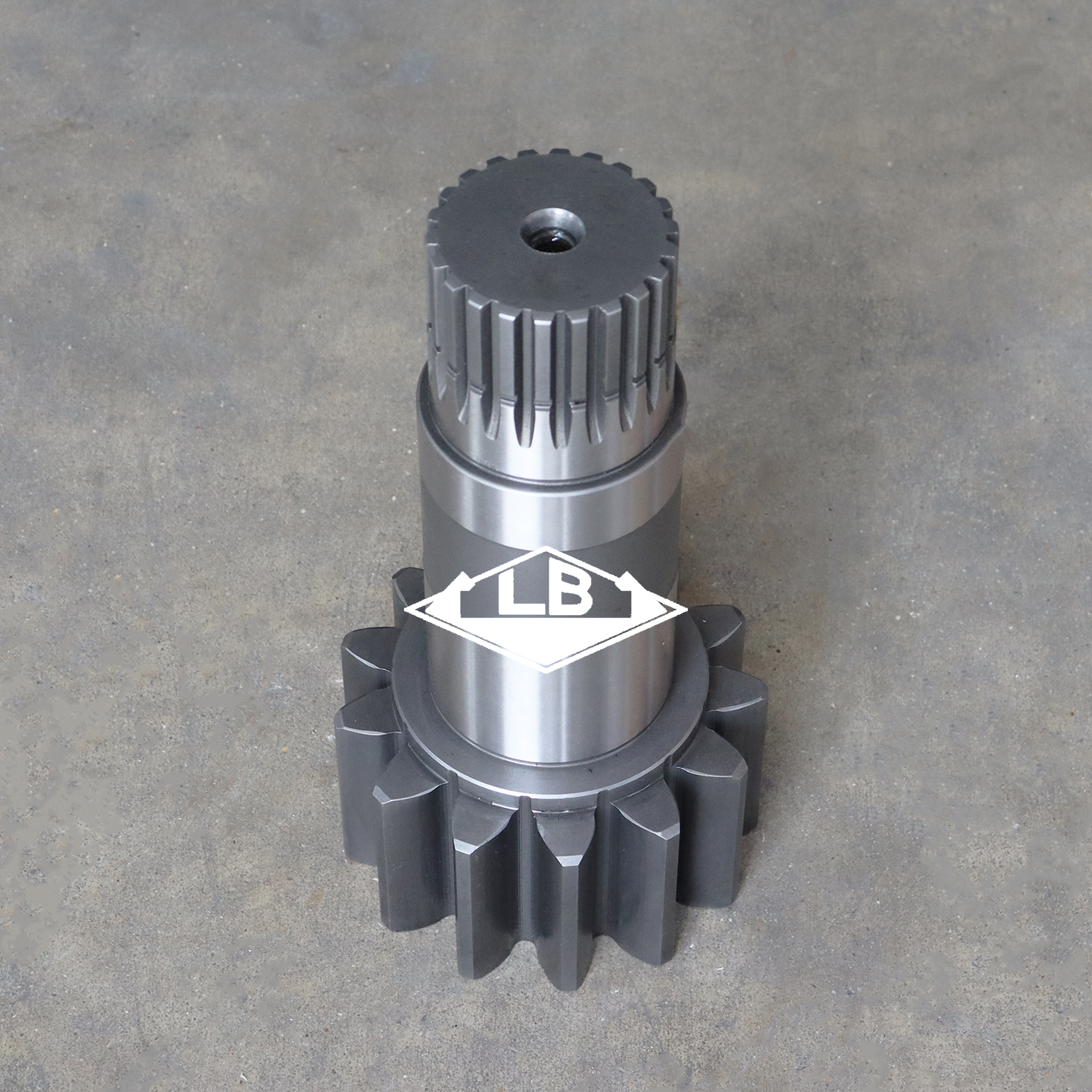

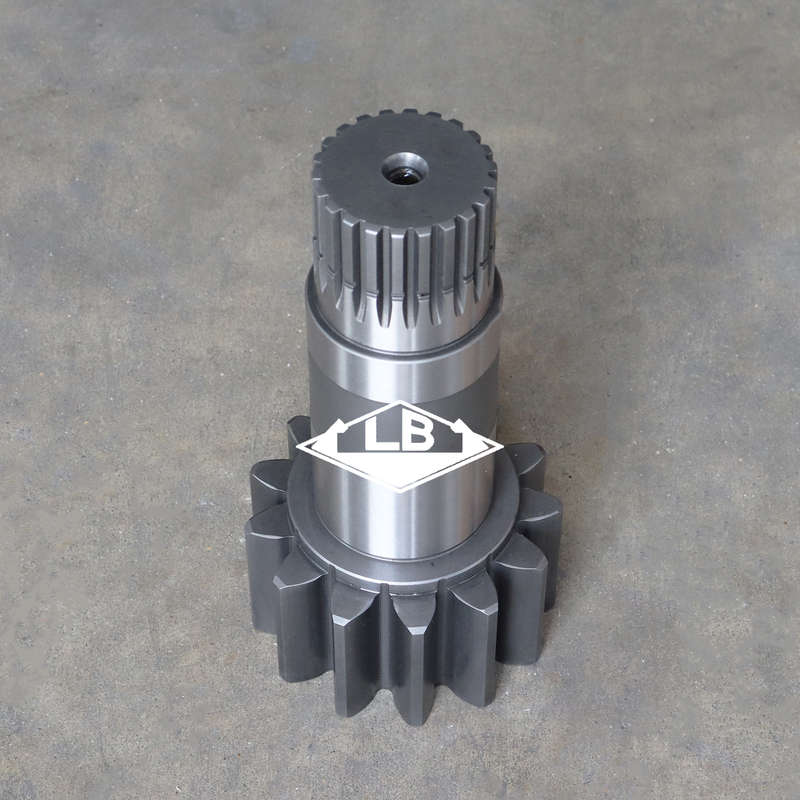

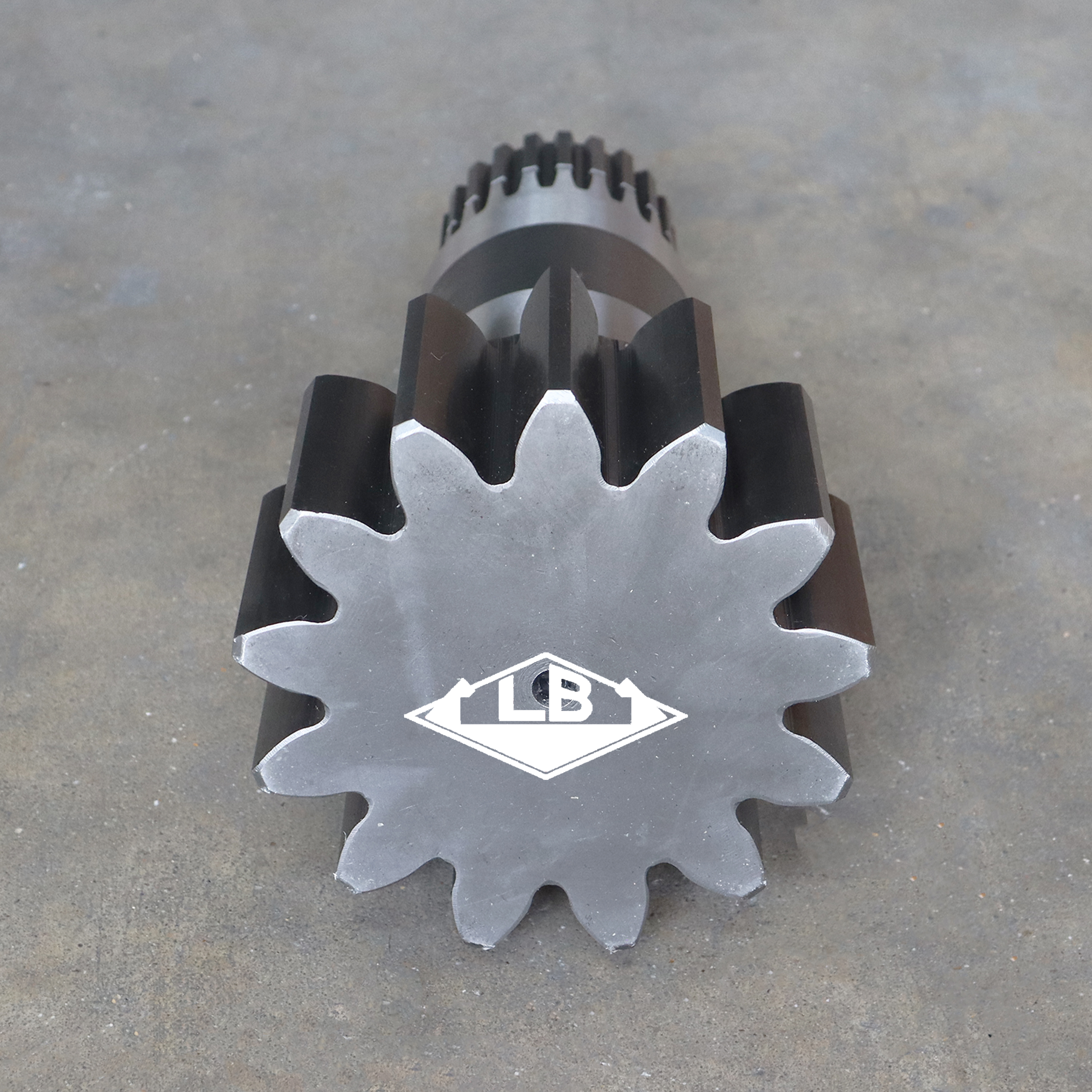

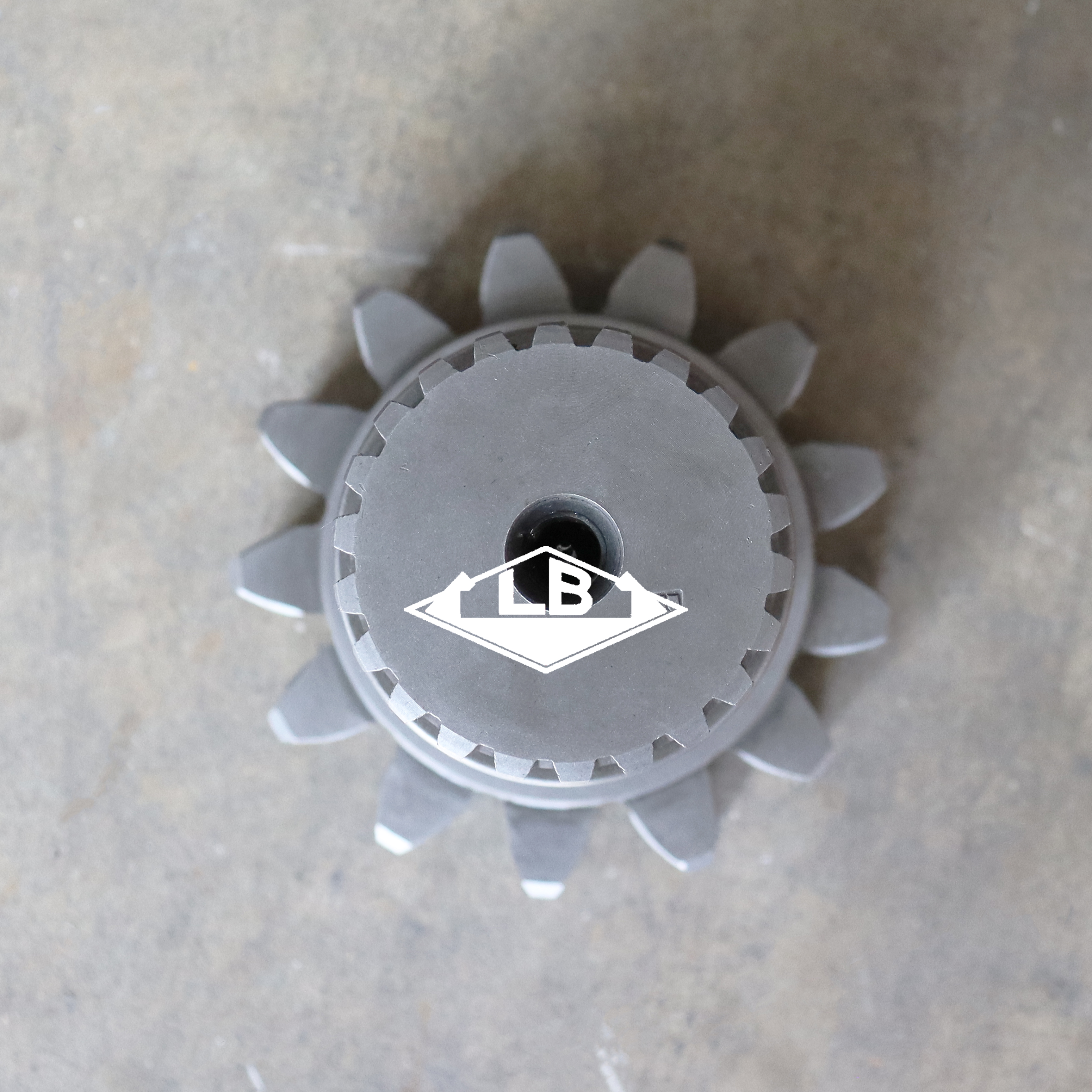

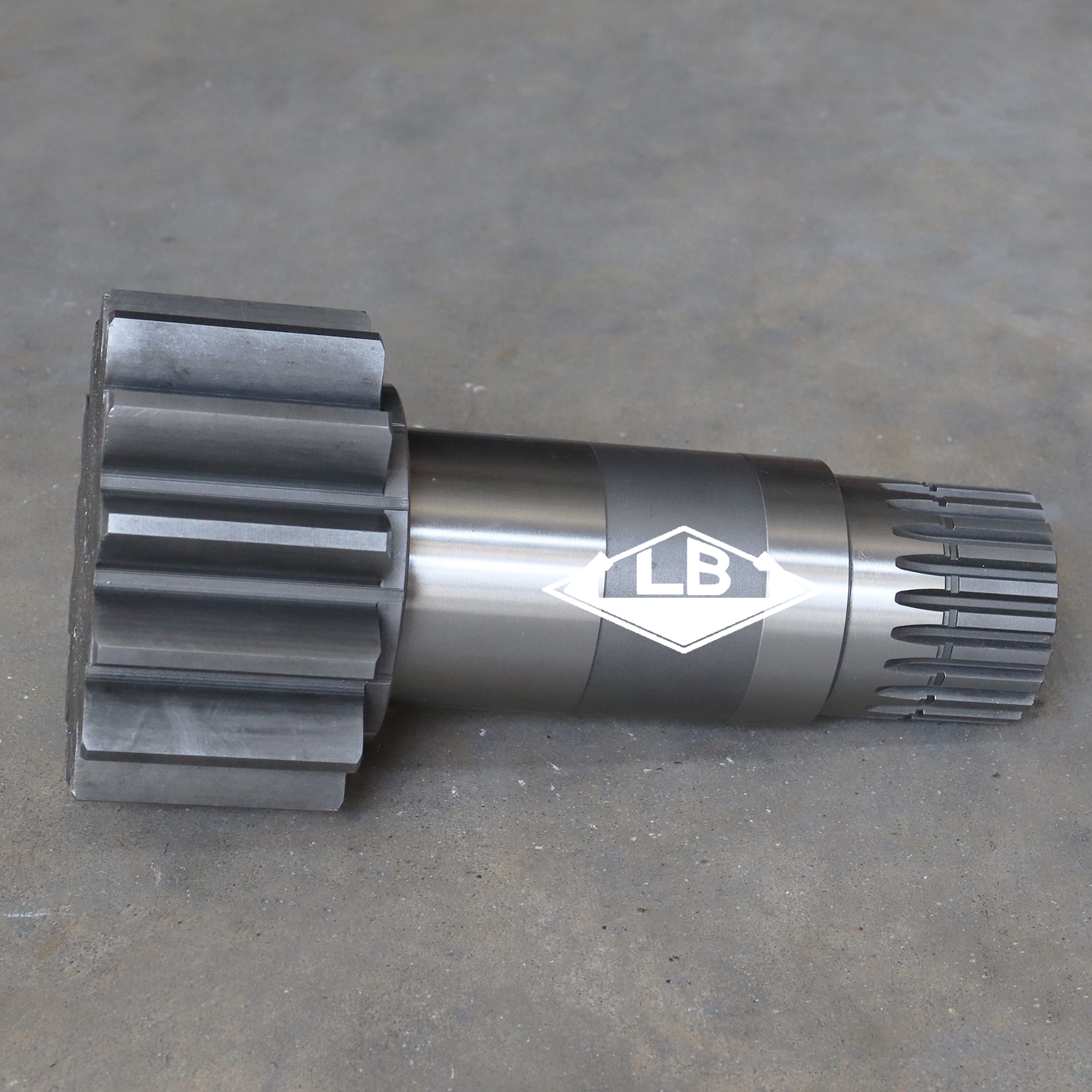

DX220 DX225 SOLAR220 SWING PINION SHAFT K1038207 2112-1248 SWING GEARBOX PART APPLY FOR DOOSAN EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name

DX220 DX225 Swing gearbox
Equipment Apply to DOOSAN EXCAVATOR
Part no. K1038207 2112-1248
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

DH225-7 回转大轴(2)DH225-7 回转大轴(4)DH225-7 回转大轴(6)DH225-7 回转大轴(8)DH225-7回转大轴

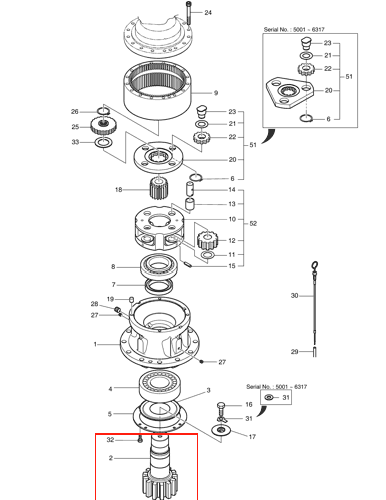

Parts on group DX220A / DX225LCA:

Pos. Part No Qty Parts name Comments
-. 130426-00010 [1]
130426-00010A
-. 130426-00010A [1]

-. K1038203 [1] SWING REDUCTION GEAR ASS'Y 130426-00010
1. K1038206 [1] CASING
10. K1038205 [1] CARRIER NO.2
11. 2114-1901A [4] WASHER;THRUST NO.2
12. 104-00050 [4] GEAR;PLANET NO.2
13. 110-00219 [4] BUSH NO.2
14. K1038208 [4] PIN NO.2
15. S5741200 [4] PIN;SPRING
16. S0121061 [1] BOLT
17. 114-00548 [1] WASHER;THRUST NO.3
18. 104-00048 [1] GEAR;SUN NO.2
19. 2705-1030 [4] PIN;KNOCK
2. K1038207 [1] SHAFT;DRIVE
20. 100502-00001 [1]

20. K1038204 [1] CARRIER NO.1
21. 114-00527 [4] WASHER;THRUST NO.1
21. 114-00527 [3] WASHER;THRUST NO.1
22. 130424-00001 [4]

22. 104-00049A [3] GEAR;PLANET NO.1
23. 120501-00009 [4]

23. 123-00435A [3] PIN ASS'Y NO.1
24. 120107-00002 [16]

24. S2217471 [16] BOLT;SOCKET
25. 130425-00001 [1]

25. 104-00047A [1] GEAR;SUN NO.1 130425-00001
26. S6500450 [1] RING;SNAP
27. 2181-1116D2 [2] PLUG
28. 2181-1116D4 [1] PLUG
29. 2140-1406 [1] PIPE;LEVEL GAUGE
3. 2412-1040 [1] PLATE
30. 2119-1065 [1] GAUGE;LEVEL
31. 120811-00001 [1]

31. S5231090 [1] WASHER;DOUBLE TAP
32. 120-00144 [8] BOLT
33. 120816-00001 [1]

4. 2109-9033 [1] BEARING;ROLLER
5. K1038685 [1] PLATE;COVER
51. K9008337 [1] CARRIER NO1 ASS'Y
51. 100502-00022 [1]

52. K9008338 [1] CARRIER NO2 ASS'Y
6. S6500380 [3] RING;SNAP
6. S6500380 [4] RING;SNAP
7. 2180-1254 [1] SEAL;OIL
8. 109-00174 [1] BEARING;ROLLER 140107-00715
8. 140107-00715 [1]

9. K1038210 [1] GEAR;RING
9. 130422-00001A [1]
