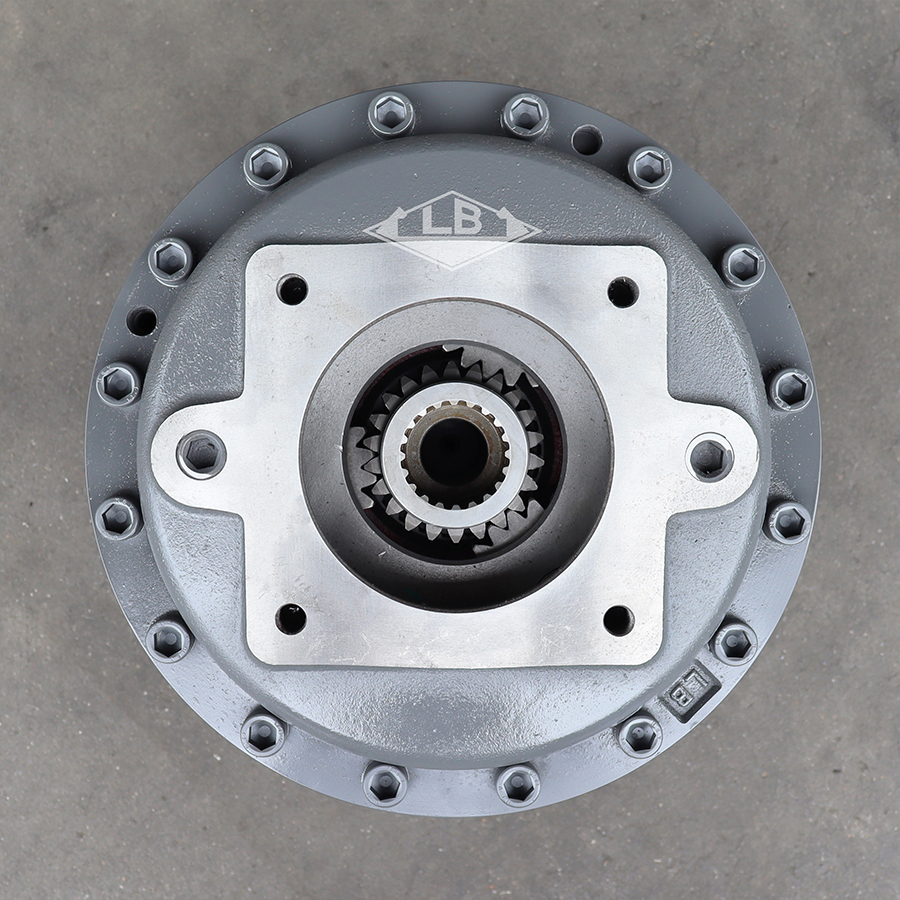

DH370 SOLAR330 SOLAR340 SWING REDUCTION GEAR 404-00094 404-00094A 404-00094B 130426-00014 2401-9279A SWING GEARBOX

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 DH370 SOLAR330 SOLAR340 swing gearbox
Equipment Apply to DOOSAN EXCAVATOR
Part no. 404-00094 130426-00014 2401-9279A
NO.1 sun gear spline teeth 20 splines
Swing pinion shaft teeth 14T
Item condition New
Logo LB
Gross weight 335 KG
MOQ 1 pc


Product Descriptio

DH370(2)DH370(3)

Parts on group SOLAR 330LC-V:

DH370

Pos. Part No Qty Parts name Comments
-. 404-00094 [1]   GEAR;REDUCTION
1. 105-00011 [1]   SHAFT
10. 104-00038 [1]   GEAR;SUN NO.1
11. 104-00042 [3]   GEAR;PLANETARY NO.1
12. 223-00044 [3]   PLATE;SIDE NO.1
13. 123-00457 [3]   PIN ASS'Y
14. 104-00040 [1]   GEAR;RING
15. 223-00045 [1]   PLATE;THRUST
16. 621-02348 [1]   COVER
17. 705-00008 [4]   PIN;LOCK
18. 114-00543 [1]   SPACER
19. 114-00544 [1]   COLLAR
2. 423-00172 [1]   CASE;GEAR
20. 159-00233 [1]   PLATE
21. 278-00090 [1]   RING;LOCK
22. 109-00168 [1]   BEARING;SPHERICAL ROLLER
23. 109-00169 [1]   BEARING;SPHERICAL ROLLER
24. 180-00444 [1]   SEAL;OIL
25. S5741361 [4]   PIN;SPRING
26. S5810030 [1]   PLUG
27. S5810010 [2]   PLUG
28. S5810050 [1]   PLUG
29. 120-00294 [16]   BOLT;SOCKET M16X180
3. 230-00056 [1]   CARRIER NO.2
30. 140-01343 [1]   PIPE
31. 119-00020 [1]   BAR;LEVEL
32. 120-00293 [4]   BOLT;SOCKET M16X40
33. 223-00046 [3]   PLATE;SIDE NO.3
34. S6500400 [3]   RING,RETAINING
35. 230-00064 [1]   CARRIER NO.1 ASS'Y
36. 230-00065 [1]   CARRIER NO.2 ASS'Y
4. 104-00039 [1]   GEAR;SUN NO.2
5. 104-00037 [4]   GEAR;PLANETARY NO.2
6. 223-00043 [4]   PLATE;SIDE NO.2
7. 123-00459 [4]   SHAFT FOR PIN NO.2
8. 110-00228 [4]   BUSH NO.2
9. 230-00057 [1]   CARRIER NO.1
