CX350 SH350 SWING REDUCER KSC10080 KSC10240R KSC10240C CX350 SWING GEARBOX FOR CASE EXCAVATOR

PRODUCT PARAMETERS

Part name	CX350 SH350 Swing gearbox
Equipment	Apply to Sumitomo, Case EXCAVATOR
Part no.	KSC10080 KSC10240R KSC10240C
NO.1 sun gear spline teeth	20 splines
Swing pinion shaft teeth	16T
Item condition	New
Logo	LB
Gross weight	474 KG
MOQ	1 pc

Product Description

SH350-5 回转牙箱(8) SH350-5 回转牙箱(4) SH350-5 回转牙箱（2） SH350-5 回转牙箱(6) SH350-5 回转牙箱(1)

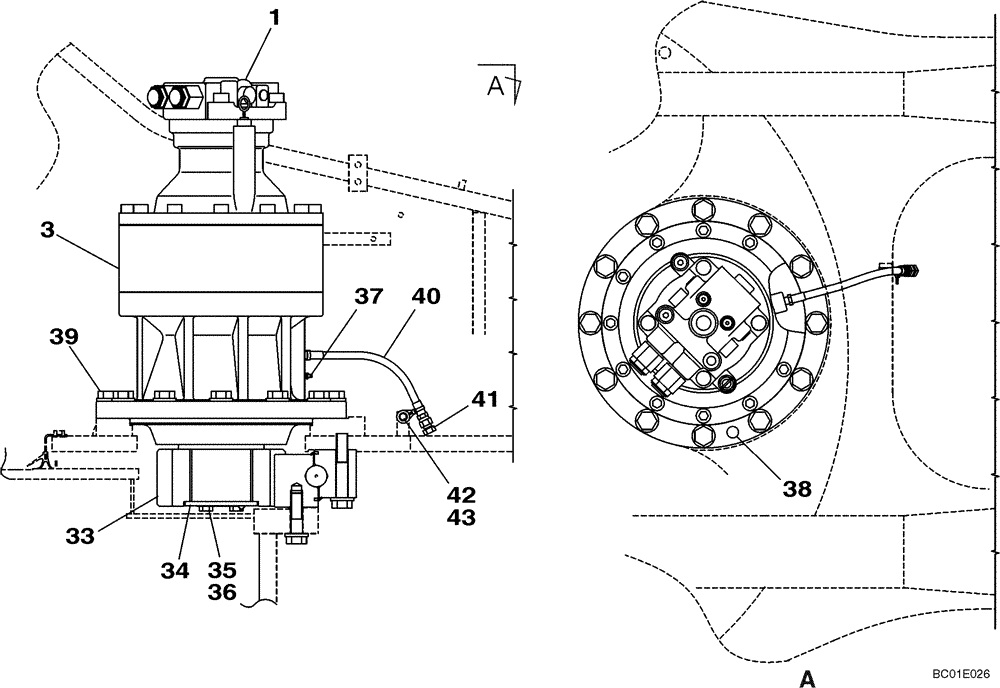

Pos.	Part No	Qty	Parts name	Comments
1.	KSC10070	[1]	HYDRAULIC MOTOR	SUM Swing; See Figure 08-54
1.	KSC10070R	[1]	REMAN-HYD MOTOR	RAC
1.	KSC10070C	[1]	CORE-MOTOR HYDRAULIC	RAC Return Number
3.	KSC10080	[1]	REDUCER	SUM Transmission; See Figure 08-55 Superseded by part number: KSC10490
3.	KSC10240R	[1]	REMAN-REDUCTION UNIT	RAC CX350B CRAWLER EXCAVATOR TIER 3 (NA), Transmission (5/08-), Reman for New PN KSC10080 Superseded by part number: KSC10350R
3.	KSC10240C	[1]	CORE-REDUCTION UNIT	RAC Return Number
. .	800-1145	[1]	SNAP RING,M45, Ext	CAS Not Shown Superseded by part number: 370007
33.	KSC0201	[1]	GEAR	SUM Pinion
34.	150285A1	[1]	PLATE, LOCKING	SUM
35.	167069A1	[1]	WASHER	SUM
36.	627-16040	[2]	BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd	CAS Superseded by part number: 374835
37.	153630A1	[1]	LUBE NIPPLE	SUM Grease
38.	150317A1	[1]	HEADED PIN,24mm OD x 90mm L	SUM
39.	166477A1	[12]	BOLT,Sems, M24 x 90mm	SUM
40.	KTJ0315	[1]	HYDRAULIC HOSE,9.52 mm ID x 350.00 mm	SUM Superseded by part number: KNJ14580
41.	KHP0501	[1]	PLUG	SUM
42.	KHR2584	[1]	CLAMP	SUM
43.	KHJ1215	[1]	BOLT,Spcl	SUM

Pos.	Part No	Qty	Parts name	Comments
. .	KSC10080	[1]	REDUCER	SUM Incl. 4 - 30 Superseded by part number: KSC10490
. .	KSC10240R	[1]	REMAN-REDUCTION UNIT	RAC CX350B CRAWLER EXCAVATOR TIER 3 (NA) (5/08-), Reman for New PN KSC10080 Superseded by part number: KSC10350R
. .	KSC10240C	[1]	CORE-REDUCTION UNIT	RAC Return Number
4.	KSC10100	[1]	SUN GEAR	SUM
5.	KSC0212	[1]	PLATE, THRUST	SUM
6.	KSC0245	[1]	CARRIER	SUM
7.	KSC0246	[1]	CARRIER	SUM
8.	KSC0219	[1]	SUN GEAR	SUM
9.	KSC10110	[1]	RING GEAR	SUM
10.	KTC0155	[4]	PIN	SUM
11.	KSC10120	[1]	HOUSING	SUM Gear
12.	KSC0207	[1]	BEARING,120mm ID x 200mm OD x 62mm W	SUM
13.	KSC0210	[1]	SPACER	SUM
14.	150824A1	[1]	PLUG	SUM
15.	KTC0153	[1]	OIL SEAL	SUM
16.	158352A1	[2]	PLUG	SUM
17.	KSC0249	[1]	SPACER	SUM
18.	150491A1	[1]	ROLLER BEARING,130mm ID x 280mm OD x 93mm W	SUM
19.	KSC0250	[1]	BEARING COVER	SUM Bearing
20.	KSC0251	[1]	RETAINING WIRE	SUM
21.	KSC0214	[1]	SPACER	SUM
22.	KSC0222	[1]	SHAFT	SUM
23.	NSS	[4]	NOT SOLD SEPARAT	CON Pin, 10 x 40 mm
24.	NSS	[4]	NOT SOLD SEPARAT	CON Plate
25.	NSS	[4]	NOT SOLD SEPARAT	CON Gear
26.	NSS	[4]	NOT SOLD SEPARAT	CON Pin
27.	NSS	[3]	NOT SOLD SEPARAT	CON Pin
28.	NSS	[3]	NOT SOLD SEPARAT	CON Plate
29.	NSS	[3]	NOT SOLD SEPARAT	CON Gear
30.	150483A1	[12]	BOLT,Hex Skt, M20	SUM
