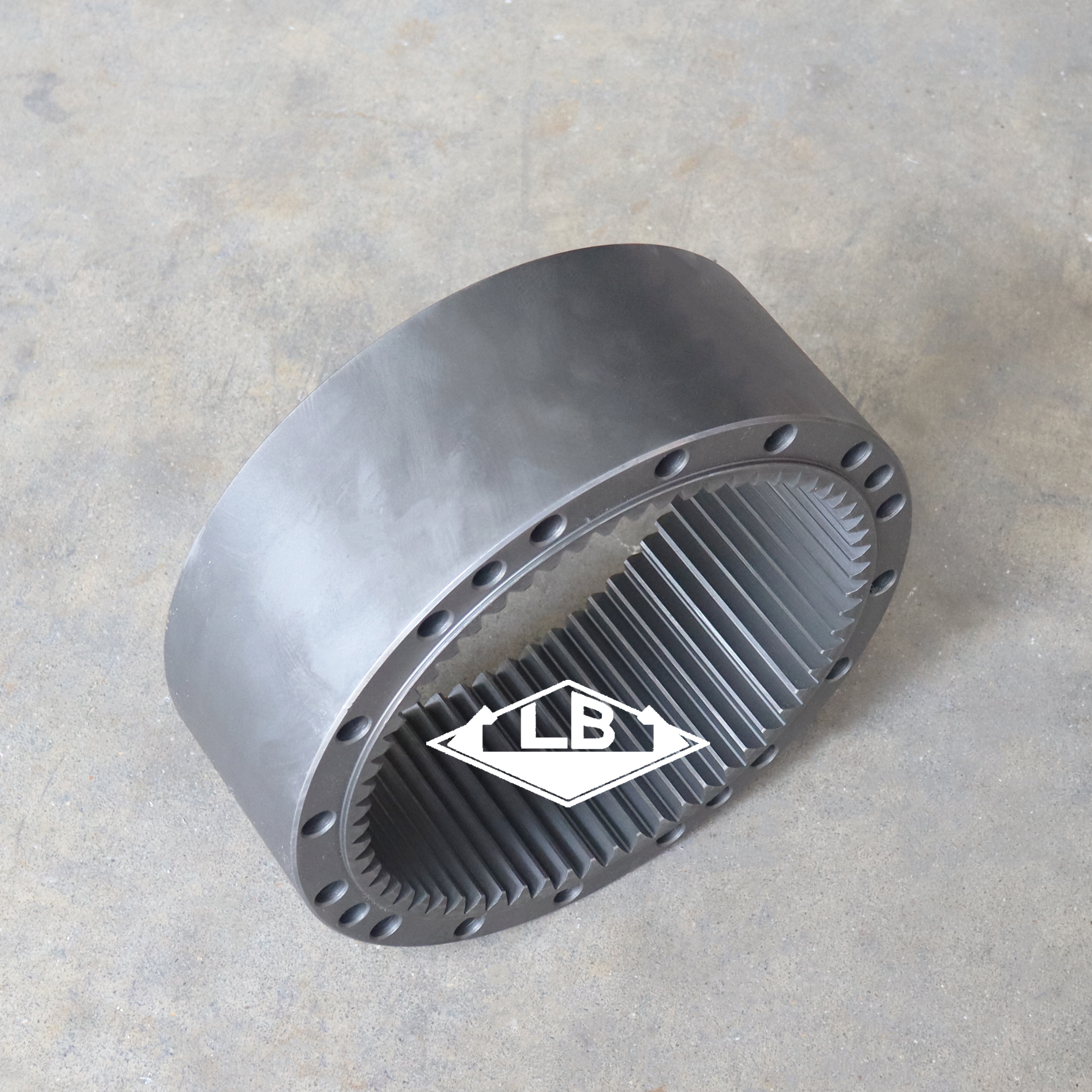

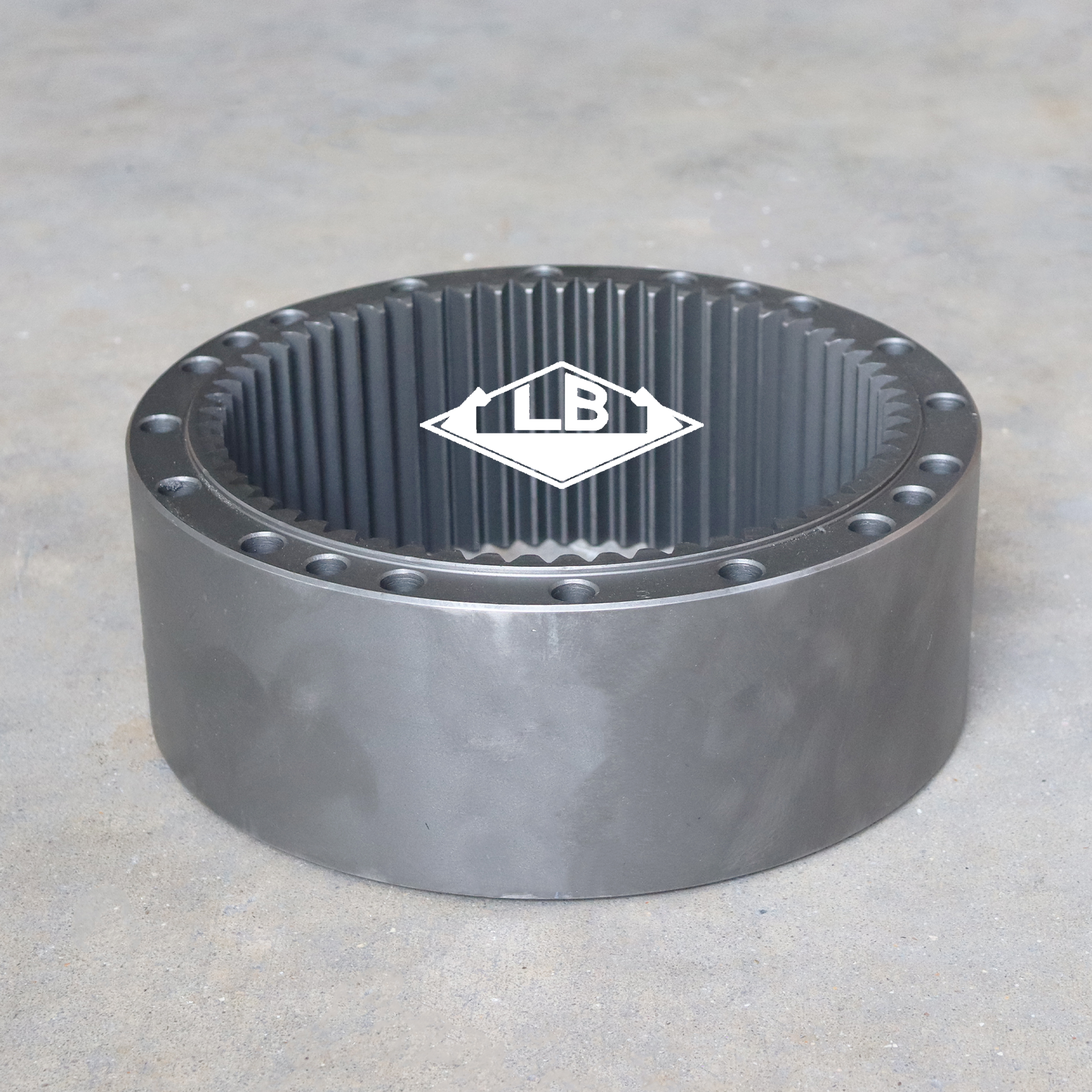

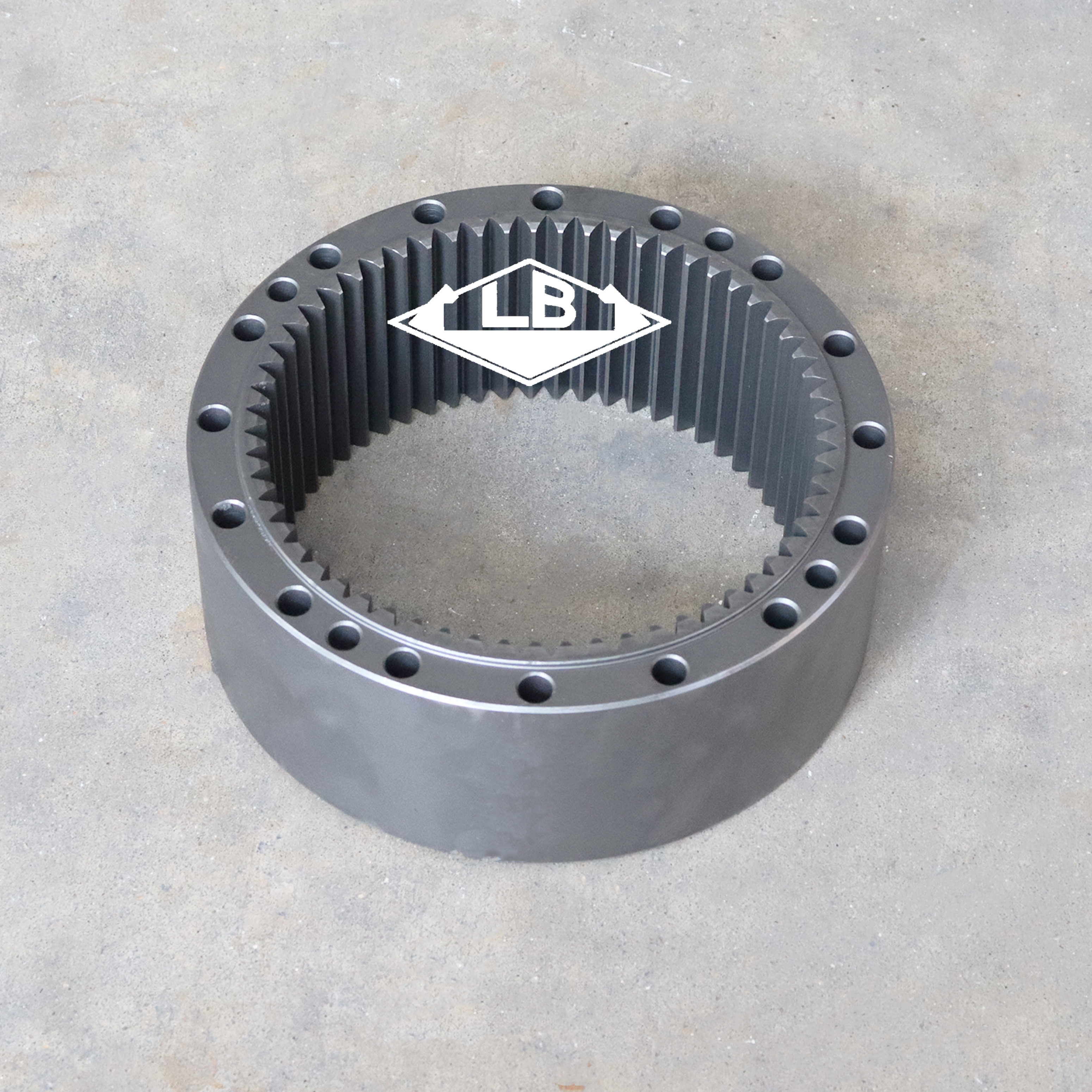

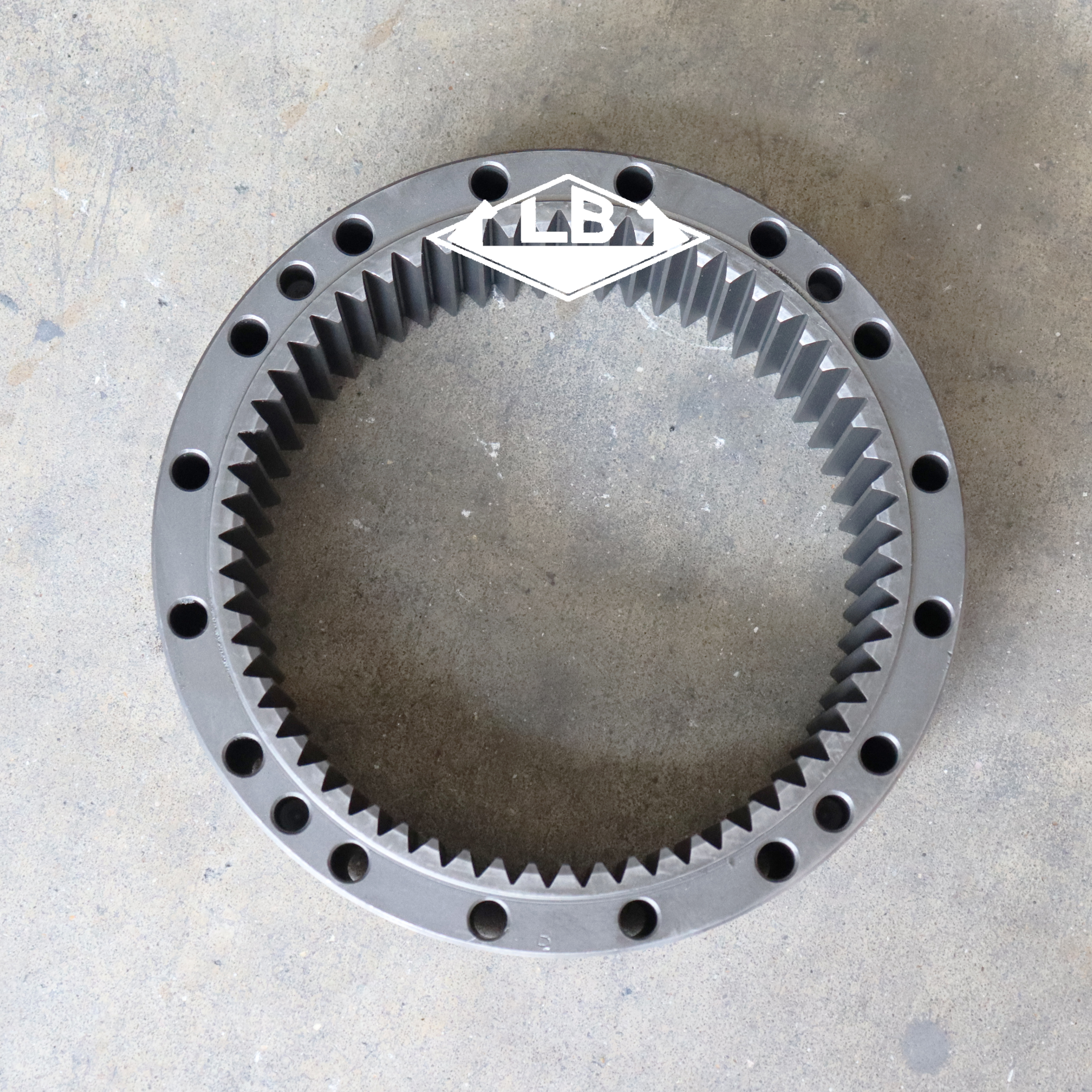

CX210 CX220 SWING RING GEAR KRC0151 LC00221 GEARBOX PARTS FOR CASE EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name

CX210 CX220 Swing gearbox
Equipment Apply to CASE EXCAVATOR
Part no. KRC0151 LC00221
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

SH200 回转齿圈(8)SH200 回转齿圈(2)SH200 回转齿圈(4)SH200 回转齿圈(6)SH200 回转齿圈

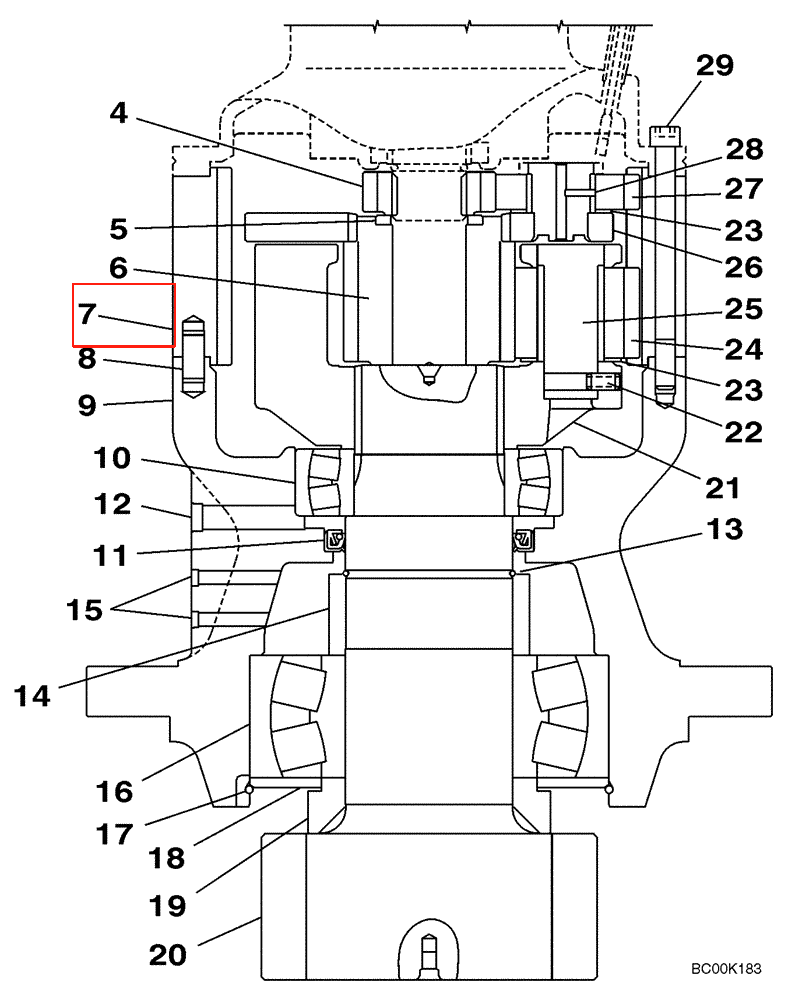

Parts on group (CX210) - CASE STANDARD CRAWLER EXCAVATOR (NORTH AMERICA) (4/00-12/06):

Pos. Part No Qty Parts name Comments
. . KRC0158 [1] REDUCER SUM Incl. 4 - 28 Superseded by part number: LN00111
. . LN00111R [1] REMAN-REDUCTION UNIT SUM CX210, CX210LR, CX210N ~DAC0721850 & ASN DAC211851 Reman for new P/N KRC0158
. . LN00111C [1] CORE-REDUCTION UNIT SUM Return Number
4. KRC0147 [1] GEAR SUM Superseded by part number: KRC10430
5. KRC0154 [1] PLATE SUM
6. KRC0148 [1] GEAR SUM Superseded by part number: KRC10440
7. KRC0151 [1] GEAR SUM
8. KRC0155 [4] PIN SUM
9. KRC0144 [1] HOUSING SUM
10. KRC0136 [1] ROLLER BEARING,90mm ID x 160mm OD x 40mm W SUM Spherical
11. KRC0138 [1] SEAL SUM
12. 150824A1 [1] PLUG SUM
13. KRC0141 [1] RETAINING WIRE SUM
14. KRC0143 [1] SPACER SUM
15. 158352A1 [2] PLUG SUM
16. KRC0137 [1] BEARING,100mm ID x 215mm OD x 73mm W SUM
17. KRC0140 [1] SNAP RING SUM
18. KRC0139 [1] COVER SUM
19. KRC0142 [1] SPACER SUM
20. KRC0135 [1] SHAFT SUM
21. KRC0145 [1] PINION CARRIER SUM GEAR CARRIER Superseded by part number: KRC10450
22. 338W100Z020B [3] COTTER PIN SUM
23. KRC0156 [6] PLATE SUM
24. KRC0150 [3] GEAR SUM Superseded by part number: KRC10560
25. KRC0153 [3] PIN SUM Superseded by part number: KRC10660
26. KRC0146 [1] PINION CARRIER SUM GEAR CARRIER
27. KRC0149 [3] GEAR SUM
28. KRC0152 [3] PIN SUM Superseded by part number: KRC10670
29. KRC0163 [16] BOLT SUM
