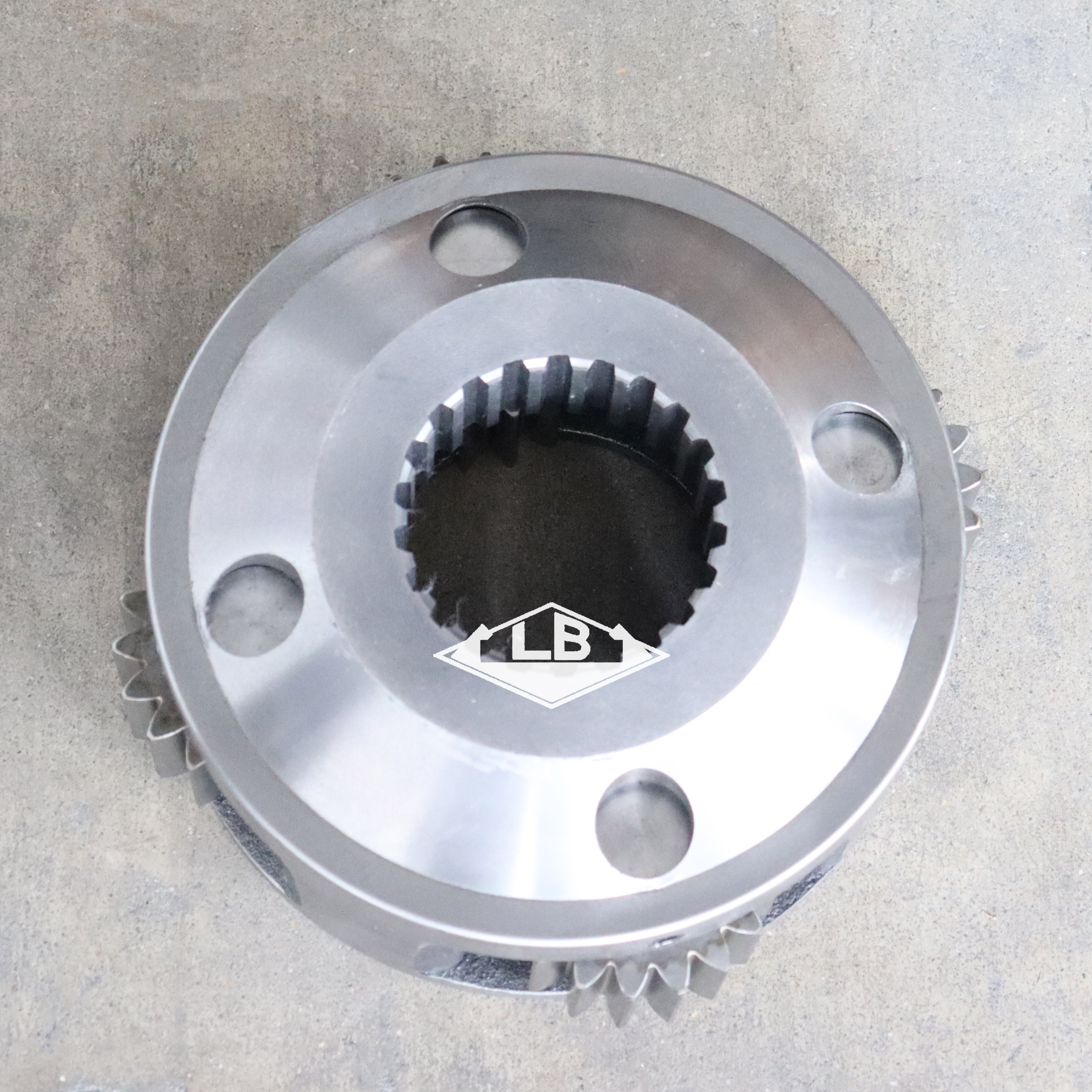

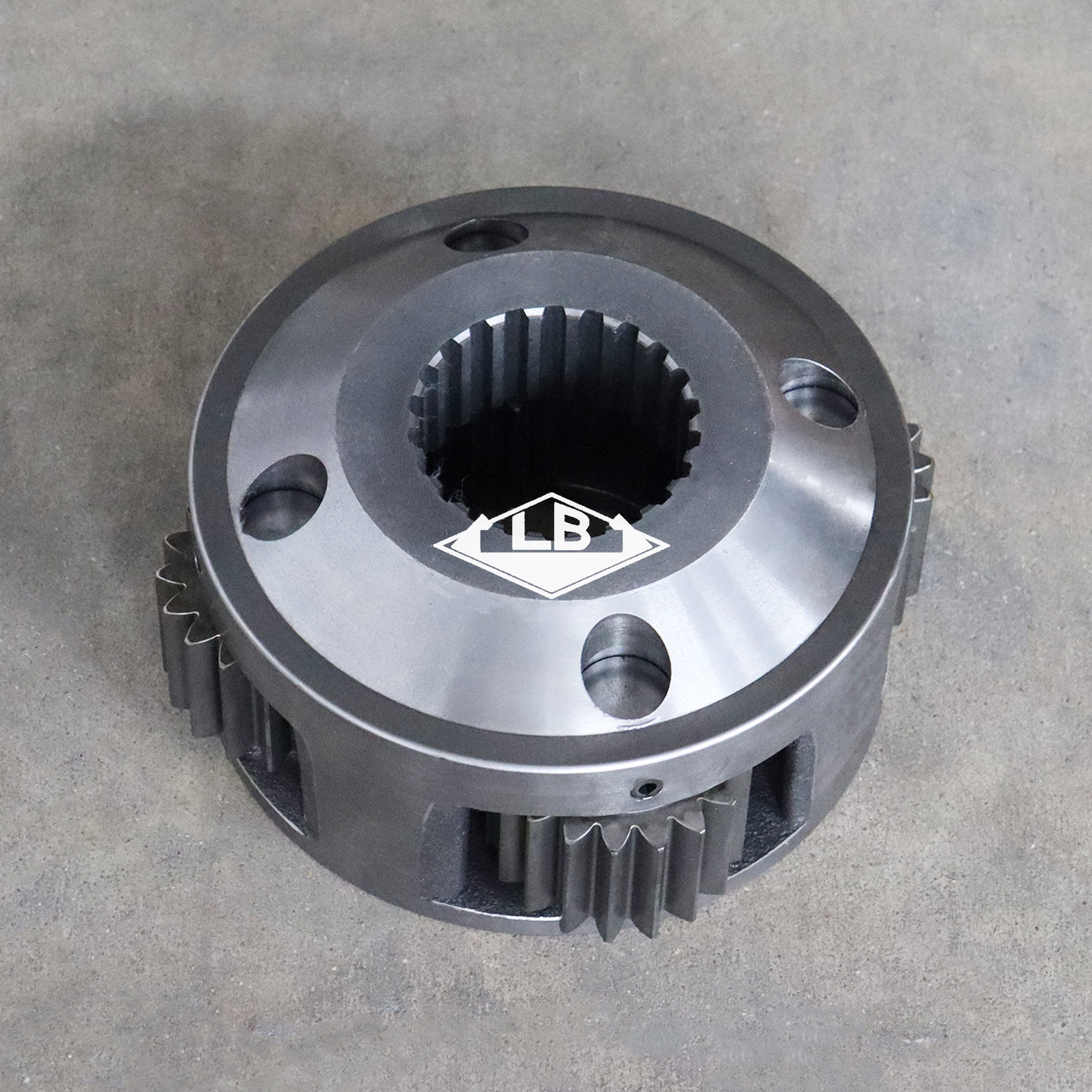

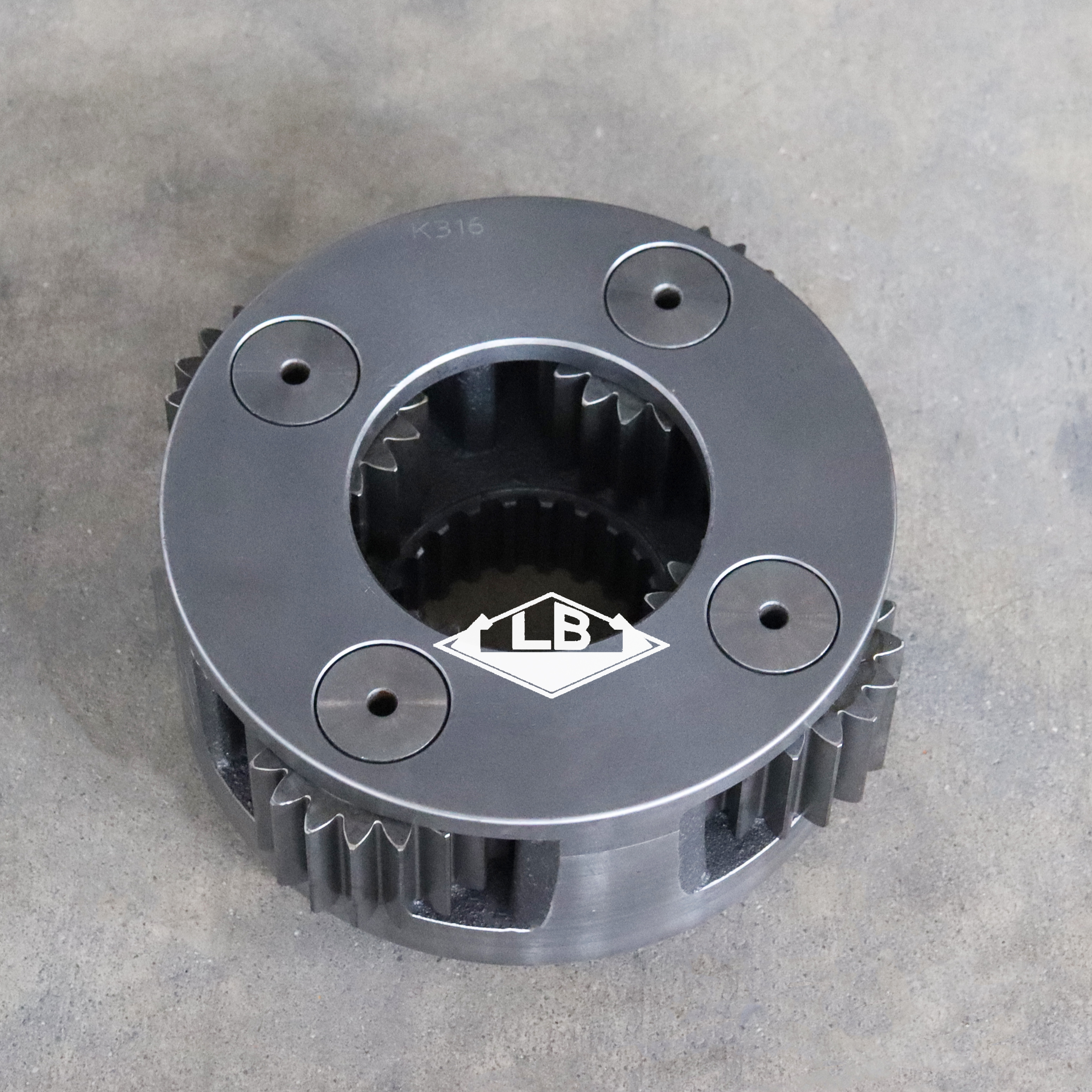

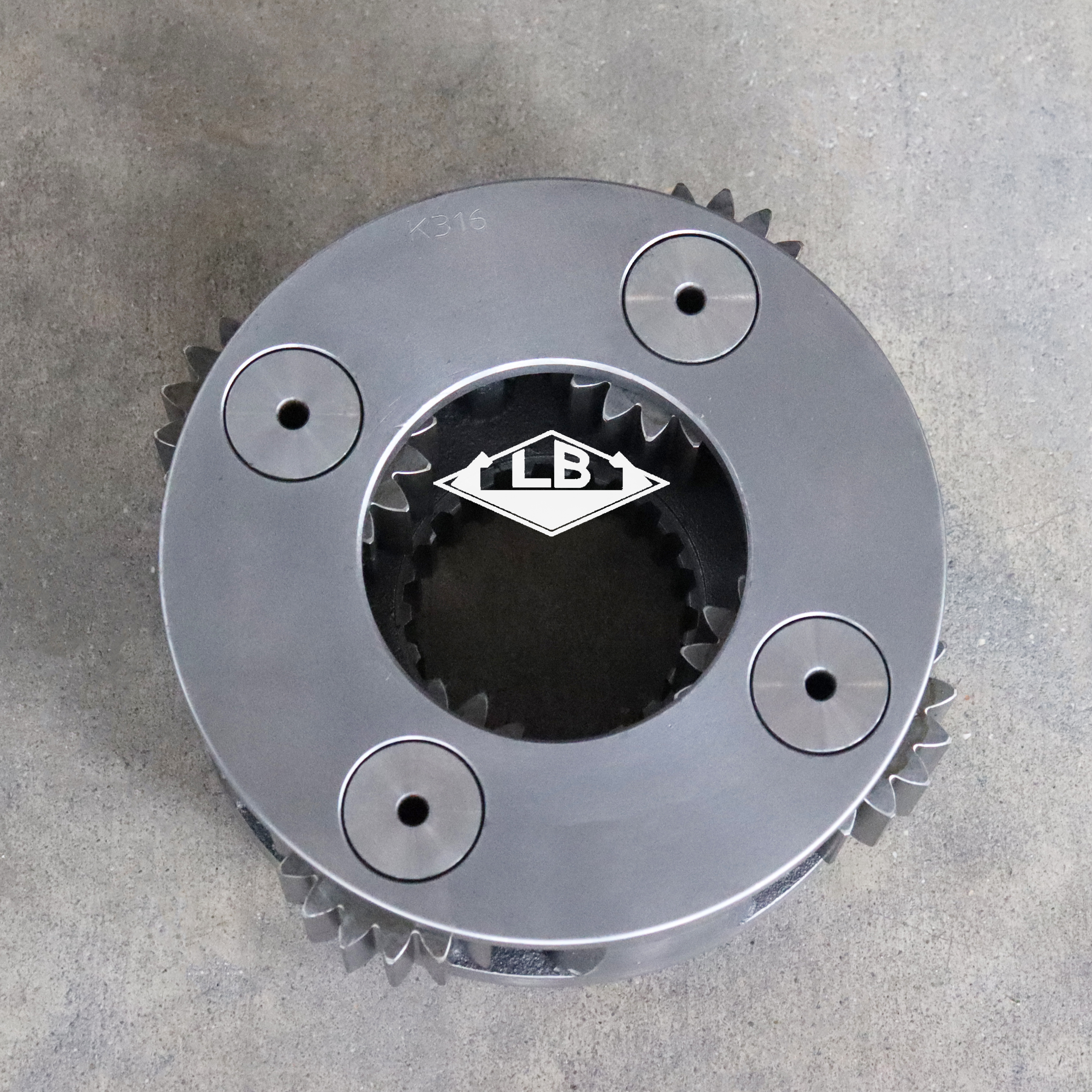

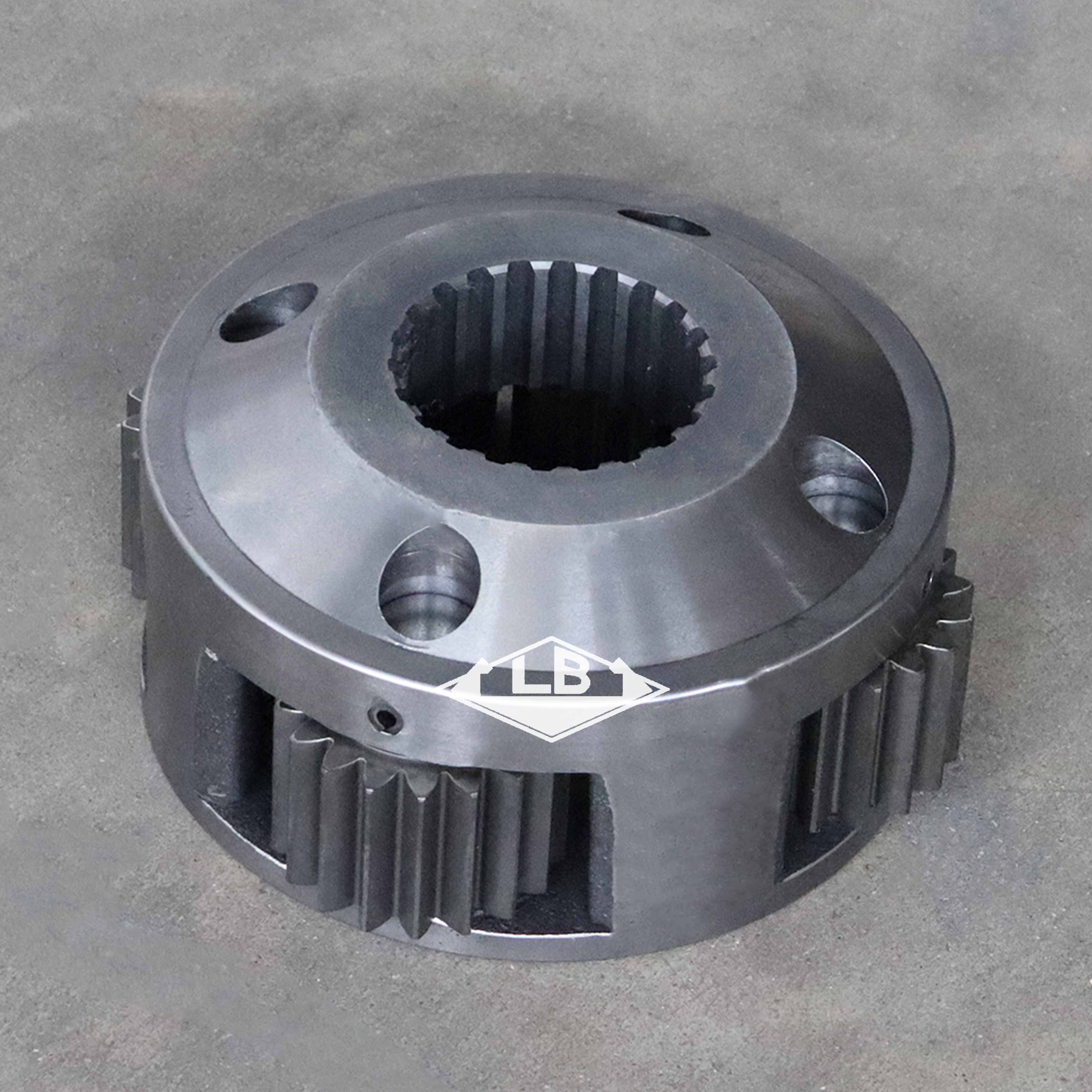

| Part name | CX210 CX220 Swing gearbox | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | 168437A1 | |||||
| NO.1 sun gear spline teeth | 18 splines | |||||
| Swing pinion shaft teeth | 13 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||

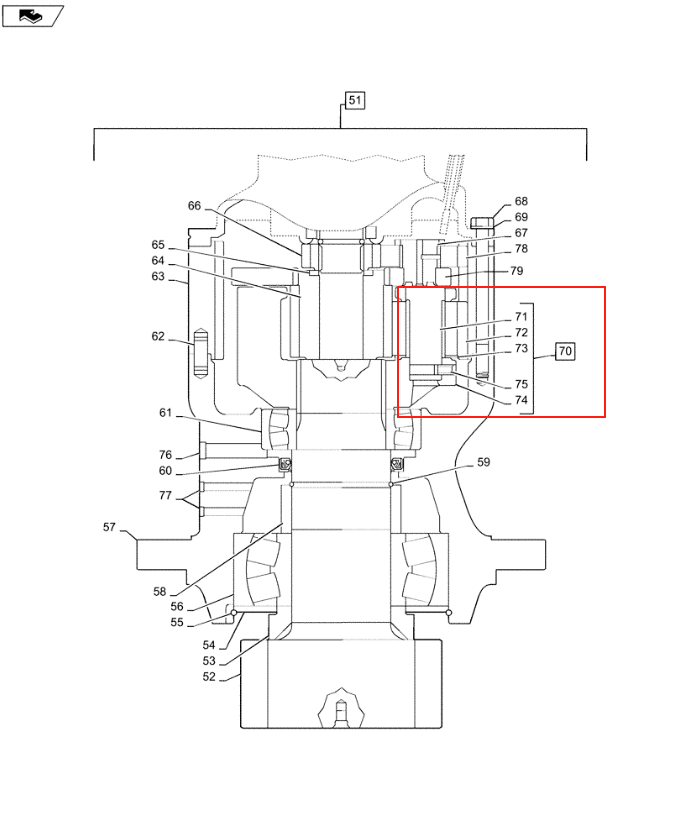

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 51. | LN00111 | [1] | REDUCER | SUM Incl. 52 - 79 |
| . . | LN00111R | [1] | REMAN-REDUCTION UNIT | SUM CX210, CX210LR, CX210N |
| . . | LN00111C | [1] | CORE-REDUCTION UNIT | SUM Return Number |
| 52. | 165956A1 | [1] | GEAR SHAFT | SUM |
| 53. | 160548A1 | [1] | COLLAR | SUM Superseded by part number: 160547A1 |
| 54. | 156356A1 | [1] | PLATE | SUM |
| 55. | 155685A1 | [1] | RING, SNAP | SUM RING SNAP |
| 56. | 156157A1 | [1] | BEARING, ROLLER,110mm ID x 215mm OD x 73mm W | SUM |
| 57. | LW00402 | [1] | HOUSING | SUM |
| 58. | LH00337 | [1] | COLLAR | SUM |
| 59. | 155686A1 | [1] | RING, SNAP | SUM RING SNAP |
| 60. | 155107A1 | [1] | OIL SEAL | SUM |
| 61. | 160611A1 | [1] | BEARING, ROLLER,90mm ID x 160mm OD x 40mm W | SUM |
| 62. | 155621A1 | [1] | COTTER PIN | SUM |
| 63. | LC00221 | [1] | RING GEAR | SUM |
| 64. | 160520A1 | [1] | GEAR | SUM |
| 65. | LKM0108 | [1] | PLATE | SUM Superseded by part number: 160047A1 |
| 66. | LC00222 | [1] | SUN GEAR | SUM |
| 67. | LS00222 | [1] | HOLDER | SUM |
| 68. | LA00069 | [16] | BOLT | SUM Superseded by part number: 102R012Y150R |
| 69. | 892-10012 | [16] | LOCK WASHER,M12 | CAS |
| 70. | 168437A1 | [1] | HOLDER | SUM Incl. 71 - 75 |
| 71. | LB00758 | [3] | SHAFT | SUM |
| 72. | LC00149 | [3] | PLANETARY GEAR | SUM |
| 73. | 155383A1 | [3] | WASHER, THRUST | SUM |
| 74. | LA00068 | [3] | DOWEL | SUM |
| 75. | LS00190 | [1] | HOLDER | SUM |
| 76. | 151030A1 | [1] | PLUG | SUM |
| 77. | LK00053 | [2] | PLUG | SUM |
| 78. | KRC0149 | [3] | GEAR | SUM |
| 79. | KRC0146 | [3] | PINION CARRIER | SUM |
